高性能疏松纳滤膜的制备研究进展

doi:10.19965/j.cnki.iwt.2021-0361

摘要/Abstract

摘要：

疏松纳滤（Loose nanofiltration，LNF）是近几年发展迅速并得到大量研究的一种纳滤分离技术。LNF膜是一种具有纳滤（NF）和超滤（UF）边界孔径的膜，可以在较低的压力下应用且具有较高的选择性，应用前景广阔，尤其在生物质和废水资源化方面表现出明显的优势，是目前的研究热点之一。介绍了近年来关于LNF膜在运行机理、制备方法和应用范围等方面的研究进展；重点介绍了目前LNF膜的制备方法，这些方法主要是通过提升膜表面的亲水性来提升膜的分离性能。主要包括最基本的制备方法（相转化法、界面聚合法），以及在此基础上发展起来的贻贝启发沉积法、有机无机杂化法等，并阐述了根据不同的应用环境，针对性地采用不同方法所制得膜的性能特点及其优势。由于不断提升的标准和越来越注重的资源循环需求，LNF膜在资源回收和废水处理领域都展现出了不俗的表现。最后结合LNF膜近年来的研究进展，对其未来的研究方向和应用前景进行了展望，为未来疏松纳滤膜的性能提升和应用提供参考。

关键词: 疏松纳滤膜, 相转化, 界面聚合

Abstract:

Loose nanofiltration（LNF） is a nanofiltration separation technique that is developing rapidly and getting a lot of research in recent years. Due to its high selectivity in nanofiltration and strong ability to operate under lower pressure，LNF membrane，a membrane with nanofiltration（NF） and ultrafiltration（UF） boundary apertures，has become a research hot spot with broad application prospect. It exhibits distinct advantages in resource recovery from biomass and wastewater. The recent developments of LNF membranes in terms of operating mechanism，preparation methods，and application scope were reviewed. The current preparation methods of LNF films were mainly introduced，which was to improve the separation performance of membrane by improving the hydrophilicity of membrane surface. The most basic preparation methods of LNF membrane（phase transformation method，interface polymerization method），and the research progress of mussel inspired deposition method，organic-inorganic hybrid method etc developed on the basis of these methods were mainly introduced. Also，the performance characteristics and advantages of the films prepared by different methods according to different application environments were described. In terms of the application of LNF membranes，due to the increasing standards and focus on the demand for resource recycling，LNF membranes show excellent performance in the fields of resource recycling and wastewater treatment. In the end，combined with the recent research progress，the future research directions and application prospects of the LNF membranes were discussed. It provides reference for the performance improvement and future application of porous nanofiltration membrane.

Key words: loose nanofiltration membrane, phase inversion, interfacial polymerization

中图分类号:

X703
TQ028.8

樊华, 王一雯, 姜钦亮, 范敏, 桂双林, 韩飞. 高性能疏松纳滤膜的制备研究进展[J]. 工业水处理, 2022, 42(5): 1-10.

Hua FAN, Yiwen WANG, Qinliang JIANG, Min FAN, Shuanglin GUI, Fei HAN. Research progress of preparation of high performance loose nanofiltration membranes[J]. Industrial Water Treatment, 2022, 42(5): 1-10.

https://www.iwt.cn/CN/Y2022/V42/I5/1

图/表 6

表1 商业LNF膜主要信息

Table 1 Main information of commercial LNF membranes

生产供应商	膜名称	膜材料	截留分子质量（MWCO）/u	水通量/（L·m^-2·h^-1·MPa^-1）	盐截留率/%	参考文献
GE Osmonics	DK	聚酰胺	~150~300	100	96.0（MgSO₄）	〔8〕
GE Osmonics	NDX	聚酰胺	500~700	79~101	95.0（MgSO₄）	〔9〕
Microdyn Nadir	TriSep SBNF	醋酸纤维素	~150	120~177	97.0（MgSO₄）	〔10〕
Ultura	Sepro NF 2A	聚酰胺	529	101	21.2（NaCl）	〔11〕
Ultura	Sepro NF 6	聚酰胺	847	167	7.3（NaCl）	〔11〕

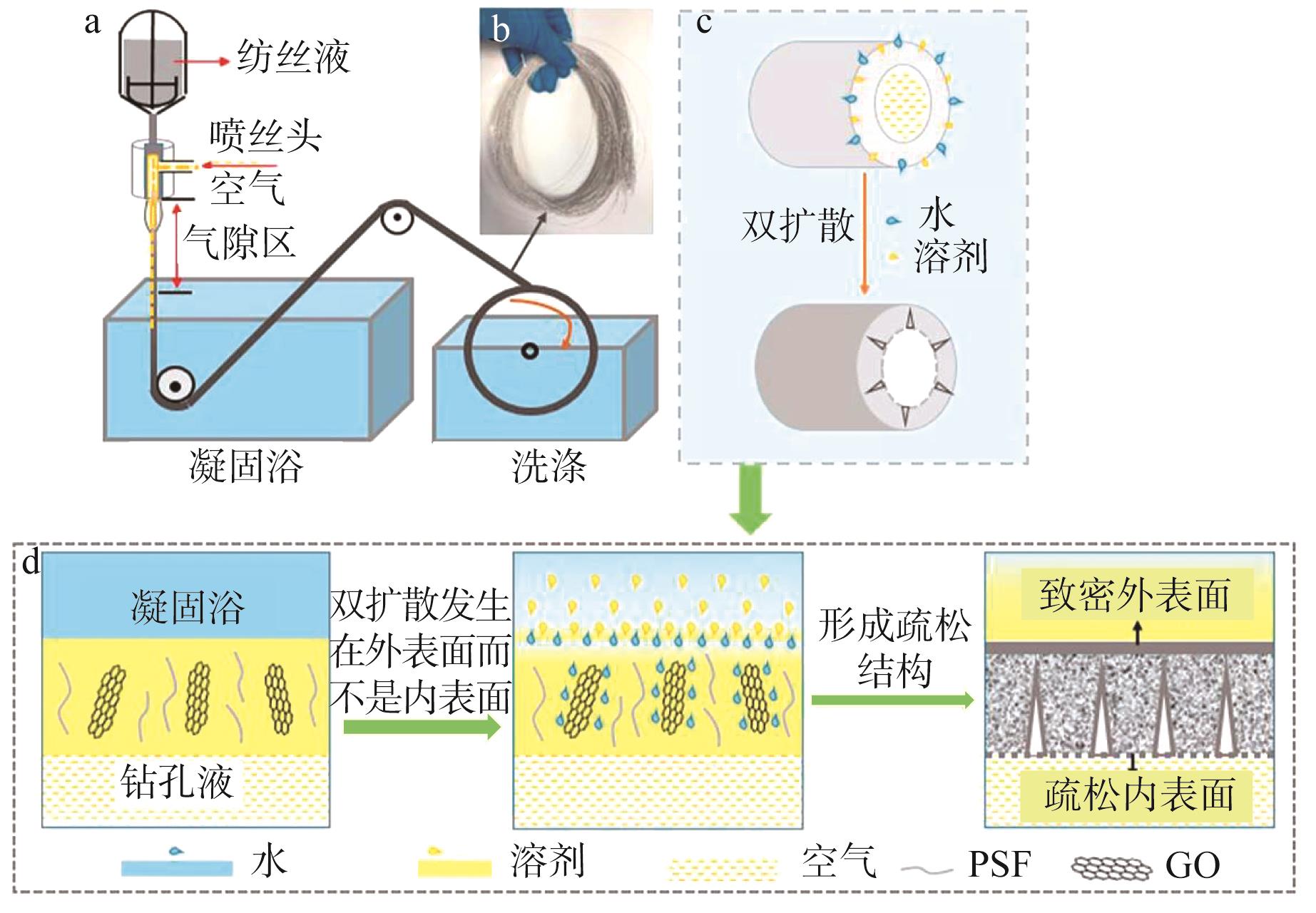

图1 中空纤维膜制备工艺示意图及穿透的指状孔隙和密松结构的形成机理

Fig. 1 Schematic diagram of hollow fiber membrane preparation process and formation mechanism of penetrating fingerlike pores and dense pine structure

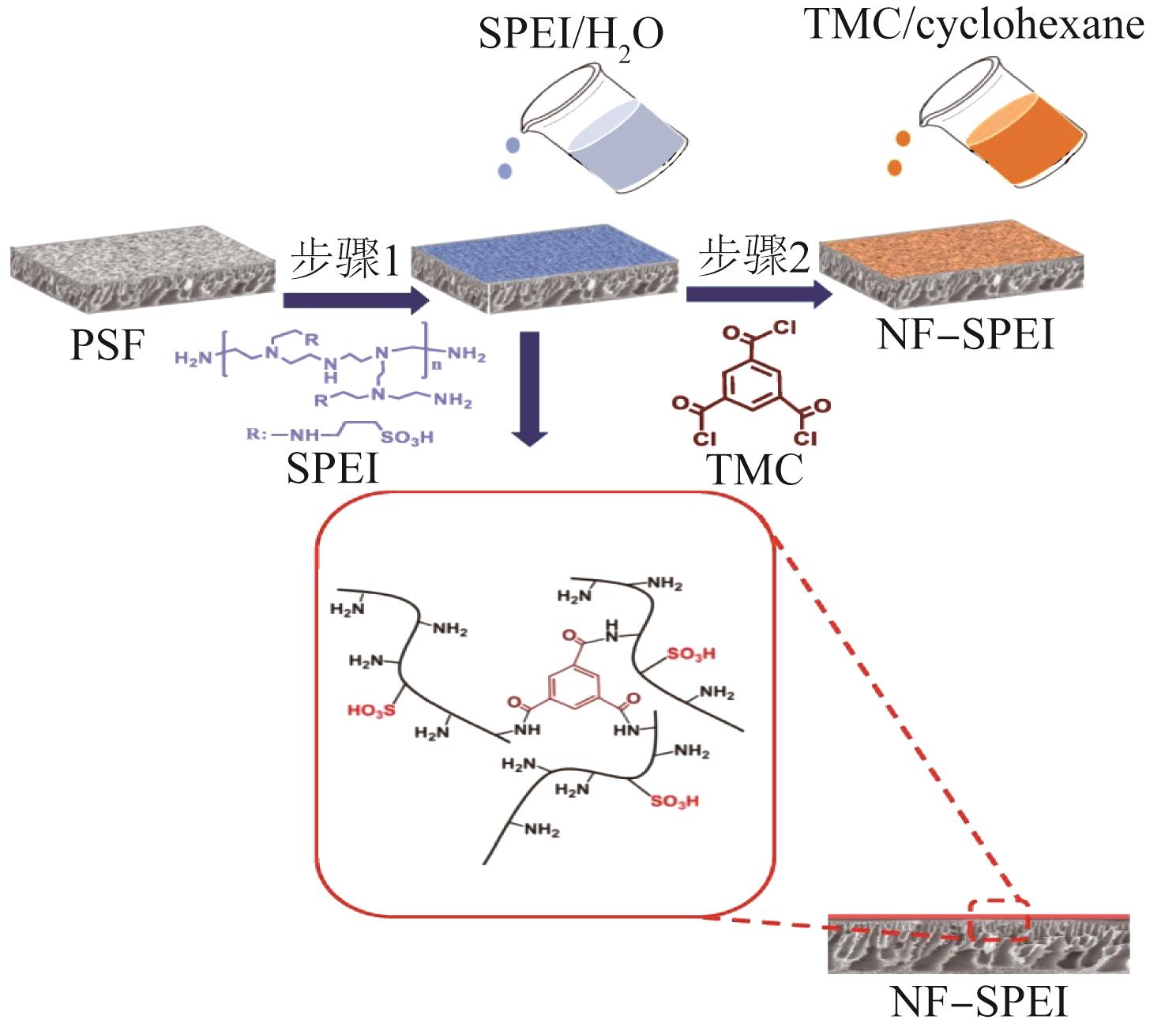

图2 SPEI和三聚氯化苯交联

Fig. 2 Cross-linked SPEI with tripolychlorobenzene

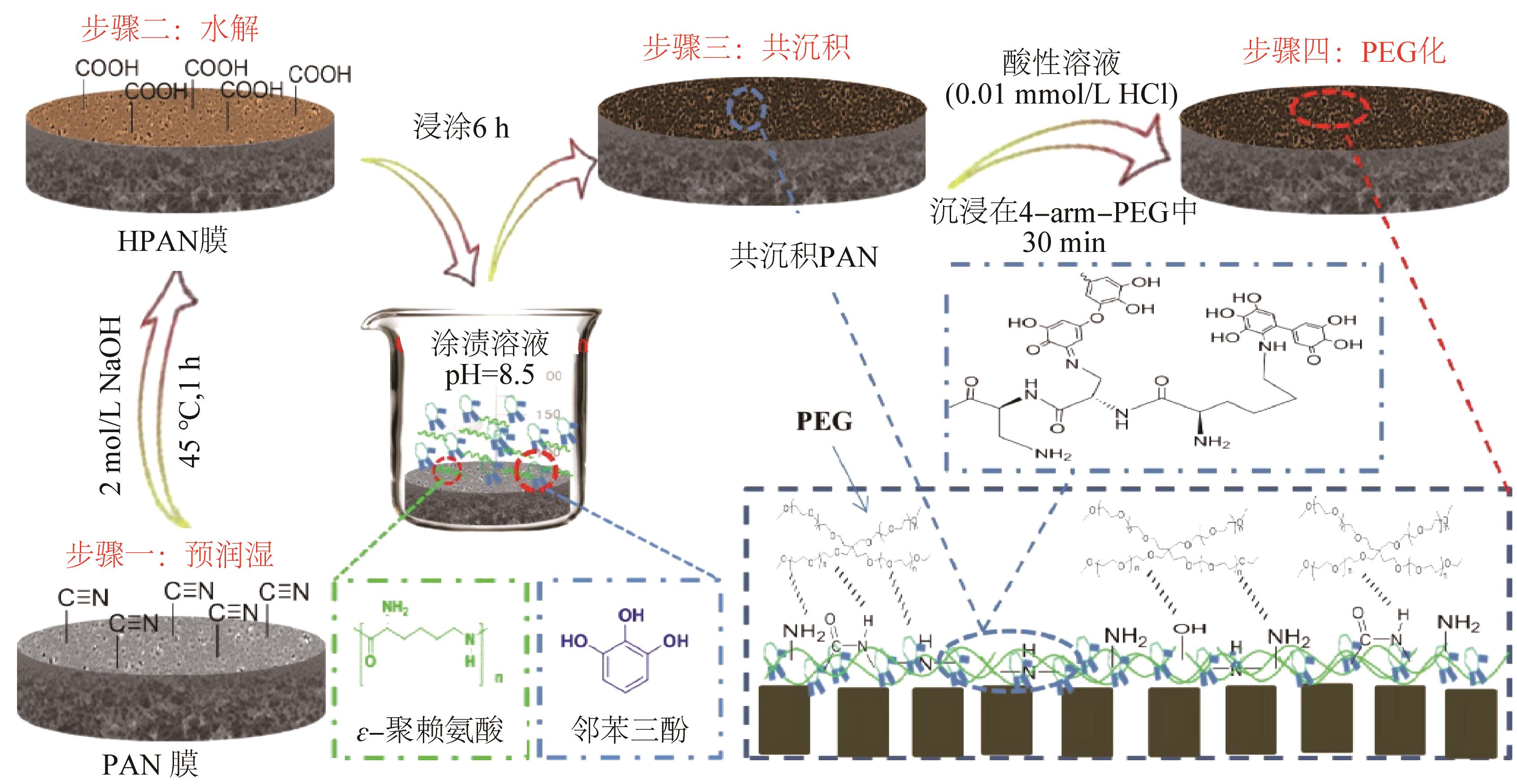

图3 纳滤复合膜的总体制备工艺示意

Fig. 3 Schematic illustration of the overall preparation process of the NF composite membrane

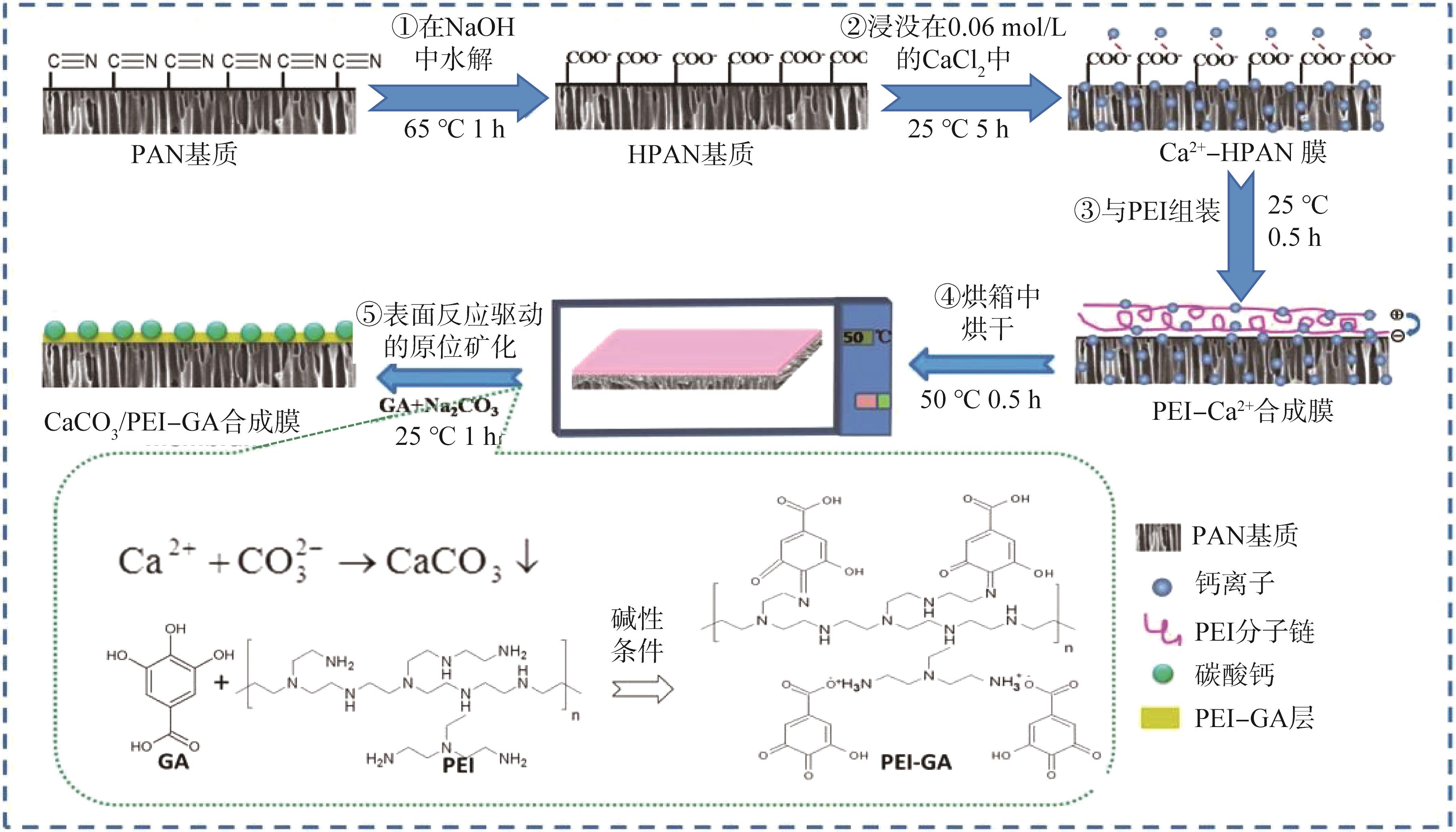

图4 Ca²⁺在聚合物层中原位生长过程

Fig. 4 Ca²⁺ grows in situ in the polymer layer

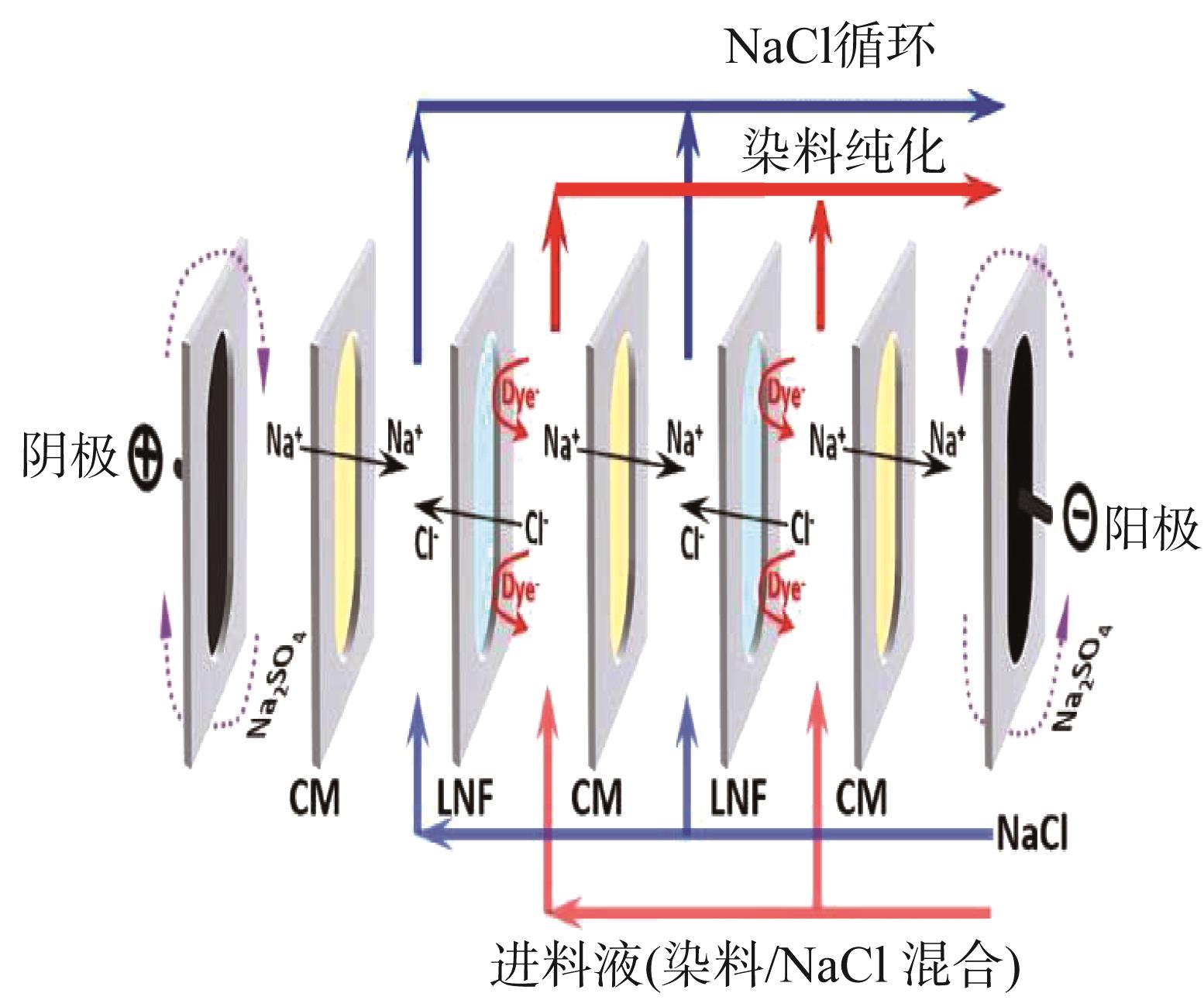

图5 电渗析与LNF膜

Fig. 5 Electrodialysis and LNF membrane

参考文献 78

1	高晓琪，俞开昌，王小毛.疏松型纳滤膜对饮用水中无机阳离子的截留特性及分离选择性［J］.环境科学学报，2020，40（8）：2700-2707. doi:10.13671/j.hjkxxb.2020.0084
	GAO Xiaoqi， YU Kaichang， WANG Xiaomao.Rejection behaviors and separation selectivity of loose nanofiltration membranes for mineral ions in drinking water［J］.Acta Scientiae Circumstantiae，2020，40（8）：2700-2707. doi:10.13671/j.hjkxxb.2020.0084
2	WEI Yuxuan， Yanlong LÜ， GUO Beidou，et al.Hierarchical molybdenum disulfide nanosheet arrays stemmed from nickel⁃cobalt layered double hydroxide/carbon cloth for highly⁃efficient hydrogen evolution reaction［J］.Journal of Energy Chemistry，2021，57：587-592. doi:10.1016/j.jechem.2020.09.024
3	MA Jingwen， CAI An， GUAN Xinglong，et al.Preparation of ultrathin molybdenum disulfide dispersed on graphene via cobalt doping：A bifunctional catalyst for hydrogen and oxygen evolution reaction［J］.International Journal of Hydrogen Energy，2020，45（16）：9583-9591. doi:10.1016/j.ijhydene.2020.01.176
4	ABDEL⁃FATAH M A.Nanofiltration systems and applications in wastewater treatment：Review article［J］.Ain Shams Engineering Journal，2018，9（4）：3077-3092. doi:10.1016/j.asej.2018.08.001
5	NATH K， DAVE H K， PATEL T M.Revisiting the recent applications of nanofiltration in food processing industries：Progress and prognosis［J］.Trends in Food Science & Technology，2018，73：12-24. doi:10.1016/j.tifs.2018.01.001
6	BRUGGEN B VAN DER， CURCIO E， DRIOLI E.Process intensification in the textile industry：The role of membrane technology［J］.Journal of Environmental Management，2004，73（3）：267-274. doi:10.1016/j.jenvman.2004.07.007
7	GUO Shiwei， WAN Yinhua， CHEN Xiangrong，et al.Loose nanofiltration membrane custom⁃tailored for resource recovery［J］.Chemical Engineering Journal，2021，409：127376. doi:10.1016/j.cej.2020.127376
8	CISSÉ M， VAILLANT F， PALLET D，et al.Selecting ultrafiltration and nanofiltration membranes to concentrate anthocyanins from Roselle extract（Hibiscus sabdariffa L.）［J］.Food Research International，2011，44（9）：2607-2614. doi:10.1016/j.foodres.2011.04.046
9	HERMANS S， BERNSTEIN R， VOLODIN A，et al.Study of synthesis parameters and active layer morphology of interfacially polymerized polyamide-polysulfone membranes［J］.Reactive and Functional Polymers，2015，86：199-208. doi:10.1016/j.reactfunctpolym.2014.09.013
10	MARUF S H， GREENBERG A R， DING Yifu.Influence of substrate processing and interfacial polymerization conditions on the surface topography and permselective properties of surface-patterned thin⁃film composite membranes［J］.Journal of Membrane Science，2016，512：50-60. doi:10.1016/j.memsci.2016.04.003
11	LIN Jiuyang， TANG C Y， YE Wenyuan，et al.Unraveling flux behavior of superhydrophilic loose nanofiltration membranes during textile wastewater treatment［J］.Journal of Membrane Science，2015，493：690-702. doi:10.1016/j.memsci.2015.07.018
12	YE Wenyuan， LIN Jiuyang， BORREGO R，et al.Advanced desalination of dye/NaCl mixtures by a loose nanofiltration membrane for digital ink⁃jet printing［J］.Separation and Purification Technology，2018，197：27-35. doi:10.1016/j.seppur.2017.12.045
13	TANG C Y， CHONG T H， FANE A G.Colloidal interactions and fouling of NF and RO membranes：A review［J］.Advances in Colloid and Interface Science，2011，164（1/2）：126-143. doi:10.1016/j.cis.2010.10.007
14	BRUGGEN B V DER， DAEMS B， WILMS D，et al.Mechanisms of retention and flux decline for the nanofiltration of dye baths from the textile industry［J］.Separation and Purification Technology，2001，22/23：519-528. doi:10.1016/s1383-5866(00)00134-9
15	YE Wenyuan， LIU Hongwei， JIANG Mei，et al.Sustainable management of landfill leachate concentrate through recovering humic substance as liquid fertilizer by loose nanofiltration［J］.Water Research，2019，157：555-563. doi:10.1016/j.watres.2019.02.060
16	YE Wenyuan， BERNSTEIN N J， LIN Jiuyang，et al.Theoretical and experimental study of organic fouling of loose nanofiltration membrane［J］.Journal of the Taiwan Institute of Chemical Engineers，2018，93：509-518. doi:10.1016/j.jtice.2018.08.029
17	石紫，王志，王宠，等.染料分离有机纳滤膜制备技术研究进展［J］.膜科学与技术，2020，40（1）：340-351. doi:10.16159/j.cnki.issn1007-8924.2020.01.041
	SHI Zi， WANG Zhi， WANG Chong，et al.Research progress in the preparation of organic nanofiltration membranes for dye separation［J］.Membrane Science and Technology，2020，40（1）：340-351. doi:10.16159/j.cnki.issn1007-8924.2020.01.041
18	LIN Jiuyang， YE Wenyuan， BALTARU M C，et al.Tight ultrafiltration membranes for enhanced separation of dyes and Na₂SO₄ during textile wastewater treatment［J］.Journal of Membrane Science，2016，514：217-228. doi:10.1016/j.memsci.2016.04.057
19	HOEK E M V， ELIMELECH M.Cake-enhanced concentration polarization：A new fouling mechanism for salt-rejecting membranes［J］.Environmental Science & Technology，2003，37（24）：5581-5588. doi:10.1021/es0262636
20	ARSUAGA J M， LÓPEZ-MUÑOZ M J， AGUADO J，et al.Temperature，pH and concentration effects on retention and transport of organic pollutants across thin-film composite nanofiltration membranes［J］.Desalination，2008，221（1/2/3）：253-258. doi:10.1016/j.desal.2007.01.081
21	SHAN Linglong， LIANG Yuanzhe， PROZOROVSKA L，et al.Multifold enhancement of loose nanofiltration membrane performance by intercalation of surfactant assemblies［J］.Environmental Science & Technology Letters，2018，5（11）：668-674. doi:10.1021/acs.estlett.8b00430
22	HILAL N， AL-ZOUBI H， MOHAMMAD A W，et al.Nanofiltration of highly concentrated salt solutions up to seawater salinity［J］.Desalination，2005，184（1/2/3）：315-326. doi:10.1016/j.desal.2005.02.062
23	AGARWAL P， HEFNER R E Jr， GE Shouren，et al.Nanofiltration membranes from crosslinked Troger’s base Polymers of Intrinsic Microporosity（PIMs）［J］.Journal of Membrane Science，2020，595：117501. doi:10.1016/j.memsci.2019.117501
24	LIU Dongqing， ZHU Zexian， ZHAO Yiping，et al.Low pressure modified polyamide 6 membrane for effective fractionation of dyes and NaCl［J］.Science of the Total Environment，2019，695：133908. doi:10.1016/j.scitotenv.2019.133908
25	TAVANGAR T， KARIMI M， REZAKAZEMI M，et al.Textile waste，dyes/inorganic salts separation of cerium oxide⁃loaded loose nanofiltration polyethersulfone membranes［J］.Chemical Engineering Journal，2020，385：123787. doi:10.1016/j.cej.2019.123787
26	JIN Jinbo， DU Xilan， YU Jie，et al.High performance nanofiltration membrane based on SMA-PEI cross⁃linked coating for dye/salt separation［J］.Journal of Membrane Science，2020，611：118307. doi:10.1016/j.memsci.2020.118307
27	ZHANG Luhong， GUAN Hongfang， ZHANG Na，et al.A loose NF membrane by grafting TiO₂-HMDI nanoparticles on PES/β-CD substrate for dye/salt separation［J］.Separation and Purification Technology，2019，218：8-19. doi:10.1016/j.seppur.2019.02.018
28	ZHANG Yatao， SONG Qiangqiang， LIANG Xu，et al.High-flux，high-selectivity loose nanofiltration membrane mixed with zwitterionic functionalized silica for dye/salt separation［J］.Applied Surface Science，2020，515：146005. doi:10.1016/j.apsusc.2020.146005
29	ZHU Junyong， TIAN Miaomiao， HOU Jingwei，et al.Surface zwitterionic functionalized graphene oxide for a novel loose nanofiltration membrane［J］.Journal of Materials Chemistry A，2016，4（5）：1980-1990. doi:10.1039/c5ta08024j
30	HAN Gang， FENG Yingnan， CHUNG T S，et al.Phase inversion directly induced tight ultrafiltration（UF） hollow fiber membranes for effective removal of textile dyes［J］.Environmental Science & Technology，2017，51（24）：14254-14261. doi:10.1021/acs.est.7b05340
31	HAN Gang， CHUNG T S， WEBER M，et al.Low⁃pressure nanofiltration hollow fiber membranes for effective fractionation of dyes and inorganic salts in textile wastewater［J］.Environmental Science & Technology，2018，52（6）：3676-3684. doi:10.1021/acs.est.7b06518
32	JI Dawei， XIAO Changfa， AN Shulin，et al.Preparation of high⁃flux PSF/GO loose nanofiltration hollow fiber membranes with dense⁃loose structure for treating textile wastewater［J］.Chemical Engineering Journal，2019，363：33-42. doi:10.1016/j.cej.2019.01.111
33	PAUL M， JONS S D.Chemistry and fabrication of polymeric nanofiltration membranes：A review［J］.Polymer，2016，103：417-456. doi:10.1016/j.polymer.2016.07.085
34	ZHANG Xiaotai， HUANG Hai， LI Qiang，et al.Facile dual-functionalization of polyamide reverse osmosis membrane by a natural polypeptide to improve the antifouling and chlorine⁃resistant properties［J］.Journal of Membrane Science，2020，604：118044. doi:10.1016/j.memsci.2020.118044
35	MI Yifang， WANG Na， QI Qi，et al.A loose polyamide nanofiltration membrane prepared by polyether amine interfacial polymerization for dye desalination［J］.Separation and Purification Technology，2020，248：117079. doi:10.1016/j.seppur.2020.117079
36	DING Jincheng， WU Huiqing， WU Peiyi.Preparation of highly permeable loose nanofiltration membranes using sulfonated polyethylenimine for effective dye/salt fractionation［J］.Chemical Engineering Journal，2020，396：125199. doi:10.1016/j.cej.2020.125199
37	LEE S， CHOI E Y， KIM C K.Fabrication and properties of nanofiltration membranes assembled with chitosan on poly（ether sulfone） membranes surface-functionalized with acyl chloride groups［J］.Industrial & Engineering Chemistry Research，2019，58（16）：6679-6686. doi:10.1021/acs.iecr.9b00144
38	DUONG P H H， DAUMANN K， HONG Peiying，et al.Interfacial polymerization of zwitterionic building blocks for high⁃flux nanofiltration membranes［J］.Langmuir：the ACS Journal of Surfaces and Colloids，2019，35（5）：1284-1293. doi:10.1021/acs.langmuir.8b00960
39	SHINTANI T， AKAMATSU K， HAMADA S，et al.Preparation of monoamine-incorporated polyamide nanofiltration membranes by interfacial polymerization for efficient separation of divalent anions from divalent cations［J］.Separation and Purification Technology，2020，239：116530. doi:10.1016/j.seppur.2020.116530
40	LI Qin， LIAO Zhipeng， FANG Xiaofeng，et al.Tannic acid assisted interfacial polymerization based loose thin-film composite NF membrane for dye/salt separation［J］.Desalination，2020，479：114343. doi:10.1016/j.desal.2020.114343
41	SHAN Linglong， GU Jiahui， FAN Hongwei，et al.Microphase diffusion-controlled interfacial polymerization for an ultrahigh permeability nanofiltration membrane［J］.ACS Applied Materials & Interfaces，2017，9（51）：44820-44827. doi:10.1021/acsami.7b14017
42	LI Yukun， LUO Jianquan， WAN Yinhua.Biofouling in sugarcane juice refining by nanofiltration membrane：Fouling mechanism and cleaning［J］.Journal of Membrane Science，2020，612：118432. doi:10.1016/j.memsci.2020.118432
43	ZHU Junyong， TSEHAYE M T， WANG Jing，et al.A rapid deposition of polydopamine coatings induced by iron（Ⅲ） chloride/hydrogen peroxide for loose nanofiltration［J］.Journal of Colloid and Interface Science，2018，523：86-97. doi:10.1016/j.jcis.2018.03.072
44	CHENG Xiquan， WANG Zhenxing， ZHANG Yanqiu，et al.Bio-inspired loose nanofiltration membranes with optimized separation performance for antibiotics removals［J］.Journal of Membrane Science，2018，554：385-394. doi:10.1016/j.memsci.2018.03.005
45	LI Guangchao， LIU Bin， BAI Langming，et al.Improving the performance of loose nanofiltration membranes by poly⁃dopamine/zwitterionic polymer coating with hydroxyl radical activation［J］.Separation and Purification Technology，2020，238：116412. doi:10.1016/j.seppur.2019.116412
46	CHENG Xiquan， WANG Zhenxing， GUO Jing，et al.Designing multifunctional coatings for cost⁃effectively sustainable water remediation［J］.ACS Sustainable Chemistry & Engineering，2018，6（2）：1881-1890. doi:10.1021/acssuschemeng.7b03296
47	ZHANG Xi， REN Pengfei， YANG Haocheng，et al.Co⁃deposition of tannic acid and diethlyenetriamine for surface hydrophilization of hydrophobic polymer membranes［J］.Applied Surface Science，2016，360：291-297. doi:10.1016/j.apsusc.2015.11.015
48	LIU Songbai， WANG Zhan， SONG Peng.Free radical graft copolymerization strategy to prepare catechin⁃modified chitosan loose nanofiltration（NF） membrane for dye desalination［J］.ACS Sustainable Chemistry & Engineering，2018，6（3）：4253-4263. doi:10.1021/acssuschemeng.7b04699
49	ZHANG Na， JIANG Bin， ZHANG Luhong，et al.Low⁃pressure electroneutral loose nanofiltration membranes with polyphenol-inspired coatings for effective dye/divalent salt separation［J］.Chemical Engineering Journal，2019，359：1442-1452. doi:10.1016/j.cej.2018.11.033
50	LI Qin， LIAO Zhipeng， FANG Xiaofeng，et al.Tannic acid-polyethyleneimine crosslinked loose nanofiltration membrane for dye/salt mixture separation［J］.Journal of Membrane Science，2019，584：324-332. doi:10.1016/j.memsci.2019.05.002
51	HUANG Jiachen， LUO Jianquan， CHEN Xiangrong，et al.How do chemical cleaning agents act on polyamide nanofiltration membrane and fouling layer？［J］.Industrial & Engineering Chemistry Research，2020，59（40）：17653-17670. doi:10.1021/acs.iecr.0c03365
52	ZHAO Shuang， SONG Peng， WANG Zhan，et al.The PEGylation of plant polyphenols/polypeptide-mediated loose nanofiltration membrane for textile wastewater treatment and antibacterial application［J］.Journal of the Taiwan Institute of Chemical Engineers，2018，82：42-55. doi:10.1016/j.jtice.2017.11.005
53	ZHANG Qi， FAN Lin， YANG Zhen，et al.Loose nanofiltration membrane for dye/salt separation through interfacial polymerization with in situ generated TiO₂ nanoparticles［J］.Applied Surface Science，2017，410：494-504. doi:10.1016/j.apsusc.2017.03.087
54	KAMARI S， SHAHBAZI A.High⁃performance nanofiltration membrane blended by Fe₃O₄@SiO₂-CS bionanocomposite for efficient simultaneous rejection of salts/heavy metals ions/dyes with high permeability，retention increase and fouling decline［J］.Chemical Engineering Journal，2021，417：127930. doi:10.1016/j.cej.2020.127930
55	ZHAO Yangying， LIU Yanling， WANG Xiaomao，et al.Impacts of metal-organic frameworks on structure and performance of polyamide thin-film nanocomposite membranes［J］.ACS Applied Materials & Interfaces，2019，11（14）：13724-13734. doi:10.1021/acsami.9b01923
56	YANG Shishi， JIANG Qinliang， ZHANG Kaisong.Few⁃layers 2D O-MoS₂ TFN nanofiltration membranes for future desalination［J］.Journal of Membrane Science，2020，604：118052. doi:10.1016/j.memsci.2020.118052
57	ZHANG Jinglong， YANG Libin， WANG Zhan，et al.A highly permeable loose nanofiltration membrane prepared via layer assembled in situ mineralization［J］.Journal of Membrane Science，2019，587：117159. doi:10.1016/j.memsci.2019.05.083
58	HAN Jiaojiao， ZHANG Qiuyue， HUANG Minyue，et al.Two⁃dimensional WS₂ membranes constructed on different substrates for efficient dye desalination［J］.Desalination，2020，480：114380. doi:10.1016/j.desal.2020.114380
59	YANG Shishi， ZHANG Kaisong.Few⁃layers MoS₂ nanosheets modified thin film composite nanofiltration membranes with improved separation performance［J］.Journal of Membrane Science，2020，595：117526. doi:10.1016/j.memsci.2019.117526
60	XU Guorong， XU Jianmei， SU Huichao，et al.Two⁃dimensional（2D） nanoporous membranes with sub⁃nanopores in reverse osmosis desalination：Latest developments and future directions［J］.Desalination，2019，451：18-34. doi:10.1016/j.desal.2017.09.024
61	QIU Zhongyong， JI Xiaofei， HE Chunju.Fabrication of a loose nanofiltration candidate from Polyacrylonitrile/Graphene oxide hybrid membrane via thermally induced phase separation［J］.Journal of Hazardous Materials，2018，360：122-131. doi:10.1016/j.jhazmat.2018.08.004
62	SUN Luwei， HUANG Hubiao， PENG Xinsheng.Laminar MoS₂ membranes for molecule separation［J］.Chemical Communications（Cambridge，England），2013，49（91）：10718-10720. doi:10.1039/c3cc46136j
63	HU W， CUI Xinwei， XIANG Li，et al.Tannic acid modified MoS₂ nanosheet membranes with superior water flux and ion/dye rejection［J］.Journal of Colloid and Interface Science，2020，560：177-185. doi:10.1016/j.jcis.2019.10.068
64	ZHAO Shuang， ZHU Hongtai， WANG Zhan，et al.A loose hybrid nanofiltration membrane fabricated via chelating⁃assisted in situ growth of Co/Ni LDHs for dye wastewater treatment［J］.Chemical Engineering Journal，2018，353：460-471. doi:10.1016/j.cej.2018.07.081
65	SINGTO S， SAJOMSANG W， RATANATAWANATE C，et al.Flexible and hydrophilic copolyamide thin-film composites on hollow fiber membranes for enhanced nanofiltration performance［J］.ACS Applied Materials & Interfaces，2020，12（25）：28624-28634. doi:10.1021/acsami.0c05775
66	CHU Zhiyong， CHEN Kaikai， XIAO Changfa，et al.Improving pressure durability and fractionation property via reinforced PES loose nanofiltration hollow fiber membranes for textile wastewater treatment［J］.Journal of the Taiwan Institute of Chemical Engineers，2020，108：71-81. doi:10.1016/j.jtice.2019.12.009
67	LAAKSO T， PIHLAJAMÄKI A， MÄNTTÄRI M.Effect of polycation structure on the fabrication of polyelectrolyte multilayer hollow fiber membranes for loose nanofiltration applications［J］.Separation and Purification Technology，2018，194：141-148. doi:10.1016/j.seppur.2017.11.038
68	YE Wenyuan， LIU Riri， CHEN Xiangyu，et al.Loose nanofiltration⁃based electrodialysis for highly efficient textile wastewater treatment［J］.Journal of Membrane Science，2020，608：118182. doi:10.1016/j.memsci.2020.118182
69	GUO Shiwei， LUO Jianquan， YANG Qiangjian，et al.Decoloration of molasses by ultrafiltration and nanofiltration：Unraveling the mechanisms of high sucrose retention［J］.Food and Bioprocess Technology，2019，12（1）：39-53. doi:10.1007/s11947-018-2189-z
70	CASSANO A， CONIDI C， RUBY⁃FIGUEROA R，et al.Nanofiltration and tight ultrafiltration membranes for the recovery of polyphenols from agro⁃food by⁃products［J］.International Journal of Molecular Sciences，2018，19（2）：351. doi:10.3390/ijms19020351
71	SALEEM H， TRABZON L， KILIC A，et al.Recent advances in nanofibrous membranes：Production and applications in water treatment and desalination［J］.Desalination，2020，478：114178. doi:10.1016/j.desal.2019.114178
72	DE MOURA BELL J M L N， COHEN J L， DE AQUINO L F M C，et al.An integrated bioprocess to recover bovine milk oligosaccharides from colostrum whey permeate［J］.Journal of Food Engineering，2018，216：27-35. doi:10.1016/j.jfoodeng.2017.07.022
73	LUO Jianquan， HANG Xiaofeng， ZHAI Wei，et al.Refining sugarcane juice by an integrated membrane process：Filtration behavior of polymeric membrane at high temperature［J］.Journal of Membrane Science，2016，509：105-115. doi:10.1016/j.memsci.2016.02.053
74	CHEN Pengli， MA Xiao， ZHONG Zhaoxiang，et al.Performance of ceramic nanofiltration membrane for desalination of dye solutions containing NaCl and Na₂SO₄ ［J］.Desalination，2017，404：102-111. doi:10.1016/j.desal.2016.11.014
75	OULAD F， ZINADINI S， ZINATIZADEH A A，et al.Preparation and characterization of loose antifouling nanofiltration membrane using branched aniline oligomers grafted onto polyether sulfone and application for real algal dye removal［J］.Chemical Engineering Journal，2020，401：125861. doi:10.1016/j.cej.2020.125861
76	PEYDAYESH M， MOHAMMADI T， NIKOUZAD S K.A positively charged composite loose nanofiltration membrane for water purification from heavy metals［J］.Journal of Membrane Science，2020，611：118205. doi:10.1016/j.memsci.2020.118205
77	ZHANG Huiru， HE Qiming， LUO Jianquan，et al.Sharpening nanofiltration：Strategies for enhanced membrane selectivity［J］.ACS Applied Materials & Interfaces，2020，12（36）：39948-39966. doi:10.1021/acsami.0c11136
78	IBRAHIM G P S， ISLOOR A M， MOSLEHYANI A，et al.Bio-inspired，fouling resistant，tannic acid functionalized halloysite nanotube reinforced polysulfone loose nanofiltration hollow fiber membranes for efficient dye and salt separation［J］.Journal of Water Process Engineering，2017，20：138-148. doi:10.1016/j.jwpe.2017.09.015
