某炼化污水处理厂水中可溶有机物的转化规律研究

吴百春,李玉果,聂凡,何晨,史权

Study on the evolution of dissolved organic compounds in the water from a petrochemical wastewater treatment plant

Baichun WU,Yuguo LI,Fan NIE,Chen HE,Quan SHI

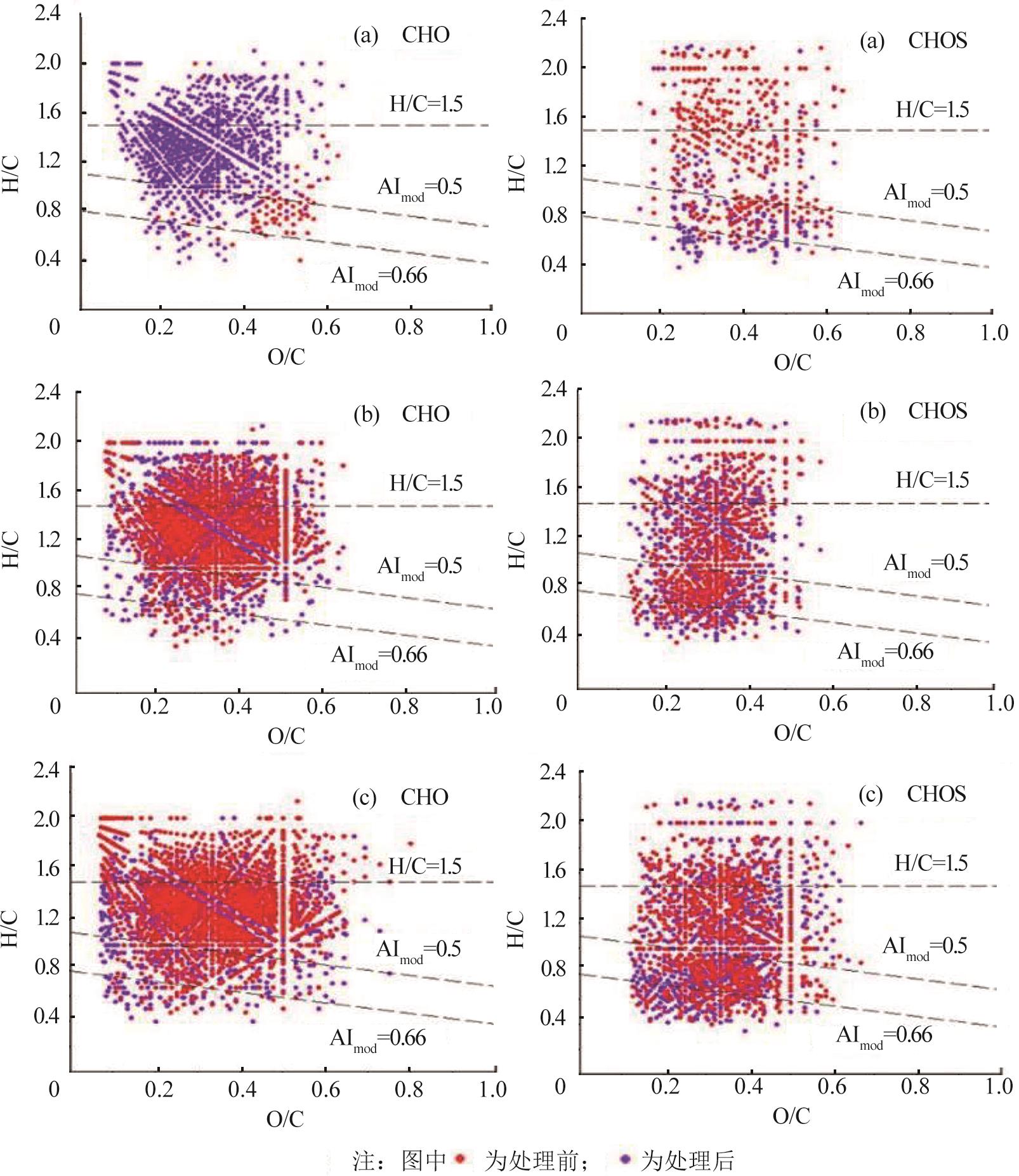

图7 高浓度处理工艺流程CHO和CHOS类化合物的VK图 （a）水解酸化；（b）生化；（c）臭氧催化氧化处理前后

Fig. 7 van Krevelen diagrams of removed and newly formed CHO and CHOS formulas in the aqueous phase of high?concentration wastewater treatment process
