某炼化污水处理厂水中可溶有机物的转化规律研究

吴百春,李玉果,聂凡,何晨,史权

Study on the evolution of dissolved organic compounds in the water from a petrochemical wastewater treatment plant

Baichun WU,Yuguo LI,Fan NIE,Chen HE,Quan SHI

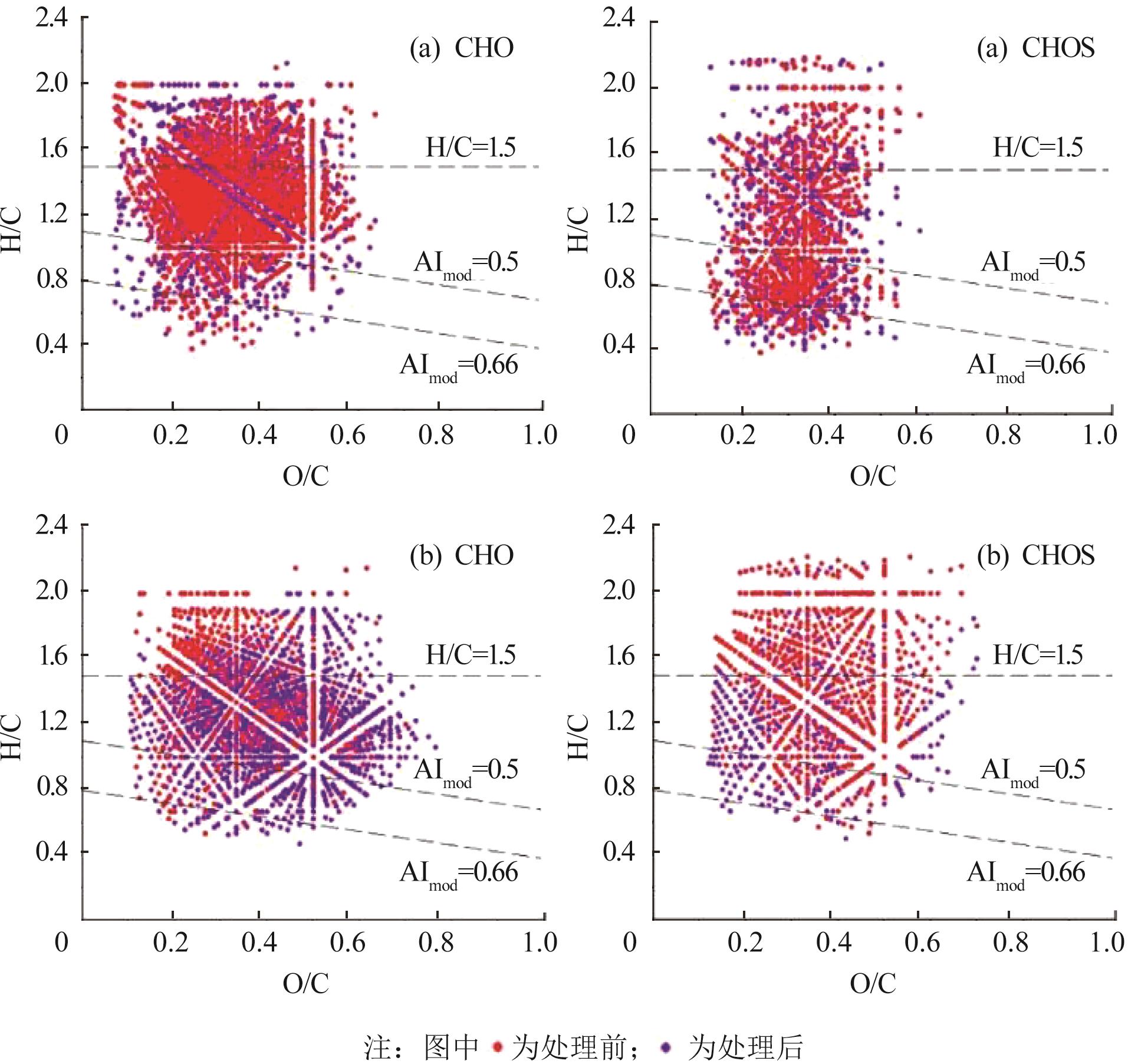

图10 高、低浓度污水处理工艺生化处理过程CHO、CHOS类的生成和去除的VK图 （a）高浓度处理工艺3/4生化；（b）低浓度处理工艺1/2生化

Fig. 10 van Krevelen diagrams of removed and newly formed CHO and CHOS formulas in the biochemical treatment process of high and low concentration wastewater treatment routes
