多效MVR蒸发浓缩水处理系统研究
Study on multi-effect MVR evaporation concentrated water treatment system
P1—离心泵；H1~H9—换热器；H10—过热消除器；M1—混合器；F1—第一蒸发器；F2—第二蒸发器；F3—第三蒸发器；C1—水蒸气压缩机；V1~V2—减压阀
多效MVR蒸发浓缩水处理系统研究 |
| 沈九兵,谭牛高,肖艳萍,李志超 |
|
Study on multi-effect MVR evaporation concentrated water treatment system |
| Jiubing SHEN,Niugao TAN,Yanping XIAO,Zhichao LI |

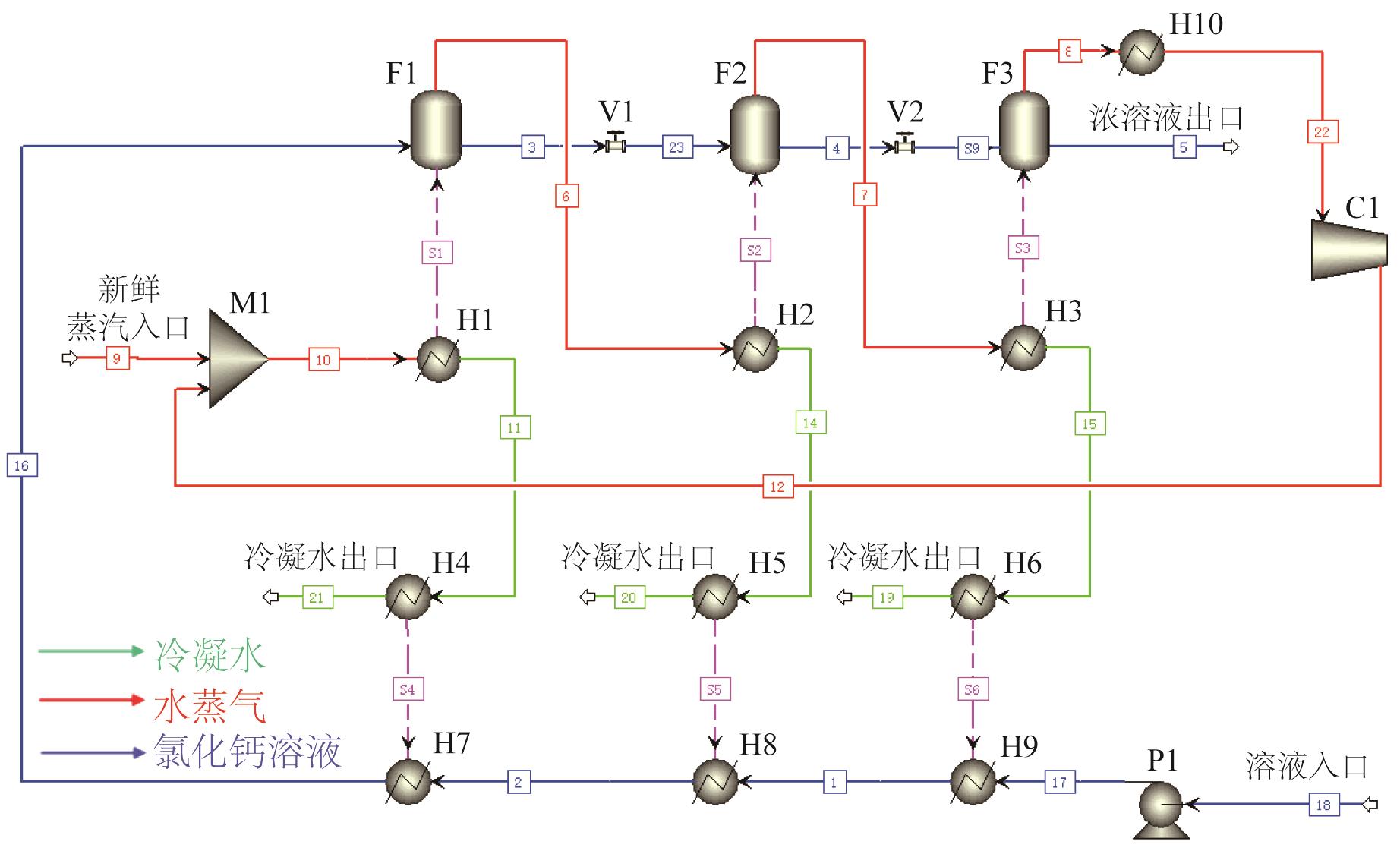

| 图5 三效MVR模拟图 P1—离心泵；H1~H9—换热器；H10—过热消除器；M1—混合器；F1—第一蒸发器；F2—第二蒸发器；F3—第三蒸发器；C1—水蒸气压缩机；V1~V2—减压阀 |
| Fig. 5 Three-effect MVR simulation diagram |
|
|
