富硫废水中稳定生物单质硫效果与机制研究

doi:10.19965/j.cnki.iwt.2023-0930

工业水处理 ›› 2024, Vol. 44 ›› Issue (9): 67-74. doi: 10.19965/j.cnki.iwt.2023-0930

富硫废水中稳定生物单质硫效果与机制研究

徐金兰¹^,²^,³(), 薛淑君¹^,²^,³, 曹泽壮¹^,²^,³, 巩丽霞¹^,²^,³, 曹芬¹^,²^,³

^1. 西安建筑科技大学环境与市政工程学院，陕西西安 710055
^2. 陕西省环境工程重点实验室，陕西西安 710055
^3. 西北水资源与环境生态教育部重点实验室，陕西西安 710055

收稿日期:2024-07-03 出版日期:2024-09-20 发布日期:2024-09-26
作者简介:
徐金兰（1973— ），教授，博士生导师。E-mail：xujinlan@ xauat.edu.cn。
基金资助:
国家自然科学基金项目(51778524)

Mechanism and effect insight on stabilizing biological S⁰ in sulfur-rich wastewater

Jinlan XU¹^,²^,³(), Shujun XUE¹^,²^,³, Zezhuang CAO¹^,²^,³, Lixia GONG¹^,²^,³, Fen CAO¹^,²^,³

^1. School of Environmental and Municipal Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China
^2. Shaanxi Key Laboratory of Environmental Engineering, Xi’an 710055, China
^3. Key Laboratory of Northwest Water Resources, Environment and Ecology, MOE, Xi’an 710055, China

Received:2024-07-03 Online:2024-09-20 Published:2024-09-26

摘要/Abstract

摘要：

为提高含硫废水同步脱氮除硫工艺中生物单质硫回收率，开展了富硫废水中稳定生物单质硫效果与机制研究。在富硫废水（S^2-质量浓度300 mg/L）和贫硫废水（S^2-质量浓度200、100 mg/L）中添加阻断剂硫代硫酸钠进行脱氮除硫实验。结果表明，富硫废水中稳定组（加30 mg/L阻断剂）在60 h时单质硫积累量达到68.79 mg/L，比未稳定组（不添加阻断剂）高25.34 mg/L，单质硫稳定率达58.31%，单质硫回收率为36.84%；而贫硫废水（S^2-质量浓度为200、100 mg/L）中单质硫不稳定，单质硫稳定率仅11.2%、14.14%，且回收率低（15.71%、12.39%）。可见，阻断剂在富硫废水中实现了稳定生物单质硫。此外，阻断剂有利于反硝化菌和脱氮硫杆菌增殖积累，富硫废水下高比例的脱氮硫杆菌可促进单质硫稳定。阻断剂抑制了硫代硫酸盐和硫酸盐的生成，使硝酸盐得到更多电子（稳定组比未稳定组多得19.76 mmol/L电子），促进了单质硫的生成，实现了生物单质硫稳定。该技术可为废水中生物单质硫的回收与利用提供理论基础。

关键词: 生物单质硫, 阻断剂, 脱氮硫杆菌, 富硫废水

Abstract:

To improve the recovery rate of biological elemental sulfur(S⁰) in the simultaneous denitrification and sulfur removal process in sulfur wastewater, the effect and mechanism of stabilizing biological S⁰ in sulfur-rich wastewater were studied. The experiments were conducted using blockers to stable biological S⁰ in sulfur-rich wastewater(300 mg/L S^2-) and sulfur-poor wastewater(200, 100 mg/L S^2- ). It was found that in sulfur-rich wastewater, 68.79 mg/L of S⁰ was accumulated in the stable group (adding 30 mg/L blocker) at 60 h, which was 25.34 mg/L higher than that in the unstable group (adding 0 mg/L blocker), the S⁰ stability rate reached 58.31% and the S⁰recovery rate was 36.84%. However, the S⁰ in sulfur-poor wastewater (200, 100 mg/L S^2-) was unstable, the S⁰ stability rate was only 11.2%, 14.14%, and the S⁰recovery rate was low (15.71%, 12.39%). It could be seen that the blockers stabilized the biological S⁰ in sulfur-rich wastewater. Additionally, the blockers were conducive to the accumulation of denitrifying bacteria and Thiobacillus denitrificans, and the high proportion of Thiobacillus denitrificans was conducive to stable S⁰in sulfur-rich wastewater. The blockers inhibited the formation of thiosulfate and sulfate and made nitrate get more electrons(19.76 mmol/L more electrons in stable group than in unstable group), promoting the generation and stability of biological S⁰. This technology could provide a theoretical basis for the recovery and utilization of biological S⁰ in wastewater.

Key words: biological elemental sulfur, blockers, Thiobacillus denitrificans, sulfur-rich wastewater

中图分类号:

X703

徐金兰, 薛淑君, 曹泽壮, 巩丽霞, 曹芬. 富硫废水中稳定生物单质硫效果与机制研究[J]. 工业水处理, 2024, 44(9): 67-74.

Jinlan XU, Shujun XUE, Zezhuang CAO, Lixia GONG, Fen CAO. Mechanism and effect insight on stabilizing biological S⁰ in sulfur-rich wastewater[J]. Industrial Water Treatment, 2024, 44(9): 67-74.

https://www.iwt.cn/CN/Y2024/V44/I9/67

图/表 7

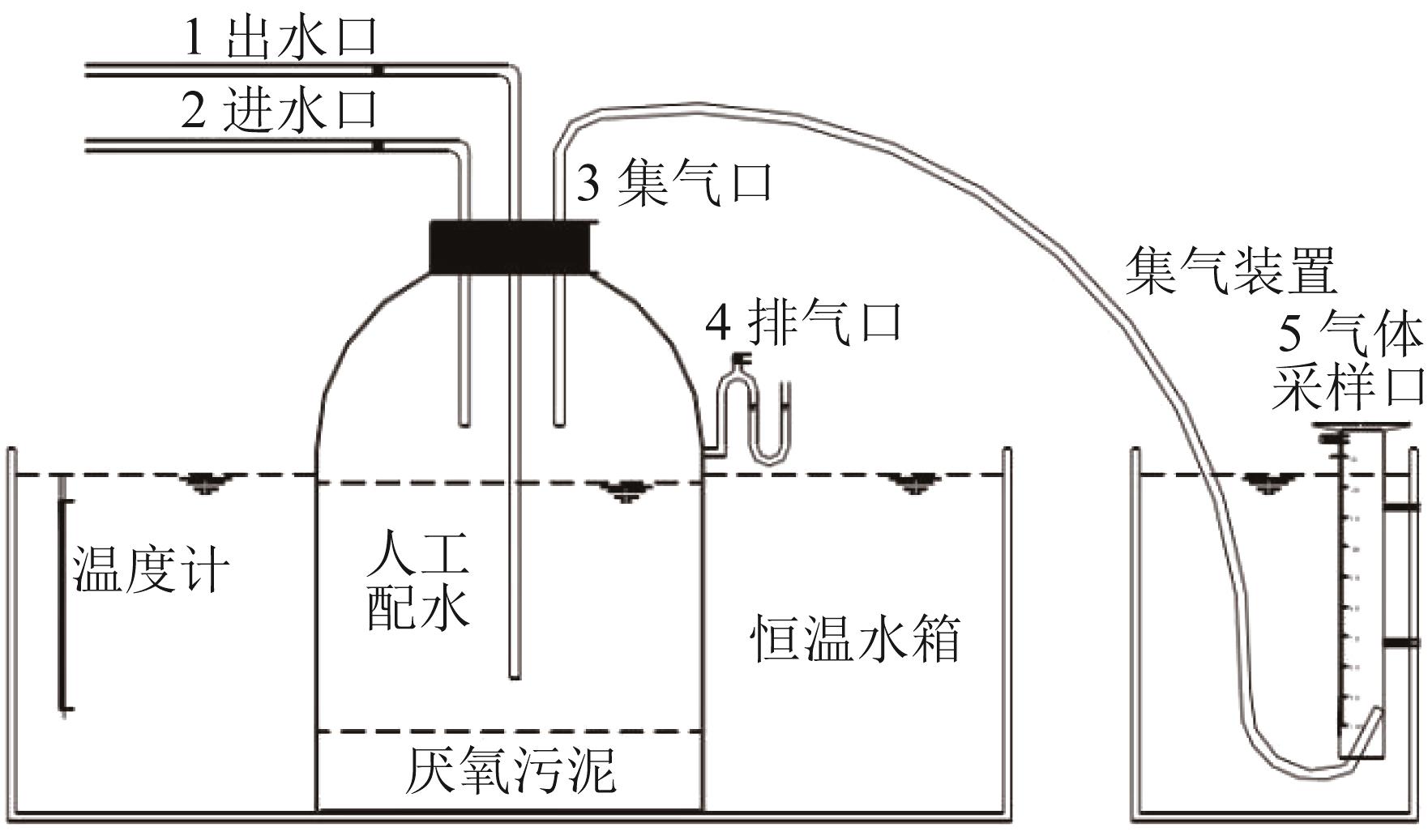

图1 反应器装置

Fig.1 Reactor installation

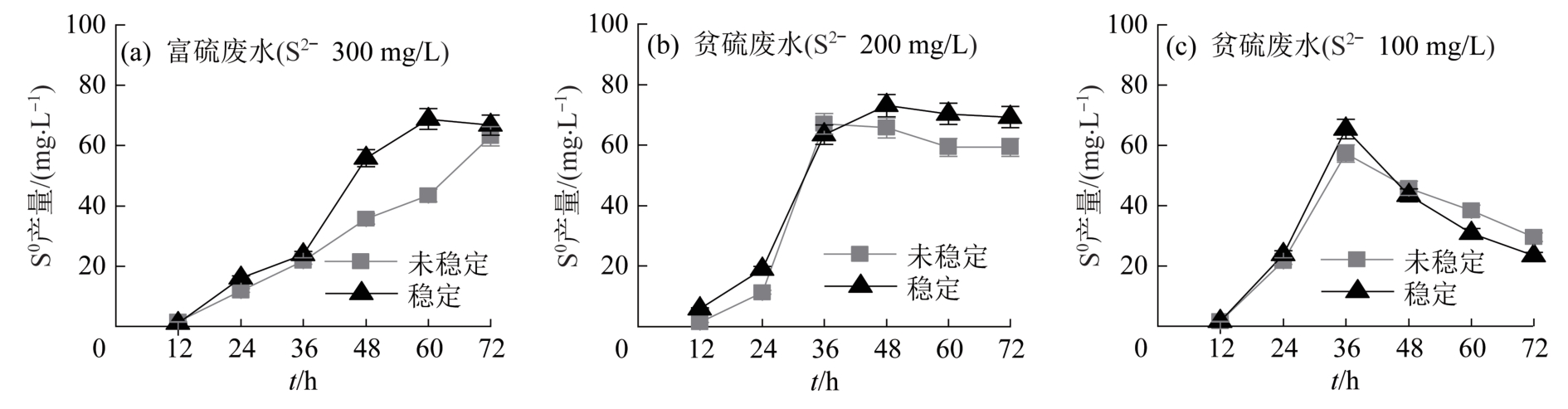

图2 S⁰产量

Fig.2 S⁰production

表1 单质硫积累量和硫酸盐质量浓度

Table 1 Total sulfur accumulation and sulfate concentration

废水类型	单质硫积累量/（mg·L^-1）		硫酸盐质量浓度/（mg·L^-1）
废水类型	稳定组	未稳定组	稳定组	未稳定组
富硫废水	66.72	63.10	114.29	139.05
S^2-为200 mg/L的贫硫废水	69.21	59.30	83.41	67.44
S^2-为100 mg/L的贫硫废水	23.37	29.54	48.22	40.45

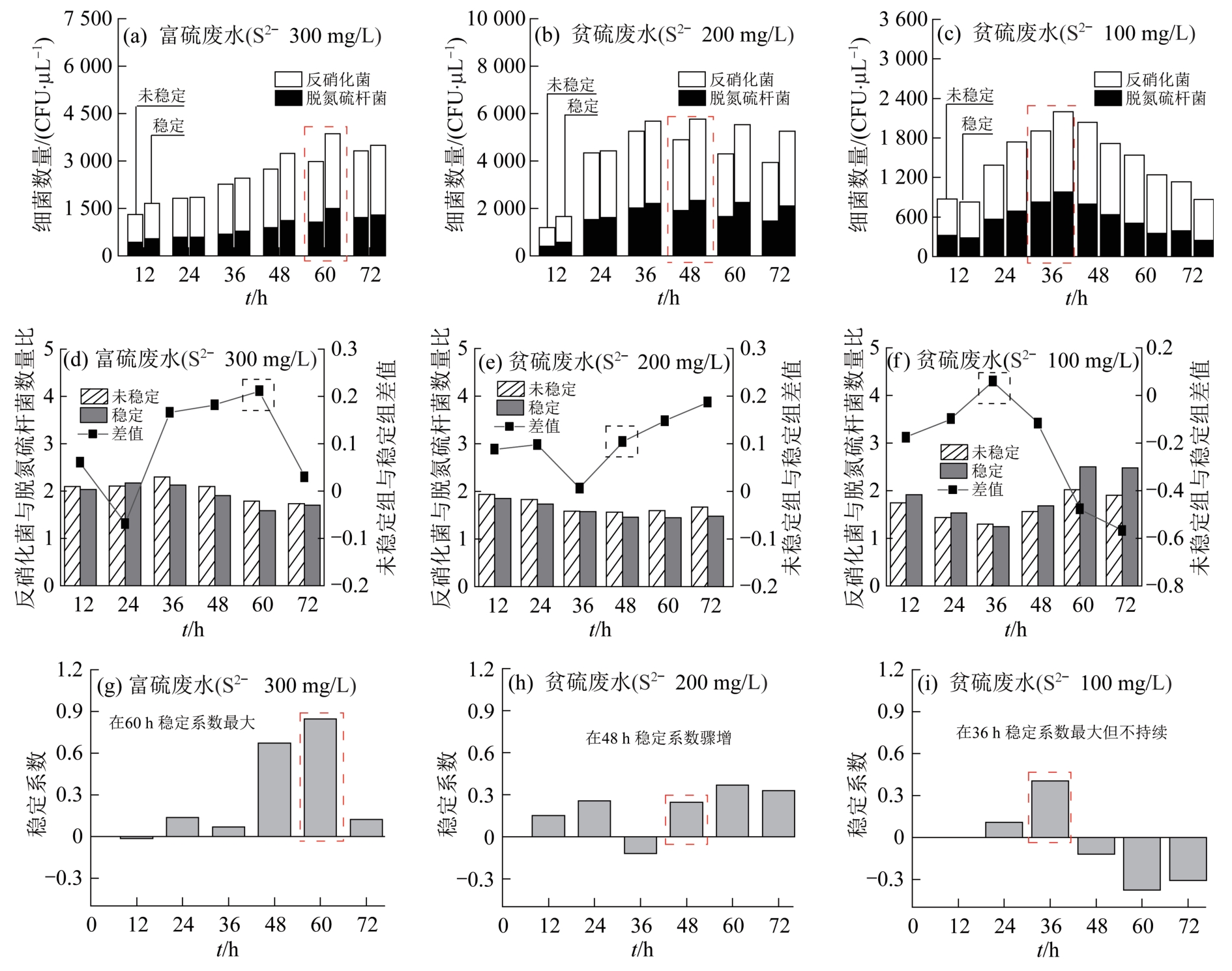

图3 细菌数量、反硝化细菌与脱氮硫杆菌数量比及其差值、稳定系数对比

Fig.3 Bacteria quantity，the ratio of denitrifying bacteria to Thiobacillus denitrificans and their difference，stability coefficient

图4 微生物群落FISH扫描图片

Fig.4 FISH scan images of microbial communities

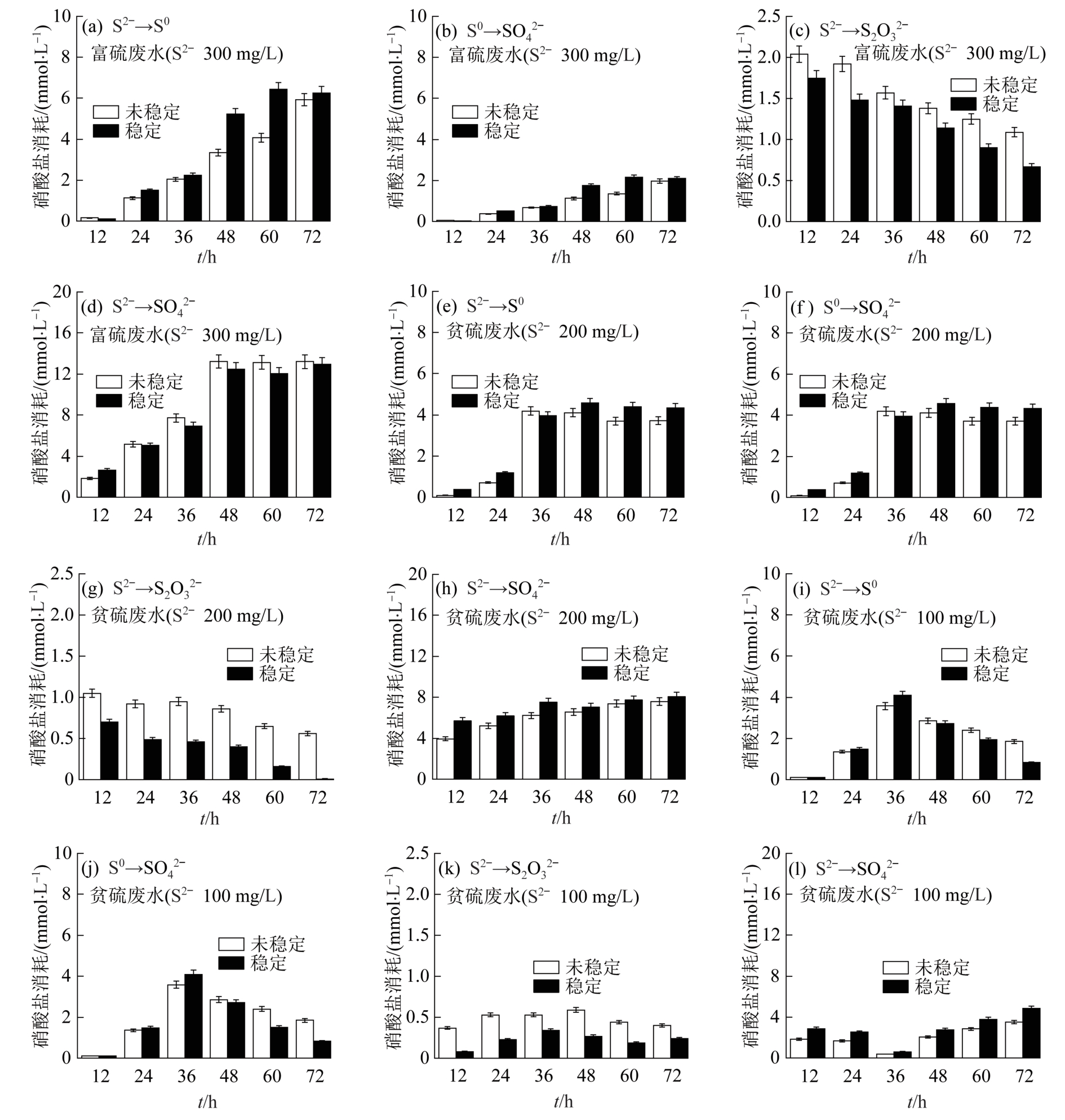

图5 硝酸盐消耗分配

Fig.5 Distribution of nitrate consumption

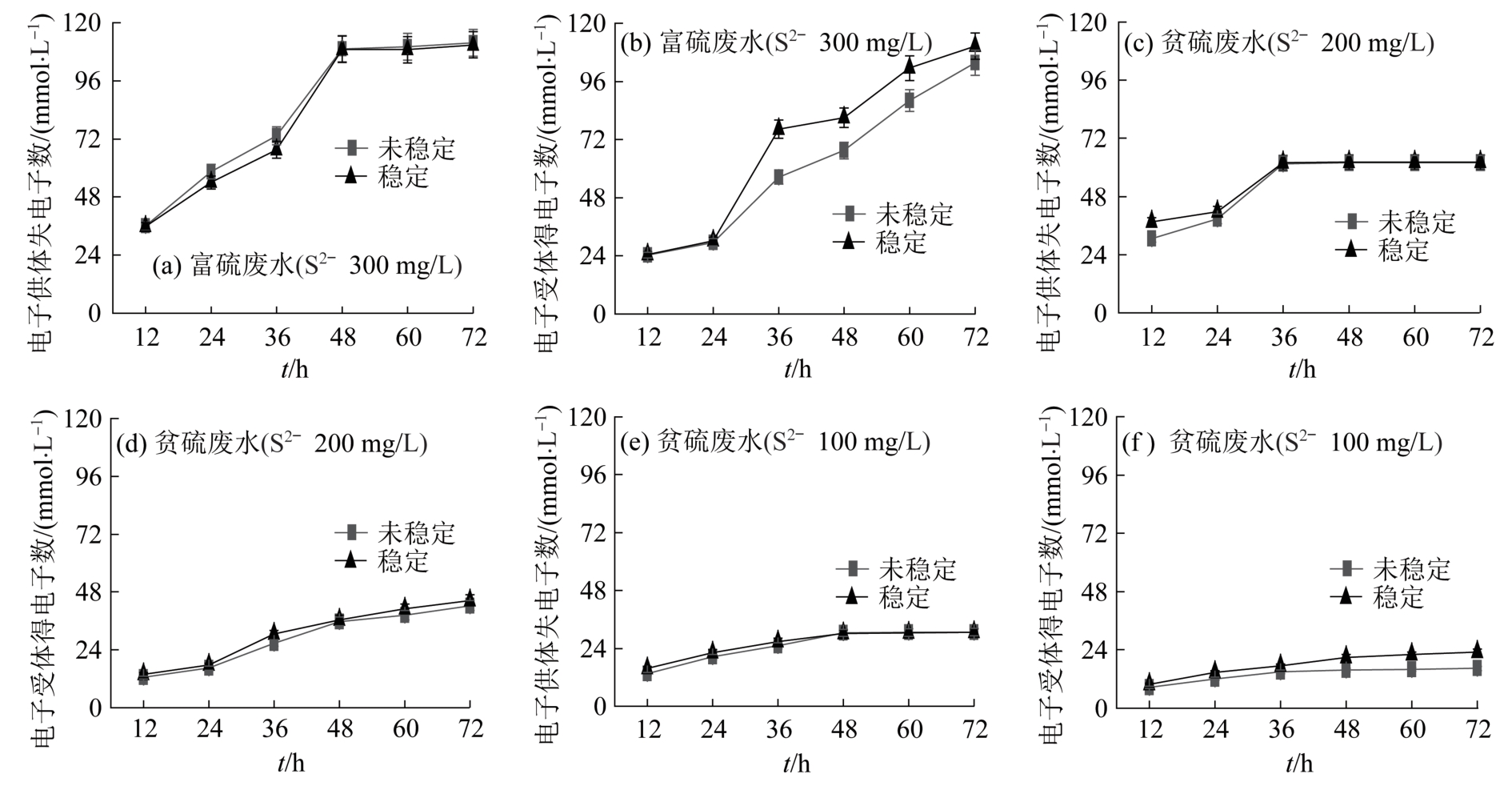

图6 电子衡算

Fig.6 Electronic calculations

参考文献 18

1	HAO Yu， SHEN Jianping， ZHANG Yue，et al. Assessing the pollution level of a subtropical lake by using a novel hydrogen sulfide fluorescence technology［J］. Environmental Research，2023，229：115916. doi:10.1016/j.envres.2023.115916
2	ZHANG Liang， QIU Yanying， SHARMA K R，et al. Hydrogen sulfide control in sewer systems：A critical review of recent progress［J］. Water Research，2023，240：120046.
3	FAN Kaili， XU Xijun， XU Fan，et al. A novel intra- and extracellular distribution pattern of elemental sulfur in Pseudomonas sp. C27-driven denitrifying sulfide removal process［J］. Environmental Research，2022，213：113674. doi:10.1016/j.envres.2022.113674
4	NGUYEN P M， DO P T， PHAM Y B，et al. Roles，mechanism of action，and potential applications of sulfur-oxidizing bacteria for environmental bioremediation［J］. Science of the Total Environment，2022，852：158203.
5	LIANG Zhensheng， WU Dongping， LI Guibiao，et al. Experimental and modeling investigations on the unexpected hydrogen sulfide rebound in a sewer receiving nitrate addition：Mechanism and solution［J］. Journal of Environmental Sciences（China），2023，125：630-640.
6	LI Wenji， ZHANG Meng， KANG Da，et al. Mechanisms of sulfur selection and sulfur secretion in a biological sulfide removal（BISURE） system［J］. Environment International，2020，137：105549.
7	NANDA Julia， WHITELEY C G， CHANG J S，et al. Production of elemental sulfur from sulfide and nitrate-laden wastewaters by methanogenic culture via sulfide denitrifying removal process［J］. Biochemical Engineering Journal，2013，78：128-131. doi:10.1016/j.bej.2012.12.011
8	ZHANG Shaohui， BAO Renbing， LU Junjia，et al. Simultaneous sulfide removal，nitrification，denitrification and electricity generation in three-chamber microbial fuel cells［J］. Separation and Purification Technology，2018，195：314-321. doi:10.1016/j.seppur.2017.12.027
9	GUO Hongliang， CHEN Chuan， LEE D J. Manipulating denitrifying sulfide removal of Pseudomonas sp. C27 with nitrite as sole nitrogen source：Shotgun proteomics analysis［J］. Bioresource Technology，2020，318：124074. doi:10.1016/j.biortech.2020.124074
10	BAYRAKDAR A， TILAHUN E， ÇALLI B. Simultaneous nitrate and sulfide removal using a bio-electrochemical system［J］. Bioelectrochemistry，2019，129：228-234.
11	SUN Shihao， JIA Tipei， CHEN Kaiqi，et al. Simultaneous removal of hydrogen sulfide and volatile organic sulfur compounds in off-gas mixture from a wastewater treatment plant using a two-stage bio-trickling filter system［J］. Frontiers of Environmental Science & Engineering，2019，13（4）：60.
12	XU Jinlan， QIAO Xue， XU Lu，et al. Regulating intermediates to realize the coupled hydrion with biology polysulfide in wastewater treatment［J］. Environmental Technology，2022，43（1）：42-50.
13	LIU Chunshuang， ZHAO Dongfeng， YAN Laihong，et al. Elemental sulfur formation and nitrogen removal from wastewaters by autotrophic denitrifiers and anammox bacteria［J］. Bioresource Technology，2015，191：332-336. doi:10.1016/j.biortech.2015.05.027
14	AMANN R I. In situ identification of micro-organisms by whole cell hybridization with rRNA-targeted nucleic acid probes［M］//AKKERMANS A D L，VAN ELSAS J D，DE BRUIJN F J. Molecular Microbial Ecology Manual. Dordrecht：Springer，1995：331-345.
15	YUAN Zhongling， CHEN Yongzhi， ZHANG Ming，et al. Efficient nitrite accumulation and elemental sulfur recovery in partial sulfide autotrophic denitrification system：Insights of seeding sludge，S/N ratio and flocculation strategy［J］. Chemosphere，2022，288（Pt 2）：132388. doi:10.1016/j.chemosphere.2021.132388
16	YAN Jia， WEN Huijun， LI Qingqing，et al. Enhanced elemental sulfur recovery and nitrogen removal through coupling of sulfide-dependent denitrification and anammox processes during ammonium- and sulfide-laden waste stream treatment［J］. International Biodeterioration & Biodegradation，2020，155：105086. doi:10.1016/j.ibiod.2020.105086
17	ZHAO Youkang， HUANG Cong， MA Xiaodan，et al. Bioaugmentation with the sulfur oxidizing Thauera sp. HDD1 for shortening the startup time in the denitrifying sulfide removal process［J］. Bioresource Technology Reports，2019，7：100192.
18	徐金兰，陈紫薇，张少枫，等. 信号分子联合脱氮硫杆菌对同步脱氮除硫的影响［J］. 环境科学，2019，40（9）：4177-4184. doi:10.13227/j.hjkx.201903012
	XU Jinlan， CHEN Ziwei， ZHANG Shaofeng，et al. Effect of signal molecule combined with Thiobacillus denitrificans on simultaneous removal of nitrogen and sulfur［J］. Environmental Science，2019，40（9）：4177-4184. doi:10.13227/j.hjkx.201903012
