铁/钙改性膨润土控制底泥磷释放效果的对比研究

doi:10.19965/j.cnki.iwt.2025-0329

摘要/Abstract

摘要：

对比研究了铁改性膨润土（Fe-BT）和钙改性膨润土（Ca-BT）对水中磷酸盐的吸附效果及其抑制底泥磷释放的能力。结果显示，Fe-BT对水中磷酸盐的吸附动力学符合Elovich模型。溶液初始pH升高会抑制Fe-BT对磷酸根离子的吸附；高NaCl浓度有利于Fe-BT对磷酸盐的吸附；阳离子，尤其是二价阳离子能促进Fe-BT对磷酸盐的吸附，而HCO₃ ^-抑制吸附过程。Fe-BT对磷酸盐的吸附机理是Fe—OH与磷酸盐形成Fe—O—P内层络合物。底泥培养实验结果表明，Fe-BT能够有效抑制底泥磷释放，但其所固定的磷酸盐主要是以氧化还原敏感态磷（BD-P）存在，在缺氧状态下存在二次释放的风险。Ca-BT对水体磷酸盐具有一定吸附能力，最大吸附量为0.113 mg/g，且去除效果随投加量增加而提升。Ca-BT添加初期能有效抑制底泥磷释放，但长期抑制效果有限，且其固定的磷酸盐中高达40%为易解吸磷形态，易再次释放。相比Ca-BT，Fe-BT在抑制底泥磷释放方面效果更优，可作为磷污染底泥修复的潜力材料。

关键词: 铁改性膨润土, 钙改性膨润土, 底泥, 磷释放

Abstract:

The comparative study was conducted on the ability of iron-modified bentonite (Fe-BT) and calcium-modified bentonite (Ca-BT) to regulate phosphorus release from sediment. The experimental results showed that the adsorption kinetics characteristics of phosphate on Fe-BT were in good agreement with the Elovich model. An increase in the initial pH of the solution would inhibit the adsorption of phosphate ions by Fe-BT. High NaCl concentration was conducive to the adsorption of phosphate ions by Fe-BT, and the presence of HCO₃⁻ would inhibit the adsorption process. The adsorption mechanism of Fe-BT was that Fe—OH formed Fe—O—P inner-sphere complexes with phosphate ions. During the sediment culture experiment, it was found that the addition of Fe-BT could effectively control the phosphorus release from sediment, but the phosphorus fixed by Fe-BT was mainly retained in the oxidized-reduced sensitive state (BD-P) form, and there was a risk of secondary release under anoxic conditions. Ca-BT had a certain adsorption capacity for phosphate ions in water, and its removal efficiency increased with the increase of the dosage. The maximum unit adsorption capacity of Ca-BT was 0.113 mg/g. Ca-BT could effectively inhibit the phosphorus release from sediment in the short term, but it would gradually lose the ability to control the phosphorus release over time. Among the phosphorus fixed by Ca-BT, up to 40% appeared in an easily releasable form, and this part of phosphorus was prone to secondary release. Compared with Ca-BT, Fe-BT had a better effect in inhibiting the phosphorus release from sediment.

Key words: iron-modified bentonite, calcium-modified bentonite, sediment, phosphorus release

中图分类号:

X703.1

王凤君, 詹艳慧, 林建伟, 柏晓云. 铁/钙改性膨润土控制底泥磷释放效果的对比研究[J]. 工业水处理, 2026, 46(3): 127-135.

Fengjun WANG, Yanhui ZHAN, Jianwei LIN, Xiaoyun BAI. Comparison of the efficiencies of iron- and calcium-modified bentonite to control phosphorus release from sediment[J]. Industrial Water Treatment, 2026, 46(3): 127-135.

https://www.iwt.cn/CN/Y2026/V46/I3/127

图/表 11

表1 R-BT、Ca-BT和Fe-BT的化学组成

Table 1 Chemical composition of R-BT，Ca-BT and Fe-BT

化学组成	R-BT/%	Ca-BT/%	Fe-BT/%
Na₂O	4.787	1.765	2.557
MgO	1.858	1.803	1.803
Al₂O₃	18.791	18.562	18.440
SiO₂	65.150	66.123	65.121
K₂O	1.205	1.065	1.118
CaO	2.733	4.855	1.483
TiO₂	0.642	0.662	0.647
MnO	0.153	0.124	0.067
Fe₂O₃	4.442	4.891	8.517

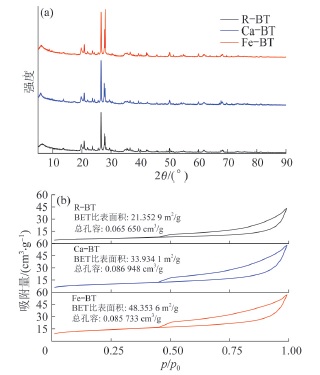

图1 R-BT、Ca-BT和Fe-BT的XRD（a）和N₂吸附-解吸曲线（b）

Fig.1 XRD patterns（a） and N₂ adsorption-desorption curves（b） of R-BT，Ca-BT and Fe-BT

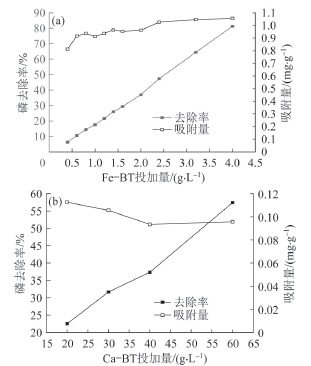

图2 吸附剂投加量对Fe-BT和Ca-BT去除水中磷酸盐效果的影响

Fig.2 Effect of adsorbent dosage on phosphate removal from aqueous solution by Fe-BT and Ca-BT

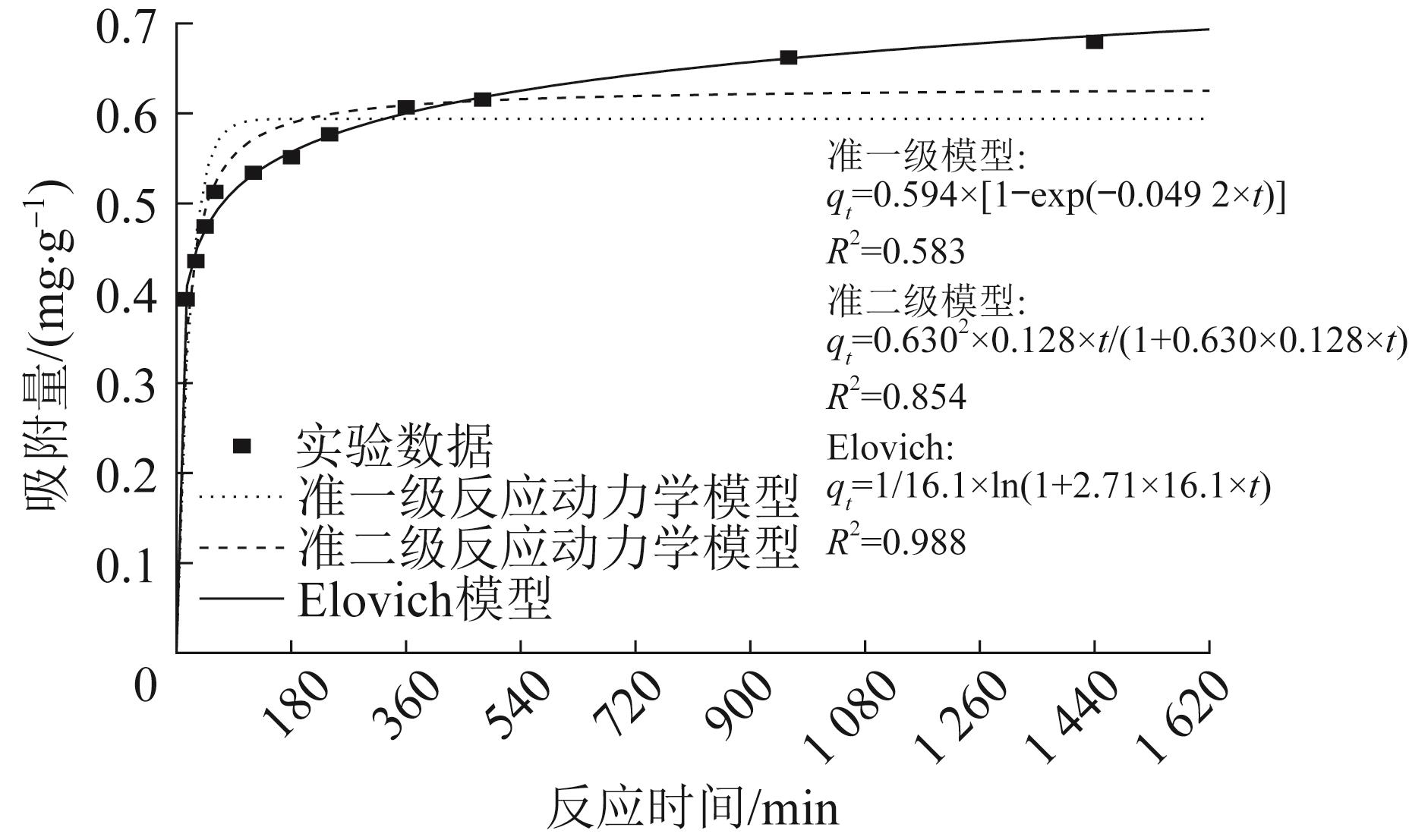

图3 反应时间对Fe-BT吸附水中磷酸盐效果的影响 t为反应时间；q_t 为t时刻吸附剂对水中磷酸盐的单位吸附量。

Fig.3 Effect of reaction time on phosphate adsorption from aqueous solution by Fe-BT

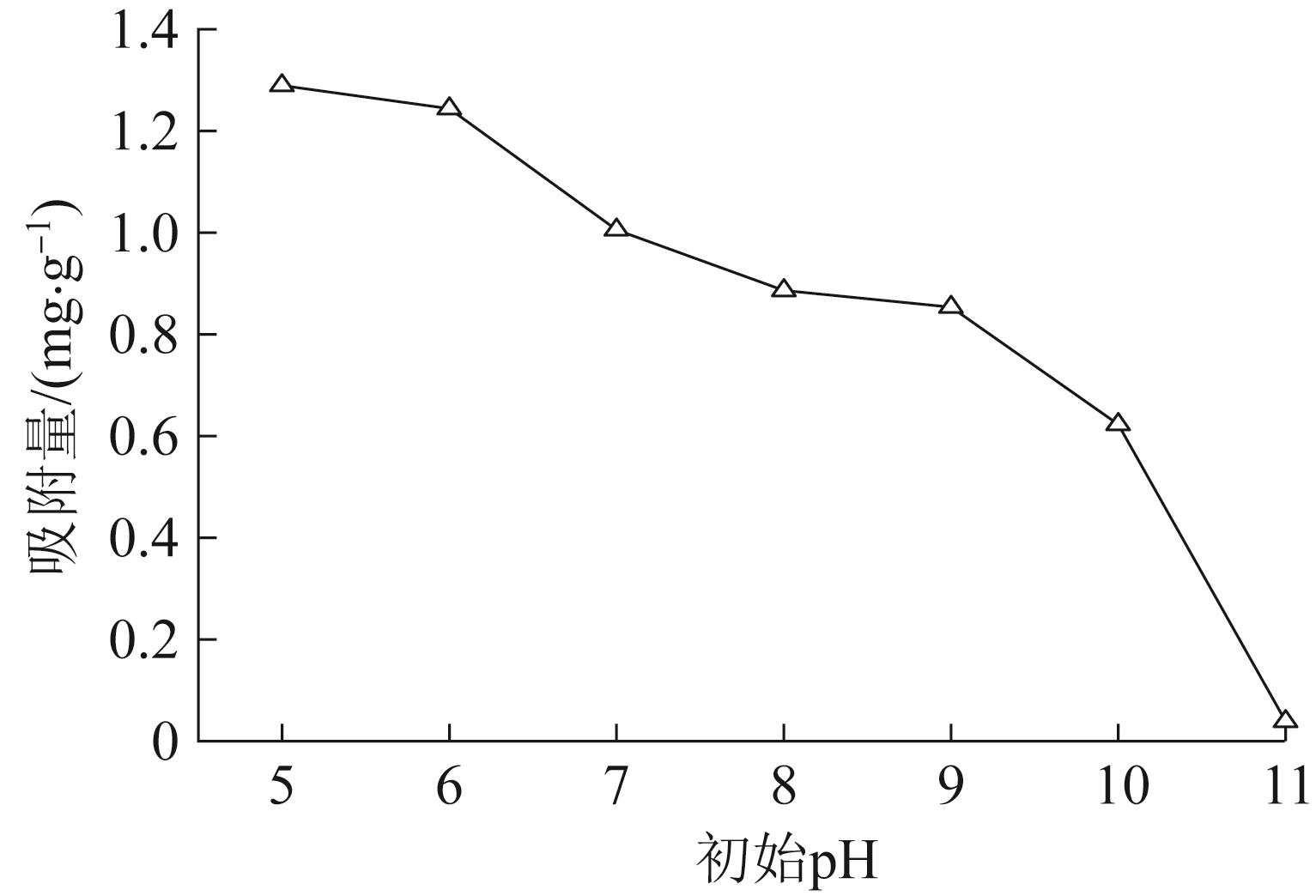

图4 溶液pH对Fe-BT吸附水中磷酸盐效果的影响

Fig.4 Effect of solution pH on phosphate adsorption from aqueous solution by Fe-BT

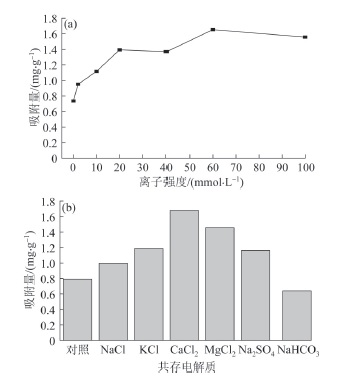

图5 离子强度（a）和共存离子（b）对Fe-BT吸附水中磷酸盐效果的影响

Fig.5 Effects of ion strength（a） and coexisting ions（b） on phosphate adsorption from aqueous solution by Fe-BT

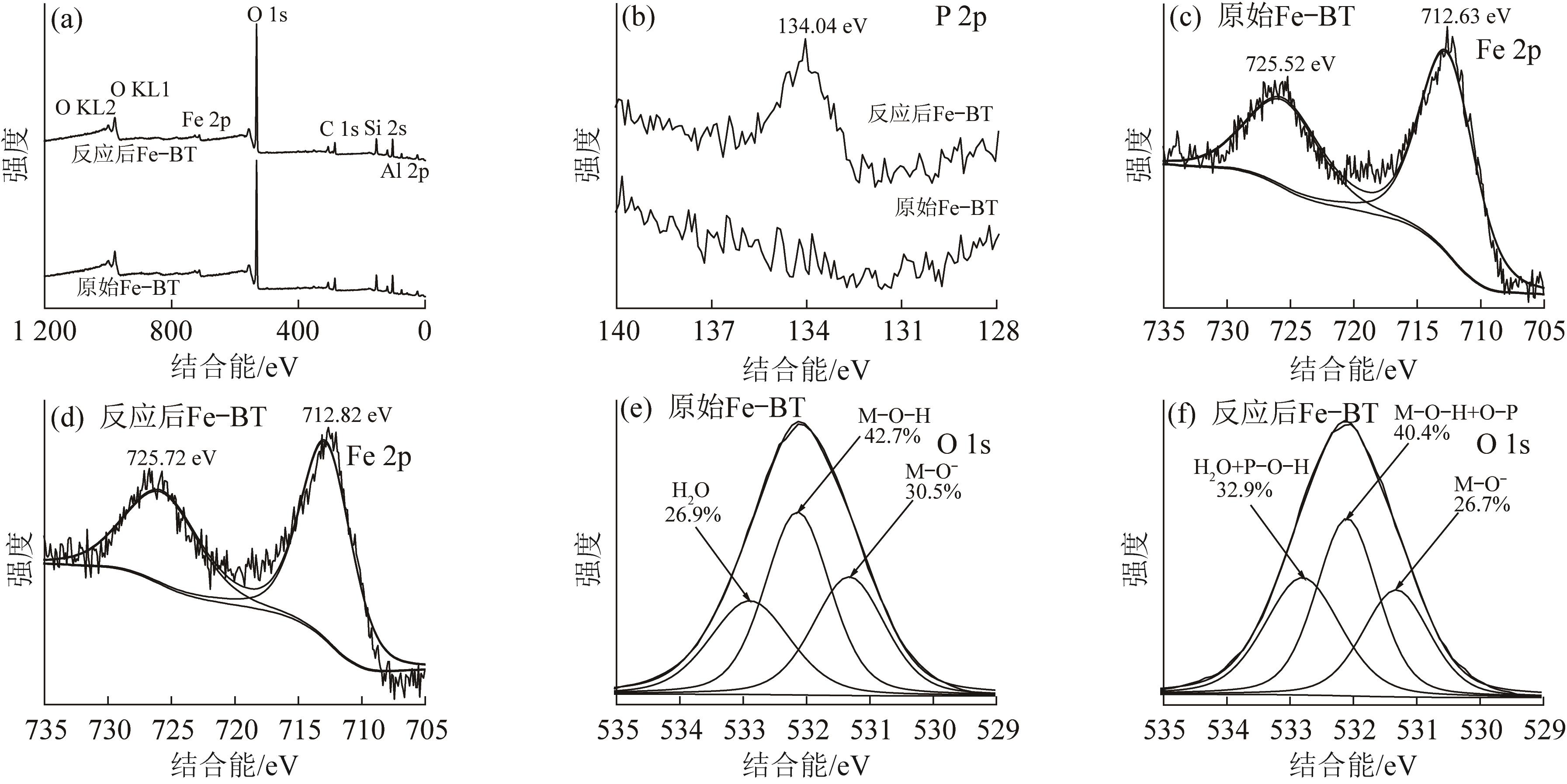

图6 吸附磷酸盐前后Fe-BT的XPS （a）全谱图；（b）P 2p谱图；（c）原始Fe-BT的Fe 2p谱图；（d）吸附磷酸盐后Fe-BT的Fe 2p谱图；（e）原始Fe-BT的O 1s谱图；（f）吸附磷酸盐后Fe-BT的O 1s谱图。

Fig.6 XPS spectra of original and phosphate-loaded Fe-BT samples

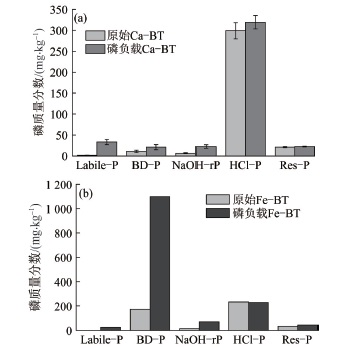

图7 吸附磷酸盐前后Ca-BT（a）及Fe-BT（b）中磷形态分布

Fig.7 P fraction of fresh and phosphate-loaded Ca-BT and Fe-BT samples

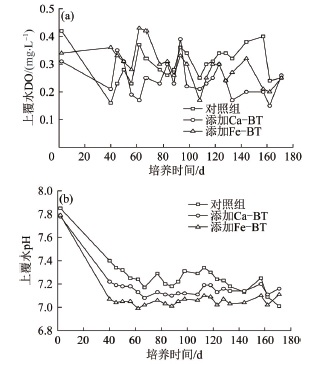

图8 上覆水DO（a）和pH（b）随培养时间的变化规律

Fig.8 Variation of DO（a） and pH（b） in overlying water with incubation time

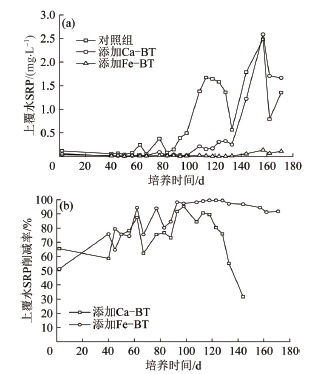

图9 上覆水SRP浓度（a）和SRP的削减率（b）的变化规律

Fig.9 Variation of SPR in overlying water（a） and the reduction rates of SRP（b）

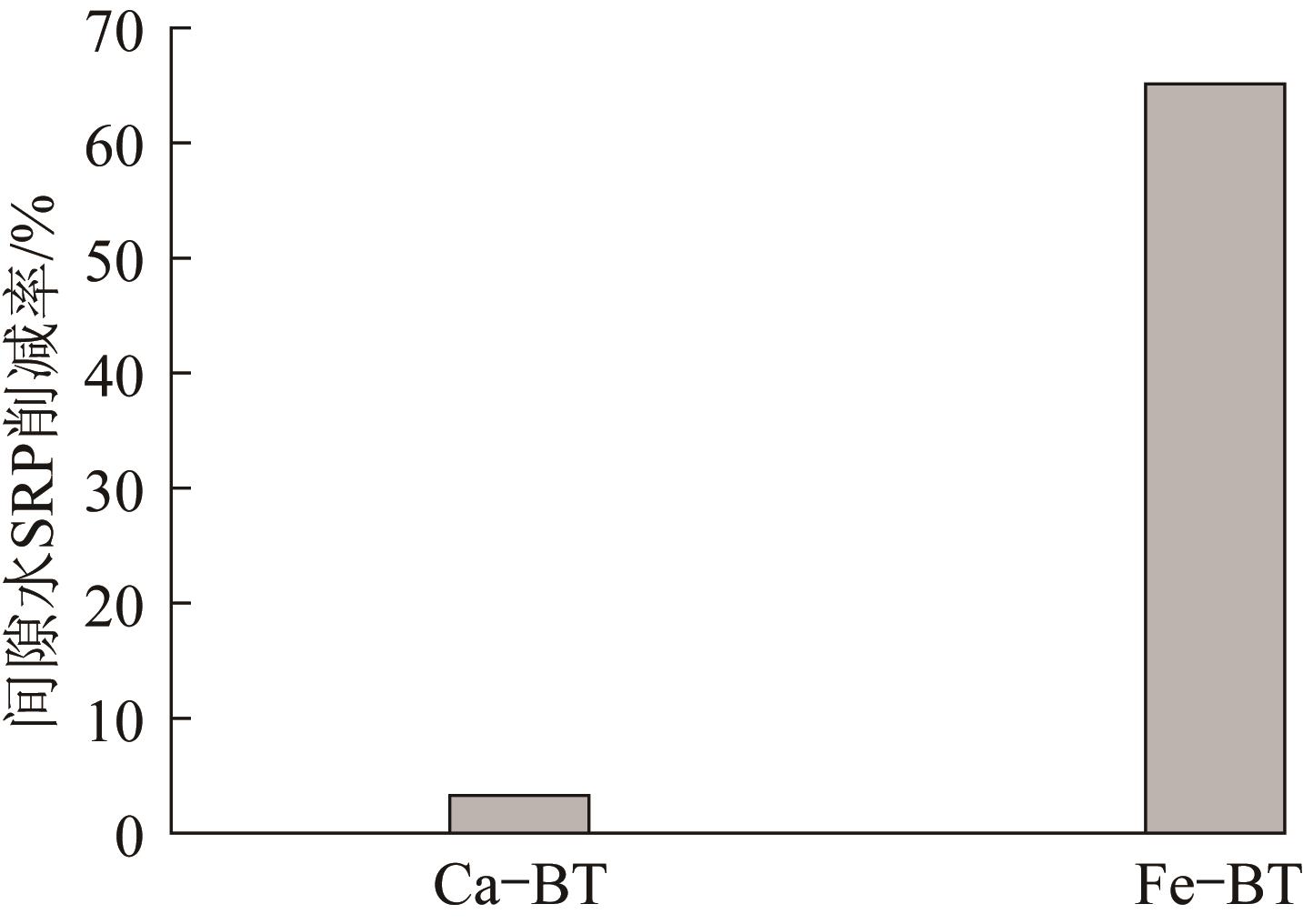

图10 Ca-BT和Fe-BT对间隙水中SRP的削减率

Fig.10 The reduction rates of SRP in interstitial water by Ca-BT and Fe-BT addition
