Analysis and research on the operation of circulating cooling water in automobile welding workshop

doi:10.19965/j.cnki.iwt.2023-0584

Abstract

Abstract:

Closed circulating water system is used in automobile welding workshop to cool the main equipment such as welding equipment. The process flow and problems of the closed circulating water system were researched and analyzed. In response to the problems, three measures such as improving the circulating water quality, setting up exhaust valves in the main pipes, exchanging the air control valves for the independently design and optimize ones and regularly inspecting them were implemented. The results showed that the adopted measures effectively reduced the amount of suspended solids in circulating water from the highest 720 g in a quarter to 32 g, reduced the influence of air-water mixture and the circulating water discharged to remove suspended solids and air, which led to reduce the average daily water recharge from the highest 15.8 t to the lowest 0.5 t, on more than 2 t, reduced the equipment damage rate caused by the circulating water system, ensured the equipment start-up rate with the cumulative shutdown time reducing from 2 514 min in 2019 to 73 min in 2022.

Key words: automobile welding workshop, closed circulating water system, air control valve, air-water mixture

摘要：

汽车焊装车间采用闭式循环水系统对焊接等主要设备进行冷却。研究分析了其循环水系统工艺流程及运行过程中存在的问题，针对问题实施了提升循环水系统水质、增加主管排气阀、使用自主设计优化的气控阀并定期巡检等措施。结果表明，采用的措施有效降低了循环水中悬浮物量，季度沉积物由最高720 g减少至32 g；稳定了水流量，降低水气互窜的影响，减少了为排除杂质和空气而排放的循环水，日均补水量由最高15.8 t减少至最低0.5 t，且稳定在2 t以内；降低了由循环水系统故障引起的设备损坏率，保证了自动焊装生产线的设备开动率，累计停线时间由2019年的2 514 min降低到2022年的73 min。

关键词: 汽车焊装车间, 密闭式循环水系统, 气控阀, 水气互窜

CLC Number:

TQ085

Bingbin CHEN, Kenie LU, Cong ZHENG, Han ZHANG, Jiasheng LI. Analysis and research on the operation of circulating cooling water in automobile welding workshop[J]. Industrial Water Treatment, 2024, 44(4): 210-214.

陈炳彬, 卢科镍, 郑聪, 张晗, 历家声. 汽车焊装车间循环冷却水运行问题分析与研究[J]. 工业水处理, 2024, 44(4): 210-214.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-0584

https://www.iwt.cn/EN/Y2024/V44/I4/210

Figures/Tables 9

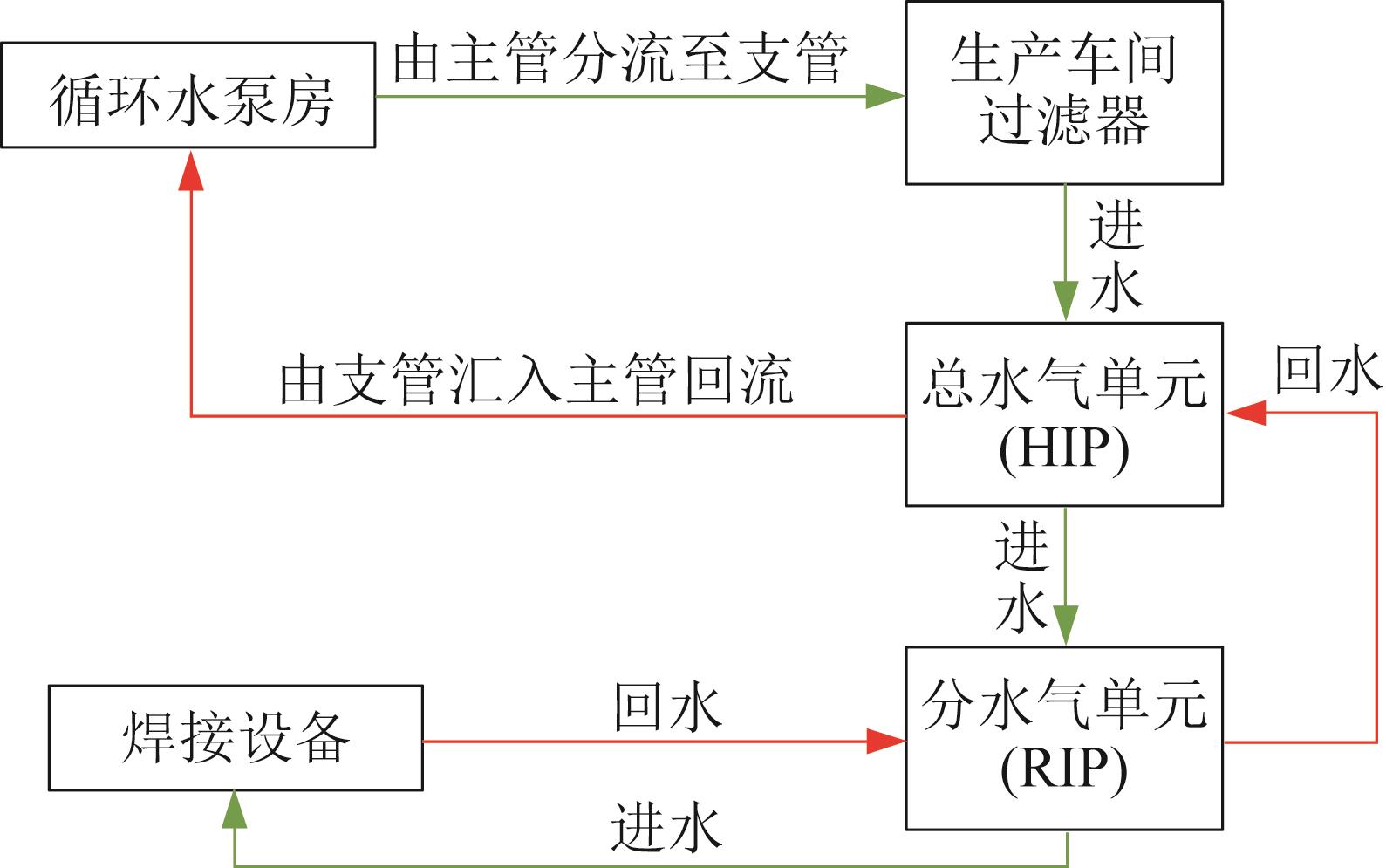

Fig.1 Circulating water system process flow

Table 1 Mass of solid particle in each region

取样点	一季度末沉积物/g	二季度末沉积物/g	三季度末沉积物/g	四季度末沉积物/g
R1	251	272	334	202
R2	133	161	311	245
R3	198	155	227	184
R4	154	212	436	227

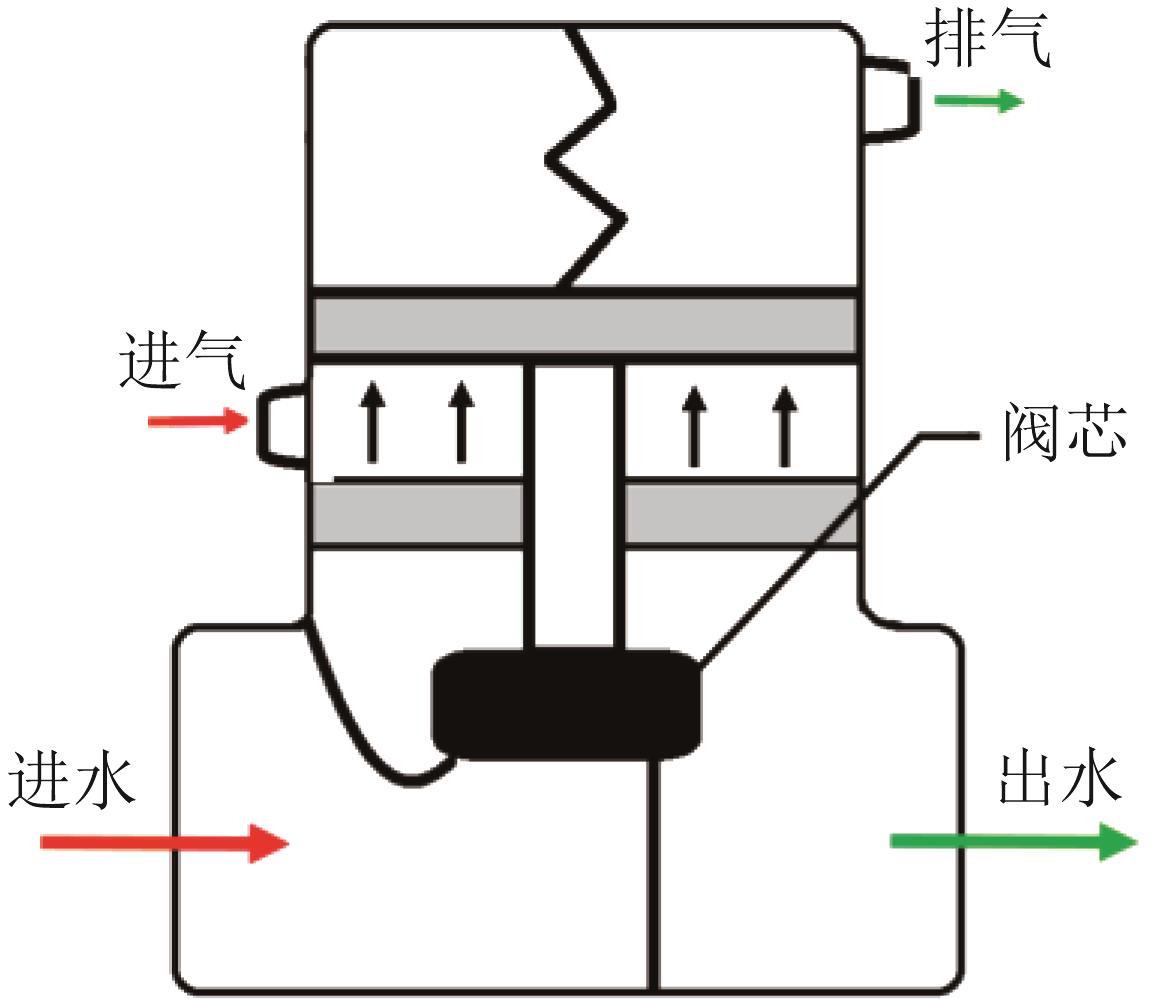

Fig.2 Working principle of air control valve

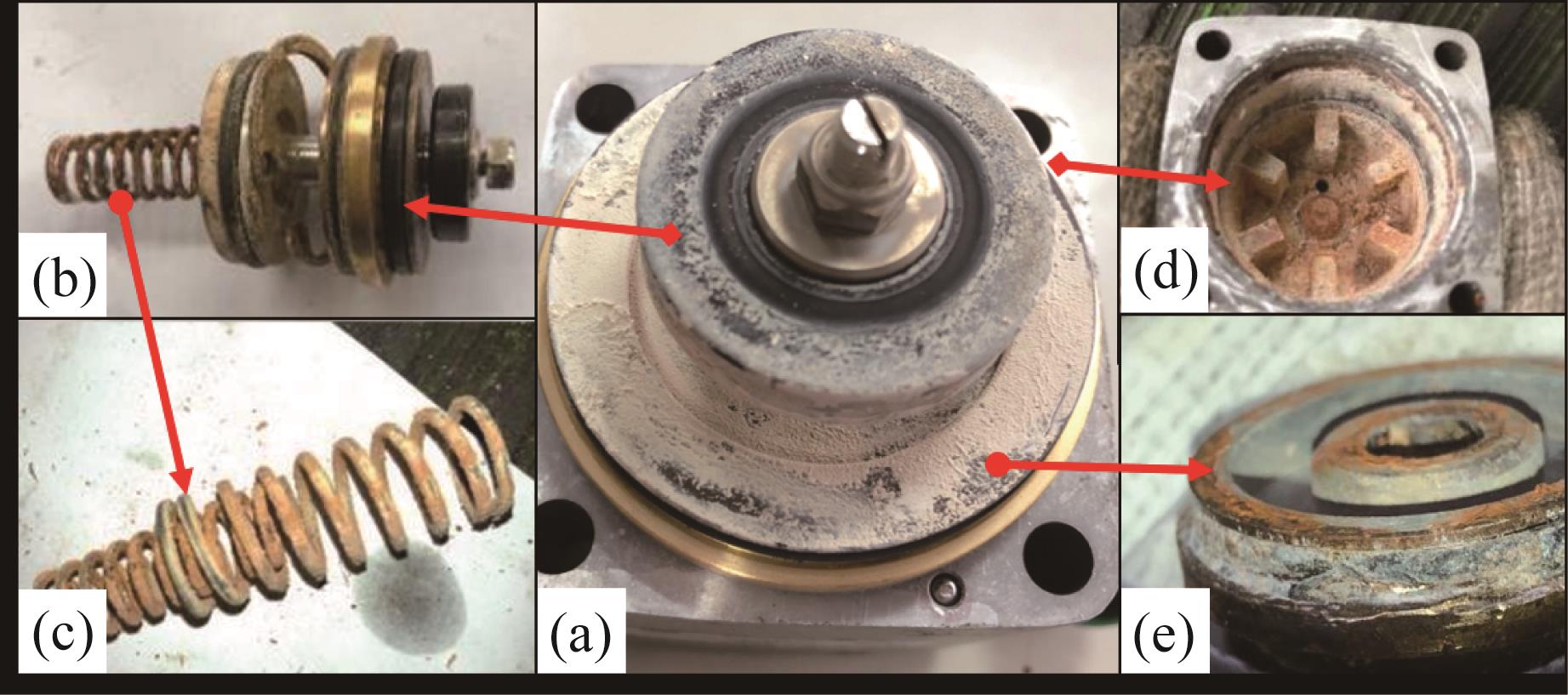

Fig.3 Internal corrosion of air control valve

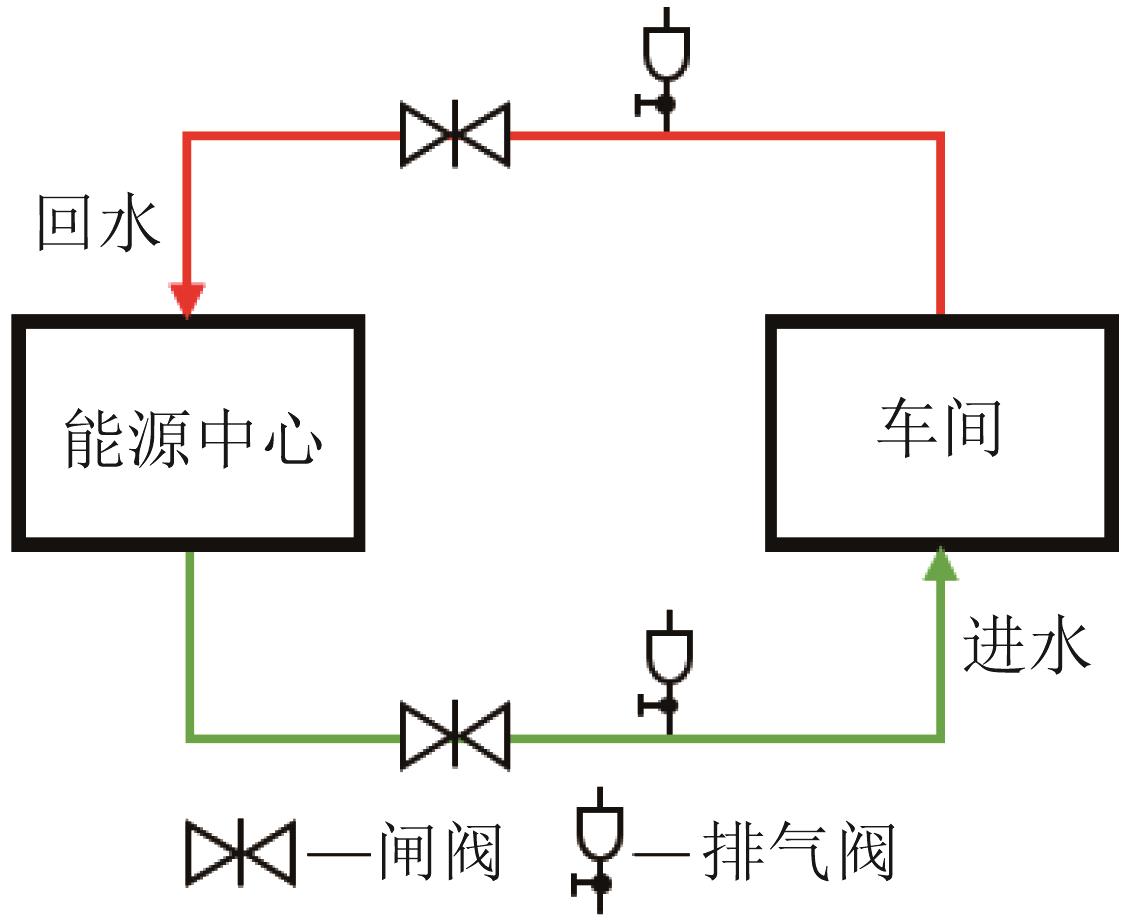

Fig.4 Exhaust valve installation for main pipe

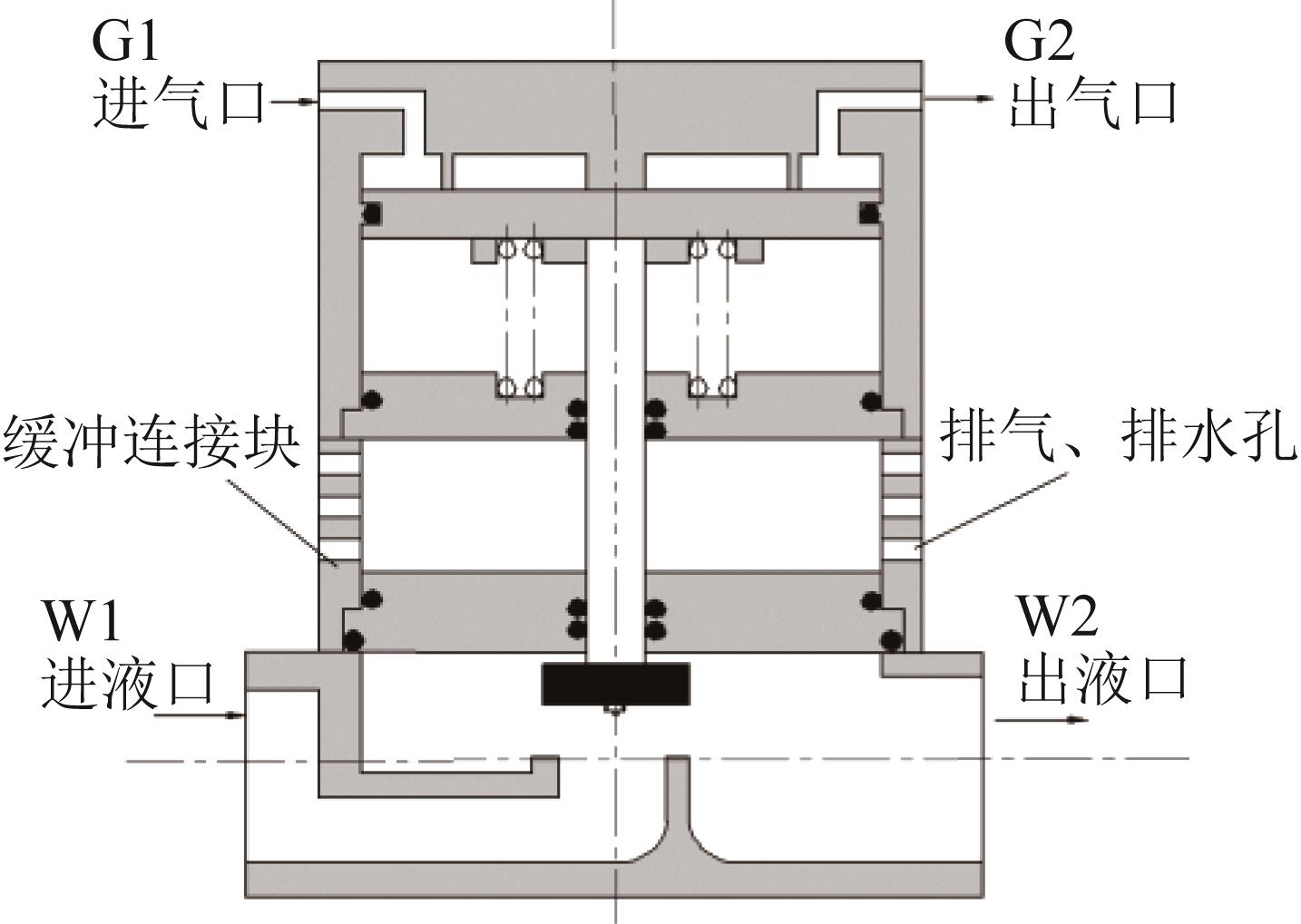

Fig.5 Schematic of the new air control valve structure

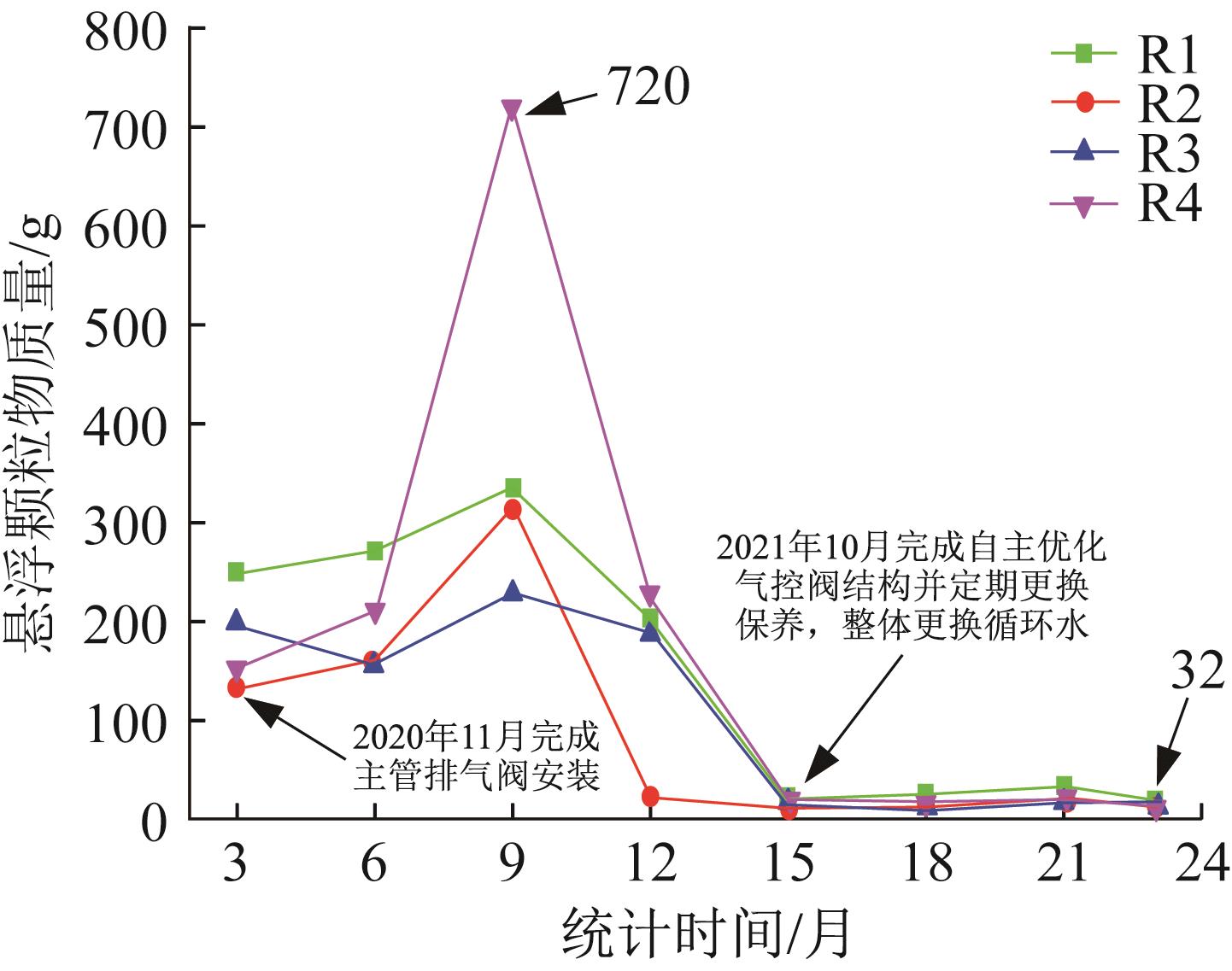

Fig.6 Comparison of solid particle mass before and after project implementation

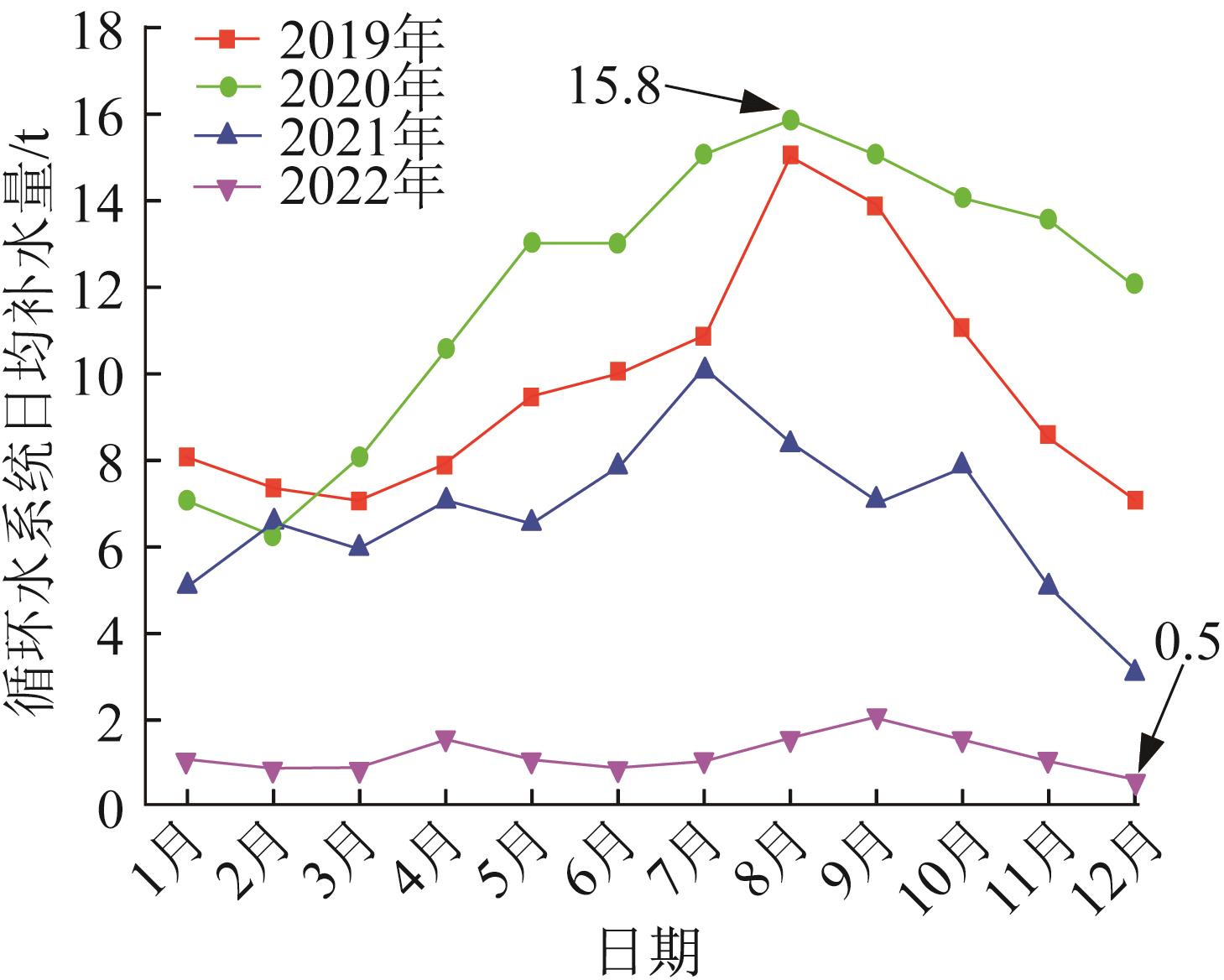

Fig.7 Comparison of daily average replenishment of circulating water

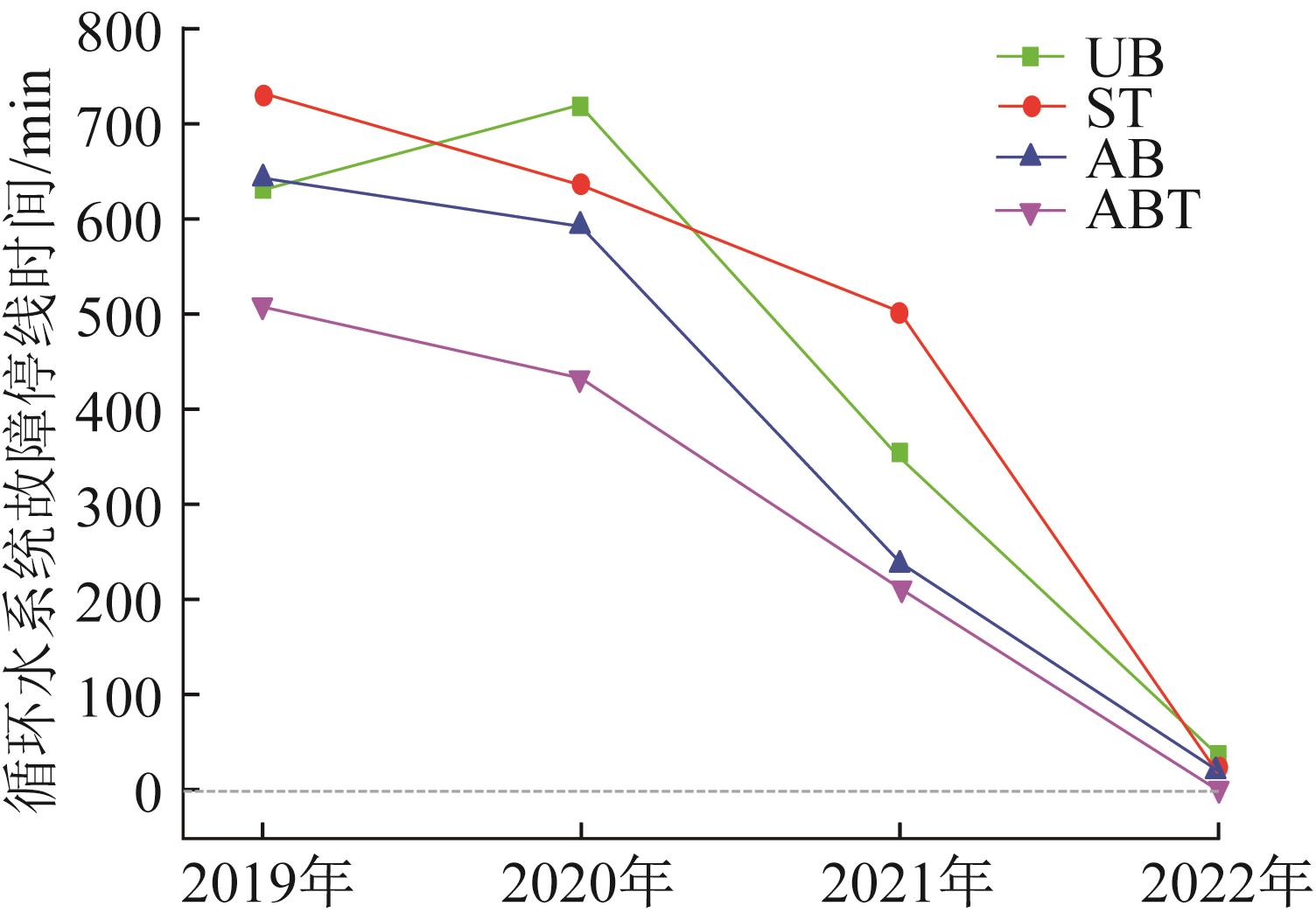

Fig.8 Shutdown time of circulating water system failure

References 11

1	王琴，兰炳华. 汽车厂焊装车间循环冷却水系统设计探讨［J］. 山西建筑，2020，46（5）：109-111.
	WANG Qin， LAN Binghua. Discussion on the design of circulating cooling water system in welding workshop of automobile factory［J］. Shanxi Architecture，2020，46（5）：109-111.
2	AZMAT N S， RALSTON K D， MUDDLE B C，et al. Corrosion of Zn under fine size aerosols and droplets using inkjet printer deposition and optical profilometry quantification［J］. Corrosion Science，2011，53（11）：3534-3541. doi:10.1016/j.corsci.2011.06.028
3	黄凯，罗小虎，张叶，等. 工业循环水处理技术改进的几点思考［J］. 化工设计通讯，2021，47（12）：145-146. doi:10.3969/j.issn.1003-6490.2021.12.073
	HUANG Kai， LUO Xiaohu， ZHANG Ye，et al. Thoughts on the improvement of industrial circulating water treatment technology［J］. Chemical Engineering Design Communications，2021，47（12）：145-146. doi:10.3969/j.issn.1003-6490.2021.12.073
4	钱敏. 焊机循环冷却水系统设计的几个特点［J］. 给水排水，2008，44（S1）：221-223. doi:10.3969/j.issn.1002-8471.2008.z2.062
	QIAN Min. Several characteristics of circulating cooling water system design of welding machine［J］. Water & Wastewater Engineering，2008，44（S1）：221-223. doi:10.3969/j.issn.1002-8471.2008.z2.062
5	KOKILARAMANI S， AL-ANSARI M M， RAJASEKAR A，et al. Microbial influenced corrosion of processing industry by re-circulating waste water and its control measures：A review［J］. Chemosphere，2021，265：129075. doi:10.1016/j.chemosphere.2020.129075
6	秦会敏，郦和生，成敏，等. 循环水中锌离子稳定性的研究［J］. 工业水处理，2004，24（1）：41-43. doi:10.11894/1005-829x.2004.24(1).41
	QIN Huimin， LI Hesheng， CHENG Min，et al. Study of the stability of zinc ion in circulating water system［J］. Industrial Water Treatment，2004，24（1）：41-43. doi:10.11894/1005-829x.2004.24(1).41
7	刘栓，孙虎元，范汇吉，等. 镀锌钢腐蚀行为的研究进展［J］. 材料保护，2012，45（12）：42-45.
	LIU Shuan， SUN Huyuan， FAN Huiji，et al. Progress of research on corrosion behavior of galvanized steel［J］. Materials Protection，2012，45（12）：42-45.
8	潘旭东，王向明. 循环水中氯离子控制及对不锈钢腐蚀机理探讨［J］. 工业水处理，2013，33（3）：14-16. doi:10.11894/1005-829x.2013.33(3).14
	PAN Xudong， WANG Xiangming. Control of chloride ions in circulating water and influence on stainless steel corrosion［J］. Industrial Water Treatment，2013，33（3）：14-16. doi:10.11894/1005-829x.2013.33(3).14
9	周柏青，胡梦莎. 工业循环冷却水系统降耗减排综述［J］. 工业水处理，2017，37（3）：16-20. doi:10.11894/1005-829x.2017.37(3).004
	ZHOU Baiqing， HU Mengsha. Review on the consumption lowering and emission reduction of industrial circulating cooling water systems［J］. Industrial Water Treatment，2017，37（3）：16-20. doi:10.11894/1005-829x.2017.37(3).004
10	徐淑姣，周军，刘军梅. 间冷循环水系统水质调控措施探讨［J］. 电力勘测设计，2021（7）：11-15. doi:10.13500/j.dlkcsj.issn1671-9913.2021.07.003
	XU Shujiao， ZHOU Jun， LIU Junmei. Discussion on control measures of water quality for indirect air cooling circulating water system［J］. Electric Power Survey & Design，2021（7）：11-15. doi:10.13500/j.dlkcsj.issn1671-9913.2021.07.003
11	陈炳彬，卢科镍，金颋勋，等. 气控阀［P］. 上海市：CN212455 713U，2021-02-02.
