Effect of different types of activated carbon on the adsorption- reduction of Cr(Ⅵ) by mZVI/activated carbon

doi:10.19965/j.cnki.iwt.2024-0039

Abstract

Abstract:

Based on the excellent adsorption performance of activated carbon(AC) and its characteristic of forming a microelectrolysis system with micro zero-valent iron(mZVI), various mZVI/ACs composite materials were synthesized by ball milling(BM) method, and the removal efficiencies of Cr(Ⅵ) by these materials were explored. The mechanism of the optimal composite material for Cr(Ⅵ) removal was analyzed. The results indicated that BM could effectively combine AC with mZVI, and mZVI/AC(wood) had a better removal effect on Cr(Ⅵ) under short-term ball milling conditions. Cr(Ⅵ) in the solution was mainly reduced by secondary Fe²⁺, and AC not only enhanced the adsorption of Cr(Ⅵ) by mZVI/AC, but also promoted the corrosion of mZVI, thereby enhancing the removal of Cr(Ⅵ). By monitoring the concentration changes of Cr(Ⅵ) and total Cr, and combining with solid-phase XPS analysis, it was speculated that the potential removal pathways of Cr(Ⅵ) by mZVI/AC(wood) involved adsorption-reduction process and reduction-chelation-precipitation process.

Key words: Cr(Ⅵ), micro zero valent iron, activated carbon, corrosion, adsorption-reduction

摘要：

基于活性炭（AC）的良好吸附性能和其可与微米零价铁（mZVI）结合形成微电解体系的特性，采用球磨法（BM）合成多种mZVI/ACs复合材料，并探讨该类材料对Cr（Ⅵ）的去除效能，对最佳复合材料去除Cr（Ⅵ）的机理进行解析。研究结果表明，BM可使AC与mZVI有效结合，短时球磨条件下mZVI/AC（木质）对Cr（Ⅵ）的去除效果较优。溶液中的Cr（Ⅵ）主要由次生Fe²⁺还原，而AC不仅可加强mZVI/AC对Cr（Ⅵ）的吸附，而且还促进了mZVI的腐蚀，进而强化了对Cr（Ⅵ）的去除。通过监测Cr（Ⅵ）和总Cr的浓度变化，并结合固相XPS分析，推测mZVI/AC（木质）对Cr（Ⅵ）的潜在去除途径涉及吸附-还原过程和还原-螯合-沉淀过程。

关键词: Cr（Ⅵ）, 微米零价铁, 活性炭, 腐蚀, 吸附还原

CLC Number:

X703.1

Wenhao WANG, Yexing CHENG, Yuyin WANG, Tingting HOU, Xiaofeng WU, Yucai LI. Effect of different types of activated carbon on the adsorption- reduction of Cr(Ⅵ) by mZVI/activated carbon[J]. Industrial Water Treatment, 2025, 45(2): 150-158.

王文豪, 程业兴, 王雨银, 侯婷婷, 吴晓峰, 李玉才. 不同种类活性炭对mZVI/活性炭吸附还原Cr（Ⅵ）的影响[J]. 工业水处理, 2025, 45(2): 150-158.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2024-0039

https://www.iwt.cn/EN/Y2025/V45/I2/150

Figures/Tables 14

Table 1 Parameters of different activated carbon

项目	木质AC	煤质AC	果壳AC
颗粒尺寸/目	325	300	325
灰分/%	<8	<10	<9
pH	8	8	7
水分/%	<9	<9	<8
表观密度/（g·mL^-1）	0.35	0.35	0.40
亚甲基蓝吸附值/（mL·g^-1）	15	12	18
强度/%	95	93	95
磨损率/%	0.1	0.1	0.1

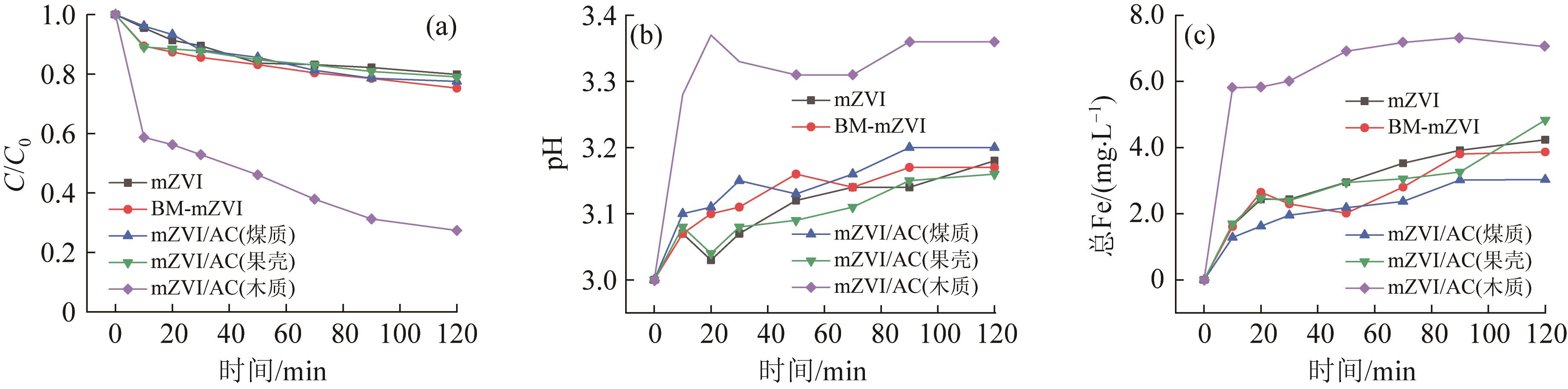

Fig.1 The effect of types of AC on the removal of Cr（Ⅵ） by mZVI/ACs（a），and the changes of pH （b） and iron ion concentration（c） during the reaction process

Fig.2 Adsorption effects of different kinds of AC on Cr（Ⅵ）

Fig.3 Conductivities of different kinds of AC

Fig.4 Cr（Ⅵ） removal efficiencies by mZVI， mixed mZVI-AC （wood） and mZVI/AC （wood）

Fig.5 Tafel corrosion curves of mZVI and mZVI/ACs

Fig.6 SEM-EDS images of pristine mZVI（a） and mZVI/AC（wood）（b）

Fig.7 Effect of mZVI/AC mass ratio on the removal of Cr（Ⅵ）

Fig.8 Effects of initial pH on the removal of Cr（Ⅵ）

Fig.9 The reusability and rejuvenation of mZVI/AC（wood）（a） and the reusability of mZVI（b）

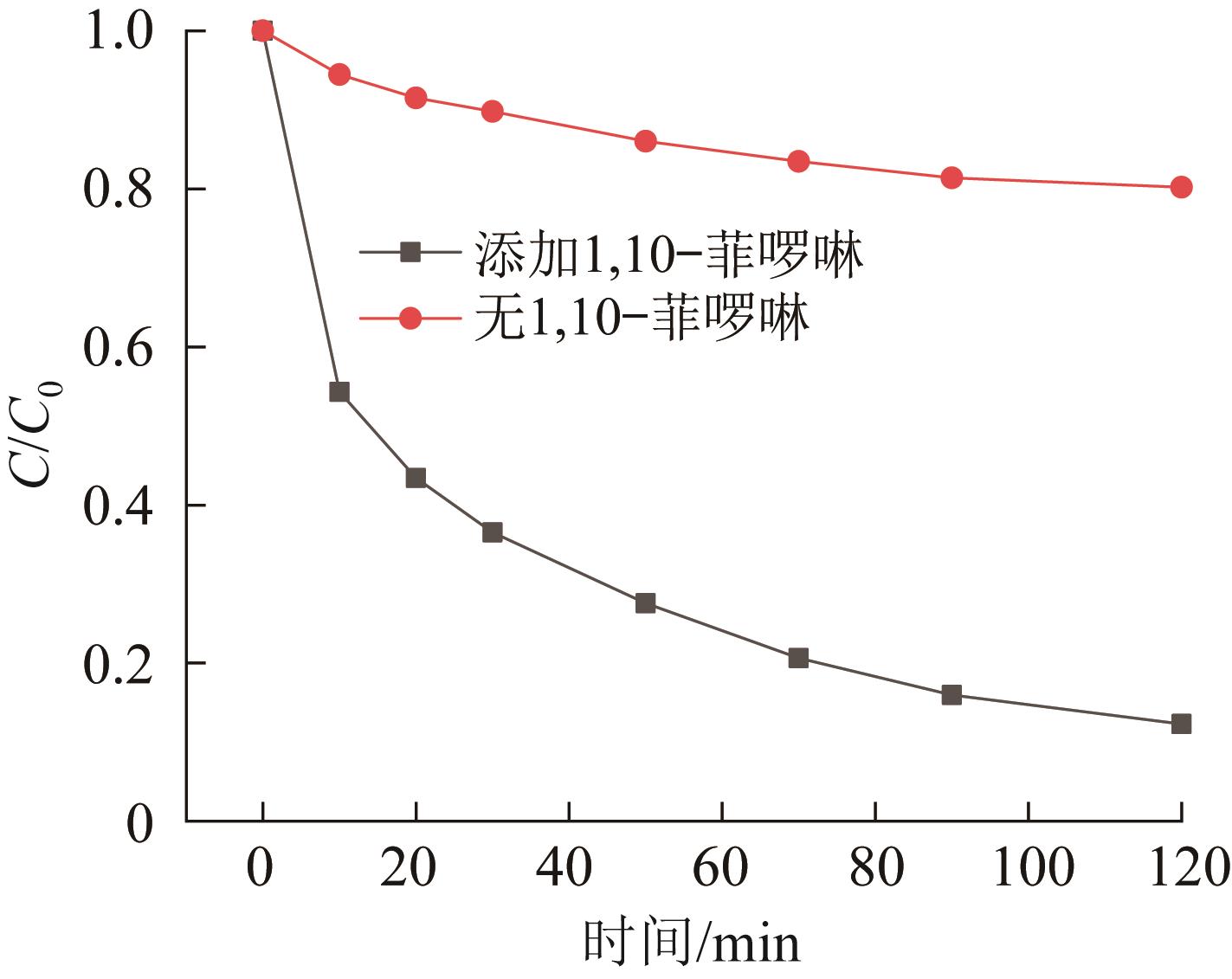

Fig.10 Effect of 1，10-phenanthroline on the removal of Cr（Ⅵ）

Fig.11 The removal kinetics of total Cr and Cr（Ⅵ）

Fig.12 XPS spectra

Fig.13 Schematic illustration of mechanisms of Cr（Ⅵ） removal by mZVI/AC（wood）

References 33

1	ZHANG Hanshuo， HU Xin， LI Tianxiao，et al. MIL series of metal organic frameworks（MOFs） as novel adsorbents for heavy metals in water：A review［J］. Journal of Hazardous Materials，2022，429：128271. doi:10.1016/j.jhazmat.2022.128271
2	JOSEPH L， JUN B M， FLORA J R V，et al. Removal of heavy metals from water sources in the developing world using low-cost materials：A review［J］. Chemosphere，2019，229：142-159. doi:10.1016/j.chemosphere.2019.04.198
3	WANG Wenhao， GAO Pei， YANG Chun，et al. Separable and reactivated magnetic mZVAl/nFe₃O₄ composite induced by ball milling for efficient adsorption-reduction-sequestration of aqueous Cr（Ⅵ）［J］. Separation and Purification Technology，2022，288：120689. doi:10.1016/j.seppur.2022.120689
4	LIU Kunyuan， ZHAO Dongye， HU Zhuofeng，et al. The adsorption and reduction of anionic Cr（Ⅵ） in groundwater by novel iron carbide loaded on N-doped carbon nanotubes：Effects of Fe-confinement［J］. Chemical Engineering Journal，2023，452：139357. doi:10.1016/j.cej.2022.139357
5	LI Zichen， ZHAO Zhiwei， FAN Junyu，et al. Spinel ferrite-enhanced Cr（Ⅵ） removal performance of micro-scale zero-valent aluminum：Synergistic effects of oxide film destruction and lattice spacing expansion［J］. Separation and Purification Technology，2022，294：121110. doi:10.1016/j.seppur.2022.121110
6	SHAHEEN S M， MOSA A，NATASHA，et al. Removal of toxic elements from aqueous environments using nano zero-valent iron- and iron oxide-modified biochar：A review［J］. Biochar，2022，4（1）：24. doi:10.1007/s42773-022-00149-y
7	STEFANIUK M， OLESZCZUK P， OK Y S. Review on nano zerovalent iron（nZVI）：From synthesis to environmental applications［J］. Chemical Engineering Journal，2016，287：618-632. doi:10.1016/j.cej.2015.11.046
8	GUAN Xiaohong， SUN Yuankui， QIN Hejie，et al. The limitations of applying zero-valent iron technology in contaminants sequestration and the corresponding countermeasures：The development in zero-valent iron technology in the last two decades（1994—2014）［J］. Water Research，2015，75：224-248. doi:10.1016/j.watres.2015.02.034
9	ZHANG Yunfei， ZHANG Chunhui， XU Jianhui，et al. Strategies to enhance the reactivity of zero-valent iron for environmental remediation：A review［J］. Journal of Environmental Management，2022，317：115381. doi:10.1016/j.jenvman.2022.115381
10	YANG Weichun， XI Dongdong， LI Chaofang，et al. “In-situ synthesized” iron-based bimetal promotes efficient removal of Cr（Ⅵ） in by zero-valent iron-loaded hydroxyapatite［J］. Journal of Hazardous Materials，2021，420：126540. doi:10.1016/j.jhazmat.2021.126540
11	HU Yue， PENG Xing， AI Zhihui，et al. Liquid nitrogen activation of zero-valent iron and its enhanced Cr（Ⅵ） removal performance［J］. Environmental Science & Technology，2019，53（14）：8333-8341. doi:10.1021/acs.est.9b01999
12	HE Lelin， HUANG Deshun， HE Zexiang，et al. Nanoscale zero-valent iron intercalated 2D titanium carbides for removal of Cr（Ⅵ） in aqueous solution and the mechanistic aspect［J］. Journal of Hazardous Materials，2020，388：121761. doi:10.1016/j.jhazmat.2019.121761
13	XI Yanni， WU Yangtao， LIU Yanfen，et al. Covering extracellular polymeric substances to enhance the reactivity of sulfidated nanoscale zerovalent iron toward Cr（Ⅵ） removal［J］. Chemical Engineering Journal，2022，448：137610. doi:10.1016/j.cej.2022.137610
14	GONG Li， ZHANG Lizhi. Oxyanion-modified zero valent iron with excellent pollutant removal performance［J］. Chemical Communications，2023，59（15）：2081-2089. doi:10.1039/d2cc06814a
15	LI Meiqi， SHANG Huan， LI Hao，et al. Kirkendall effect boosts phosphorylated nZVI for efficient heavy metal wastewater treatment［J］. Angewandte Chemie（International Ed.），2021，60（31）：17115-17122. doi:10.1002/anie.202104586
16	ZHOU Fengfeng， LIU Qiangling， QIN Yaxin，et al. Efficient Fe（Ⅲ）/Fe（Ⅱ） cycling mediated by L-cysteine functionalized zero-valent iron for enhancing Cr（Ⅵ） removal［J］. Journal of Hazardous Materials，2023，456：131717. doi:10.1016/j.jhazmat.2023.131717
17	WANG Wenhao， HU Bibo， WANG Chuang，et al. Cr（Ⅵ） removal by micron-scale iron-carbon composite induced by ball milling：The role of activated carbon［J］. Chemical Engineering Journal，2020，389：122633. doi:10.1016/j.cej.2019.122633
18	ZHANG Jinlan， XIE Lihong， MA Qiyan，et al. Ball milling enhanced Cr（Ⅵ） removal of zero-valent iron biochar composites：Functional groups response and dominant reduction species［J］. Chemosphere，2023，311：137174. doi:10.1016/j.chemosphere.2022.137174
19	XU Zibo， SUN Mingzhe， XU Xiaoyun，et al. Electron donation of Fe-Mn biochar for chromium（Ⅵ） immobilization：Key roles of embedded zero-valent iron clusters within iron-manganese oxide［J］. Journal of Hazardous Materials，2023，456：131632. doi:10.1016/j.jhazmat.2023.131632
20	AO Lianggen， XIA Fan， REN Yang，et al. Enhanced nitrate removal by micro-electrolysis using Fe⁰ and surfactant modified activated carbon［J］. Chemical Engineering Journal，2019，357：180-187. doi:10.1016/j.cej.2018.09.071
21	YANG Fei， JIANG Yating， DAI Min，et al. Active biochar-supported iron oxides for Cr（Ⅵ） removal from groundwater：Kinetics，stability and the key role of FeO in electron-transfer mechanism［J］. Journal of Hazardous Materials，2022，424：127542. doi:10.1016/j.jhazmat.2021.127542
22	MA Jinxing， HE Di， COLLINS R N，et al. The tortoise versus the hare-Possible advantages of microparticulate zerovalent iron（mZVI） over nanoparticulate zerovalent iron（nZVI） in aerobic degradation of contaminants［J］. Water Research，2016，105：331-340. doi:10.1016/j.watres.2016.09.012
23	SHEN Wenjuan， LIU Zhan， QUAN Fengjiao，et al. Mechanochemically activated microscale zero-valent iron with carboxymethylcellulose for efficient sequestration of phosphate in aqueous solution［J］. Journal of Environmental Chemical Engineering，2023，11（1）：109066. doi:10.1016/j.jece.2022.109066
24	LI Tielong， TENG Yaxin， LI Xiao，et al. Sulfidated microscale zero-valent iron/reduced graphene oxide composite（S-mZVI/rGO） for enhanced degradation of trichloroethylene：The role of hydrogen spillover［J］. Journal of Hazardous Materials，2023，446：130657. doi:10.1016/j.jhazmat.2022.130657
25	WANG Manqian， YANG Shiying， LIU Junqin，et al. Enteromorpha prolifera biochar as a novel ball milling aid for enhancing the interfacial reaction activity of microscale zero-valent iron（mZVI） for Cr（Ⅵ） removal from water［J］. Journal of Water Process Engineering，2022，48：102844. doi:10.1016/j.jwpe.2022.102844
26	WANG Peng， HU Jian， LIU Tingyi，et al. New insights into ball-milled zero-valent iron composites for pollution remediation：An overview［J］. Journal of Cleaner Production，2023，385：135513. doi:10.1016/j.jclepro.2022.135513
27	RAJAPAKSHA A U， SELVASEMBIAN R， ASHIQ A，et al. A systematic review on adsorptive removal of hexavalent chromium from aqueous solutions：Recent advances［J］. Science of the Total Environment，2022，809：152055. doi:10.1016/j.scitotenv.2021.152055
28	ZHANG Yixuan， YANG Shiying， ZHANG Yuqi，et al. Enhancement of Cr（Ⅵ） removal by mechanically activated micron-scale zero-valent aluminum（MA-mZVAl）：Performance and mechanism especially at near-neutral pH［J］. Chemical Engineering Journal，2018，353：760-768. doi:10.1016/j.cej.2018.07.174
29	REN Tengfei， ZHANG Yixuan， LIU Junqin，et al. Ethanol-assisted mechanical activation of zero-valent aluminum for fast and highly efficient removal of Cr（Ⅵ）［J］. Applied Surface Science，2020，533：147543. doi:10.1016/j.apsusc.2020.147543
30	SHAO Qianqian， XU Chunhua， WANG Yahao，et al. Dynamic interactions between sulfidated zerovalent iron and dissolved oxygen：Mechanistic insights for enhanced chromate removal［J］. Water Research，2018，135：322-330. doi:10.1016/j.watres.2018.02.030
31	YANG Zhe， MA Xiaowen， SHAN Chao，et al. Activation of zero-valent iron through ball-milling synthesis of hybrid Fe⁰/Fe₃O₄/FeCl₂ microcomposite for enhanced nitrobenzene reduction［J］. Journal of Hazardous Materials，2019，368：698-704. doi:10.1016/j.jhazmat.2019.01.105
32	FAN Peng， SUN Yuankui， LEI Han，et al. Mechanochemically ball-milled zerovalent iron and ferrous composite for effective removal of various metal（loid）s from water［J］. Chemical Engineering Journal，2023，452：139380. doi:10.1016/j.cej.2022.139380
33	WANG Chen， HUANG Mingjie， LOU Wei，et al. Citric ligand manipulated efficient spatially-separated reduction and immobilization of Cr（Ⅵ） upon electron-rich copper-iron oxides［J］. Chemical Engineering Journal，2022，434：134575. doi:10.1016/j.cej.2022.134575
