Synthesis of hyperbranched polymers and its demulsification properties

doi:10.19965/j.cnki.iwt.2024-0223

Industrial Water Treatment ›› 2025, Vol. 45 ›› Issue (4): 127-132. doi: 10.19965/j.cnki.iwt.2024-0223

• RESEARCH AND EXPERIMENT • Previous Articles

Synthesis of hyperbranched polymers and its demulsification properties

Heng ZHANG¹(), Cunchuan ZHENG²()

^1. Xinjiang Branch of China Oilfield Services Co. , Ltd. , Korla 841000, China
^2. School of Chemistry and Chemical Engineering, Southwest Petroleum University, Chengdu 610500, China

Received:2024-06-24 Online:2025-04-20 Published:2025-04-27
Contact: Cunchuan ZHENG

一种超支化聚合物的合成及其破乳性能

张恒¹(), 郑存川²()

^1. 中海油田服务股份有限公司新疆分公司，新疆库尔勒 841000
^2. 西南石油大学化学化工学院，四川成都 610500

通讯作者: 郑存川
作者简介:
张恒（1981— ），工程师，E-mail：zhangheng3@cosl.com.cn。
基金资助:
四川省重点研发项目(2021YFG0112)

Abstract

Abstract:

Hyperbranched polymer (h-PAMAM) with methyl acrylate and ethylenediamine as the backbone was synthesized using one pot method with 1,3-propanediamine as the core. Firstly, 30 mL of methanol was added to the three necked flask, 1,3-propanediamine (0.1 mol) was added with drop-wise of methyl acrylate (0.4 mol) while stirring. Then,the mixture was stirred at 25 ℃ for 24 hours. Ethylenediamine (0.28 mol) and methyl acrylate (0.24 mol) were sequentially added into the flask and continued the reaction for 24 hours. Finally, under vacuum conditions, light green and high viscosity sample was obtained by programmed heating method with reaction at 60 ℃ for 1 hour, reaction at 80 ℃ for 1 hour, reaction at 100 ℃ for 2 hours, reaction at 120 ℃ for 2 hours, and reaction at 140 ℃ for 2 hours. The structure of the polymer was characterized by FT-IR and ¹H NMR, and the demulsification performance of h-PAMAM on diesel oil lotion at different concentrations and temperatures was tested. The ability to reduce the interfacial tension was analyzed by surface tension meter and interfacial tension meter, and the mechanism of its action on the oil-water interface was discussed by microscopic observation. The results showed that when the concentration of h-PAMAM was 50 mg/L, the demulsification temperature was 60 ℃, and the demulsification time was 90 min, the demulsification efficiency could reach 80%, and the oil-water interface was neat. After demulsification, the water phase transmittance of lotion was 84.1%. The demulsifier had the characteristics of high efficiency and low dosage, and had great application potential in demulsification of oil in water lotion.

Key words: hyperbranched polymer, diesel emulsion, demulsification performance

摘要：

以1，3-丙二胺为核，采用“一锅法”合成了以丙烯酸甲酯和乙二胺为骨架的超支化聚合物（h-PAMAM）。首先将30 mL甲醇加入到三口烧瓶中，向其中加入1，3-丙二胺（0.1 mol），边搅拌边滴加丙烯酸甲酯（0.4 mol），随后混合物在25 ℃下继续搅拌反应24 h。然后依次将乙二胺（0.28 mol）和丙烯酸甲酯（0.24 mol）滴加入烧瓶中，继续反应24 h。最后，在真空状态下采用程序升温：60 ℃反应1 h，80 ℃反应1 h，100 ℃反应2 h，120 ℃反应2 h，140 ℃反应2 h，最终得到浅绿色、高黏度的样品。采用FT-IR和¹H NMR对聚合物的结构进行了表征，并测试了h-PAMAM在不同浓度和不同温度条件下对柴油乳液的破乳性能，采用表面张力仪和界面张力仪分析了其降低界面张力的能力以及采用显微观察探讨了其在油水界面上的作用机理。研究结果表明，在h-PAMAM质量浓度为50 mg/L，破乳温度为60 ℃，破乳时间为90 min时，破乳效率均能达到80%，且油水界面整齐，破乳后乳液水相透光率为84.1%。该破乳剂具有高效、低用量的特点，在水包油乳液的破乳中有着很大的应用潜力。

关键词: 超支化聚合物, 柴油乳液, 破乳性能

CLC Number:

TE39

Heng ZHANG, Cunchuan ZHENG. Synthesis of hyperbranched polymers and its demulsification properties[J]. Industrial Water Treatment, 2025, 45(4): 127-132.

张恒, 郑存川. 一种超支化聚合物的合成及其破乳性能[J]. 工业水处理, 2025, 45(4): 127-132.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2024-0223

https://www.iwt.cn/EN/Y2025/V45/I4/127

Figures/Tables 9

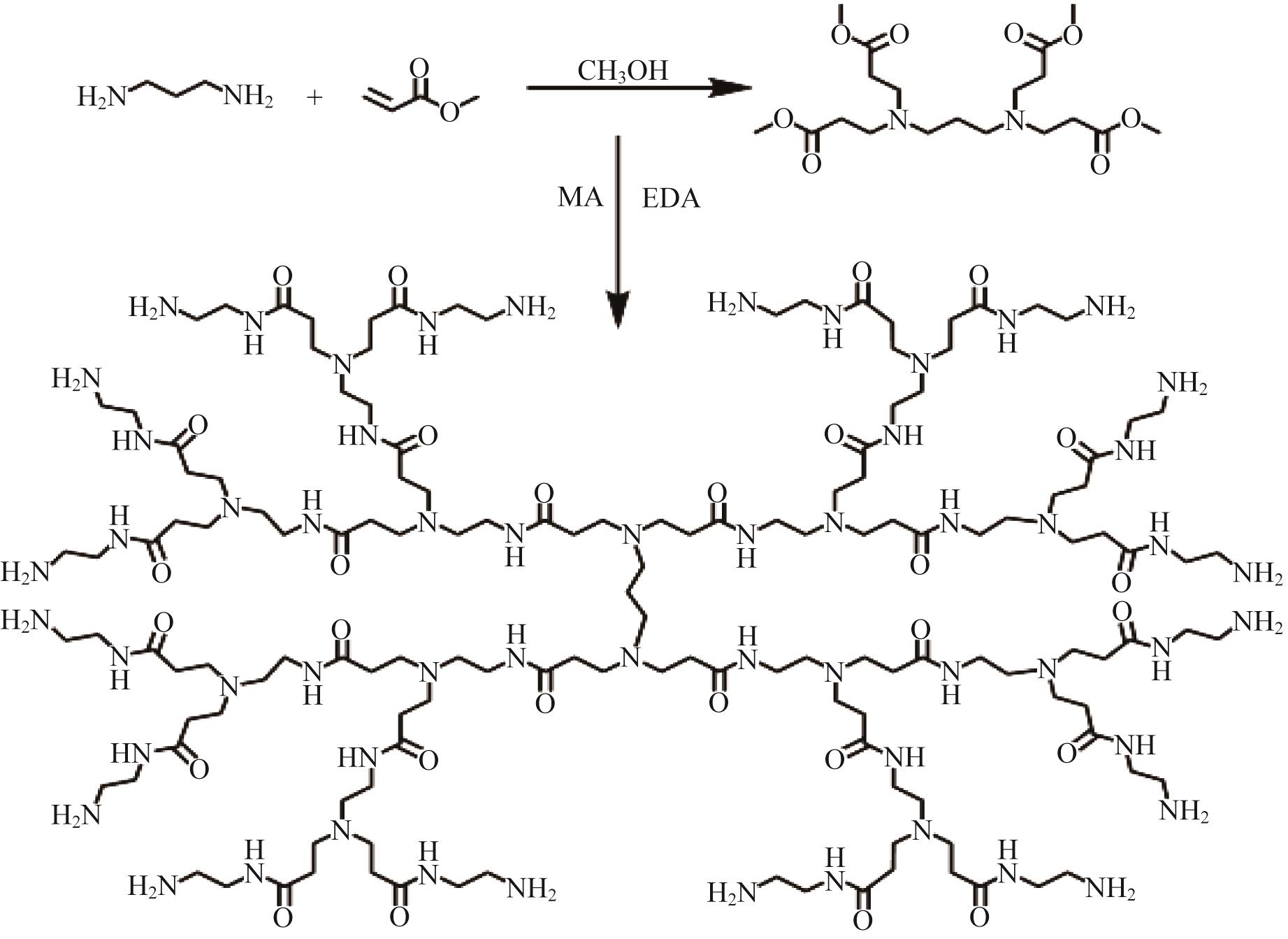

Fig.1 Schematic diagram of h-PAMAM reaction

Fig.2 Infrared spectrum of h-PAMAM

Fig.3 Nuclear magnetic resonance hydrogen spectrum of h-PAMAM

Fig.4 Dynamic interfacial tension of h-PAMAM with different concentrations

Fig.5 Dynamic interfacial tension of h-PAMAM with different concentrations

Fig.6 Effect of demulsification time on the transmittance of aqueous phase

Fig.7 Effect of temperature on the transmittance of water phase

Fig.8 Dynamic demulsification process of diesel lotion observed under microscope

Fig.9 Possible demulsification mechanism of h-PAMAM

References 11

1	ZOLFAGHARI R， FAKHRU’L-RAZI A， ABDULLAH L C，et al. Demulsification techniques of water-in-oil and oil-in-water emulsions in petroleum industry［J］. Separation and Purification Technology，2016，170：377-407. doi:10.1016/j.seppur.2016.06.026
2	王俊，曲红杰，朱秀雨，等. 两种扫帚型聚醚的合成及其破乳性能研究［J］. 化学与生物工程，2009，26（6）：79-81.
	WANG Jun， QU Hongjie， ZHU Xiuyu，et al. Study on synthesis of two broom polyethers and their demulsification performance［J］.Chemistry & Bioengineering，2009，26（6）：79-81.
3	MAO Feiyan， HAN Xu， HUANG Qunxing，et al. Effect of frequency on ultrasound-assisted centrifugal dewatering of petroleum sludge［J］. Drying Technology，2016，34（16）：1948-1956. doi:10.1080/07373937.2016.1144611
4	KUMAR S， GURIA C， MANDAL A. Synthesis，characterization and performance studies of polysulfone/bentonite nanoparticles mixed-matrix ultra-filtration membranes using oil field produced water［J］. Separation and Purification Technology，2015，150：145-158. doi:10.1016/j.seppur.2015.06.029
5	BRATSKAYA S， AVRAMENKO V， SCHWARZ S，et al. Enhanced flocculation of oil-in-water emulsions by hydrophobically modified chitosan derivatives［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2006，275（1/2/3）：168-176. doi:10.1016/j.colsurfa.2005.09.036
6	YE Fan， WANG Zhenhan， MI Yuanzhu，et al. Preparation of reduced graphene oxide/titanium dioxide composite materials and its application in the treatment of oily wastewater［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2020，586：124251. doi:10.1016/j.colsurfa.2019.124251
7	ZHANG Weijun， XIAO Ping， WANG Dongsheng. Central treatment of different emulsion wastewaters by an integrated process of physicochemically enhanced ultrafiltration and anaerobic-aerobic biofilm reactor［J］. Bioresource Technology，2014，159：150-156. doi:10.1016/j.biortech.2014.02.067
8	WANG Jun， LI Cuiqin， ZHANG Shuyan，et al. Synthesis and characterization of lower generation broom molecules［J］. Chinese Chemical Letters，2008，19（1）：43-46. doi:10.1016/j.cclet.2007.11.009
9	张科良，吴琦，高疆鹏，等. 新型超支化聚酯型破乳剂的制备及性能评价［J］. 石油化工应用，2017，36（1）：135-138.
	ZHANG Keliang， WU Qi， GAO Jiangpeng，et al. The preparation and performance evaluation of new type of hyperbranched ployester demulsifier［J］. Petrochemical Industry Application，2017，36（1）：135-138.
10	LI Zhongwei， YIN Shuo， TAN Guorong，et al. Synthesis and properties of novel branched polyether as demulsifiers for polymer flooding［J］. Colloid and Polymer Science，2016，294（12）：1943-1958. doi:10.1007/s00396-016-3956-x
11	MOSAYEBI A， ABEDINI R. Using demulsifiers for phase beraking of water/oil emulsion［J］. Petroleum and Coal，2013，55（1）：26-30.
