Industrial Water Treatment ›› 2025, Vol. 45 ›› Issue (4): 84-91. doi: 10.19965/j.cnki.iwt.2024-0287

• RESEARCH AND EXPERIMENT • Previous Articles     Next Articles

Performance and mechanism of the heterotrophic-sulfur autotrophic synergistic process for enhanced nitrogen removal

Hong WANG1(), Chao ZHANG2(), Haibo LI3, Kang DU4

  1. 1. China Municipal Engineering North China Design and Research Institute Co. , Ltd. , Tianjin 300202, China
    2. Tianjin Academy of Eco-Environmental Sciences, Tianjin 300191, China
    3. School of Environmental and Municipal Engineering, Tianjin Chengjian University, Tianjin 300384, China
    4. China Energy Conservation;(Beijing) Energy Conservation and Environmental Protection Engineering Co. , Ltd. , Beijing 101300, China
  • Received:2025-02-21 Online:2025-04-20 Published:2025-04-27
  • Contact: Chao ZHANG

异养-硫自养协同工艺深度脱氮性能及机制

王宏1(), 张超2(), 李海波3, 杜康4

  1. 1. 中国市政工程华北设计研究总院有限公司,天津 300202
    2. 天津市生态环境科学研究院,天津 300191
    3. 天津城建大学环境与市政工程学院,天津 300384
    4. 中节能(北京)节能环保工程有限公司,北京 101300
  • 通讯作者: 张超
  • 作者简介:

    王宏(1975— ),本科,高级工程师,E-mail:

  • 基金资助:
    国家自然科学基金青年基金项目(51908399); 天津市自然科学基金青年基金项目(19JCQNJC07600)

Abstract:

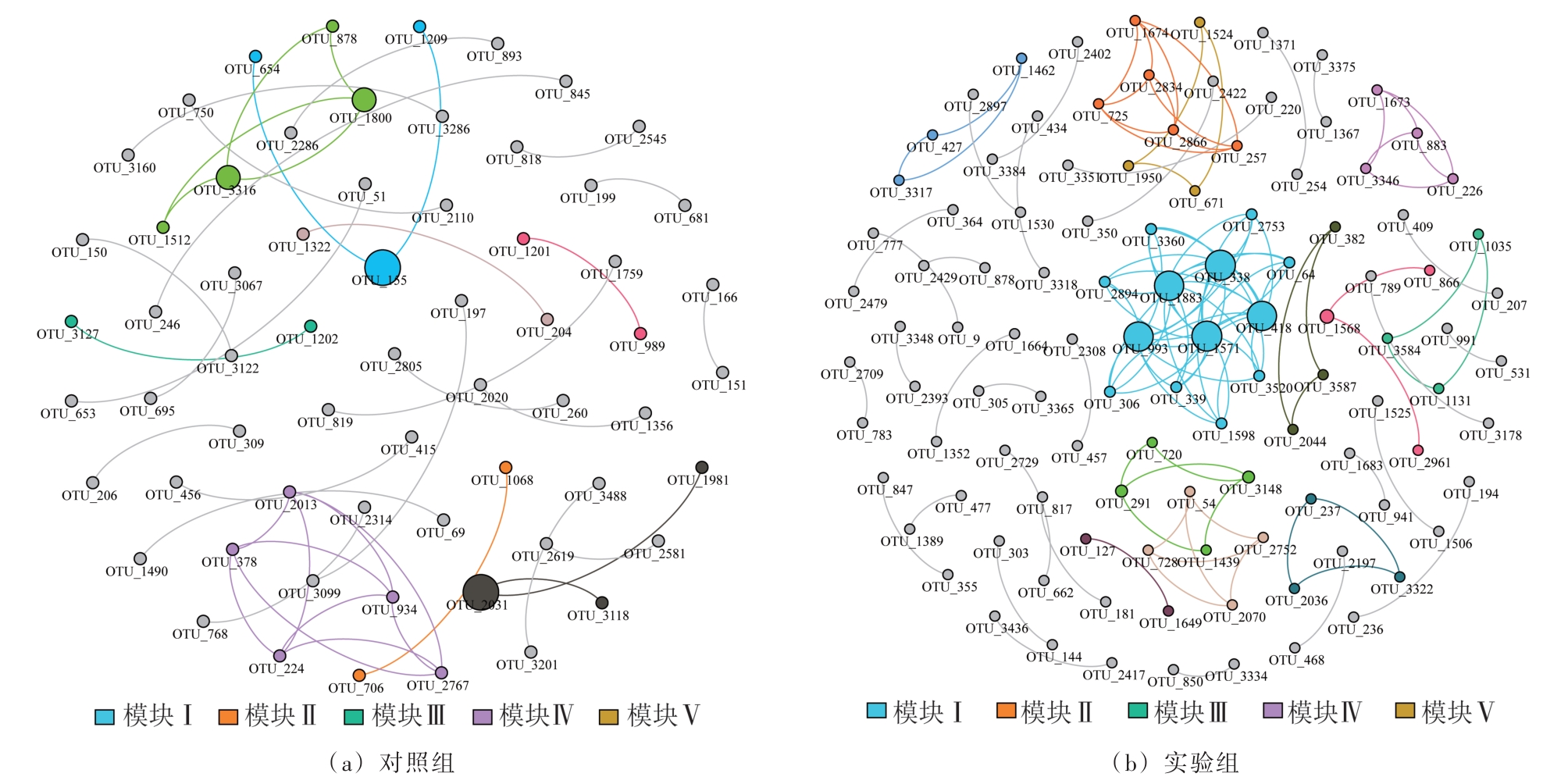

The problems in traditional enhanced nitrogen removal process of carbon source dosage, high cost, and unstable operation was solved by heterotrophic-sulfur autotrophic denitrification synergistic process. The results showed that the effluent NO3 --N concentration was lower than the minimum detection limit,and there was no NO2 --N accumulation when the hydraulic retention time was 3 h, the NO3 --N loading was 2.70 mg/(L·h), the exogenous carbon source was 7 mg/L. Under heterotrophic-sulfur autotrophic synergistic conditions, the relative abundance of sulfur autotrophic denitrifying bacteria(Sulfuritalea, Thiobacillus, and Methyloversatilis) was increased and the interactions with mixotrophic denitrifying bacteria was enhanced. The relative abundance of sulfur dispersing bacteria(Treponema) was decreased and interactions with the other bacteria was weakened, which were the main reasons for the reduction of SO4 2- in the effluent.

Key words: enhanced nitrogen removal, sulfur-autotrophic denitrification, sulfur disproportionation, co-occurrence networks of microbial

摘要:

通过异养-硫自养协同工艺解决传统深度脱氮工艺碳源投加量大、成本高、运行不稳定的问题。结果表明:HRT=3 h,NO3 --N负荷为2.70 mg/(L·h),添加外源碳源为7 mg/L时,出水NO3 --N低于最低检测限,且没有NO2 --N积累;在异养-硫自养协同条件下,硫自养反硝化细菌(Sulfuritalea、ThiobacillusMethyloversatilis)相对丰度增加且与兼养反硝化菌之间的相互作用关系增强,硫歧化细菌(Treponema)相对丰度减少且与其他菌的相互作用关系减弱,是出水SO4 2-减少的主要原因。

关键词: 深度脱氮, 硫自养反硝化, 硫歧化, 微生物共现网络

CLC Number:
