阴极阳极协同电催化降解高硫酸盐废水中活性染料

doi:10.19965/j.cnki.iwt.2023-0294

摘要/Abstract

摘要：

采用辊压法制备炭黑/聚四氟乙烯（C/PTFE）气体扩散电极，并对其微观结构进行表征。构建以掺硼金刚石（BDD）为阳极，C/PTFE气体扩散电极为阴极的电催化氧化体系，阳极硫酸盐活化技术与阴极原位合成H₂O₂技术协同处理高硫酸盐废水中的活性艳蓝X-BR。结果表明，制备的C/PTFE电极作阴极时，电催化氧化体系中活性艳蓝X-BR去除效果优于铂（Pt）阴极体系和不锈钢（SS）阴极体系。通过猝灭实验发现，BDD/（C/PTFE）电化学体系中产生的SO₄ ^·-和·OH等高活性物质间相互转化，为电化学体系提供了可持续氧化能力，二者对于体系中活性艳蓝X-BR去除贡献度分别为54.51%和25.75%。建立了电化学氧化体系中TOC去除率及单位能耗二次项模型，通过响应曲面法优化降解含活性艳蓝X-BR废水的运行参数。优化条件下（初始pH=5.0，电流密度=120 mA/cm²， $C N a 2 S O 4$ =0.25 mol/L，C _{活性艳蓝X-BR}=1 000 mg/L），电解120 min，废水TOC去除率为63.86%，体系单位质量TOC能耗为256.02 kW·h/kg，继续电解至240 min，可将水中的活性艳蓝X-BR完全矿化，为双电极协同电催化氧化处理高硫酸盐有机废水提供理论支持。

关键词: 电催化氧化, BDD阳极, C/PTFE气体扩散阴极, 电活化硫酸盐, Doehlert响应曲面设计

Abstract:

A carbon black/polytetrafluoroethylene(C/PTFE) gas diffuser electrode was prepared by the roller compaction method and its micro-structure was characterized. An electrocatalytic oxidation system using a boron-doped diamond as anode and a C/PTFE gas diffuser electrode as cathode was constructed. The reactive brilliant blue X-BR in high sulfate wastewater was treated cooperatively by combining sulfate activation technology at anode with in-situ synthesis of H₂O₂ technology at cathode. The results showed that when the prepared C/PTFE electrode was used as the cathode, the removal effect of active brilliant blue X-BR in electro-activated sulfate system was better than that in platinum(Pt) cathode system and stainless steel(SS) system. According to the quenching experiment, the interaction between the highly active substances such as SO₄ ^·- and ·OH produced by the electrochemical system of BDD/(C/PTFE) provided the bulk sustainable oxidation capacity for the degradation of reactive brilliant blue X-BR, and the contribution of these two substances to the removal of active brilliant blue X-BR were 54.51% and 25.75%, respectively. A quadratic model of TOC removal rate and unit energy consumption in electrochemical oxidation system was established. The operational parameters of reactive brilliant blue X-BR degradation were optimized by experimental design matrix. Under optimized conditions (initial pH=5.0, current density=120 mA/cm², $C N a 2 S O 4$ =0.25 mol/L,C _{active brilliant blue X-BR}=1 000 mg/L), and electrolysis for 120 min, the removal rate of TOC in wastewater was 63.86% and the unit energy consumption of the system was 256.02 kW·h/kg. The reactive brilliant blue X-BR in water could be completely mineralized by continued electrolysis to 240 min. The results provide theoretical support for the dual-electrode collaborative electrocatalytic oxidation treatment of high sulfate organic wastewater.

Key words: electrocatalytic oxidation, BDD anode, C/PTFE gas diffusion cathode, electroactivated sulfate, Doehlert experimental design matrix

中图分类号:

TQ426
X703

刘楚楚, 金春姬, 孙楠, 高孟春. 阴极阳极协同电催化降解高硫酸盐废水中活性染料[J]. 工业水处理, 2024, 44(4): 127-137.

Chuchu LIU, Chunji JIN, Nan SUN, Mengchun GAO. Electrocatalytic degradation of reactive dyes in high sulfate wastewater by synergistic effect of anode and cathode[J]. Industrial Water Treatment, 2024, 44(4): 127-137.

https://www.iwt.cn/CN/Y2024/V44/I4/127

图/表 8

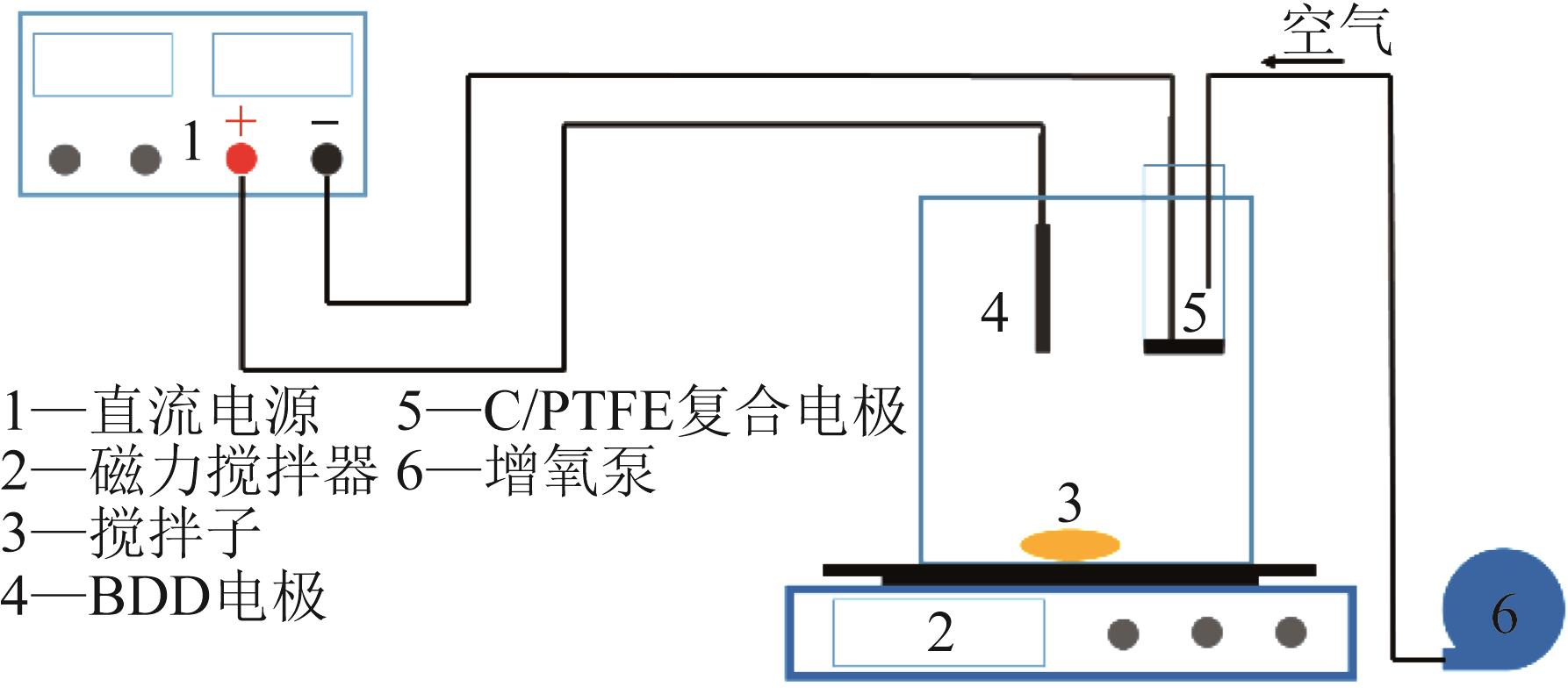

图1 电催化氧化体系装置示意

Fig.1 Schematic diagram of electric catalytic oxidation system device

图2 C/PTFE 复合电极材料的SEM

Fig.2 SEM of C/PTFE composite electrode material

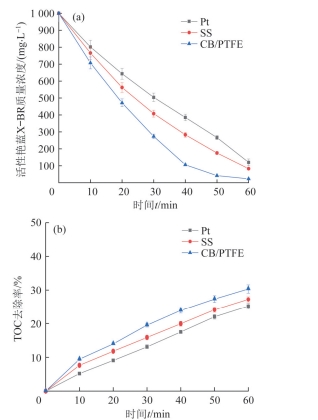

图3 不同阴极体系中活性艳蓝X-BR的质量浓度变化及TOC的去除率

Fig.3 Concentration changes of reactive brilliant blue X-BR and removal rates of TOC in different cathode systems

图4 BDD/（C/PTFE）与BDD/SS电催化氧化体系ESR能谱

Fig.4 ESR spectrum of electro-activated sulfate system of BDD/（C/PTFE） and BDD/SS

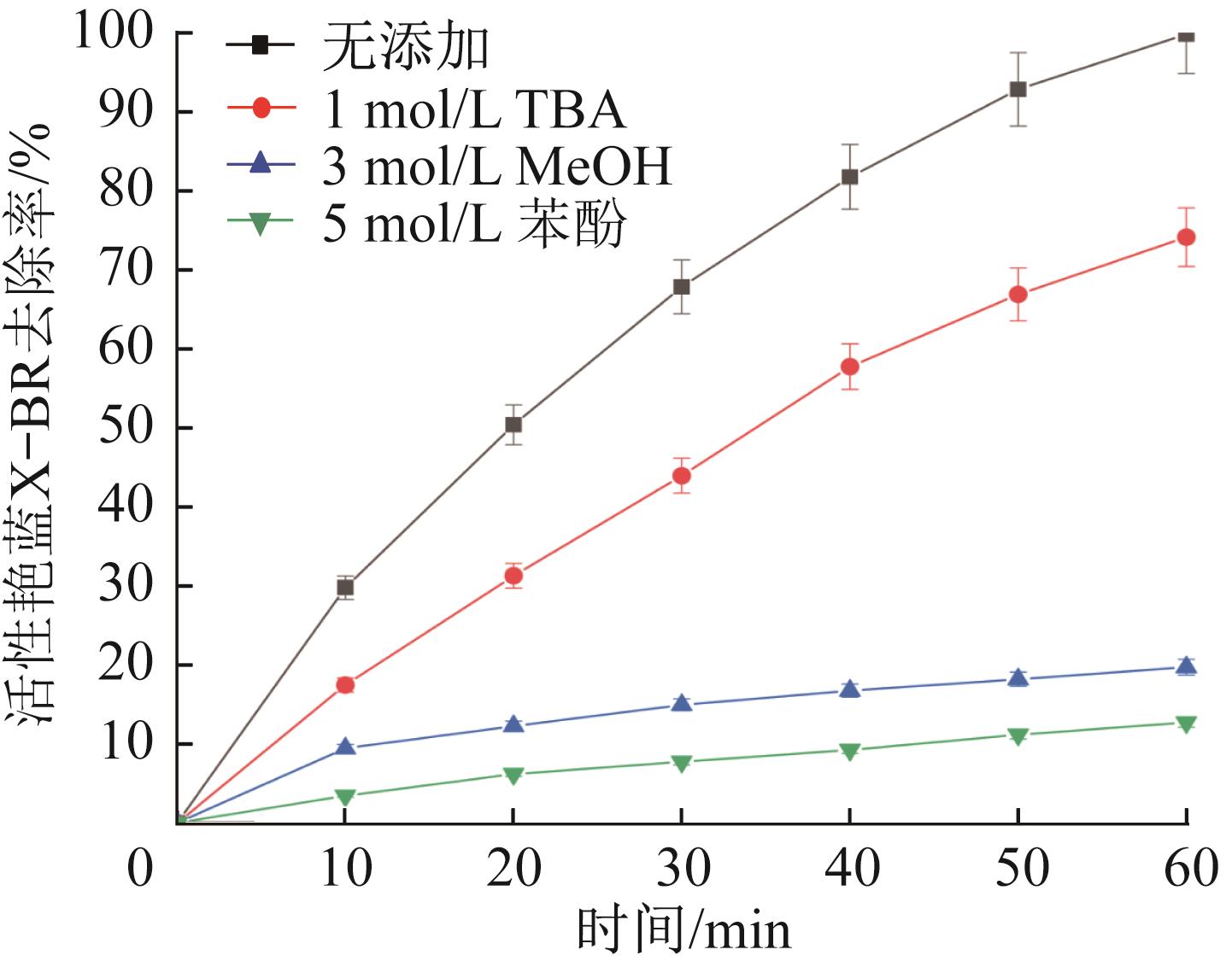

图5 不同自由基猝灭剂下活性艳蓝X-BR去除率的变化

Fig.5 Removal rate changes of reactive brilliant blue X-BR under different free radical scavengers

表1 Doehlert实验设计的编码和操作水平及实验结果

Table 1 Coding and operating level of Doehlert experimental design and experiment results

序号	X ₁	X ₂/（mA·cm^-2）	X ₃/（mol·L^-1）	X ₄/（mg·L^-1）	TOC去除率/%	单位质量TOC能耗/（kW·h·kg^-1）
1	0.5（9）	0.866（160）	0（0.21）	0（800）	57.64	461.00
2	-0.5（5）	0.866	0	0	56.10	460.25
3	0（7）	0.577（140）	-0.817（0.01）	0	38.65	676.33
4	-0.5	0.289（120）	0.817（0.41）	0	58.17	333.51
5	0	0（100）	0（0.21）	0	62.93	320.99
6	-0.5	-0.866（40）	0	0	31.93	450.99
7	-0.5	-0.289（80）	-0.817	0	37.54	510.39
8	0.5	-0.289	-0.817	0	35.73	536.24
9	0	0.577	-0.204（0.16）	-0.791（400）	43.67	781.70
10	0.5	0.289	0.204（0.26）	0.791（1 200）	55.82	284.25
11	-0.5	0.289	0.204	0.791	58.71	207.43
12	0	0	0.613（0.36）	-0.791	46.29	789.57
13	-0.5	-0.289	-0.204	-0.791	37.00	1 027.03
14	1（11）	0	0	0	58.71	341.94
15	-1（3）	0	0	0	61.35	348.68
16	0.5	-0.289	-0.204	-0.791	36.79	1 022.02
17	0.5	-0.866	0	0	30.55	467.10
18	0	-0.577（60）	0.204	0.791	43.24	298.93
19	0	0	-0.613（0.06）	0.791	47.76	320.10
20	0.5	0.289	0.817	0	60.34	323.69
21	0	-0.577	0.817	0	36.34	467.80

图6 两因素交互作用对TOC去除率影响的三维曲面和等高线

Fig.6 Three-dimensional surface and contour map of the influence of the interaction of two factors on the TOC removal rate

图7 两因素交互作用对单位能耗影响的三维曲面和等高线

Fig.7 Three-dimensional surface and contour map of the influence of the interaction of two factors on the unit energy consumption

参考文献 36

1	BILAL M， ASGHER M， PARRA-SALDIVAR R，et al. Immobilized ligninolytic enzymes：An innovative and environmental responsive technology to tackle dye-based industrial pollutants：A review［J］. Science of the Total Environment，2017，576：646-659. doi:10.1016/j.scitotenv.2016.10.137
2	陈荣圻. 纪念活性染料发现60年回顾（待续）［J］. 染整技术，2015，37（2）：36-45. doi:10.3969/j.issn.1005-9350.2015.02.015
	CHEN Rongqi. Review of reactive dyes discovery for 60 years commemoration（to be continued）［J］. Textile Dyeing and Finishing Journal，2015，37（2）：36-45. doi:10.3969/j.issn.1005-9350.2015.02.015
3	MISHRA S， MOHANTY P， MAITI A. Bacterial mediated bio-decolourization of wastewater containing mixed reactive dyes using jack-fruit seed as co-substrate：Process optimization［J］. Journal of Cleaner Production，2019，235：21-33. doi:10.1016/j.jclepro.2019.06.328
4	SOLÍS M， SOLÍS A， PÉREZ H I，et al. Microbial decolouration of azo dyes：A review［J］. Process Biochemistry，2012，47（12）：1723-1748. doi:10.1016/j.procbio.2012.08.014
5	KHATRI A， PEERZADA M H， MOHSIN M，et al. A review on developments in dyeing cotton fabrics with reactive dyes for reducing effluent pollution［J］. Journal of Cleaner Production，2015，87：50-57. doi:10.1016/j.jclepro.2014.09.017
6	ZHANG Yi， WANG Panlei， HUSSAIN Z，et al. Modification and characterization of hydrogel beads and its used as environmentally friendly adsorbent for the removal of reactive dyes［J］. Journal of Cleaner Production，2022，342：130789. doi:10.1016/j.jclepro.2022.130789
7	HUSSEIN T K， JASIM N A. A comparison study between chemical coagulation and electro-coagulation processes for the treatment of wastewater containing reactive blue dye［J］. Materials Today：Proceedings，2021，42：1946-1950. doi:10.1016/j.matpr.2020.12.240
8	KRISHNAMOORTHY S， AJALA F， MOHAMMED S M，et al. High adsorption and high catalyst regeneration kinetics observed for Flyash-Fe₃O₄-Ag magnetic composite for efficient removal of industrial azo reactive dyes from aqueous solution via persulfate activation［J］. Applied Surface Science，2021，548：149265. doi:10.1016/j.apsusc.2021.149265
9	AYED L， LADHARI N， MZOUGHI R EL，et al. Decolorization and phytotoxicity reduction of reactive blue 40 dye in real textile wastewater by active consortium：Anaerobic/aerobic algal-bacterial-probiotic bioreactor［J］. Journal of Microbiological Methods，2021，181：106129. doi:10.1016/j.mimet.2020.106129
10	LAHIRI S K， ZHANG C， SILLANPÄÄ M，et al. Nanoporous NiO@SiO₂ photo-catalyst prepared by ion-exchange method for fast elimination of reactive dyes from wastewater［J］. Materials Today Chemistry，2022，23：100677. doi:10.1016/j.mtchem.2021.100677
11	SHARMA S， BUDDHDEV J， PATEL M，et al. Studies on degradation of reactive red 135 dye in wastewater using ozone［J］. Procedia Engineering，2013，51：451-455. doi:10.1016/j.proeng.2013.01.063
12	SUKHDEV A， MANJUNATHA A S. Decolorization of reactive orange 16 azo dye in wastewater using CAT/IrCl₃/HClO₄ redox system：Delineation of kinetic modeling and mechanistic approaches［J］. Journal of the Taiwan Institute of Chemical Engineers，2017，70：150-160. doi:10.1016/j.jtice.2016.10.033
13	FENG Li， LIU Jiajun， GUO Zhicong，et al. Reactive black 5 dyeing wastewater treatment by electrolysis-Ce（Ⅳ） electrochemical oxidation technology：Influencing factors，synergy and enhancement mechanisms［J］. Separation and Purification Technology，2022，285：120314. doi:10.1016/j.seppur.2021.120314
14	ZHANG Xing， YAO Jilun， ZHAO Zhiwei，et al. Degradation of haloacetonitriles with UV/peroxymonosulfate process：Degradation pathway and the role of hydroxyl radicals［J］. Chemical Engineering Journal，2019，364：1-10. doi:10.1016/j.cej.2019.01.029
15	CHEN W S， HUANG Chipin. Mineralization of aniline in aqueous solution by electro-activated persulfate oxidation enhanced with ultrasound［J］. Chemical Engineering Journal，2015，266：279-288. doi:10.1016/j.cej.2014.12.100
16	张伟，李梅，许文，等. 过渡金属活化过硫酸盐降解双酚A的研究进展［J］. 应用化工，2023，52（3）：939-944. doi:10.3969/j.issn.1671-3206.2023.03.055
	ZHANG Wei， LI Mei， XU Wen，et al. Research progress on degradation of bisphenol A by transition metal activated persulfate［J］. Applied Chemical Industry，2023，52（3）：939-944. doi:10.3969/j.issn.1671-3206.2023.03.055
17	范莎莎，金春姬，温淳，等. 电活化硫酸盐处理四环素类废水的研究［J］. 中国海洋大学学报（自然科学版），2022，52（1）：88-96.
	FAN Shasha， JIN Chunji， WEN Chun，et al. Study on the treatment of tetracycline wastewater by electro-activated sulfate［J］. Periodical of Ocean University of China，2022，52（1）：88-96.
18	LIU Ning， LU Na， YU Hongtao，et al. Enhanced degradation of organic water pollutants by photocatalytic in situ activation of sulfate based on Z-scheme g-C₃N₄/BiPO₄ ［J］. Chemical Engineering Journal，2022，428：132116. doi:10.1016/j.cej.2021.132116
19	EPOLITO W J， LEE Y H， BOTTOMLEY L A，et al. Characterization of the textile anthraquinone dye Reactive Blue 4［J］. Dyes and Pigments，2005，67（1）：35-46. doi:10.1016/j.dyepig.2004.10.006
20	HAIDER M R， JIANG Wenli， HAN Jinglong，et al. In-situ electrode fabrication from polyaniline derived N-doped carbon nanofibers for metal-free electro-fenton degradation of organic contaminants［J］. Applied Catalysis B：Environmental，2019，256：117774. doi:10.1016/j.apcatb.2019.117774
21	KUANG Chaozhi， XU Yanbin， XIE Guangyan，et al. Preparation of CeO₂-doped carbon nanotubes cathode and its mechanism for advanced treatment of pig farm wastewater［J］. Chemosphere，2021，262：128215. doi:10.1016/j.chemosphere.2020.128215
22	刘广立，徐俊添，卢耀斌，等. 气体扩散阴极电合成反应器中电解液导流型式对产生过氧化氢的影响［J］. 安全与环境学报，2020，20（2）：662-668.
	LIU Guangli， XU Juntian， LU Yaobin，et al. Electrolyte diversion effect on hydrogen peroxide production in electrosynthesis reactor with gas diffusion cathode［J］. Journal of Safety and Environment，2020，20（2）：662-668.
23	KUANG Chaozhi， ZENG Guoshen， ZHOU Yangjian，et al. Integrating anodic sulfate activation with cathodic H₂O₂ production/activation to generate the sulfate and hydroxyl radicals for the degradation of emerging organic contaminants［J］. Water Research，2023，229：119464. doi:10.1016/j.watres.2022.119464
24	LI Lejing， XU Liangpang， CHAN A W M，et al. Direct hydrogen peroxide synthesis on a Sn-doped CuWO₄/Sn anode and an air-breathing cathode［J］. Chemistry of Materials，2022，34（1）：63-71. doi:10.1021/acs.chemmater.1c02787
25	NIU Tiezheng， CAI Junzhuo， SHI Penghui，et al. Unique electrochemical system for in situ SO₄ ^•- generation and pollutants degradation［J］. Chemical Engineering Journal，2020，386：123971. doi:10.1016/j.cej.2019.123971
26	YAHAYA A， OKOH O O， AGUNBIADE F O，et al. Occurrence of phenolic derivatives in Buffalo River of Eastern Cape South Africa：Exposure risk evaluation［J］. Ecotoxicology and Environmental Safety，2019，171：887-893. doi:10.1016/j.ecoenv.2019.01.037
27	LI Xiaobao， FAN Shasha， JIN Chunji，et al. Electrochemical degradation of tetracycline hydrochloride in sulfate solutions on boron-doped diamond electrode：The accumulation and transformation of persulfate［J］. Chemosphere，2022，305：135448. doi:10.1016/j.chemosphere.2022.135448
28	LIU Zhen， ZHAO Chun， WANG Pu，et al. Removal of carbamazepine in water by electro-activated carbon fiber-peroxydisulfate：Comparison，optimization，recycle，and mechanism study［J］. Chemical Engineering Journal，2018，343：28-36. doi:10.1016/j.cej.2018.02.114
29	RAO Yandi， LI Aoqi， ZHANG Yuxin，et al. Efficient degradation of metronidazole with dual-cathode of acetylene black-PTFE/CoFe₂O₄-PTFE coupling persulfate［J］. Separation and Purification Technology，2022，283：120193. doi:10.1016/j.seppur.2021.120193
30	YU Menglin， DONG Heng， LIU Kai，et al. Porous carbon monoliths for electrochemical removal of aqueous herbicides by “one-stop” catalysis of oxygen reduction and H₂O₂ activation［J］. Journal of Hazardous Materials，2021，414：125592. doi:10.1016/j.jhazmat.2021.125592
31	石清清，蒲生彦，杨犀. 纳米Cu⁰@Fe₃O₄活化PMS降解对-硝基苯酚的协同反应机制［J］. 环境科学，2020，41（10）：4615-4625.
	SHI Qingqing， PU Shengyan， YANG Xi. Synergistic reaction mechanism of Cu⁰@Fe₃O₄ activated PMS for degradation of p-nitrophenol［J］. Environmental Science，2020，41（10）：4615-4625.
32	LUTZE H V， KERLIN N， SCHMIDT T C. Sulfate radical-based water treatment in presence of chloride：Formation of chlorate，inter-conversion of sulfate radicals into hydroxyl radicals and influence of bicarbonate［J］. Water Research，2015，72：349-360. doi:10.1016/j.watres.2014.10.006
33	CHUNG I C， CHUNG C K， SU Y K. Effect of current density and concentration on microstructure and corrosion behavior of 6061 Al alloy in sulfuric acid［J］. Surface and Coatings Technology，2017，313：299-306. doi:10.1016/j.surfcoat.2017.01.114
34	ZHENG Yang， XU Xinxin， CHEN Jin，et al. Surface O^2- regulation on POM electrocatalyst to achieve accurate 2e/4e-ORR control for H₂O₂ production and Zn-air battery assemble［J］. Applied Catalysis B：Environmental，2021，285：119788. doi:10.1016/j.apcatb.2020.119788
35	罗海健. 双电极同步产生·OH/SO₄ ^·-降解苯酚体系的构建及机制研究［D］. 哈尔滨：哈尔滨工业大学，2018.
	LUO Haijian. Oxidation system of simultaneous generation of ·OH/SO₄ ^·- on a paired electrode for phenol degradation and its mechanism study［D］. Harbin：Harbin Institute of Technology，2018.
36	LIU Liping， LI Biao， HE Zhenzhu，et al. Degradation of bromoamine acid by BDD technology：Use of Doehlert design for optimizing the reaction conditions［J］. Separation and Purification Technology，2015，146：15-23. doi:10.1016/j.seppur.2015.03.019
