铁锰改性桑枝生物炭的构筑及其对水体磷的吸附

doi:10.19965/j.cnki.iwt.2024-0103

摘要/Abstract

摘要：

含磷废水排放引起的水体富营养化为水环境生态带来了诸多危害，吸附法能有效处理含磷废水。以废弃桑枝为原料制备磁性桑枝生物炭，并负载铁锰氧化物制备铁锰改性桑枝生物炭复合材料，对复合材料进行XRD、FTIR、SEM、BET、VSM表征并研究其吸附除磷性能及循环使用性能。结果表明，复合材料具备Fe-Mn复合氧化物结构，具有较强的磁性，吸附除磷主要通过磷酸盐与金属活性位点吸附以及与表面羟基的配位交换作用。在温度25 ℃、吸附剂投加量0.20 g、吸附时间260 min、废水磷质量浓度7.5 mg/L、溶液pH=6时，复合材料对磷的吸附率达到98.08%，溶液剩余磷质量浓度为0.14 mg/L，达到了《城镇污水处理厂污染物排放标准》（GB 18918—2002）一级A标准的排放要求。共存离子Cl^-和NO₃ ^-对吸附磷酸盐干扰较小，而CO₃ ^2-影响较大；通过磁性回收和酸洗再生5次，复合材料对磷的吸附率仍保持在67%以上；复合材料对磷的吸附过程符合准二级反应动力学方程和Langmuir等温线模型，反应自发进行且为放热反应。铁锰改性桑枝生物炭复合材料为含磷废水的净化提供了有效解决方案。

关键词: 磁性桑枝生物炭, 复合吸附剂, 除磷性能, 铁锰氧化物

Abstract:

The water eutrophication caused by the discharge of phosphorus-containing wastewater brings a lot of harm to the water environment and ecology, and the adsorption method can effectively alleviate the pollution. A composite material was prepared by using waste mulberry as raw materials, magnetic biochar as carrier and loaded with iron-manganese oxide. The adsorption and phosphorus removal and recycling properties were studied and the characterization of the composite material was studied by XRD, FTIR, SEM, BET, and VSM. The results showed that the composite adsorbent had Fe-Mn composite oxide structure and good magnetism. The adsorption and removal of phosphorus were mainly through the adsorption of phosphate to metal active sites and the coordination exchange with surface hydroxyl groups. When the temperature was 25 ℃, the dosage of adsorbent was 0.20 g, the adsorption time was 260 min, the mass concentration of phosphorus in wastewater was 7.5 mg/L, and the solution pH was 6, the adsorption rate of phosphorus on the composite material reached 98.08%, and the mass concentration of residual phosphorus was 0.14 mg/L, which met the Class A standard of Pollutant Discharge Standard of Urban Sewage Treatment Plant (GB 18918-2002). The co-existing ions Cl^- and NO₃ ^- had less interference on the adsorption of phosphate, while CO₃ ^2- had more influence. After magnetic recovery and pickling regeneration for 5 times, the adsorption rate of phosphorus was kept above 67%. The adsorption process conformed more to the pseudo-second-order kinetic and the Langmuir isotherm models, and the reaction was a spontaneous and exothermic process. The preparation of iron-manganese modified mulberry branch biochar composite provided an effective solution for the purification of phosphorus-containing wastewater.

Key words: magnetic mulberry biochar, composite adsorbent, phosphorus removal performance, iron-manganese oxide

中图分类号:

X703

李秀玲, 宾冰, 龚盈盈, 武哲, 曾湘楚. 铁锰改性桑枝生物炭的构筑及其对水体磷的吸附[J]. 工业水处理, 2025, 45(3): 175-184.

Xiuling LI, Bing BIN, Yingying GONG, Zhe WU, Xiangchu ZENG. Construction of iron-manganese modified mulberry branch biochar and the adsorption of aqueous phosphorus[J]. Industrial Water Treatment, 2025, 45(3): 175-184.

https://www.iwt.cn/CN/Y2025/V45/I3/175

图/表 13

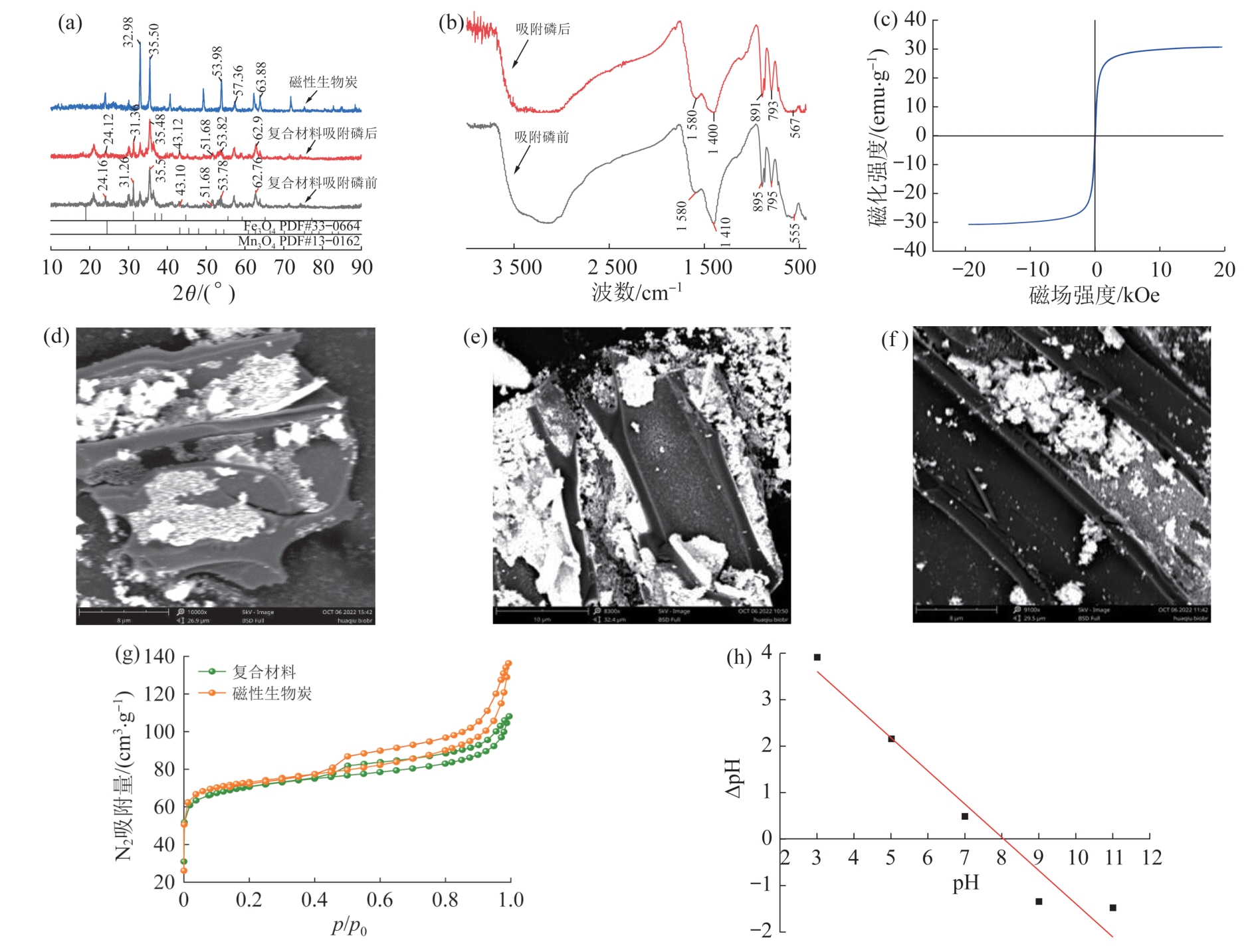

图1 吸附材料的表征

Fig.1 Characterization of adsorption material

表1 磁性生物炭和复合材料的孔结构参数

Table 1 Pore structure parameters of the magnetic biochar and composite material

物质	比表面积/（m²·g^-1）	孔径/nm	孔容/（cm³·g^-1）
复合材料	269.58	10.09	0.15
磁性生物炭	329.79	10.06	0.21

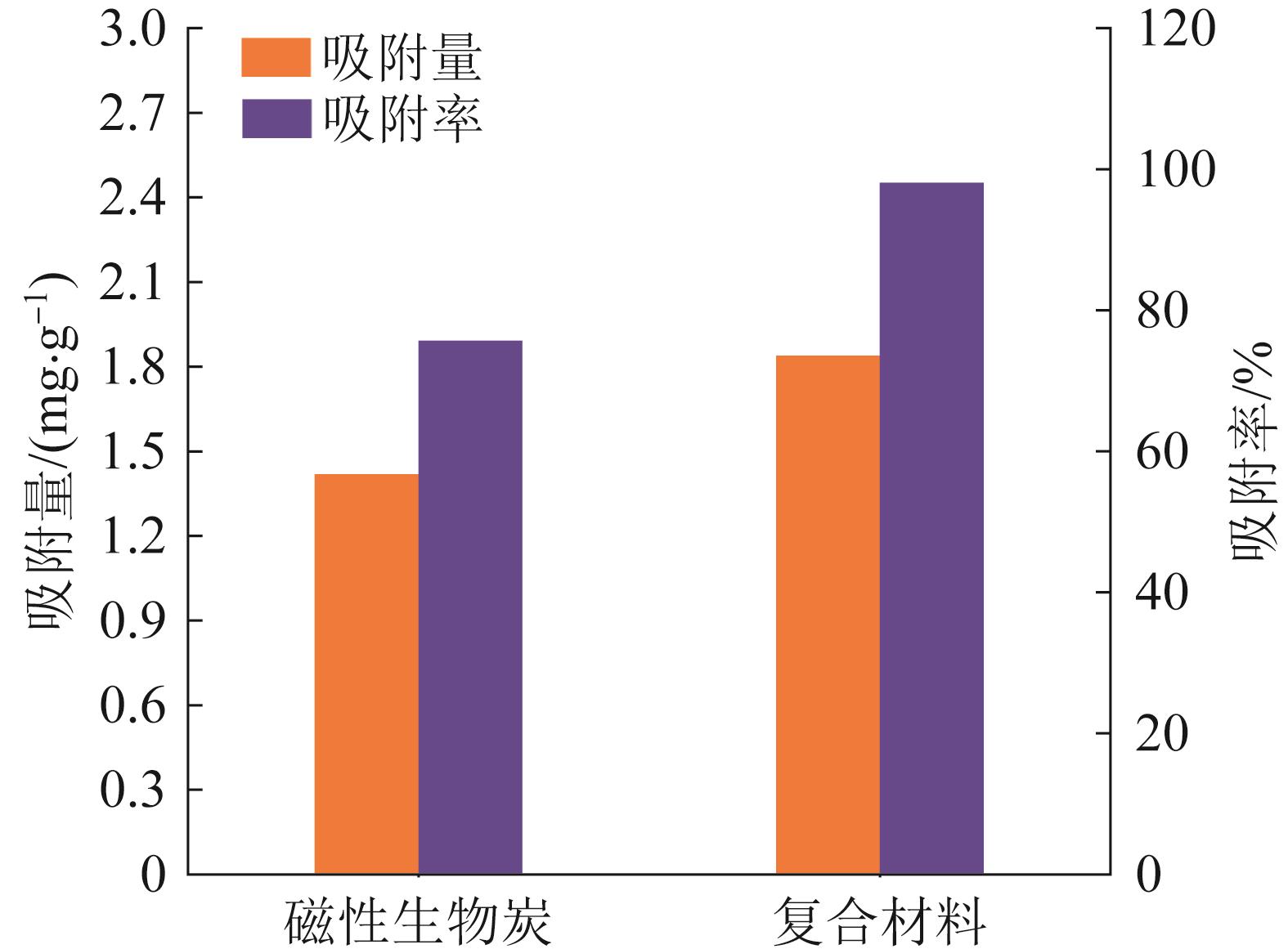

图2 磁性生物炭和复合材料的吸附性能

Fig.2 Adsorption performance of magnetic biochar and composite materials

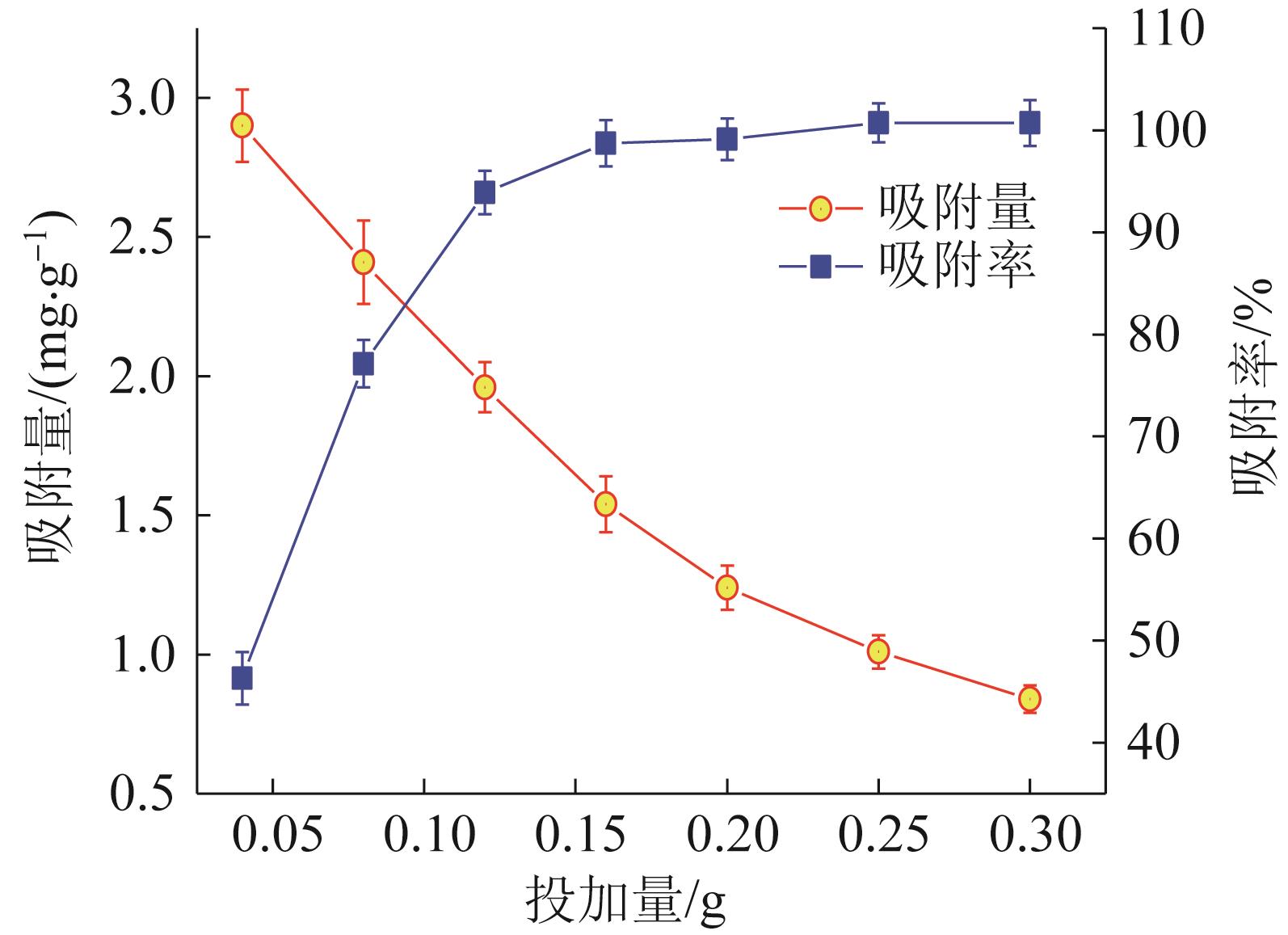

图3 投加量对复合材料吸附性能的影响

Fig.3 Effect of adsorbent dosage on adsorption performance of composite materials

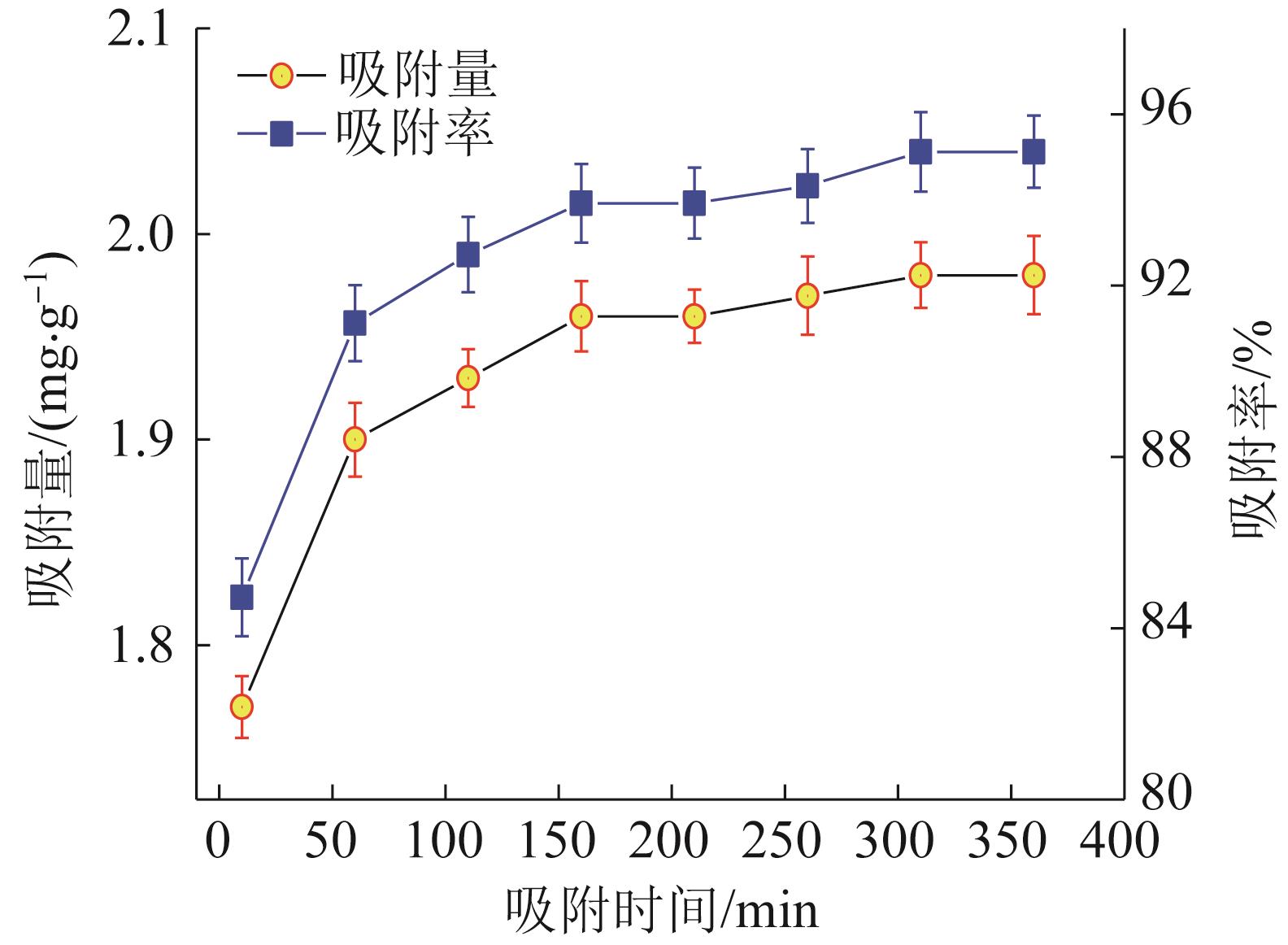

图4 吸附时间对复合材料吸附性能的影响

Fig.4 Effect of adsorption time on adsorption performance of composite materials

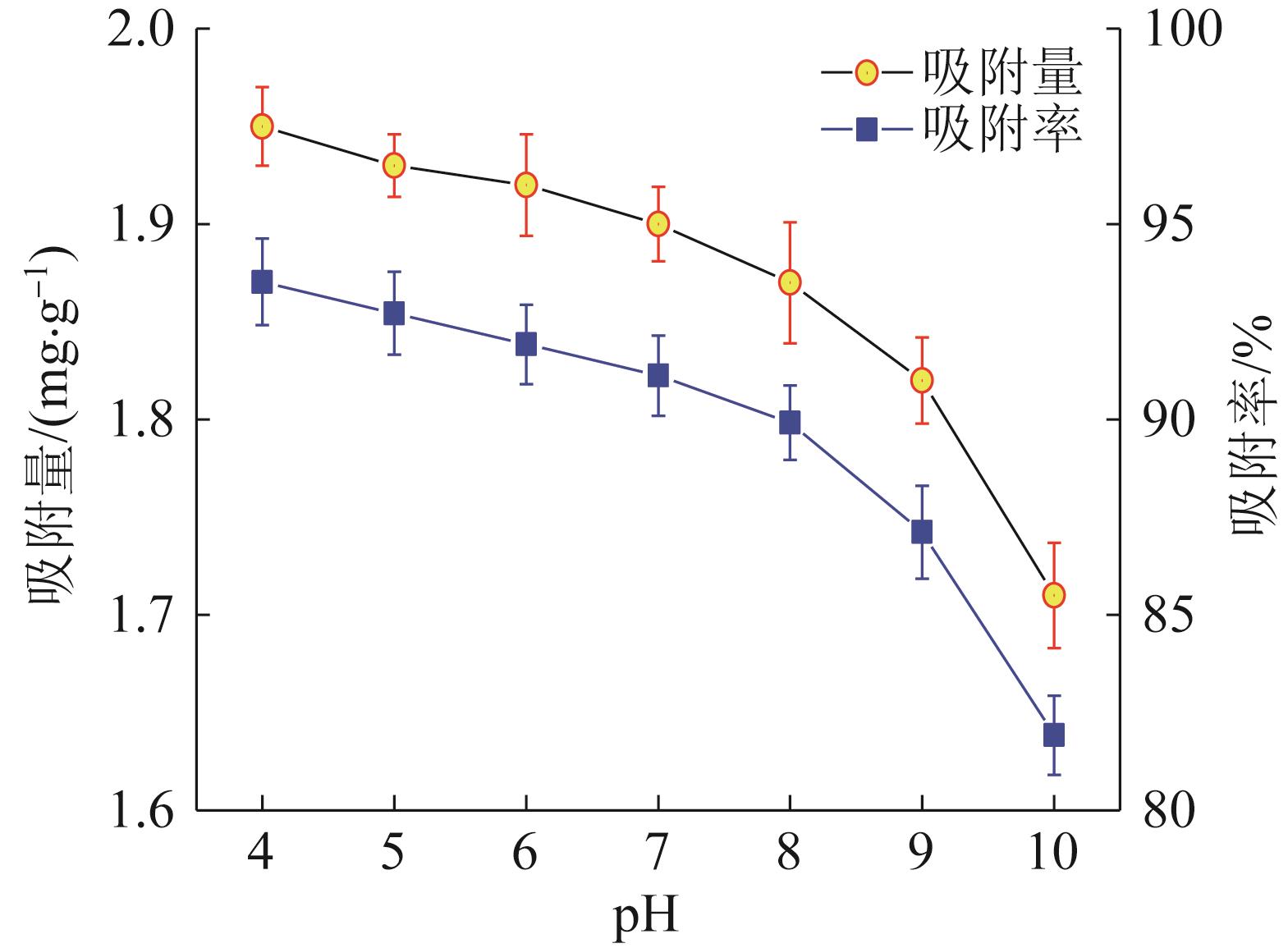

图5 pH对复合材料吸附性能的影响

Fig.5 Effect of pH on adsorption performance of composite materials

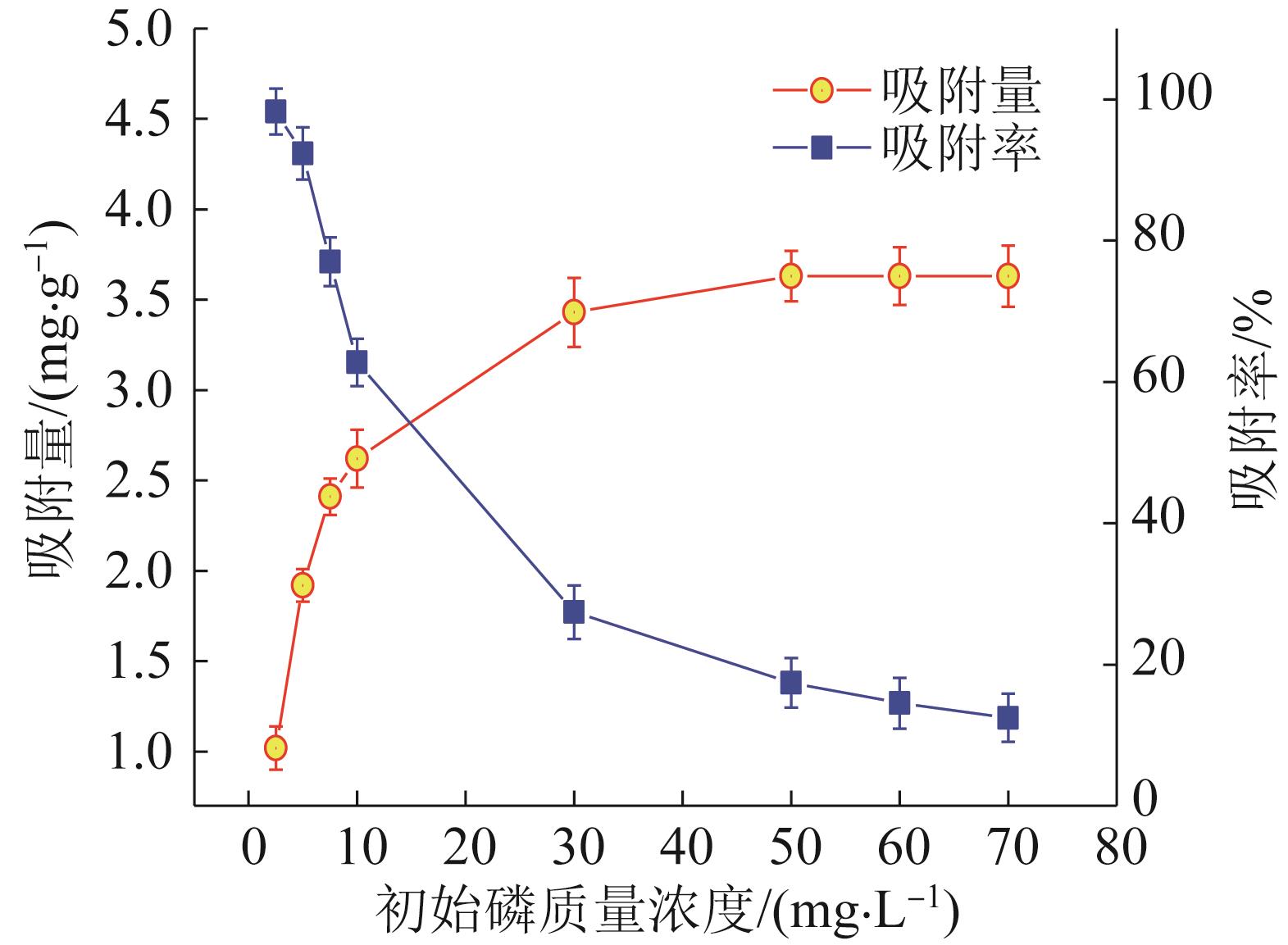

图6 初始磷质量浓度对复合材料吸附性能的影响

Fig.6 Effect of phosphorus mass concentration on adsorption performance of composite materials

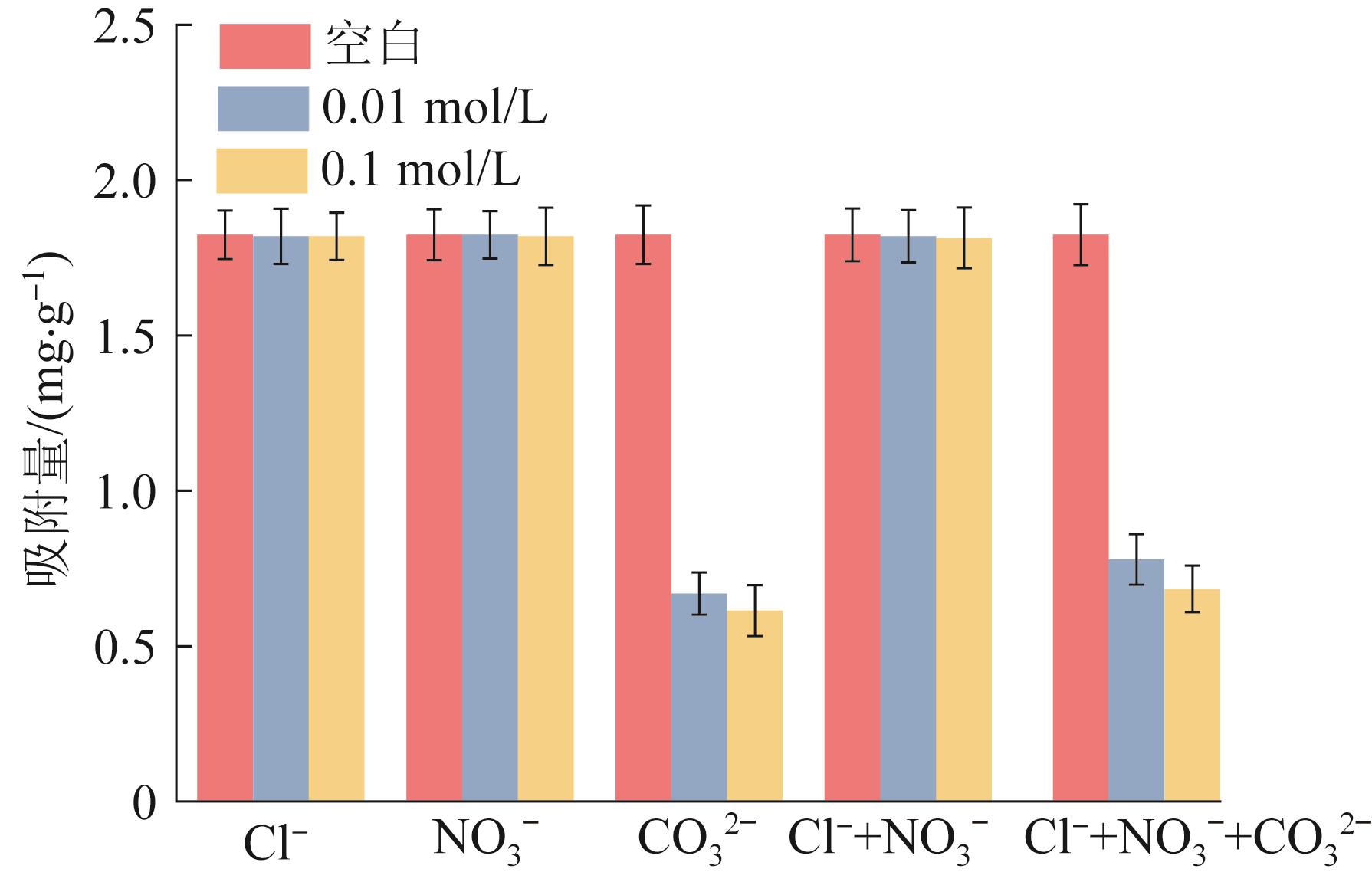

图7 共存离子对复合材料吸附性能的影响

Fig.7 Effect of co-existing ions on adsorption performance of composite materials

表2 正交实验结果

Table 2 Results of orthogonal experiments

序号	pH	初始磷质量浓度/（mg·L^-1）	吸附剂投加量/g	吸附时间/min	吸附率/%
1	6	2.5	0.12	60	99.98
2	6	5.0	0.16	160	98.72
3	6	7.5	0.20	260	98.08
4	7	2.5	0.16	260	99.84
5	7	5.0	0.20	60	99.52
6	7	7.5	0.12	160	75.15
7	8	2.5	0.20	160	97.44
8	8	5.0	0.12	260	88.32
9	8	7.5	0.16	60	81.55
K ₁	296.78	297.26	263.45	281.05
K ₂	274.51	286.56	280.11	271.31
K ₃	267.31	254.77	295.04	286.24
k _1平均	98.93	99.09	87.82	93.68
k _2平均	91.50	95.52	93.37	90.44
k _3平均	89.10	84.92	98.35	95.41
极差R	9.83	14.16	10.53	4.98

表3 吸附动力学拟合参数

Table 3 Adsorption kinetics fitting parameters

初始磷质量浓度C ₀/（mg·L^-1）	q _e，exp/（mg·g^-1）	准一级反应动力学			准二级反应动力学
初始磷质量浓度C ₀/（mg·L^-1）	q _e，exp/（mg·g^-1）	k ₁/min^-1	q _e，1/（mg·g^-1）	R ²	k ₂/（g·mg^-1·min^-1）	q _e，2/（mg·g^-1）	R ²
5	1.982	0.24	1.948	0.843 98	0.26	1.977	0.999 97

表4 不同温度下Langmuir、Freundlich模型拟合参数

Table 4 Fitting parameters of Langmuir model and Freundlich model at different temperatures

温度/℃	Langmuir模型			Freundlich模型
温度/℃	q _m/（mg·g^-1）	K _L	R ²	1/n	K _F	R ²
25	3.68	1.23	0.999	0.17	2.01	0.961
45	3.47	1.30	0.997	0.16	2.18	0.825
60	4.64	0.49	0.966	0.16	2.37	0.919

表5 不同温度下复合材料的吸附热力学常数

Table 5 Thermodynamic constants of composite materials at different temperatures

温度/K	lnk	ΔG/（kJ·mol^-1）	ΔH/（kJ·mol^-1）	ΔS/（J·mol^-1·K^-1）
298.15	11.70	-29.00	-20.16	31.09
318.15	11.76	-31.11
333.15	10.77	-29.83

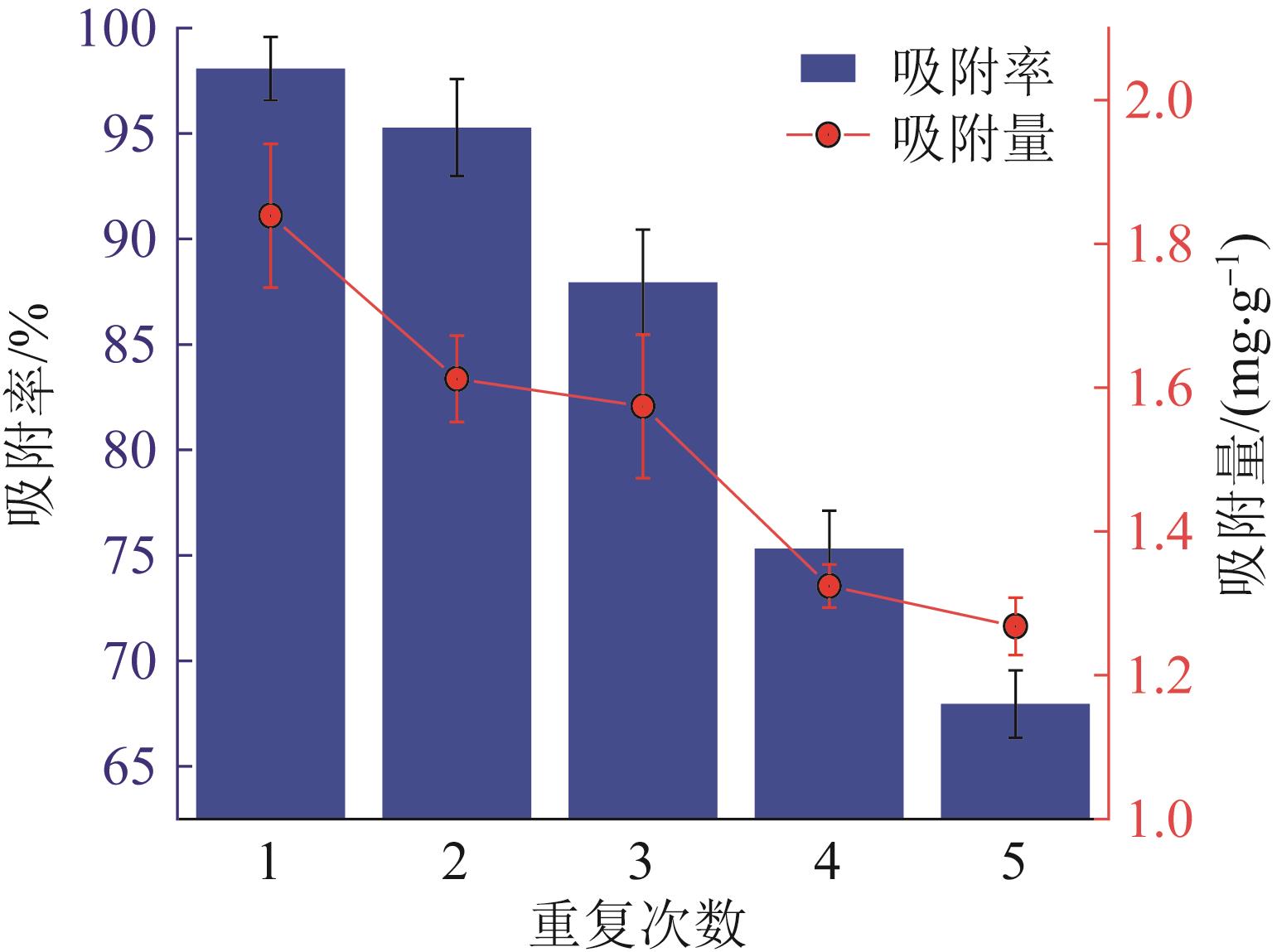

图8 复合材料的重复利用性

Fig.8 Reusability of composite materials
