生物炭负载锌铝层状双氢氧化物吸附磷酸盐和Cr（Ⅵ）的研究

doi:10.19965/j.cnki.iwt.2024-0512

摘要/Abstract

摘要：

通过液相共沉淀法制备了芦苇秸秆生物炭负载锌铝层状双氢氧化物（ZnAl-LDHs）复合材料（ZnAl-LDHs@BC），考察了复合材料中ZnAl-LDHs质量分数、溶液pH、共存阴离子对水中磷酸盐〔Cr（Ⅵ）〕的吸附性能，并对吸附过程进行了吸附动力学和吸附等温模型模拟分析，最后考察了复合材料对磷酸盐和Cr（Ⅵ）二元废水中磷酸盐、Cr（Ⅵ）的吸附效果。结果表明，ZnAl-LDHs和生物炭之间存在协同效应，76.7% ZnAl-LDHs@BC对磷酸盐〔Cr（Ⅵ）〕表现出优异的去除效果。ZnAl-LDHs@BC复合材料吸附去除磷酸盐、Cr（Ⅵ）的最佳pH分别为4、6。共存阴离子对ZnAl-LDHs@BC吸附磷酸盐效果的影响大小为Cl^-<SO₄ ^2-<CO₃ ^2-，对吸附Cr（Ⅵ）效果的影响大小为Cl^-<HPO₄ ^2-<SO₄ ^2-<CO₃ ^2-。Langmuir模型拟合得到的最大磷酸盐和Cr（Ⅵ）吸附量分别为191.8 mg/g和109.7 mg/g，其吸附机制均为单分子层化学吸附。ZnAl-LDHs@BC复合材料处理磷酸盐-Cr（Ⅵ）二元体系研究表明，Cr（Ⅵ）的存在对复合材料吸附磷酸盐具有增效作用。

关键词: LDHs@BC, 芦苇秸秆, 协同效应

Abstract:

Reed straw biochar-loaded zinc-aluminum layered dihydroxide (ZnAl-LDHs) composites (ZnAl-LDHs@BC) were prepared by liquid-phase co-precipitation. The effects of ZnAl-LDHs mass fraction in the composite, solution pH and coexisting anions on the adsorption performance of phosphate/Cr(Ⅵ) in aqueous solutions were investigated. The adsorption process was simulated and analyzed by adsorption kinetics and adsorption isothermal model. Furthermore, the adsorption efficiency of the composite material for phosphate and Cr(Ⅵ) in binary wastewater of phosphate and Cr(Ⅵ) was investigated. The results showed there was synergistic effect between ZnAl-LDHs and biochar, 76.7% ZnAl-LDHs@BC showed excellent performance for phosphate/Cr(Ⅵ) removal. The maximum adsorption efficiencies for phosphate and Cr(Ⅵ) were achieved at pH=4 and pH=6, respectively. The effect of coexisting anions on ZnAl-LDHs@BC adsorption of phosphate followed the order: Cl^-<SO₄ ^2-<CO₃ ^2-, while for Cr(Ⅵ), the order was Cl^-<HPO₄ ^2-<SO₄ ^2-<CO₃ ^2-. The Langmuir model fitted the adsorption data well, yielding maximum adsorption capacities of 191.8 mg/g for phosphate and 109.7 mg/g for Cr(Ⅵ), indicating monolayer chemisorption as the dominant mechanism. The treatment of the binary system of phosphate and Cr(Ⅵ) with composite materials showed that the presence of Cr(Ⅵ) had an enhancing effect on the adsorption of phosphate by the composite materials.

Key words: LDHs@BC, reed straw, synergistic effect

中图分类号:

X703

俞水, 詹旭, 郭倬瑞, 吴婧雯, 汪雨婷, 孟子琦, 孙连军, 黄俊波. 生物炭负载锌铝层状双氢氧化物吸附磷酸盐和Cr（Ⅵ）的研究[J]. 工业水处理, 2025, 45(7): 130-139.

Shui YU, Xu ZHAN, Zhuorui GUO, Jingwen WU, Yuting WANG, Ziqi MENG, Lianjun SUN, Junbo HUANG. Adsorption of phosphate and Cr(Ⅵ) by biochar-loaded Zn-Al layered double hydroxide[J]. Industrial Water Treatment, 2025, 45(7): 130-139.

https://www.iwt.cn/CN/Y2025/V45/I7/130

图/表 12

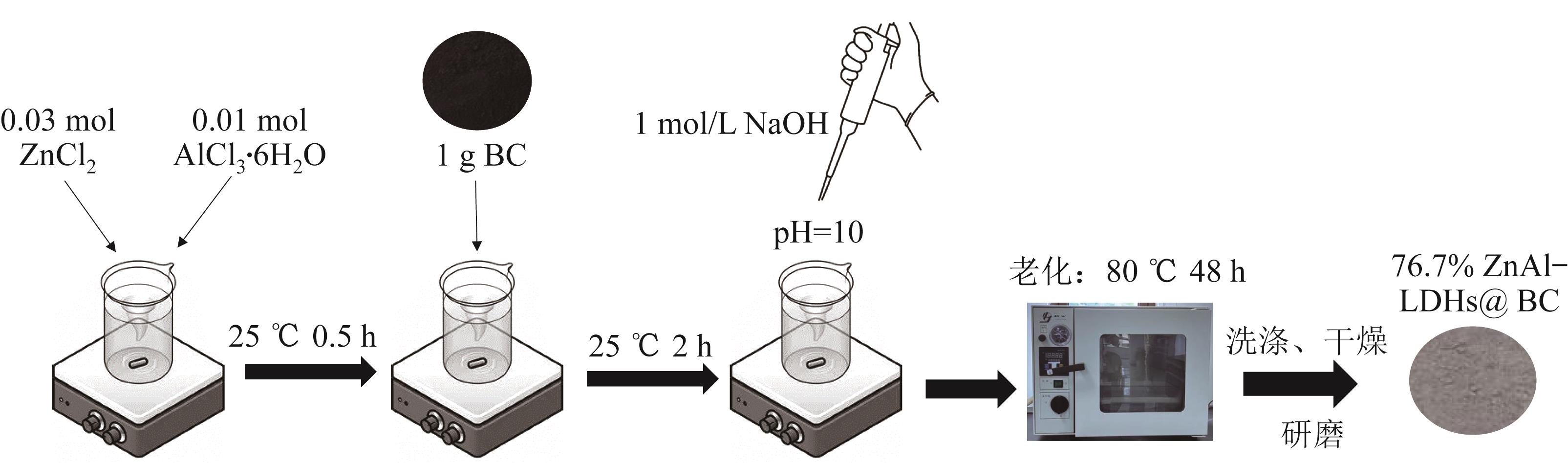

图1 ZnAl-LDHs@BC的合成示意

Fig.1 Schematic of the synthesis of ZnAl-LDHs@BC

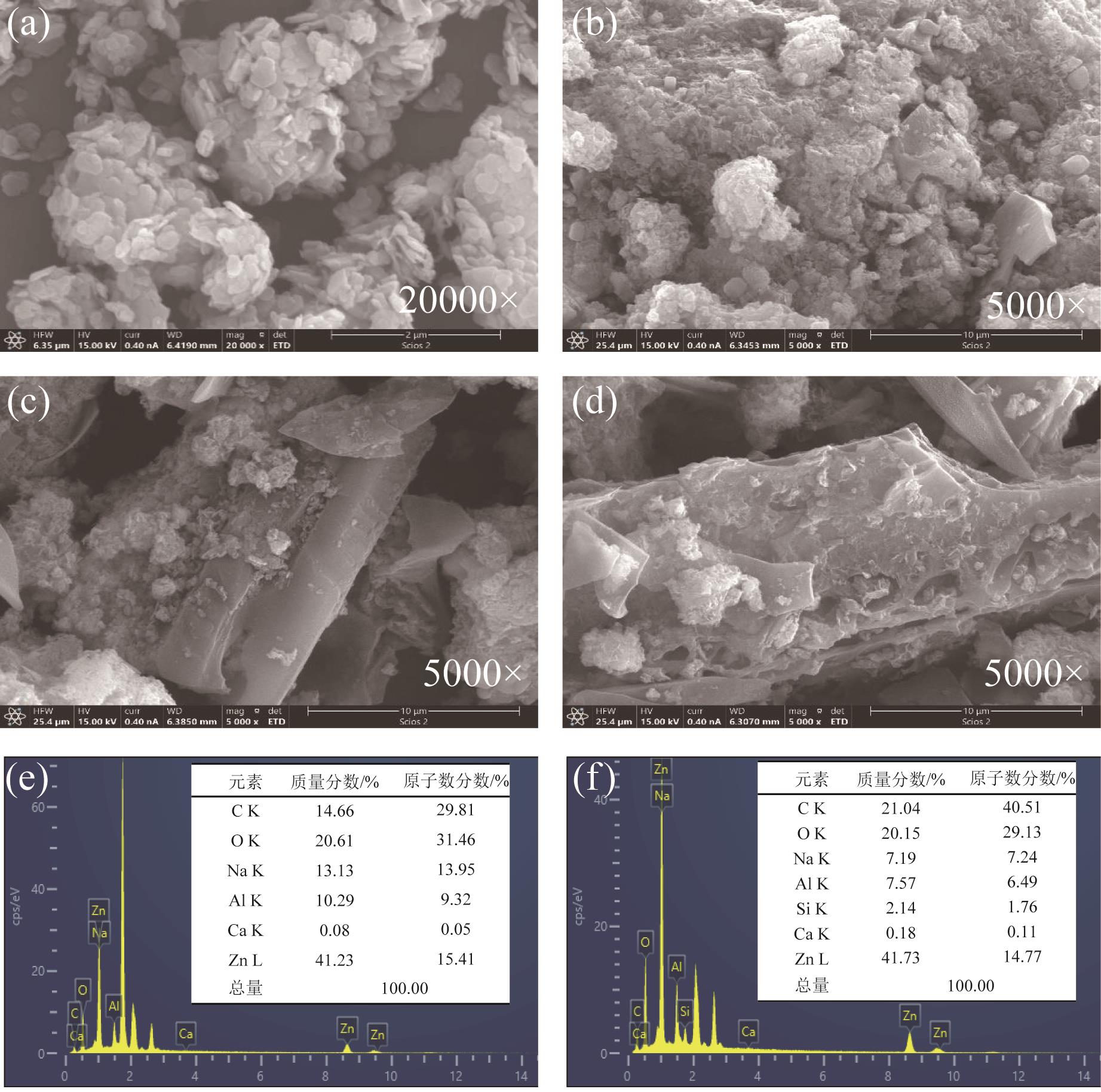

图2 ZnAl-LDHs和ZnAl-LDHs@BC的SEM和EDS （a）ZnAl-LDHs的SEM；（b）76.7% ZnAl-LDHs@BC的SEM；（c）52.4% ZnAl-LDHs@BC的SEM；（d）39.8% ZnAl-LDHs@BC的SEM；（e）ZnAl-LDHs的EDS；（f）76.7% ZnAl-LDHs@BC的EDS。

Fig.2 SEM and EDS of ZnAl-LDHs and ZnAl-LDHs@BC

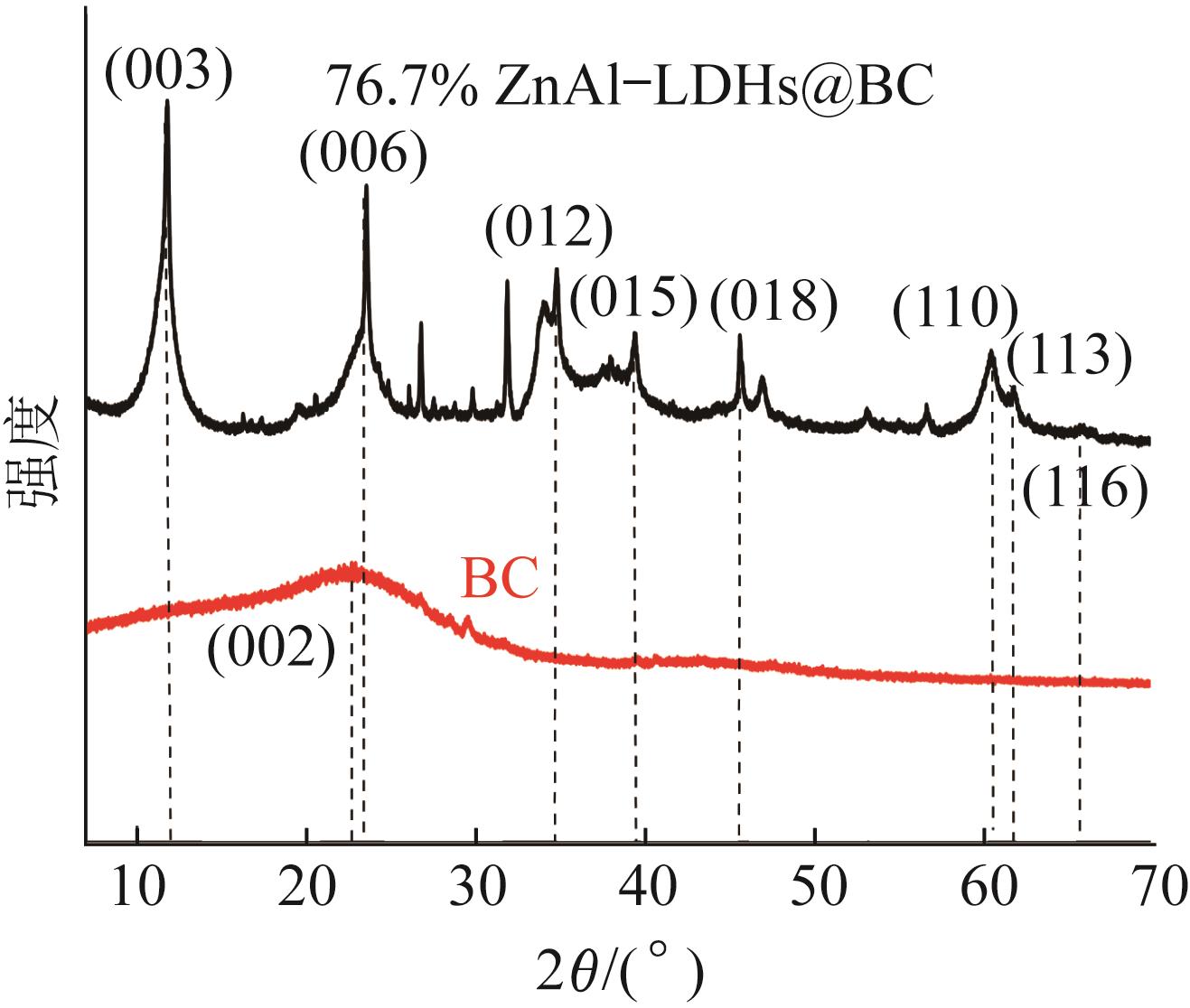

图3 BC和76.7% ZnAl-LDHs@BC的XRD谱图

Fig.3 XRD spectra of BC and 76.7% ZnAl-LDHs@BC

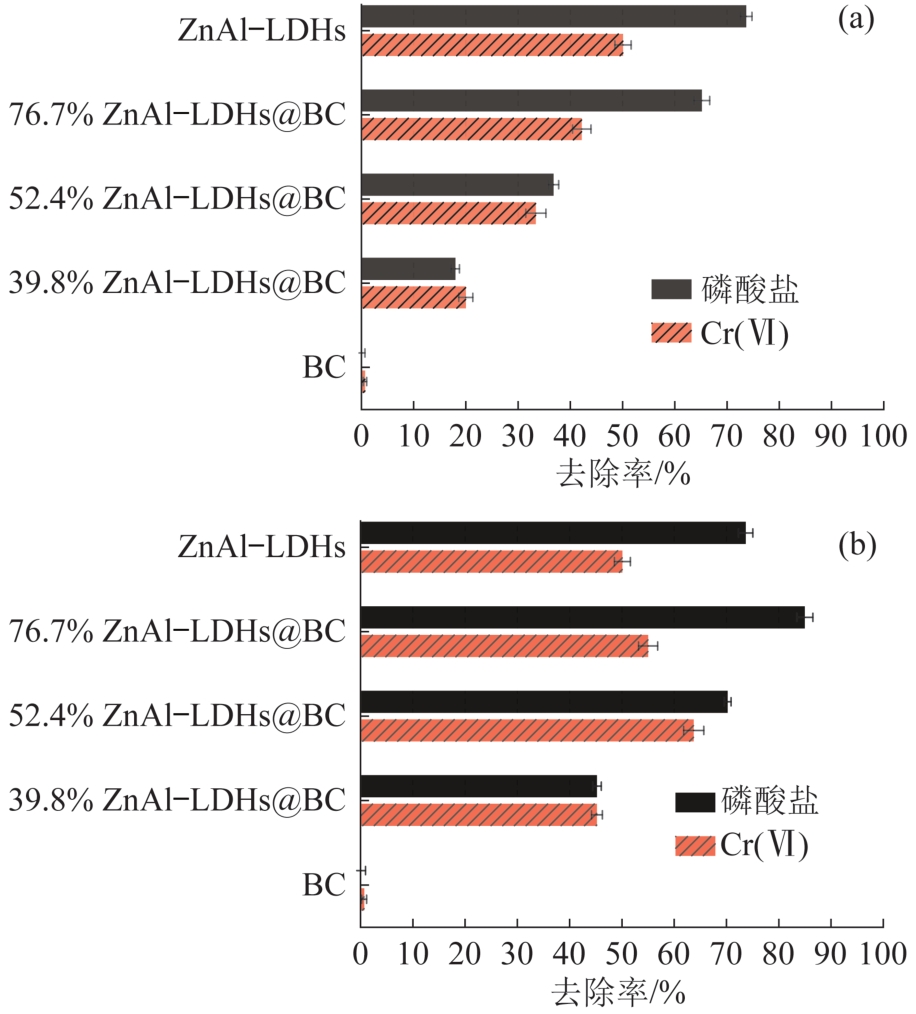

图4 LDHs归一化前（a）和归一化后（b）ZnAl-LDHs@BC和BC对磷酸盐和Cr（Ⅵ）的吸附效果

Fig.4 The adsorption effects of ZnAl-LDHs@BC and BC on phosphates and Cr（VI） before normalization （a） and after normalization （b）

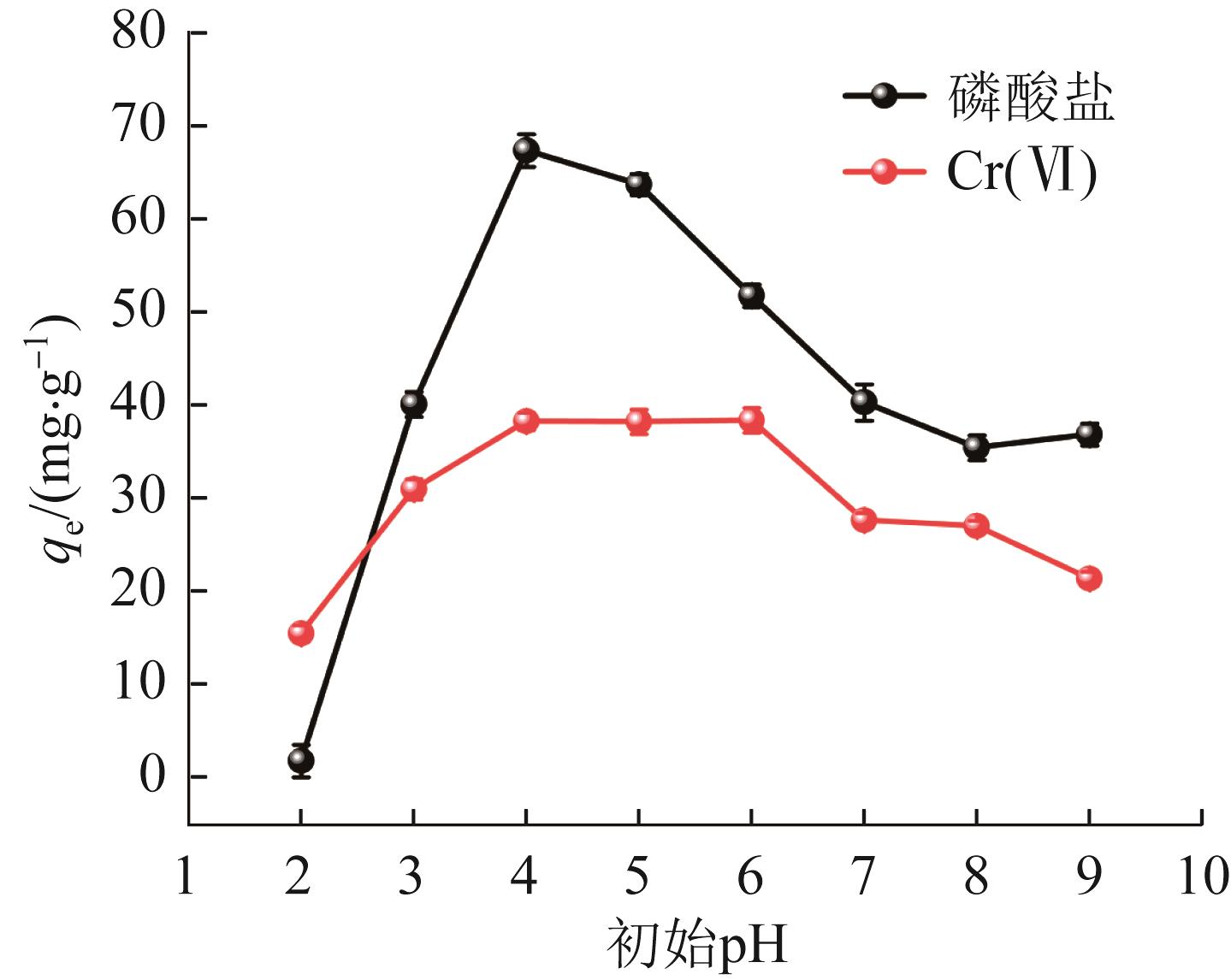

图5 初始pH对复合材料吸附磷酸盐和Cr（Ⅵ）效果的影响

Fig.5 Effect of initial pH on the adsorption of phosphate and Cr（Ⅵ） by composite materials

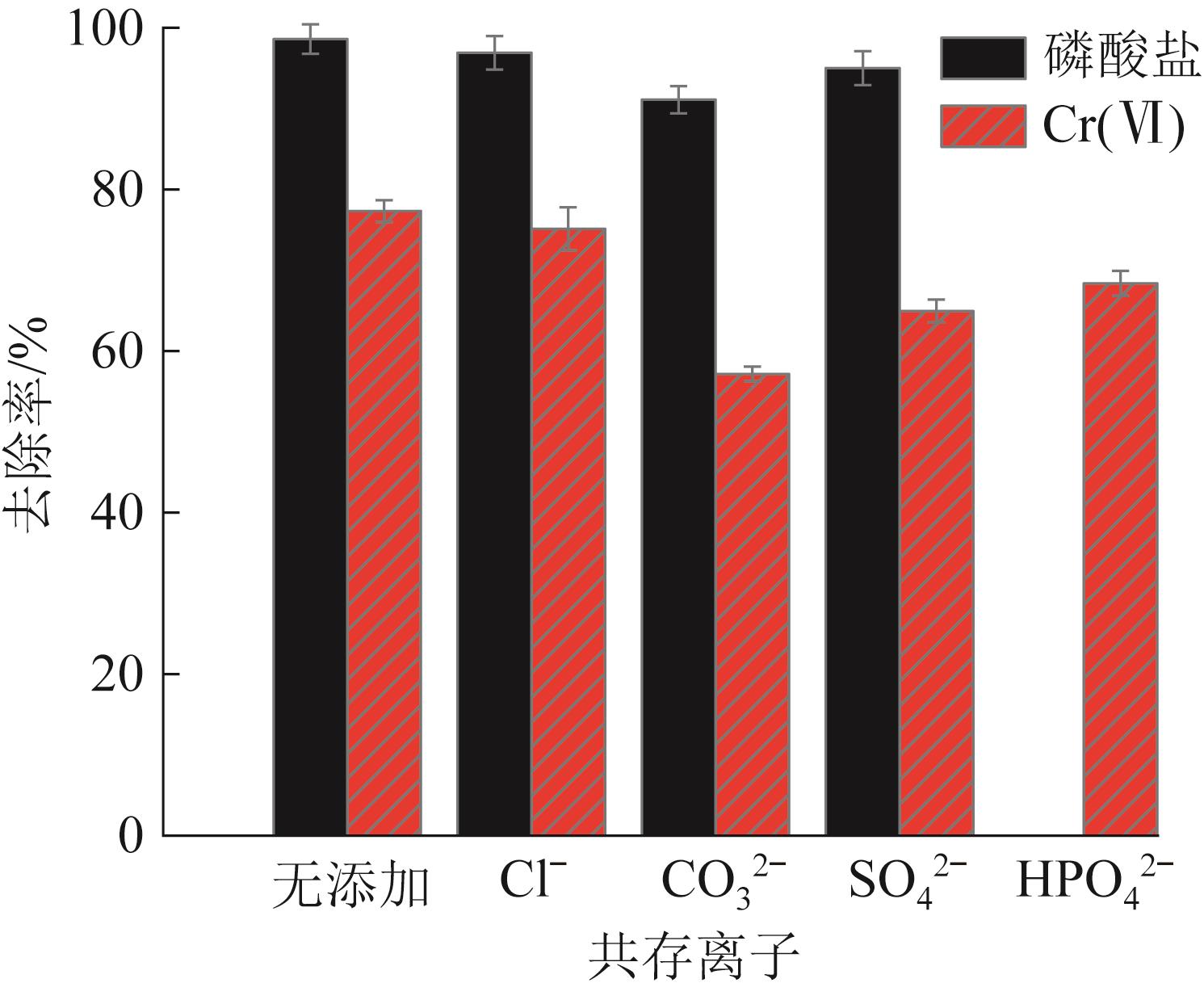

图6 共存离子对复合材料吸附磷酸盐和Cr（Ⅵ）效果的影响

Fig.6 Effect of coexisting ions on the adsorption of phosphate and Cr（Ⅵ） by composite materials

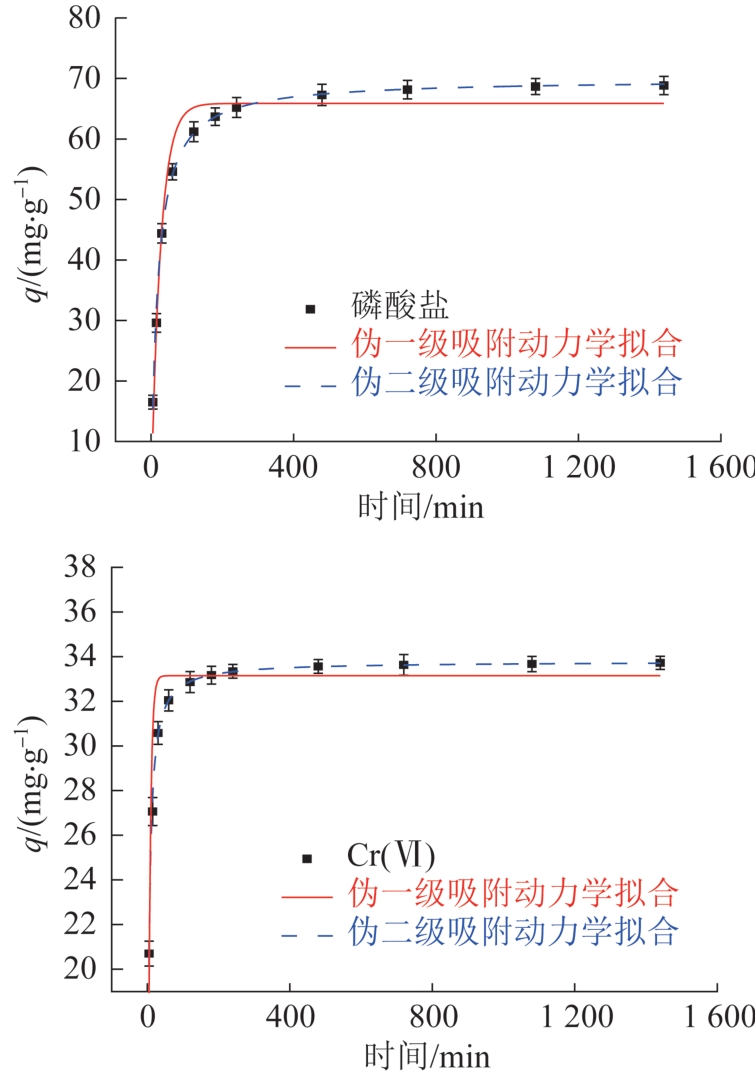

图7 复合材料对磷酸盐和Cr（Ⅵ）的吸附动力学拟合曲线

Fig.7 The fitting curves of adsorption kinetics of phosphate and Cr（Ⅵ） by composite materials

表1 吸附动力学模型拟合参数

Table 1 Fitting parameters of adsorption kinetics model

污染物	伪一级吸附动力学			伪二级吸附动力学
污染物	q _e/（mg·g^-1）	k ₁	R ²	q _e/（mg·g^-1）	k ₂	R ²
磷酸盐	65.88	0.038	0.969	69.90	8.081	0.998
Cr（Ⅵ）	33.14	0.170	0.856	33.78	0.009	0.997

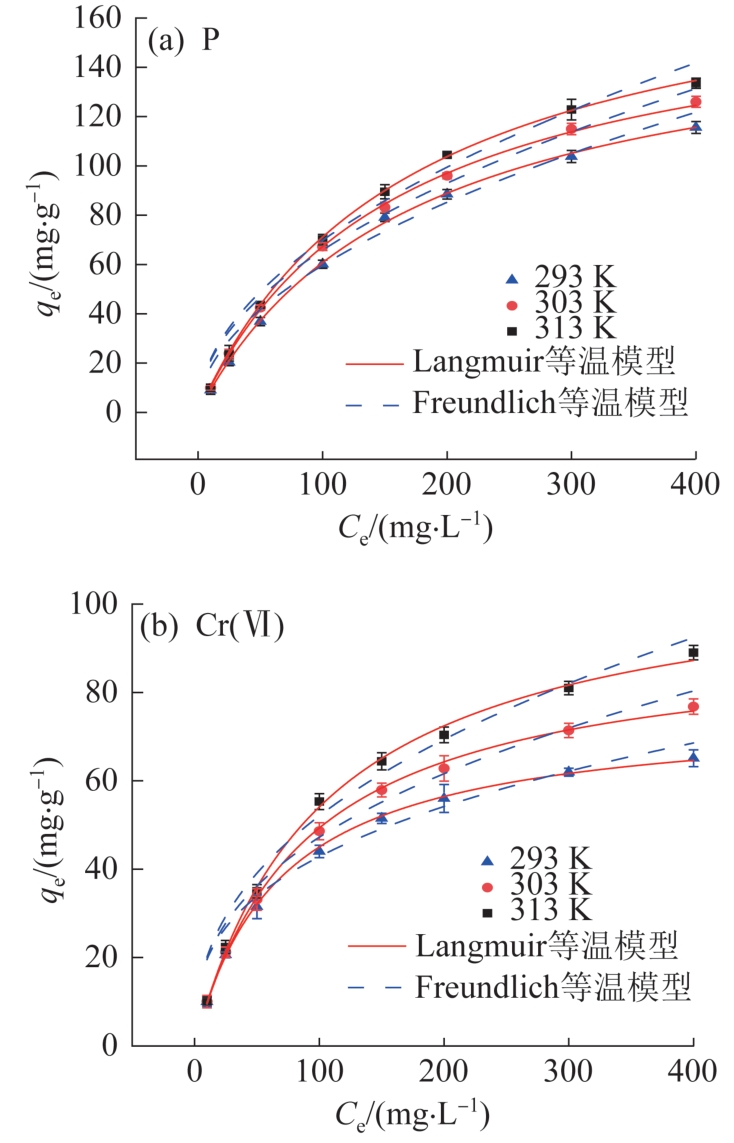

图8 复合材料对磷酸盐（a）和Cr（Ⅵ）（b）的吸附等温线

Fig.8 Adsorption isotherms of phosphate （a） and Cr（Ⅵ）（b）on composites

表2 Langmuir和Freundlich等温模型拟合参数

Table 2 Fitting parameters of Langmuir and Freundlich isothermal model

污染物	T/K	Langmuir			Freundlich
污染物	T/K	Q/（mg·g^-1）	K _L	R ²	K _F	n	R ²
磷酸盐	293	165.5	0.005 8	0.999	5.568	0.515	0.983
	303	174.1	0.006 3	0.999	6.617	0.499	0.981
	313	191.8	0.005 9	0.999	6.606	0.512	0.982
Cr（Ⅵ）	293	79.7	0.014 7	0.999	8.964	0.400	0.954
	303	98.4	0.011 5	0.999	8.076	0.383	0.964
	313	109.7	0.009 7	0.999	7.729	0.414	0.969

表3 ZnAl-LDHs@BC与其他吸附剂的吸附性能对比

Table 3 Comparison of adsorption performance of ZnAl-LDHs@BC with other adsorbents

吸附剂	污染物	温度/K	pH	等温线	动力学	Q/（mg·g^-1）	参考文献
氧化铁负载棉花秸秆生物炭	磷酸盐	298	自然	Langmuir		1.2	〔35〕
Fe-Cu二元氧化物	磷酸盐	298	5.0	Langmuir	伪二级动力学	39.8	〔36〕
纤维素基微球（CSPGs-Ech）	磷酸盐	313	自然	Langmuir	伪二级动力学	106.1	〔37〕
4∶1 Mg/Al-LDHs-BC	磷酸盐	296	3.0	Langmuir	伪二级动力学	81.8	〔21〕
76.7% ZnAl-LDHs@BC	磷酸盐	313	4.0	Langmuir	伪二级动力学	191.8	本研究
CoFe-硝酸盐-LDHs	Cr（Ⅵ）	298	7.5	Langmuir	伪二级动力学	27.6	〔38〕
FeH（34%）@kaol-US	Cr（Ⅵ）	298	3.0	Langmuir	伪二级动力学	20.4	〔39〕
NMA-LDHs	Cr（Ⅵ）	313	自然	Langmuir	伪二级动力学	52.4	〔40〕
MgAl-NO₃ ^- LDH	Cr（Ⅵ）	313	6.0	Langmuir	伪二级动力学	75.8	〔41〕
76.7% ZnAl-LDHs@BC	Cr（Ⅵ）	313	6.0	Langmuir	伪二级动力学	109.7	本研究

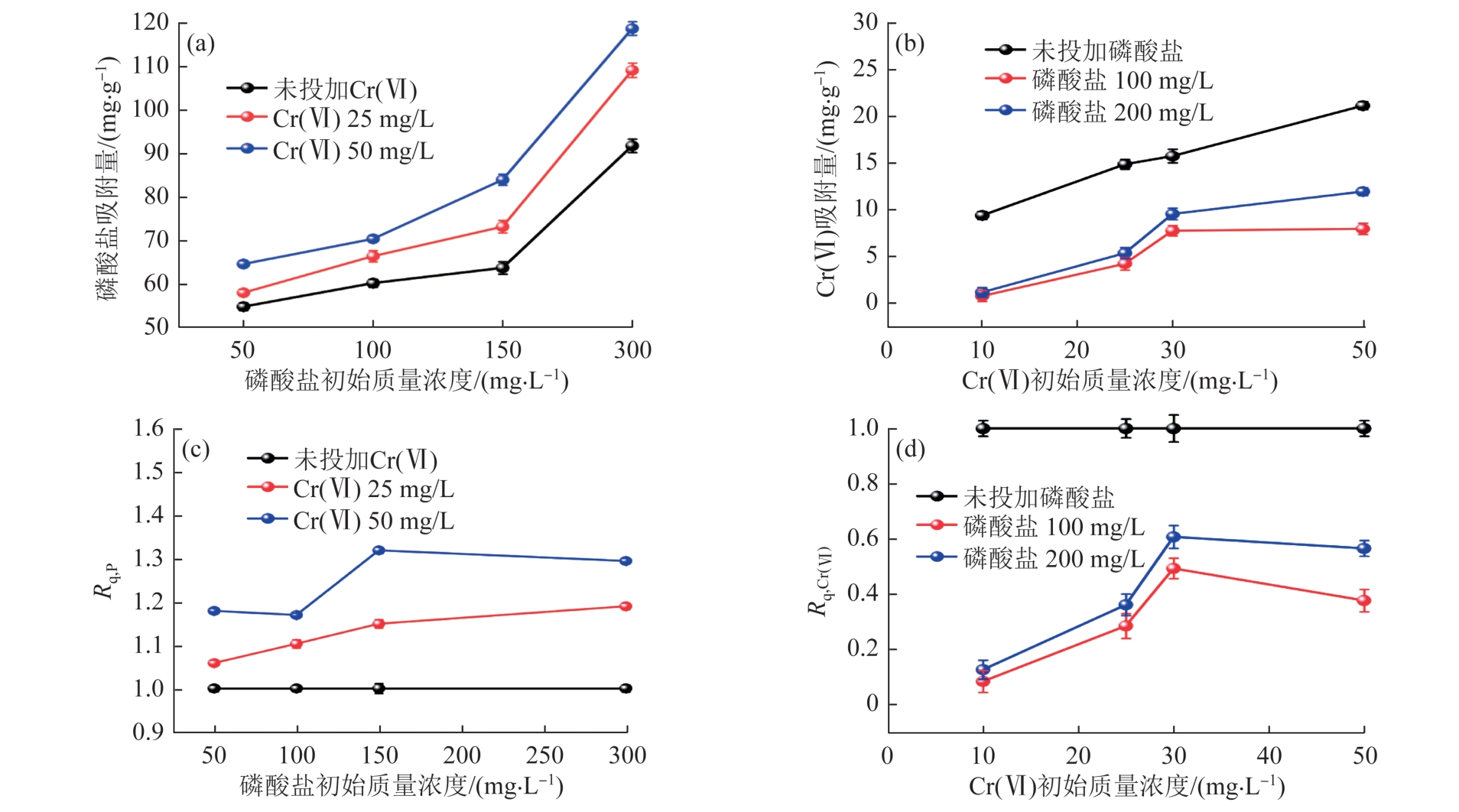

图9 复合材料对磷酸盐-Cr（Ⅵ）二元体系中磷酸盐、Cr（Ⅵ）的吸附性能及共存污染物的影响

Fig.9 Effects of composite materials on the adsorption properties of phosphate and Cr（Ⅵ） and effects of co-existing pollutants in phosphate-Cr（Ⅵ） binary system
