天然斜发沸石和人粪生物炭吸附回收黄水中氮磷

doi:10.19965/j.cnki.iwt.2024-0596

摘要/Abstract

摘要：

为实现黄水中氮磷等营养物质的高效资源化，选用天然斜发沸石和人粪生物炭作为吸附剂，探究吸附剂投加量、粒径对黄水中氮磷吸附效果的影响，并利用X射线衍射（XRD）与傅里叶变换红外光谱（FTIR）对吸附前后的吸附剂进行表征。结果表明：两种吸附剂均能有效降低黄水的pH、电导率以及溶解性总固体（TDS），对总有机碳（TOC）也有一定的吸附效果。斜发沸石对NH₄ ⁺-N具有较强的选择性吸附优势，对磷的吸附率则随着投加量的增大而升高；粪基生物炭对氮磷的吸附性能优于斜发沸石，对NH₄ ⁺-N、TP、PO₄ ^3--P的吸附率分别可达78.14%、79.26%、80.48%。斜发沸石粒径对吸附效果的影响较小，实验条件下粒径为50~60目时的吸附性能最佳。吸附处理后，在吸附剂表面检测到多种新的有机物及含氮、磷无机盐，证实了两种吸附剂对黄水中的氮磷具有吸附能力。吸附氮磷后的斜发沸石和粪基生物炭不仅可作为缓释肥用于农业生产，还可进一步推动黄水的资源化利用。

关键词: 天然斜发沸石, 人粪生物炭, 黄水, 氮磷

Abstract:

To achieve efficient resource recovery of nitrogen and phosphorus nutrients from yellow water, this study selected natural clinoptilolite and human manure-based biochar as adsorbents. The research systematically investigated the effects of adsorbent dosage and particle size on the adsorption efficiency of nitrogen and phosphorus in yellow water. Furthermore, X-ray diffraction (XRD) and Fourier transform infrared spectroscopy (FTIR) were employed to characterize the structural and chemical properties of the adsorbents before and after adsorption. The results showed that both adsorbents could effectively reduce the pH, electrical conductivity, and total dissolved solids (TDS) of yellow water, while also demonstrating certain adsorption capacity for total organic carbon (TOC). Clinoptilolite exhibited strong selective adsorption for NH₄ ⁺-N, and its phosphorus adsorption efficiency increased with higher dosages. The manure-based biochar showed superior nitrogen and phosphorus adsorption performance compared to clinoptilolite, achieving adsorption rates of 78.14%, 79.26%, and 80.48% for NH₄ ⁺-N, TP, and PO₄ ^3--P, respectively. Particle size of clinoptilolite had minimal influence on adsorption performance, with the 50-60 mesh range showing optimal results under experimental conditions. Post-adsorption analysis detected various new organic compounds and nitrogen/phosphorus-containing inorganic salts on the adsorbent surfaces, confirming their adsorption capabilities. The nitrogen-phosphorus loaded clinoptilolite and manure-based biochar can not only serve as slow-release fertilizers for agricultural production but also further promote the resource utilization of yellow water.

Key words: natural clinoptilolite, human manure biochar, yellow water, nitrogen and phosphorus

中图分类号:

X703.1

杨延梅, 吕远洋, 陈可, 蒋进元, 李雅君. 天然斜发沸石和人粪生物炭吸附回收黄水中氮磷[J]. 工业水处理, 2025, 45(8): 104-112.

Yanmei YANG, Yuanyang LÜ, Ke CHEN, Jinyuan JIANG, Yajun LI. Adsorption and recovery of nitrogen and phosphorus in yellow water by natural clinoptilolite and human manure biochar[J]. Industrial Water Treatment, 2025, 45(8): 104-112.

https://www.iwt.cn/CN/Y2025/V45/I8/104

图/表 7

图1 吸附剂投加量对黄水pH、EC、TDS、TOC的影响

Fig.1 Effect of adsorbent dosage on pH，EC，TDS and TOC of yellow water

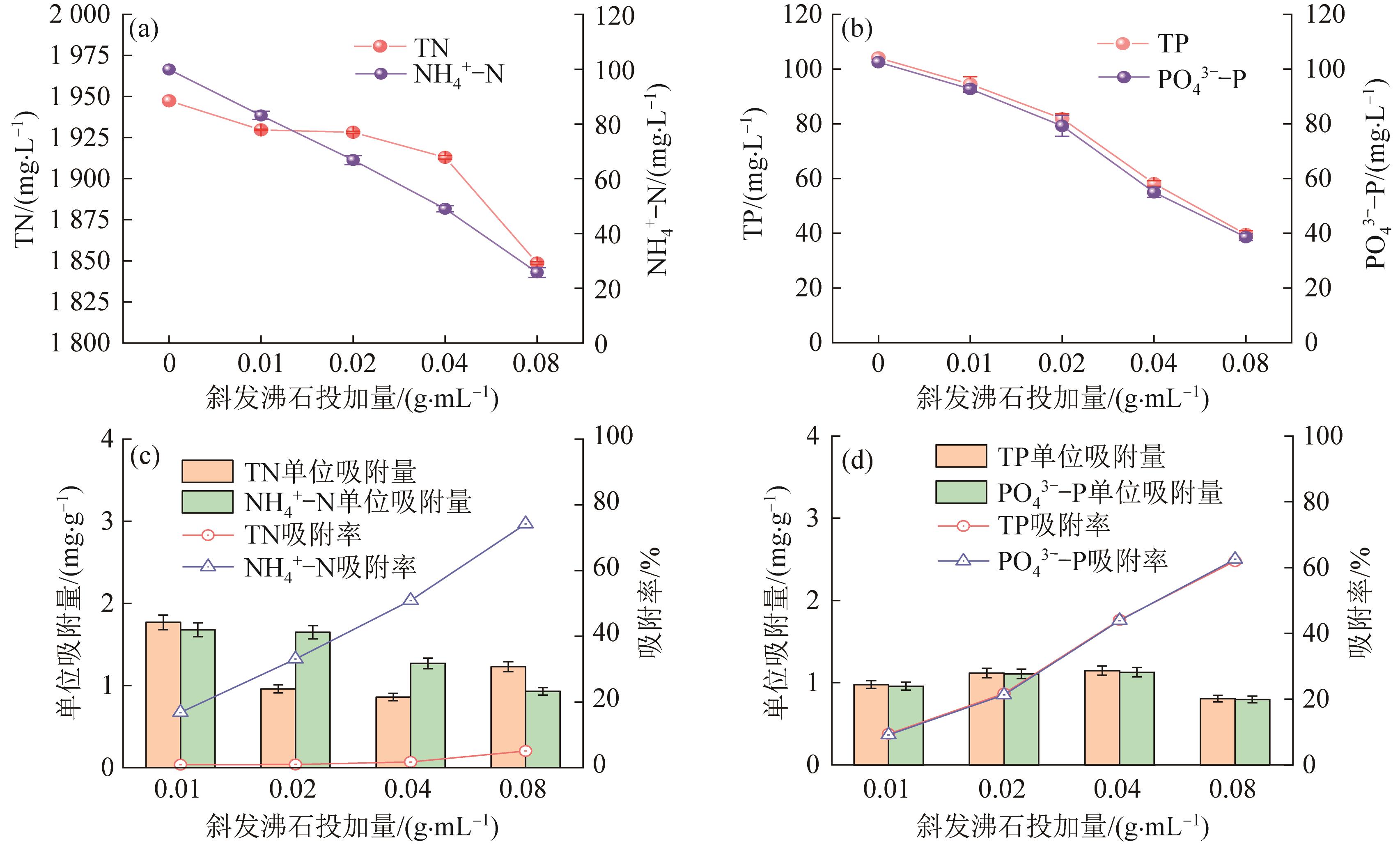

图2 斜发沸石投加量对黄水中氮磷的吸附效果

Fig.2 Effect of clinoptilolite dosage on the adsorption of nitrogen and phosphorus in yellow water

图3 人粪生物炭投加量对黄水中氮磷的吸附效果

Fig.3 Effect of manure-based biochar dosage on the adsorption of nitrogen and phosphorus in yellow water

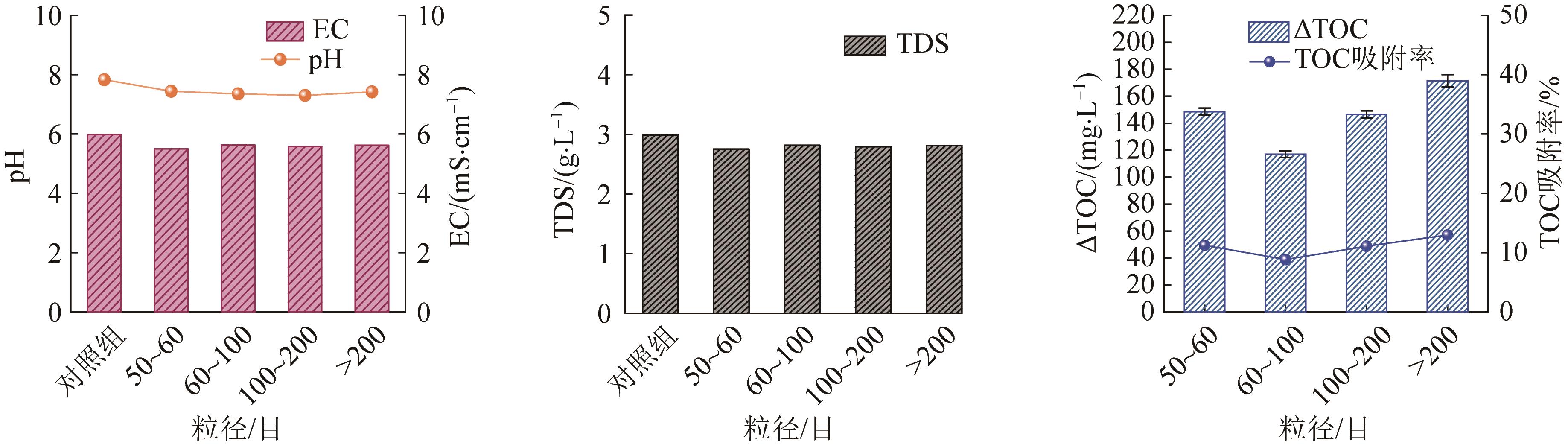

图4 斜发沸石粒径对黄水pH、EC、TDS、TOC的影响

Fig.4 Effect of particle size of clinoptilolite on pH，EC，TDS and TOC of yellow water

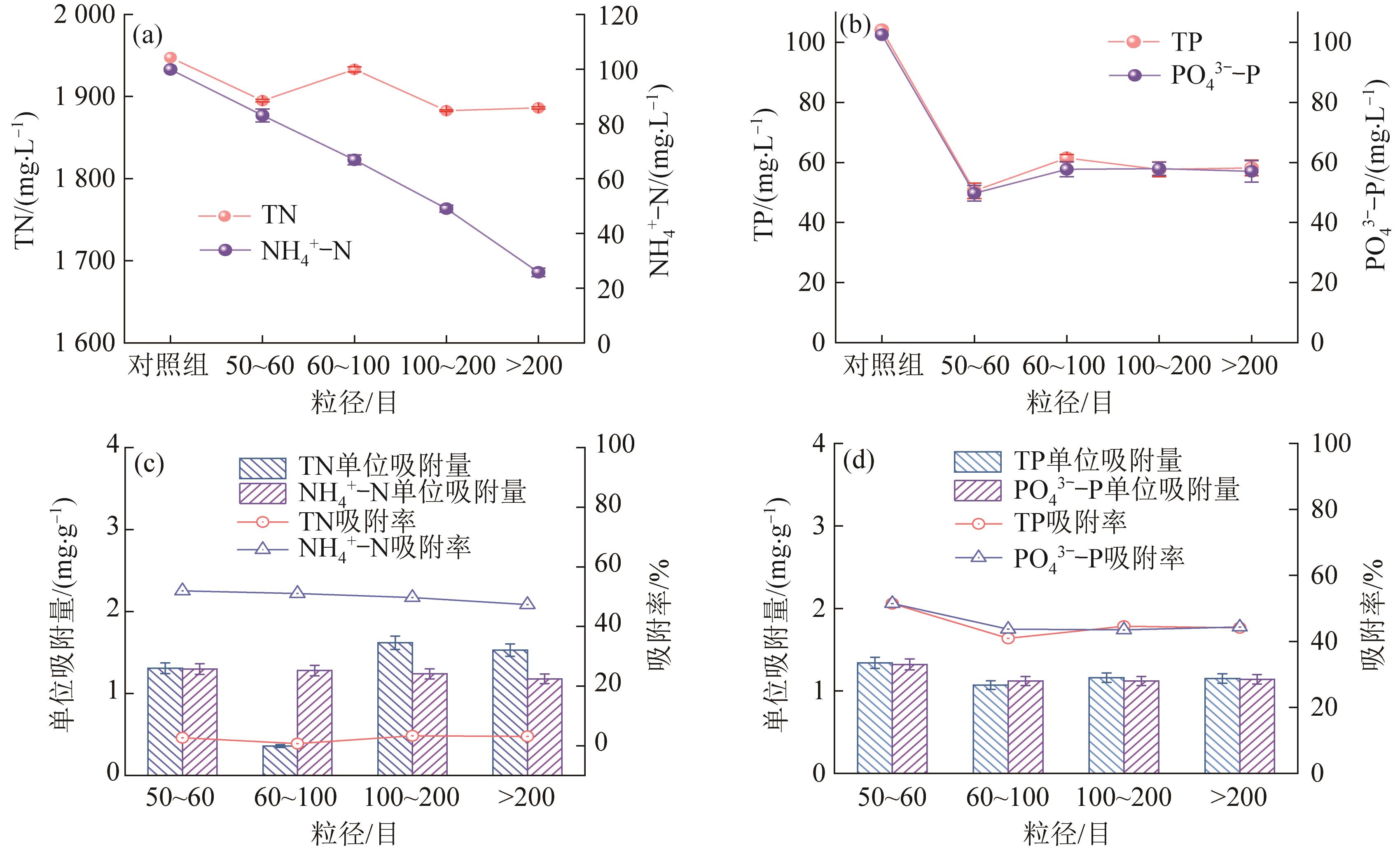

图5 斜发沸石粒径对黄水中氮磷的吸附效果

Fig.5 Effect of clinoptilolite particle size on nitrogen and phosphorus adsorption in yellow water

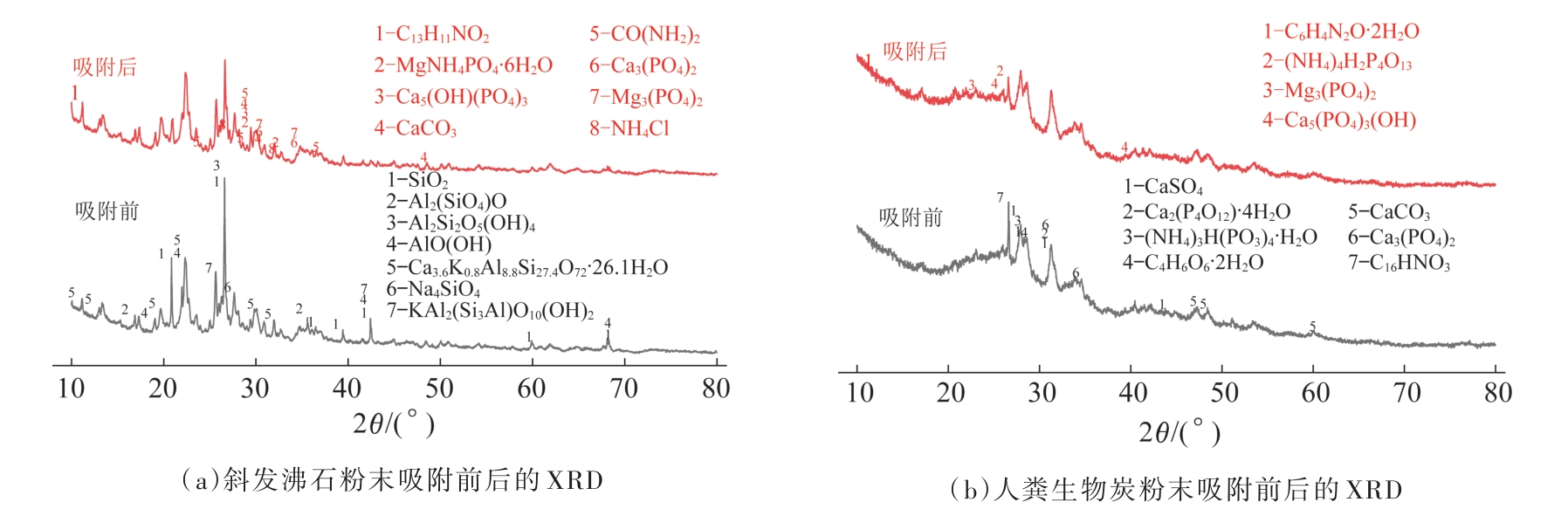

图6 吸附剂吸附前后的XRD

Fig.6 XRD spectra of adsorbent before and after adsorption

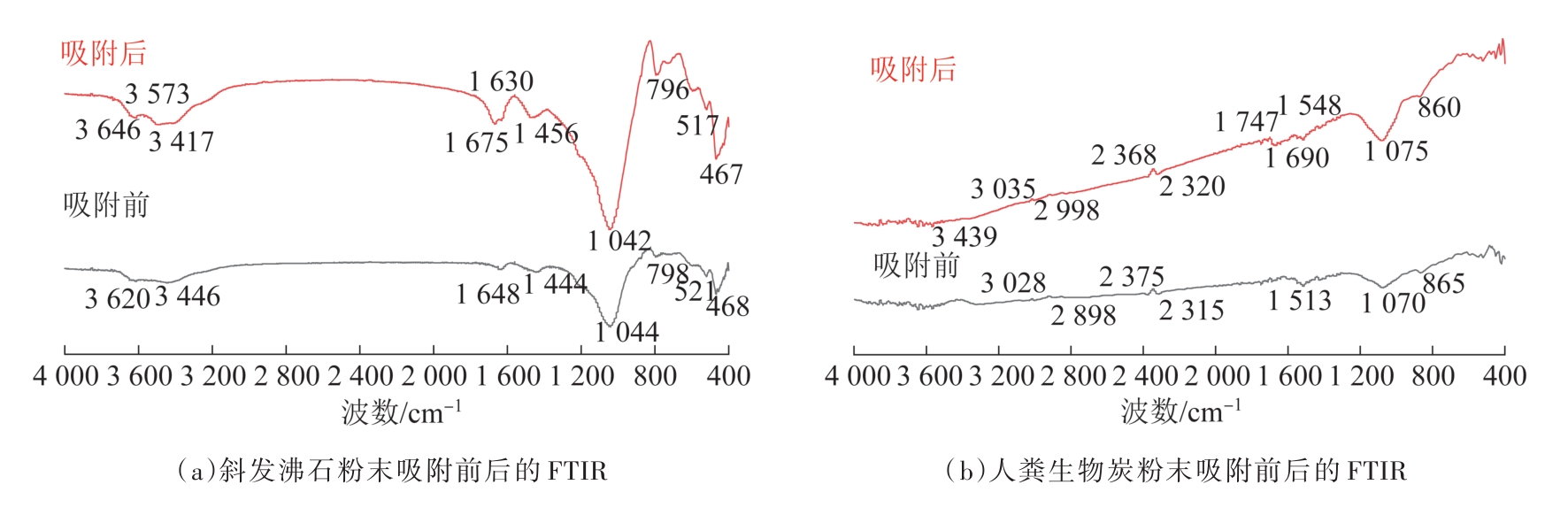

图7 吸附剂吸附前后的FTIR

Fig.7 FTIR spectra of adsorbent before and after adsorption

参考文献 25

[1]	LIU Qiting， SUN Wenhui， ZENG Qianhao，et al. Integrated processes for simultaneous nitrogen，phosphorus，and potassium recovery from urine：A review［J］. Journal of Water Process Engineering，2024，59：104975. doi:10.1016/j.jwpe.2024.104975
[2]	LI Yujiao， WANG Ruoyu， SHI Shaoyuan，et al. Bipolar membrane electrodialysis for ammonia recovery from synthetic urine：Experiments，modeling，and performance analysis［J］. Environmental Science & Technology，2021，55（21）：14886-14896. doi:10.1021/acs.est.1c05316
[3]	王国田，郭芳，温禾，等. 基于源分离的农村污水资源化技术现状与展望［J］. 资源节约与环保，2024（2）：41-46.
	WANG Guotian， GUO Fang， WEN He，et al. Present situation and prospect of rural sewage resource utilization technology based on source separation［J］. Resources Economization & Environmental Protection，2024（2）：41-46.
[4]	TARPEH W A， WALD I， OMOLLO M O，et al. Evaluating ion exchange for nitrogen recovery from source-separated urine in Nairobi，Kenya［J］. Development Engineering，2018，3：188-195. doi:10.1016/j.deveng.2018.07.002
[5]	O’NEAL J A， BOYER T H. Phosphate recovery using hybrid anion exchange：Applications to source-separated urine and combined wastewater streams［J］. Water Research，2013，47（14）：5003-5017. doi:10.1016/j.watres.2013.05.037
[6]	谢淘. 生物炭的特性分析及其在黄水资源化中的应用［D］. 北京：清华大学，2015.
	XIE Tao. Characteristic analysis of biochar and its application in yellow water resource utilization［D］. Beijing：Tsinghua University，2015.
[7]	OTIENO A O， HOME P G， RAUDE J M，et al. Pineapple peel biochar and lateritic soil as adsorbents for recovery of ammonium nitrogen from human urine［J］. Journal of Environmental Management，2021，293：112794. doi:10.1016/j.jenvman.2021.112794
[8]	彭佳乐. 新型铜基离子交换树脂处理氨氮废水的研究［D］. 长沙：中南大学，2009.
	PENG Jiale. Study on treatment of ammonia nitrogen wastewater with new copper-based ion exchange resin［D］. Changsha：Central South University，2009.
[9]	黄晓鸣，潘敏，陈天虎，等. 天然斜发沸石吸附去除水中氨氮机理研究［J］. 矿物学报，2016，36（3）：371-376. doi:10.16461/j.cnki.1000-4734.2016.03.008
	HUANG Xiaoming， PAN Min， CHEN Tianhu，et al. Mechanism of ammonium removal from aqueous solution by natural clinoptilolite［J］. Acta Mineralogica Sinica，2016，36（3）：371-376. doi:10.16461/j.cnki.1000-4734.2016.03.008
[10]	MITROGIANNIS D， PSYCHOYOU M， KOUKOUZAS N，et al.Phosphate recovery from real fresh urine by Ca（OH）₂ treated natural zeolite［J］. Chemical Engineering Journal，2018，347：618-630. doi:10.1016/j.cej.2018.04.102
[11]	MURKANI M， NASROLLAHI M， RAVANBAKHSH M，et al.Evaluation of natural zeolite clinoptilolite efficiency for the removal of ammonium and nitrate from aquatic solutions［J］. Environmental Health Engineering and Management，2015，2（1）：17-22.
[12]	HASSAN M， LIU Yanju， NAIDU R，et al. Influences of feedstock sources and pyrolysis temperature on the properties of biochar and functionality as adsorbents：A meta-analysis［J］. Science of the Total Environment，2020，744：140714. doi:10.1016/j.scitotenv.2020.140714
[13]	李卓轩，彭自然，何文辉，等. 羊粪炭对水体氮磷吸附条件的响应面优化及吸附机理研究［J］. 生态环境学报，2023，32（12）：2216-2227. doi:10.16258/j.cnki.1674-5906.2023.12.013
	LI Zhuoxuan， PENG Ziran， HE Wenhui，et al. Response surface optimization and adsorption mechanism of sheep manure charcoal on nitrogen and phosphorus adsorption conditions［J］. Ecology and Environmental Sciences，2023，32（12）：2216-2227. doi:10.16258/j.cnki.1674-5906.2023.12.013
[14]	CHEN Ke， YANG Yanmei， ZHAO Hong，et al. Study on the cadmium and copper binding characteristics of dissolved organic matter released from human-feces-biochar（HFDOM） using parallel factor analysis（PARAFAC） and two-dimensional correlation spectroscopy（2D-COS）［J］. Environmental Science and Pollution Research，2023，30（16）：46900-46912. doi:10.1007/s11356-023-25443-5
[15]	LIU Xuan， LI Zifu， ZHANG Yaozhong，et al. Characterization of human manure-derived biochar and energy-balance analysis of slow pyrolysis process［J］. Waste Management，2014，34（9）：1619-1626. doi:10.1016/j.wasman.2014.05.027
[16]	白晓凤，张耀中，李子富，等. 人粪生物炭的制备及性能分析［J］. 中南大学学报：自然科学版，2017，48（3）：570-577. doi:10.11817/j.issn.1672-7207.2017.03.003
	BAI Xiaofeng， ZHANG Yaozhong， LI Zifu，et al. Preparation and properties analysis of biochars derived from human feces［J］. Journal of Central South University（Science and Technology），2017，48（3）：570-577. doi:10.11817/j.issn.1672-7207.2017.03.003
[17]	田时雨，蒯兴宇，黄涛，等. 尿液收集储存过程中的性质变化及其资源化利用［J］. 环境工程，2021，39（2）：66-72. doi:10.13205/j.hjgc.202102011
	TIAN Shiyu， KUAI Xingyu， HUANG Tao，et al. The property of urine in collection and storage process for resource utilization of urine［J］. Environmental Engineering，2021，39（2）：66-72. doi:10.13205/j.hjgc.202102011
[18]	AHMAD M， LEE S S， LEE S E，et al. Biochar-induced changes in soil properties affected immobilization/mobilization of metals/metalloids in contaminated soils［J］. Journal of Soils and Sediments，2017，17（3）：717-730. doi:10.1007/s11368-015-1339-4
[19]	康赛. 尿液膜蒸馏性能评估与膜污染机制研究［D］. 邯郸：河北工程大学，2021.
	KANG Sai. Evaluation of membrane distillation performance of urine and study on membrane fouling mechanism［D］. Handan：Hebei University of Engineering，2021.
[20]	AHMAD M， RAJAPAKSHA A U， LIM J E，et al. Biochar as a sorbent for contaminant management in soil and water：A review［J］.Chemosphere，2014，99：19-33. doi:10.1016/j.chemosphere.2013.10.071
[21]	PIASH M I， IWABUCHI K， ITOH T. Synthesizing biochar-based fertilizer with sustained phosphorus and potassium release：Co-pyrolysis of nutrient-rich chicken manure and Ca-bentonite［J］.Science of the Total Environment，2022，822：153509. doi:10.1016/j.scitotenv.2022.153509
[22]	HUANG Rixiang， FANG Ci， ZHANG Bei，et al. Transformations of phosphorus speciation during（hydro）thermal treatments of animal manures［J］. Environmental Science & Technology，2018，52（5）：3016-3026. doi:10.1021/acs.est.7b05203
[23]	沈佳玲.斜发沸石去除水中氨氮的实验与分子动力学模拟研究［D］. 杭州：中国计量大学，2020.
	SHEN Jialing.Experimental and molecular dynamics simulation study on ammonia nitrogen removal from water by clinoptilolite［D］. Hangzhou：China University of Metrology，2020.
[24]	李雪英. 改性斜发沸石吸附去除牛尿污水中N、P、K的实验研究［D］. 昆明：昆明理工大学，2013. doi:10.4028/www.scientific.net/msf.743-744.531
	LI Xueying. Experimental study on adsorption and removal of N，P and K from bovine urine wastewater by modified clinoptilolite［D］.Kunming：Kunming University of Science and Technology，2013. doi:10.4028/www.scientific.net/msf.743-744.531
[25]	孙薇. 红外光谱法检测尿液成分的机理与应用［D］. 长春：吉林大学，2010.
	SUN Wei. Mechanism and application of infrared spectroscopy in detecting urine components［D］. Changchun：Jilin University，2010.
