Research progress of electrodialysis technology in the field of resourceful utilization of high salt industrial wastewater

doi:10.19965/j.cnki.iwt.2020-1002

Abstract

Abstract:

With the accelerating process of global industrialization，the discharge of high salt industrial wastewater is increasing. It has become a development trend to recycle the high salt industrial wastewater by electrodialysis process. The research status of electrodialysis technology in the field of resourceful utilization of high salt industrial wastewater were reviewed from two aspects of process optimization and coupling process development，and the research focus of electrodialysis technology in the future were prospected.

Key words: high salt industrial wastewater, electrodialysis, resourceful utilization, coupling process

摘要：

随着全球工业化进程的不断加快，高盐工业废水的排放量越来越大，采用电渗析技术将高盐工业废水进行资源化利用已成为一种发展趋势。从工艺优化及耦合工艺开发两个方面对电渗析技术在高盐工业废水资源化利用领域的研究状况进行综述，并对未来电渗析技术研究重点进行展望。

关键词: 高盐工业废水, 电渗析, 资源化利用, 耦合工艺

CLC Number:

X703

Ming ZHU, Yongzhi CHI, Fuqiang CHEN, Bo WANG, Sufeng TIAN, Muzhi LIU. Research progress of electrodialysis technology in the field of resourceful utilization of high salt industrial wastewater[J]. Industrial Water Treatment, 2022, 42(1): 21-28.

朱铭, 池勇志, 陈富强, 王波, 田素凤, 刘沐之. 高盐工业废水资源化利用领域电渗析技术的研究进展[J]. 工业水处理, 2022, 42(1): 21-28.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2020-1002

https://www.iwt.cn/EN/Y2022/V42/I1/21

Figures/Tables 9

References 58

1	周曼璐. 环境监测中地表水检测存在的问题与对策［J］. 化工设计通讯，2020，46（9）： 190-191. doi:10.3969/j.issn.1003-6490.2020.09.101
	ZHOU Manlu. Problems and countermeasures of surface water detection in environmental monitoring［J］. Chemical Engineering Design Communications，2020，46（9）： 190-191. doi:10.3969/j.issn.1003-6490.2020.09.101
2	CHEN Qian， LIU Chuanqi， LIU Xinying，et al. Magnetite enhances anaerobic digestion of high salinity organic wastewater［J］. Environmental Research，2020，189：109884. doi:10.1016/j.envres.2020.109884
3	LIU Enyu， LEE L Y，ONG S L，et al. Treatment of industrial brine using capacitive deionization（CDI） towards zero liquid discharge⁃challenges and optimization［J］. Water Research，2020，183：116059. doi:10.1016/j.watres.2020.116059
4	韦锋涛，贾铭椿，王晓伟，等. 高含盐废水浓缩处理技术研究进展［J］. 现代化工，2019，39（9）：21-25.
	WEI Fengtao， JIA Mingchun， WANG Xiaowei，et al. Research progress in concentration treatment technologies for high salinity wastewater［J］. Modern Chemical Industry，2019，39（9）：21-25.
5	HU Jinting， FU Wanyi， NI Fan，et al. An integrated process for the advanced treatment of hypersaline petrochemical wastewater：A pilot study［J］. Water Research，2020，182：116019. doi:10.1016/j.watres.2020.116019
6	SRIMUK P， SU Xiao， YOON J，et al. Charge⁃transfer materials for electrochemical water desalination，ion separation and the recovery of elements［J］. Nature Reviews Materials，2020，5（7）：517-538. doi:10.1038/s41578-020-0193-1
7	IPPERSIEL D， MONDOR M， LAMARCHE F，et al. Nitrogen potential recovery and concentration of ammonia from swine manure using electrodialysis coupled with air stripping［J］. Journal of Environmental Management，2012，95：165-169. doi:10.1016/j.jenvman.2011.05.026
8	陈富强，池勇志，田秉晖，等. 高盐工业废水零排放技术研究进展［J］. 工业水处理， 2018，38（8）：1-5. doi:10.11894/1005-829x.2018.38(8).001
	CHEN Fuqiang， CHI Yongzhi， TIAN Binghui，et al. Research progress in the zero discharge technology for high⁃salt industrial wastewater［J］. Industrial Water Treatment， 2018，38（8）：1-5. doi:10.11894/1005-829x.2018.38(8).001
9	SON H S， SHAHZAD M W， GHAFOUR N，et al. Pilot studies on synergetic impacts of energy utilization in hybrid desalination system：Multi⁃effect distillation and adsorption cycle（MED-AD）［J］. Desalination，2020，477：114266. doi:10.1016/j.desal.2019.114266
10	SI Zetian， HAN Dong， GU Jiming，et al. Exergy analysis of a vacuum membrane distillation system integrated with mechanical vapor recompression for sulfuric acid waste treatment［J］. Applied Thermal Engineering，2020，178：115516. doi:10.1016/j.applthermaleng.2020.115516
11	LANDSMAN M R， LAWLER D F， KATZ L E，et al. Application of electrodialysis pretreatment to enhance boron removal and reduce fouling during desalination by nanofiltration/reverse osmosis［J］. Desalination，2020，491：114563. doi:10.1016/j.desal.2020.114563
12	PRAMANIK B K，HAI F I， RODDICK F A，et al. Ultraviolet/persulfate pre⁃treatment for organic fouling mitigation of forward osmosis membrane：Possible application in nutrient mining from dairy wastewater［J］. Separation and Purification Technology，2019，217：215-220. doi:10.1016/j.seppur.2019.02.016
13	JIANG Longjie， CHEN Liniang， ZHU Liang，et al. Fouling process of membrane distillation for seawater desalination：An especial focus on the thermal⁃effect and concentrating⁃effect during biofouling［J］. Desalination，2020，485：114457. doi:10.1016/j.desal.2020.114457
14	HAGESTEIJN K F L， JIANG Shanxue， LADEWIG B P. A review of the synthesis and characterization of anion exchange membranes［J］. Journal of Materials Science，2018，53（16）：11131-11150. doi:10.1007/s10853-018-2409-y
15	LIU Peng， ZHENG Yaqi， LIN Shumeng，et al. Reactive microporous copolymers with excellent film⁃forming ability for ion exchan⁃ge membranes［J］. Journal of Power Sources，2020，452：227827. doi:10.1016/j.jpowsour.2020.227827
16	LU Yao， LIU Yue， LI Na，et al. Sulfonated graphitic carbon nitride nanosheets as proton conductor for constructing long⁃range ionic channels proton exchange membrane［J］. Journal of Membrane Science，2020，601：117908. doi:10.1016/j.memsci.2020.117908
17	ZHANG Yuan， SRIMUK P， ASLAN M，et al. Polymer ion⁃exchange membranes for capacitive deionization of aqueous media with low and high salt concentration［J］. Desalination，2020，479：114331. doi:10.1016/j.desal.2020.114331
18	IRFAN M， GE Liang， WANG Yaoming，et al. Hydrophobic side chains impart anion exchange membranes with high monovalent⁃divalent anion selectivity in electrodialysis［J］. ACS Sustainable Chemistry & Engineering，2019，7（4）：4429-4442. doi:10.1021/acssuschemeng.8b06426
19	WANG Xiaoyao， ZHANG Xu， WU Cuiming，et al. Anion exchange membranes with excellent monovalent anion perm⁃selectivity for electrodialysis applications［J］. Chemical Engineering Research and Design，2020，158：24-32. doi:10.1016/j.cherd.2020.03.021
20	LIAO Junbin， CHEN Quan， PAN Nengxiu，et al. Amphoteric blend ion⁃exchange membranes for separating monovalent and bivalent anions in electrodialysis［J］. Separation and Purification Technology，2020，242：116793. doi:10.1016/j.seppur.2020.116793
21	TANSEL B， SAGER J， RECTOR T，et al. Significance of hydrated radius and hydration shells on ionic permeability during nanofiltration in dead end and cross flow modes［J］. Separation & Purification Technology，2006，51（1）：40-47. doi:10.1016/j.seppur.2005.12.020
22	STENINA I， GOLUBENKO D， NIKONENKO V，et al. Selectivity of transport processes in ion⁃exchange membranes：Relationship with the structure and methods for its improvement［J］. International Journal of Molecular Ences，2020，21（15）：5517. doi:10.3390/ijms21155517
23	FAN Hanqing， HUANG Yuxuan，YIP N Y. Advancing the conductivity⁃permselectivity tradeoff of electrodialysis ion⁃exchange membranes with sulfonated CNT nanocomposites［J］. Journal of Membrane Science，2020，610：118259. doi:10.1016/j.memsci.2020.118259
24	PAN Jiefeng， DING Jingcheng， TAN Ruiqing，et al. Preparation of a monovalent selective anion exchange membrane through constructing a covalently crosslinked interface by electro⁃deposition of polyethyleneimine［J］. Journal of Membrane Science，2017，539：263-272. doi:10.1016/j.memsci.2017.06.017
25	DONG Ting， YAO Jingmei， WANG Yi，et al. On the permselectivity of di- and mono⁃valent cations：Influence of applied current density and ionic species concentration［J］. Desalination，2020，488：114521. doi:10.1016/j.desal.2020.114521
26	李福勤，焦亚楠，朱云浩，等. 单价选择性电渗析处理酸性重金属废水试验研究［J］. 工业水处理，2020，40（4）：67-70. doi:10.11894/iwt.2019-0427
	LI Fuqin， JIAO Yanan， ZHU Yunhao，et al. Experimental study on treatment of acidic heavy metal wastewater by electrodialysis of monovalent selective ［J］. Industrial Water Treatment，2020，40（4）：67-70. doi:10.11894/iwt.2019-0427

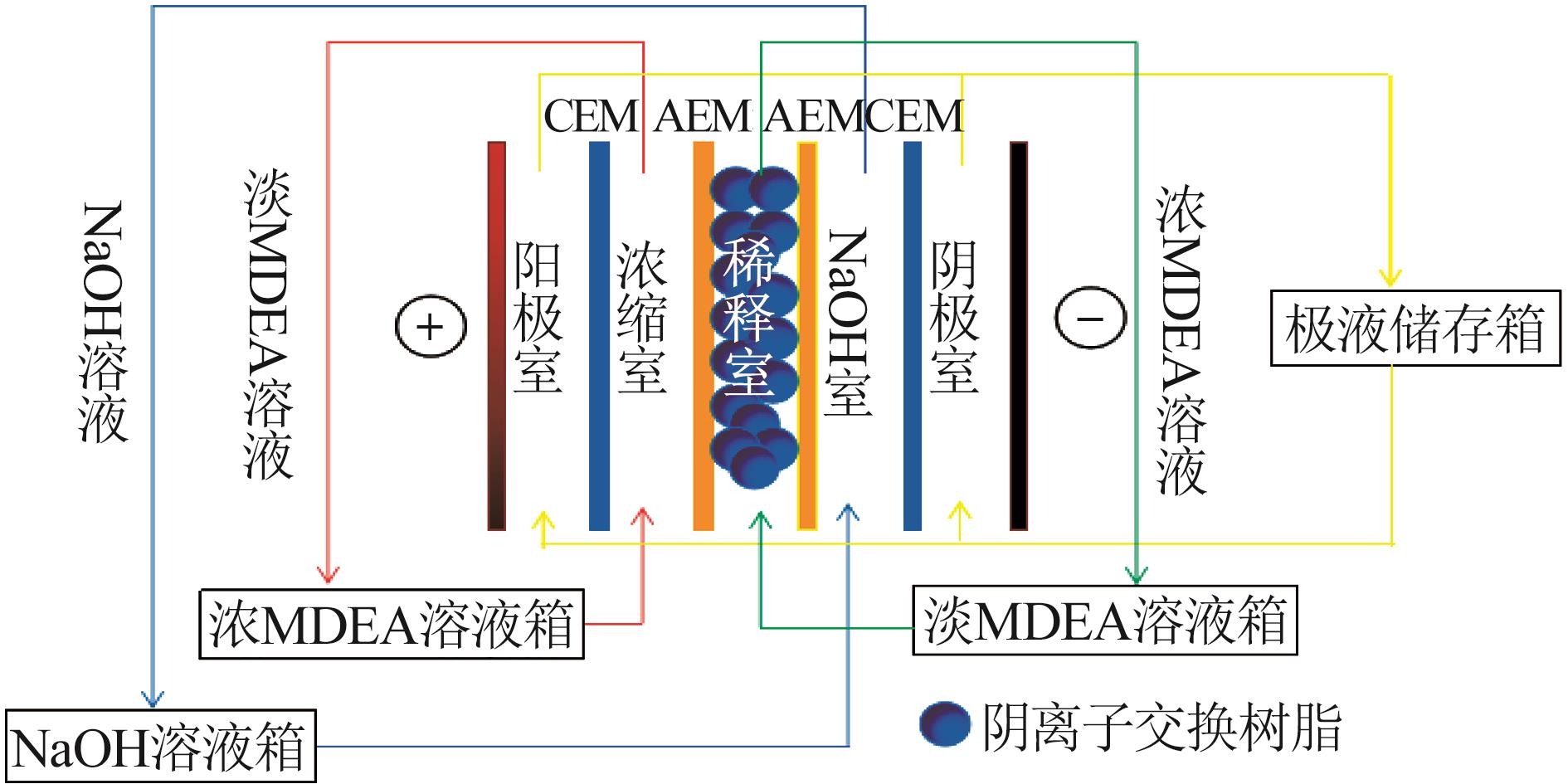

27	CHEN Fuqiang， CHI Yongzhi， ZHANG Mengyi，et al. Removal of heat stable salts from N-methyldiethanolamine wastewater by anion exchange resin coupled three⁃compartment electrodialysis［J］. Separation and Purification Technology，2020，242：116777. doi:10.1016/j.seppur.2020.116777
28	CHEN Qingbai， WANG Jianyou， LIU Yu，et al. Novel energy⁃efficient electrodialysis system for continuous brackish water desalination：Innovative stack configurations and optimal inflow modes［J］. Water Research，2020，179：115847. doi:10.1016/j.watres.2020.115847
29	CAI Yuyan， HAN Zhiying， LIN Xiaochang，et al. Study on removal of phosphorus as struvite from synthetic wastewater using a pilot⁃scale electrodialysis system with magnesium anode［J］. Ence of The Total Environment，2020，726：138221. doi:10.1016/j.scitotenv.2020.138221
30	CAMPIONE A， GURRERI L， CIOFALO M，et al. Electrodialysis for water desalination：A critical assessment of recent developments on process fundamentals，models and applications［J］. Desalination，2018，434：121160. doi:10.1016/j.desal.2017.12.044
31	HERRERO⁃GONZALEZ M， DIAZ⁃GURIDI P， DOMINGUEZ⁃RAMOS A，et al. Highly concentrated HCl and NaOH from brines using electrodialysis with bipolar membranes［J］. Separation and Purification Technology，2020，242：116785. doi:10.1016/j.seppur.2020.116785
32	LINDEN N V， BANDINU G L， VERMAAS D A，et al. Bipolar membrane electrodialysis for energetically competitive ammonium removal and dissolved ammonia production［J］. Journal of Cleaner Production，2020，259：120788. doi:10.1016/j.jclepro.2020.120788
33	MELNIKOV S S， MUGTAMOV O A， ZABOLOTSKY V I，et al. Study of electrodialysis concentration process of inorganic acids and salts for the two⁃stage conversion of salts into acids utilizing bipolar electrodialysis［J］. Separation and Purification Technology，2020，235：116198. doi:10.1016/j.seppur.2019.116198
34	黄灏宇，叶春松. 双极膜电渗析技术在高盐废水处理中的应用［J］. 水处理技术，2020，46（6）：4-8.
	HUANG Haoyu， YE Chunsong. Application of bipolar membrane electrodialysis in the treatment of high⁃salinitywastewater［J］. Technology of Water Treatment，2020，46（6）：4-8.
35	GHYSELBRECHT K， SILVA A， VAN B，et al. Desalination feasibility study of an industrial NaCl stream by bipolar membrane electrodialysis［J］. Journal of Environmental Management，2014，140：69-75. doi:10.1016/j.jenvman.2014.03.009
36	TRAN A T K， MONDAL P， LIN JIUYANG，et al. Simultaneous regeneration of inorganic acid and base from a metal washing step wastewater by bipolar membrane electrodialysis after pretreatment by crystallization in a fluidized pellet reactor［J］. Journal of Membrane Science，2015，473：118-127. doi:10.1016/j.memsci.2014.09.006
37	BUNANI S， ARDA M， KABAY N，et al. Effect of process conditions on recovery of lithium and boron from water using bipolar membrane electrodialysis（BMED）［J］. Desalination，2017，416：10-15. doi:10.1016/j.desal.2017.04.017
38	LI Yan， ZHAO Youjing， WANG Huaiyou，et al. The application of nanofiltration membrane for recovering lithium from salt lake brine［J］. Desalination，2019，468：114081. doi:10.1016/j.desal.2019.114081
39	SIEKIERKA A， TOMASZEWSKA B， BRYJAK M，et al. Lithium capturing from geothermal water by hybrid capacitive deioniza⁃tion［J］. Desalination，2018，436：8-14. doi:10.1016/j.desal.2018.02.003
40	HWANG C W， JEONG M H，YIM Y J，et al. Process design for lithium recovery using bipolar membrane electrodialysis system［J］. Separation and Purification Technology，2016，166：34-40. doi:10.1016/j.seppur.2016.03.013
41	İPEKÇI D， ALTIOK E， BUNANI S，et al. Effect of acid⁃base solutions used in acid⁃base compartments for simultaneous recovery of lithium and boron from aqueous solution using bipolar membrane electrodialysis（BMED）［J］. Desalination，2018，448：69-75. doi:10.1016/j.desal.2018.10.001
42	İPEKI D， KABAY N， BUNANI S，et al. Application of heterogeneous ion exchange membranes for simultaneous separation and recovery of lithium and boron from aqueous solution with bipolar membrane electrodialysis（EDBM）［J］. Desalination，2020，479：114313. doi:10.1016/j.desal.2020.114313
43	YE Wenyuan， LIU Riri， CHEN Xiangyu，et al. Loose nanofiltration⁃based electrodialysis for highly efficient textile wastewater treatment［J］. Journal of Membrane Science，2020，608：118182. doi:10.1016/j.memsci.2020.118182

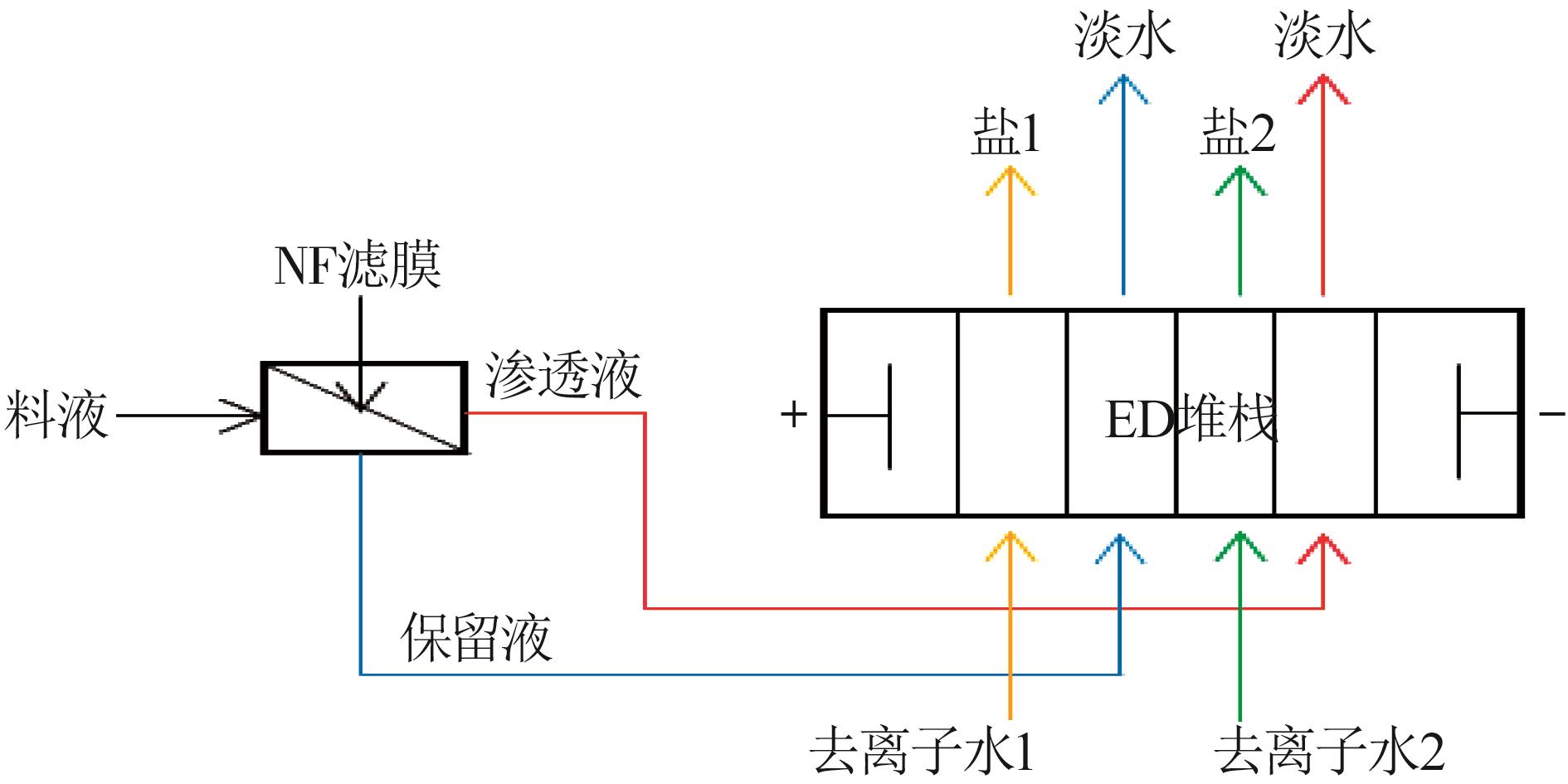

44	ZHANG Yufei， LIU Lei， DU Juan，et al. Fracsis：Ion fractionation and metathesis by a NF-ED integrated system to improve water recovery［J］. Journal of Membrane Science，2017，523：385-393. doi:10.1016/j.memsci.2016.09.052
45	ZHANG Yang， GHYSELBRECHT K， MEESSCHAERT B，et al. Electrodialysis on RO concentrate to improve water recovery in wastewater reclamation［J］. Journal of Membrane Science，2011，378（1/2）：101-110. doi:10.1016/j.memsci.2010.10.036
46	郝亚超，张成凯，李亮，等. 利用电渗析和反渗透耦合处理高盐废水的研究［J］.工业水处理，2021，41（3）：44-47.
	HAO Yachao， ZHUANG Chengkai， LI Liang，et al. The study on the treatment of high salt wastewater by electrodialysis coupled with reverse osmosis［J］. Industrial Water Treatment，2021，41（3）：44-47.
47	OREN Y， KORNGOLD E， DALTROPHE N，et al. Pilot studies on high recovery BWRO⁃EDR for near zero liquid discharge approa⁃ch［J］. Desalination，2010，261（3）：321-330. doi:10.1016/j.desal.2010.06.010
48	HONG Jingi， ZHANG Bopeng， GLABMAN S，et al. Potential ion exchange membranes and system performance in reverse electrodialysis for power generation：A review［J］. Journal of Membrane Science，2015，486：71-88. doi:10.1016/j.memsci.2015.02.039
49	LUO Fabao， WANG Yaoming， JIANG Chenxiao，et al. A power free electrodialysis（PFED） for desalination［J］. Desalination，2017，404：138-146. doi:10.1016/j.desal.2016.11.011

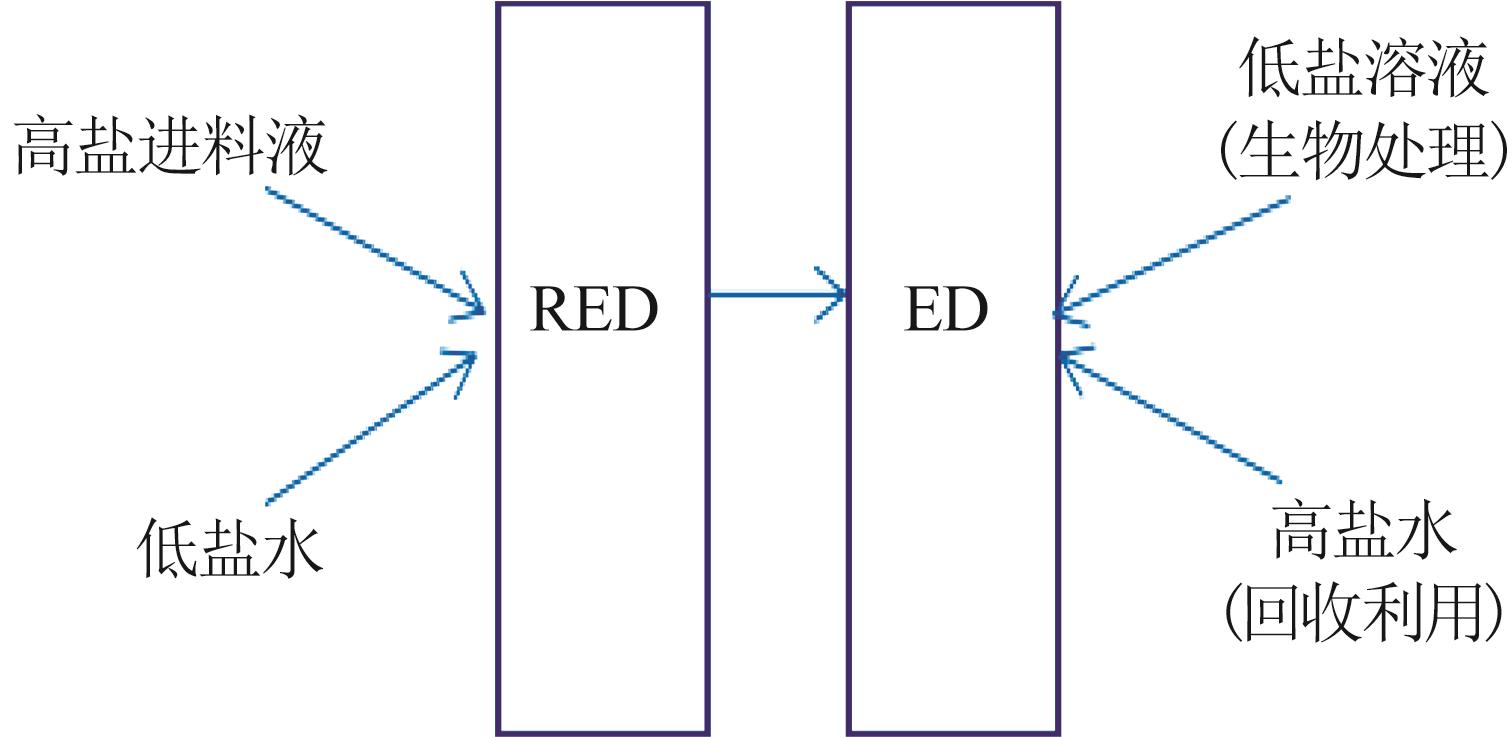

50	WANG Qun， GAO Xueli， WANG Xinyan，et al. Hybrid RED/ED system：Simultaneous osmotic energy recovery and desalination of high⁃salinity wastewater［J］. Desalination，2017，405：59-67. doi:10.1016/j.desal.2016.12.005
51	YAN Haiyang， XUE Shuai， WU Cuiming， et al. Separation of NaOH and NaAl（OH）₄ in alumina alkaline solution through diffusion dialysis and electrodialysis［J］. Journal of Membrane Science， 2014，469：436-446. doi:10.1016/j.memsci.2014.07.002
52	魏允，王倩，丛威. 扩散渗析-电渗析回收赖氨酸离子交换废液中的盐［J］. 过程工程学报，2019，19（5）：975-981. doi:10.12034/j.issn.1009-606X.218182
	WEI Yun， WANG Qian， CONG Wei. The process of salt recovery from lysine ion⁃exchange waste water by diffusion dialysis⁃electrodialysis［J］. The Chinese Journal of Process Engineering，2019，19（5）：975-981. doi:10.12034/j.issn.1009-606X.218182
53	李鹏飞，马军，邓桦，等. 扩散渗析-电渗析集成工艺用于丝素蛋白脱盐［J］. 膜科学与技术，2017，37（6）：90-94.
	LI Pengfei， MA Jun， DENG Hua，et al. New desalination process of soluble silk fibroin by diffusion dialysis⁃electrodialysis［J］. Membrane Science and Technology，2017，37（6）：90-94.
54	FLORIAN B， MARTIN W. Efficient concentration of an amino acid using reactive extraction coupled with bipolar electrodialysis［J］. Chemical Engineering & Technology，2018，41（12）：2298-2305. doi:10.1002/ceat.201800286

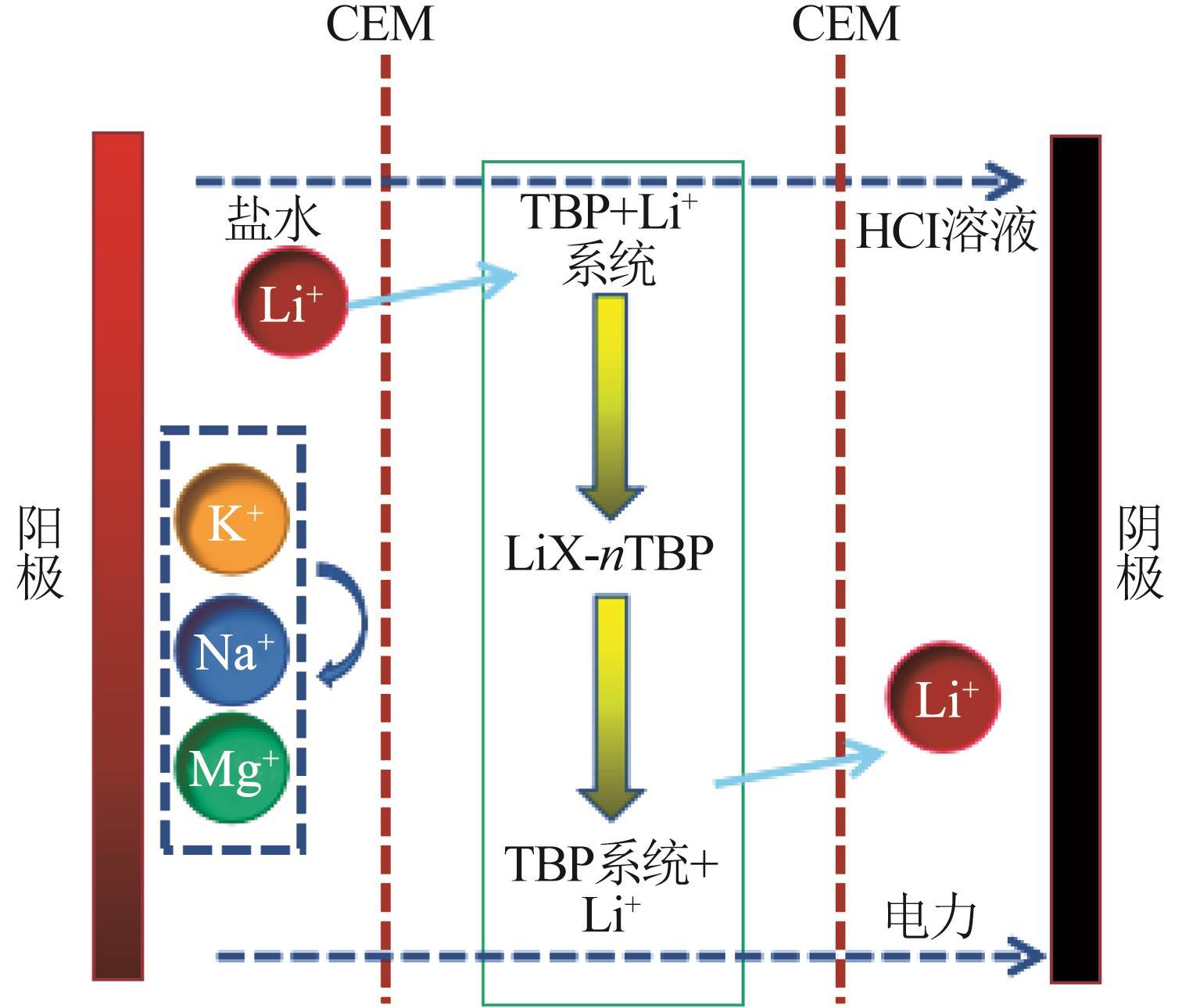

55	ZHAO Zhongwei， LIU Gui， JIA Hang，et al. Sandwiched liquid⁃membrane electrodialysis：Lithium selective recovery from salt lake brines with high Mg/Li ratio［J］. Journal of Membrane Science，2020，596（57）：117685. doi:10.1016/j.memsci.2019.117685
56	NATASHA C， AMOS G. Justification for community⁃scale photovoltaic⁃powered electrodialysis desalination systems for inland rural villages in India［J］. Desalination，2014，352：82-91. doi:10.1016/j.desal.2014.07.035
57	XU Haiyang， XU Ji， WANG Liuling，et al. Performance study on a small⁃scale photovoltaic electrodialysis system for desalination［J］. Renewable Energy，2020，154：1008-1013. doi:10.1016/j.renene.2020.03.066
58	KORNGOLD E， ARONOV L， DALTROPHE L. Electrodialysis of brine solutions discharged from an RO plant［J］. Desalination，2008，242（1）：215-227. doi:10.1016/j.desal.2008.04.008

项目	新型ED	传统ED
能耗/（kW·h·m^-3）	1.5	2.0
膜堆电阻/Ω	40~100	50~120
脱盐效率/%	56	42
Na⁺迁移率/（mmol·m^-2·s^-1）	0.8	0.3
淡水回收率/%	50	50
操作性	简易	复杂

项目	新型ED	传统ED
能耗/（kW·h·m^-3）	1.5	2.0
膜堆电阻/Ω	40~100	50~120
脱盐效率/%	56	42
Na⁺迁移率/（mmol·m^-2·s^-1）	0.8	0.3
淡水回收率/%	50	50
操作性	简易	复杂

项目	新型镁阳极ED	镁阳极电解法
磷酸盐去除率/%	90	93
能耗/（kW·h·m^-3）	1	1.5
运行成本/（美元·kg^-1）（以P计）	31.27	81.57
投资费用	投资小	投资大
运行效果	运行稳定	膜易受污染，影响运行效果

项目	新型镁阳极ED	镁阳极电解法
磷酸盐去除率/%	90	93
能耗/（kW·h·m^-3）	1	1.5
运行成本/（美元·kg^-1）（以P计）	31.27	81.57
投资费用	投资小	投资大
运行效果	运行稳定	膜易受污染，影响运行效果

方法	操作条件	进料溶液性质	Li去除率/%
NF^〔38〕	298 K，3.5 MPa	MgCl₂·6H₂O（580 mg/L）； LiCl（1 250 mg/L）	99
CDI^〔39〕	2 V，25 ℃	15.7 mg/L（以Li计）	73
BMED^〔40〕	26 V	LiMn₂O₄（6 g）； LiCl（500 mg/L）	70
BMED^〔41〕	10 mmol/L HCl， 10 mmol/L NaOH， 30 V，AHA BP-1E膜	340 mg/L（以Li计）	97.8
BMED^〔42〕	3 mmol/L HCl， 3 mmol/L NaOH， 25 V，50 L/h溶液流速	（256±33.11） mg/L（以Li计）	99
