Effect of Re-flocculation of coagulant on ultrafiltration and reverse osmosis membrane system

doi:10.19965/j.cnki.iwt.2021-1223

Abstract

Abstract:

When PAC is used as coagulant for surface water pretreatment，excessive use of coagulant often leads to coagulant pollution in double membrane system. The research results showed that under the condition of pH lower than 6.5，the dosage of PAC 15 mg/L，not complete aluminum ion hydrolysis，the residual aluminum ion concentration in raw water could reach 0.3 mg/L. However， in ultrafiltration and reverse osmosis treatment system，re-flocculation often occurred when the overall hydraulic retention time was greater than 2 h. At the same time，aluminum salt flocs reacted with reverse osmosis scale inhibitor and deposit on the reverse osmosis membrane surface，which directly affected the normal operation of the double membrane system. Therefore，reasonably controlling the dosage of coagulant，adjusting pH and controlling the hydraulic retention time of the system could effectively inhibit the re-flocculation of coagulation and prevent ultrafiltration and reverse osmosis membrane pollution.

Key words: surface water, double membrane system, aluminum ion, re-flocculation, membrane fouling

摘要：

采用PAC作为地表水预处理的混凝剂时，过量地使用混凝剂常常导致双膜系统的混凝剂污染。研究发现，当pH低于6.5，PAC投加量为15 mg/L时，铝离子水解不彻底，原水中残留的铝离子质量浓度可达到0.3 mg/L。而在超滤反渗透处理系统中，总体水力停留时间（HRT）大于2 h时常出现后絮凝现象。同时，铝盐絮体与反渗透阻垢剂发生交联反应，沉积到反渗透膜面，直接影响双膜系统的正常运行。因此合理地控制混凝剂投加量、调节pH、控制系统HRT等可有效抑制混凝的后絮凝现象，防止超滤反渗透膜的污染。

关键词: 地表水, 双膜系统, 铝离子, 后絮凝, 膜污染

CLC Number:

X703.1

Jun YANG, Jie ZHOU, Nan ZHANG, Haibo XU. Effect of Re-flocculation of coagulant on ultrafiltration and reverse osmosis membrane system[J]. Industrial Water Treatment, 2022, 42(9): 155-159.

杨军, 周婕, 张楠, 徐海波. 混凝剂后絮凝对超滤反渗透膜系统影响的研究[J]. 工业水处理, 2022, 42(9): 155-159.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2021-1223

https://www.iwt.cn/EN/Y2022/V42/I9/155

Figures/Tables 8

Table 1 Surface water quality parameters

水质指标	pH	SS/（mg·L^-1）	碱度/（mmol·L^-1）	硬度/（mg·L^-1）	浊度/NTU	电导率/（μS·cm^-1）	Al³⁺/（mg·L^-1）	Ca²⁺/（mg·L^-1）	HCO₃ ^-/（mg·L^-1）	温度/℃	TOC/（mg·L^-1）
数值	7.50	5.5	1.62	240	10	1 100	0.15	72.3	102.6	24.3	2.6

Table 2 Effects of different PAC dosage on effluent quality

PAC投加量/（mg·L^-1）	浊度/NTU	浊度去除率/%	TOC/（mg·L^-1）	TOC去除率/%
2	3.50	65	2.12	18.46
5	2.40	76	1.63	37.31
10	2.30	77	1.68	35.38
15	2.50	75	1.57	39.62

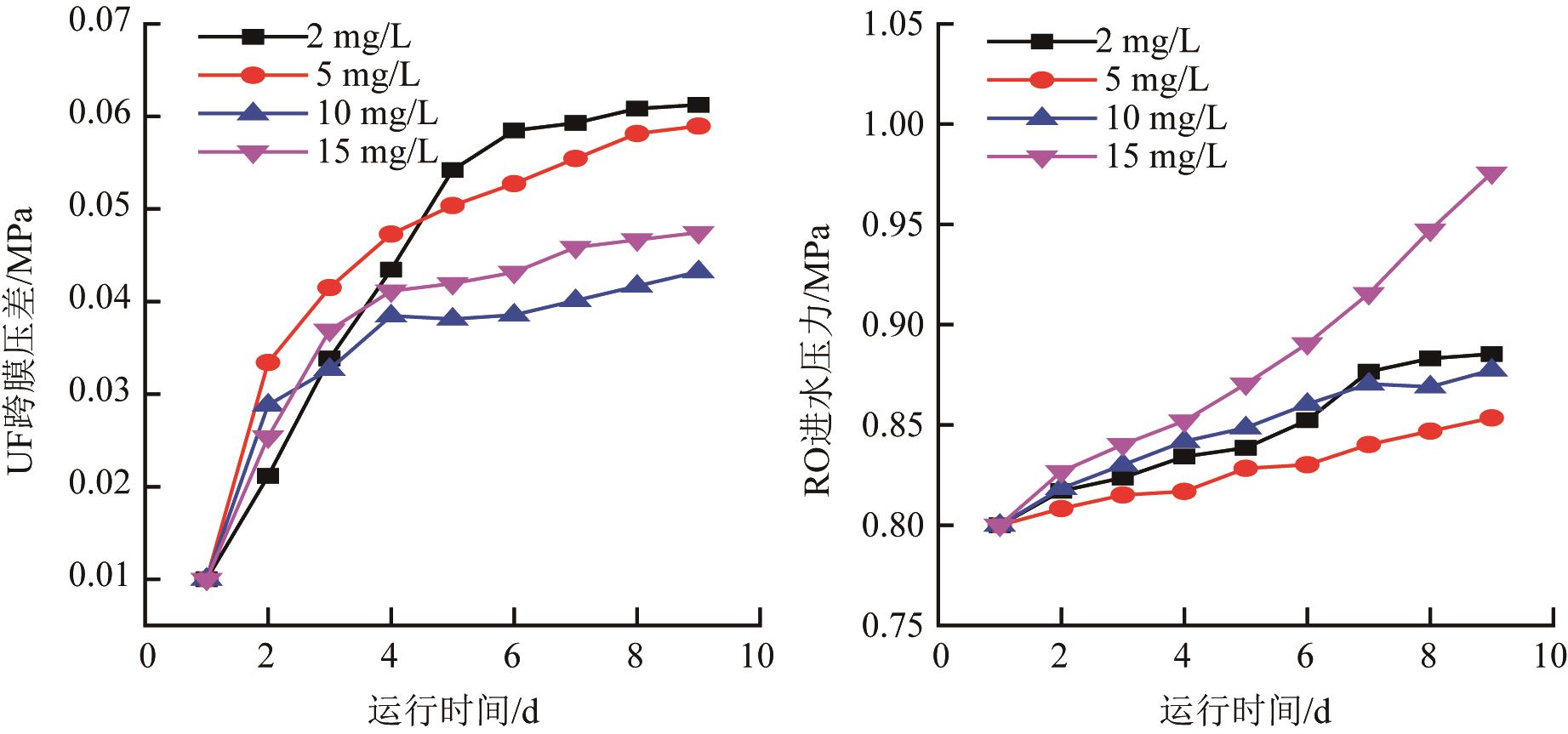

Fig. 1 Effect of PAC dosage on ultrafiltration and reverse osmosis operating pressure

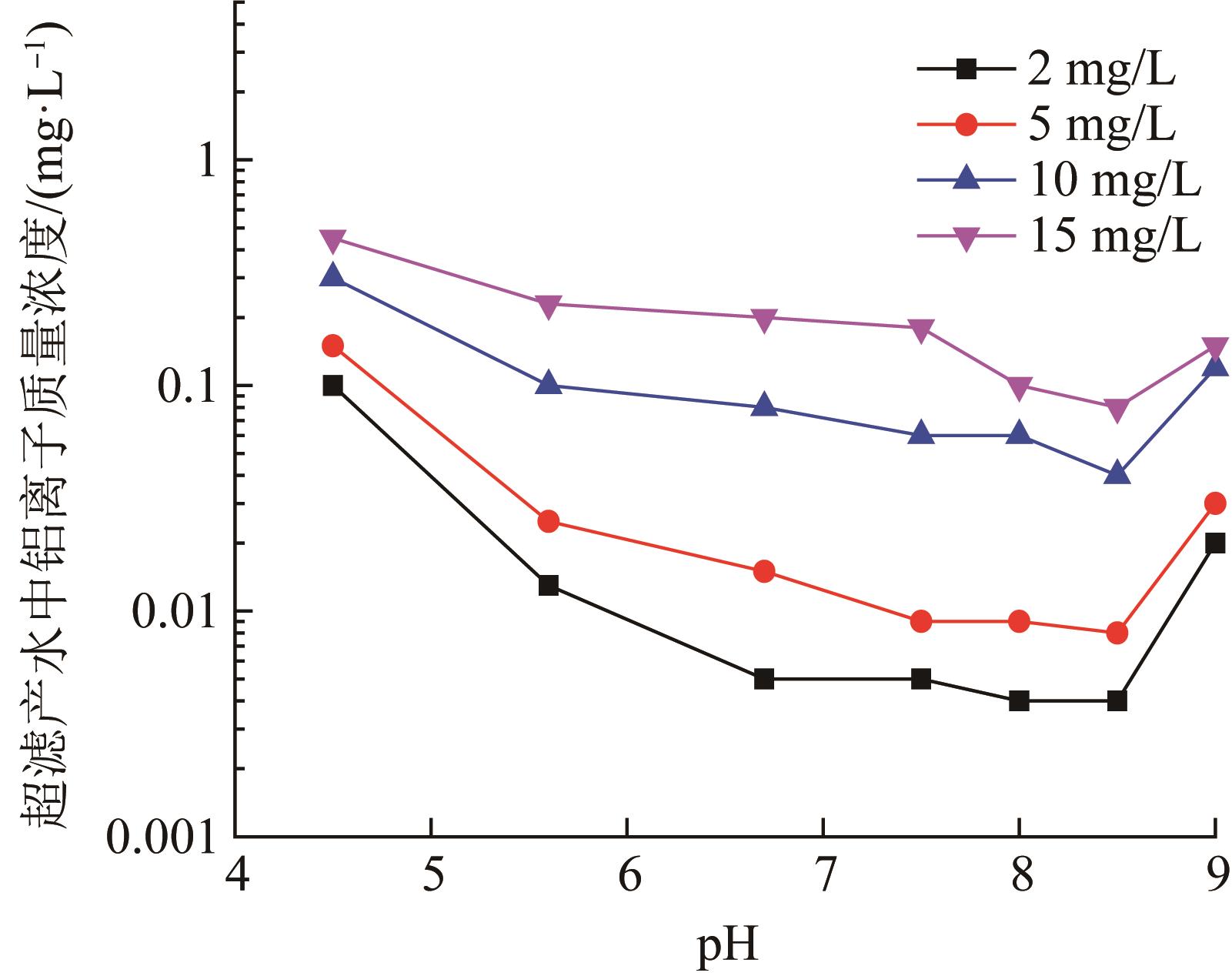

Fig. 2 Effect of adjusting pH on residual concentration of aluminum ion in supernatant

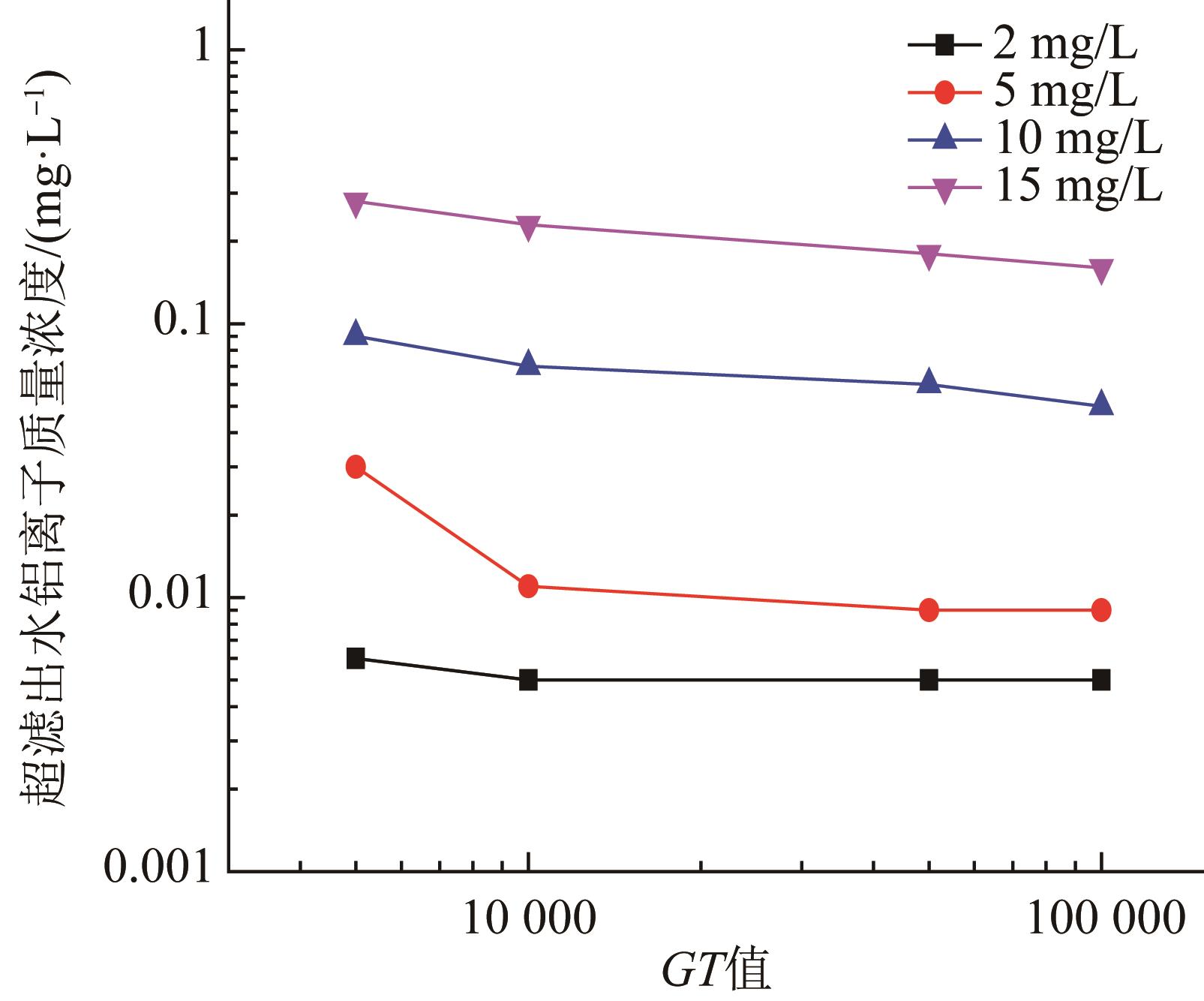

Fig. 3 Effect of different GT values on residual aluminum concentration

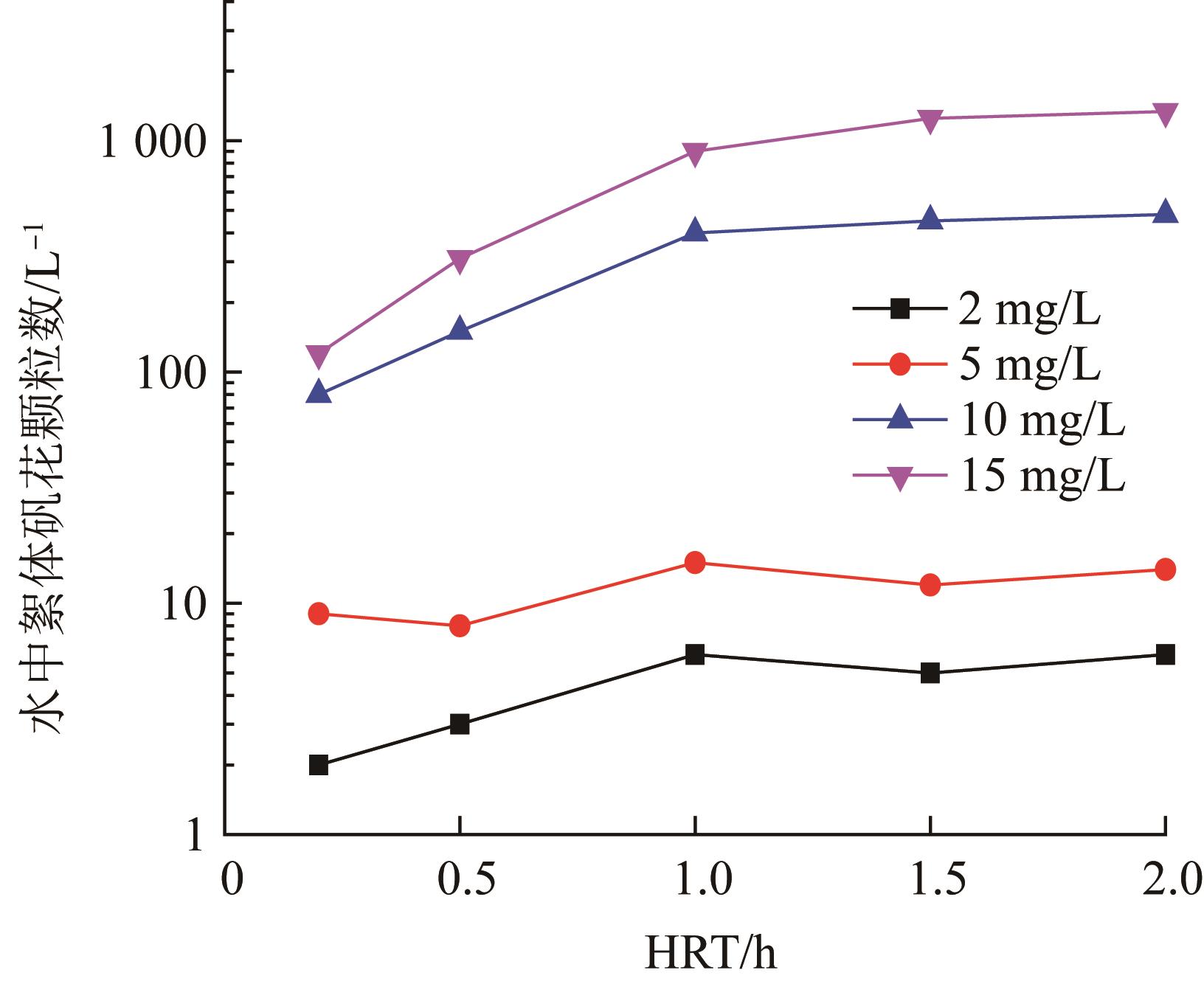

Fig. 4 Number of alunite particles under different hydraulic retention time and coagulant dosage

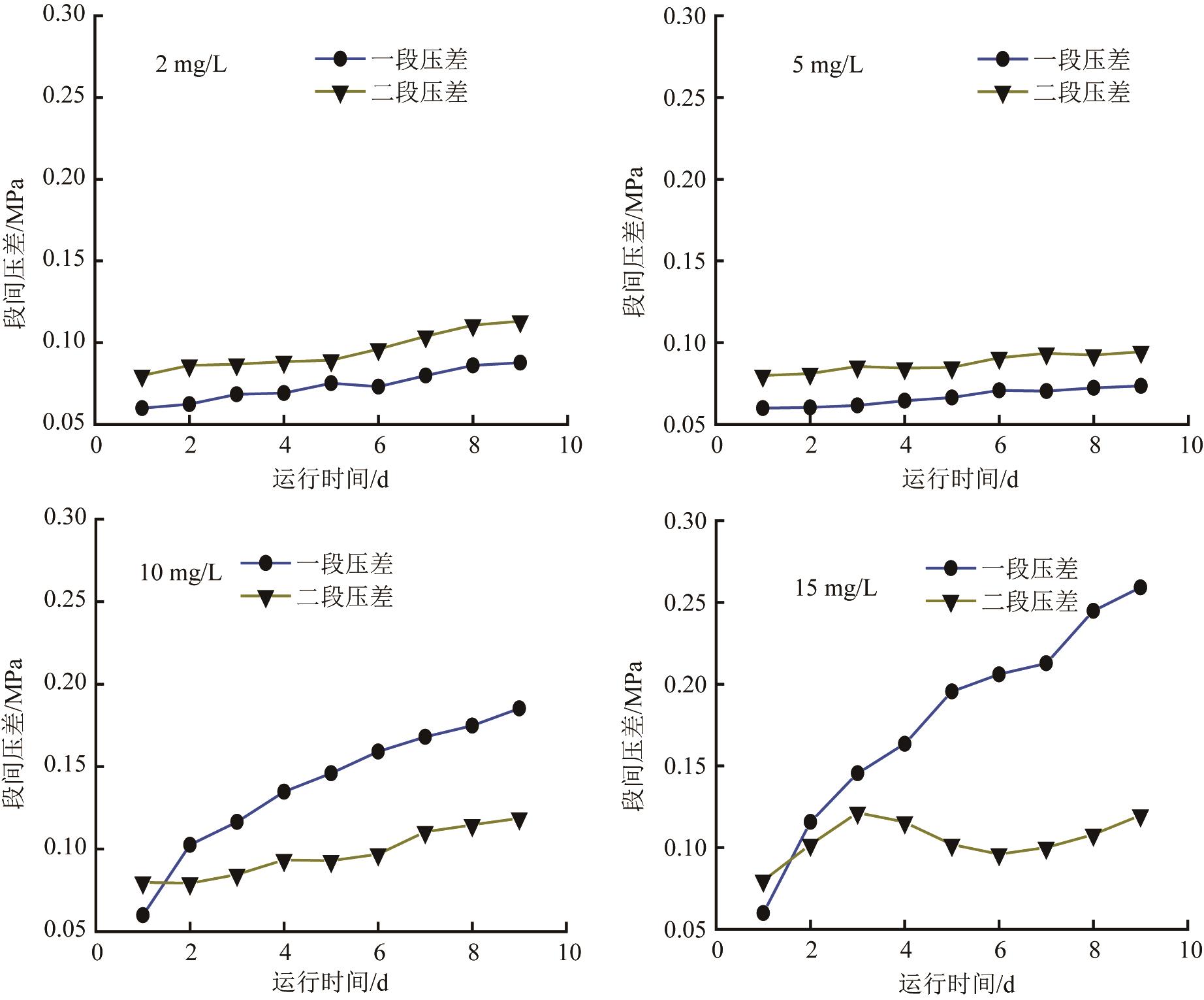

Fig. 5 Variation trend of reverse osmosis differential pressure under different PAC dosage

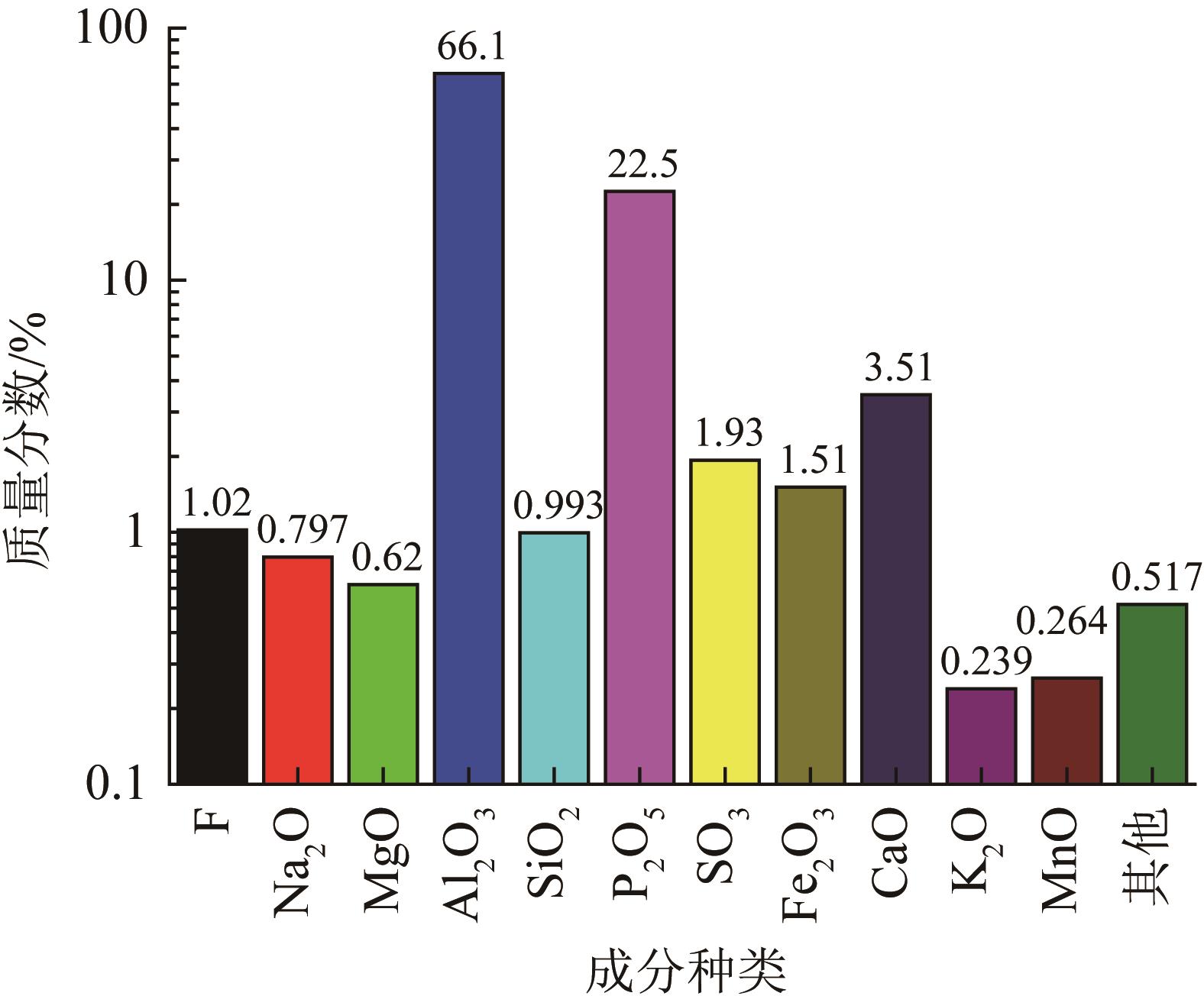

Fig. 6 Composition analysis of scale sample of reverse osmosis membrane module

References 10

1	李雨桓，韦盼，黄蓁，等. 我国地表水环境质量现状及污染修复技术研究［J］. 中国资源综合利用，2021，39（2）：195-197． doi:10.3969/j.issn.1008-9500.2021.02.060
	LI Yuhuan， WEI Pan， HUANG Zhen，et al. Research on the status quo of surface water environmental quality and pollution remediation technology［J］. China Resources Comprehensive Utilization，2021，39（2）：195-197． doi:10.3969/j.issn.1008-9500.2021.02.060
2	刘玉灿，田一，苏庆亮，等. 我国地表水污染现状与防治策略探索［J］. 净水技术，2021，40（11）：62-70．
	LIU Yucan， TIAN Yi， SU Qingliang，et al. Current situation and control strategy of surface water pollution at home［J］. Water Purification Technology，2021，40（11）：62-70．
3	鲁剑，徐国勋，卜静. 高密度澄清池/超滤组合工艺处理微污染地表水［J］. 中国给水排水，2011，27（7）：48-50．
	LU Jian， XU Guoxun， BU Jing. Treatment of micro-polluted surface water by high-density clarifier/ultrafiltration membrane process［J］. China Water & Wastewater，2011，27（7）：48-50．
4	张耀宗，王启山，丁莎莎，等. 超滤膜处理地表水过程中膜污染的研究进展［J］. 水处理技术，2009，35（11）：12-16．
	ZHANG Yaozong， WANG Qishan， DING Shasha，et al. Development of uf membrane fouling in treating surface water［J］. Technology of Water Treatment，2009，35（11）：12-16．
5	曹国凭，马浩，关会玲. 超滤技术在地表水处理中的应用和研究进展［J］. 工业水处理，2009，29（2）：6-9． doi:10.11894/1005-829x.2009.29(2).6
	CAO Guoping， MA Hao， GUAN Huiling. Application of UF to the treatment of surface water and its study progress［J］. Industrial Water Treatment，2009，29（2）：6-9． doi:10.11894/1005-829x.2009.29(2).6
6	莫罹，黄霞，李琳. 混凝-微滤膜净化微污染水源水的研究［J］. 给水排水，2001，27（8）：12-15． doi:10.3969/j.issn.1002-8471.2001.08.004
	MO Li， HUANG Xia， LI Lin. On purification of slightly polluted raw water by coagulant and microfiltration process［J］. Water & Wastewater Engineering，2001，27（8）：12-15． doi:10.3969/j.issn.1002-8471.2001.08.004
7	董秉直，王洪武，冯晶，等. 混凝预处理对超滤膜通量的影响［J］. 环境科学，2008，29（10）：2783-2787． doi:10.3321/j.issn:0250-3301.2008.10.016
	DONG Bingzhi， WANG Hongwu， FENG Jing，et al. Influence of coagulation pretreatment on UF membrane flux［J］. Environmental Science，2008，29（10）：2783-2787． doi:10.3321/j.issn:0250-3301.2008.10.016
8	王雨菲. 基于“后絮凝”控制的混凝—膜过滤饮用水处理技术研究［D］. 天津：天津大学，2017．
	WANG Yufei. Study of coagulation-membrane filtration technology for drinking water treatment based on re-flocculation control［D］. Tianjin：Tianjin University，2017．
9	曹宏伟，程建峰，王治民，等. 山东某炼厂除盐水站存在问题及解决措施［J］. 工业水处理，2020，40（8）：116-119．
	CAO Hongwei， CHENG Jianfeng， WANG Zhimin，et al. Existing problems and solution for desalination station in a Shandong refinery［J］. Industrial Water Treatment，2020，40（8）：116-119．
10	周世融，何剑锋，任印权，等. X射线荧光光谱中低分离度重叠峰分解的方法研究［J］. 光谱学与光谱分析，2020，40（4）：1221-1226.
	ZHOU Shirong， HE Jianfeng， REN Yinquan，et al. Research on a decomposing method of low-resolution overlapping peaks in X-ray fluorescence spectra［J］. Spectroscopy and Spectral Analysis，2020，40（4）：1221-1226.
