Preparation of sludge-based activated carbon and its application for phosphorus adsorption

doi:10.19965/j.cnki.iwt.2023-1126

Abstract

Abstract:

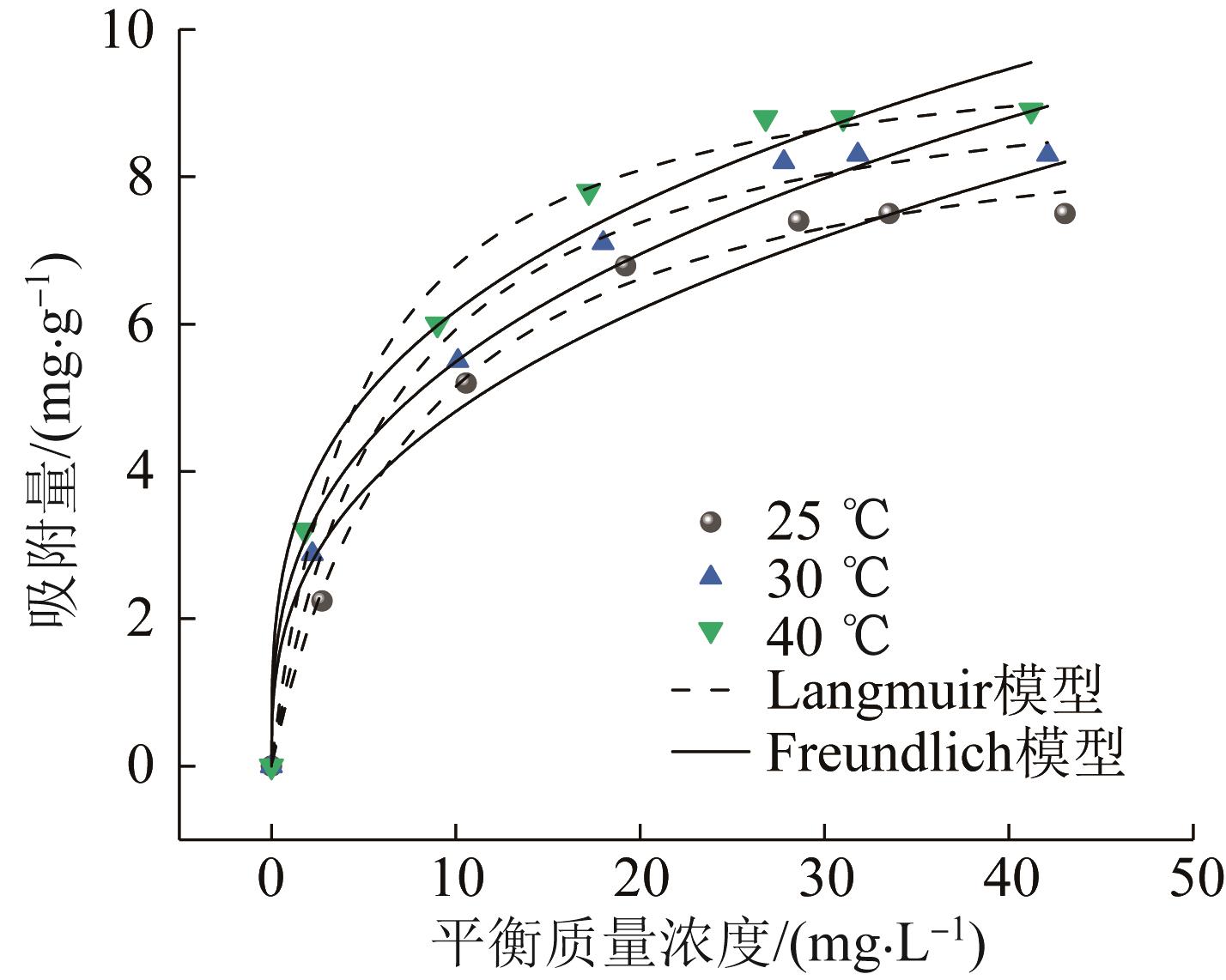

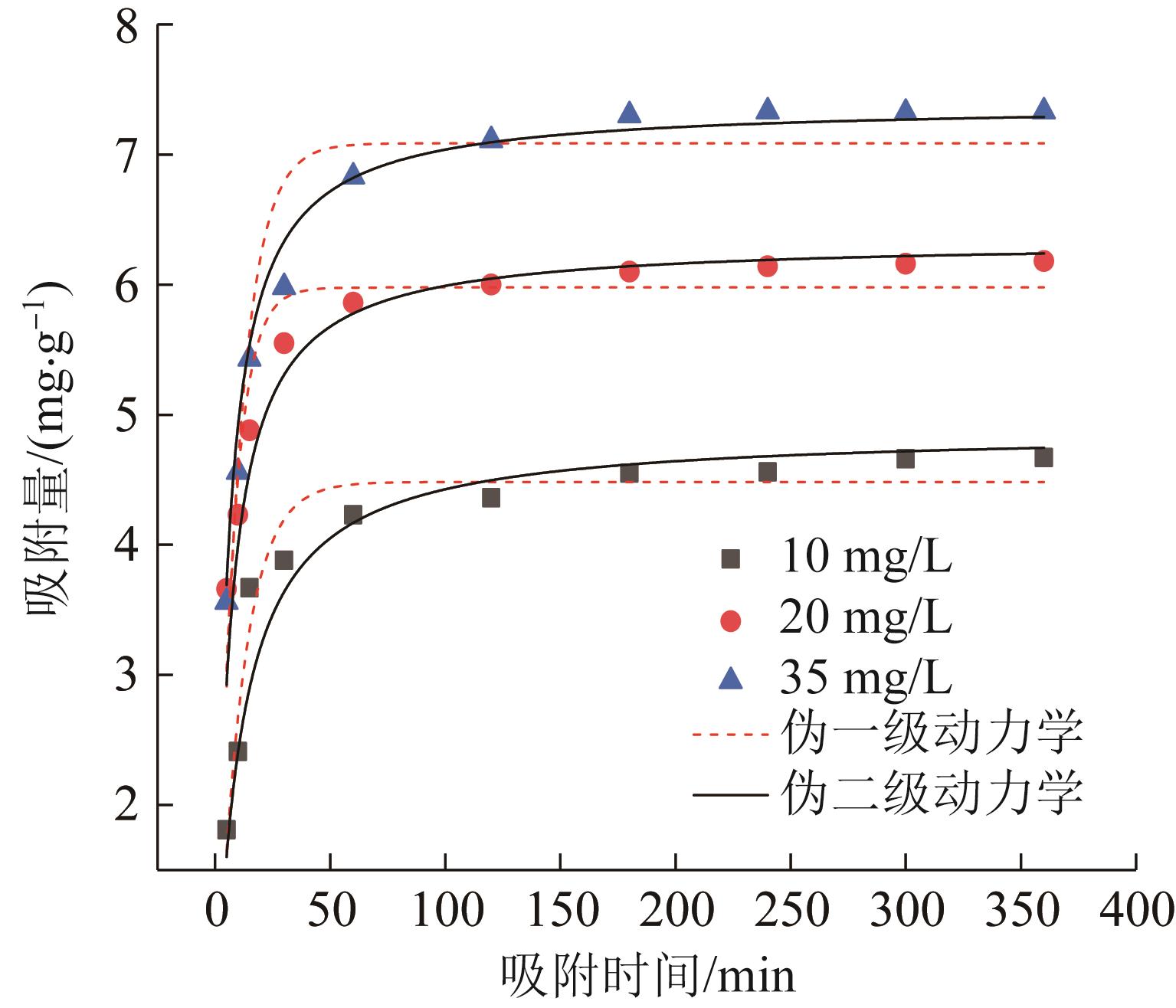

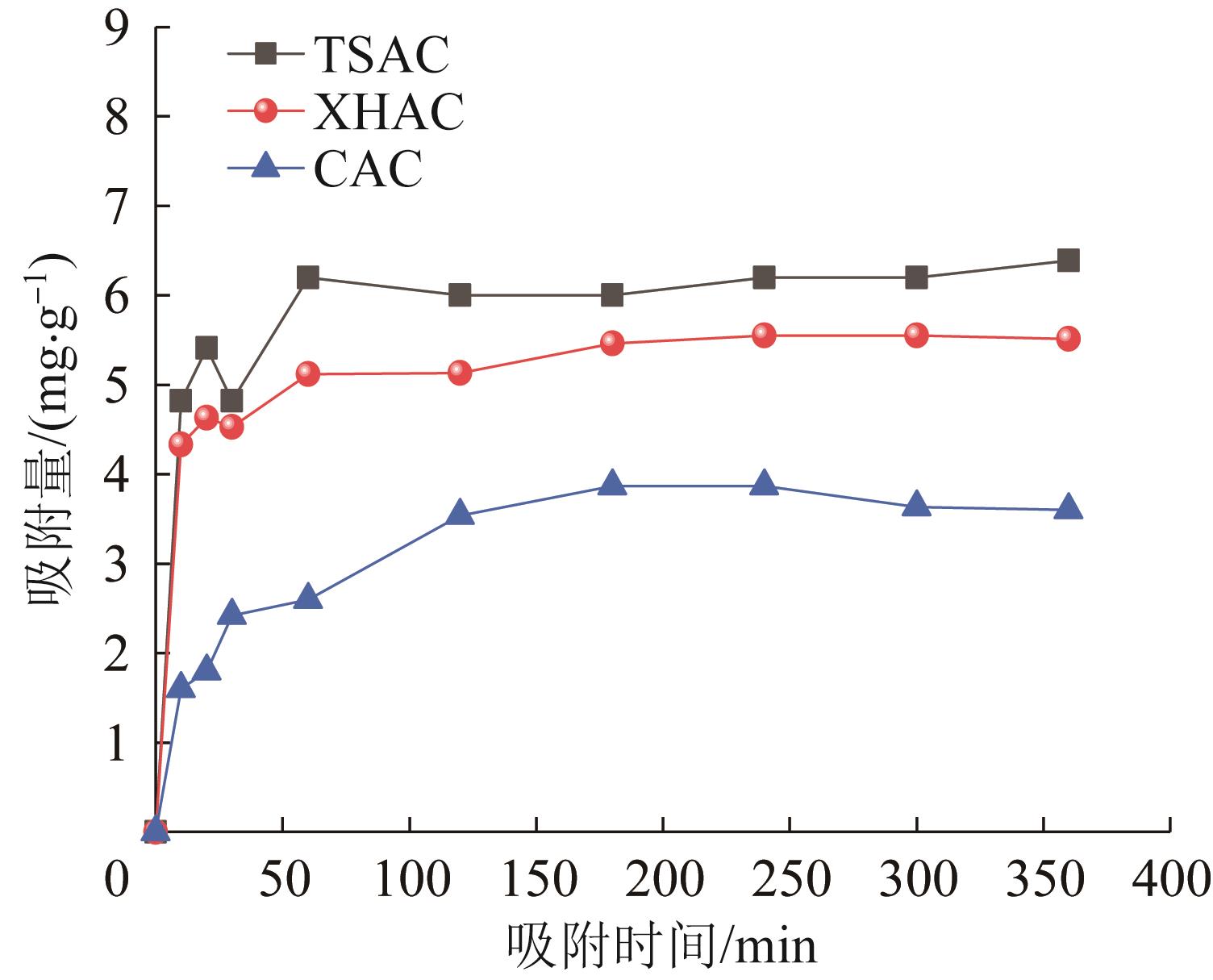

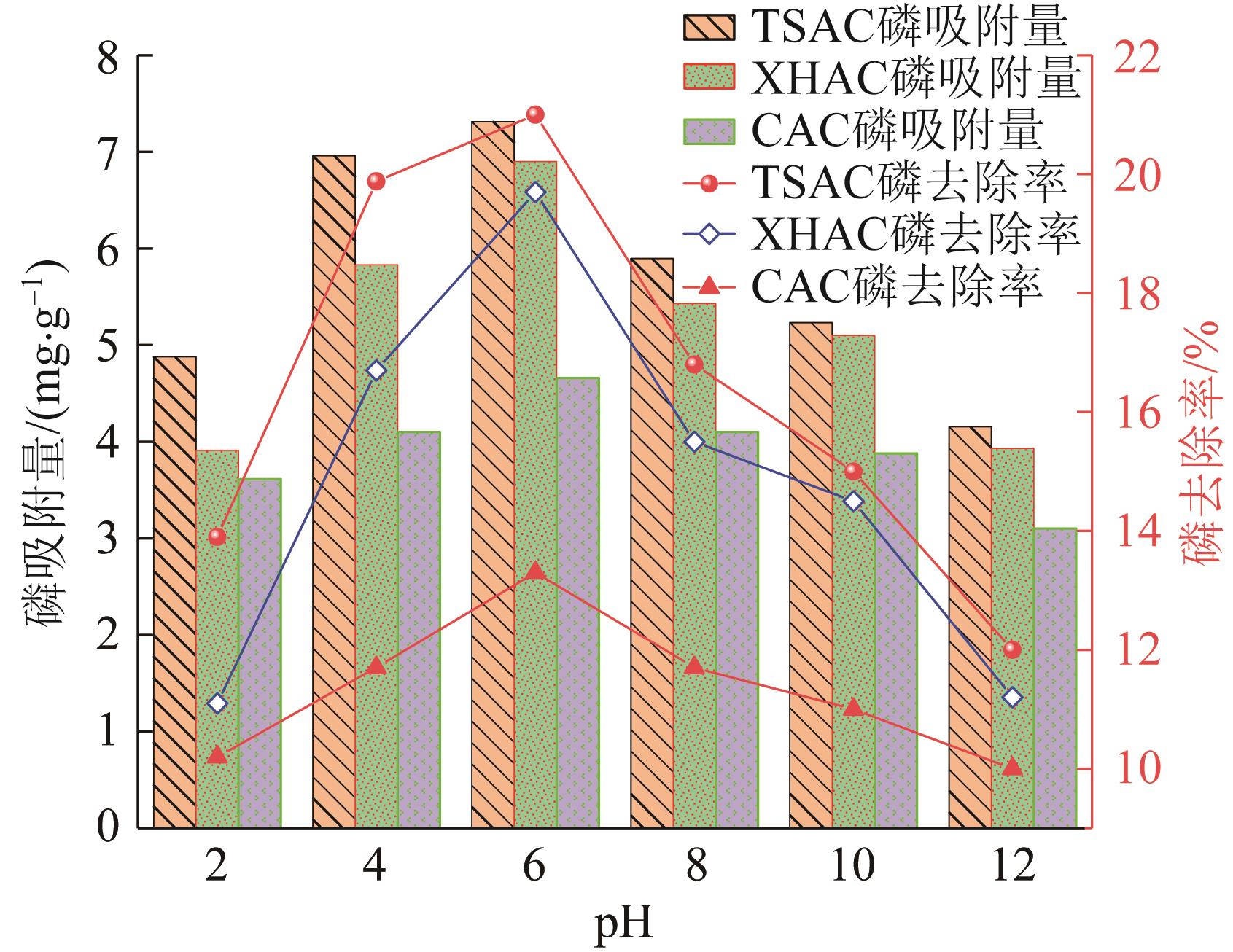

Dehydrated sludge and digested sludge were used as raw materials, ZnCl₂, H₂SO₄ and KOH were used as activators to prepare sludge biochar, with iodine adsorption value as the evaluation index. The results showed that the dehydrated sludge biochar(TSAC) and digested sludge biochar(XHAC) prepared with ZnCl₂as activator had the highest iodine adsorption values of 355.1 mg/g and 289.2 mg/g, respectively. TSAC and XHAC were applied to phosphorus containing wastewater and compared with commercial activated carbon(CAC). The effects of adsorption time,dosage, and pH on phosphorus adsorption were investigated, and the chemical forms and ecological risks of heavy metals in sludge and TSAC were analyzed. The adsorption mechanism was explored with SEM, XRD, FT-IR, and BET. The results showed that when the adsorption time was 360 min and pH of 6, the adsorption capacity of TSAC and XHAC for phosphorus was 7.3 mg/g and 6.8 mg/g, which was higher than the adsorption capacity of commercial activated carbon(4.1 mg/g). The adsorption process conformed to the Langmuir model and pseudo second-order kinetic equation, and was a chemical adsorption on the surface of a single molecular layer. The potential ecological risk of heavy metals in TSAC was low, while that for sludge was medium, which indicated that the morphological stabilization of heavy metals could be achieved by preparing sludge activated carbon from pyrolysis sludge.

Key words: sludge biochar, adsorption of phosphorus, ecological risk of heavy metals

摘要：

以脱水污泥与消化污泥为原料，采用 $Z n C l 2$ 、H₂SO₄、KOH为活化剂制备污泥活性炭，以碘吸附值为评价指标，结果表明：以 $Z n C l 2$ 为活化剂制备出的脱水污泥活性炭（TSAC）和消化污泥活性炭（XHAC）的碘吸附值最高，分别为355.1 mg/g和289.2 mg/g。将TSAC和XHAC应用于含磷污水的吸附并与商业活性炭（CAC）进行比较，探究了吸附时间、投加量、pH对磷吸附量的影响，对污泥和TSAC中的重金属化学形态和生态风险进行分析，采用SEM、XRD、FT-IR和BET等表征手段对吸附机理进行分析，结果表明：当吸附时间为360 min，pH为6时，TSAC和XHAC对磷的吸附量分别为7.3 mg/g和6.8 mg/g，高于CAC对磷的吸附量（4.1 mg/g）；吸附过程符合Langmuir模型和伪二级动力学方程，为单分子层表面的化学吸附；TSAC的重金属潜在生态风险为低生态风险，而污泥为中等生态风险，通过热解污泥制备污泥活性炭能够实现重金属稳定化。

关键词: 污泥活性炭, 磷吸附, 重金属生态风险

CLC Number:

X703.1

Zishuai HE, Haitao LI, Hong GAO. Preparation of sludge-based activated carbon and its application for phosphorus adsorption[J]. Industrial Water Treatment, 2024, 44(12): 138-146.

贺自帅, 李海涛, 高红. 污泥活性炭的制备及其对含磷污水的吸附研究[J]. 工业水处理, 2024, 44(12): 138-146.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-1126

https://www.iwt.cn/EN/Y2024/V44/I12/138

Figures/Tables 20

References 19

1	WENG Zhouchao， KANCHANATIP E， HANTOKO D，et al. Improving supercritical water gasification of sludge by oil palm empty fruit bunch addition：Promotion of syngas production and heavy metal stabilization［J］. Chinese Journal of Chemical Engineering，2020，28（1）：293-298． doi:10.1016/j.cjche.2019.08.004
2	FANG Ping， CEN Chaoping， CHEN Dingsheng，et al. Carbonaceous adsorbents prepared from sewage sludge and its application for Hg⁰ adsorption in simulated flue gas［J］. Chinese Journal of Chemical Engineering，2010，18（2）：231-238． doi:10.1016/s1004-9541(08)60347-x
3	CHANAKA UDAYANGA W D， VEKSHA A， GIANNIS A，et al ．Effects of sewage sludge organic and inorganic constituents on the properties of pyrolysis products［J］. Energy Conversion and Management，2019，196：1410-1419． doi:10.1016/j.enconman.2019.06.025
4	ZHANG Junye， SHAO Jingai， JIN Qianzheng，et al. Sludge-based biochar activation to enhance Pb（Ⅱ） adsorption［J］. Fuel， 2019（252）：101-108. doi:10.1016/j.fuel.2019.04.096
5	ZHANG Fushen， NRIAGU J O， ITOH H. Mercury removal from water using activated carbons derived from organic sewage sludge［J］. Water Research，2005，39（2/3）：389-395． doi:10.1016/j.watres.2004.09.027
6	LI Juan， XING Xing， LI Jiao，et al. Preparation of thiol-functionalized activated carbon from sewage sludge with coal blending for heavy metal removal from contaminated water［J］. Environmental Pollution，2018，234：677-683． doi:10.1016/j.envpol.2017.11.102
7	MARTIN M J， ARTOLA A， BALAGUER M D，et al. Activated carbons developed from surplus sewage sludge for the removal of dyes from dilute aqueous solutions［J］. Chemical Engineering Journal，2003，94（3）：231-239． doi:10.1016/s1385-8947(03)00054-8
8	ROZADA F， CALVO L F， GARCÍA A I，et al. Dye adsorption by sewage sludge-based activated carbons in batch and fixed-bed systems［J］. Bioresource Technology，2003，87（3）：221-230． doi:10.1016/s0960-8524(02)00243-2
9	WONG S， YAC’COB N A N， NGADI N，et al ．From pollutant to solution of wastewater pollution：Synthesis of activated carbon from textile sludge for dye adsorption［J］. Chinese Journal of Chemical Engineering，2018，26（4）：870-878． doi:10.1016/j.cjche.2017.07.015
10	LIADI M A， MU’AZU N D， JARRAH N，et al. Comparative performance study of ZnCl₂ and NaOH sludge based activated carbon for simultaneous aqueous uptake of phenolic compounds［J］. International Journal of Environmental Analytical Chemistry，2021，101（14）：2428-2452． doi:10.1080/03067319.2019.1704746
11	李志建，倪恒，吕正勇，等. 热解温度对污泥基生物炭重金属形态及风险的影响［C］//中国环境科学学会，华中科技大学.第九届重金属污染防治技术及风险评价研讨会论文集，2019：8.
	LI Zhijian， NI Heng， Zhengyong LÜ，et al. Effect of pyrolysis temperature on heavy metal speciation and risk of sludge-based biochar［C］//Chinese Society for Environmental Sciences，Huazhong University of Science and Technology. Proceedings of the 9th Symposium on Heavy Metal Pollution Prevention and Control Technology and Risk Assessment， 2019：8.
12	SOHAIMI K S A， NGADI N，MAT H，et al. Synthesis，characterization and application of textile sludge biochars for oil removal［J］. Journal of Environmental Chemical Engineering，2017，5（2）：1415-1422． doi:10.1016/j.jece.2017.02.002
13	李刚，李伟光，王广智，等. 污泥基活性炭的制备、表征及其应用［J］. 环境工程，2012，30（S2）：489-493．
	LI Gang， LI Weiguang， WANG Guangzhi，et al. Preparation，characterization and application of sludge-based activated carbon［J］．Environmental Engineering，2012，30（S2）：489-493．
14	谭显东，陈红燕，羊依金，等. 城市污泥添加软锰矿制备活性炭的研究［J］. 四川大学学报（工程科学版），2011，43（2）：156-160．
	TAN Xiandong， CHEN Hongyan， YANG Yijin，et al. Study on preparation of activated carbon from pyrolusite-added sewage sludge［J］. Journal of Sichuan University （Engineering Science Edition），2011，43（2）：156-160．
15	ZHOU Yuan， LIU Yongze， JIANG Wenbo，et al. Effects of pyrolysis temperature and addition proportions of corncob on the distribution of products and potential energy recovery during the preparation of sludge activated carbon［J］. Chemosphere，2019，221：175-183． doi:10.1016/j.chemosphere.2019.01.026
16	XU Guoren， YANG Xin， SPINOSA L. Development of sludge-based adsorbents：Preparation，characterization，utilization and its feasibility assessment［J］. Journal of Environmental Management，2015，151：221-232． doi:10.1016/j.jenvman.2014.08.001
17	BAGREEV A， BASHKOVA S， LOCKE D C，et al. Sewage sludge-derived materials as efficient adsorbents for removal of hydrogen sulfide［J］. Environmental Science & Technology，2001，35（7）：1537-1543． doi:10.1021/es001678h
18	GUO Yige， HUANG Wenli， CHEN Bin，et al. Removal of tetracycline from aqueous solution by MCM-41-zeolite A loaded nano zero valent iron：Synthesis，characteristic，adsorption performance and mechanism［J］. Journal of Hazardous Materials，2017，339：22-32． doi:10.1016/j.jhazmat.2017.06.006
19	SAMUEL L， CLÉMENT L， CLAIRE-EMMANUELLE M，et al. Anaerobic digestion alters copper and zinc speciation［J］. Environmental Science & Technology，2017，51（18）：DOI：10.1021/acs. est. 7b01662. doi:10.1021/acs.est.7b01662

污泥种类	有机质质量分数/%	灰分质量分数/%	pH	含水率/%
消化污泥	19.82	56.31	6.37	86.32
脱水污泥	51.98	47.23	6.91	86.14

污泥种类	有机质质量分数/%	灰分质量分数/%	pH	含水率/%
消化污泥	19.82	56.31	6.37	86.32
脱水污泥	51.98	47.23	6.91	86.14

活性炭类型	总酸性官能团/（mmol·g^-1）	羧基/（mmol·g^-1）	内酯基/（mmol·g^-1）	酚羟基/（mmol·g^-1）
CAC	0.325	0.175	0.040	0.110
TSAC	1.800	1.050	0.500	0.250
XHAC	1.750	0.875	0.750	0.125

活性炭类型	总酸性官能团/（mmol·g^-1）	羧基/（mmol·g^-1）	内酯基/（mmol·g^-1）	酚羟基/（mmol·g^-1）
CAC	0.325	0.175	0.040	0.110
TSAC	1.800	1.050	0.500	0.250
XHAC	1.750	0.875	0.750	0.125

污泥种类	活化剂	活化剂浓度/（mol·L^-1）	活化温度/℃	碘吸附值/（mg·g^-1）
脱水污泥	KOH	3	550	304.9
	ZnCl₂	3	550	355.1
	H₂SO₄	3	550	321.3
消化污泥	KOH	3	550	265.6
	ZnCl₂	3	550	289.2
	H₂SO₄	3	550	275.4
