Performance of iopamidol degradation by MoS2@Fe3O4 Fenton-like system

Hao LI1(), Nan SHI2, Daoji WU1(), Kaifang FU1, Congwei LUO1

  1. 1. School of Municipal and Environmental Engineering, Shandong Jianzhu University, Ji’nan 250101, China
    2. School of Civil Engineering and Architecture, University of Jinan, Ji’nan 250022, China
  • Received:2024-11-01 Online:2025-01-20 Published:2024-04-02

MoS2@Fe3O4类Fenton体系催化降解碘帕醇的性能

李昊1(), 石楠2, 武道吉1(), 傅凯放1, 罗从伟1

  1. 1. 山东建筑大学市政与环境工程学院,山东 济南 250101
    2. 济南大学土木建筑学院,山东 济南 250022
  • 作者简介:

    李昊(1999— ),硕士。E-mail:

    武道吉,教授。E-mail:

  • 基金资助:
    山东省重点研发计划项目(重大科技创新工程)(2020CXGC011203)

Abstract:

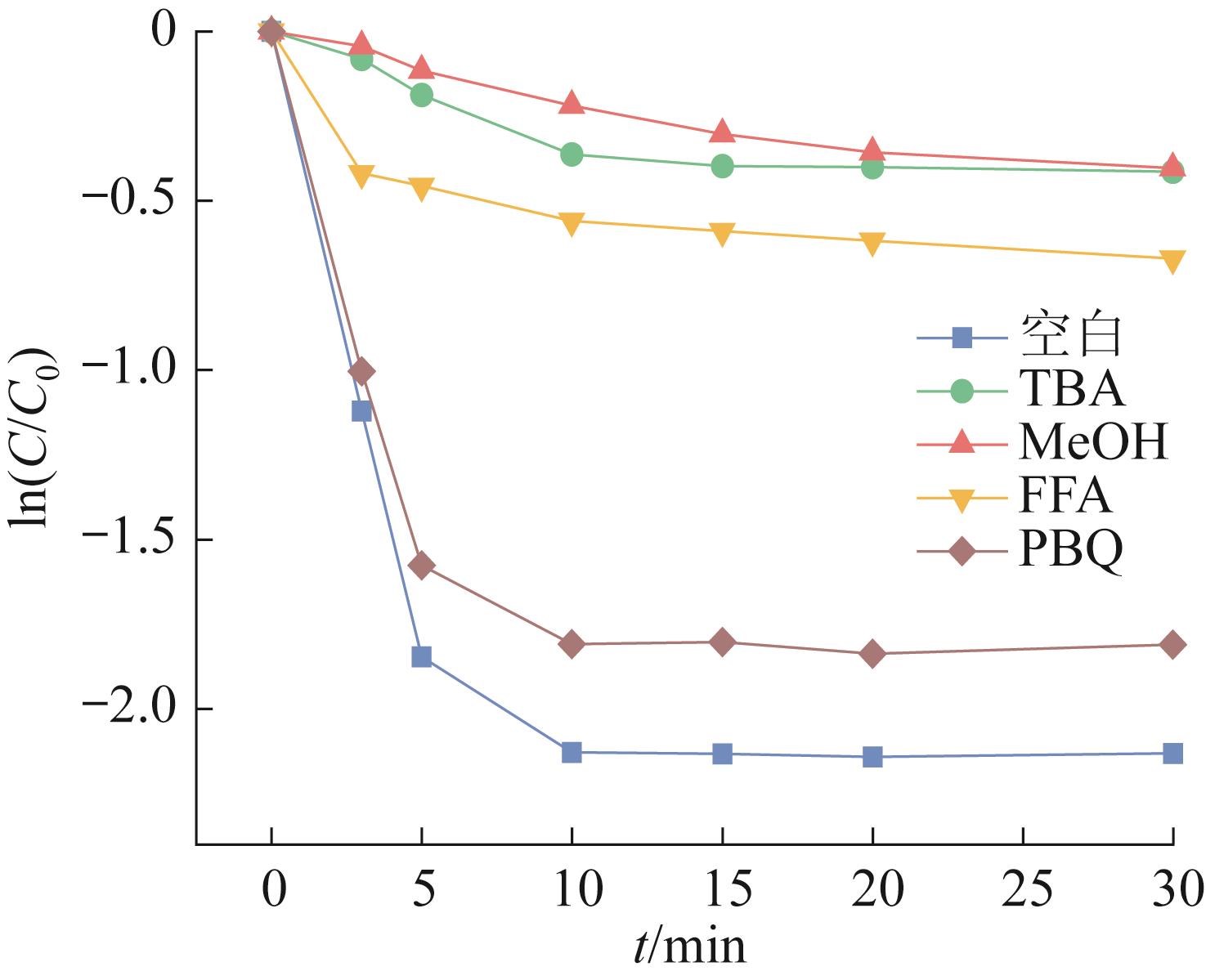

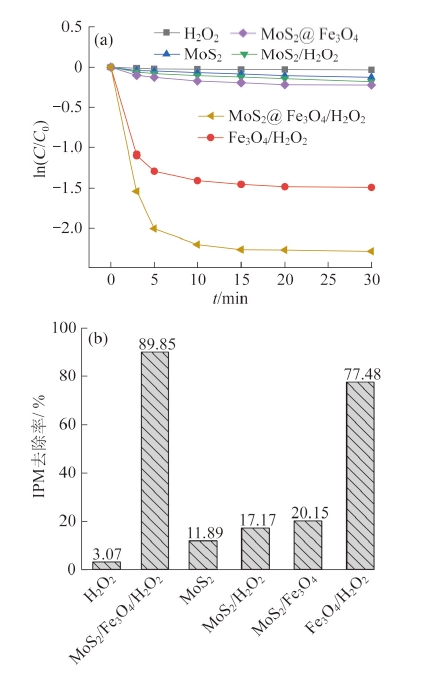

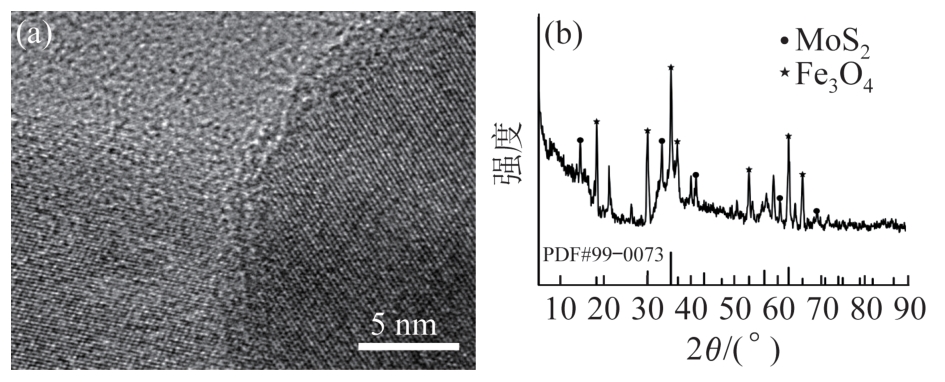

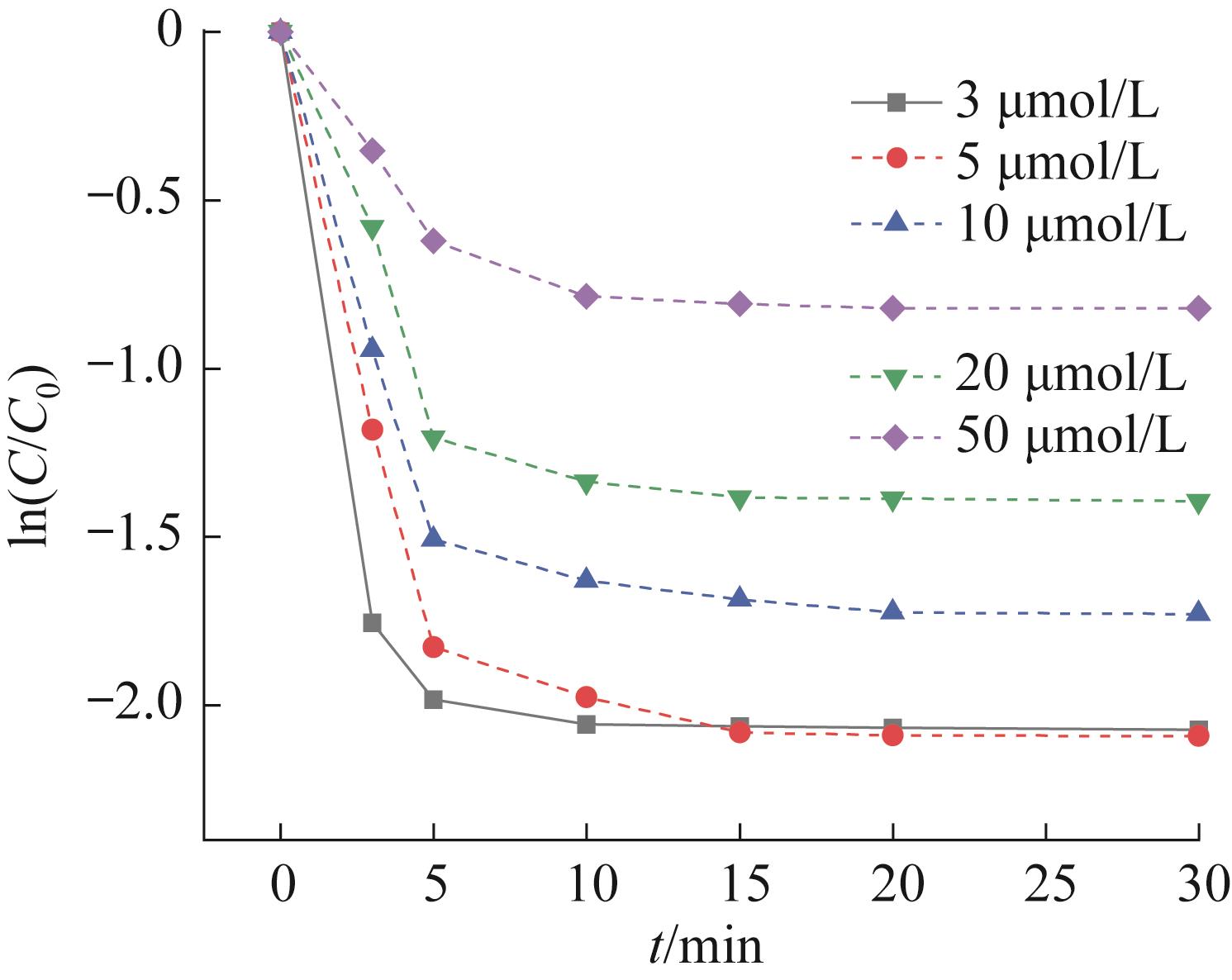

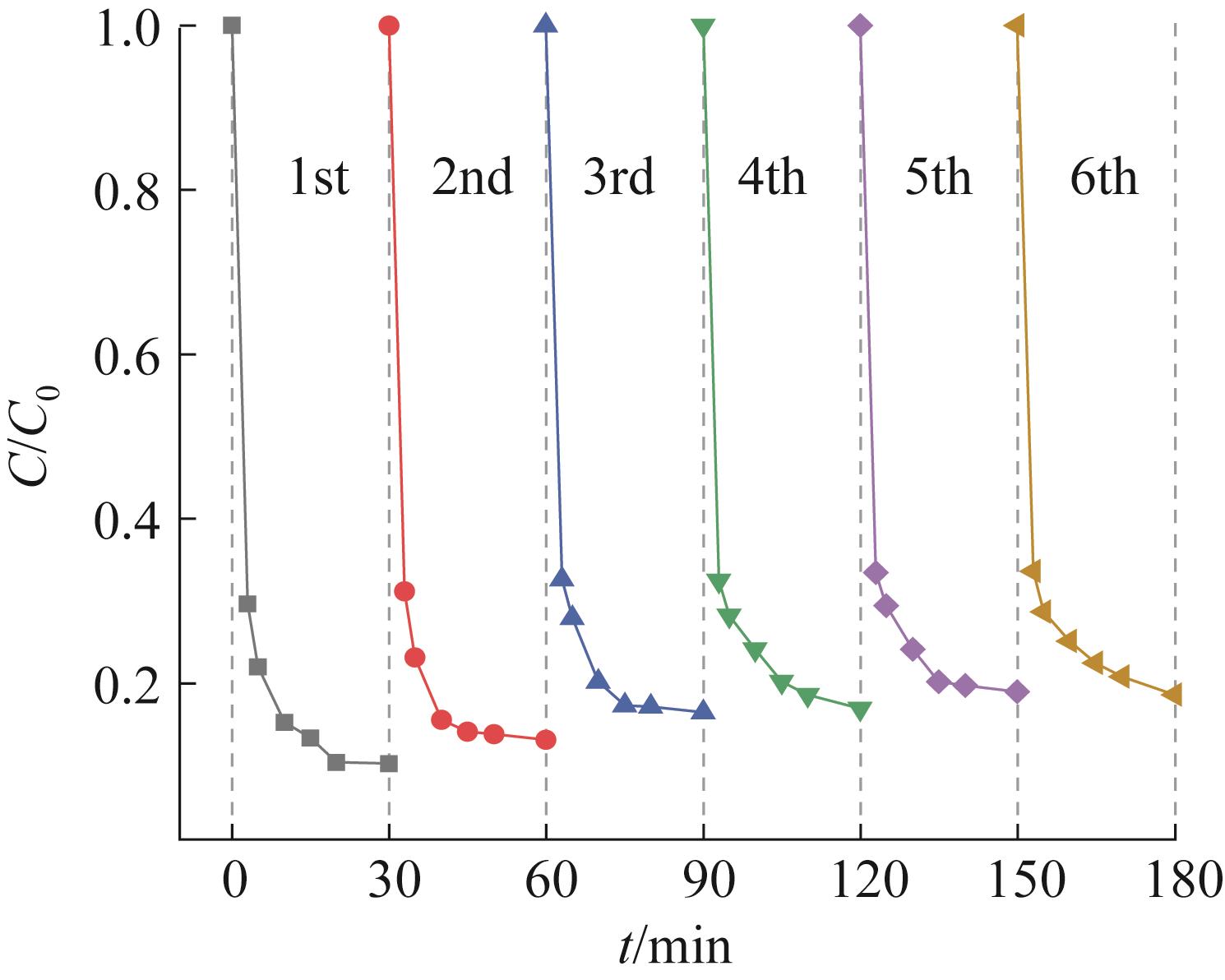

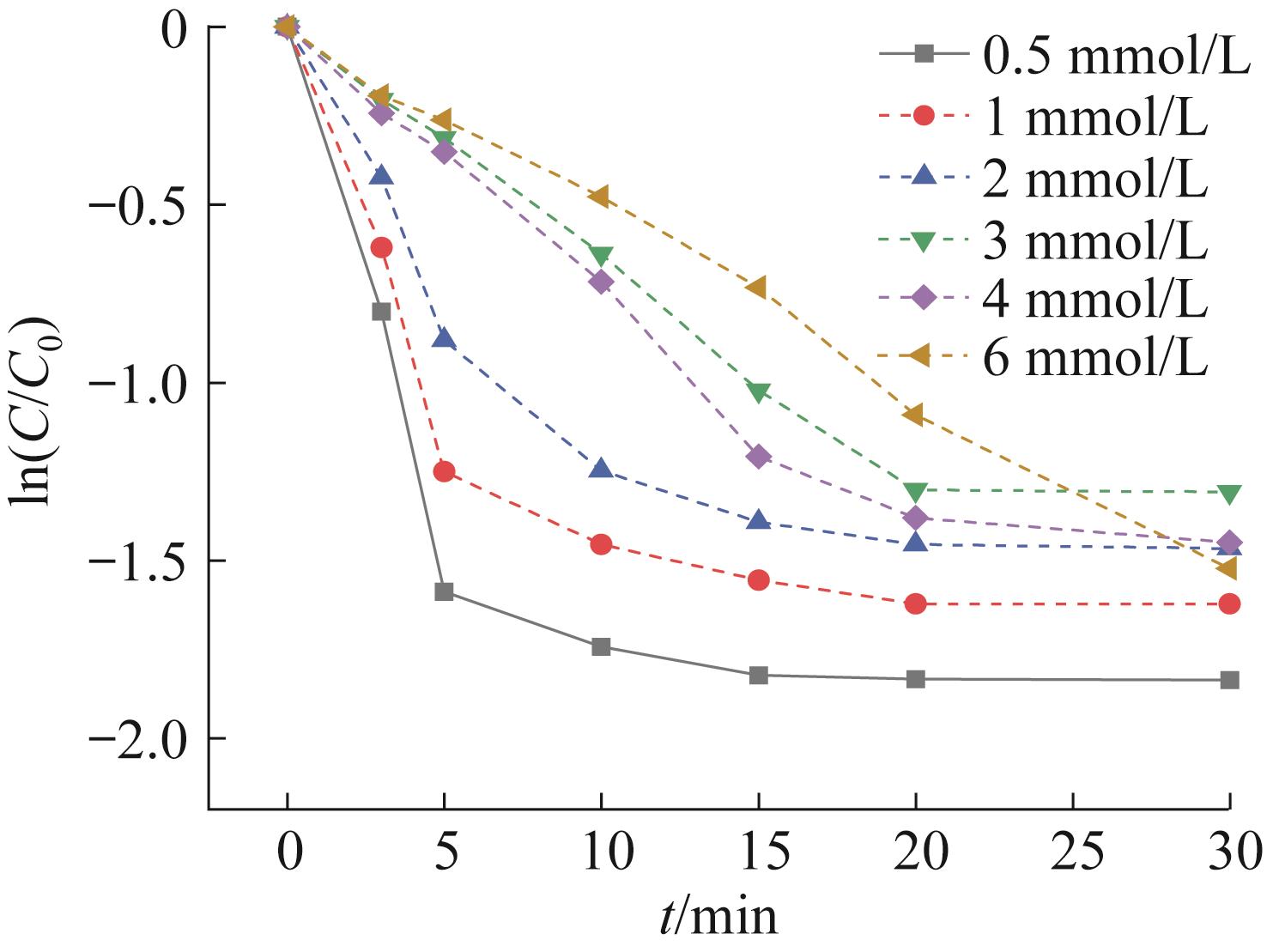

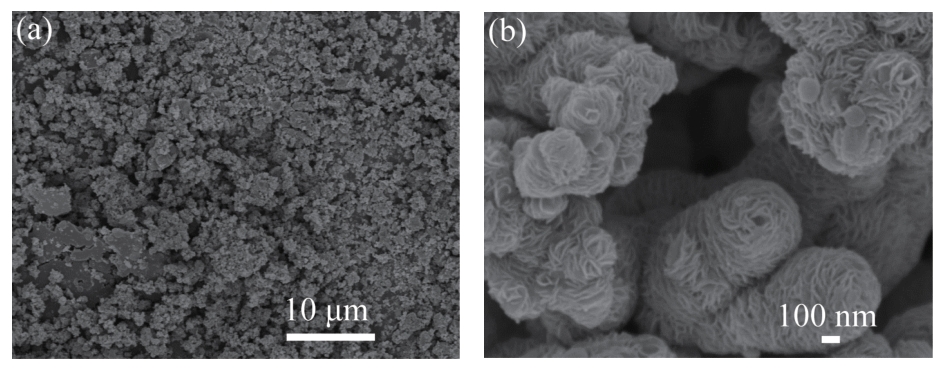

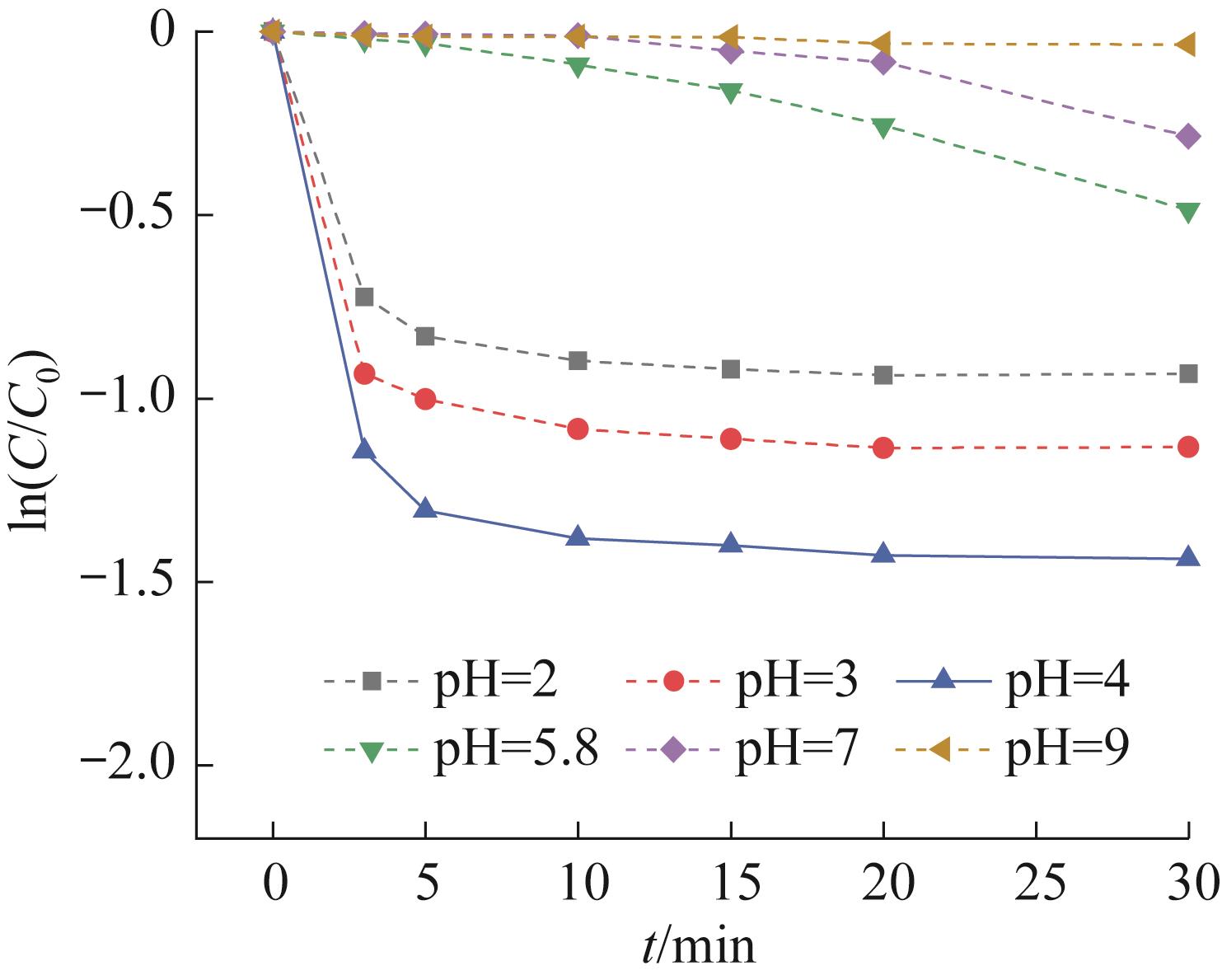

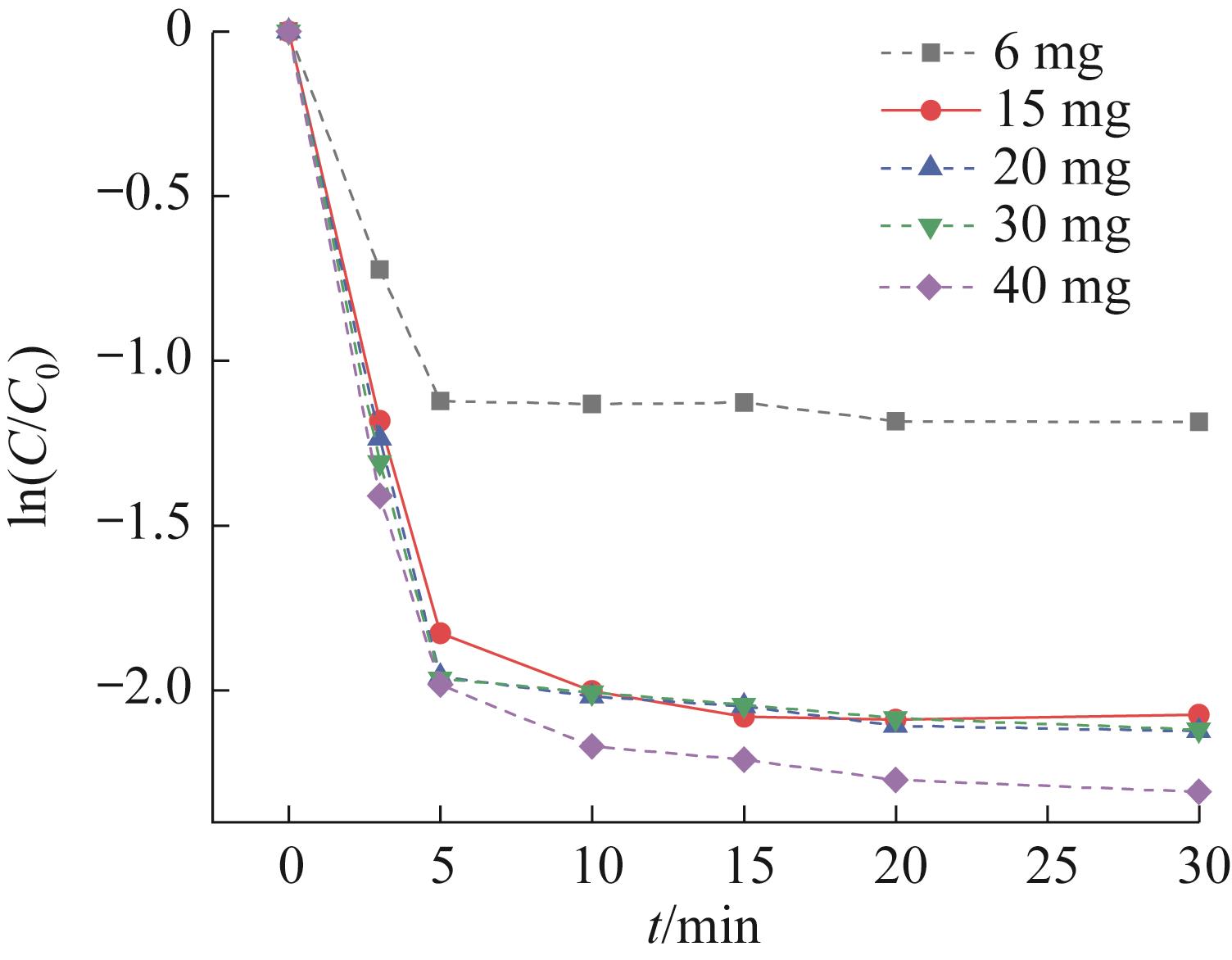

MoS2@Fe3O4 composite was fabricated via two-step hydrothermal method, utilizing cetyltrimethyl ammonium bromide(CTAB) as a soft template, thioacetamide as a sulfur source, and sodium molybdate as a molybdenum source. The morphology and structure of MoS2@Fe3O4 were analyzed by SEM and XRD. The efficiency and mechanism of catalytic degradation of iodoprolol(IPM) by MoS2@Fe3O4/H2O2 system was evaluated. The results showed that Fe3O4 was deposited on the surface of MoS2, and MoS2@Fe3O4 had a uniformly dispersed flower ball structure, which provided more catalytic active sites. Under the conditions of initial pH of 4, MoS2@Fe3O4 dosage of 0.15 g/L, H2O2 concentration of 0.5 mmol/L, and IPM concentration of 5 μmol/L, the degradation rate of IPM by MoS2@Fe3O4/H2O2 system reached 89.85% after 30 minutes of reaction. Compared with Fe3O4/H2O2 system, the degradation rate of IPM increased by about 12%. The applied magnetic field facilitated the reusability of MoS2@Fe3O4. The main active species for IPM degradation by the MoS2@Fe3O4/H2O2 system were ·OH and 1O2. The degradation rate of the MoS2@Fe3O4/H2O2 system on IPM remained stable over 80% after 6 cycles, suggesting that MoS2@Fe3O4 had good stability.

Key words: heterogeneous Fenton reaction, MoS2, Fe3O4, iodoprolol

摘要:

以十六烷基三甲基溴化铵(CTAB)为软模板,以硫代乙酰胺为硫源、钼酸钠为钼源,采用水热两步法制备了MoS2@Fe3O4复合材料。采用SEM、XRD等对MoS2@Fe3O4的形态结构进行了表征分析,考察了MoS2@Fe3O4/H2O2体系催化降解碘帕醇(IPM)的效能和作用机理。结果显示,Fe3O4成功负载在MoS2表面,且MoS2@Fe3O4呈均匀分散的花球状结构,提供了更多催化活性位点。在溶液初始pH为4,MoS2@Fe3O4投加量为0.15 g/L,H2O2浓度为0.5 mmol/L,IPM浓度为5 μmol/L条件下,反应30 min后MoS2@Fe3O4/H2O2体系对IPM的降解率达到89.85%,与Fe3O4/H2O2体系相比,对IPM的降解率提高约12%。MoS2@Fe3O4/H2O2体系降解IPM的主要活性物种为·OH和1O2。利用外加磁场能够实现MoS2@Fe3O4催化剂的循环再利用,6次循环使用后,反应30 min时MoS2@Fe3O4/H2O2体系对IPM的降解率仍在80%以上,表明MoS2@Fe3O4在反应过程中具有良好的稳定性。

关键词: 非均相Fenton, 二硫化钼, 四氧化三铁, 碘帕醇
