Degradation of Rhodamine B by manganese residue activated peroxymonosulfate

doi:10.19965/j.cnki.iwt.2023-1263

Abstract

Abstract:

Manganese residue was used to activate peroxymonosulfate(PMS) for Rhodamine B(RhB) degradation. The physichemical properties of manganese residue were analyzed by X-ray diffractometer, specific surface area and porosity analyzer and Fourier transform infrared spectrometer. The effects of manganese residue dosage, PMS concentration, temperature, pH, and RhB concentration of the solution on RhB degradation were studied. The reusability of manganese residue and mechanism of RhB degradation using PMS activated by manganese residue were also investigated. The results showed that manganese residue used in this study contained abundant Fe₃O₄, with a saturation magnetization of 8.67 emu/g and a specific surface area of 29.95 m²/g. The pores in manganese residue were predominantly mesoporous. The removal rate of RhB could reach 97.6% at 120 min under the conditions of temperature of 25 ℃, RhB concentration of 20 mg/L, manganese residue dosage of 2.0 g/L, PMS concentration of 0.50 mmol/L, pH of 4.9, and still could maintain 84.2% after 5 cycles. In the degradation process, ¹O₂, O₂ ^·- and ·OH were all involved in the reaction, with ¹O₂ playing a dominant role.

Key words: manganese residue, Rhodamine B, peroxymonosulfate, advanced oxidation process, catalytic degradation

摘要：

将锰渣用于活化过一硫酸盐（PMS）降解罗丹明B（RhB）。采用X射线衍射仪、振动样品磁强计、比表面积及孔隙度分析仪、傅里叶红外光谱仪分析了锰渣的理化性质，研究了锰渣投加量、PMS浓度、反应温度、溶液初始pH及RhB浓度等工艺条件对RhB降解效果的影响，考察了锰渣的循环使用性能，同时探讨了锰渣活化PMS降解RhB的机理。结果表明，所用锰渣富含Fe₃O₄，饱和磁化强度为8.67 emu/g，比表面积为29.95 m²/g，且锰渣中的孔以介孔为主。在反应温度为25 ℃，RhB初始质量浓度为20 mg/L，锰渣投加量为2.0 g/L，PMS浓度为0.50 mmol/L，pH=4.9条件下，反应120 min时体系对RhB的去除率为97.6%，且循环使用5次后，RhB去除率依然可达84.2%。在锰渣活化PMS降解RhB的过程中，¹O₂、O₂ ^·-和·OH均参与了反应，其中¹O₂起主导作用。

关键词: 锰渣, 罗丹明B, 过一硫酸盐, 高级氧化, 催化降解

CLC Number:

X703.1

Guoqing ZHENG, Yukun HUANG, Yaocong HAN, Xingyong XUE, Yanyue LU, Lihong LAN, Zhennan CHEN. Degradation of Rhodamine B by manganese residue activated peroxymonosulfate[J]. Industrial Water Treatment, 2025, 45(1): 79-86.

郑国庆, 黄煜坤, 韩要丛, 薛兴勇, 卢彦越, 蓝丽红, 陈贞南. 锰渣活化过一硫酸盐降解罗丹明B[J]. 工业水处理, 2025, 45(1): 79-86.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-1263

https://www.iwt.cn/EN/Y2025/V45/I1/79

Figures/Tables 12

Table 1 Main components and mass fraction of manganese residue

项目	Al₂O₃	Fe₂O₃	SO₃	MnO	SiO₂	K₂O
质量分数/%	25.53	21.81	17.28	15.90	12.70	2.37

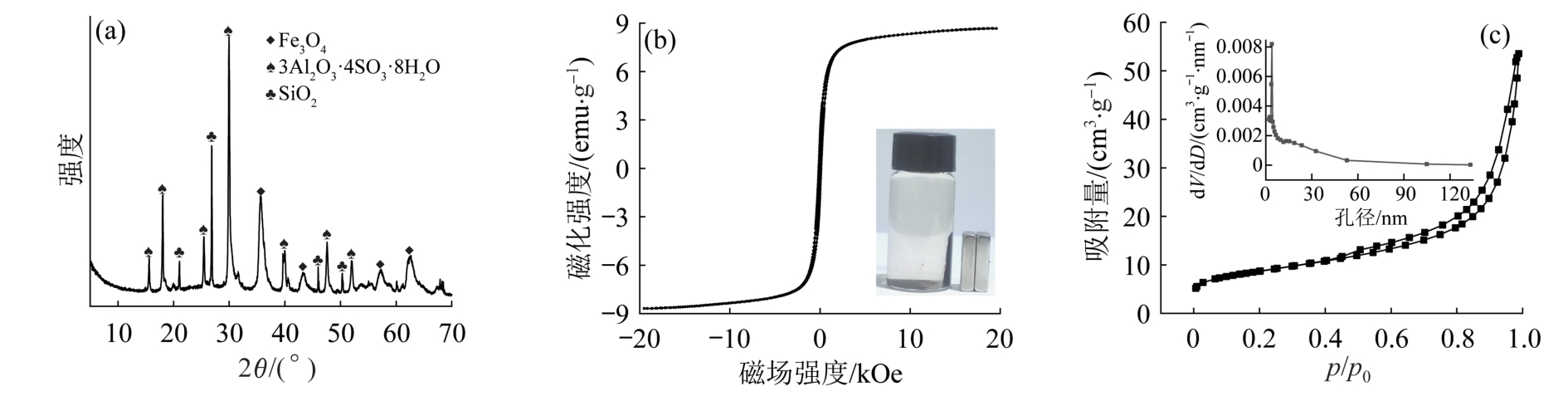

Fig.1 XRD（a）， magnetic hysteresis loop（b） and N₂ isothermal adsorption/desorption curve（c） of manganese residue

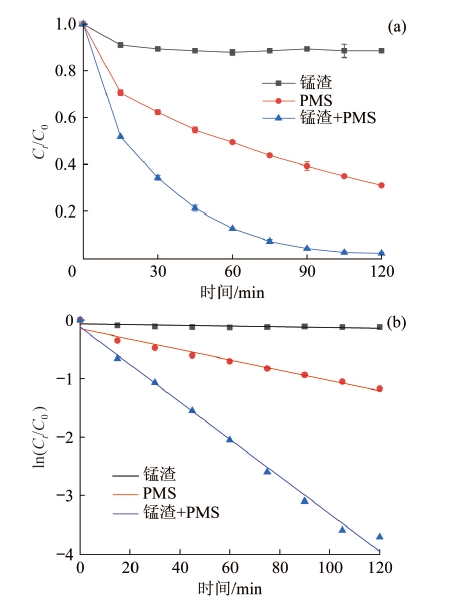

Fig.2 Degradation effect of RhB under different catalytic systems（a） and corresponding kinetic fitting curves（b）

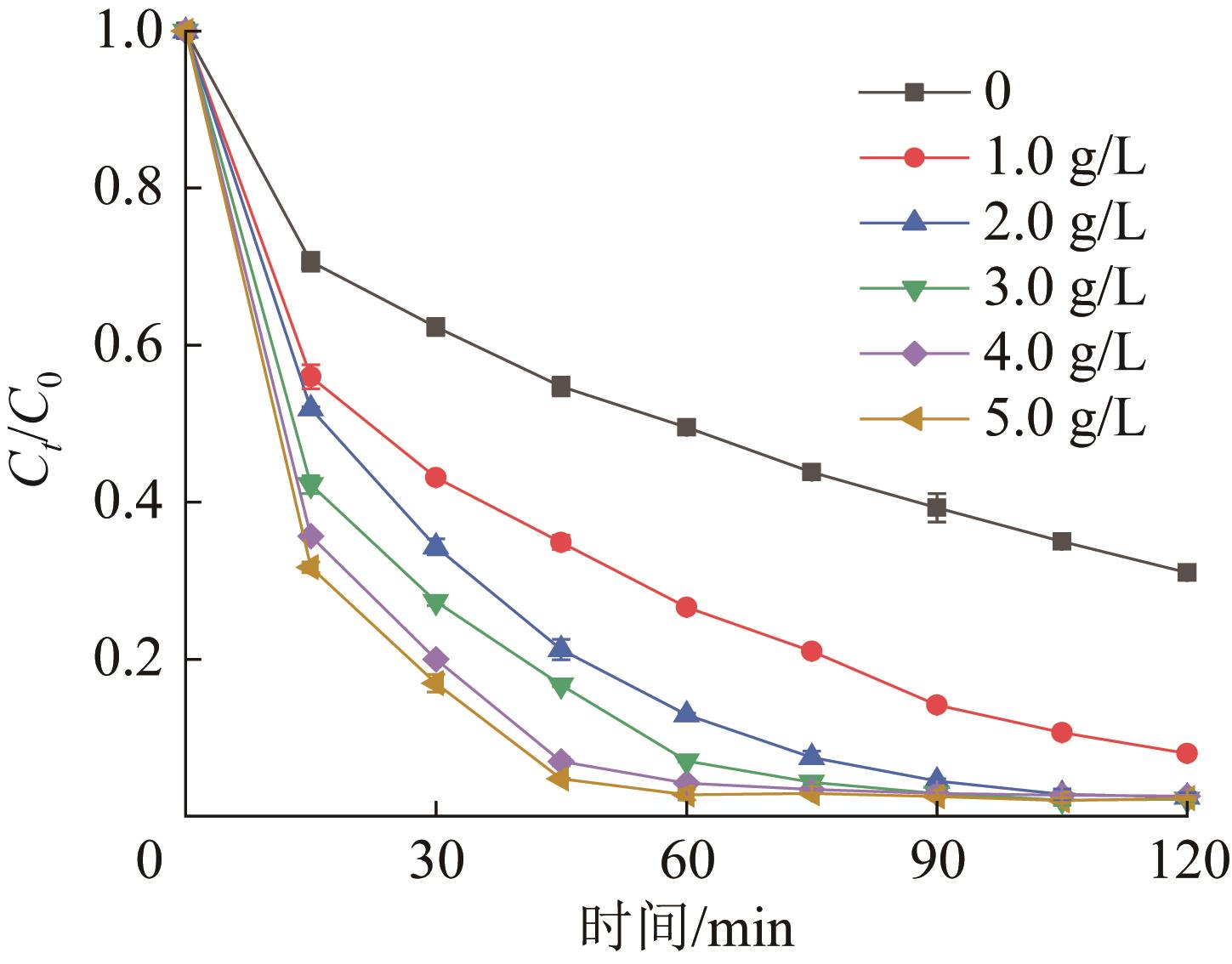

Fig.3 Effect of manganese residue dosage on RhB degradation

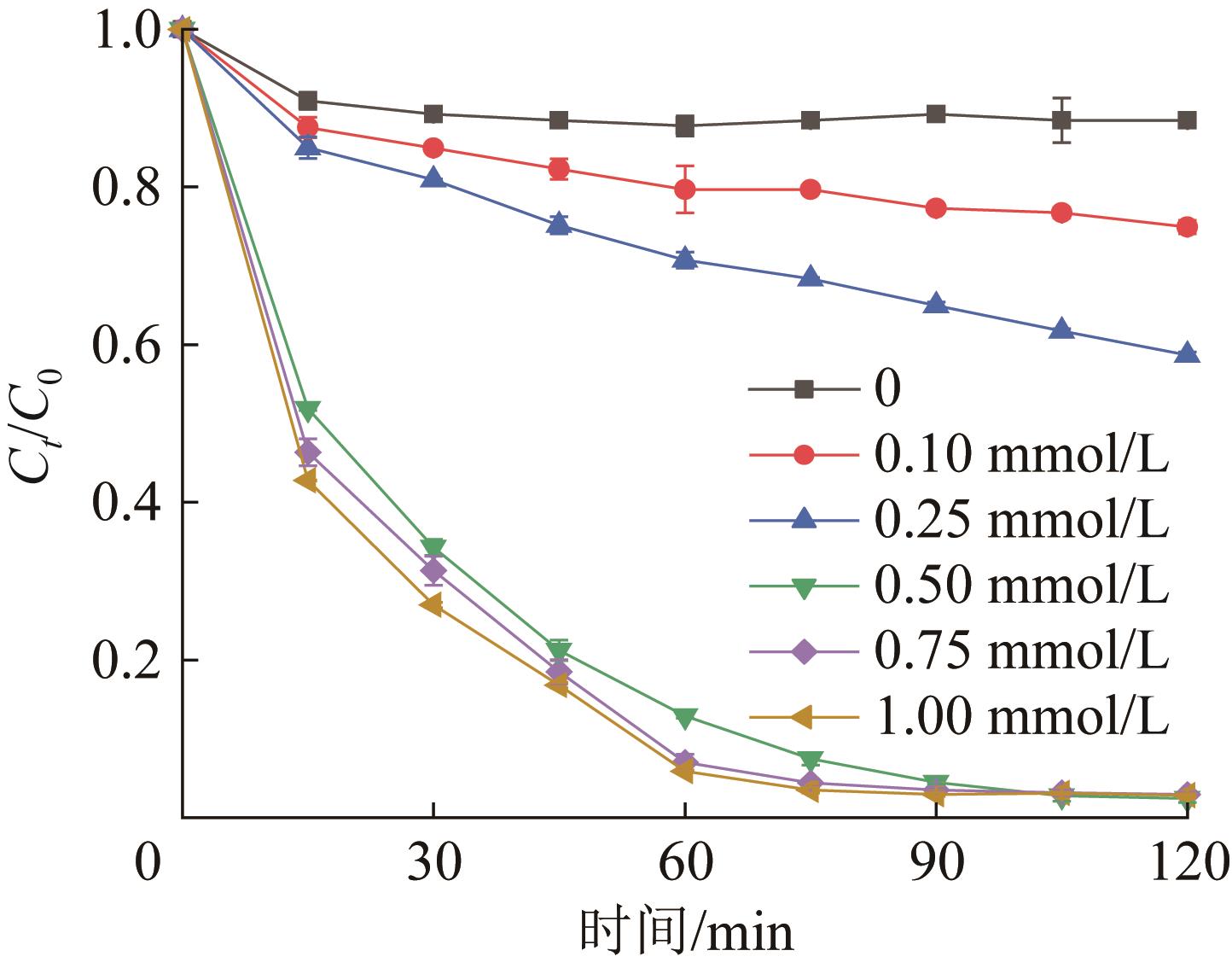

Fig.4 Effect of PMS concentration on RhB degradation

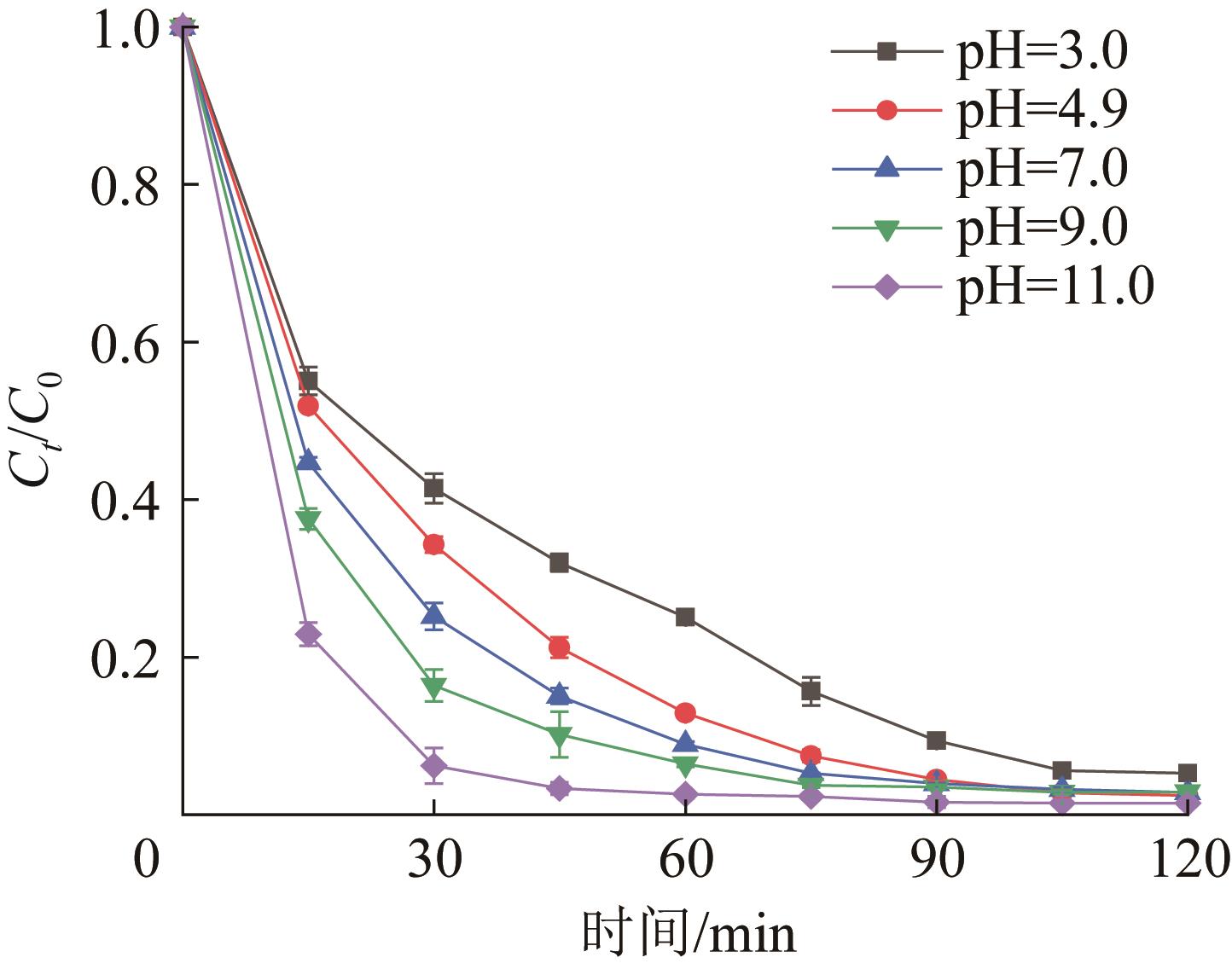

Fig.5 Effect of initial solution pH on RhB degradation

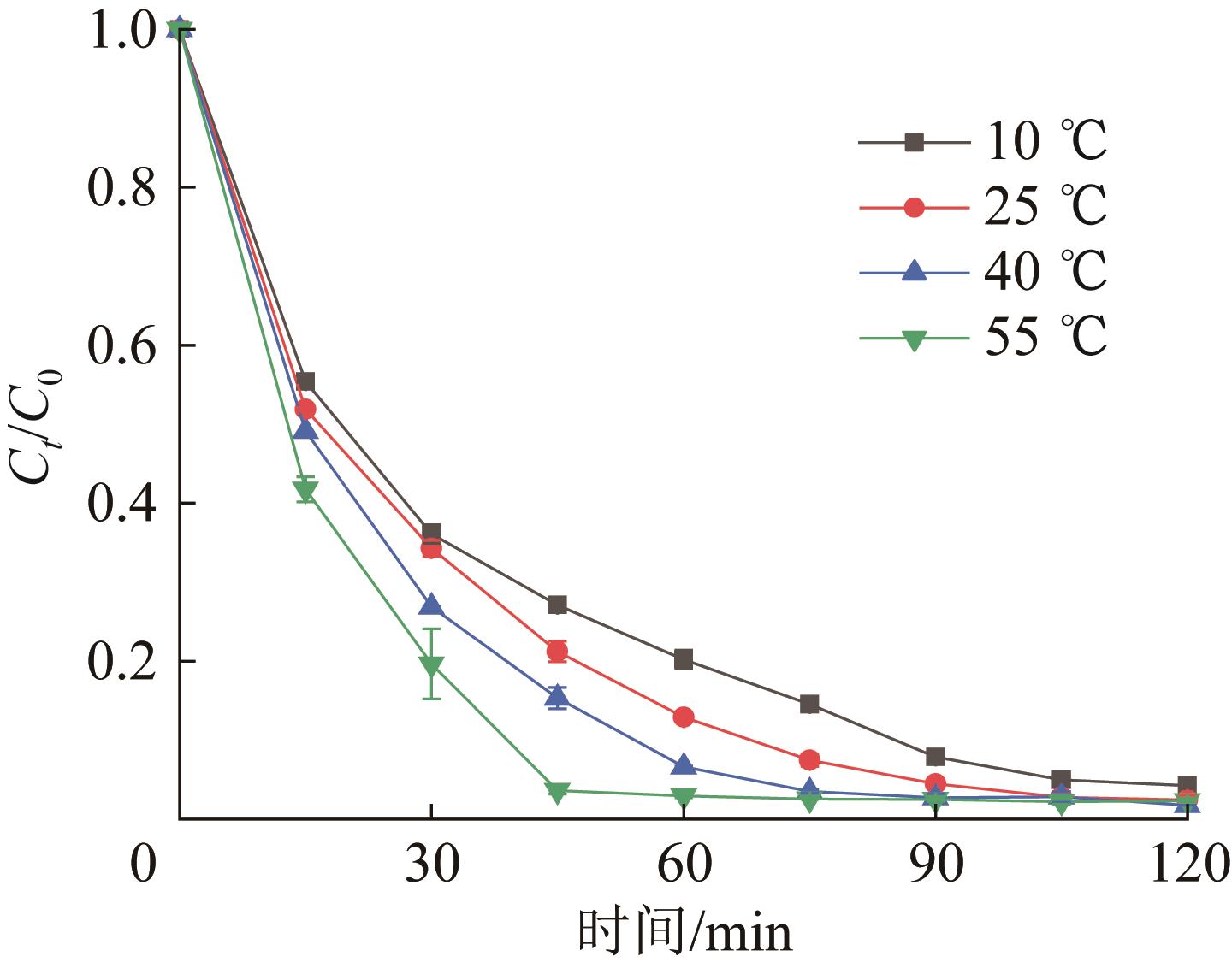

Fig.6 Effect of reaction temperature on RhB degradation

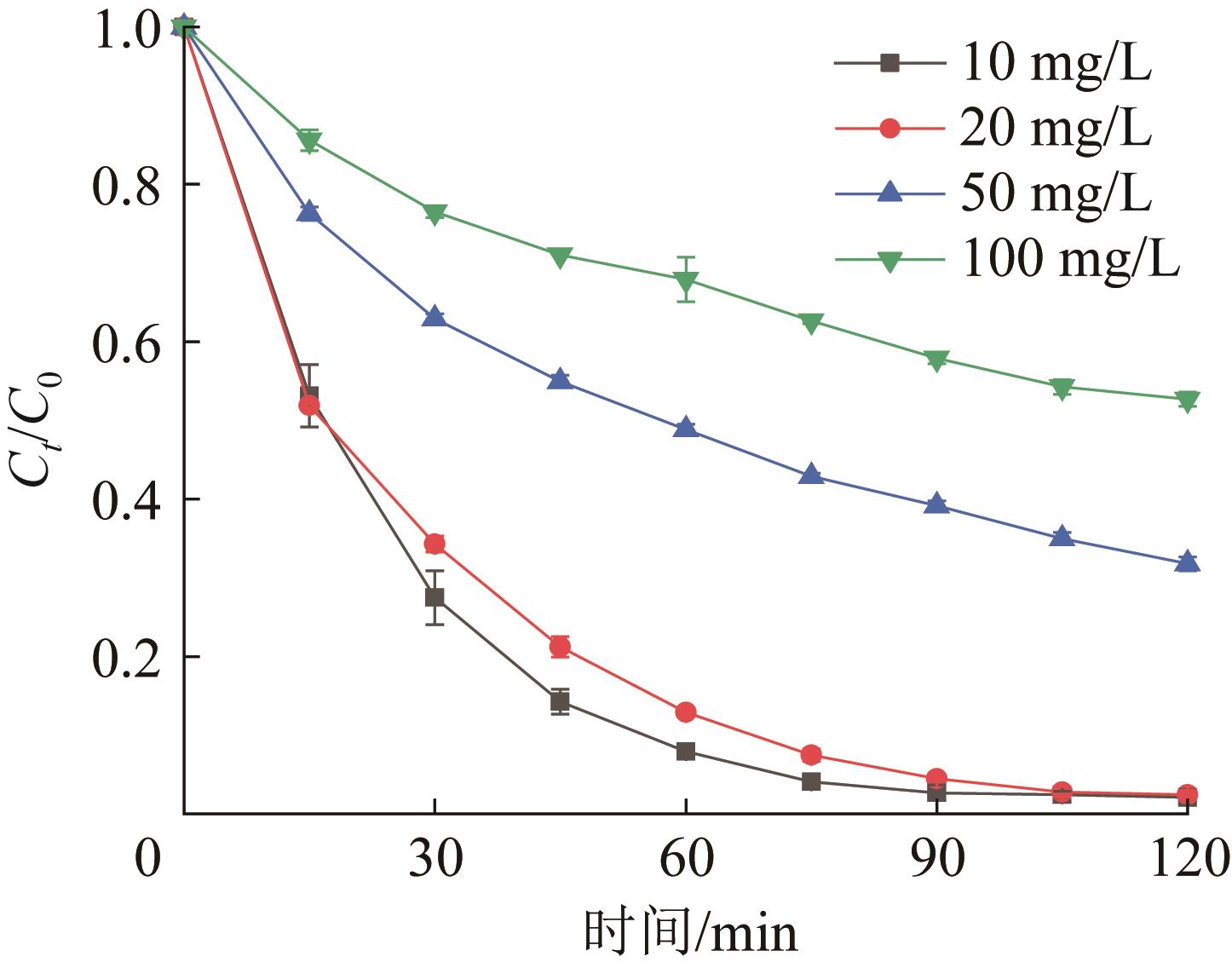

Fig.7 Effect of initial solution concentration on RhB degradation

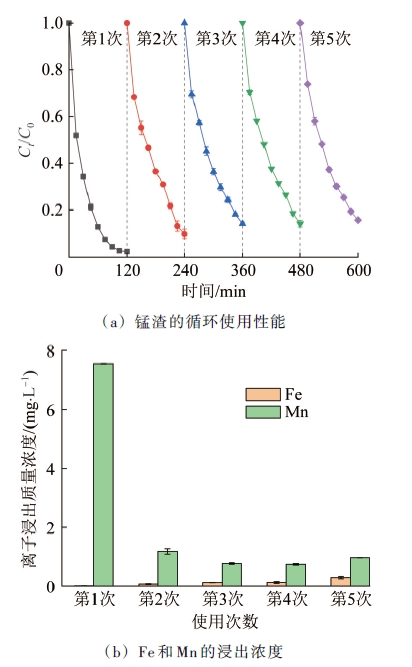

Fig.8 Cyclical performance of manganese residue to activate PMS for RhB degradation

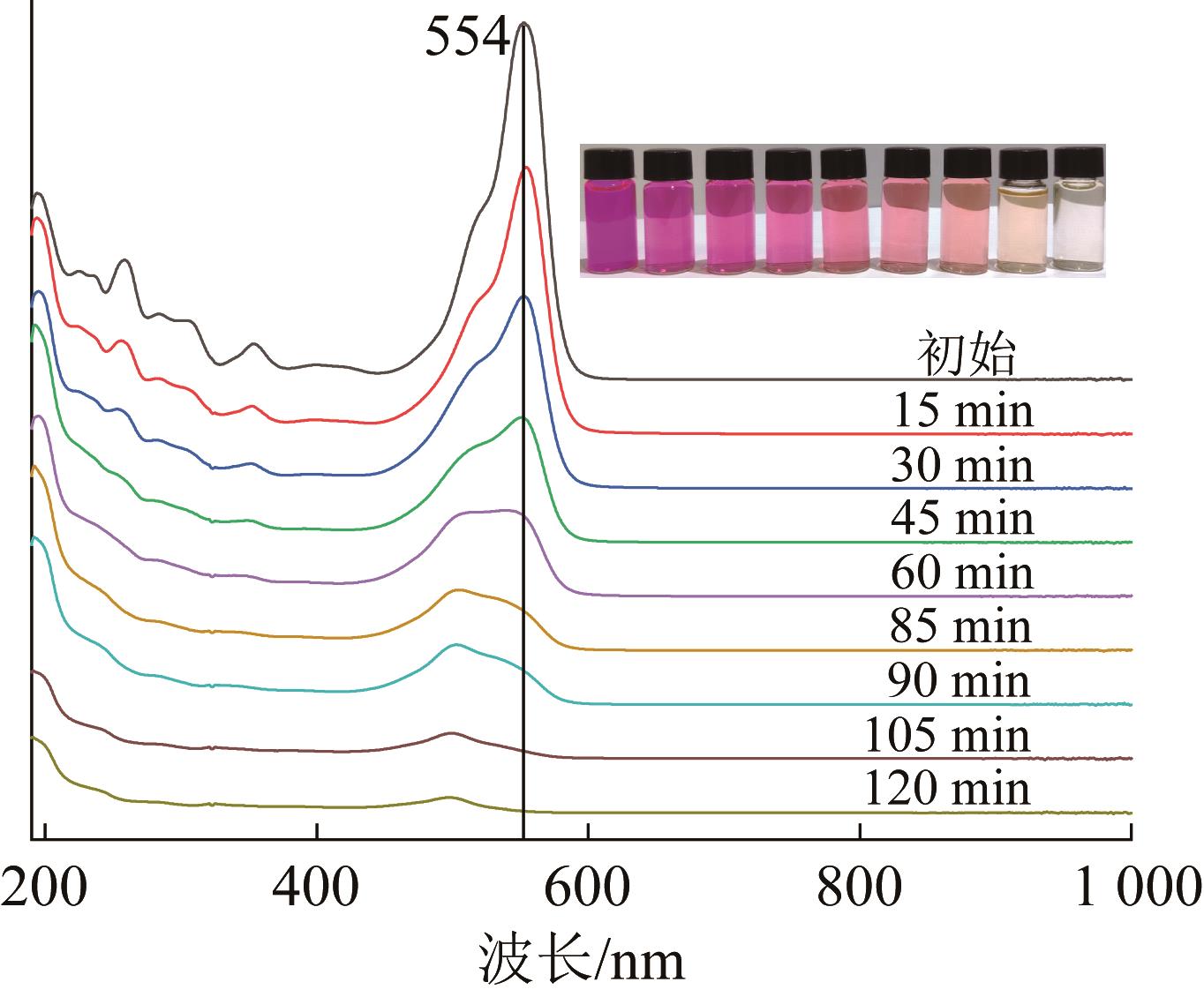

Fig.9 UV-Vis absorption spectra of RhB during degradation process

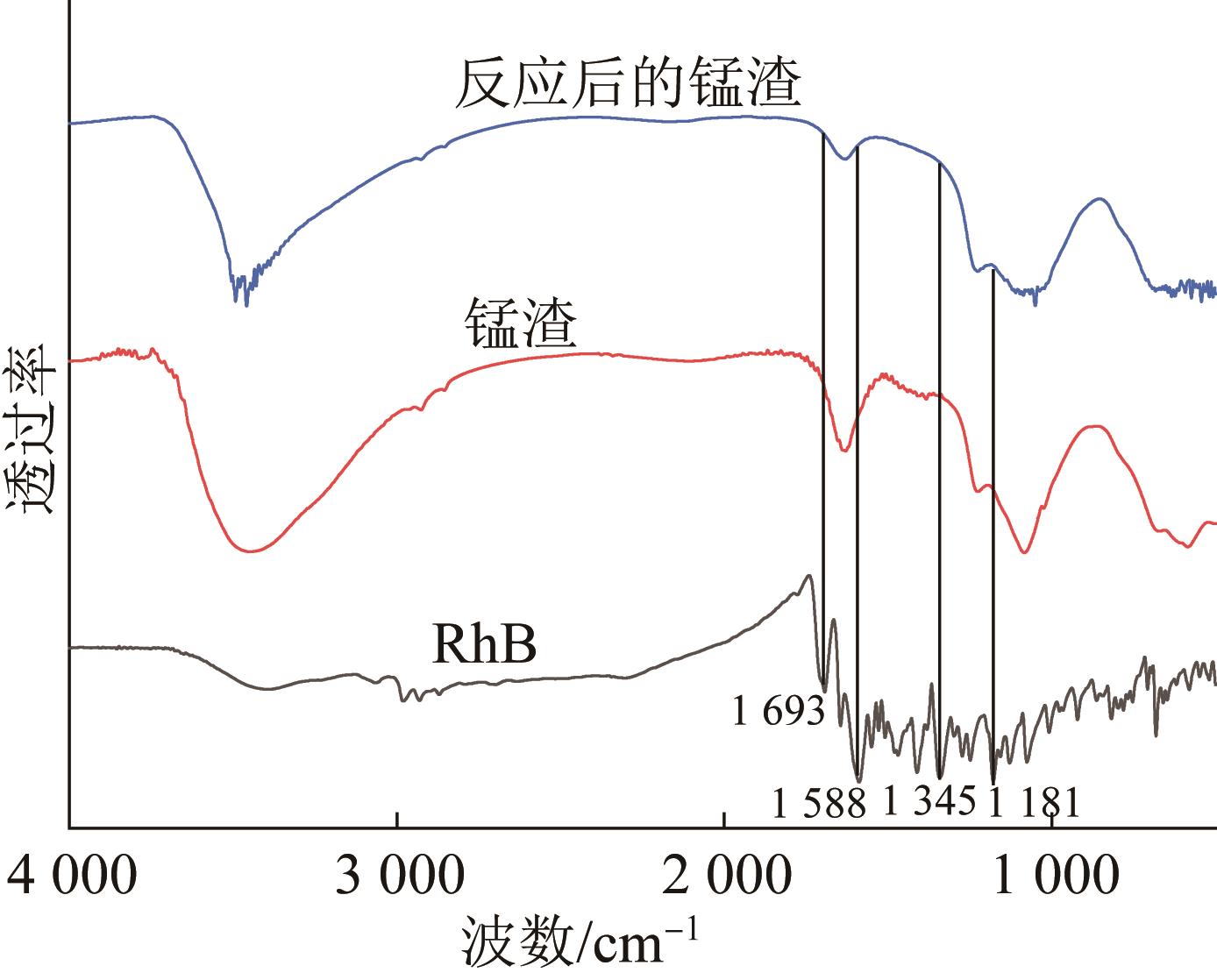

Fig.10 FT-IR spectra of manganese residue before and after reaction

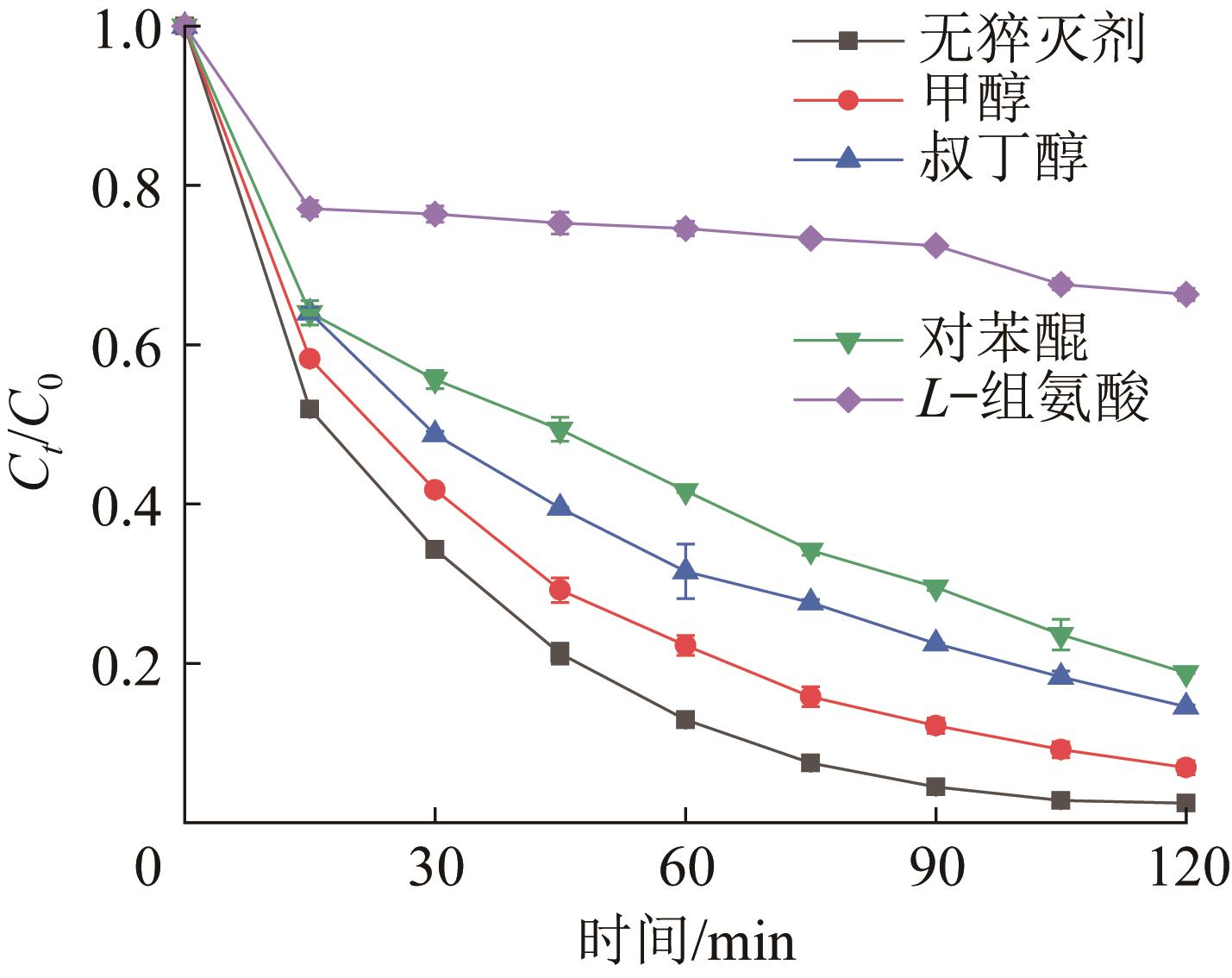

Fig.11 Effect of quenching agents on RhB degradation

References 30

1	WANG Fan， LONG Guangcheng， BAI Min，et al. A new perspective on Belite-ye’elimite-ferrite cement manufactured from electrolytic manganese residue：Production，properties，and environmental analysis［J］. Cement and Concrete Research，2023，163：107019. doi:10.1016/j.cemconres.2022.107019
2	DUAN Nan， CUI Kuixin， ZHU Chuyu，et al. Study on phase evolution and promoting the pozzolanic activity of electrolytic manganese residue during calcination［J］. Environmental Research，2023，227：115774. doi:10.1016/j.envres.2023.115774
3	LI Jia， Ying LÜ， JIAO Xiangke，et al. Electrolytic manganese residue based autoclaved bricks with Ca（OH）₂ and thermal-mechanical activated K-feldspar additions［J］. Construction and Building Materials，2020，230：116848. doi:10.1016/j.conbuildmat.2019.116848
4	ZHAN Xinyuan， WANG Li’ao， WANG Lei，et al. Co-sintering MSWI fly ash with electrolytic manganese residue and coal fly ash for lightweight ceramisite［J］. Chemosphere，2021，263：127914. doi:10.1016/j.chemosphere.2020.127914
5	ZHANG Yuliang， LIU Xiaoming， XU Yingtang，et al. Preparation and characterization of cement treated road base material utilizing electrolytic manganese residue［J］. Journal of Cleaner Production，2019，232：980-992. doi:10.1016/j.jclepro.2019.05.352
6	徐子豪，李英杰，熊玉路，等. 光助-电解锰渣/H₂O₂非均相体系氧化降解双酚S［J］. 中国环境科学，2021，41（5）：2123-2132.
	XU Zihao， LI Yingjie， XIONG Yulu，et al. Degradation of bisphenol S by photo-assisted electrolysis manganese slag/H₂O₂ heterogeneous system［J］. China Environmental Science，2021，41（5）：2123-2132.
7	LI Mengke， HE Zhiguo， ZHONG Hui，et al. Oxygen vacancy enhances the catalytic activity of trimetallic oxide catalysts for efficient peroxymonosulfate activation［J］. Environmental Science：Nano，2022，9（3）：1037-1051. doi:10.1039/d1en00976a
8	LI Mengke， HE Zhiguo， ZHONG Hui，et al. Multi-walled carbon nanotubes facilitated roxarsone elimination in SR-AOPs by accelerating electron transfer in modified electrolytic manganese residue and forming surface activated-complexes［J］. Water Research，2021，200：117266. doi:10.1016/j.watres.2021.117266
9	LI Wenlei， JIN Huixin， XIE Hongyan，et al. Progress in comprehensive utilization of electrolytic manganese residue：A review［J］. Environmental Science and Pollution Research International，2023，30（17）：48837-48853. doi:10.1007/s11356-023-26156-5
10	HAN Yaocong， CUI Xuemin， Xuesen LÜ，et al. Preparation and characterization of geopolymers based on a phosphoric-acid-activated electrolytic manganese dioxide residue［J］. Journal of Cleaner Production，2018，205：488-498. doi:10.1016/j.jclepro.2018.09.141
11	LI Haibo， QIN Xiaofei， WANG Kaixuan，et al. Insight into metal-based catalysts for heterogeneous peroxymonosulfate activation：A critical review［J］. Separation and Purification Technology，2024，333：125900. doi:10.1016/j.seppur.2023.125900
12	XIAO Sa， CHENG Min， ZHONG Hua，et al. Iron-mediated activation of persulfate and peroxymonosulfate in both homogeneous and heterogeneous ways：A review［J］. Chemical Engineering Journal，2020，384：123265. doi:10.1016/j.cej.2019.123265
13	FADAEI S， NOORISEPEHR M， POURZAMANI H，et al. Heterogeneous activation of peroxymonosulfate with Fe₃O₄ magnetic nanoparticles for degradation of reactive black 5：Batch and column study［J］. Journal of Environmental Chemical Engineering，2021，9（4）：105414. doi:10.1016/j.jece.2021.105414
14	苏冰琴，刘一清，林昱廷，等. Fe₃O₄活化过硫酸盐体系同步去除诺氟沙星和铅［J］. 中国环境科学，2022，42（2）：717-727.
	SU Bingqin， LIU Yiqing， LIN Yuting，et al. Simultaneous removal of norfloxacin and Pb（Ⅱ） via Fe₃O₄-activated persulfate oxidation［J］. China Environmental Science，2022，42（2）：717-727.
15	李伊帆，郭耀萍，郭亚丹，等. 介孔掺硫活性炭活化过硫酸盐降解曙红Y废水的研究［J］. 工业水处理，2023，43（5）：52-59.
	LI Yifan， GUO Yaoping， GUO Yadan，et al. Eosin Y degradation by persulfate activated with mesoporous sulfur-doped activated carbon［J］. Industrial Water Treatment，2023，43（5）：52-59.
16	HE Panyang， ZHANG Yaojun， CHEN Hao，et al. Development of an eco-efficient CaMoO₄/electroconductive geopolymer composite for recycling silicomanganese slag and degradation of dye wastewater［J］. Journal of Cleaner Production，2019，208：1476-1487. doi:10.1016/j.jclepro.2018.10.176
17	CAI Xiunan， ZHANG Yanjuan， HU Huayu，et al. Valorization of manganese residue to prepare a highly stable and active Fe₃O₄@SiO₂/starch-derived carbon composite for catalytic degradation of dye waste water［J］. Journal of Cleaner Production，2020，258：120741. doi:10.1016/j.jclepro.2020.120741
18	PAN Fei， JI Haodong， DU Penghui，et al. Insights into catalytic activation of peroxymonosulfate for carbamazepine degradation by MnO₂ nanoparticles in situ anchored titanate nanotubes：Mechanism，ecotoxicity and DFT study［J］. Journal of Hazardous Materials，2021，402：123779. doi:10.1016/j.jhazmat.2020.123779
19	ZHU Yihong， SUN Zijing， DENG Yun，et al. Mn₂O₃/Mn₃O₄-Cu_1.5Mn_1.5O₄ spinel as an efficient Fenton-like catalyst activating persulfate for the degradation of bisphenol A：Superoxide radicals dominate the reaction［J］. Science of the Total Environment，2022，839：156075. doi:10.1016/j.scitotenv.2022.156075
20	王艺，张艺凡，龙世伟，等. ZnCo-ZIF制备及其活化过硫酸盐降解罗丹明B性能研究［J］. 工业水处理，2022，42（5）：77-82. doi:10.19965/j.cnki.iwt.2021-0840
	WANG Yi， ZHANG Yifan， LONG Shiwei，et al. Preparation of ZnCo-ZIF and its application in persulfate activation for Rhodamine B degradation［J］. Industrial Water Treatment，2022，42（5）：77-82. doi:10.19965/j.cnki.iwt.2021-0840
21	LI Mengke， HUANG Fenglian， HU Liang，et al. Efficient activation of peroxymonosulfate by a novel catalyst prepared directly from electrolytic manganese slag for degradation of recalcitrant organic pollutes［J］. Chemical Engineering Journal，2020，401：126085. doi:10.1016/j.cej.2020.126085
22	YUAN Ruixia， JIANG Zhongqiu， WANG Zhaohui，et al. Hierarchical MnO₂ nanoflowers blooming on 3D nickel foam：A novel micro-macro catalyst for peroxymonosulfate activation［J］. Journal of Colloid and Interface Science，2020，571：142-154. doi:10.1016/j.jcis.2020.03.041
23	LI Mengke， ZHONG Hui， HE Zhiguo，et al. Degradation of various thiol collectors in simulated and real mineral processing wastewater of sulfide ore in heterogeneous modified manganese slag/PMS system［J］. Chemical Engineering Journal，2021，413：127478. doi:10.1016/j.cej.2020.127478
24	KOU Lidong， WANG Jing， ZHAO Liang，et al. Coupling of KMnO₄-assisted sludge dewatering and pyrolysis to prepare Mn，Fe-codoped biochar catalysts for peroxymonosulfate-induced elimination of phenolic pollutants［J］. Chemical Engineering Journal，2021，411：128459. doi:10.1016/j.cej.2021.128459
25	DUAN Xiaoguang， O’DONNELL K， SUN Hongqi，et al. Sulfur and nitrogen Co-doped graphene for metal-free catalytic oxidation reactions［J］. Small，2015，11（25）：3036-3044. doi:10.1002/smll.201403715
26	张晨，王一博，燕可洲，等. 生物炭吸附耦合过硫酸盐再生去除水中腐殖酸［J］. 工业水处理，2023，43（10）：95-103.
	ZHANG Chen， WANG Yibo， YAN Kezhou，et al. Removal of humic acid from water by biochar adsorption coupled with persulfate regeneration［J］. Industrial Water Treatment，2023，43（10）：95-103.
27	TANG Qian， MENG Xiangyu， BAO Wenqi，et al. Synergistic activation of peroxymonosulfate by nitrogen-doped biochar loaded with mixed-valence iron nanoparticles for tetracycline degradation［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2023，669：131490. doi:10.1016/j.colsurfa.2023.131490
28	罗漩，易子铭，谢金伶，等. 硼氮共掺杂多孔碳活化过硫酸盐降解罗丹明B性能和机制［J］. 环境化学，2023，42（11）：3849-3860.
	LUO Xuan， YI Ziming， XIE Jinling，et al. Performance and mechanism of boron-nitrogen Co-doped porous carbon as permonosulfate activator for Rhodamine B degradation［J］. Environmental Chemistry，2023，42（11）：3849-3860.
29	Cong LYU， HE Dan， MOU Zishen，et al. Synergetic activation of peroxymonosulfate by MnO₂-loaded β-FeOOH catalyst for enhanced degradation of organic pollutant in water［J］. Science of the Total Environment，2019，693：133589. doi:10.1016/j.scitotenv.2019.133589
30	ZHAO Wei， DUAN Zhiyao， ZHENG Zheng，et al. Efficient diclofenac removal by superoxide radical and singlet oxygen generated in surface Mn（Ⅱ）/（Ⅲ）/（Ⅳ） cycle dominated peroxymonosulfate activation system：Mechanism and product toxicity［J］. Chemical Engineering Journal，2022，433：133742. doi:10.1016/j.cej.2021.133742
