Preparation of modified polyethyleneimine chelating agents and treatment of heavy metals and organic wastewater

doi:10.19965/j.cnki.iwt.2025-0036

Abstract

Abstract:

A novel dithiocarbamate heavy metal chelating agent(PEI-DTC) was prepared using water-soluble polyethyleneimine(PEI) as the raw material and carbon disulfide (CS₂) under alkaline conditions. The presence of abundant dithiocarbamate groups in PEI-DTC was confirmed by UV spectroscopy, infrared spectroscopy, elemental analysis,and scanning electron microscopy. The effects of the preparation conditions of PEI-DTC and the chelation process on the removal of Cu²⁺ were investigated in detail through single-factor experiments using simulated wastewater containing Cu²⁺ and contaminated soil as treatment objects. Under pH≥3, PEI-DTC could remove 99.8% of Cu²⁺ from water and 99.9% of Cu²⁺ from soil. Compared with traditional commercial sodium dimethyldithiocarbamate(SDD) and sodium sulfide(Na₂S), PEI-DTC showed stronger heavy metal removal ability, wider adaptability(pH 1-9), and higher stability. The risk of secondary leaching of Cu²⁺ after treatment was low, meeting the national solid waste landfill treatment standards. Meanwhile, PEI-DTC chelated with Fe was used to activate persulfate for the degradation of oxytetracycline(OTC) in water. Under the optimal conditions, the degradation rate of OTC could reach 83.4%.

Key words: polyethyleneimine, chelating agent, heavy metal removal, degradation of oxytetracycline hydrochloride

摘要：

以水溶性聚乙烯亚胺（PEI）为原料，在碱性条件下经CS₂改性后制备出新型二硫代氨基甲酸盐类重金属螯合剂（PEI-DTC），并采用紫外光谱、红外光谱、元素分析、扫描电镜等表征方法证实了PEI-DTC具有丰富的二硫代氨基基团。以含Cu²⁺的模拟废水和污染土壤为处理对象，通过单因素实验深入探究了PEI-DTC制备条件和螯合工艺对其去除Cu²⁺的影响。pH≥3时，PEI-DTC可去除水体中99.8%的Cu²⁺，固化土壤中99.9%的Cu²⁺。相比于传统商用福美钠（SDD）和硫化钠（Na₂S），PEI-DTC展现出更强的重金属去除能力、更广的适应性（pH为1~9）和更高的稳定性。经处理后Cu²⁺二次浸出风险低，达到国家固废填埋处理标准。同时，将PEI-DTC螯合Fe后用于活化过硫酸盐降解水体中盐酸土霉素（OTC），最佳工艺条件下OTC降解率可达83.4%。

关键词: 聚乙烯亚胺, 螯合剂, 重金属去除, 降解盐酸土霉素

CLC Number:

X703.1

Yunliang FAN, Caiyi JIANG, Bo XING, Yi WANG, Min LI, Guo YANG, Fuping ZHANG, Siyang ZHANG. Preparation of modified polyethyleneimine chelating agents and treatment of heavy metals and organic wastewater[J]. Industrial Water Treatment, 2025, 45(12): 137-146.

樊云亮, 江彩义, 邢波, 王议, 李敏, 杨郭, 张福平, 张思洋. 改性聚乙烯亚胺螯合剂的制备及其对重金属与有机废水的处理[J]. 工业水处理, 2025, 45(12): 137-146.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2025-0036

https://www.iwt.cn/EN/Y2025/V45/I12/137

Figures/Tables 15

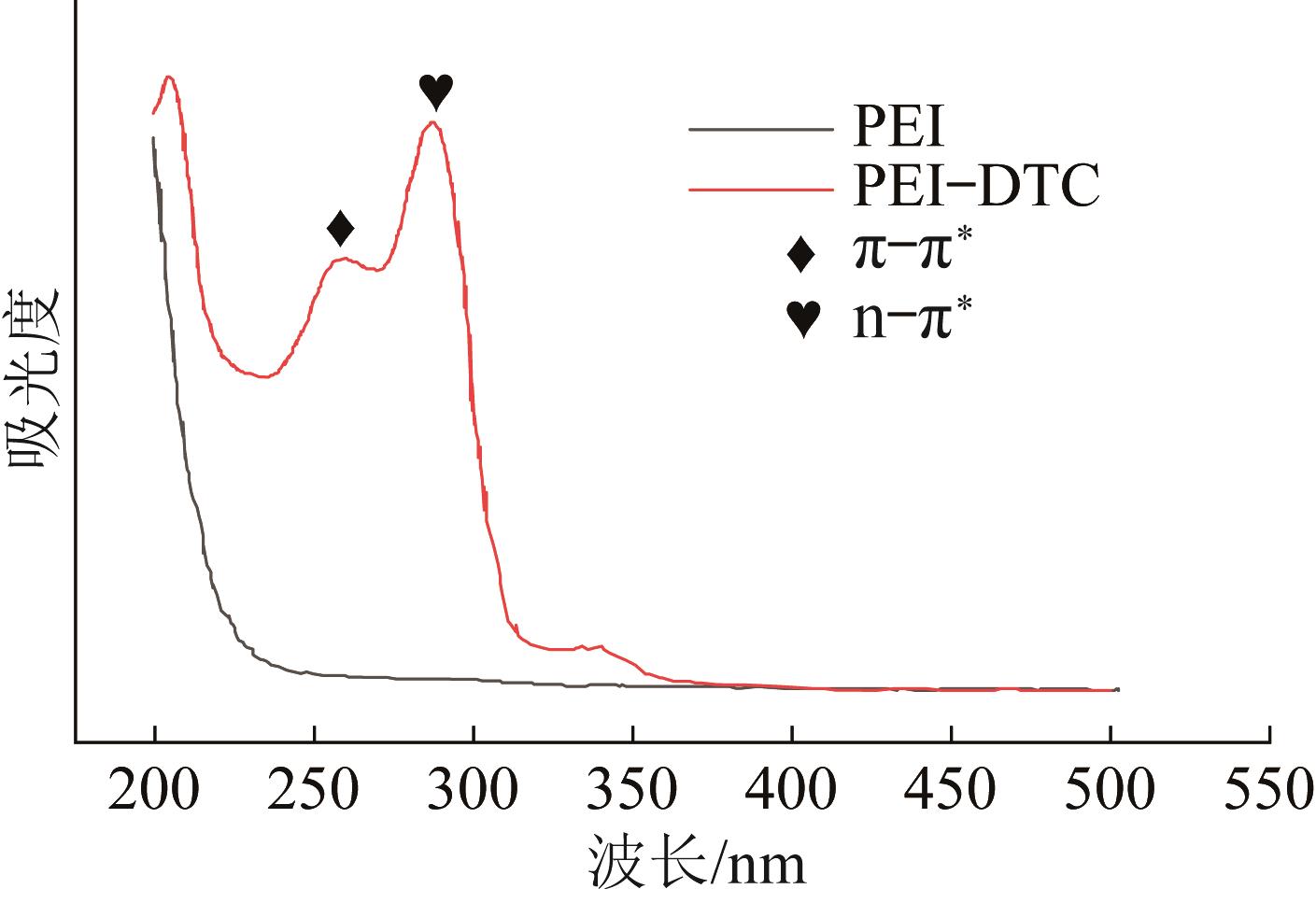

Fig.1 UV analysis of the PEI-DTC

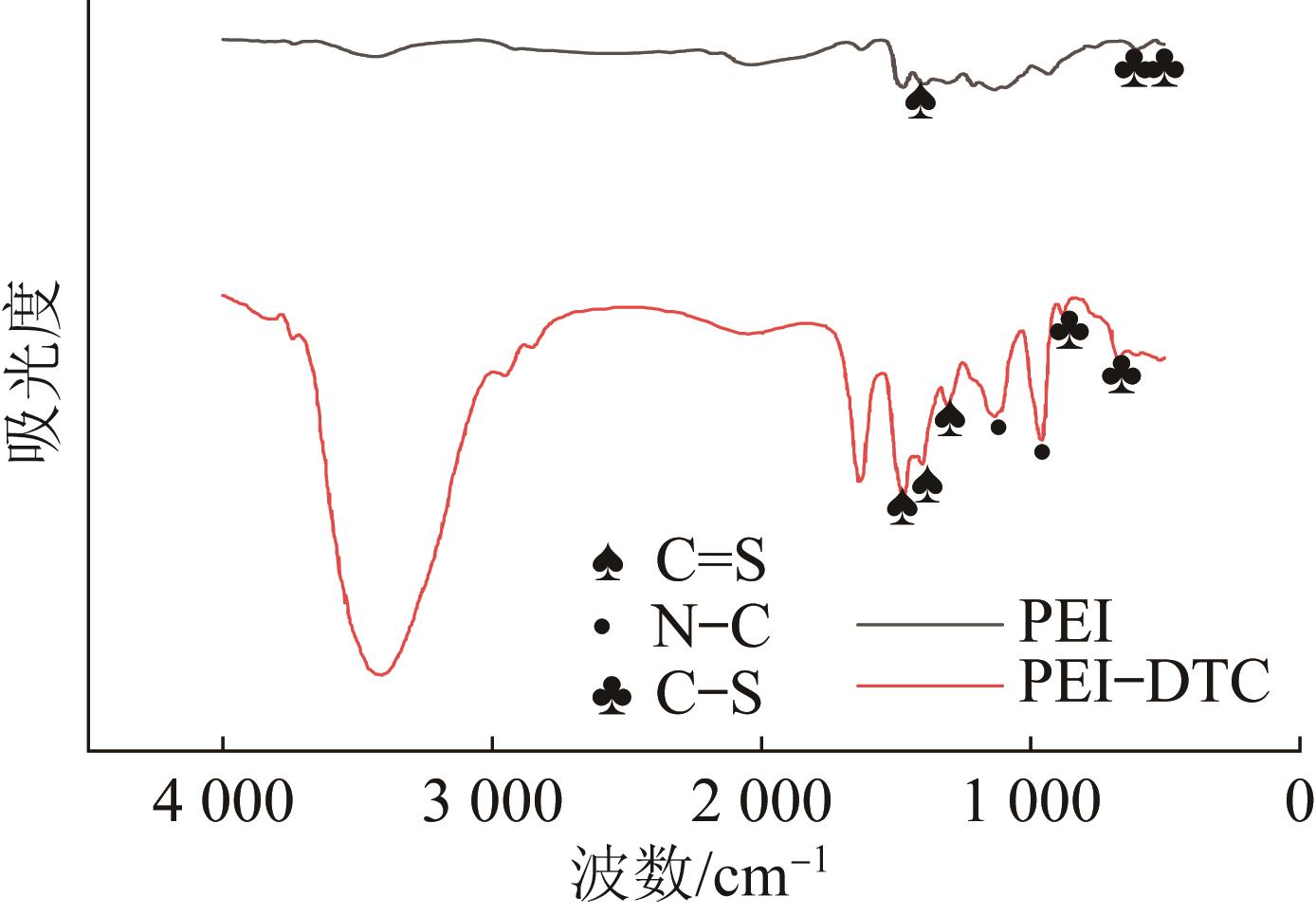

Fig.2 IR analysis of the PEI-DTC

Table 1 Elemental content analysis of PEI-DTC and PEI

主要成分

元素质量分数/%

C/N

（物质的量比）

N/S—S

（物质的量比）

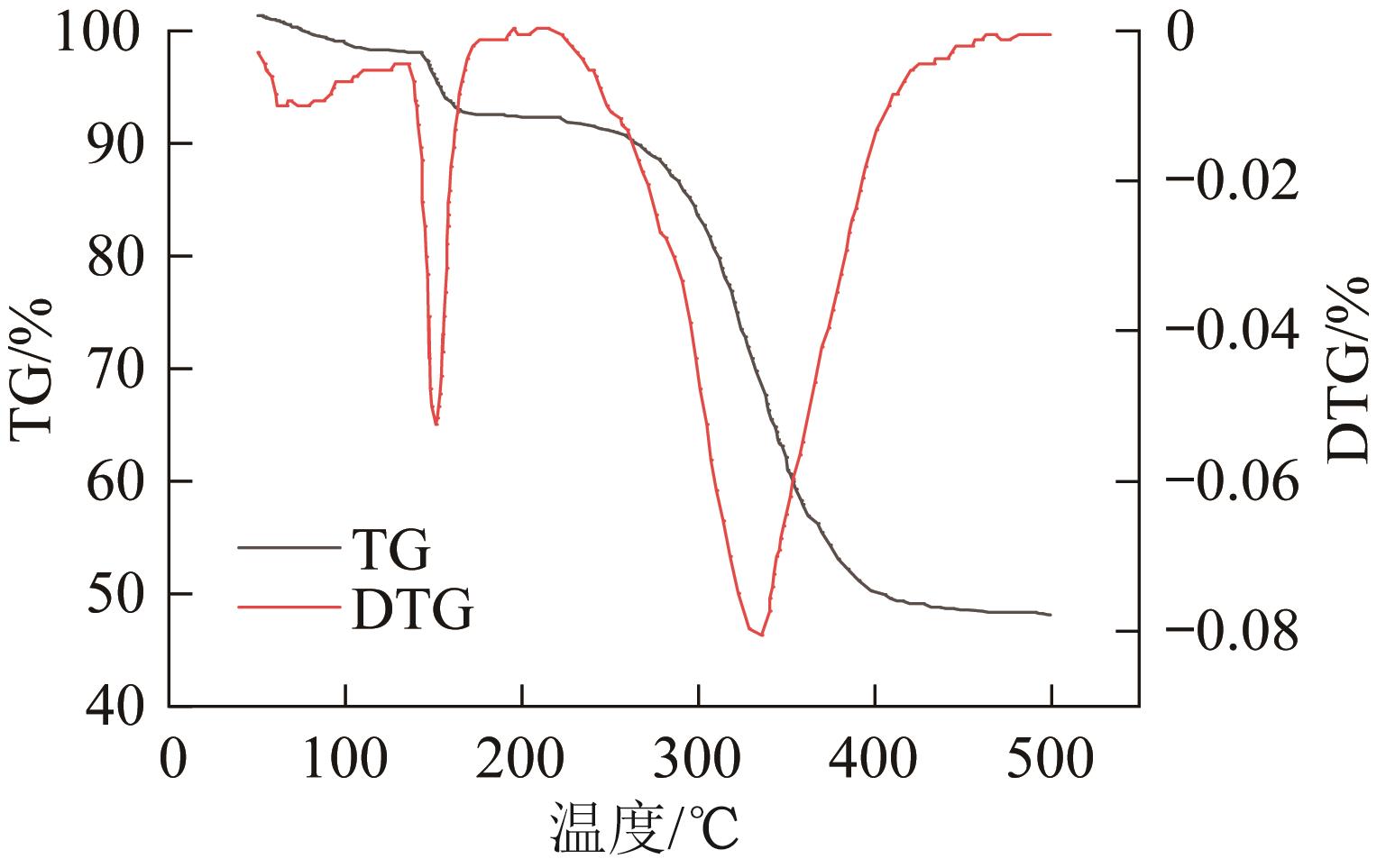

Fig.3 PEI-DTC thermogravimetric analysis

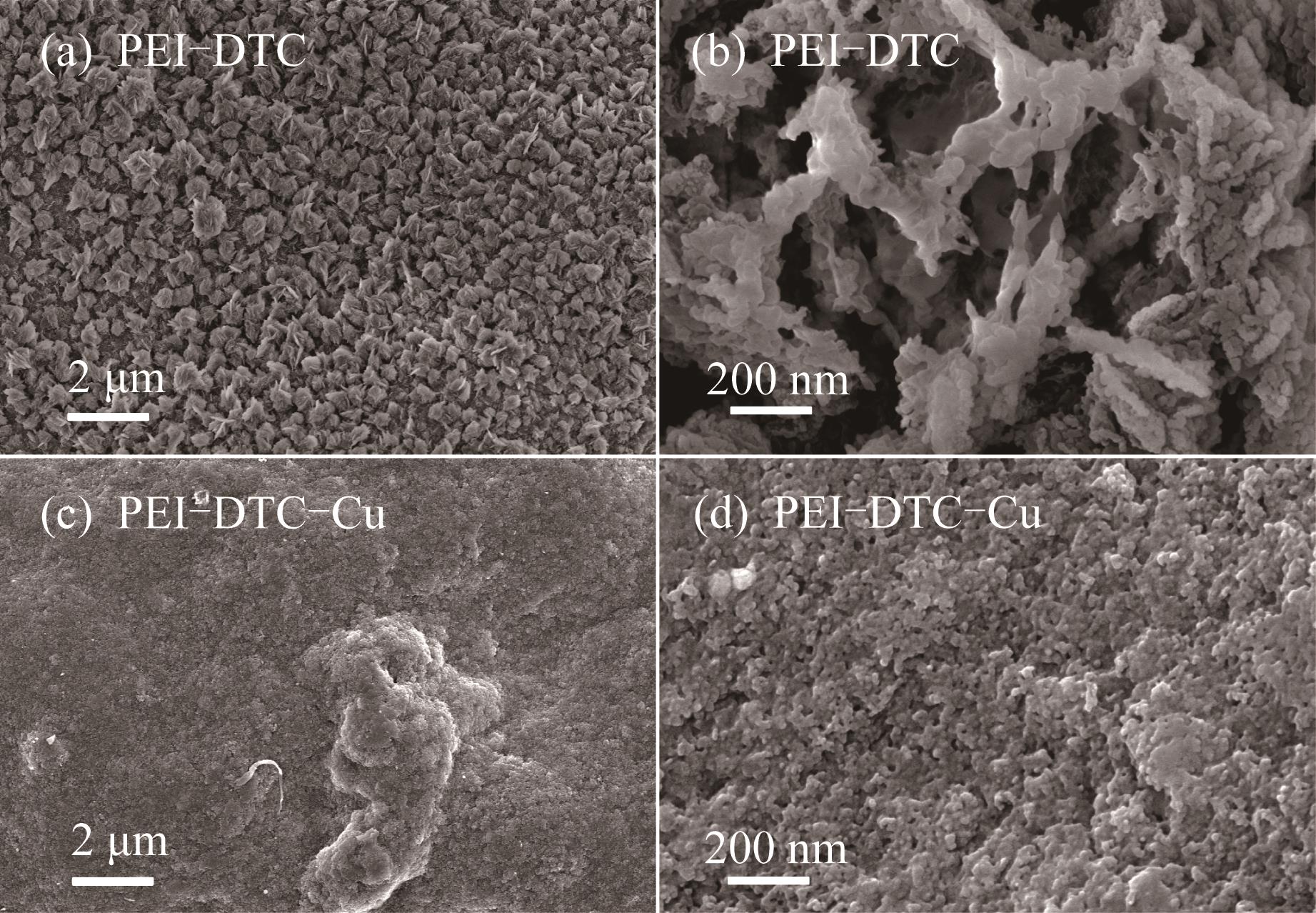

Fig.4 SEM analysis of PEI-DTC and PEI-DTC-Cu

Fig.5 SEM analysis of PEI-DTC and PEI-DTC-Cu

Fig.6 XRD analysis of PEI-DTC and PEI-DTC-Cu

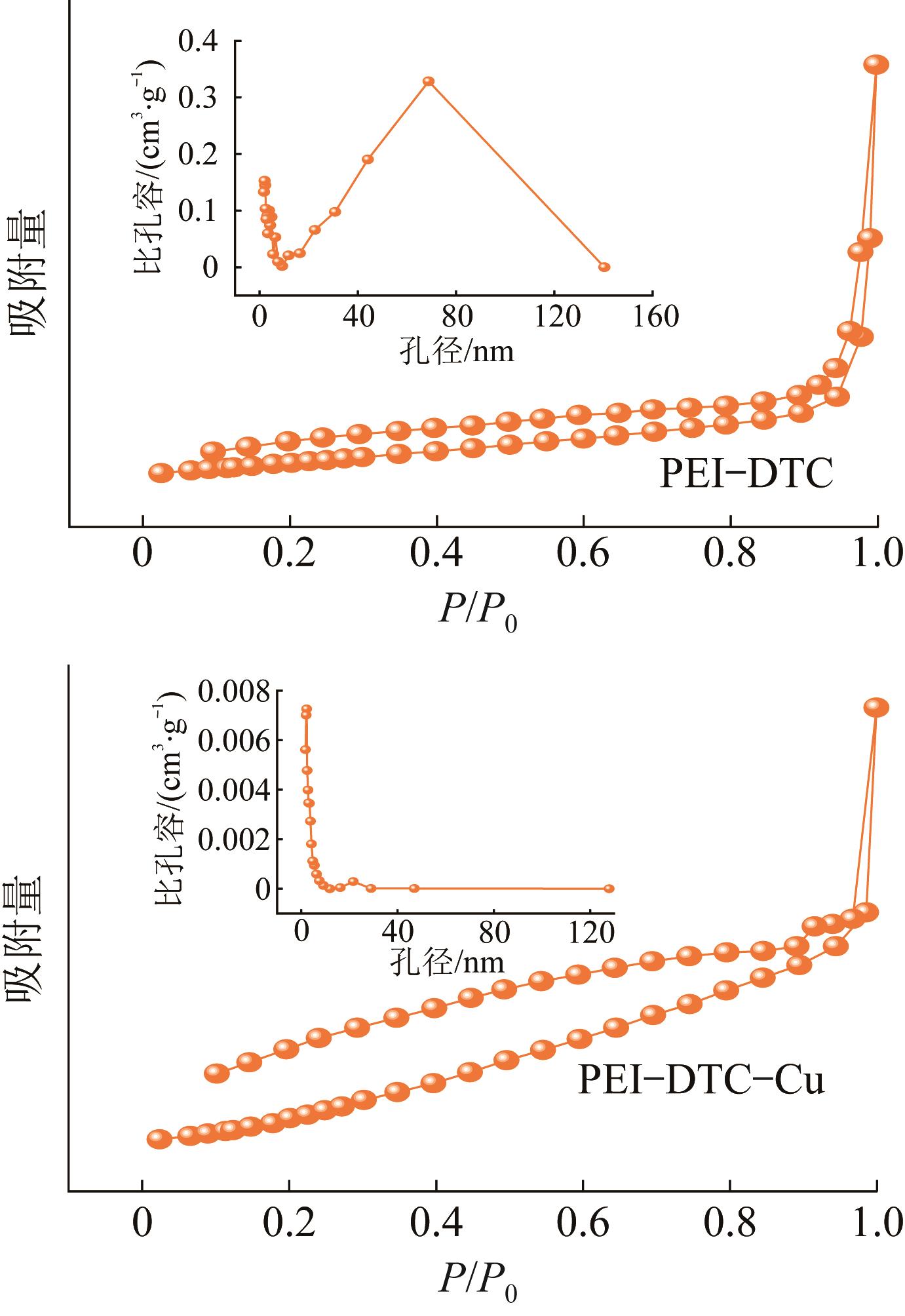

Fig.7 BET analysis of PEI-DTC and PEI-DTC-Cu

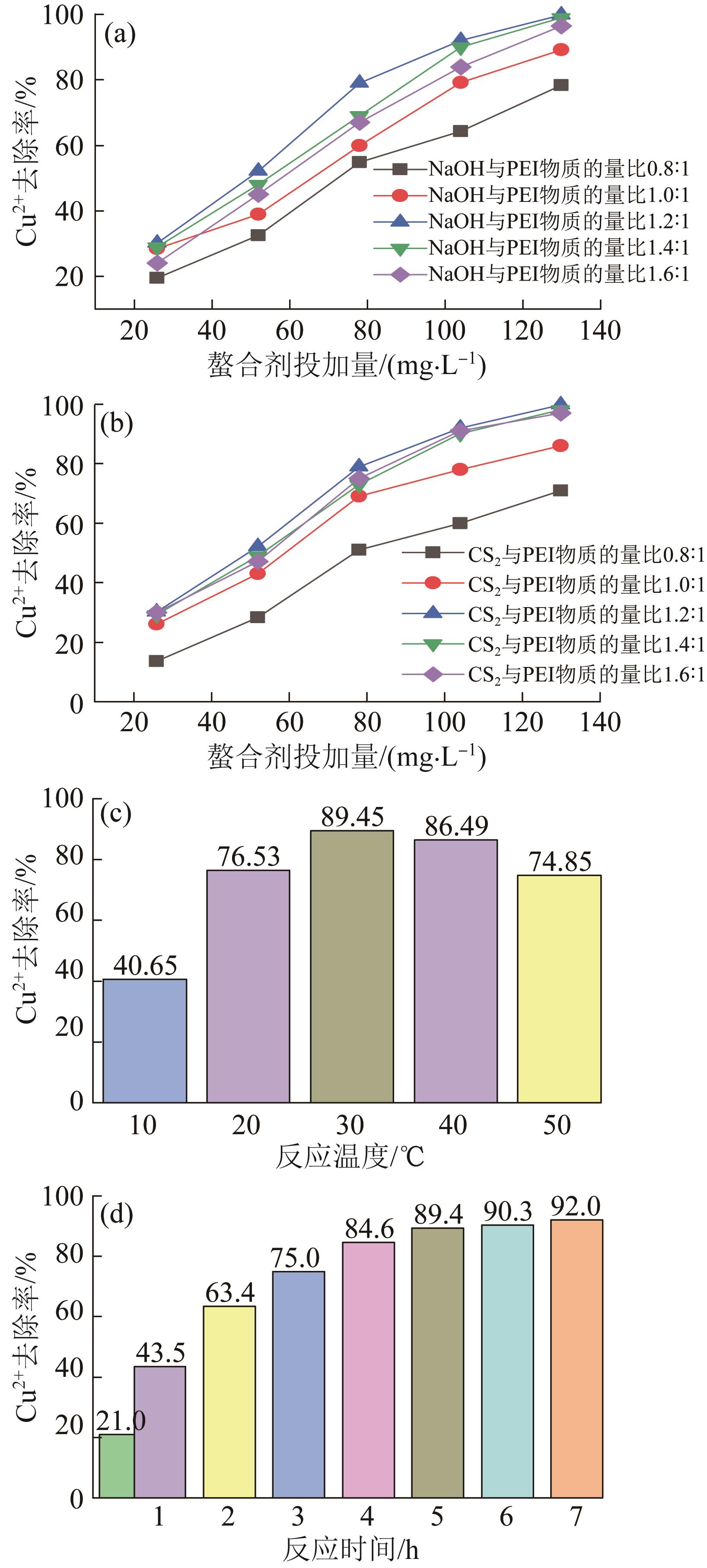

Fig.8 Effects of preparation conditions on the chelation performance of PEI-DTC

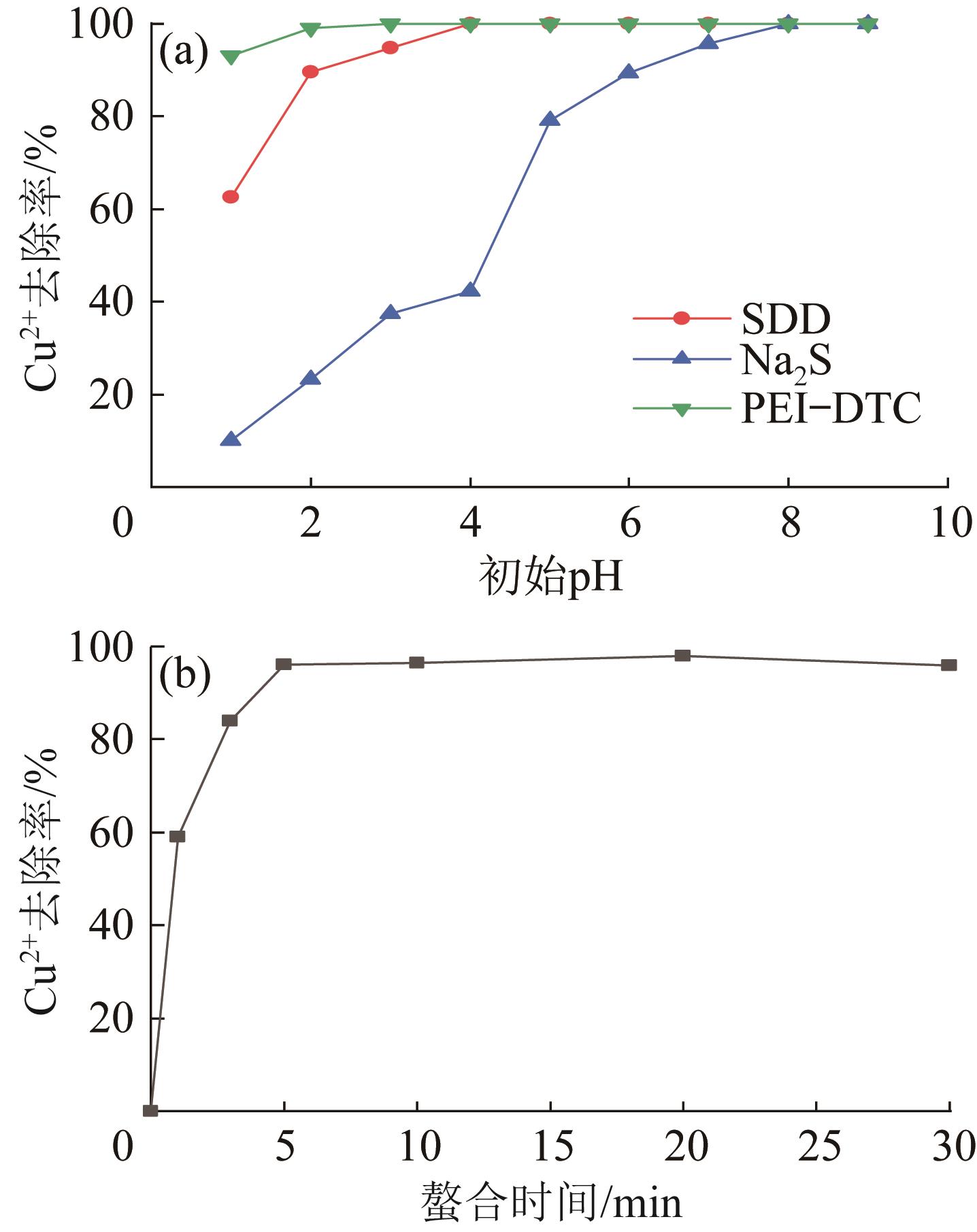

Fig.9 Effects of initial pH and chelation time of Cu²⁺solution

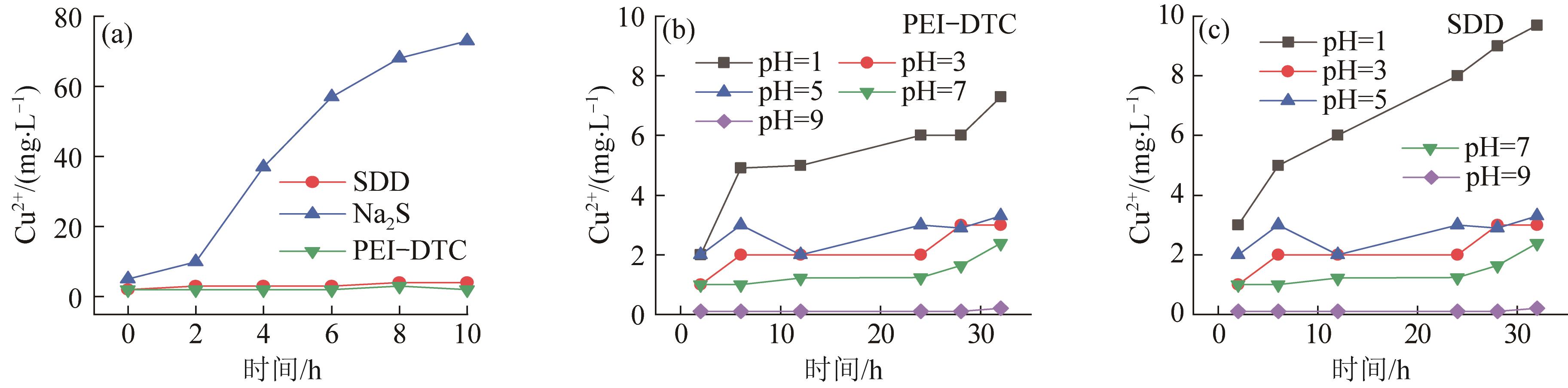

Fig.10 Chelation stability analysis

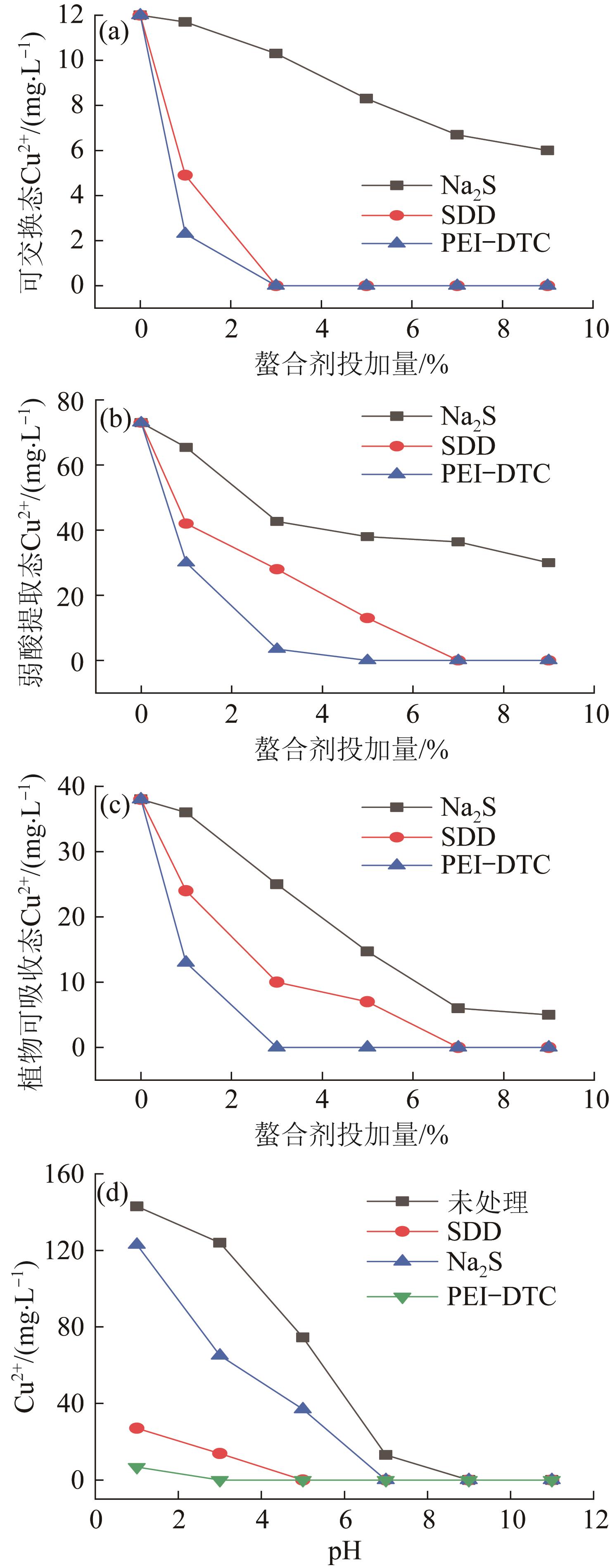

Fig.11 Cu²⁺curing analysis in soil

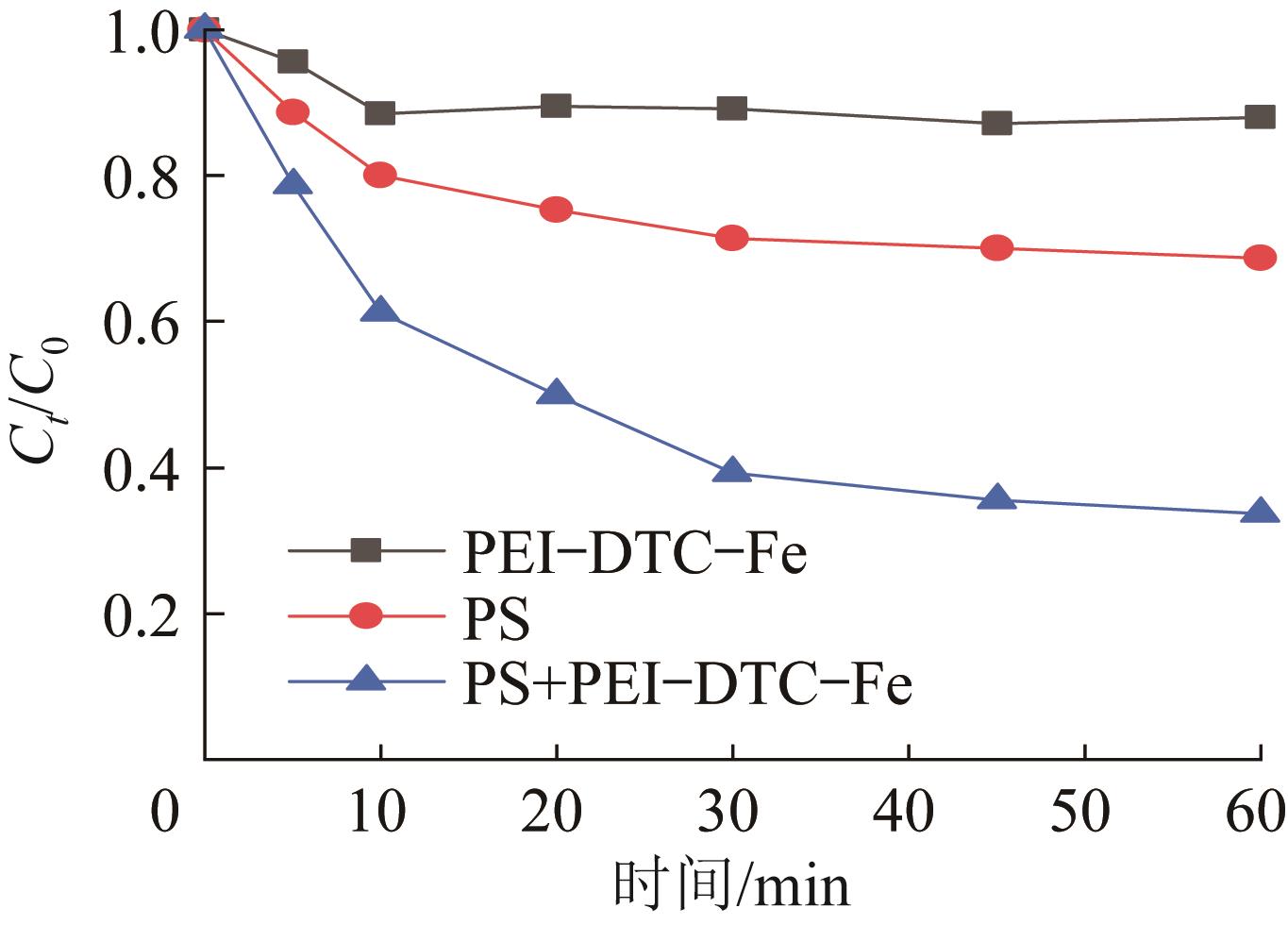

Fig.12 PEI-DTC-Fe catalytic degradation of OTC by PS

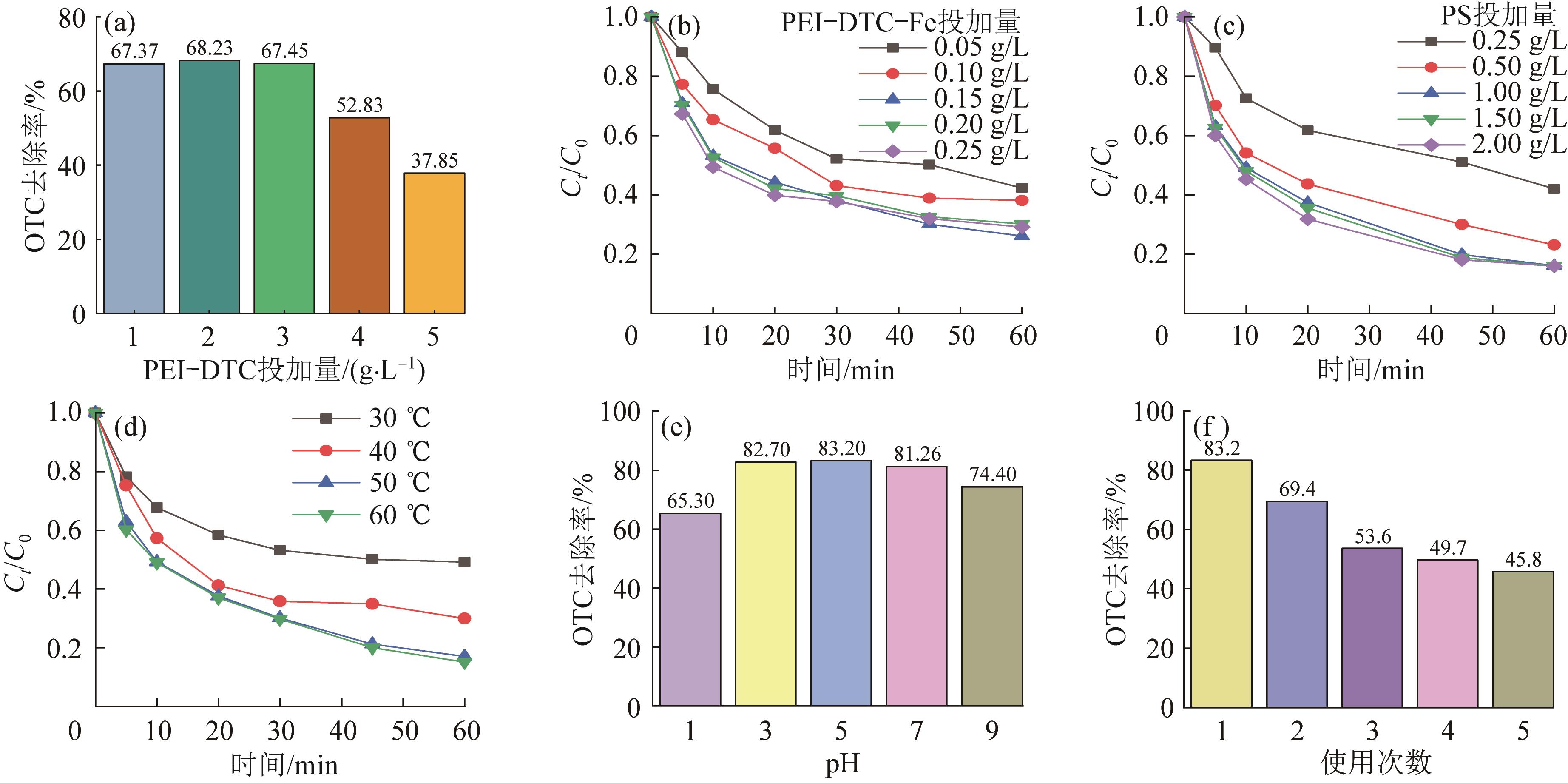

Fig.13 Effects of degradation conditions and stability analysis

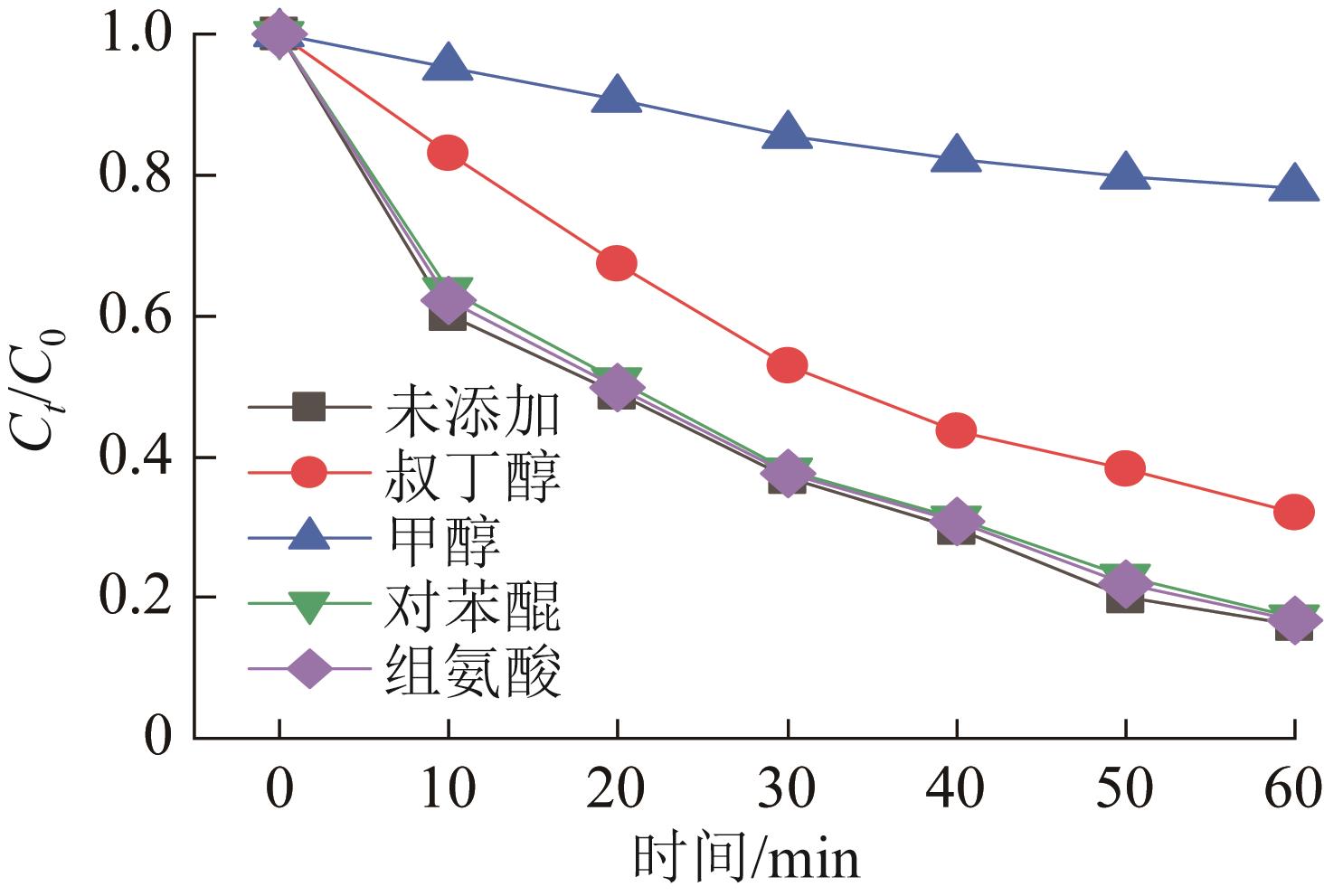

Fig.14 Quenching experiment
