Study on promoting biological denitrification of low carbon nitrogen ratio wastewater using agricultural waste carbon sources

doi:10.19965/j.cnki.iwt.2025-0018

Abstract

Abstract:

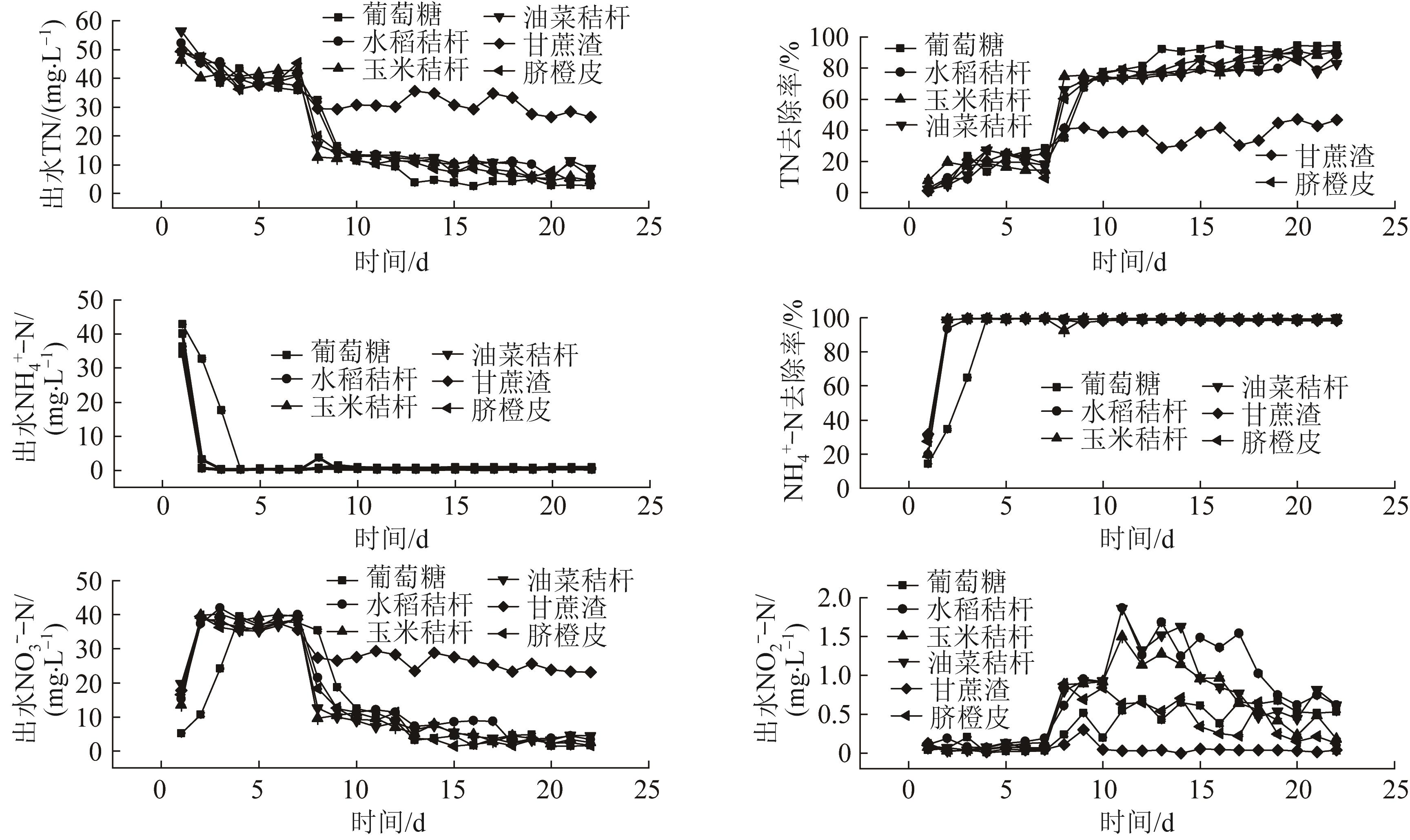

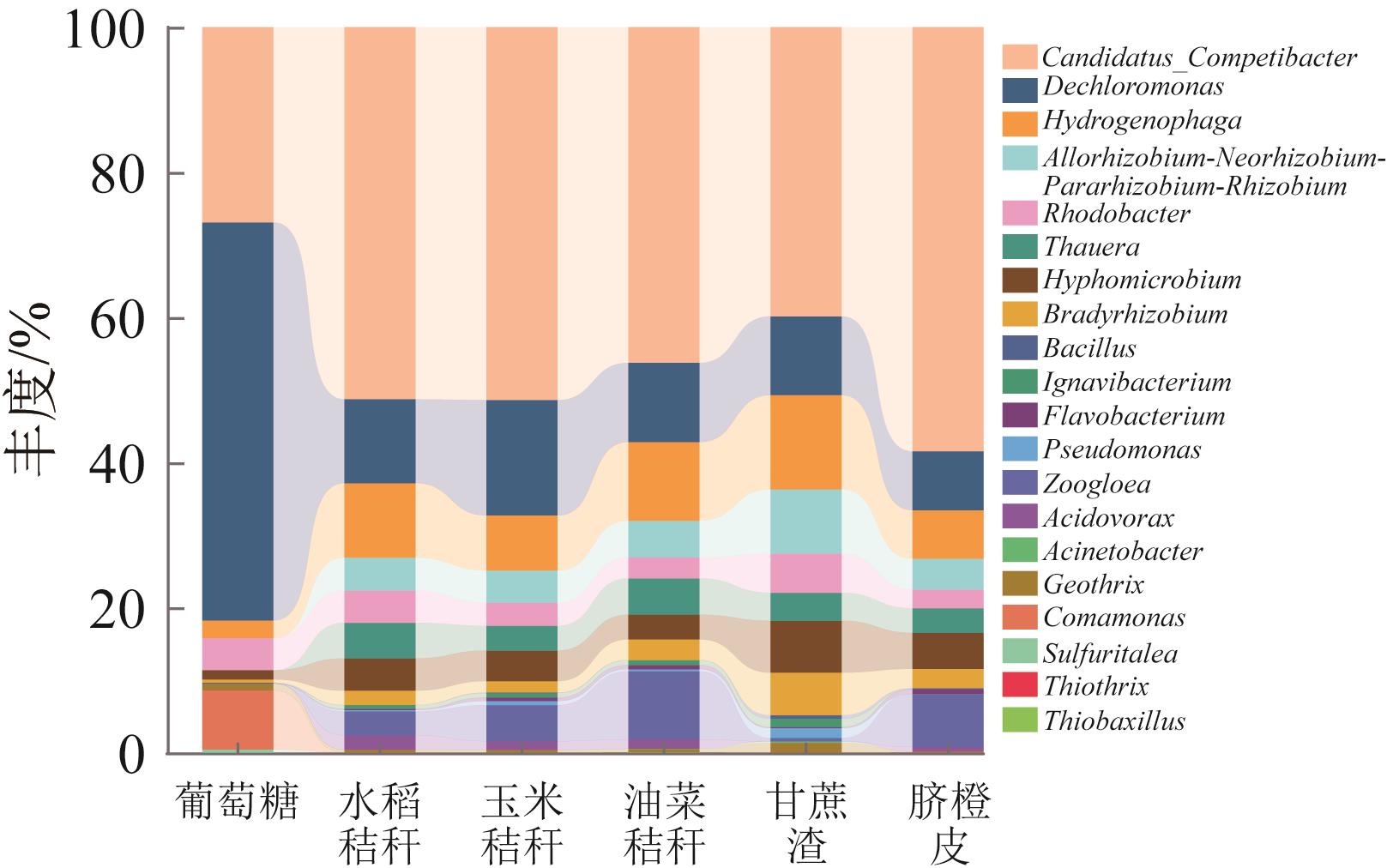

The scarcity of carbon source is a significant factor contributing to the poor denitrification efficiency of wastewater with low carbon to nitrogen(C/N) ratio. In this study, five types of agricultural waste fermentation broths were employed as carbon sources to assess their denitrification effectiveness on low C/N wastewater. The results indicated that the glucose treatment group exhibited the highest total nitrogen(TN) removal rate of 92.83%, followed by corn straw(88.76%), navel orange peel(88.55%), rapeseed straw(83.60%), and rice straw(82.47%). Bagasse had the lowest removal rate of 42.95%. Rice straw〔5.41 mg/(g·h)〕 and corn straw〔5.78 mg/(g·h)〕 exhibited the highest denitrification rate(V _DN) during the exogenous denitrification stage(EXD). Compared to the glucose treatment group, all five groups of agricultural waste fermentation broths significantly enhanced bacterial alpha diversity. Upon further analysis of 20 denitrification functional genera, it was observed that the fermentation broths of agricultural waste significantly increased the relative abundance of six genera, including Candidatus_Competibacter and Hydrogenophaga, compared to the glucose treatment group. However, the trends were reversed for Dechloromonas and Comamonas. In addition,the ratio of (nirK+nirS/nosZ) in the agricultural waste fermentation broth treatment group was significantly lower than that of glucose(P<0.05), which indicated that the agricultural waste fermentation liquid was more conducive to reducing the product ratio of nitrous oxide(N₂O) to nitrogen(N₂) than glucose. In conclusion, the carbon source of agricultural waste fermentation liquid(except bagasse) could not only effectively enhance the denitrification effect of low C/N wastewater, but also inhibited the production of N₂O in the denitrification process, which could be used as a green and efficient carbon source for denitrification.

Key words: denitrification, carbon source, agricultural waste, microorganism

摘要：

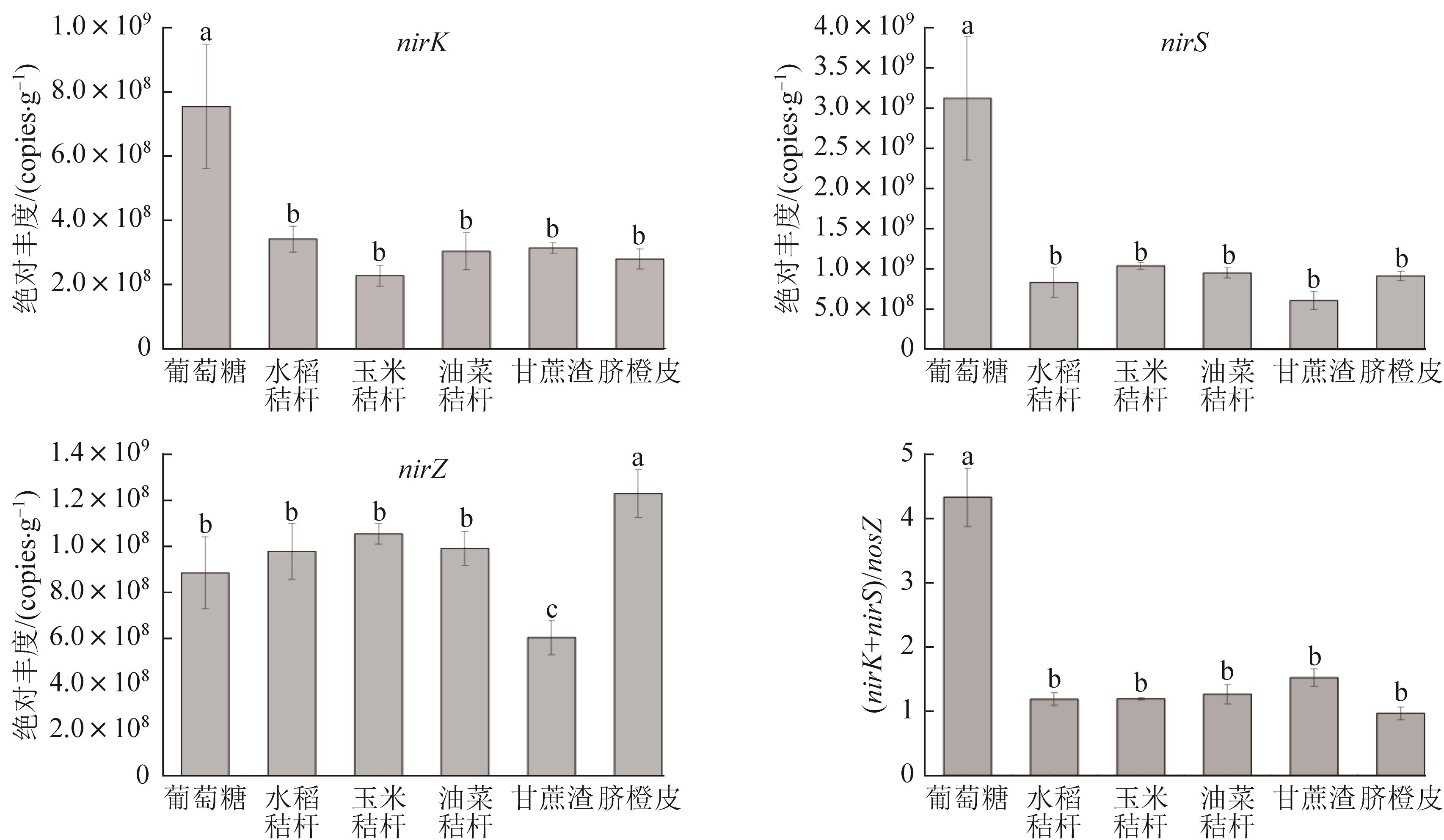

碳源不足是导致低碳氮比（C/N）污水脱氮效果不佳的重要原因。以5种农业废弃物发酵液为碳源，考察其对低C/N污水的脱氮效果。结果表明：葡萄糖处理组（对照）总氮（TN）去除率最高，达到92.83%，其次是玉米秸秆（88.76%）、脐橙皮（88.55%）、油菜秸秆（83.60%）和水稻秸秆（82.47%），甘蔗渣（42.95%）最低。水稻秸秆〔5.41 mg/（g·h）〕和玉米秸秆〔5.78 mg/（g·h）〕在外源反硝化阶段（EXD）反硝化速率（V _DN）表现最高。相较于葡萄糖处理组，5组农业废弃物发酵液均显著提高了细菌Alpha多样性。进一步对反硝化功能菌属（20个）分析发现，相较于葡萄糖处理组，农业废弃物发酵液显著提高了Candidatus_Competibacter和Hydrogenophaga等6个功能菌属的相对丰度，而Dechloromonas与Comamonas则相反。此外，农业废弃物发酵液处理组（nirK+nirS）/nosZ均显著低于葡萄糖（P<0.05），这意味着农业废弃物发酵液相较于葡萄糖更有利于降低一氧化二氮（N₂O）与氮气（N₂）的产物比。农业废弃物发酵液碳源（除甘蔗渣外）不仅能够有效提升低C/N污水的脱氮效果，同时有利于抑制反硝化过程中N₂O的产生，可作为绿色、高效的脱氮处理碳源。

关键词: 反硝化, 碳源, 农业废弃物, 微生物

CLC Number:

X703.1

Yipeng DUAN, Yongming WU, Xing'er ZHANG, Aiping TANG, Mi DENG, Yajun LIU. Study on promoting biological denitrification of low carbon nitrogen ratio wastewater using agricultural waste carbon sources[J]. Industrial Water Treatment, 2025, 45(12): 129-136.

段亦鹏, 吴永明, 张兴尔, 汤爱萍, 邓觅, 刘亚军. 利用农业废弃物碳源促进低碳氮比废水生物脱氮过程研究[J]. 工业水处理, 2025, 45(12): 129-136.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2025-0018

https://www.iwt.cn/EN/Y2025/V45/I12/129

Figures/Tables 10

References 20

[1]	王强，吴悦颖，文宇立，等. 中国污水处理设施建设现状与存在问题研究［J］. 环境污染与防治，2015，37（3）：94-97．
	WANG Qiang， WU Yueying， WEN Yuli，et al. Research on the status and problem of wastewater treatment facilities construction in China［J］. Environmental Pollution & Control，2015，37（3）：94-97．
[2]	ZHANG Zhiming， YU Zhuodong， DONG Jingjing，et al. Stability of aerobic granular sludge under condition of low influent C/N ratio：Correlation of sludge property and functional microorganism［J］. Bioresource Technology，2018，270：391-399． doi:10.1016/j.biortech.2018.09.045
[3]	郝晓地，魏洪禹，于文波，等. 硫自养反硝化技术优劣辨析［J］. 环境科学学报，2024，44（4）：1-10． doi:10.13671/j.hjkxxb.2024.0017
	HAO Xiaodi， WEI Hongyu， YU Wenbo，et al. Analysis of the pros and cons for sulfur autotrophic denitrification technology［J］. Acta Scientiae Circumstantiae，2024，44（4）：1-10． doi:10.13671/j.hjkxxb.2024.0017
[4]	SHI Yanping， LIU Tao， YU Hongtao，et al. Enhancing anoxic denitrification of low C/N ratio wastewater with novel ZVI composite carriers［J］. Journal of Environmental Sciences，2022，112：180-191． doi:10.1016/j.jes.2021.05.021
[5]	LIU Ruinan， XIA Lu， LIU Manxi，et al. Influence of the carbon source concentration on the nitrate removal rate in groundwater［J］. Environmental Technology，2022，43（22）：3355-3365． doi:10.1080/09593330.2021.1921053
[6]	FU Xinrong， HOU Rongrong， YANG Peng，et al. Application of external carbon source in heterotrophic denitrification of domestic sewage：A review［J］. Science of the Total Environment，2022，817：153061． doi:10.1016/j.scitotenv.2022.153061
[7]	ZHAO Yufeng， SONG Xinshan， CAO Xin，et al. Modified solid carbon sources with nitrate adsorption capability combined with nZVI improve the denitrification performance of constructed wetlands［J］. Bioresource Technology，2019，294：122189． doi:10.1016/j.biortech.2019.122189
[8]	MAHMOUD A， HAMZA R A， ELBESHBISHY E. Enhancement of denitrification efficiency using municipal and industrial waste fermentation liquids as external carbon sources［J］. Science of the Total Environment，2022，816：151578． doi:10.1016/j.scitotenv.2021.151578
[9]	黄胡林，付新梅，周正. 秸秆发酵液作污水反硝化脱氮外加碳源的潜能研究［J］. 工业水处理，2019，39（5）：42-45． doi:10.11894/iwt.2018-0531
	HUANG Hulin， FU Xinmei， ZHOU Zheng. Potential study on the nitrogen removal by denitrification in wastewater by adding the anaerobic fermentation liquid of the straw as an external carbon source［J］. Industrial Water Treatment，2019，39（5）：42-45． doi:10.11894/iwt.2018-0531
[10]	BU Fan， HU Xiang， XIE Li，et al. Cassava stillage and its anaerobic fermentation liquid as external carbon sources in biological nutrient removal［J］. Journal of Zhejiang University. Science. B，2015，16（4）：304-316． doi:10.1631/jzus.b1400106
[11]	LIU Feng， TIAN Yu， DING Yi，et al. The use of fermentation liquid of wastewater primary sedimentation sludge as supplemental carbon source for denitrification based on enhanced anaerobic fermentation［J］. Bioresource Technology，2016，219：6-13． doi:10.1016/j.biortech.2016.07.030
[12]	GE Shijian， PENG Yongzhen， WANG Shuying，et al. Nitrite accumulation under constant temperature in anoxic denitrification process：The effects of carbon sources and COD/NO₃ ^--N［J］. Bioresource Technology，2012，114：137-143． doi:10.1016/j.biortech.2012.03.016
[13]	GUO Yiding， GUO Liang， SUN Mei，et al. Effects of hydraulic retention time （HRT） on denitrification using waste activated sludge thermal hydrolysis liquid and acidogenic liquid as carbon sources［J］. Bioresource Technology，2017，224：147-156． doi:10.1016/j.biortech.2016.11.056
[14]	MA Jingwei， JI Yaning， FU Zhidong，et al. Performance of anaerobic/oxic/anoxic simultaneous nitrification，denitrification and phosphorus removal system overwhelmingly dominated by Candidatus_Competibacter：Effect of aeration time［J］. Bioresource Technology，2023，384：129312． doi:10.1016/j.biortech.2023.129312
[15]	LIU Xiawei， HUANG Manqi， BAO Shaopan，et al. Nitrate removal from low carbon-to-nitrogen ratio wastewater by combining iron-based chemical reduction and autotrophic denitrification［J］. Bioresource Technology，2020，301：122731． doi:10.1016/j.biortech.2019.122731
[16]	LI Dingchang， GAO Jingfeng， DAI Huihui，et al. Long-term responses of antibiotic resistance genes under high concentration of enrofloxacin，sulfadiazine and triclosan in aerobic granular sludge system［J］. Bioresource Technology，2020，312：123567． doi:10.1016/j.biortech.2020.123567
[17]	LI Huankai， ZHONG Yuming， HUANG Hui，et al. Simultaneous nitrogen and phosphorus removal by interactions between phosphate accumulating organisms （PAOs） and denitrifying phosphate accumulating organisms （DPAOs） in a sequencing batch reactor［J］. Science of the Total Environment，2020，744：140852． doi:10.1016/j.scitotenv.2020.140852
[18]	周星煜，张金松. 活性污泥反硝化速率与功能基因活性关联分析［J］. 给水排水，2022，58（）：711-717．
	ZHOU Xingyu， ZHANG Jinsong. Correlation analysis between denitrification rate of activated sludge and activity of functional genes［J］. Water & Wastewater Engineering，2022，58（S1）：711-717．
[19]	XU Zhongshuo， DAI Xiaohu， CHAI Xiaoli. Effect of different carbon sources on denitrification performance，microbial community structure and denitrification genes［J］. Science of the Total Environment，2018，634：195-204． doi:10.1016/j.scitotenv.2018.03.348
[20]	WU Gong， LIANG Fei， WU Qi，et al. Soil pH differently affects N₂O emissions from soils amended with chemical fertilizer and manure by modifying nitrification and denitrification in wheat-maize rotation system［J］. Biology and Fertility of Soils，2024，60（1）：101-113． doi:10.1007/s00374-023-01775-9

处理组	V _DN/（mg·g^-1·h^-1）		P _DN/（g·g^-1）	Y _H
处理组	EXD阶段	END阶段	P _DN/（g·g^-1）	Y _H
葡萄糖	4.87	0.23	0.26	0.26
水稻秸秆	5.41	0.22	0.25	0.29
玉米秸秆	5.78	0.22	0.26	0.25
油菜秸秆	4.79	0.21	0.25	0.29
甘蔗渣	2.50	0.10	0.18	0.49
脐橙皮	4.76	0.24	0.29	0.16

处理组	V _DN/（mg·g^-1·h^-1）		P _DN/（g·g^-1）	Y _H
处理组	EXD阶段	END阶段	P _DN/（g·g^-1）	Y _H
葡萄糖	4.87	0.23	0.26	0.26
水稻秸秆	5.41	0.22	0.25	0.29
玉米秸秆	5.78	0.22	0.26	0.25
油菜秸秆	4.79	0.21	0.25	0.29
甘蔗渣	2.50	0.10	0.18	0.49
脐橙皮	4.76	0.24	0.29	0.16

处理组	ACE指数	Chao 1指数	Shannon指数	Simpson指数	pielou_e指数
葡萄糖	411.39±101.82b	406.29±96.25b	5.96±0.02b	0.967 2±0.004b	0.691 4±0.024b
水稻秸秆	896.25±106.60a	890.62±104.33a	8.95±0.10a	0.997 3±0.001a	0.913 8±0.006a
玉米秸秆	920.87±41.87a	912.83±40.09a	9.00±0.09a	0.997 4±0.001a	0.916 0±0.006a
油菜秸秆	1 009.76±84.37a	1 001.04±78.73a	9.13±0.11a	0.997 5±0.001a	0.916 9±0.001a
甘蔗渣	891.07±153.48a	885.55±148.77a	9.05±0.15a	0.997 5±0.001a	0.926 6±0.008a
脐橙皮	911.61±109.16a	904.66±105.79a	8.90±0.13a	0.997 1±0.001a	0.907 6±0.006a

处理组	ACE指数	Chao 1指数	Shannon指数	Simpson指数	pielou_e指数
葡萄糖	411.39±101.82b	406.29±96.25b	5.96±0.02b	0.967 2±0.004b	0.691 4±0.024b
水稻秸秆	896.25±106.60a	890.62±104.33a	8.95±0.10a	0.997 3±0.001a	0.913 8±0.006a
玉米秸秆	920.87±41.87a	912.83±40.09a	9.00±0.09a	0.997 4±0.001a	0.916 0±0.006a
油菜秸秆	1 009.76±84.37a	1 001.04±78.73a	9.13±0.11a	0.997 5±0.001a	0.916 9±0.001a
甘蔗渣	891.07±153.48a	885.55±148.77a	9.05±0.15a	0.997 5±0.001a	0.926 6±0.008a
脐橙皮	911.61±109.16a	904.66±105.79a	8.90±0.13a	0.997 1±0.001a	0.907 6±0.006a
