Degradation of bisphenol A using a self-generated Fenton reagent in a water treatment system

doi:10.19965/j.cnki.iwt.2025-0202

Abstract

Abstract:

On the basis of microbial fuel cells, a carbon fiber brush electrode enriched with iron reducing bacteria was used as the biocathode to form a bioanode-biocathode fuel cell. Combined with carbon nanotubes and polytetrafluoroethylene modified carbon felt as the cathode electrolytic cell unit, a three-chamber self-generated Fenton reagent water treatment system was constructed. The microbial composition, in-situ production capacity of Fe²⁺ and H₂O₂, and the biodegradation and Fenton oxidation degradation performances of bisphenol A(BPA) in the system were investigated. The results indicated that Geobacter was the main electricity producing microorganism on the biological anode, and there were strong iron reducing microorganisms Comamonas and Acinetobacter present on the biological cathode. Under the optimized conditions of pH=4.5 in the biological cathode chamber, citric acid addition of 0.3 mmol/L, electrolytic cell unit voltage of 3.0 V, and aeration rate of 40 mL/min, the mass concentrations of Fe²⁺ and H₂O₂ produced by the system were 10 mg/L and 30 mg/L, respectively. The degradation rate of 5 mg/L BPA in synthetic wastewater by the biocathode was 31.0%. After further adding 5 mg/L of self-generated H₂O₂ from the system for Fenton oxidation, the total degradation rate of BPA by the system increased to 93.1%. In addition, the system also had a good explanatory effect on BPA in actual wastewater.

Key words: microbial fuel cell, biocathode, electrolytic cell, iron sludge recycling, bisphenol A

摘要：

在微生物燃料电池的基础上，采用富集铁还原菌的碳纤维刷电极作为生物阴极，构成生物阳极-生物阴极燃料电池，并结合碳纳米管和聚四氟乙烯改性碳毡作为阴极的电解池单元，构建三室自产Fenton试剂水处理系统。考察了该系统中微生物组成、Fe²⁺和H₂O₂的原位生产能力以及对双酚A（BPA）的生物降解与Fenton氧化降解性能。结果表明，Geobacter为生物阳极上主要的产电微生物，生物阴极存在具有较强铁还原功能的微生物Comamonas和Acinetobacter。在生物阴极室pH=4.5、柠檬酸添加量0.3 mmol/L、电解池单元电压3.0 V、曝气量40 mL/min的优化条件下，系统自产Fe²⁺和H₂O₂的质量浓度分别为10 mg/L和30 mg/L。生物阴极对合成废水中5 mg/L BPA的降解率为31.0%，进一步投加5 mg/L系统自产H₂O₂进行Fenton氧化后，系统对BPA的总降解率提升至93.1%。此外，系统对实际废水中的BPA也具有较好的降解效果。

关键词: 微生物燃料电池, 生物阴极, 电解池, 铁泥循环, 双酚A

CLC Number:

X703
O646.5

Peijian ZHANG, Sheng ZHANG, Changyong WU, Yougang XU, Yunian HU, Min XU. Degradation of bisphenol A using a self-generated Fenton reagent in a water treatment system[J]. Industrial Water Treatment, 2026, 46(2): 150-159.

张培健, 张胜, 吴昌永, 许有刚, 胡宇年, 徐敏. 自产Fenton试剂水处理系统降解双酚A的研究[J]. 工业水处理, 2026, 46(2): 150-159.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2025-0202

https://www.iwt.cn/EN/Y2026/V46/I2/150

Figures/Tables 13

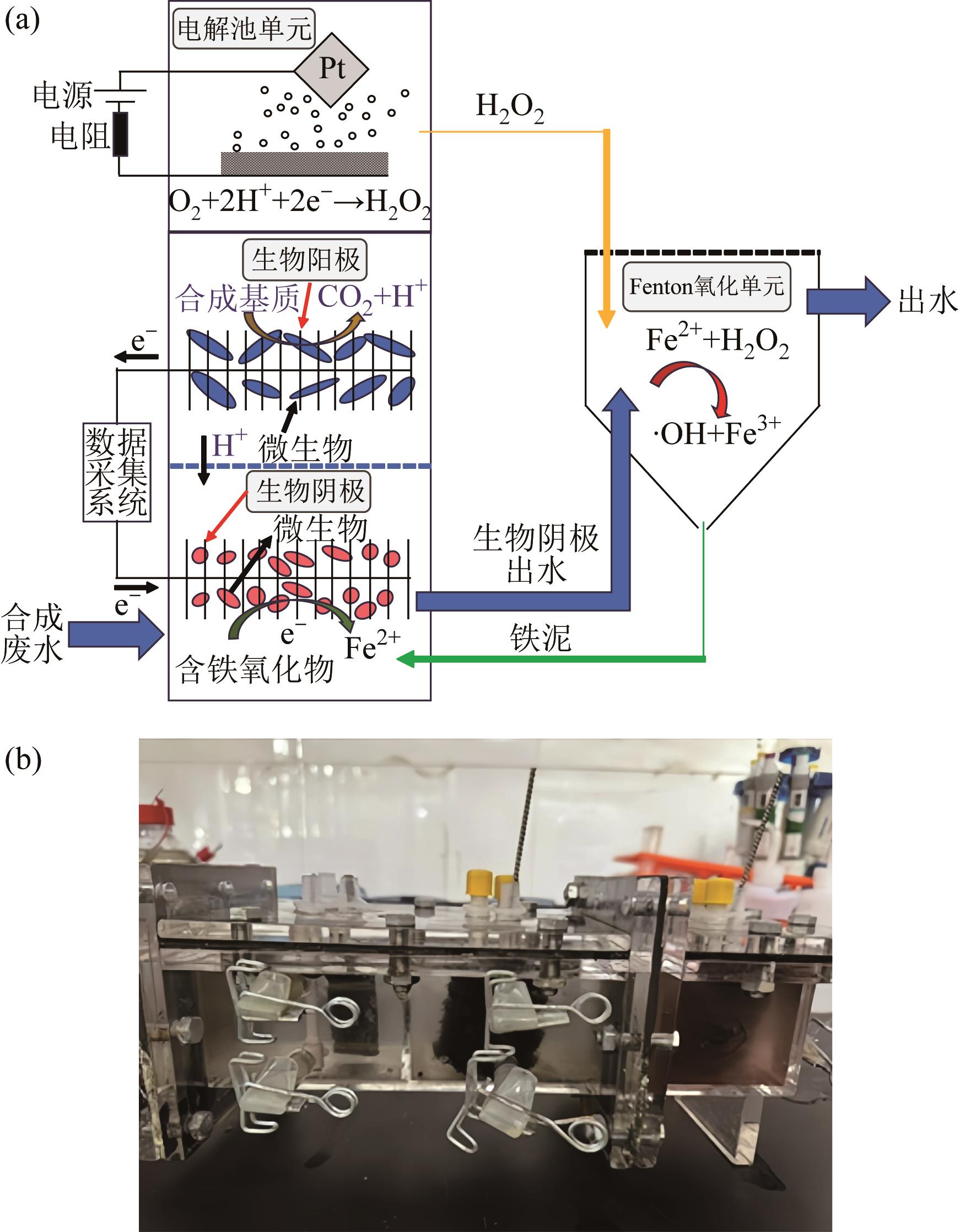

Fig.1 Schematic diagram of the reaction apparatus（a） and photograph of the actual device（b）

Table 1 Composition of bioanode synthetic matrix

项目	试剂	混合前各组分溶液质量浓度/（g‧L^-1）
乙酸钠	乙酸钠（C₂H₃NaO₂）	1.00
缓冲溶液	二水合磷酸二氢钠（NaH₂PO₄‧2H₂O）	3.32
	十二水磷酸氢二钠（Na₂HPO₄‧12H₂O）	10.36
	氯化铵（NH₄Cl）	0.31
	氯化钾（KCl）	0.31
维生素溶液	叶酸（C₁₉H₁₉N₇O₆）	0.30
	烟酸（C₆H₅NO₂）	0.50
	维生素B₁（C₁₂H₁₇N₄OS⁺）	0.50
	对氨基苯甲酸（C₇H₇NO₂）	0.50
	维生素B₂（C₁₇H₂₀N₄O₆）	0.50
金属盐溶液	七水硫酸镁（MgSO₄‧7H₂O）	6.14
	硫酸锰（MnSO₄‧H₂O）	0.56
	氯化钠（NaCl）	1.00
	七水合硫酸亚铁（FeSO₄‧7H₂O）	0.10
	二水氯化钙（CaCl₂‧2H₂O）	0.10
	硫酸锌（ZnSO₄）	0.15
	五水硫酸铜（CuSO₄‧5H₂O）	0.01

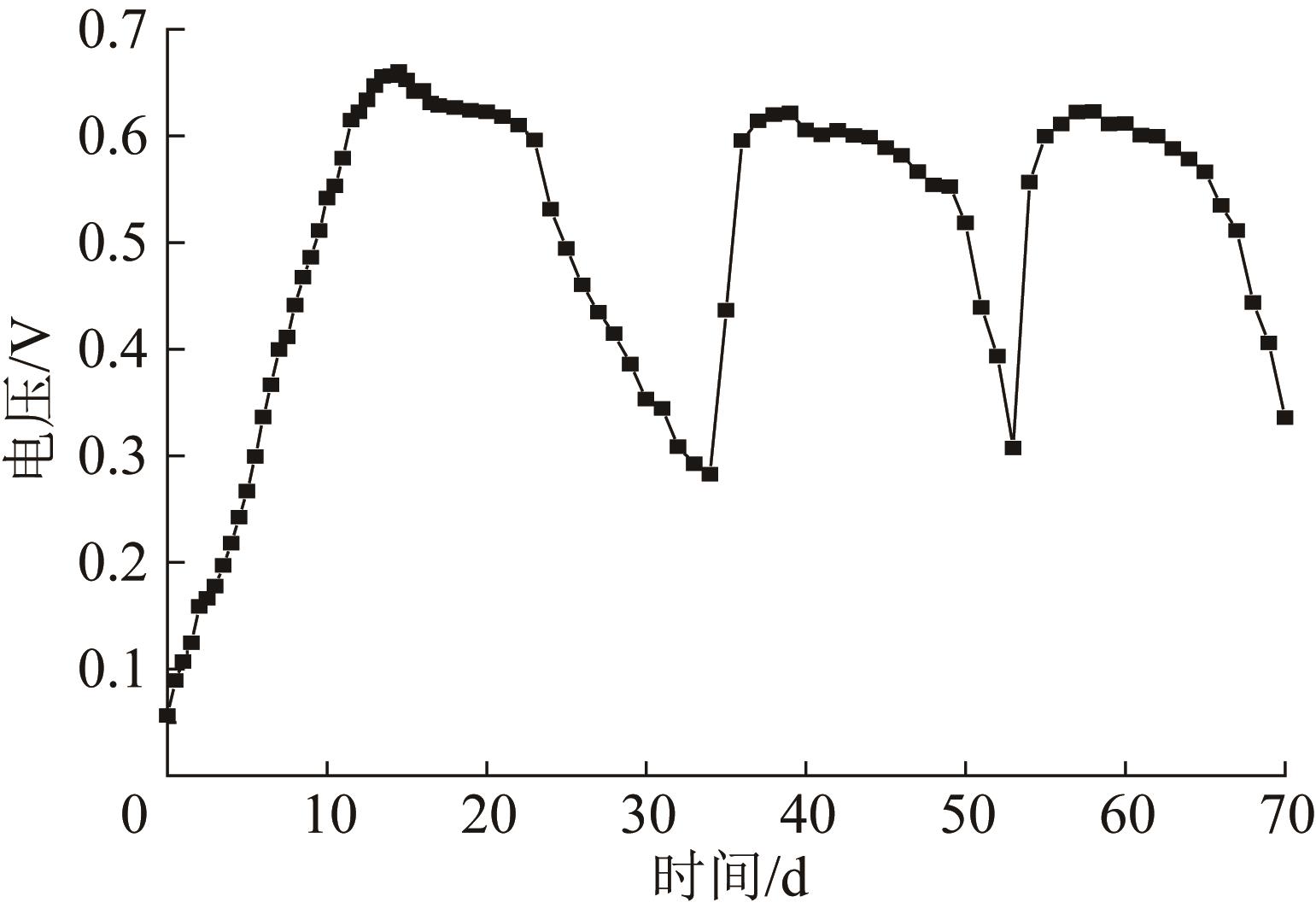

Fig.2 Output voltage of the bioanode during the enrichment cultivation stage of electrogenic microorganisms

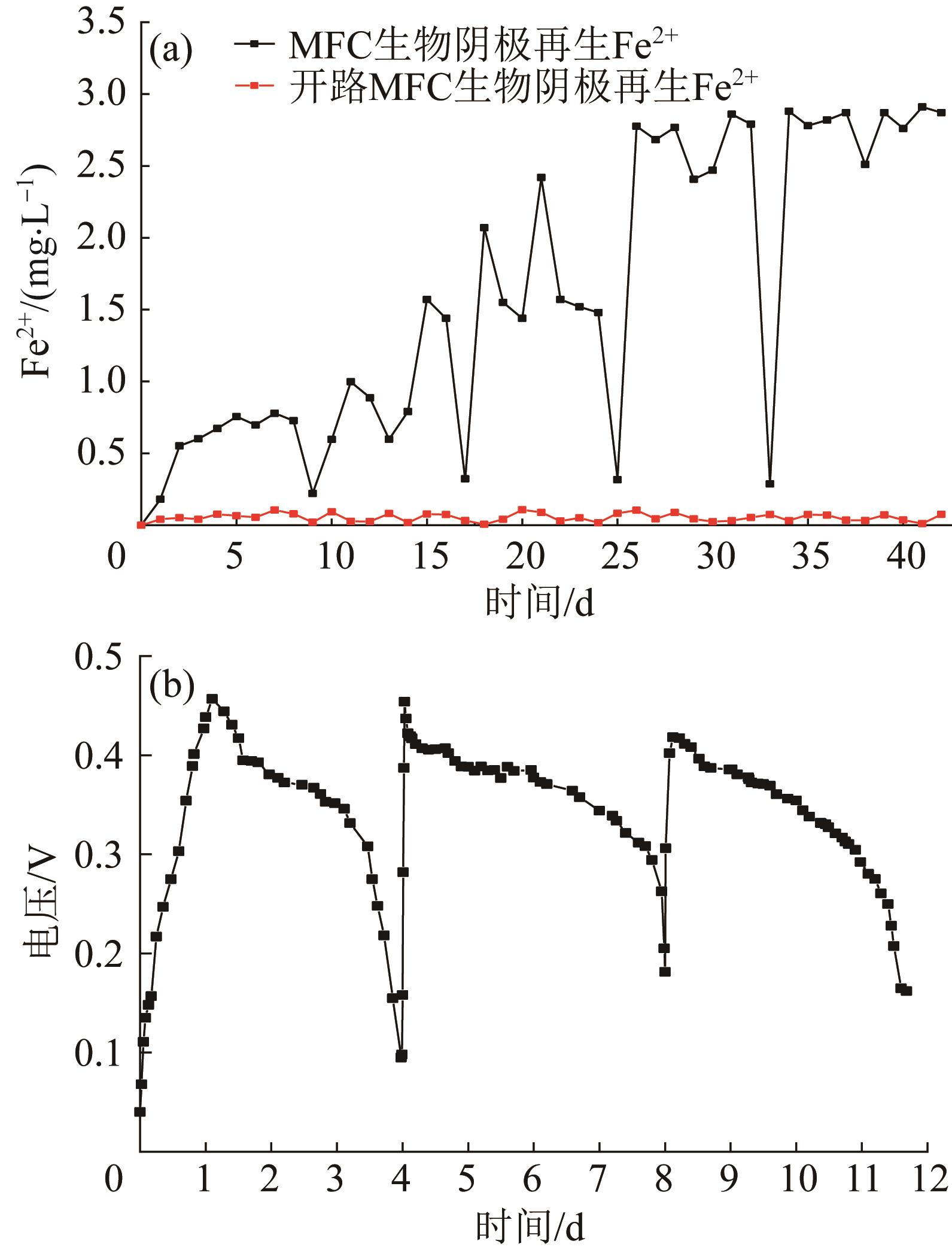

Fig.3 The variation in Fe²⁺ production with operating time after MFC startup （a）， and the change in output voltage with testing time after biocathode acclimation completion（b）

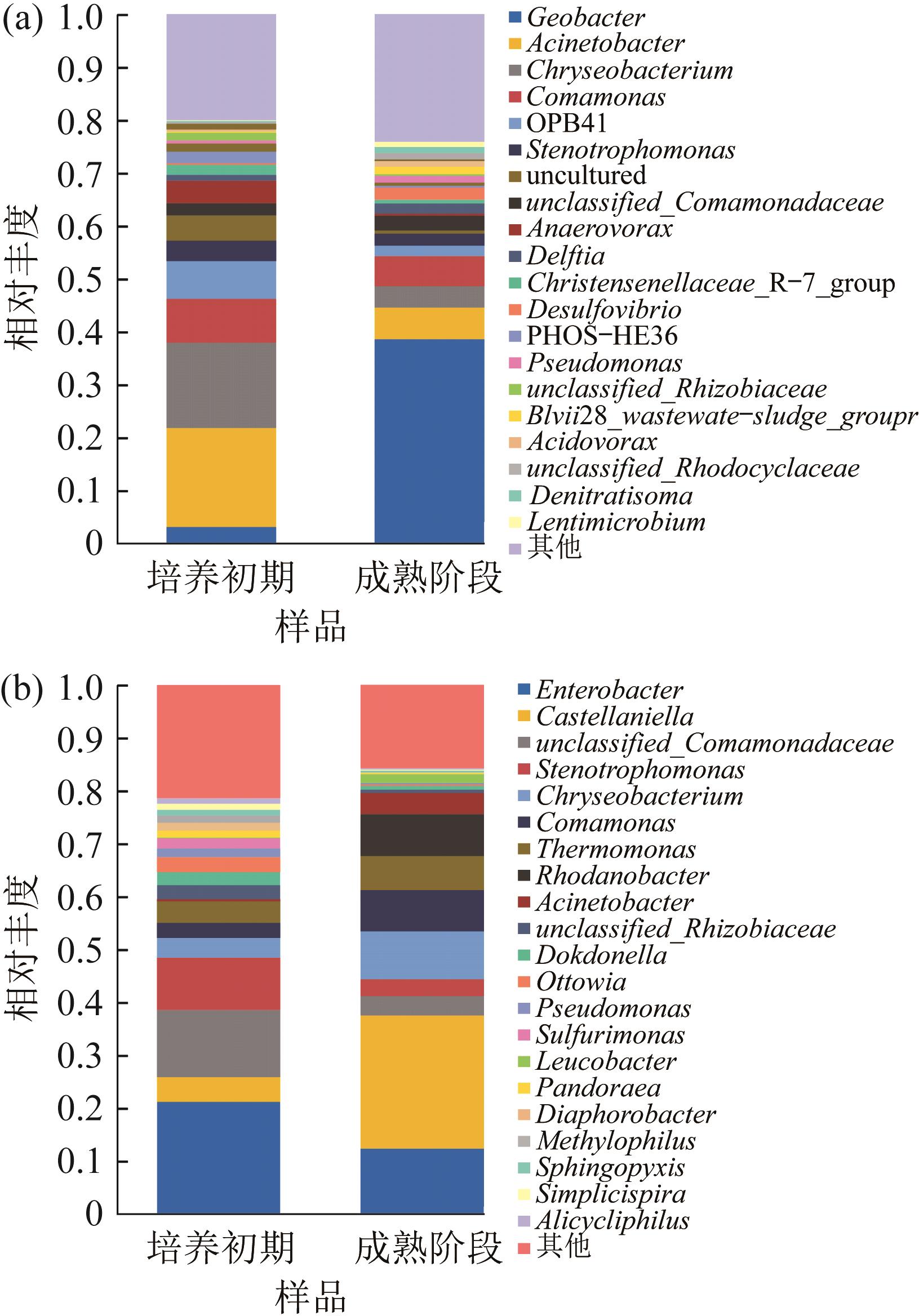

Fig.4 Microbial compositions at the genus level for the bioanode （a） and biocathode （b）

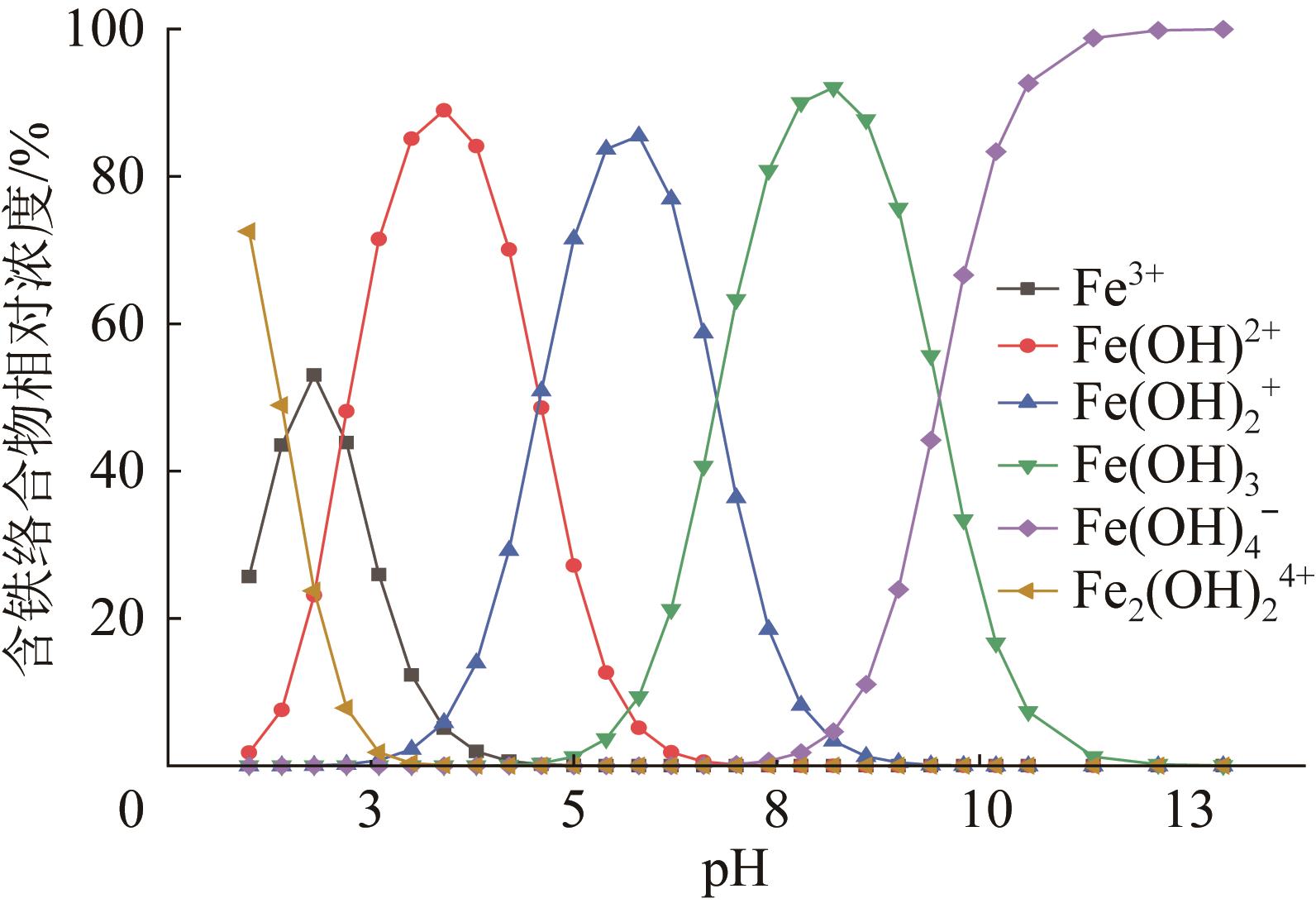

Fig.5 The morphology change of Fe³⁺ with pH

Fig.6 Mass concentration of Fe²⁺ in the cathode chamber under different pH conditions

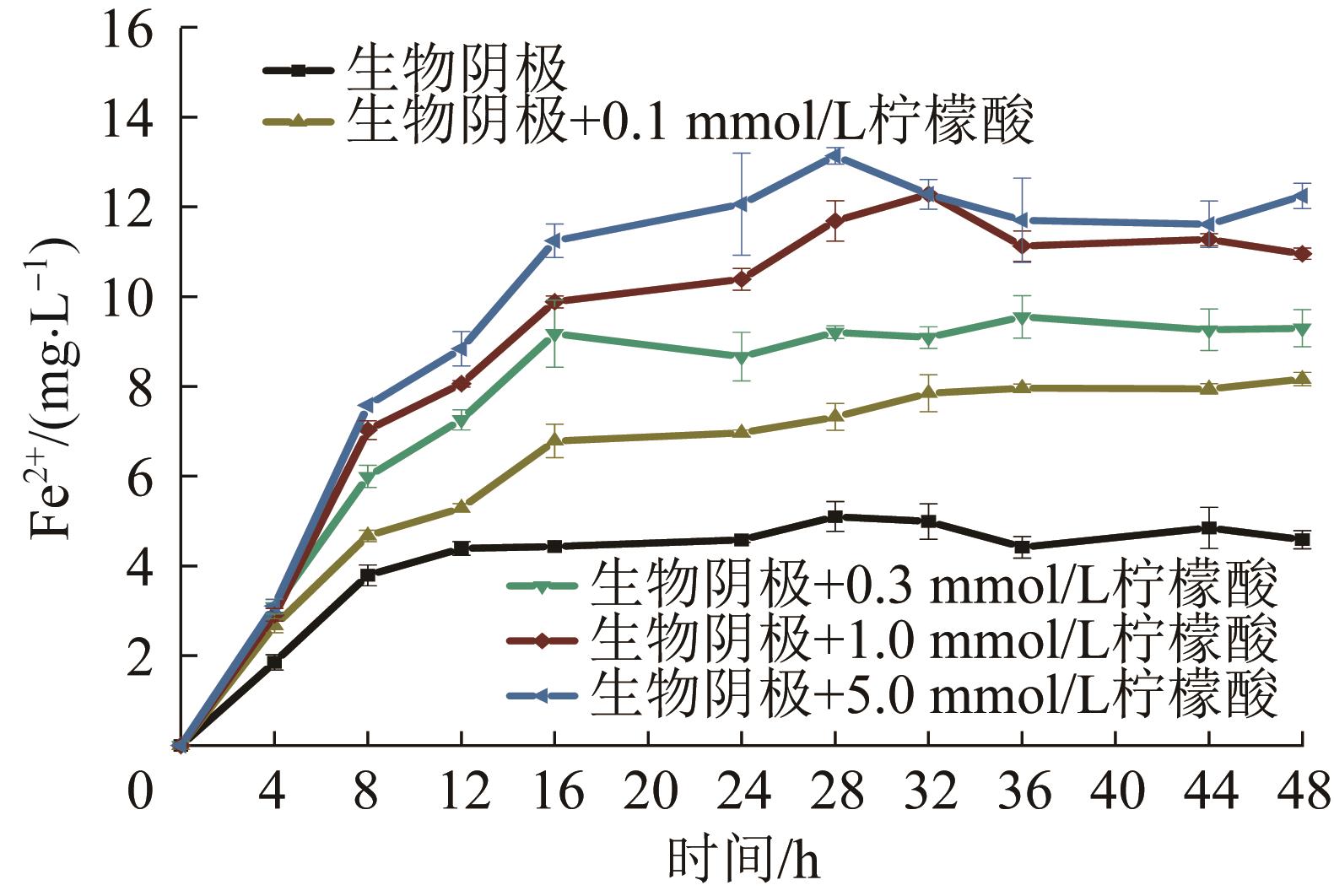

Fig.7 Effect of citrate enhancement on Fe²⁺ regeneration by the biocathode

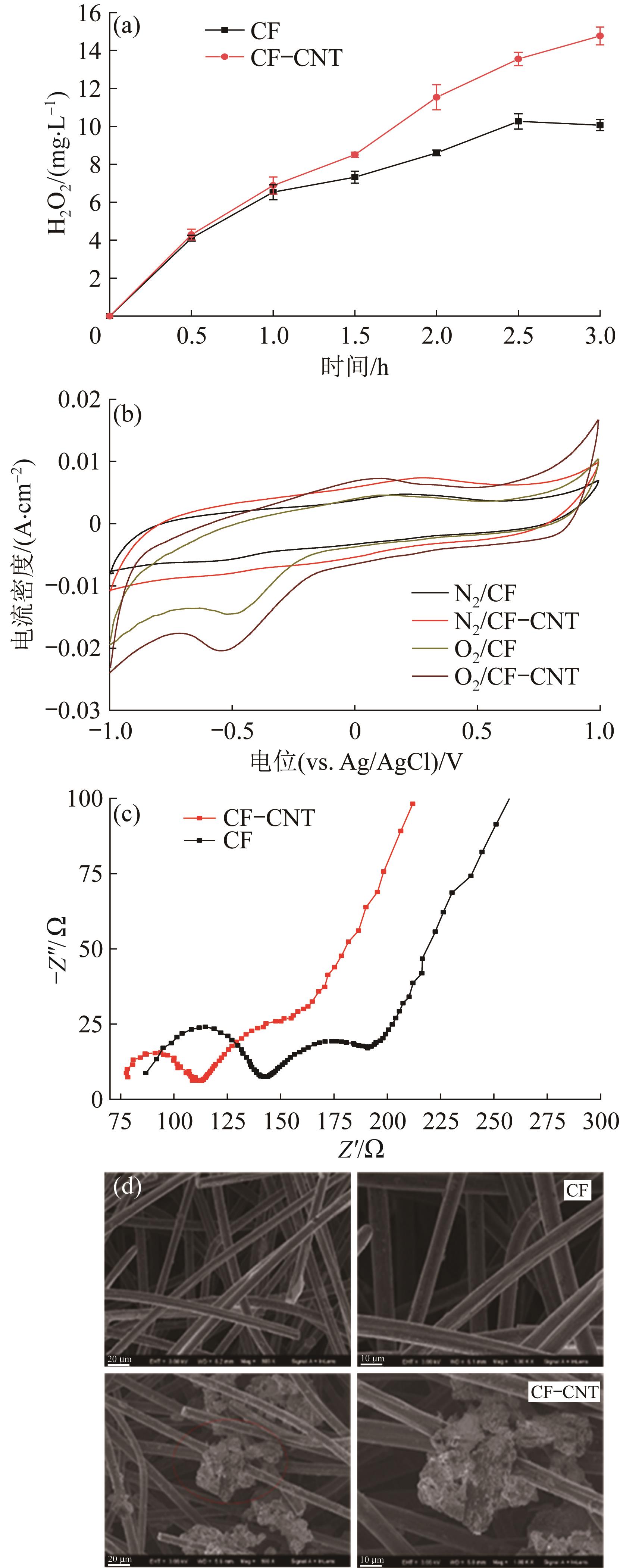

Fig.8 H₂O₂ production performances（a），cyclic voltammetry curves（b） and Nyquist curves（c），and SEM images of CF and CF-CNT electrodes（d）

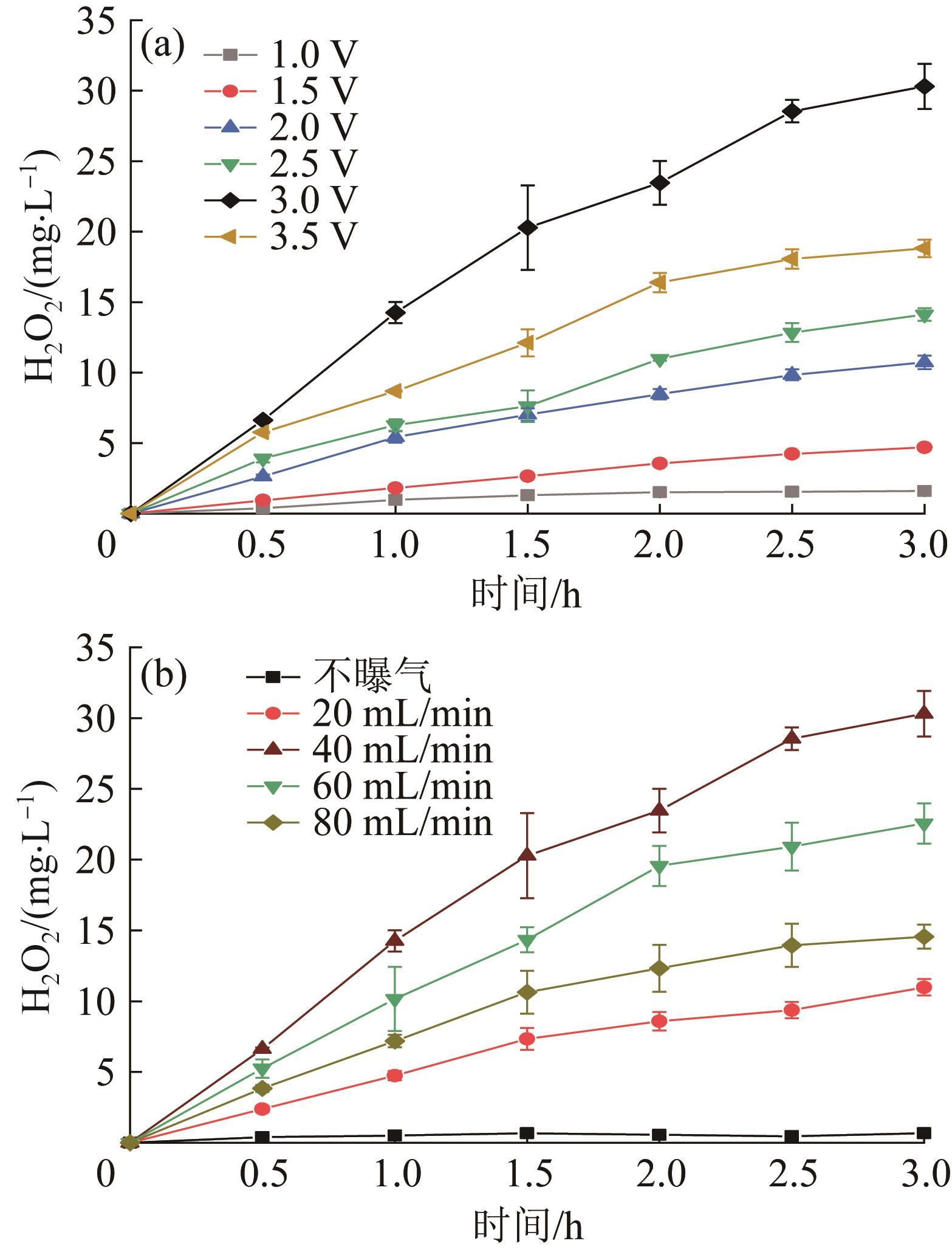

Fig.9 The influence of voltage （a） and aeration rate （b） on the H₂O₂ production performance of Pt/CF-CNT electrolysis cell

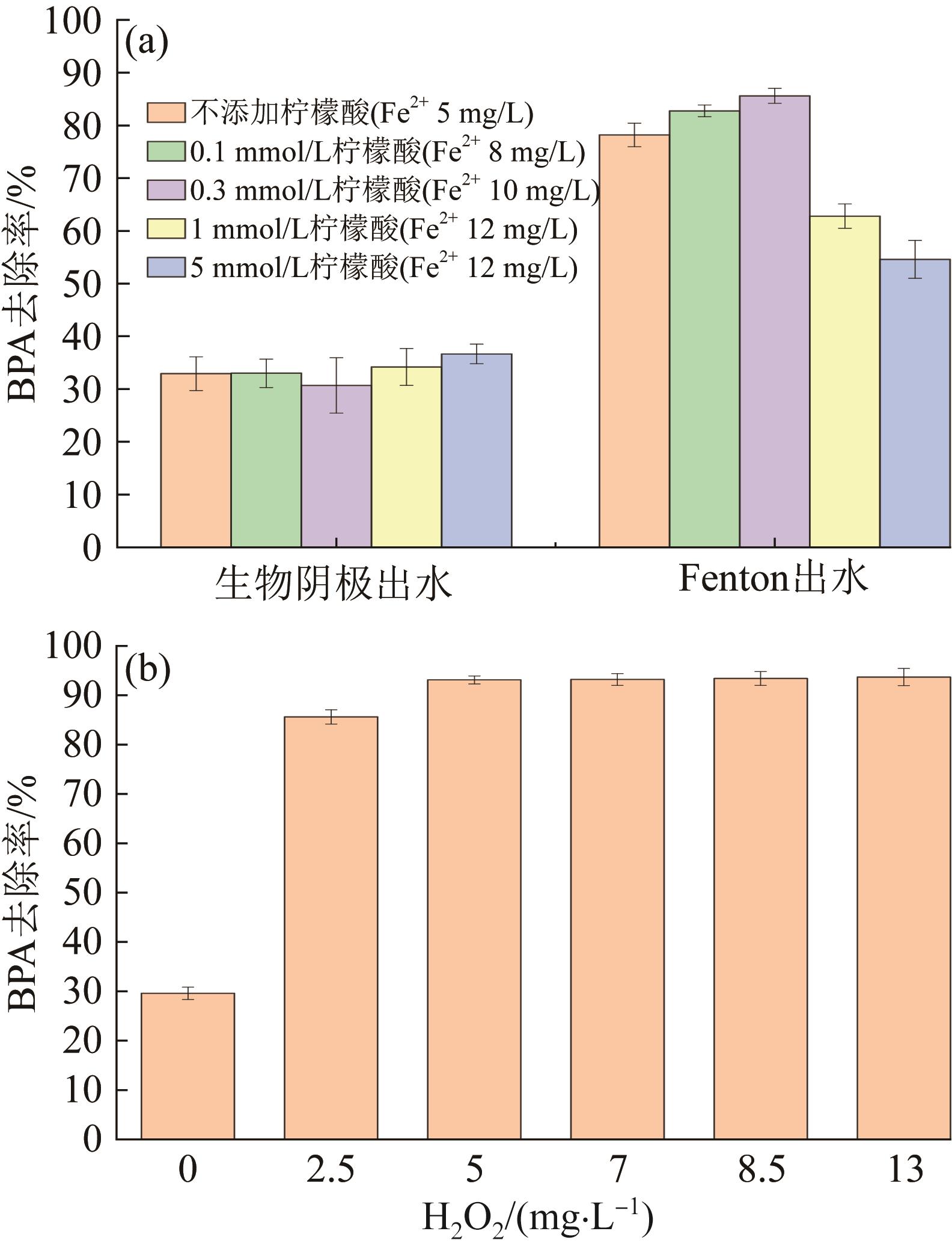

Fig.10 The influence of citric acid concentration （a） and H₂O₂ concentration （b） on the degradation of BPA in the system

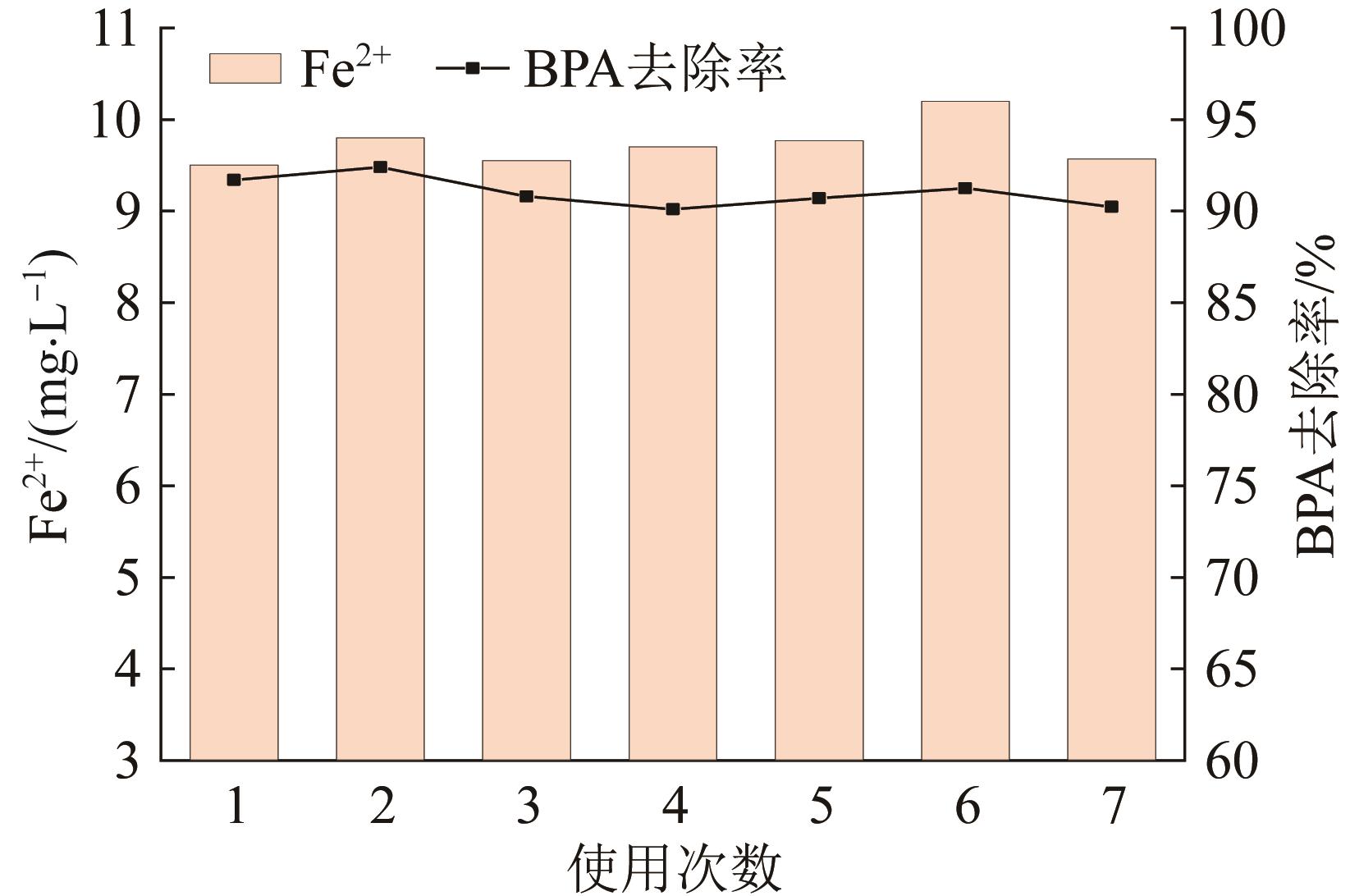

Fig.11 Recycling performance of iron sludge within the system

Fig.12 Degradation performance of the system for BPA in real wastewater

References 31

[1]	李华瑞. 氧化亚铜基催化剂/过硫酸盐体系降解双酚A的效能与机理［D］. 哈尔滨：哈尔滨工业大学，2022.
	LI Huarui. Efficiency and mechanism of degradation of bisphenol A by cuprous oxide-based catalyst/persulfate system［D］. Harbin：Harbin Institute of Technology，2022.
[2]	REEVES K W， SCHNEIDER S， XUE Jingchuan，et al. Bisphenol-A in breast adipose tissue of breast cancer cases and controls［J］. Environmental Research，2018，167：735-738. doi:10.1016/j.envres.2018.08.033
[3]	CHEN Derui， MA Chenwei， ZHANG Qiang，et al. Construction of bifunctional S-doped N-deficient carbon nitride for efficient simultaneous photocatalytic H₂O₂ synthesis and BPA degradation［J］. Surfaces and Interfaces，2024，52：104886. doi:10.1016/j.surfin.2024.104886
[4]	CAO Jiazhen， LI Jun， YANG Bo，et al. Gambling of homogeneous and heterogeneous Fenton in wastewater treatment［J］. Cell Reports Physical Science，2024，5（5）：101966. doi:10.1016/j.xcrp.2024.101966
[5]	LI Xiaohu， CHEN Si， ANGELIDAKI I，et al. Bio-electro-Fenton processes for wastewater treatment：Advances and prospects［J］. Chemical Engineering Journal，2018，354：492-506. doi:10.1016/j.cej.2018.08.052
[6]	LIU Shuhui， CHEN Guanyi， LIN Chiwen. Optimized microbial fuel cell-powered electro-Fenton processes to enhance electricity and bisphenol A removal by varying external resistance and electrolyte concentrations［J］. Bioelectrochemistry，2024，160：108782. doi:10.1016/j.bioelechem.2024.108782
[7]	AN S， YOON Y， AHN J H，et al. Oxidative degradation of bisphenol A by bio-Fenton reaction equipped with glucose oxidase and ferric citrate：Degradation kinetics and pathway［J］. Journal of Environmental Chemical Engineering，2023，11（2）：109349.
[8]	姜凤成，徐潇，张传兵，等. Fenton铁泥组分分析及在废水处理中的应用［J］. 工业水处理，2024，44（12）：40-49.
	JIANG Fengcheng， XU Xiao， ZHANG Chuanbing，et al. Analysis of Fenton iron sludge and application in wastewater treatment［J］. Industrial Water Treatment，2024，44（12）：40-49.
[9]	LI Chao， HU Shaogang， JI Chengcheng，et al. Insight into the pseudocapacitive behavior of electroactive biofilms in response to dynamic-controlled electron transfer and metabolism kinetics for current generation in water treatment［J］. Environmental Science & Technology，2023，57（48）：19891-19901.
[10]	WANG Guan， TANG Kai， HAMBLY A C，et al. Sustainable and reagentless Fenton treatment of complex wastewater［J］. Environmental Science & Technology，2023，57（1）：626-634. doi:10.1021/acs.est.2c06702
[11]	李华伟. 异化铁还原菌协同含铁矿物对黑臭水体的净化机制研究［D］. 淄博：山东理工大学，2022.
	LI Huawei. Study on purification mechanism of black and odorous water by dissimilatory iron-reducing bacteria combined with iron-containing minerals［D］. Zibo：Shandong University of Technology，2022.
[12]	刘欢. 间歇电刺激强化含硫酸盐废水厌氧消化产甲烷作用及机制［D］. 盐城：盐城工学院，2024.
	LIU Huan. Intermittent electrical stimulation enhances methane production by anaerobic digestion of sulfate-containing wastewater and its mechanism［D］. Yancheng：Yancheng Institute of Technology，2024.
[13]	LU Yue， HU Yingju， TANG Lin，et al. Effects and mechanisms of modified biochars on microbial iron reduction of Geobacter sulfurreducens ［J］. Chemosphere，2021，283：130983.
[14]	邢金良，张岩，陈昌明，等. CEM-UF组合膜-硝化/反硝化系统处理低C/N废水及种群结构分析［J］. 环境科学，2018，39（3）：1342-1349.
	XING Jinliang， ZHANG Yan， CHEN Changming，et al. Analysis of low C/N wastewater treatment and structure by the CEM-UF combined membrane-nitrification/denitrification system［J］. Environmental Science，2018，39（3）：1342-1349.
[15]	王思祺，严伟富，赵峰，等. 基于微生物电化学技术的萘普生高盐废水处理［J］. 环境化学，2020，39（4）：1137-1144.
	WANG Siqi， YAN Weifu， ZHAO Feng，et al. Treatment of naproxen high-salt wastewater based on microbial electrochemical technology［J］. Environmental Chemistry，2020，39（4）：1137-1144.
[16]	陈苏娟. 北高丛蓝莓（Vaccinium corymbosum）根际土壤性质、根系代谢组与植株生长不良的关系及其机制研究［D］. 南京：南京农业大学，2019. doi:10.1016/j.apsoil.2019.02.015
	CHEN Sujuan. Study on the relationship between rhizosphere soil properties，root metabolomics and poor plant growth of Vaccinium corymbosum and its mechanism［D］. Nanjing：Nanjing Agricultural University，2019. doi:10.1016/j.apsoil.2019.02.015
[17]	CHAUDHARI P N， CHAUDHARI B L， CHINCHOLKAR S B. Iron containing keratinolytic metallo-protease produced by Chryseobacterium gleum ［J］. Process Biochemistry，2013，48（1）：144-151. doi:10.1016/j.procbio.2012.11.009
[18]	WANG Guan， JIANG Yufeng， TANG Kai，et al. Efficient recovery of dissolved Fe（Ⅱ） from near neutral pH Fenton via microbial electrolysis［J］. Journal of Hazardous Materials，2022，436：129196. doi:10.1016/j.jhazmat.2022.129196
[19]	阮复昌，莫炳禄，徐国想，等. 铁系净水剂混凝过程的计算机模拟［J］. 化学反应工程与工艺，1998，14（1）：66-70.
	RUAN Fuchang， MO Binglu， XU Guoxiang，et al. Computer simulation for the coagulation of iron-based water clarifying agent［J］. Chemical Reaction Engineering and Technology，1998，14（1）：66-70.
[20]	WANG Mingwei， ZHAO Zhiqiang， ZHANG Yaobin. Disposal of Fenton sludge with anaerobic digestion and the roles of humic acids involved in Fenton sludge［J］. Water Research，2019，163：114900. doi:10.1016/j.watres.2019.114900
[21]	TANG Hongxiao， STUMM W. The coagulating behaviors of Fe（Ⅲ） polymeric species：Ⅰ. Preformed polymers by base addition［J］. Water Research，1987，21（1）：115-121. doi:10.1016/0043-1354(87)90106-0
[22]	ZHOU Chunshuang， CAO Guangli， WU Xiukun，et al. Removal of antibiotic resistant bacteria and genes by nanoscale zero-valent iron activated persulfate：Implication for the contribution of pH decrease［J］. Journal of Hazardous Materials，2023，452：131343. doi:10.1016/j.jhazmat.2023.131343
[23]	黄柳琴，李林鑫，蒋宏忱. BIFs的形成及其铁氧化机制研究进展与展望［J］. 地学前缘，2023，30（2）：333-346.
	HUANG Liuqin， LI Linxin， JIANG Hongchen. Formation and iron oxidation mechanisms of BIFs：Research progress review and outlook［J］. Earth Science Frontiers，2023，30（2）：333-346.
[24]	VILLEGAS-GUZMAN P， GIANNAKIS S， RTIMI S，et al. A green solar photo-Fenton process for the elimination of bacteria and micropollutants in municipal wastewater treatment using mineral iron and natural organic acids［J］. Applied Catalysis B：Environmental，2017，219：538-549. doi:10.1016/j.apcatb.2017.07.066
[25]	ZHANG Yifeng， WANG Yong， ANGELIDAKI I. Alternate switching between microbial fuel cell and microbial electrolysis cell operation as a new method to control H₂O₂ level in bioelectro-Fenton system［J］. Journal of Power Sources，2015，291：108-116.
[26]	WANG Zhongjuan， DU Ye， ZHOU Peng，et al. Strategies based on electron donors to accelerate Fe（Ⅲ）/Fe（Ⅱ） cycle in Fenton or Fenton-like processes［J］. Chemical Engineering Journal，2023，454：140096. doi:10.1016/j.cej.2022.140096
[27]	杜茂华，李皓芯，任婧，等. 改性阴极生物电芬顿系统降解罗丹明B［J］. 中国环境科学，2021，41（4）：1681-1688.
	DU Maohua， LI Haoxin， REN Jing，et al. Electricity production and Rhodation B degradation in bioelectric Fenton system with modified cathode［J］. China Environmental Science，2021，41（4）：1681-1688.
[28]	冯凡，郭波，曹群，等. 改性CNT负载纳米铁阴极的电芬顿法降解左氧氟沙星［J］. 中国环境科学，2024. DOI：10.19674/j.cnki.issn1000-6923.20240325.007 .
	FENG Fan， GUO Bo， CAO Qun，et al. Degradation of levofloxacin by modified CNT-loaded nano-iron cathode by Fenton method［J］. China Industrial Economics，2024. DOI：10.19674/j.cnki.issn 1000-6923.20240325.007 .
[29]	姜跃. 混凝联用双阳极电Fenton处理印染废水及铁泥资源化研究［D］. 南昌：南昌大学，2024.
	JIANG Yue. Study on the treatment of dyeing wastewater by double anode electro-Fenton combined with coagulation process and iron sludge resource recovery［D］. Nanchang：Nanchang University，2024.
[30]	LI Xiaohu， ANGELIDAKI I， ZHANG Yifeng. Salinity-gradient energy driven microbial electrosynthesis of hydrogen peroxide［J］. Journal of Power Sources，2017，341：357-365. doi:10.1016/j.jpowsour.2016.12.030
[31]	LING Ting， HUANG Bin， ZHAO Mingxing，et al. Repeated oxidative degradation of methyl orange through bio-electro-Fenton in bioelectrochemical system（BES）［J］. Bioresource Technology，2016，203：89-95. doi:10.1016/j.biortech.2015.12.031
