Removal of phenol from pharmaceutical wastewater by bioaugmented microbial fuel cells and evaluation of power production performance

doi:10.19965/j.cnki.iwt.2023-1239

Abstract

Abstract:

Using anaerobic sludge as anode chamber substrate and simulated phenol pharmaceutical wastewater as anode chamber substrate, S. oneidensis MR-1 was added to two-chamber microbial fuel cells(MFC) in the forms of free cells and immobilized cells, to construct a two-chamber MFC with free cells(MFC2) and immobilized cells(MFC3) for simultaneous treatment of phenol pharmaceutical wastewater. A two-chamber MFC(MFC1) without electrogenic bacteria was used as control group. The effects of the addition form of S. oneidensis MR-1 on the power generation process of the two-chamber MFC were investigated, and the pollutant removal efficiency and microbial community characteristics were analyzed. The results showed that under three cycles of continuous operation, the electricity generation performance and pollutant removal effect of MFC3 system were the best. The maximum output voltage was 633 mV, the maximum power density was 582.7 mW/m², the open circuit voltage was 835.9 mV, the internal resistance was 398.8 Ω, the average COD removal rate was 82.5%, the average NH₄ ⁺-N removal rate was 74.1%, the average phenol removal rate was 82.0%, and the average coulombic efficiency was 26.6%. According to high-throughput sequencing results, the abundance of electrogenic bacteria in anode biofilm increased, and the dominant bacteria in anode biofilm were Proteobacteria, Bacteroidota and Firmicutes. Immobilized cell technology has played a role in bioaugmentation of two-chamber MFC, which provides a certain reference value for energy conversion in sewage wastewater, and promotes the synergy of pollution reduction and carbon reduction.

Key words: microbial fuel cell, bioaugmentation, pharmaceutical wastewater, power generation, pollutant removal

摘要：

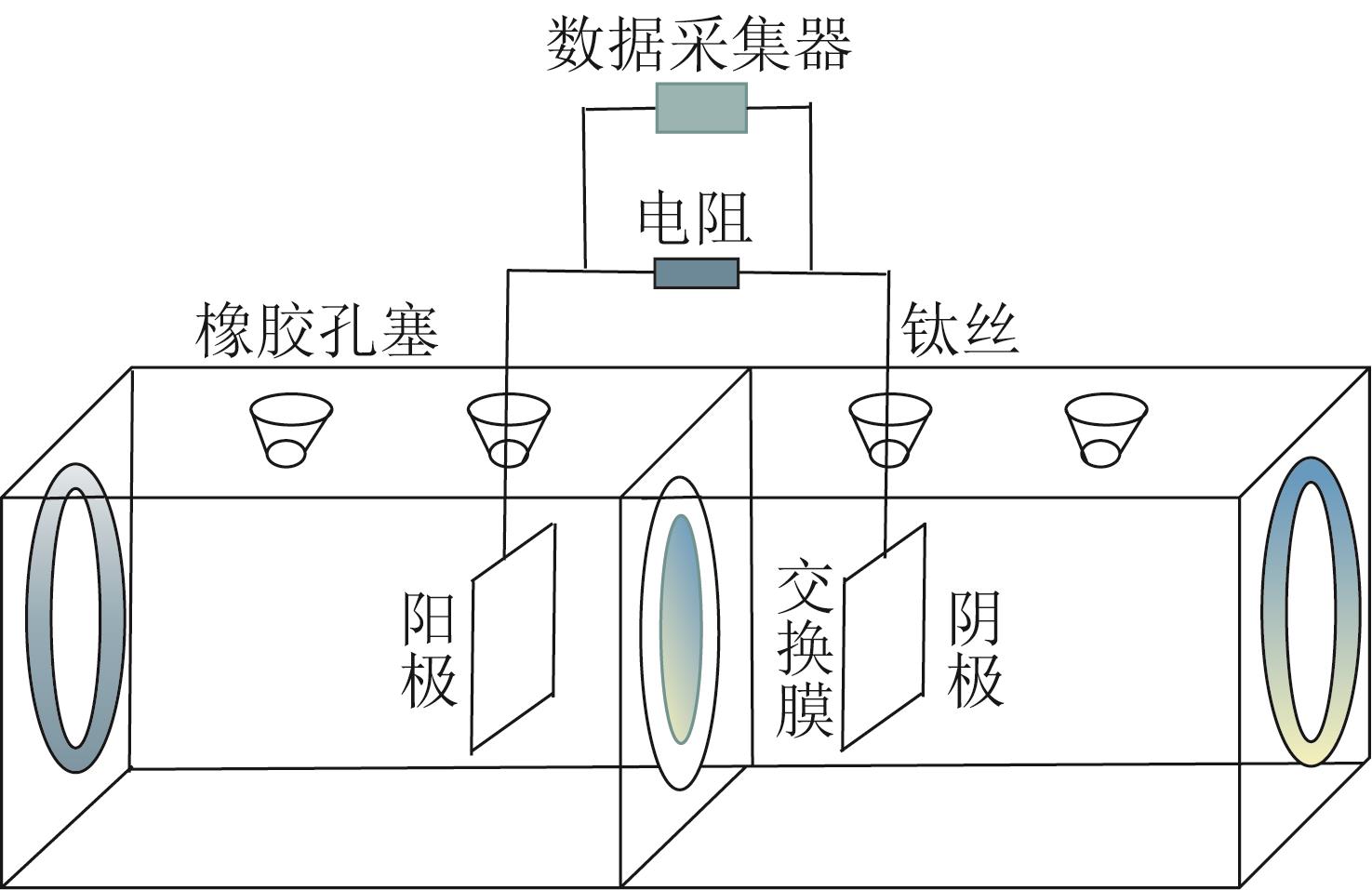

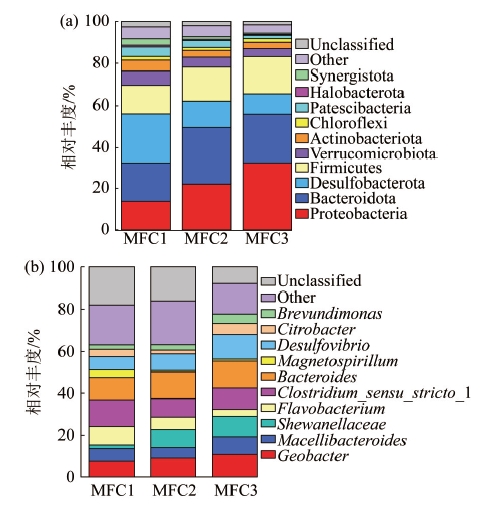

以厌氧污泥为阳极室底物，模拟苯酚制药废水为阳极室基质，将产电菌S. oneidensis MR-1以游离态细胞与固定化细胞两种形式加入双室微生物燃料电池（MFC），构建同步处理苯酚制药废水的游离态细胞双室MFC（MFC2）与固定化细胞双室MFC（MFC3），以不添加产电菌的双室MFC（MFC1）为对照组，探讨产电菌S. oneidensis MR-1投加形式对双室MFC产电过程的影响，并分析污染物去除效果与微生物群落特征。结果表明，在3周期的连续运行下，MFC3系统的产电性能与污染物去除效果最佳，最大输出电压为633 mV，最大功率密度为582.7 mW/m²，开路电压为835.9 mV，内阻为398.8 Ω，平均COD去除率为82.5%，平均NH₄ ⁺-N去除率为74.1%，平均苯酚去除率为82.0%，平均库仑效率为26.6%。根据高通量测序结果，MFC3的阳极生物膜产电菌丰度增加，优势菌群为Proteobacteria（变形菌门）、Bacteroidota（拟杆菌门）、Firmicutes（厚壁菌门）。固定化细胞技术对双室MFC起到了生物强化作用，为污废水中能源转化提供了一定参考价值，可推动减污降碳协同增效。

关键词: 微生物燃料电池, 生物强化, 制药废水, 产电性能, 污染物去除

CLC Number:

Yongqiang ZHU, Qian SHEN, Tingting XU, Xin LIN. Removal of phenol from pharmaceutical wastewater by bioaugmented microbial fuel cells and evaluation of power production performance[J]. Industrial Water Treatment, 2025, 45(1): 49-57.

朱勇强, 沈倩, 许婷婷, 林鑫. 生物强化MFC去除制药废水中的苯酚及产电性能评估[J]. 工业水处理, 2025, 45(1): 49-57.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-1239

https://www.iwt.cn/EN/Y2025/V45/I1/49

Figures/Tables 8

References 40

1	PANKRATOVA G， HEDERSTEDT L， GORTON L. Extracellular electron transfer features of Gram-positive bacteria［J］. Analytica Chimica Acta，2019，1076：32-47. doi:10.1016/j.aca.2019.05.007
2	MUNOZ-CUPA C， HU Yulin， XU Chunbao，et al. An overview of microbial fuel cell usage in wastewater treatment，resource recovery and energy production［J］. Science of the Total Environment，2021，754：142429. doi:10.1016/j.scitotenv.2020.142429
3	GUSTAVE W， YUAN Zhaofeng， LIU Fuyuan，et al. Mechanisms and challenges of microbial fuel cells for soil heavy metal（loid）s remediation［J］. Science of the Total Environment，2021，756：143865. doi:10.1016/j.scitotenv.2020.143865
4	LIU Wenbin， YANG Guang， JIA Hui，et al. A novel UASB-MFC dual sensors system for wastewater treatment：On-line sensor recovery and electrode cleaning in the long-term operation［J］. Chemosphere，2020，246：125751. doi:10.1016/j.chemosphere.2019.125751
5	ENIOLA J O， KUMAR R， BARAKAT M A，et al. A review on conventional and advanced hybrid technologies for pharmaceutical wastewater treatment［J］. Journal of Cleaner Production，2022，356：131826. doi:10.1016/j.jclepro.2022.131826
6	ZHU Hongyi， HU Xueli， ZHA Zhengtai，et al. Long-time enrofloxacin processing with microbial fuel cells and the influence of coexisting heavy metals（Cu and Zn）［J］. Journal of Environmental Chemical Engineering，2022，10（3）：107965. doi:10.1016/j.jece.2022.107965
7	严伟富，肖勇，王淑华，等. 氧四环素的微生物燃料电池处理及微生物群落［J］. 环境科学，2018，39（3）：1379-1385.
	YAN Weifu， XIAO Yong， WANG Shuhua，et al. Oxytetracycline wastewater treatment in microbial fuel cells and the analysis of microbial communities［J］. Environmental Science，2018，39（3）：1379-1385.
8	THAPA B S， PANDIT S， PATWARDHAN S B，et al. Application of microbial fuel cell（MFC） for pharmaceutical wastewater treatment：An overview and future perspectives［J］. Sustainability，2022，14（14）：8379. doi:10.3390/su14148379
9	耿春茂，曹意茹，陆海军，等. 生物强化技术处理高盐难降解三元前驱体生产废水的实验研究［J］. 水处理技术，2023，49（9）：124-127.
	GENG Chunmao， CAO Yiru， LU Haijun，et al. Experimental study on treatment of ternary precursor wastewater with high salinity and difficult biodegradation by bioaugmentation technology［J］. Technology of Water Treatment，2023，49（9）：124-127.
10	王亚军，司运美，李彦娟. 群体感应在生物强化功能菌定殖及降解能力增强中的作用研究进展［J］. 应用生态学报，2022，33（10）：2871-2880.
	WANG Yajun， SI Yunmei， LI Yanjuan. Research progress on the application of quorum sensing in the colonization and degradation enhancement of bioaugmentation functional bacteria［J］. Chinese Journal of Applied Ecology，2022，33（10）：2871-2880.
11	吴恒，张千，刘向阳，等. 生物强化方式对生物转盘处理养殖废水效果及生物多样性的影响［J］. 环境科学研究，2020，33（4）：958-968.
	WU Heng， ZHANG Qian， LIU Xiangyang，et al. Comparison of swine wastewater treatment performance and microbial diversity of rotating biological contractor with different bioaugmentation methods［J］. Research of Environmental Sciences，2020，33（4）：958-968.
12	李婷，张玉秀，祖德彪，等. 红球菌KDPy1在焦化废水生物处理中的强化作用［J］. 工业水处理，2021，41（10）：96-103.
	LI Ting， ZHANG Yuxiu， ZU Debiao，et al. Bioaugmentation of Rhodococcus sp. KDPy1 in coking wastewater treatment［J］. Industrial Water Treatment，2021，41（10）：96-103.
13	WEYENS N， VAN DER LELIE D， ARTOIS T，et al. Bioaugmentation with engineered endophytic bacteria improves contaminant fate in phytoremediation［J］. Environmental Science & Technology，2009，43（24）：9413-9418. doi:10.1021/es901997z
14	WANG Juehua， HE Hongzhen， WANG Meizhen，et al. Bioaugmentation of activated sludge with Acinetobacter sp. TW enhances nicotine degradation in a synthetic tobacco wastewater treatment system［J］. Bioresource Technology，2013，142：445-453. doi:10.1016/j.biortech.2013.05.067
15	BRÁNYIK T， VICENTE A A， DOSTÁLEK P，et al. Continuous beer fermentation using immobilized yeast cell bioreactor systems［J］. Biotechnology Progress，2005，21（3）：653-663.
16	LIU Lihong， LEE Chinyu， HO K C，et al. Occurrence of power overshoot for two-chambered MFC at nearly steady-state operation［J］. International Journal of Hydrogen Energy，2011，36（21）：13896-13899. doi:10.1016/j.ijhydene.2011.02.130
17	IEROPOULOS I， WINFIELD J， GREENMAN J. Effects of flow-rate，inoculum and time on the internal resistance of microbial fuel cells［J］. Bioresource Technology，2010，101（10）：3520-3525. doi:10.1016/j.biortech.2009.12.108
18	BANIASADI B， VAHABZADEH F. The performance of a cyanobacterial biomass-based microbial fuel cell（MFC） inoculated with Shewanella oneidensis MR-1［J］. Journal of Environmental Chemical Engineering，2021，9（6）：106338. doi:10.1016/j.jece.2021.106338
19	陈嘉瑾，徐汉，张志浩，等. 生物电化学系统废水脱氮机理及影响研究进展［J］. 工业水处理，2022，42（3）：23-32.
	CHEN Jiajin， XU Han， ZHANG Zhihao，et al. Research progress on the mechanism and influence of nitrogen removal by bioelectrochemical systems in wastewater［J］. Industrial Water Treatment，2022，42（3）：23-32.
20	YE Yuanyao， NGO H H， GUO Wenshan，et al. Microbial fuel cell for nutrient recovery and electricity generation from municipal wastewater under different ammonium concentrations［J］. Bioresource Technology，2019，292：121992. doi:10.1016/j.biortech.2019.121992
21	LUO Haiping， LIU Guangli， ZHANG Renduo，et al. Phenol degradation in microbial fuel cells［J］. Chemical Engineering Journal，2009，147（2/3）：259-264. doi:10.1016/j.cej.2008.07.011
22	KIM Y， LOGAN B E. Simultaneous removal of organic matter and salt ions from saline wastewater in bioelectrochemical systems［J］. Desalination，2013，308：115-121. doi:10.1016/j.desal.2012.07.031
23	MA Cong， QIN Dan， SUN Qian，et al. Removal of environmental estrogens by bacterial cell immobilization technique［J］. Chemosphere，2016，144：607-614. doi:10.1016/j.chemosphere.2015.09.014
24	DAI H N， DUONG NGUYEN T A， LE L P MY，et al. Power generation of Shewanella oneidensis MR-1 microbial fuel cells in bamboo fermentation effluent［J］. International Journal of Hydrogen Energy，2021，46（31）：16612-16621. doi:10.1016/j.ijhydene.2020.09.264
25	LIU Zhuangzhuang， YANG Yabo， LIU Gang，et al. Study on a novel immobilized microbe pellets constructed with Alcaligenes sp. R3 and its ability to remove tetracycline［J］. Journal of Environmental Chemical Engineering，2023，11（2）：109378. doi:10.1016/j.jece.2023.109378
26	LI Shuo， YANG Mingxiang， WANG Hao，et al. Dynamic characteristics of immobilized microorganisms for remediation of nitrogen-contaminated groundwater and high-throughput sequencing analysis of the microbial community［J］. Environmental Pollution，2020，267：114875. doi:10.1016/j.envpol.2020.114875
27	MURSHID S， DHAKSHINAMOORTHY G P. Application of an immobilized microbial consortium for the treatment of pharmaceutical wastewater：Batch-wise and continuous studies［J］. Chinese Journal of Chemical Engineering，2021，29：391-400. doi:10.1016/j.cjche.2020.04.008
28	张博凡，熊鑫，韩卓，等. 菌糠强化微生物降解石油污染土壤修复研究［J］. 中国环境科学，2019，39（3）：1139-1146.
	ZHANG Bofan， XIONG Xin， HAN Zhuo，et al. Bioremediation of petroleum contaminated soil by microoganisms enhanced with spent mushroom substrate［J］. China Environmental Science，2019，39（3）：1139-1146.
29	KHAN N， ANWER A H， AHMAD A，et al. Investigating microbial fuel cell aided bio-remediation of mixed phenolic contaminants under oxic and anoxic environments［J］. Biochemical Engineering Journal，2020，155：107485. doi:10.1016/j.bej.2019.107485
30	HUANG Yuqing， LIU Xinmin， HU Xiude，et al. Treatment of phenolic wastewater by anaerobic fluidized bed microbial fuel cell filled with polyaniline-macroporous adsorption resin as multifunctional carrier［J］. The Canadian Journal of Chemical Engineering，2023，101（10）：5530-5541.
31	KHAN N， ANWER A H， AHMAD A，et al. Investigation of CNT/PPy-modified carbon paper electrodes under anaerobic and aerobic conditions for phenol bioremediation in microbial fuel cells［J］. ACS Omega，2019，5（1）：471-480. doi:10.1021/acsomega.9b02981
32	WANG Chengzhi， WU Guanlan， ZHU Xiaolin，et al. Synergistic degradation for o-chlorophenol and enhancement of power generation by a coupled photocatalytic-microbial fuel cell system［J］. Chemosphere，2022，293：133517. doi:10.1016/j.chemosphere.2022.133517
33	LU Nan， LI Lu， WANG Chengzhi，et al. Simultaneous enhancement of power generation and chlorophenol degradation in nonmodified microbial fuel cells using an electroactive biofilm carbon felt anode［J］. Science of the Total Environment，2021，783：147045. doi:10.1016/j.scitotenv.2021.147045
34	MEI Xiaoxue， GUO Changhong， LIU Bingfeng，et al. Shaping of bacterial community structure in microbial fuel cells by different inocula［J］. RSC Advances，2015，5（95）：78136-78141. doi:10.1039/c5ra16382j
35	MIRAN W， NAWAZ M， KADAM A，et al. Microbial community structure in a dual chamber microbial fuel cell fed with brewery waste for azo dye degradation and electricity generation［J］. Environmental Science and Pollution Research International，2015，22（17）：13477-13485. doi:10.1007/s11356-015-4582-8
36	ZHANG Linfang， FU Guokai， ZHANG Zhi. High-efficiency salt，sulfate and nitrogen removal and microbial community in biocathode microbial desalination cell for mustard tuber wastewater treatment［J］. Bioresource Technology，2019，289：121630. doi:10.1016/j.biortech.2019.121630
37	CHU Na， ZHANG Lixia， HAO Wen，et al. Rechargeable microbial fuel cell based on bidirectional extracellular electron transfer［J］. Bioresource Technology，2021，329：124887. doi:10.1016/j.biortech.2021.124887
38	LIU Zhao， CHEN Zhongzhou， WU Wei. Crystallization and preliminary X-ray studies of ferric uptake regulator from Magnetospirillum gryphiswaldense ［J］. Acta Crystallographica. Section F，Structural Biology and Crystallization Communications，2012，68（Pt 8）：902-905. doi:10.1107/s1744309112024311
39	OBAYEMI J D， DOZIE-NWACHUKWU S， DANYUO Y，et al. Biosynthesis and the conjugation of magnetite nanoparticles with luteinizing hormone releasing hormone（LHRH）［J］. Materials Science and Engineering：C，2015，46：482-496. doi:10.1016/j.msec.2014.10.081
40	SIMA Weiping， MA Ruixiang， YIN Feixian，et al. Prompt nitrogen removal by controlling the oxygen concentration in sediment microbial fuel cell systems：The electrons allocation and its microbial mechanism［J］. Water Science and Technology，2020，81（6）：1209-1220. doi:10.2166/wst.2020.222

项目	MFC1				MFC2				MFC3
项目	Ⅰ	Ⅱ	Ⅲ	平均	Ⅰ	Ⅱ	Ⅲ	平均	Ⅰ	Ⅱ	Ⅲ	平均

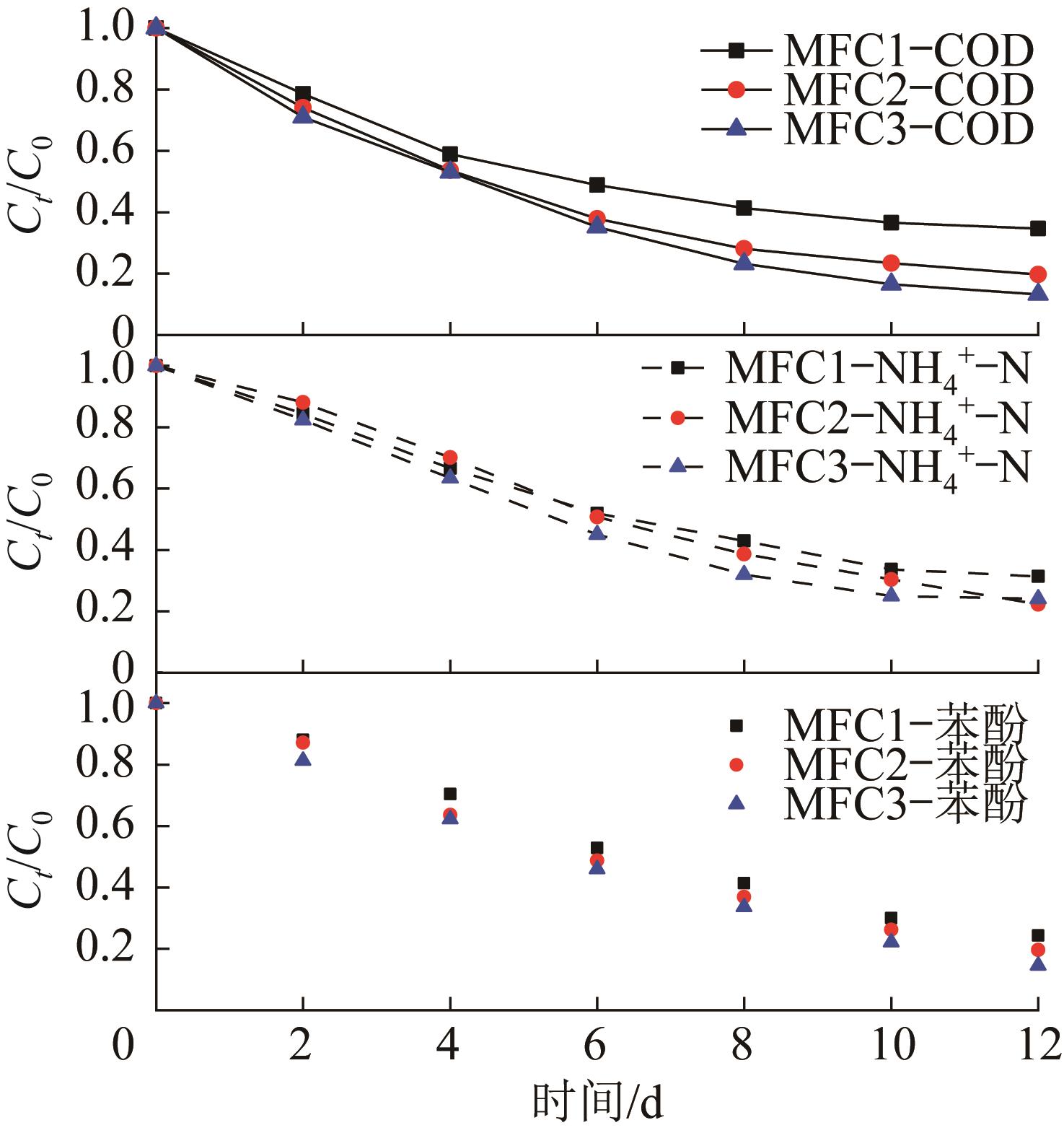

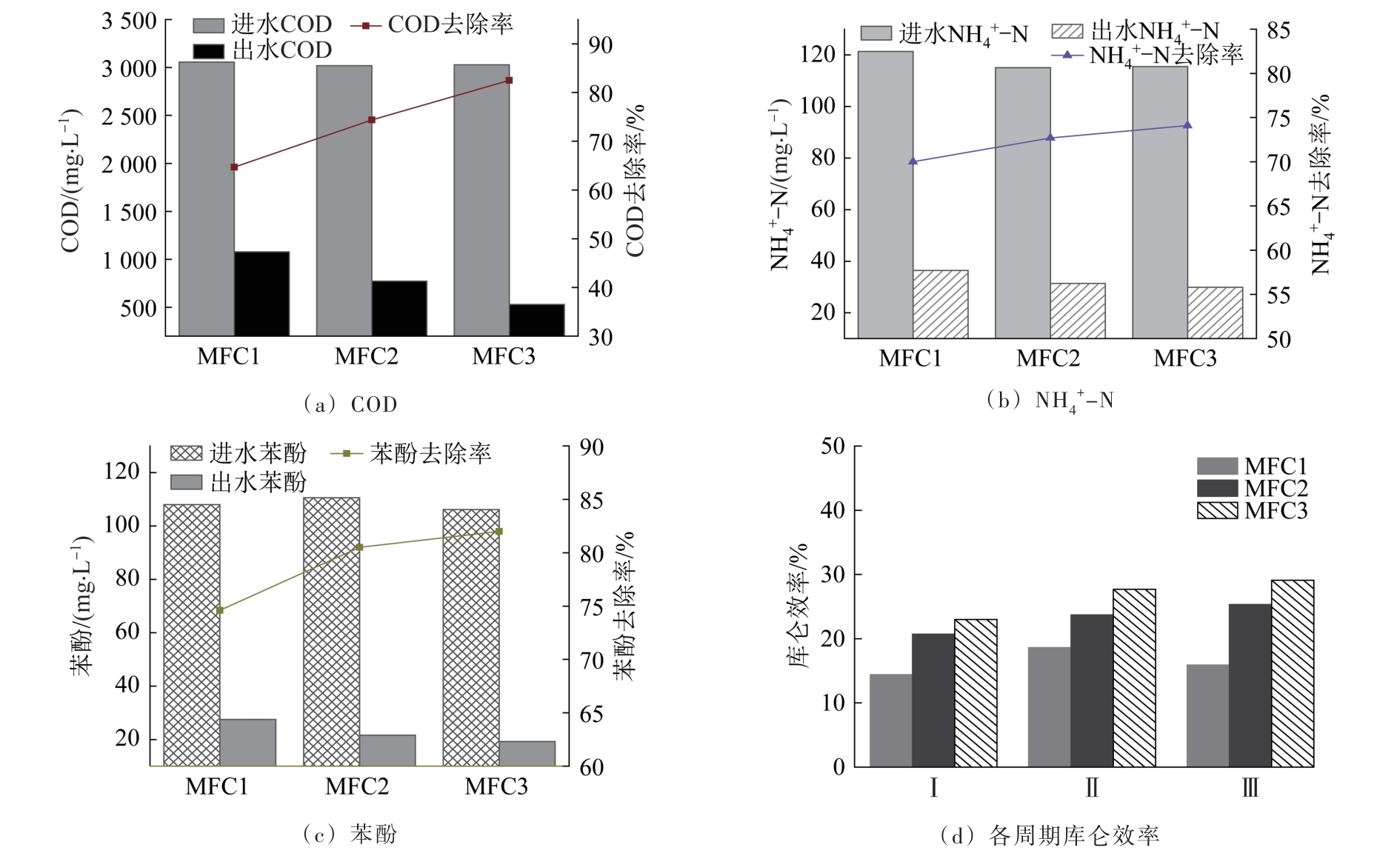

COD去除率/%	60.7	68.2	65.3	64.7	66.1	76.6	80.3	74.4	78.0	82.7	86.7	82.5
NH₄ ⁺-N去除率/%	68.2	73.1	68.6	70.0	67.4	73.4	77.7	72.7	76.4	73.3	75.9	74.1
苯酚去除率/%	69.6	78.1	75.7	74.6	77.3	83.6	80.4	80.5	78.7	81.8	85.4	82.0
库仑效率/%	14.4	18.6	15.9	16.3	20.7	23.7	25.3	23.2	23.0	27.7	29.1	26.6

项目	MFC1				MFC2				MFC3
项目	Ⅰ	Ⅱ	Ⅲ	平均	Ⅰ	Ⅱ	Ⅲ	平均	Ⅰ	Ⅱ	Ⅲ	平均
COD去除率/%	60.7	68.2	65.3	64.7	66.1	76.6	80.3	74.4	78.0	82.7	86.7	82.5
NH₄ ⁺-N去除率/%	68.2	73.1	68.6	70.0	67.4	73.4	77.7	72.7	76.4	73.3	75.9	74.1
苯酚去除率/%	69.6	78.1	75.7	74.6	77.3	83.6	80.4	80.5	78.7	81.8	85.4	82.0
库仑效率/%	14.4	18.6	15.9	16.3	20.7	23.7	25.3	23.2	23.0	27.7	29.1	26.6

构型	阳极	酚类污染物类型与质量浓度	电阻/Ω	最大电压/mV	最大功率密度/（mW·m^-2）	酚类污染物去除率/%	COD去除率/%	参考文献
双室	PANI/SnO₂涂层碳布阳极	300 mg/L酚、2，4，6-三氯苯酚	470	661	454.81		82.67	〔29〕
厌氧流化床MFC	以改性树脂作为生物载体的碳棒	含150 mg/L异丙醇的合成废水（间甲酚、苯酚和苯）		489.2	131.43		88.92	〔30〕
双室	MWCNT/PPy涂层碳纸	200 mg/L苯酚	470	664	560.72		77.24	〔31〕
单室	TiO₂光阳极	5 mg/L邻氯苯酚	500	367	301	76.20		〔32〕
双室	电活性生物膜阳极	10 mg/L 2-氯苯酚	500	600	474.49	100		〔33〕
双室	电活性生物膜阳极	10 mg/L 2，4-二氯苯酚	500	560	472.29	89.0		〔33〕
双室	固定产电菌碳毡	100 mg/L苯酚	1 000	633	582.7	85.4	86.7	本研究

构型	阳极	酚类污染物类型与质量浓度	电阻/Ω	最大电压/mV	最大功率密度/（mW·m^-2）	酚类污染物去除率/%	COD去除率/%	参考文献
双室	PANI/SnO₂涂层碳布阳极	300 mg/L酚、2，4，6-三氯苯酚	470	661	454.81		82.67	〔29〕
厌氧流化床MFC	以改性树脂作为生物载体的碳棒	含150 mg/L异丙醇的合成废水（间甲酚、苯酚和苯）		489.2	131.43		88.92	〔30〕
双室	MWCNT/PPy涂层碳纸	200 mg/L苯酚	470	664	560.72		77.24	〔31〕
单室	TiO₂光阳极	5 mg/L邻氯苯酚	500	367	301	76.20		〔32〕
双室	电活性生物膜阳极	10 mg/L 2-氯苯酚	500	600	474.49	100		〔33〕
双室	电活性生物膜阳极	10 mg/L 2，4-二氯苯酚	500	560	472.29	89.0		〔33〕
双室	固定产电菌碳毡	100 mg/L苯酚	1 000	633	582.7	85.4	86.7	本研究
