氢自养还原菌同步降解水中4-溴酚及硝酸盐

doi:10.19965/j.cnki.iwt.2022-0851

摘要/Abstract

摘要：

基于摇瓶研究了以H₂为电子供体的氢自养还原菌降解4-溴酚（4-BP）的可行性；并在此基础上研究了4-BP浓度、硝酸盐（NO₃ ^--N）浓度及氢分压对4-BP的去除影响；最后研究了4-BP加入前后的微生物菌群变化。结果表明，提高初始4-BP浓度会降低其去除效果；作为一种优先电子受体，NO₃ ^--N会与4-BP争夺电子供体H₂，增大初始NO₃ ^--N浓度导致4-BP去除效果下降；提高氢分压会使得单位浓度NO₃ ^--N及4-BP获得更多的电子供体，提升两者还原速率；加入4-BP后，改变了微生物的生长环境，使得具有脱卤能力的Thauera丰度提升，达到42.8%。当系统中存在H₂时，具有正常活性的氢自养还原菌，在脱卤酶作用下4-BP释放Br^-从而被降解。

关键词: 氢自养还原菌, 4-溴酚, 同步降解

Abstract:

The feasibility of degrading 4-bromophenol by hydrogen autotrophic reducing bacteria using H₂ as electron donor was studied based on shake flasks. On this basis，the effects of 4-BP concentration，nitrate concentration and hydrogen partial pressure on the removal of 4-BP were studied. Finally，the microbial flora changes before and after the addition of 4-BP were investigated. The results showed that increasing the initial 4-BP concentration could reduce its removal effect. As a preferential electron acceptor，nitrate will compete with 4-BP for electron donor H₂，and increasing the initial nitrate concentration leads to a decrease in the removal efficiency of 4-BP. Increasing the hydrogen partial pressure could make nitrate and 4-BP obtain more electron donors per unit concentration，and increase the reduction rate of both. After adding 4-BP，the growth environment of microorganisms changed，and the abundance of Thauera with dehalogenation ability increased to 42.8%. When there existed H₂ in the system，the hydrogen autotrophic reducing bacteria with normal activity could release Br^- under the action of dehalogenase and be degraded.

Key words: hydrogen autotrophic reducing bacteria, 4-bromophenol, synchronous degradation

中图分类号:

X703.1

陈博, 丁婉莹, 张毅, 范玉荣, 宋玉峰, 李海翔. 氢自养还原菌同步降解水中4-溴酚及硝酸盐[J]. 工业水处理, 2023, 43(8): 82-88.

Bo CHEN, Wanying DING, Yi ZHANG, Yurong FAN, Yufeng SONG, Haixiang LI. Synchronous degradation of 4-BP and nitrate in water by hydrogen autotrophic reducing bacteria[J]. Industrial Water Treatment, 2023, 43(8): 82-88.

https://www.iwt.cn/CN/Y2023/V43/I8/82

图/表 10

表1 实验配水成分

Table 1 Experimental water composition

成分	质量浓度/（mg·L^-1）	成分	质量浓度/（mg·L^-1）
KNO₃（以N计）	10	ZnSO₄·7H₂O	0.1
Na₂SO₄（以SO₄ ^2-）	55	H₃BO₃	0.3
NaHCO₃	80	CoCl₂·6H₂O	0.2
Na₂HPO₄	216	CuCl₂·2H₂O	0.01
KH₂PO₄	236	Na₂MoO₄·2H₂O	0.03
FeSO₄·7H₂O	1.0	MnCl₂	0.01
CaCl₂	1.0	NiCl₂·6H₂O	0.01

表2 可行性实验设计

Table 2 Feasibility test design

项目		NO₃ ^--N/（mg·L^-1）	4-BP/ （mg·L^-1）	氢分压/MPa	pH	温度/℃
实验组	摇瓶（a）混合菌+4-BP+H₂	10	5	0.02	7.2	30
对照组	摇瓶（b）混合菌+4-BP+无H₂	10	5	0	7.2	30
	摇瓶（c）混合菌灭活+4-BP+无H₂	10	5	0	7.2	30
	摇瓶（d）混合菌灭活+4-BP+H₂	10	5	0.02	7.2	30

表3 摇瓶影响因素实验设计

Table 3 Experimental design of influencing factors of shaking bottle

项目	NO₃ ^--N/（mg·L^-1）	4-BP/（mg·L^-1）	氢分压/MPa	pH
4-BP	10	2	0.02	7.2
		5
		10
		20
NO₃ ^--N	5	20	0.02	7.2
	10
	20
	30
H₂	10	20	0.01	7.2
			0.02
			0.03
			0.04

图1 0.02 MPa下10 mg/L NO₃ ^--N的摇瓶运行情况

Fig. 1 Operation diagram of shake flask with 10 mg/L NO₃ ^--N at 0.02 MPa

图2 不同工况下摇瓶内4-BP的去除情况

Fig. 2 Removal of 4-BP in shake flasks under different working conditions

图3 4-BP浓度对4-BP还原降解的影响

Fig. 3 The effect of NO₃ ^--N concentration on the reduction and degradation of 4-BP

图4 NO₃ ^--N浓度对4-BP还原降解的影响

Fig. 4 The effect of NO₃ ^--N concentration on the reduction and degradation of 4-BP

图5 氢分压对4-BP还原降解的影响

Fig. 5 The effect of hydrogen partial pressure on the reduction and degradation of 4-BP

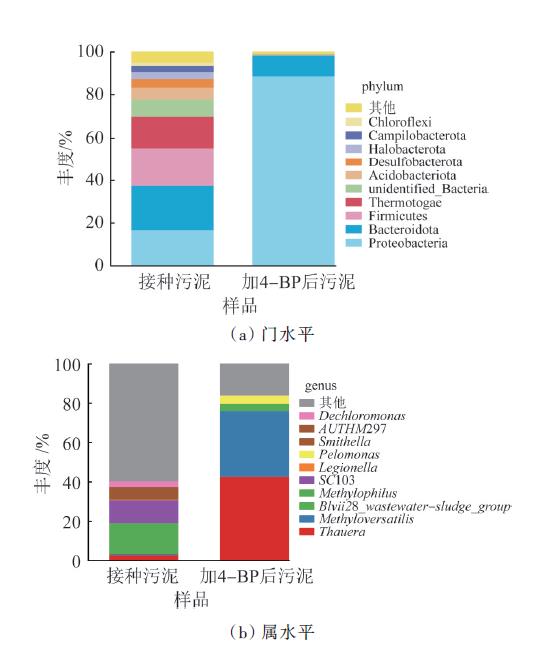

图6 微生物群落分析

Fig. 6 Microbial community analysis

表4 PICRUSt分析

Table 4 PICRUSt analysis

基因ID	KEGG通路描述	接种污泥	驯化后污泥
K00370	硝酸还原酶	3 921	10 998
K00371	硝酸还原酶	4 188	11 010
K01560	2-卤素脱卤素酶	5 128	11 328

参考文献 28

1	LI Mengping， WANG Yuanyuan， LIU Yanxiu，et al. Preparation of active carbon through one-step NaOH activation of coconut shell biomass for phenolic wastewater treatment［J］. Research on Chemical Intermediates，2022，48（4）：1665-1684. doi:10.1007/s11164-021-04650-0
2	HUANG Chuanjin， WANG Mingcun. Propargyl resin derived from biosynthesized oligophenols for the application of high temperature composite matrix［J］. The Canadian Journal of Chemical Engineering，2016，94（1）：41-45. doi:10.1002/cjce.22361
3	LIANG Jiajin， FANG Xiuxiu， LIN Yunqin，et al. A new screened microbial consortium OEM2 for lignocellulosic biomass deconstruction and chlorophenols detoxification［J］. Journal of Hazardous Materials，2018，347：341-348. doi:10.1016/j.jhazmat.2018.01.023
4	EBERLIN M N， CESAR DA SILVA R. Faster and simpler determination of chlorophenols in water by fiber introduction mass spectrometry［J］. Analytica Chimica Acta，2008，620（1/2）：97-102. doi:10.1016/j.aca.2008.05.033
5	LI Shiyou， WEI Qingpeng， XIE Shuibo，et al. Phenolic wastewater treatment via catalytic gasification［J］. Polish Journal of Environmental Studies，2015，24（3）：1147-1151. doi:10.15244/pjoes/31861
6	LUO Congwei， GAO Jing， WU Daoji，et al. Oxidation of 2，4-bromophenol by UV/PDS and formation of bromate and brominated products：A comparison to UV/H₂O₂ ［J］. Chemical Engineering Journal，2019，358：1342-1350. doi:10.1016/j.cej.2018.10.084
7	曹文林. 综合利用治理含酚化工废水的效果分析［J］. 当代化工研究，2021（8）：86-87. doi:10.3969/j.issn.1672-8114.2021.08.042
	CAO Wenlin. Effect analysis of comprehensive utilization and treatment of phenol-containing chemical wastewater［J］. Modern Chemical Research，2021（8）：86-87. doi:10.3969/j.issn.1672-8114.2021.08.042
8	ASHRAF H， HUSAIN Q. Application of immobilized peroxidase for the removal of p-bromophenol from polluted water in batch and continuous processes［J］. Journal of Water Reuse and Desalination，2011，1：52-60. doi:10.2166/wrd.2011.017
9	LAKSONO F B， KIM Ⅱ-Kyu. Study on 4-bromophenol degradation using wet oxidation in-situ liquid ferrate（Ⅵ） in the aqueous phase［J］. Desalination and Water Treatment，2019，58：391-398.
10	SHARMA A， DUTTA R K. Se-doped CuO NPs/H₂O₂/UV as a highly efficient and sustainable photo-Fenton catalytic system for enhanced degradation of 4-bromophenol［J］. Journal of Cleaner Production，2018，185：464-475. doi:10.1016/j.jclepro.2018.03.049
11	ZHANG Jingwen， GUO Qiang， WU Wenli，et al. Preparation of Fe-MnO _x /AC by high gravity method for heterogeneous catalytic ozonation of phenolic wastewater［J］. Chemical Engineering Science，2022，255：117667. doi:10.1016/j.ces.2022.117667
12	COHEN S， BELINKY P A， HADAR Y，et al. Characterization of catechol derivative removal by lignin peroxidase in aqueous mixture［J］. Bioresource Technology，2009，100（7）：2247-2253. doi:10.1016/j.biortech.2008.11.007
13	XIA Siqing， ZHANG Zhiqiang， ZHONG Fohua，et al. High efficiency removal of 2-chlorophenol from drinking water by a hydrogen-based polyvinyl chloride membrane biofilm reactor［J］. Journal of Hazardous Materials，2011，186（2/3）：1367-1373. doi:10.1016/j.jhazmat.2010.12.023
14	牛振华. 异养和电化学氢自养协同降解水中高氯酸盐的研究［D］. 郑州：河南工业大学，2017.
	NIU Zhenhua. Researches on the removal of perchlorate from aqueous solution by combined heterotrophic with electrical hydrogen autotrophic process［D］. Zhengzhou：Henan University of Technology，2017.
15	AYDıN E， ŞAHIN M， TAŞKAN E，et al. Chlortetracycline removal by using hydrogen based membrane biofilm reactor［J］. Journal of Hazardous Materials，2016，320：88-95. doi:10.1016/j.jhazmat.2016.08.014
16	SONG Jiaxiu， ZHAO Qi， GUO Jun，et al. The microbial community responsible for dechlorination and benzene ring opening during anaerobic degradation of 2，4，6‑trichlorophenol［J］. Science of the Total Environment，2019，651：1368-1376. doi:10.1016/j.scitotenv.2018.09.300
17	LONG Min， ZENG Chao， WANG Zhaocheng，et al. Complete dechlorination and mineralization of Para-chlorophenol（4-CP） in a hydrogen-based membrane biofilm reactor（MBfR）［J］. Journal of Cleaner Production，2020，276：123257. doi:10.1016/j.jclepro.2020.123257
18	GOLAN R， GELMAN F， KUDER T，et al. Degradation of 4-bromophenol by Ochrobactrum sp. HI1 isolated from desert soil：Pathway and isotope effects［J］. Biodegradation，2019，30（1）：37-46. doi:10.1007/s10532-018-9860-y
19	CUCI Y， TAŞKıN E G，. Simultaneous removal of nitrate and pesticide endo-sulfan in groundwater using membrane biofilm reactor［J］. Journal of Environmental Biology，2020，41（2（SI））：351-357. doi:10.22438/jeb/41/2(si)/jeb-11
20	TYAGI S， RAWTANI D， KHATRI N，et al. Strategies for nitrate removal from aqueous environment using Nanotechnology：A Review［J］. Journal of Water Process Engineering，2018，21：84-95. doi:10.1016/j.jwpe.2017.12.005
21	ZHAO Heping， ILHAN Z E， ONTIVEROS-VALENCIA A，et al. Effects of multiple electron acceptors on microbial interactions in a hydrogen-based biofilm［J］. Environmental Science & Technology，2013，47（13）：7396-7403. doi:10.1021/es401310j
22	徐思雯，吴成阳，谢裕威，等. 氢自养还原菌同步去除水中Cr（Ⅵ）和NO₃ ^- ［J］. 中国环境科学，2020，40（1）：280-287. doi:10.3969/j.issn.1000-6923.2020.01.031
	XU Siwen， WU Chengyang， XIE Yuwei，et al. Simultaneous removal of Cr（Ⅵ） and NO₃ ^- by hydrogen autotrophic reducing bacteria［J］. China Environmental Science，2020，40（1）：280-287. doi:10.3969/j.issn.1000-6923.2020.01.031
23	杨宗政，张天宇，孙炜，等. 基于A²O-MBR工艺的耐盐活性污泥微生物群落研究［J］. 工业水处理，2022，42（8）：60-66.
	YANG Zongzheng， ZHANG Tianyu， SUN Wei，et al. Study on microbial community of salt-tolerant activated sludge based on A²O-MBR process［J］. Industrial Water Treatment，2022，42（8）：60-66.
24	LONG Min， ILHAN Z E， XIA Siqing，et al. Complete dechlorination and mineralization of pentachlorophenol（PCP） in a hydrogen-based membrane biofilm reactor（MBfR）［J］. Water Research，2018，144：134-144. doi:10.1016/j.watres.2018.06.071
25	SONG B， PALLERONI N J， KERKHOF L J，et al. Characterization of halobenzoate-degrading，denitrifying azoarcus and thauera isolates and description of Thauera chlorobenzoica sp. nov［J］. International Journal of Systematic and Evolutionary Microbiology，2001，51（Pt 2）：589-602. doi:10.1099/00207713-51-2-589
26	FRANKE S， KÜMMEL S， NIJENHUIS I. Liquid chromatography/isotope ratio mass spectrometry analysis of halogenated benzoates for characterization of the underlying degradation reaction in Thauera chlorobenzoica CB-1 T［J］. Rapid Communications in Mass Spectrometry，2018，32（11）：906-912. doi:10.1002/rcm.8113
27	JI Bixiao， ZHANG Huining， ZHOU Lun，et al. Effect of the rapid increase of salinity on anoxic-oxic biofilm reactor for treatment of high-salt and high-ammonia-nitrogen wastewater［J］. Bioresource Technology，2021，337：125363. doi:10.1016/j.biortech.2021.125363
28	GAN Han ming， SHAHIR S， IBRAHIM Z，et al. Biodegradation of 4-aminobenzenesulfonate by Ralstonia sp. PBA and Hydrogenophaga sp. PBC isolated from textile wastewater treatment plant［J］. Chemosphere，2011，82（4）：507-513. doi:10.1016/j.chemosphere.2010.10.094
