藻菌共生体处理猪场沼液的参数优化研究

doi:10.19965/j.cnki.iwt.2022-1260

摘要/Abstract

摘要：

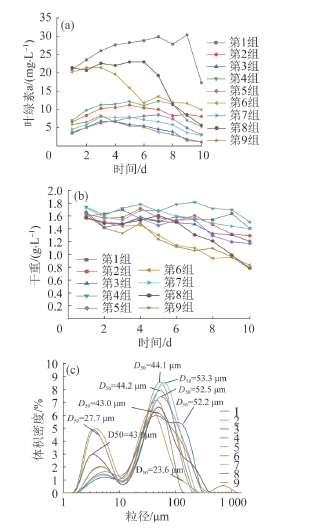

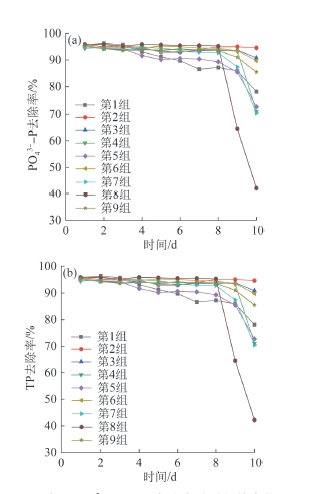

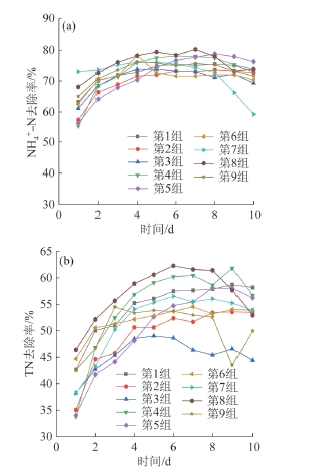

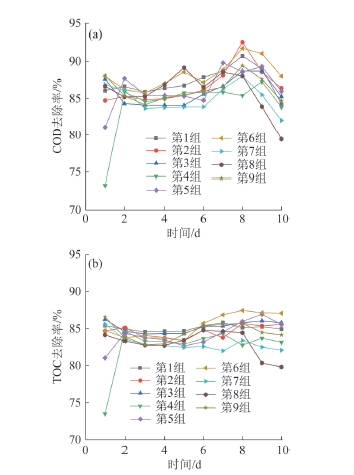

猪场沼液高色高浊、氮磷浓度高，采用藻菌共生体可同步高效去除碳氮磷、节能降耗、资源回收，符合新时代对污水处理的需求。从污染物去除、微生物生长等角度对光照强度、曝气量和藻菌接种比例这3个参数进行优选发现，曝气量对氮去除的影响最大，而3个参数对碳、磷去除的影响较小。经加权评价得出三因素排序：曝气量>光照强度>藻菌接种比例，最优参数组合：光照强度为550 μmol/（m²·s），曝气量为0.2 L/min，藻菌接种比例为1∶1。最优组的TP、COD、TN、NH₄ ⁺-N分别为0.48、219.2、125.2、64 mg/L，TP、COD、TN、NH₄ ⁺-N去除率分别为95.46%、88.58%、61.58%、80.21%。各组中藻菌絮体粒径均呈增大趋势，且随藻菌接种比例的增大而减小。

关键词: 猪场沼液, 藻菌共生体, 参数优化, 脱氮除磷

Abstract:

Pig farm biogas slurry is high in color and turbidity with high content of nitrogen and phosphorus. The use of microalgae-bacteria symbiosis can simultaneously and efficiently remove carbon，nitrogen and phosphorus，save energy and reduce consumption，and recover resources，meeting the needs of the new era for wastewater treatment. In this study，the three parameters of light intensity，aeration intensity and the proportion of microalgae and bacteria were optimized from the perspectives of pollutant removal and microbial growth. It was found that the amount of aeration had the greatest impact on nitrogen removal，while the three parameters had little impact on carbon and phosphorus removal. After weighted evaluation，the sequence of three factors followed aeration amount>light intensity>inoculation proportion，and the optimal parameter combination is light intensity at 550 μmol/（m²·s），aeration rate at 0.2 L/min，microalgae-bacteria inoculation ratio at 1∶1. The concentrations of TP，COD，TN and NH₄ ⁺-N in the group with the best comprehensive score were 0.48，219.2，125.2，64 mg/L respectively，and the removal rates were 95.46%，88.58%，61.58% and 80.21% respectively. The particle size of microalgae-bacteria flocs in each group increased，and decreased with the increase of the microalgae-bacteria proportion.

Key words: pig farm biogas slurry, microalgae-bacteria symbiosis, parameters optimization, nitrogen and phosphorus removal

中图分类号:

X703.1

王锌针, 张哲, 罗娜, 孙晨, 熊川懿, 王圣智, 万瀚宇, 陈建新, 李昆. 藻菌共生体处理猪场沼液的参数优化研究[J]. 工业水处理, 2024, 44(1): 96-102.

Xinzhen WANG, Zhe ZHANG, Na LUO, Chen SUN, Chuanyi XIONG, Shengzhi WANG, Hanyu WAN, Jianxin CHEN, Kun LI. Optimization of parameters for treatment of livestock farming wastewater by algal-bacterial symbiosis[J]. Industrial Water Treatment, 2024, 44(1): 96-102.

https://www.iwt.cn/CN/Y2024/V44/I1/96

图/表 10

参考文献 20

1	PARK J， JIN Haifeng， LIM B R，et al. Ammonia removal from anaerobic digestion effluent of livestock waste using green alga Scenedesmus sp.［J］. Bioresource Technology，2010，101（22）：8649-8657． doi:10.1016/j.biortech.2010.06.142
2	ULUDAG-DEMIRER S， DEMIRER G N， FREAR C，et al. Anaerobic digestion of dairy manure with enhanced ammonia removal［J］. Journal of Environmental Management，2008，86（1）：193-200． doi:10.1016/j.jenvman.2006.12.002
3	TRICASE C， LOMBARDI M. State of the art and prospects of Italian biogas production from animal sewage：Technical-economic considerations［J］. Renewable Energy，2009，34（3）：477-485． doi:10.1016/j.renene.2008.06.013
4	卓梦琼，孙盛进，张哲，等. 电场作用对不同藻菌体系处理猪场废水的强化机制研究［J］. 环境科学学报，2022，42（4）：141-148．
	ZHUO Mengqiong， SUN Shengjin， ZHANG Zhe，et al. Study on the effect of enhanced microalgae-activated sludge system based on electric field pretreatment treating pig-raising biogas slurry［J］. Acta Scientiae Circumstantiae，2022，42（4）：141-148．
5	FALLAHI A， REZVANI F， ASGHARNEJAD H，et al. Interactions of microalgae-bacteria consortia for nutrient removal from wastewater：A review［J］. Chemosphere，2021，272：129878． doi:10.1016/j.chemosphere.2021.129878
6	MATSUMOTO H， HAMASAKI A， SHIOJI N，et al. Influence of dissolved oxygen on photosynthetic rate of microalgae［J］. Journal of Chemical Engineering of Japan，1996，29（4）：711-714． doi:10.1252/jcej.29.711
7	罗龙皂. 细菌强化微藻资源化利用猪场沼液氮磷技术研究［D］. 杭州：浙江大学，2018． doi:10.1016/j.biortech.2018.10.057
	LUO Longzao. Bacteria enhanced nutrient recovery from piggery biogas slurry by microalgae［D］. Hangzhou：Zhejiang University，2018． doi:10.1016/j.biortech.2018.10.057
8	TANG Congcong， ZUO Wei， TIAN Yu，et al ．Effect of aeration rate on performance and stability of algal-bacterial symbiosis system to treat domestic wastewater in sequencing batch reactors［J］. Bioresource Technology，2016，222：156-164． doi:10.1016/j.biortech.2016.09.123
9	SUN Li， TIAN Yu， ZHANG Jun，et al. Wastewater treatment and membrane fouling with algal-activated sludge culture in a novel membrane bioreactor：Influence of inoculation ratios［J］. Chemical Engineering Journal，2018，343：455-459． doi:10.1016/j.cej.2018.03.022
10	杨翔梅. 细菌强化微藻生物系统对养猪废水厌氧消化液的处理研究［D］. 杭州：浙江大学，2018．
	YANG Xiangmei. Research on the treatment of digested piggery wastewater by bacteria strengthening microalgae biological system［D］. Hangzhou：Zhejiang University，2018．
11	郭远涛. 吸附固定化对藻菌共生体在畜禽养殖废水处理中的强化效果研究［D］. 南昌：南昌大学，2021．
	GUO Yuantao. Study on the enhancement effect of immobilized algae-bacteria symbiotic systems in the treatment of livestock wastewater［D］. Nanchang：Nanchang University，2021．
12	韩松芳，金文标，涂仁杰，等. 基于城市污水资源化的微藻筛选与污水预处理［J］. 环境科学，2017，38（8）：3347-3353．
	HAN Songfang， JIN Wenbiao， TU Renjie，et al. Selection of microalgae for biofuel using municipal wastewater as a resource［J］. Environmental Science，2017，38（8）：3347-3353．
13	曾慧卿，刘强，肖丛亮，等. 响应面法优化藻菌共生体系深度处理畜禽养殖废水工艺研究［J］. 农业环境科学学报，2020，39（6）：1368-1379． doi:10.11654/jaes.2019-1293
	ZENG Huiqing， LIU Qiang， XIAO Congliang，et al. Optimization of microalgae-bacteria symbiosis system for the advanced treatment of livestock wastewater using response surface methodology［J］. Journal of Agro-Environment Science，2020，39（6）：1368-1379． doi:10.11654/jaes.2019-1293
14	SUTHERLAND D L， HOWARD-WILLIAMS C， TURNBULL M H，et al. The effects of CO₂ addition along a pH gradient on wastewater microalgal photo-physiology，biomass production and nutrient removal［J］. Water Research，2015，70：9-26． doi:10.1016/j.watres.2014.10.064
15	周雅萱，尹洧. 废水中电导率和溶解性固体的相关关系［J］. 化工环保，1987，7（2）：104-107．
	ZHOU Yaxuan， YIN Wei. Correlation between conductivity and dissolved solids in wastewater［J］. Environmental Protection of Chemical Industry，1987，7（2）：104-107．
16	ZHU Guibing， PENG Yongzhen， WANG Shuying，et al. Effect of influent flow rate distribution on the performance of step-feed biological nitrogen removal process［J］. Chemical Engineering Journal，2007，131（1/2/3）：319-328． doi:10.1016/j.cej.2006.12.023
17	HE Pinjing， MAO B， Fan LÜ，et al. The combined effect of bacteria and Chlorella vulgaris on the treatment of municipal wastewaters［J］. Bioresource Technology，2013，146：562-568． doi:10.1016/j.biortech.2013.07.111
18	SEPEHRI A， SARRAFZADEH M H. Effect of nitrifiers community on fouling mitigation and nitrification efficiency in a membrane bioreactor［J］. Chemical Engineering and Processing-Process Intensification，2018，128：10-18． doi:10.1016/j.cep.2018.04.006
19	任广跃，任丽影，张伟，等. 正交试验优化怀山药微波辅助真空冷冻干燥工艺［J］. 食品科学，2015，36（12）：12-16． doi:10.7506/spkx1002-6630-201512003
	REN Guangyue， REN Liying， ZHANG Wei，et al. Optimizing microwave-assisted vacuum freeze-drying of dioscorea opposite by orthogonal array design［J］. Food Science，2015，36（12）：12-16． doi:10.7506/spkx1002-6630-201512003
20	王雪，焦连庆，于敏，等. 多指标综合加权评分法优选五味子与丹参混合醇提工艺研究［J］. 中草药，2015，46（7）：998-1001． doi:10.7501/j.issn.0253-2670.2015.07.011
	WANG Xue， JIAO Lianqing， YU Min，et al. Optimization of ethanol extraction technique for Schisandrae Fructus and Salviae Miltiorrhizae Radix by multi index comprehensive weighted score evaluation［J］. Chinese Traditional and Herbal Drugs，2015，46（7）：998-1001． doi:10.7501/j.issn.0253-2670.2015.07.011

实验组	A：光照强度/（μmol·m^-2·s^-1）	B：曝气强度/（L·min^-1）	C：藻菌接种比例
1	250	0.1	1∶1
2	250	0.2	1∶5
3	250	0.5	1∶10
4	400	0.1	1∶5
5	400	0.2	1∶10
6	400	0.5	1∶1
7	550	0.1	1∶10
8	550	0.2	1∶1
9	550	0.5	1∶5

实验组	A：光照强度/（μmol·m^-2·s^-1）	B：曝气强度/（L·min^-1）	C：藻菌接种比例
1	250	0.1	1∶1
2	250	0.2	1∶5
3	250	0.5	1∶10
4	400	0.1	1∶5
5	400	0.2	1∶10
6	400	0.5	1∶1
7	550	0.1	1∶10
8	550	0.2	1∶1
9	550	0.5	1∶5

实验组	COD	TN	TP	NH₄ ⁺-N
1	88.72	57.64	86.55	75.07
2	88.13	51.67	93.97	73.02
3	86.66	46.35	93.55	73.02
4	85.84	60.45	93.98	77.95
5	89.81	55.48	90.37	77.75
6	88.88	54.52	94.61	71.58
7	86.28	55.43	92.91	74.25
8	88.56	61.58	95.46	80.21
9	86.56	52.97	93.76	75.69

实验组	COD	TN	TP	NH₄ ⁺-N
1	88.72	57.64	86.55	75.07
2	88.13	51.67	93.97	73.02
3	86.66	46.35	93.55	73.02
4	85.84	60.45	93.98	77.95
5	89.81	55.48	90.37	77.75
6	88.88	54.52	94.61	71.58
7	86.28	55.43	92.91	74.25
8	88.56	61.58	95.46	80.21
9	86.56	52.97	93.76	75.69

		A/（μmol·m^-2·s^-1）	B/（L·min^-1）	C	TP去除率/%	COD去除率/%	TN去除率/%	NH₄ ⁺-N去除率/%	综合评分/%
实验组	1	250	0.1	1	86.55	88.72	57.64	75.07	75.08
	2	250	0.2	5	93.97	88.13	51.67	73.02	73.24
	3	250	0.5	10	93.55	86.66	46.35	73.02	71.16
	4	400	0.1	5	93.98	85.84	60.45	77.95	76.67
	5	400	0.2	10	90.37	89.81	55.48	77.75	75.95
	6	400	0.5	1	94.61	88.88	54.52	71.58	73.96
	7	550	0.1	10	92.91	86.28	55.43	74.25	74.08
	8	550	0.2	1	95.46	88.56	61.58	80.21	78.65
	9	550	0.5	5	93.76	86.56	52.97	75.69	73.96
去除率	K ₁	73.16%	75.28%	75.90%
	K ₂	75.52%	75.95%	74.62%
	K ₃	75.56%	73.08%	73.73%
极差	R	2.30%	2.87%	2.17%
