CoMoO<sub>4</sub>@rGO复合膜的制备及其对染料废水的处理性能

doi:10.19965/j.cnki.iwt.2024-0412

摘要/Abstract

摘要：

将高级氧化技术与膜分离技术相耦合，制备具有催化降解污染物功能的复合分离膜，能有效提高对污染物的处理性能。通过水热法合成了CoMoO₄@rGO复合催化剂，并采用抽滤和高压固定方式制备了CoMoO₄@rGO复合膜。通过SEM可以观察到CoMoO₄纳米棒分散在薄片状rGO中，XRD和FTIR等表征手段均证实了复合膜的成功制备。进一步研究了复合膜在过一硫酸盐（PMS）辅助下对亚甲基蓝（MB）的处理性能。结果表明，在rGO掺杂量为1%（质量分数），PMS浓度为0.3 mmol/L，催化功能层负载量为79.37 g/m²，操作压力为5.00×10^-3 MPa以及pH为3~7条件下，复合膜在2 min内对MB的去除率达到100%。同时，催化功能层通过活化PMS对污染物的分解可有效缓解膜污染。10次连续循环使用后，该复合膜仍展现出优异的稳定性。自由基猝灭实验证明了非自由基（¹O₂与表面介导氧化）和自由基（O₂ ^·-）协同机制均对CoMoO₄@（1%）rGO复合膜去除MB起到重要作用。

关键词: CoMoO₄, rGO, 高级氧化, 复合膜, 染料废水

Abstract:

Coupling advanced oxidation technology with membrane separation technology to form composite membrane can efficiently improve the treatment performance of pollutants. The CoMoO₄@rGO composite were synthesized by hydrothermal method, and CoMoO₄@rGO composite membrane were prepared by pumping filtration and high pressure immobilization. It could be observed that CoMoO₄ nanorods were dispersed in thin rGO sheets through SEM. The characterization methods such as XRD and FTIR confirmed the successful preparation of the composite membrane. The treatment performance of the composite membrane towards methylene blue(MB) with the assistance of persulfate(PMS) was further investigated. The results showed that the composite membrane could remove 100% of MB within 2 min, under the conditions of rGO doping of 1%(mass fraction), PMS concentration of 0.3 mmol/L, catalytic functional layer loading of 79.37 g/m², operating pressure of 5.00×10^-3 MPa, and pH of 3-7. Meanwhile, the catalytic functional layer could effectively alleviate membrane fouling by activating PMS to decompose pollutants. After 10 consecutive cycles of use, the composite membrane still exhibited excellent stability. The free radical quenching experiments demonstrated that both non free radical (¹O₂ and surface-mediated oxidation) and free radical (O₂ ^·-) synergistic mechanisms played an important role in the removal of MB by CoMoO₄@(1%) rGO composite membrane.

Key words: CoMoO₄, rGO, advanced oxidation technology, composite membrane, dye wastewater

中图分类号:

X703

韦浩桐, 陈文凯, 吴丹, 刘宇琪, 赵焕新. CoMoO₄@rGO复合膜的制备及其对染料废水的处理性能[J]. 工业水处理, 2025, 45(5): 102-110.

Haotong WEI, Wenkai CHEN, Dan WU, Yuqi LIU, Huanxin ZHAO. The synthesis of CoMoO₄@rGO composite membrane and its performance on dye wastewater treatment[J]. Industrial Water Treatment, 2025, 45(5): 102-110.

https://www.iwt.cn/CN/Y2025/V45/I5/102

图/表 9

图1 CoMoO₄膜及CoMoO₄@rGO复合膜的照片及SEM （a）CoMoO₄膜照片；（b）CoMoO₄@（1%）rGO复合膜照片；（c）CoMoO₄@（10%）rGO复合膜照片；（d）CoMoO₄@（20%）rGO复合膜照片；（e）CoMoO₄膜SEM；（f）CoMoO₄@（1%）rGO复合膜SEM；（g）CoMoO₄@（10%）rGO复合膜SEM；（h）CoMoO₄@（20%）rGO复合膜SEM。

Fig.1 Photographs and SEM of CoMoO₄ and CoMoO₄@rGO composite membranes

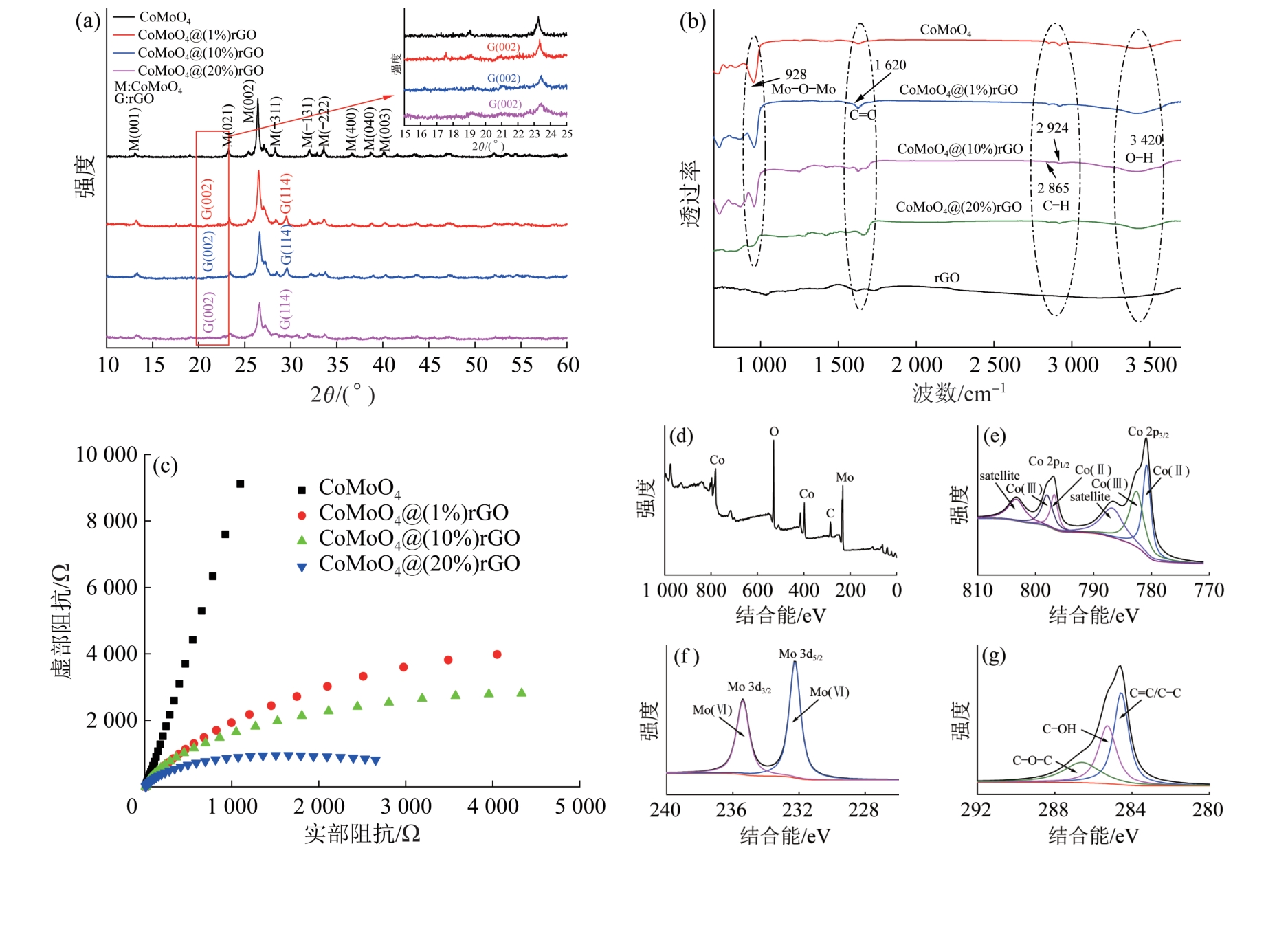

图2 CoMoO₄及CoMoO₄@rGO的XRD、FTIR、交流阻抗及XPS表征（a）CoMoO₄及CoMoO₄@rGO的XRD；（b）CoMoO₄及CoMoO₄@rGO的FTIR；（c）CoMoO₄及CoMoO₄@rGO的电化学交流阻抗；（d）CoMoO₄@（1%）rGO的XPS全谱图；（e）~（g）CoMoO₄@（1%）rGO中Co、Mo和C元素的XPS。

Fig.2 XRD，FTIR，AC impedance and XPS characterization of CoMoO₄ and CoMoO₄@rGO

图3 CoMoO₄@rGO复合膜处理MB的性能（c） CoMoO₄@rGO复合膜处理MB的稳定性

Fig.3 Performance of CoMoO₄@rGO composite membrane for MB treatment

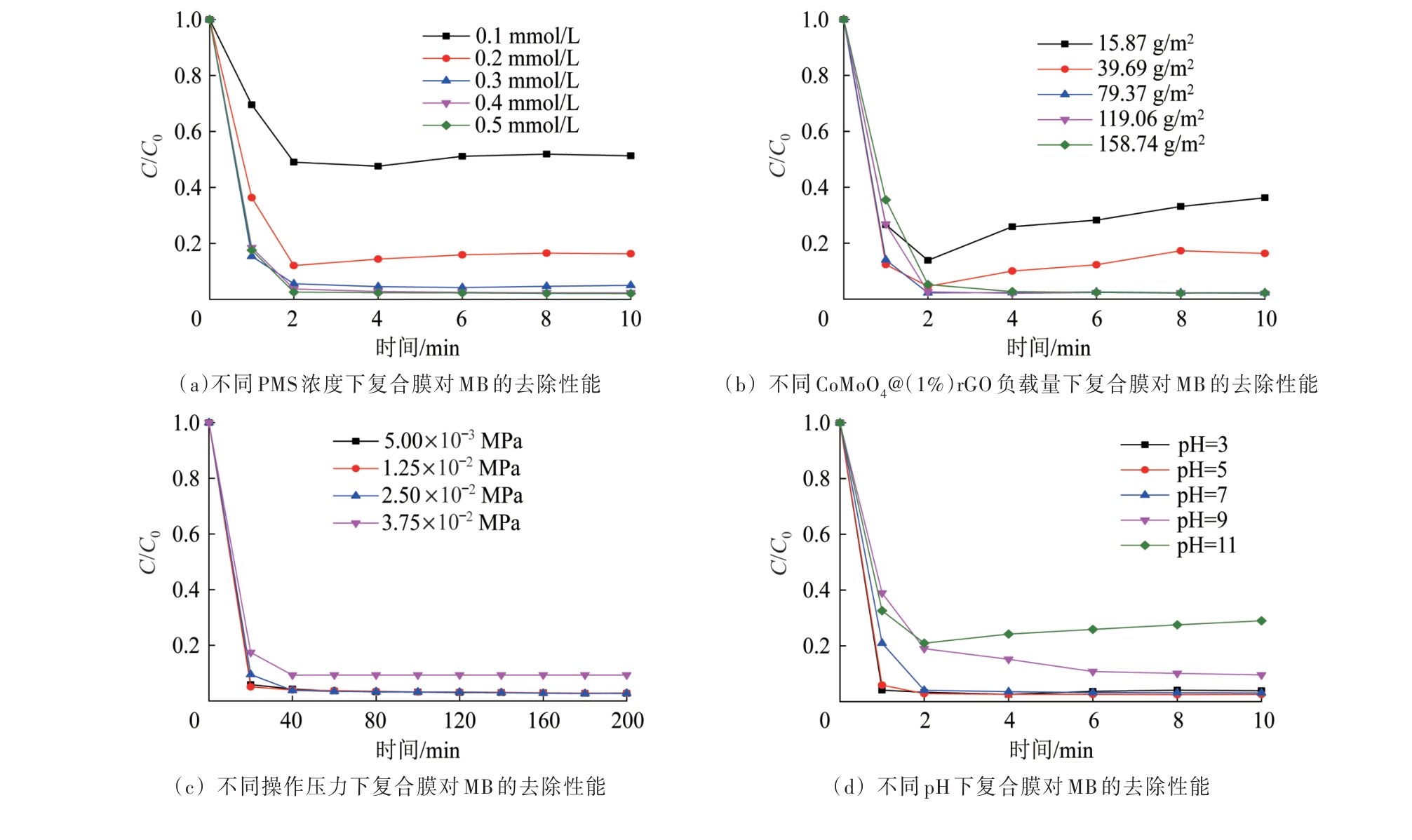

图4 各要素对复合膜去除MB效果的影响

Fig.4 Effect of each factor on MB removal by composite membrane

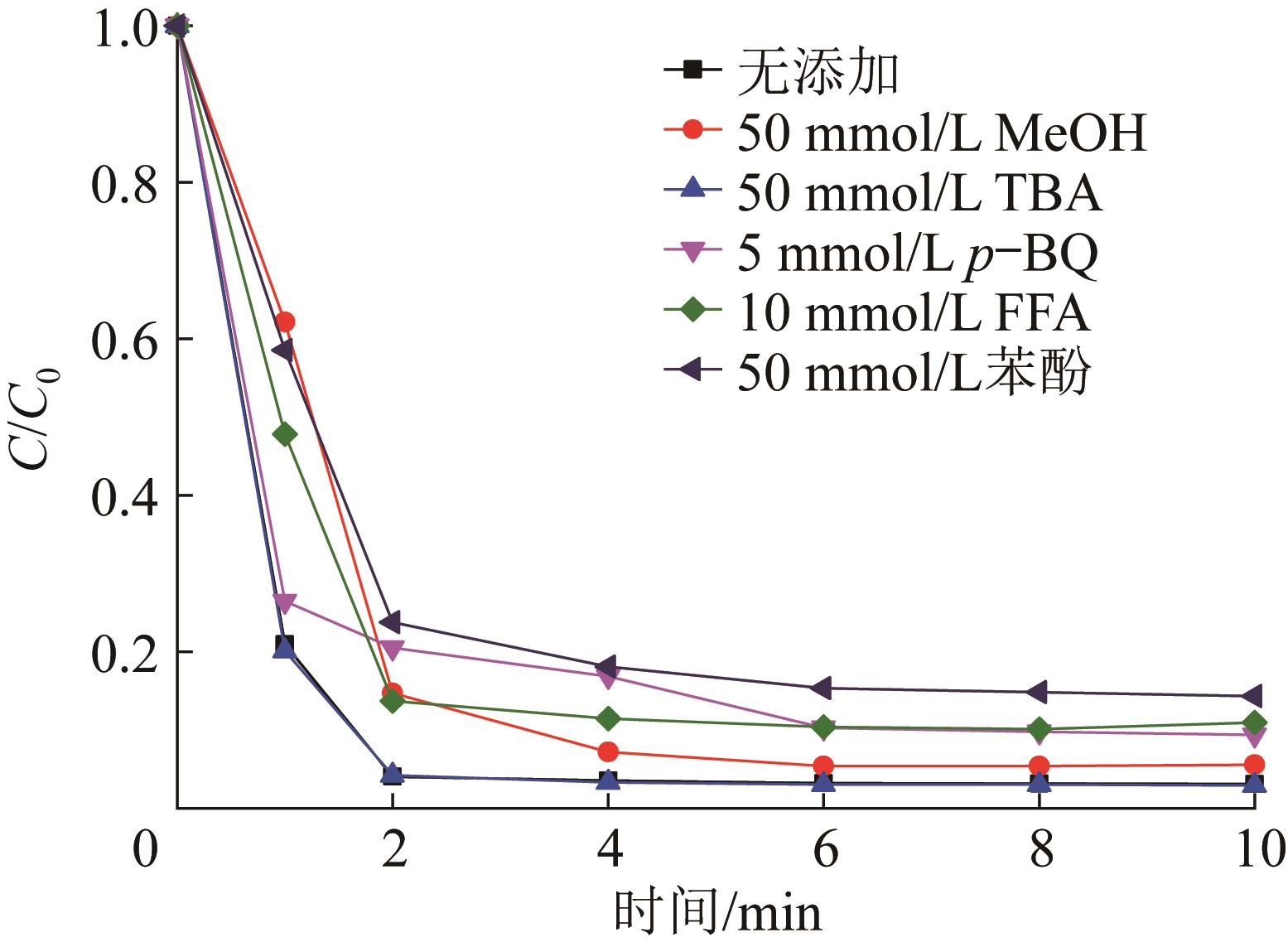

图5 自由基捕获实验结果

Fig.5 Results of free radical trapping experiments

图6 使用前后CoMoO₄@（1%）rGO复合膜的XPS表征

Fig.6 XPS characterization of CoMoO₄@（1%）rGO composite membrane before and after use

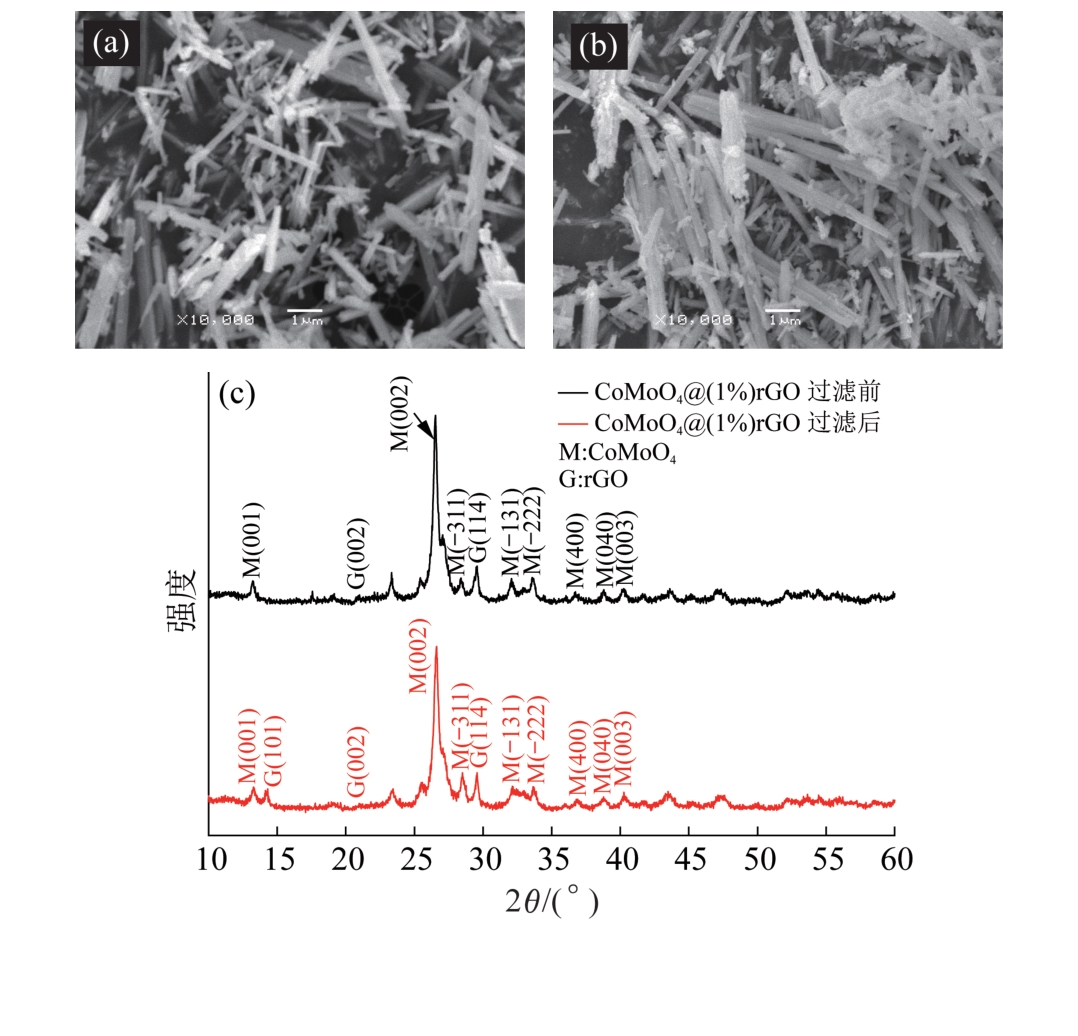

图7 CoMoO₄@（1%）rGO复合膜使用前后的SEM（a~b）及XRD（c）

Fig.7 SEM （a-b） and XRD （c） of CoMoO₄@（1%）rGO composite membrane before and after use

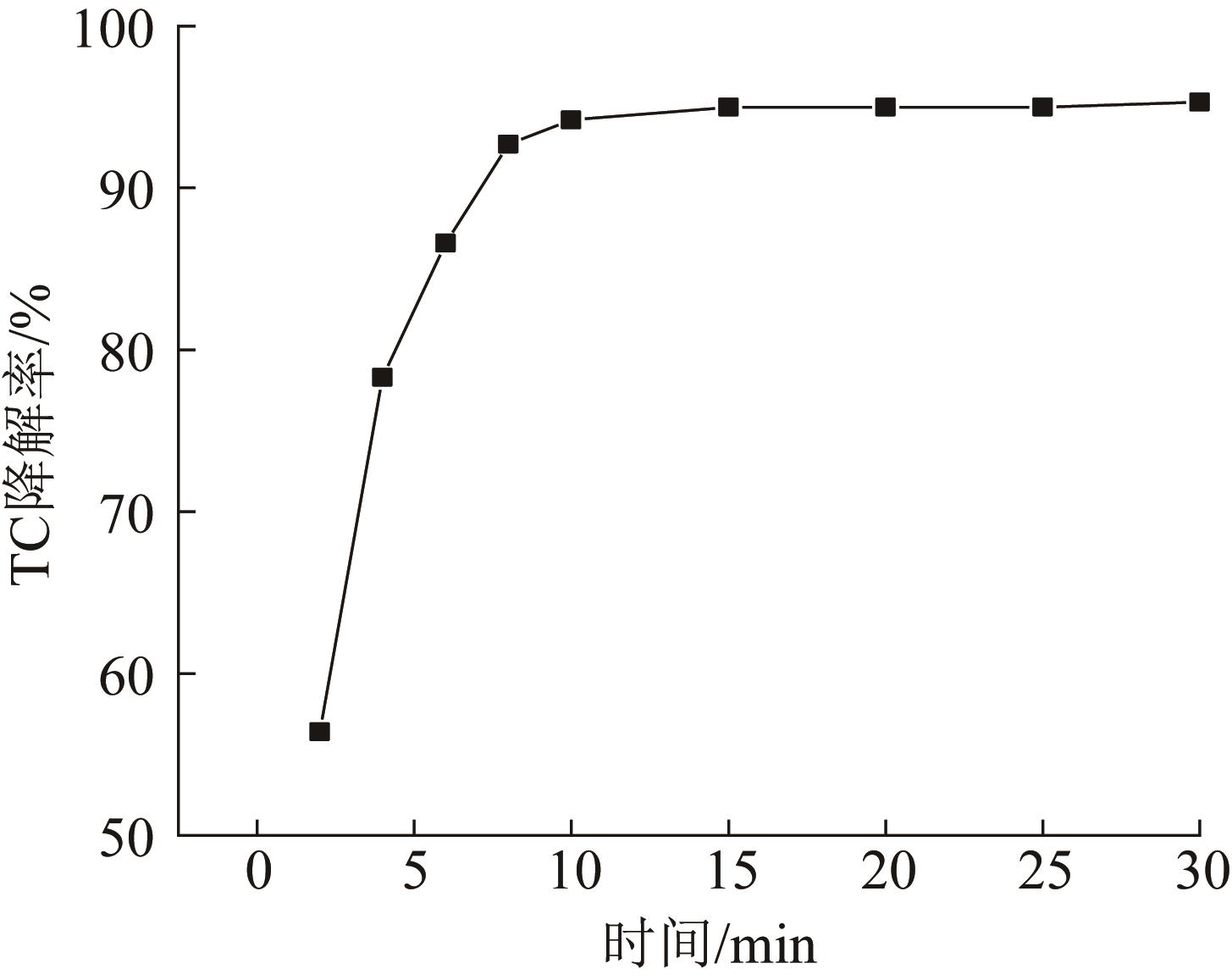

图8 CoMoO₄@（1%）rGO复合膜对TC的去除性能

Fig.8 The removal performance of TC by CoMoO₄@（1%）rGO composite membrane

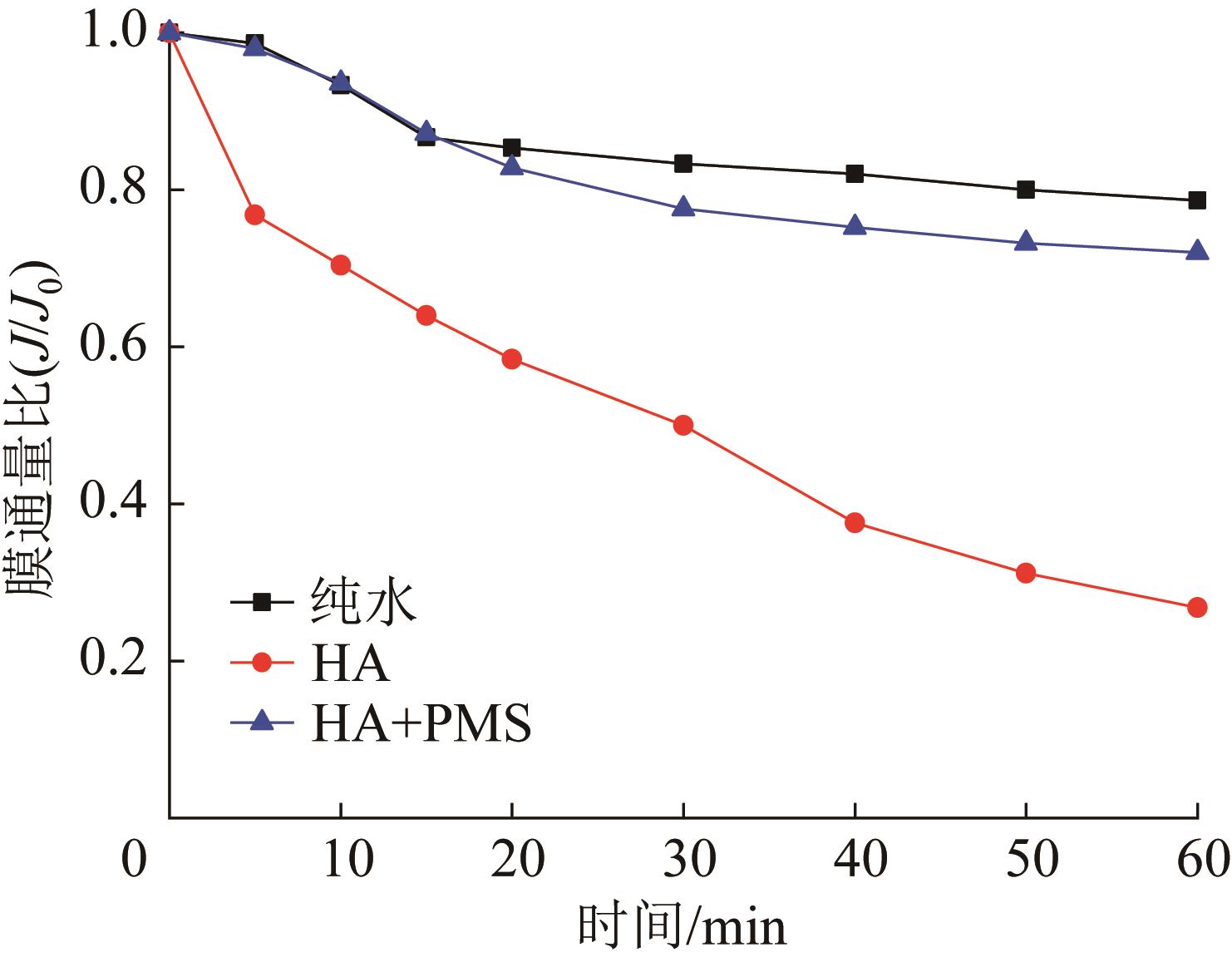

图9 CoMoO₄@（1%）rGO复合膜处理不同水样的渗透通量变化情况

Fig.9 Variation of permeate flux of different water samples treated by CoMoO₄@（1%）rGO composite membrane

参考文献 18
