高铁酸盐耦合过氧乙酸深度处理水中甲硝唑的特性研究

doi:10.19965/j.cnki.iwt.2023-0344

摘要/Abstract

摘要：

甲硝唑（MNZ）是一种硝基咪唑类抗生素，在环境中易积累且代谢产物具有潜在的致癌、致突变性。研究了高铁酸盐/过氧乙酸〔Fe（Ⅵ）/PAA〕耦合技术深度处理水中MNZ的特性，模拟了MNZ在废水中的降解，并深入研究其反应机理。在Fe（Ⅵ）/PAA体系下，pH为8，Fe（Ⅵ）、PAA投加浓度分别为500、100 μmol/L，反应时间为60 min时MNZ的降解率可达94.85%，且降解过程遵循伪一级动力学。变量试验表明，MNZ的降解与Fe（Ⅵ）和PAA的投加量呈正相关，且在pH=8时达到最佳效果。水基质中的氯离子（Cl^-）和硝酸根离子（NO₃ ^-）对MNZ降解的影响较小，铵盐（NH₄ ⁺）能促进MNZ的降解，而碳酸氢根离子（HCO₃ ^-）和腐殖酸（HA）则抑制MNZ的降解。Fe（Ⅵ）/PAA体系对模拟医疗废水中MNZ降解与在超纯水中的降解效果相似，可以达到较好的去除效果。探针实验和猝灭实验表明，该体系的主要活性物种是Fe（Ⅳ）/Fe（Ⅴ），PAA溶液中的H₂O₂是Fe（Ⅵ）的主要活化剂，PAA对活性物种去除MNZ起加速作用。该结果有望为Fe（Ⅵ）/PAA体系应用于医疗废水中深度处理MNZ提供理论参考和数据支撑。

关键词: 甲硝唑, 高铁酸盐, 过氧乙酸, 降解动力学, 高级氧化

Abstract:

Metronidazole(MNZ), prone to accumulate in the environment, is a nitroimidazole antibiotic and its metabolites have potential carcinogenicity and mutagenicity. In this paper, the degradation characteristics of MNZ by coupled ferrate/peroxyacetic acid〔Fe(Ⅵ)/PAA〕technology, as well as the simulation of MNZ degradation and reaction mechanism, were investigated. When the dosages of Fe(Ⅵ) as 500 μmol/L and PAA as 100 μmol/L, the degradation of MNZ reached 94.85% at pH of 8 in 60 min, and the degradation process followed pseudo-first-order kinetics. Variable experiments showed that the degradation of MNZ was positively correlated with the dosage of Fe(Ⅵ) and PAA, and the best effect was achieved at pH=8. Chloride (Cl^-) and nitrate (NO₃ ^-) in the water matrix had little effect on the degradation of MNZ. Ammonium salt (NH₄ ⁺) could promote the degradation of MNZ,while bicarbonate (HCO₃ ^-) and humic acid (HA) inhibited the degradation. The removal of MNZ in simulated medical wastewater by Fe(Ⅳ)/PAA was similar to that in ultra-pure water, which could achieve better removal effect. Probe experiments and quenching experiments showed that PAA accelerated the removal of MNZ from active species. H₂O₂ coexisting with PAA was the main activator of Fe(Ⅵ) while the main active species of Fe(Ⅵ)/PAA system were Fe(V) and Fe(Ⅳ). The results were expected to provide theoretical reference and data support for the application of Fe(Ⅵ)/PAA system in the deep treatment of MNZ in medical wastewater.

Key words: metronidazole, ferrate(Ⅵ), peracetic acid, degradation kinetics, advanced oxidation processes

中图分类号:

X703.1

商伟伟, 杨焱, 沈芸, 赵世荣, 薛罡, 钱雅洁. 高铁酸盐耦合过氧乙酸深度处理水中甲硝唑的特性研究[J]. 工业水处理, 2024, 44(5): 111-119.

Weiwei SHANG, Yan YANG, Yun SHEN, Shirong ZHAO, Gang XUE, Yajie QIAN. Study on characteristics of ferrate coupled peracetic acid for advanced treatment of metronidazole in water[J]. Industrial Water Treatment, 2024, 44(5): 111-119.

https://www.iwt.cn/CN/Y2024/V44/I5/111

图/表 14

表1 各目标污染物测试参数

Table 1 Test parameters of target pollutants

目标污染物	流量/（mL·min^-1）	流动相（V _乙腈∶V _水）	进样量/μL	波长/nm	柱温/℃
MNZ	1	20∶80	10	316	35
PMSO	1	20∶80	60	230	35
PMSO₂	1	20∶80	60	268	35
BA	1	20∶80	100	257	35

图1 不同降解体系对MNZ的降解效果

Fig.1 The degradation effect of different system on MNZ

图2 Fe（Ⅵ）浓度对Fe（Ⅵ）/PAA体系中MNZ降解的影响

Fig.2 Effect of Fe（Ⅵ） concentration on MNZ degradation in Fe（Ⅵ）/PAA system

图3 PAA浓度对Fe（Ⅵ）/PAA体系中MNZ降解的影响

Fig.3 Effect of PAA concentration on MNZ degradation in Fe（Ⅵ）/PAA system

图4 pH对Fe（Ⅵ）/PAA体系中MNZ降解的影响

Fig.4 Effect of pH on MNZ degradation in Fe（Ⅵ）/PAA system

图5 Cl^-、HCO₃ ^-、NO₃ ^-、NH₄ ⁺和HA对Fe（Ⅵ）/PAA体系中MNZ降解的影响

Fig.5 Effects of chloride，bicarbonate，nitrate ammonium，and HA on MNZ removal by Fe（Ⅵ）/PAA

表2 模拟医院废水组分

Table 2 Components of simulated hospital wastewater

组分	NaCl	NH₄Cl	NaHCO₃	KCl	Na₂HPO₄	CaCl₂·2H₂O	尿素
浓度/（mmol·L^-1）	51.3	0.94	1.19	1.34	0.32	0.34	21

图6 MNZ在模拟医疗废水中的降解

Fig.6 MNZ degradation in simulated medical wastewater

图7 PMSO在UV/PAA系统中的降解

Fig.7 Degradation of PMSO by UV/PAA

图8 PMSO和PMSO₂在Fe（Ⅵ）/PAA系统中的浓度变化

Fig.8 Changes of PMSO and PMSO₂ concentrations in Fe（Ⅵ）/PAA system

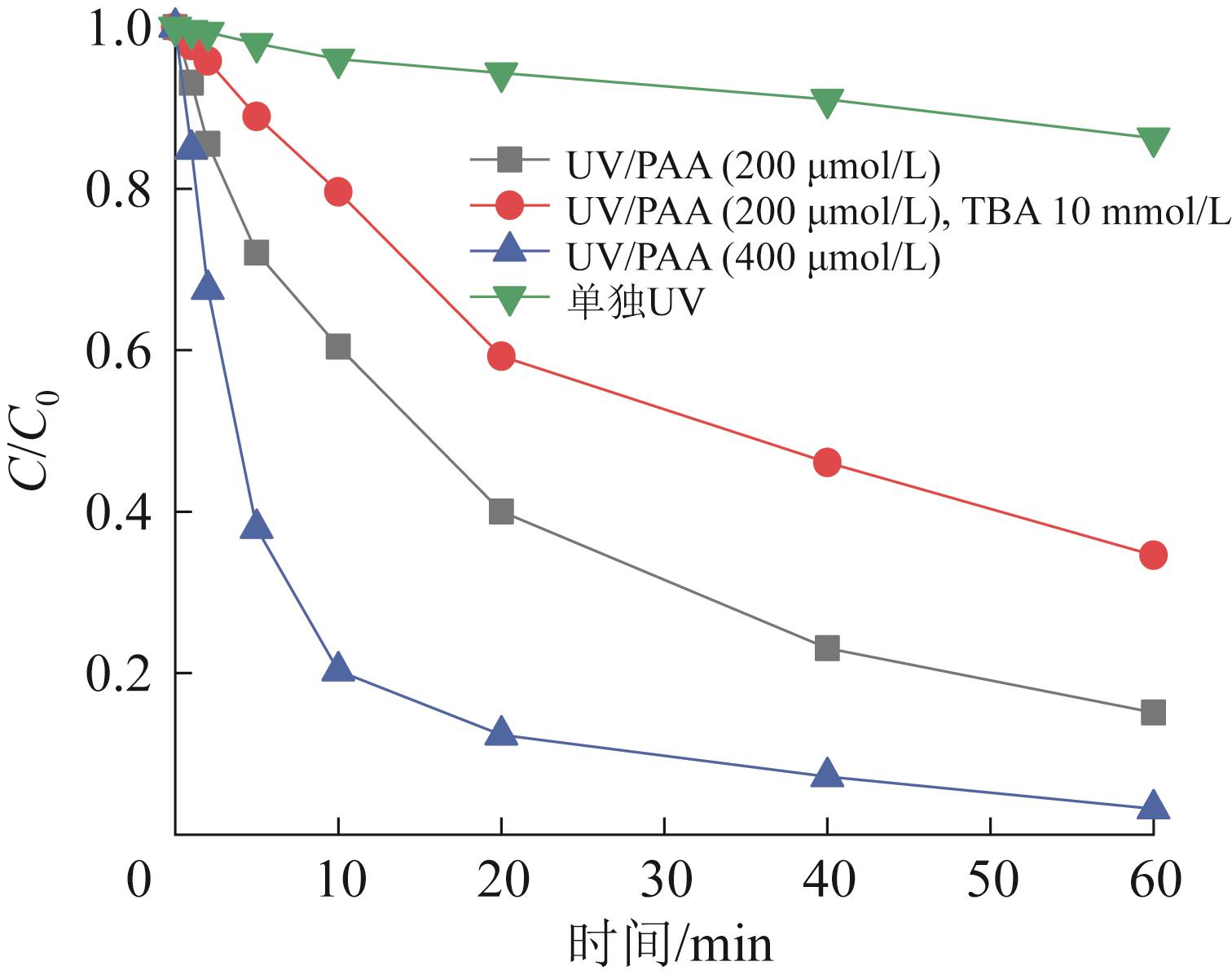

图9 BA在UV/PAA系统中的降解

Fig.9 Degradation of BA by UV/PAA

图10 BA在Fe（Ⅵ）/PAA系统中的降解

Fig.10 Degradation of BA by Fe（Ⅵ）/PAA

图11 PAA和/或H₂O₂存在的情况下Fe（Ⅵ）的降解

Fig.11 Degradation of Fe（Ⅵ） in the presence of PAA and/or H₂O₂

图12 PAA和H₂O₂对Fe（Ⅵ）/HSO₃ ^-体系去除MNZ和PMSO的影响

Fig.12 Impacts of PAA and H₂O₂ on MNZ and PMSO removal by the Fe（Ⅵ）/HSO₃ ^- system

参考文献 34

1	PÉREZ T， GARCIA-SEGURA S， EL-GHENYMY A，et al. Solar photoelectro-Fenton degradation of the antibiotic metronidazole using a flow plant with a Pt/air-diffusion cell and a CPC photoreactor［J］. Electrochimica Acta，2015，165：173-181． doi:10.1016/j.electacta.2015.02.243
2	FANG Zhanqiang， CHEN Jinhong， QIU Xinhong，et al. Effective removal of antibiotic metronidazole from water by nanoscale zero-valent iron particles［J］. Desalination，2011，268（1/2/3）：60-67． doi:10.1016/j.desal.2010.09.051
3	BOXI S S， PARIA S. Effect of silver doping on TiO₂，CdS，and ZnS nanoparticles for the photocatalytic degradation of metronidazole under visible light［J］. RSC Advances，2014，4（71）：37752-37760． doi:10.1039/c4ra06192f
4	ABOUDALLE A， FOURCADE F， ASSADI A A，et al. Reactive oxygen and iron species monitoring to investigate the electro-Fenton performances. Impact of the electrochemical process on the biodegradability of metronidazole and its by-products［J］. Chemosphere，2018，199：486-494． doi:10.1016/j.chemosphere.2018.02.075
5	REDDY N H S， PATNALA S， LÖBENBERG R，et al. In vitro dissolution of generic immediate-release solid oral dosage forms containing BCS class I drugs：Comparative assessment of metronidazole，zidovudine，and amoxicillin Versus relevant comparator pharmaceutical products in South Africa and India［J］. AAPS PharmSciTech，2014，15（5）：1076-1086． doi:10.1208/s12249-014-0135-6
6	STANCIL S L， VAN HAANDEL L， ABDEL-RAHMAN S，et al ．Development of a UPLC-MS/MS method for quantitation of metronidazole and 2-hydroxy metronidazole in human plasma and its application to a pharmacokinetic study［J］. Journal of Chromatography B，2018，1092：272-278． doi:10.1016/j.jchromb.2018.06.024
7	HOSSAIN A， NAKAMICHI S， HABIBULLAH-AL-MAMUN M，et al. Occurrence and ecological risk of pharmaceuticals in river surface water of Bangladesh［J］. Environmental Research，2018，165：258-266． doi:10.1016/j.envres.2018.04.030
8	WAGIL M， MASZKOWSKA J， BIAŁK-BIELIŃSKA A，et al. Determination of metronidazole residues in water，sediment and fish tissue samples［J］. Chemosphere，2015，119：S28-S34． doi:10.1016/j.chemosphere.2013.12.061
9	MADBOULY N A， NASHEE H， ELGENDY A A，et al. Encapsulation of low metronidazole dose in poly （D，L-lactide-co-glycolide）（PLGA） nanoparticles improves Giardia intestinalis treatment［J］. Infection & Chemotherapy，2020，52（4）：550． doi:10.3947/ic.2020.52.4.550
10	COMMITTEE W H O E. The selection and use of essential medicines［J］. World Health Organization Technical Report Series，2012，950：1-268.
11	PAN Yishuai， LI Xuchun， FU Kun，et al. Degradation of metronidazole by UV/chlorine treatment：Efficiency，mechanism，pathways and DBPs formation［J］. Chemosphere，2019，224：228-236． doi:10.1016/j.chemosphere.2019.02.081
12	SEGOVIA-SANDOVAL S J， PASTRANA-MARTÍNEZ L M， OCAMPO-PÉREZ R，et al. Synthesis and characterization of carbon xerogel/graphene hybrids as adsorbents for metronidazole pharmaceutical removal：Effect of operating parameters［J］. Separation and Purification Technology，2020，237：116341． doi:10.1016/j.seppur.2019.116341
13	KIM S H， SHON H K， NGO H H. Adsorption characteristics of antibiotics trimethoprim on powdered and granular activated carbon［J］. Journal of Industrial and Engineering Chemistry，2010，16（3）：344-349． doi:10.1016/j.jiec.2009.09.061
14	ZHANG Shisheng， LIN Tao， CHEN Wei，et al. Degradation kinetics，byproducts formation and estimated toxicity of metronidazole （MNZ） during chlor（am）ination［J］. Chemosphere，2019，235：21-31． doi:10.1016/j.chemosphere.2019.06.150
15	RAO Yandi， LI Aoqi， ZHANG Yuxin，et al. Efficient degradation of metronidazole with dual-cathode of acetylene black-PTFE/CoFe₂O₄-PTFE coupling persulfate［J］. Separation and Purification Technology，2022，283：120193． doi:10.1016/j.seppur.2021.120193
16	ZHANG Tianqi， WANG Ting， MEJIA-TICKNER B，et al. Inactivation of bacteria by peracetic acid combined with ultraviolet irradiation：Mechanism and optimization［J］. Environmental Science & Technology，2020，54（15）：9652-9661． doi:10.1021/acs.est.0c02424
17	BAUM J C， FENG Mingbao， GUO Binglin，et al. Generation of iron（Ⅳ） in the oxidation of amines by ferrate（Ⅵ）：Theoretical insight and implications in oxidizing pharmaceuticals［J］. ACS ES&T Water，2021，1（8）：1932-1940． doi:10.1021/acsestwater.1c00156
18	KIM J， HUANG C H. Reactivity of peracetic acid with organic compounds：A critical review［J］. ACS ES&T Water，2021，1（1）：15-33． doi:10.1021/acsestwater.0c00029
19	ZHANG Tianqi， HUANG C H. Modeling the kinetics of UV/peracetic acid advanced oxidation process［J］. Environmental Science & Technology，2020，54（12）：7579-7590． doi:10.1021/acs.est.9b06826
20	KIM J， ZHANG Tianqi， LIU Wen，et al. Advanced oxidation process with peracetic acid and Fe（Ⅱ） for contaminant degradation［J］. Environmental Science & Technology，2019，53（22）：13312-13322． doi:10.1021/acs.est.9b02991
21	LIU Banghai， GUO Wanqian， JIA Wenrui，et al. Insights into the oxidation of organic contaminants by Co（Ⅱ） activated peracetic acid：The overlooked role of high-valent cobalt-oxo species［J］. Water Research，2021，201：117313． doi:10.1016/j.watres.2021.117313
22	LI Ruobai， MANOLI K， KIM J，et al. Peracetic acid-ruthenium（Ⅲ） oxidation process for the degradation of micropollutants in water［J］. Environmental Science & Technology，2021，55（13）：9150-9160． doi:10.1021/acs.est.0c06676
23	DOMÍNGUEZ-HENAO L， TUROLLA A， MONTICELLI D，et al ．Assessment of a colorimetric method for the measurement of low concentrations of peracetic acid and hydrogen peroxide in water［J］. Talanta，2018，183：209-215． doi:10.1016/j.talanta.2018.02.078
24	LUO Cong， FENG Mingbao， SHARMA V K，et al. Oxidation of pharmaceuticals by ferrate（Ⅵ） in hydrolyzed urine：Effects of major inorganic constituents［J］. Environmental Science & Technology，2019，53（9）：5272-5281． doi:10.1021/acs.est.9b00006
25	WANG Lei， SUN Hongwen， WU Yinghong，et al. Photodegradation of nonylphenol polyethoxylates in aqueous solution［J］. Environmental Chemistry，2009，6（2）：185． doi:10.1071/en08101
26	CHEN Siao， CAI Meiquan， LIU Yongze，et al. Effects of water matrices on the degradation of naproxen by reactive radicals in the UV/peracetic acid process［J］. Water Research，2019，150：153-161． doi:10.1016/j.watres.2018.11.044
27	HU Jun， LI Tong， ZHANG Xuxiang，et al. Degradation of steroid estrogens by UV/peracetic acid：Influencing factors，free radical contribution and toxicity analysis［J］. Chemosphere，2022，287：132261． doi:10.1016/j.chemosphere.2021.132261
28	FENG Mingbao， WANG Xinghao， CHEN Jing，et al. Degradation of fluoroquinolone antibiotics by ferrate（Ⅵ）：Effects of water constituents and oxidized products［J］. Water Research，2016，103：48-57． doi:10.1016/j.watres.2016.07.014
29	方智煌，刘祥，余阳，等. 高铁酸盐对水中H₂受体拮抗剂的降解特性［J］. 化工进展，2021，40（8）：4647-4655． doi:10.16085/j.issn.1000-6613.2020-1846
	FANG Zhihuang， LIU Xiang， YU Yang，et al. Performance and properties of H₂-receptor antagonist degradation by ferrate［J］. Chemical Industry and Engineering Progress，2021，40（8）：4647-4655． doi:10.16085/j.issn.1000-6613.2020-1846
30	ZHAO Zihao， LI Xinhong， LI Hongchao，et al. New insights into the activation of peracetic acid by Co（Ⅱ）：Role of Co（Ⅱ）-peracetic acid complex as the dominant intermediate oxidant［J］. ACS ES&T Engineering，2021，1（10）：1432-1440． doi:10.1021/acsestengg.1c00166
31	CAI Meiquan， SUN Peizhe， ZHANG Liqiu，et al. UV/peracetic acid for degradation of pharmaceuticals and reactive species evaluation［J］. Environmental Science & Technology，2017，51（24）：14217-14224． doi:10.1021/acs.est.7b04694
32	WANG Zongping， WANG Jingwen， XIONG Bin，et al. Application of cobalt/peracetic acid to degrade sulfamethoxazole at neutral condition：Efficiency and mechanisms［J］. Environmental Science & Technology，2020，54（1）：464-475． doi:10.1021/acs.est.9b04528
33	SHAO Binbin， DONG Hongyu， FENG Liying，et al. Influence ofsulfite/〔Fe（Ⅵ）〕 molar ratio on the active oxidants generation in Fe（Ⅵ）/sulfite process［J］. Journal of Hazardous Materials，2020，384：121303． doi:10.1016/j.jhazmat.2019.121303
34	WANG Junyue， KIM J， ASHLEY D C，et al. Peracetic acid enhances micropollutant degradation by ferrate（Ⅵ） through promotion of electron transfer efficiency［J］. Environmental Science & Technology，2022，56（16）：11683-11693． doi:10.1021/acs.est.2c02381
