富氧空位铁锰催化剂活化过一硫酸盐降解RBK5的性能与机理

doi:10.19965/j.cnki.iwt.2024-0915

摘要/Abstract

摘要：

引入氧空位可显著提高催化剂中金属活性位点的电子转移效率，增强催化剂对过一硫酸盐（PMS）的活化能力。笔者通过氢气煅烧法制备富氧空位铁锰催化剂，用于活化PMS降解活性黑5（RBK5）。通过XRD、SEM及XPS等手段表征了催化剂的理化性质，证实了氧空位的成功引入，并揭示了催化剂的晶型结构和表观形貌。性能测试显示，在最佳条件（10 mg/L RBK5，0.2 g/L催化剂，3 mmol/L PMS）下，RBK5降解率可达98%，且催化剂具有优异的循环稳定性和抗干扰能力。机理分析表明，催化剂表面氧空位及Fe与Mn元素构成主要活性位点。催化反应体系中生成了SO₄ ^·-、·OH、O₂ ^·-和¹O₂等多种活性物质，其中SO₄ ^·-和·OH为RBK5降解的主要活性物质。RBK5的降解同时通过自由基途径和表面电子转移途径进行。研究为富氧空位金属催化剂的设计及高效水处理提供了理论依据和实践指导。

关键词: 活性黑5, 过一硫酸盐, 纳米级催化剂, 铁锰双金属

Abstract:

Introducing oxygen vacancies can significantly enhance the electron transfer efficiency of metal active sites and improve the activation of peroxymonosulfate (PMS). In this study, oxygen-vacancy-rich Fe-Mn catalysts were prepared via hydrogen calcination and applied to activate PMS for the degradation of Reactive Black 5 (RBK5). The physicochemical properties of the catalysts were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), and X-ray photoelectron spectroscopy (XPS). These analyses confirmed the successful introduction of oxygen vacancies and revealed their crystal structure and morphology of catalysts. Performance tests showed that under optimized conditions (10 mg/L RBK5,0.2 g/L catalyst,3 mmol/L PMS), RBK5 degradation reached 98%, with the catalyst exhibiting excellent re-usability and anti-interference ability. Mechanism analysis revealed that surface oxygen vacancies and Fe and Mn served as the primary active sites. The catalyst surface generated various reactive species, including SO₄ ^·-, ·OH, O₂ ^·-, and singlet oxygen (¹O₂), among which SO₄ ^·- and ·OH were the dominant contributors to RBK5 degradation. Degradation proceeded via both free-radical pathways and surface electron-transfer pathways. This work provides theoretical guidance and practical reference for the design of oxygen-vacancy-rich metal catalysts for efficient water treatment.

Key words: reactive black 5, peroxymonosulfate, nano-scale catalyst, Fe-Mn bimetal

中图分类号:

X703

林蓉, 田义德, 洪俊明. 富氧空位铁锰催化剂活化过一硫酸盐降解RBK5的性能与机理[J]. 工业水处理, 2025, 45(11): 188-197.

Rong LIN, Yide TIAN, Junming HONG. Performance and mechanism of an oxygen-vacancy-rich iron-manganese catalyst activating peroxymonosulfate for RBK5 degradation[J]. Industrial Water Treatment, 2025, 45(11): 188-197.

https://www.iwt.cn/CN/Y2025/V45/I11/188

图/表 11

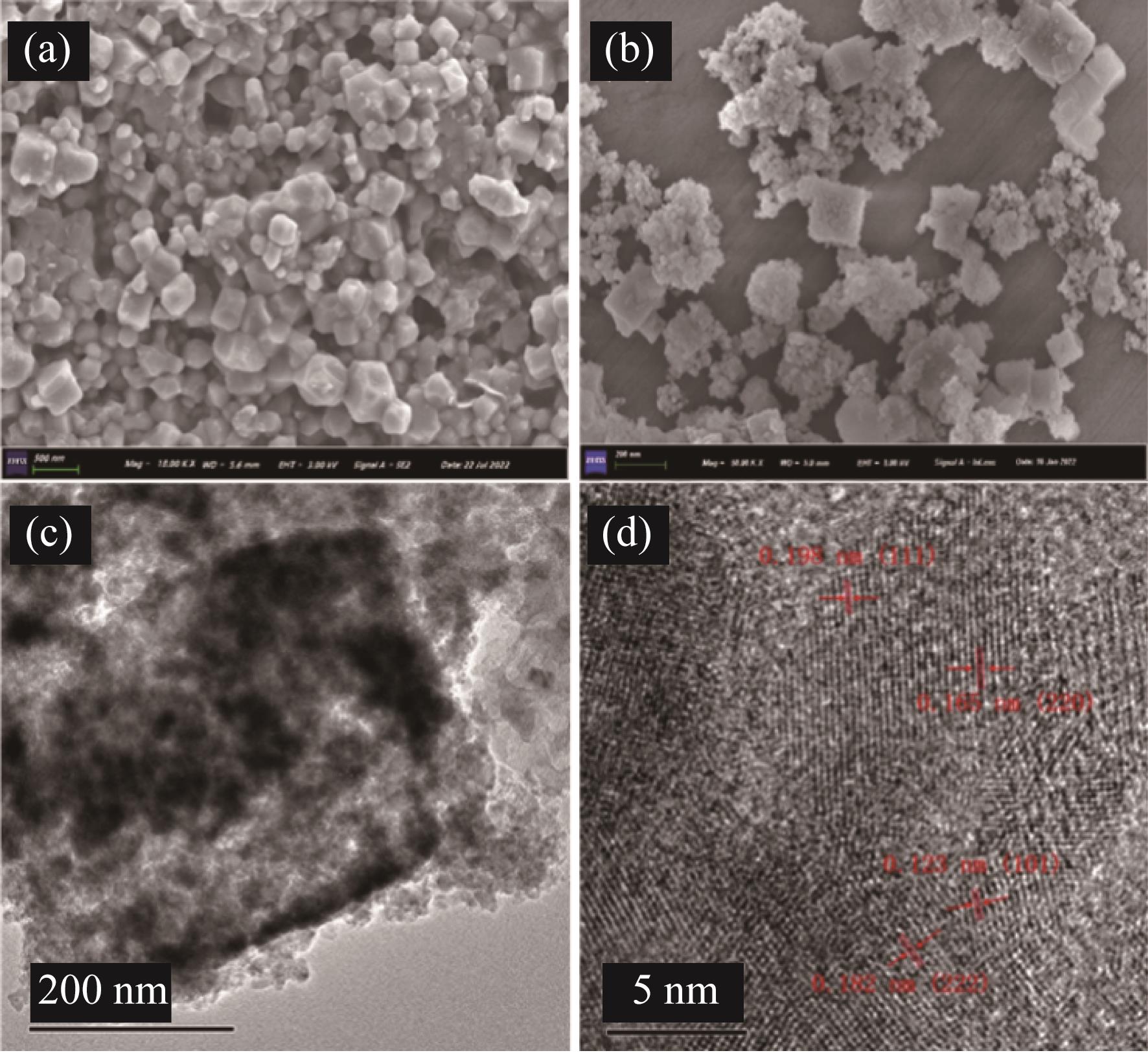

图1 表观形貌分析（a）FeMn PBA的SEM图；（b）OV-FeMn-H300的SEM图；（c）~（d）OV-FeMn-H300的TEM图。

Fig.1 Analysis of apparent morphology

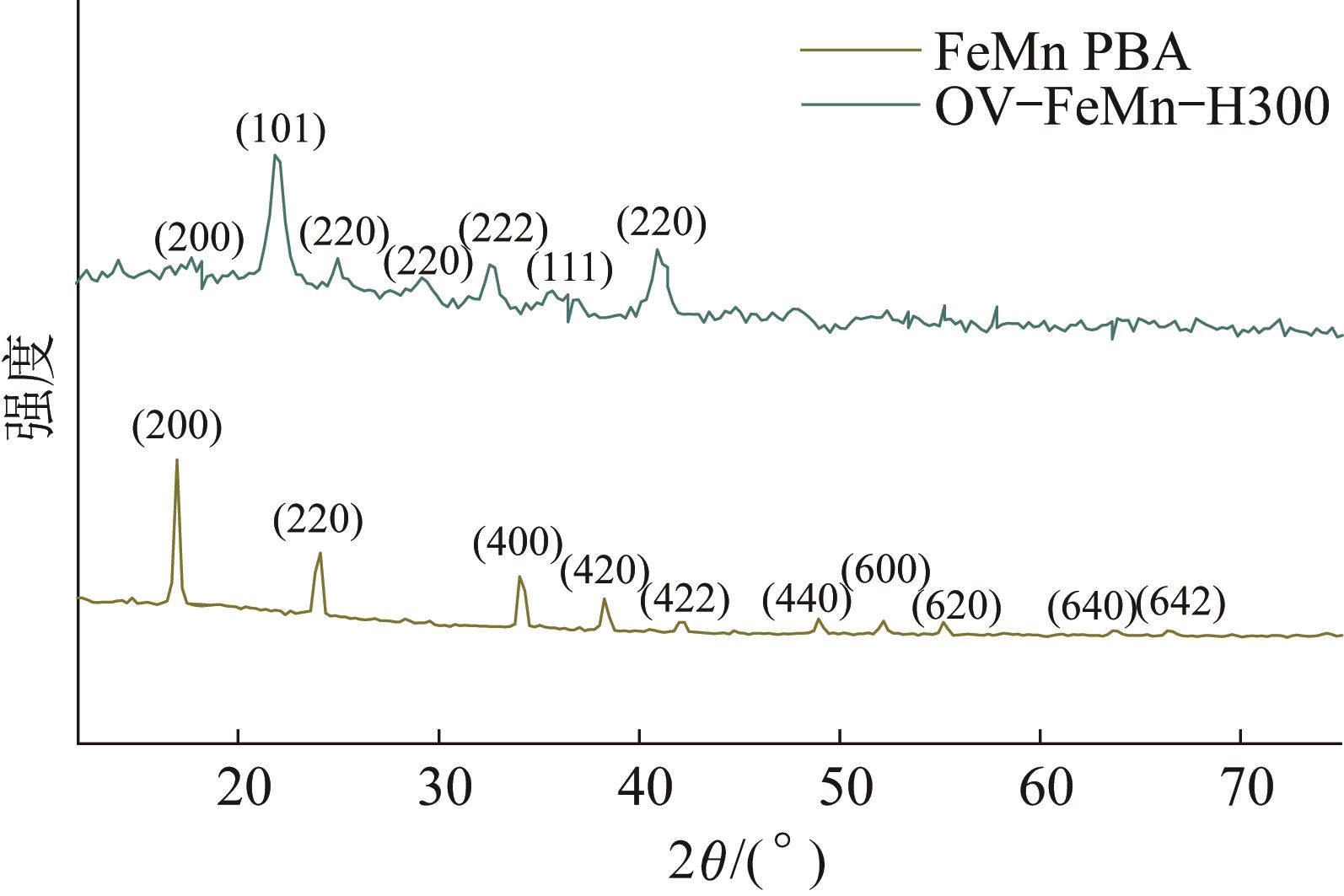

图2 催化剂的XRD谱图

Fig.2 XRD patterns of the catalysts

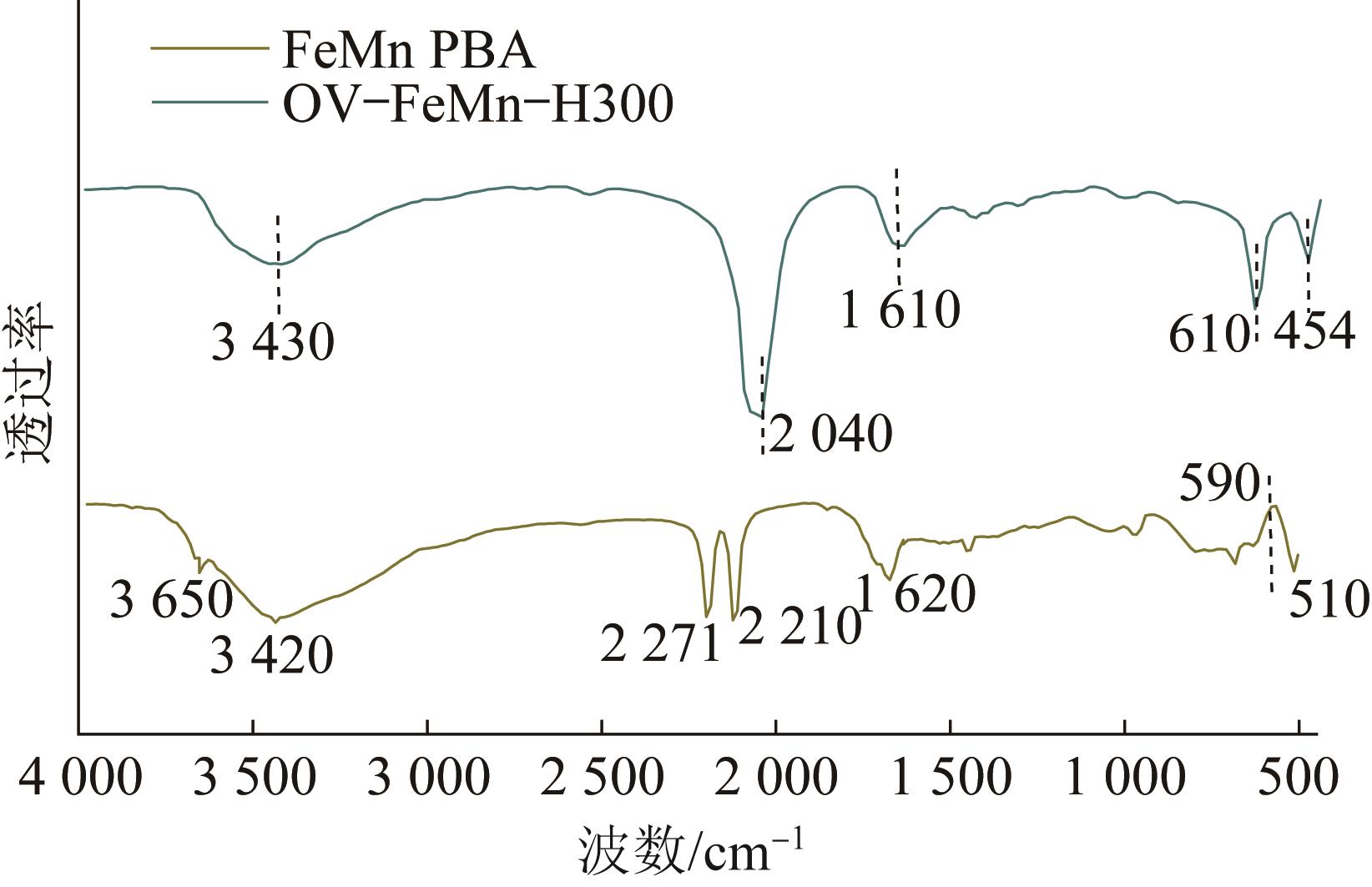

图3 催化剂的FTIR谱图

Fig.3 FTIR spectra of the catalysts

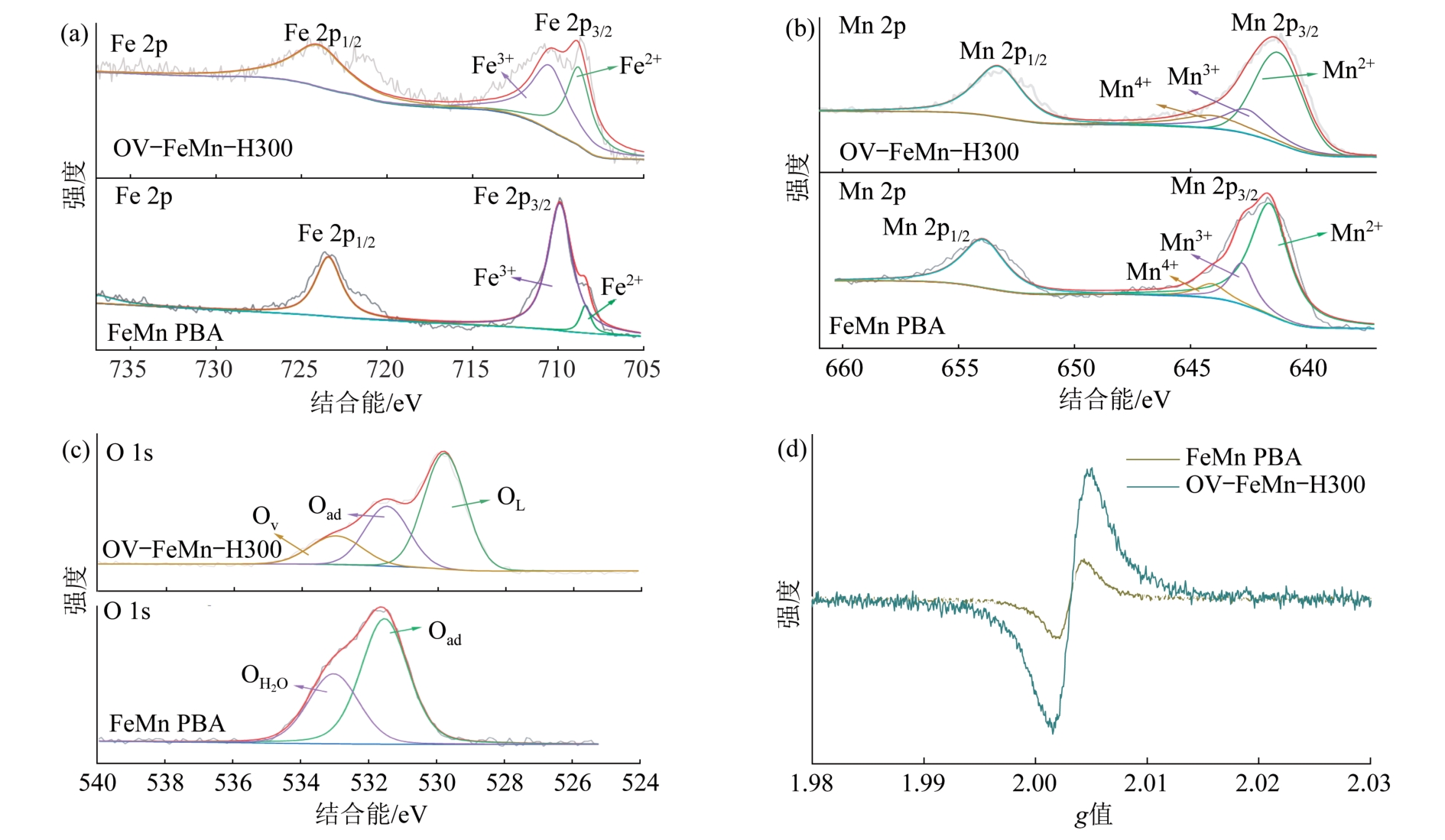

图4 Fe 2p（a）、Mn 2p（b）和O 1s（c）的XPS及FeMn PBA、OV-FeMn-H300的EPR（d）

Fig.4 XPS spectra of Fe 2p（a），Mn 2p（b），O 1s（c） and EPR spectra of FeMn PBA and OV-FeMn-H300（d）

表1 X射线光电子能谱分析

Table 1 Analyses of X-ray photoelectron spectroscopy

元素化合价和基团	FeMn PBA	OV-FeMn-H300	反应后OV-FeMn-H300
Fe²⁺	8.6%	82.9%	67.6%
Fe³⁺	91.4%	17.1%	31.4%
Mn²⁺	45.2%	54.0%	48.7%
Mn³⁺	22.7%	23.3%	24.7%
Mn⁴⁺	32.1%	22.7%	26.6%
表面H₂O	36.2%	—	—
O_L	—	28.2%	26.6%
O_V	—	28.3%	24.6%
O_ad	63.8%	43.5%	48.8%

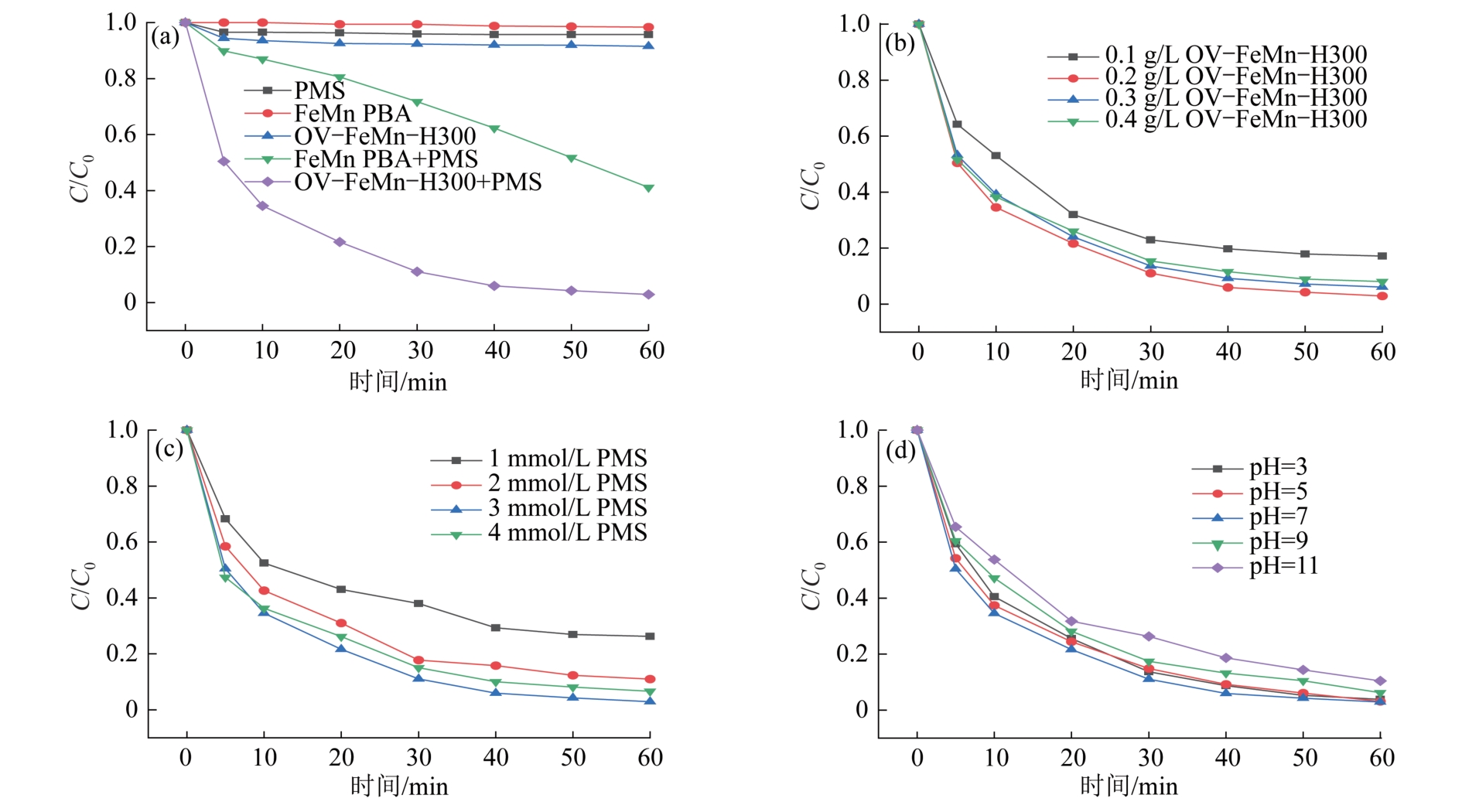

图5 降解因素的影响

Fig.5 Influence of degradation factors

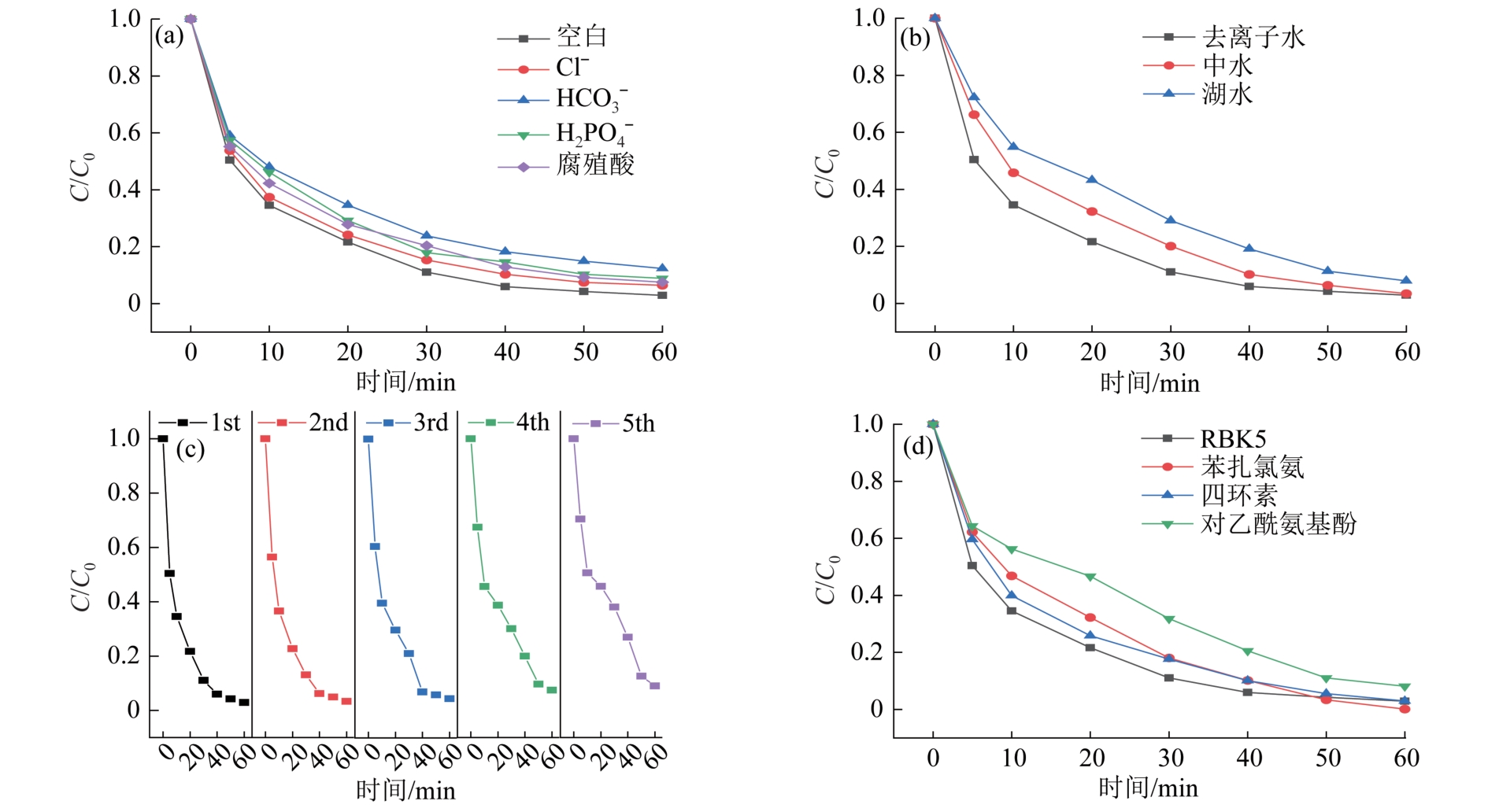

图6 OV-FeMn-H300的稳定性与适用性评价

Fig.6 Evaluation of the stability and applicability of OV-FeMn-H300

表2 其他催化剂活化降解RBK5效果对比

Table 2 Comparison with other catalysts in RBK5 degradation by activating persulfate

催化剂名称	污染物质量浓度/（mg·L^-1）	氧化剂浓度/ （mmol·L^-1）	降解效率	降解速率常数/min^-1	适用pH范围	主要活性物质	参考文献
Mn-Fe LDH	20	1	86.0%，90 min	0.026 6	≈7	SO₄ ^·-、·OH、	〔24〕
Fe₃O₄@α-MnO₂	30	4	91.0%，60 min	0.023	3~7	SO₄ ^·-	〔29〕
Mn₂O₃@α-Fe₃O₄	10	1	88.0%，90 min	0.027 2	≈3	·OH	〔30〕
c-CuFe₂O₄	100	8	92.9%，60 min	0.043 3	5~9	SO₄ ^·-、·OH	〔31〕
OV-FeMn-H300	10	3	98%，60 min	0.056 9	3~9	高价金属、SO₄ ^·-、·OH、O₂ ^·-和¹O₂	本研究

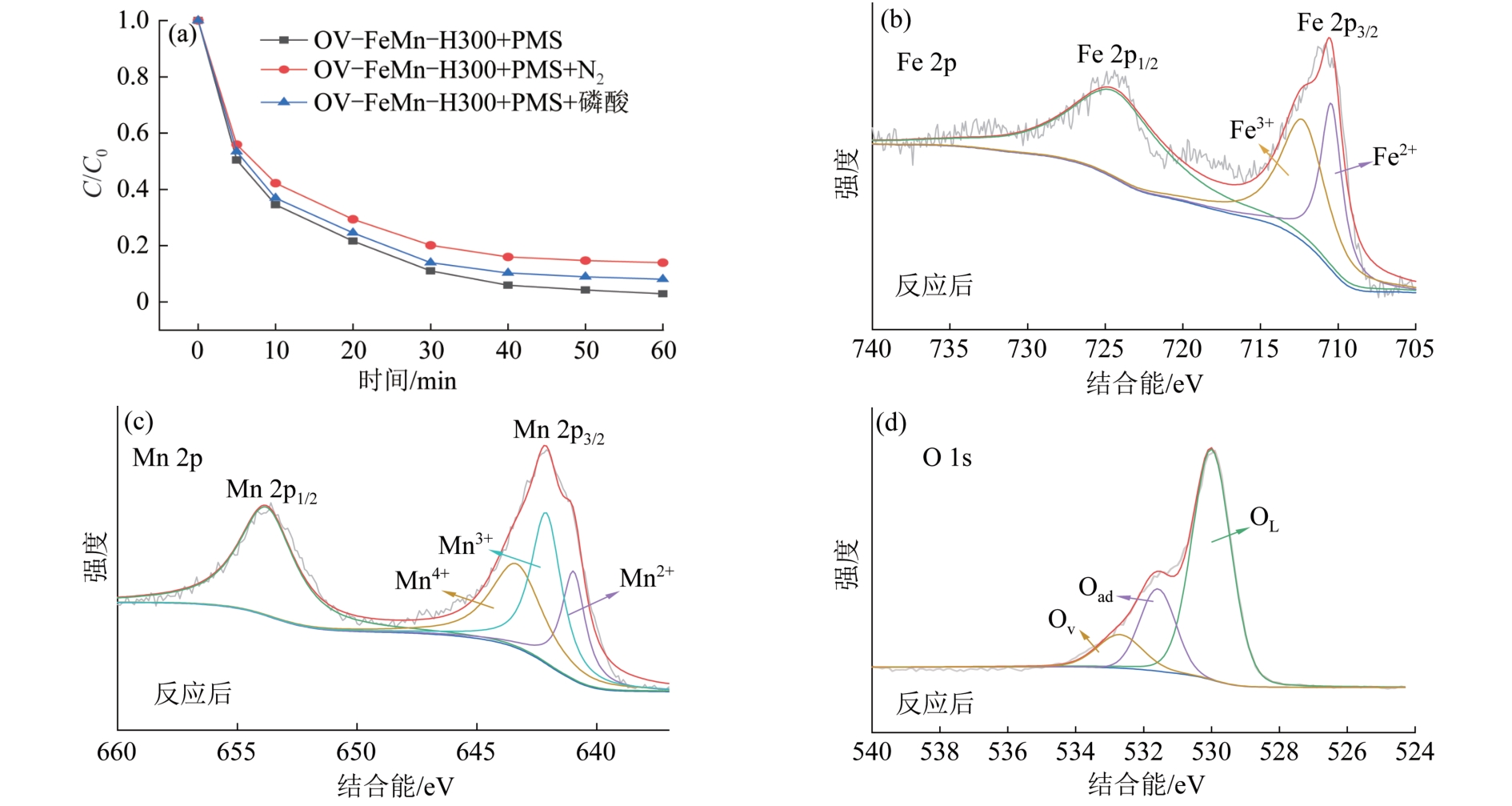

图7 活性位点分析图

Fig.7 Diagram of active site analysis

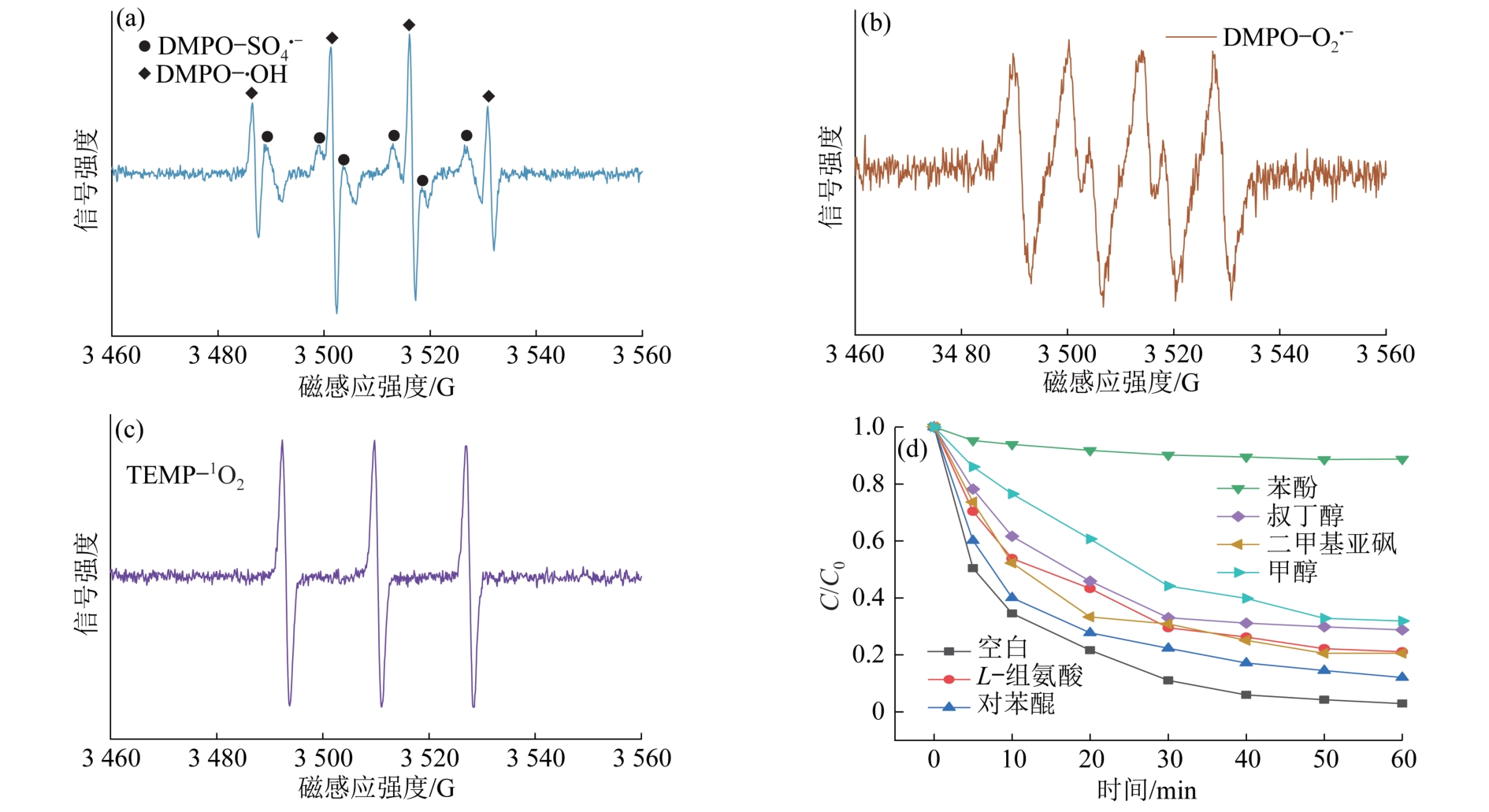

图8 活性物种分析

Fig.8 Analysis of active species

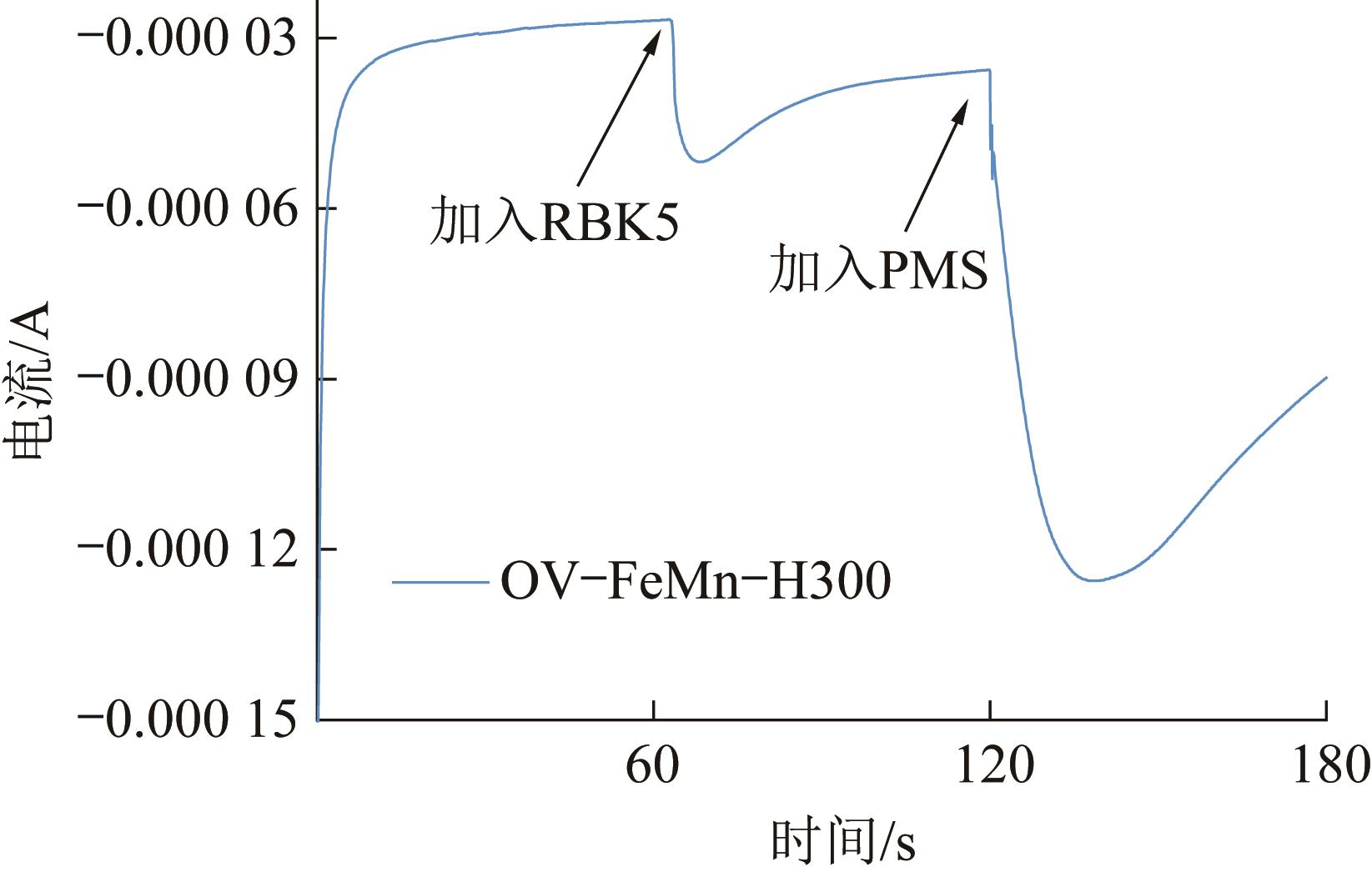

图9 OV-FeMn-H300与RBK5、PMS之间的电子传递

Fig.9 Electron transfer between OV-FeMn-H300 and RBK5，PMS
