铁硫掺杂碳纳米材料活化过硫酸盐降解磺胺甲 唑

doi:10.19965/j.cnki.iwt.2024-0579

摘要/Abstract

摘要：

非均相铁基材料因具有效果显著、成本较低等优点被广泛应用于活化过一硫酸盐（PMS）降解有机污染物，而如何有效促进催化剂中Fe²⁺/Fe³⁺循环从而提升其活化性能一直是研究的重点。以卡拉胶作为天然的S源和C源，采用一步煅烧法制备了铁硫碳纳米材料（Fe-SC-x），通过扫描电镜和X射线衍射等表征手段分析了Fe-SC-x的微观形貌及物质组成，并将其应用于活化PMS降解抗生素污染物磺胺甲唑（SMX），以评估其催化性能。结果表明，在900 ℃下制备的催化剂Fe-SC-900催化效果最佳，其活化PMS在40 min时可降解99.8%的SMX。此外，Fe-SC-900/PMS体系能够抵抗共存阴离子和天然有机质，具有良好的实际应用潜力。降解机理实验表明，·OH、SO₄ ^·-、O₂ ^·-和¹O₂均存在于Fe-SC-900/PMS体系中，且¹O₂和SO₄ ^·-对SMX的降解起主导作用。

关键词: 高级氧化, 过一硫酸盐, 铁硫碳纳米材料, 抗生素降解, 磺胺甲唑

Abstract:

Heterogeneous iron-based materials have been widely used in the degradation of organic pollutants by activating peroxymonosulfate (PMS) due to the significant effect and low cost,and how to effectively promote Fe²⁺/Fe³⁺ cycling in the catalysts and thus enhance the catalytic performance has always been the focus of research. Iron-sulfur doped carbon composites (Fe-SC) were prepared by a one-step calcination method using carrageenan as the natural S and C source. X-ray diffraction,scanning electron microscopy,and other characterization techniques were used to analyze the microscopic morphology and material composition of Fe-SC. Then it was applied to the activation of PMS for the degradation of sulfamethoxazole (SMX) to evaluate its catalytic performance. The results showed that the Fe-SC-900 had the best catalytic effect,and the Fe-SC-900/PMS could degrade 99.8% SMX at 40 min. In addition,the Fe-SC-900/PMS system was able to resist coexisting anions and natural organic matter,which had good potential for practical application. The degradation mechanism experiments showed the presence of ·OH, SO₄ ^·-, O₂ ^·- and ¹O₂ in the Fe-SC-900/PMS system,and ¹O₂and SO₄ ^·- had the major role in the SMX degradation.

Key words: advanced oxidation, peroxymonosulfate, iron-sulfur doped catalyst, antibiotics degradation, sulfamethoxazole

中图分类号:

X703.1

韦敏, 王榕, 刘士华, 佟宜霏. 铁硫掺杂碳纳米材料活化过硫酸盐降解磺胺甲唑[J]. 工业水处理, 2025, 45(8): 174-181.

Min WEI, Rong WANG, Shihua LIU, Yifei TONG. Degradation of sulfamethoxazole by activated peroxymonosulfate by iron sulfur doped carbon nanomaterials[J]. Industrial Water Treatment, 2025, 45(8): 174-181.

https://www.iwt.cn/CN/Y2025/V45/I8/174

图/表 13

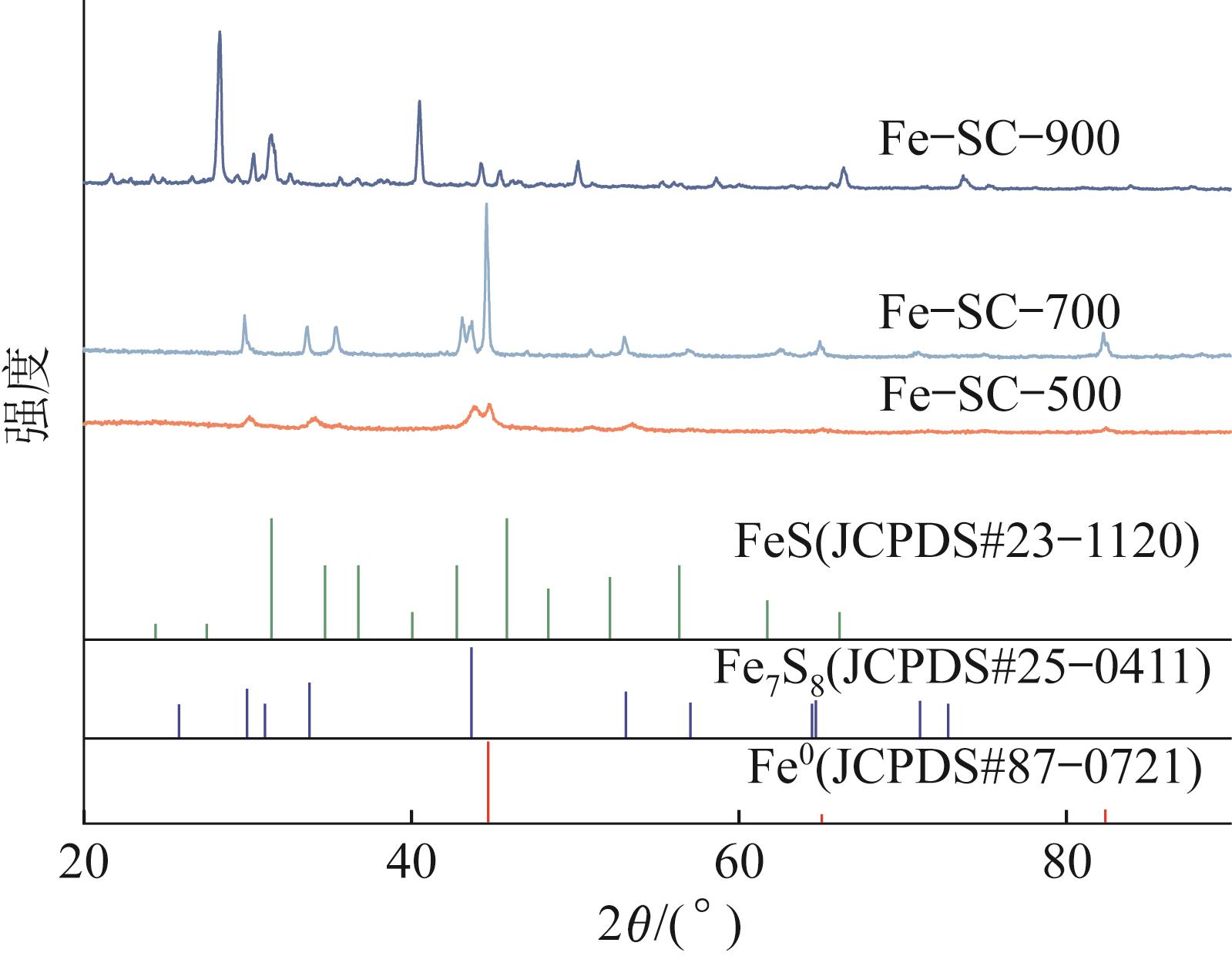

图1 Fe-SC-x的XRD

Fig.1 XRD patterns of Fe-SC-x

图2 Fe-SC-900的SEM（a、b）和EDS-mapping（c、d）

Fig.2 SEM（a，b） and EDS-mapping（c，d） images of Fe-SC-900

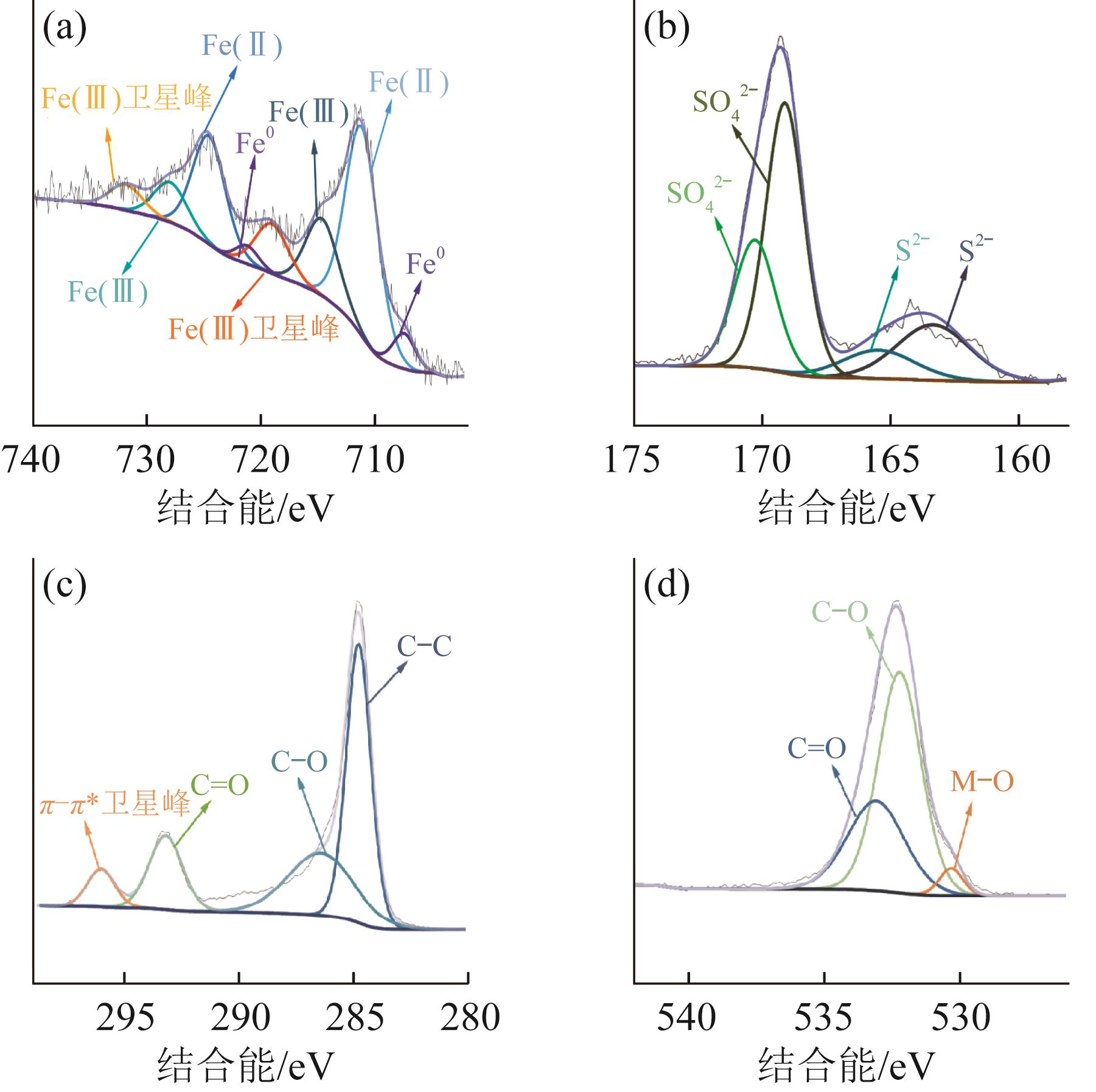

图3 Fe-SC-900的XPS图谱

Fig.3 XPS spectrum of Fe-SC-900

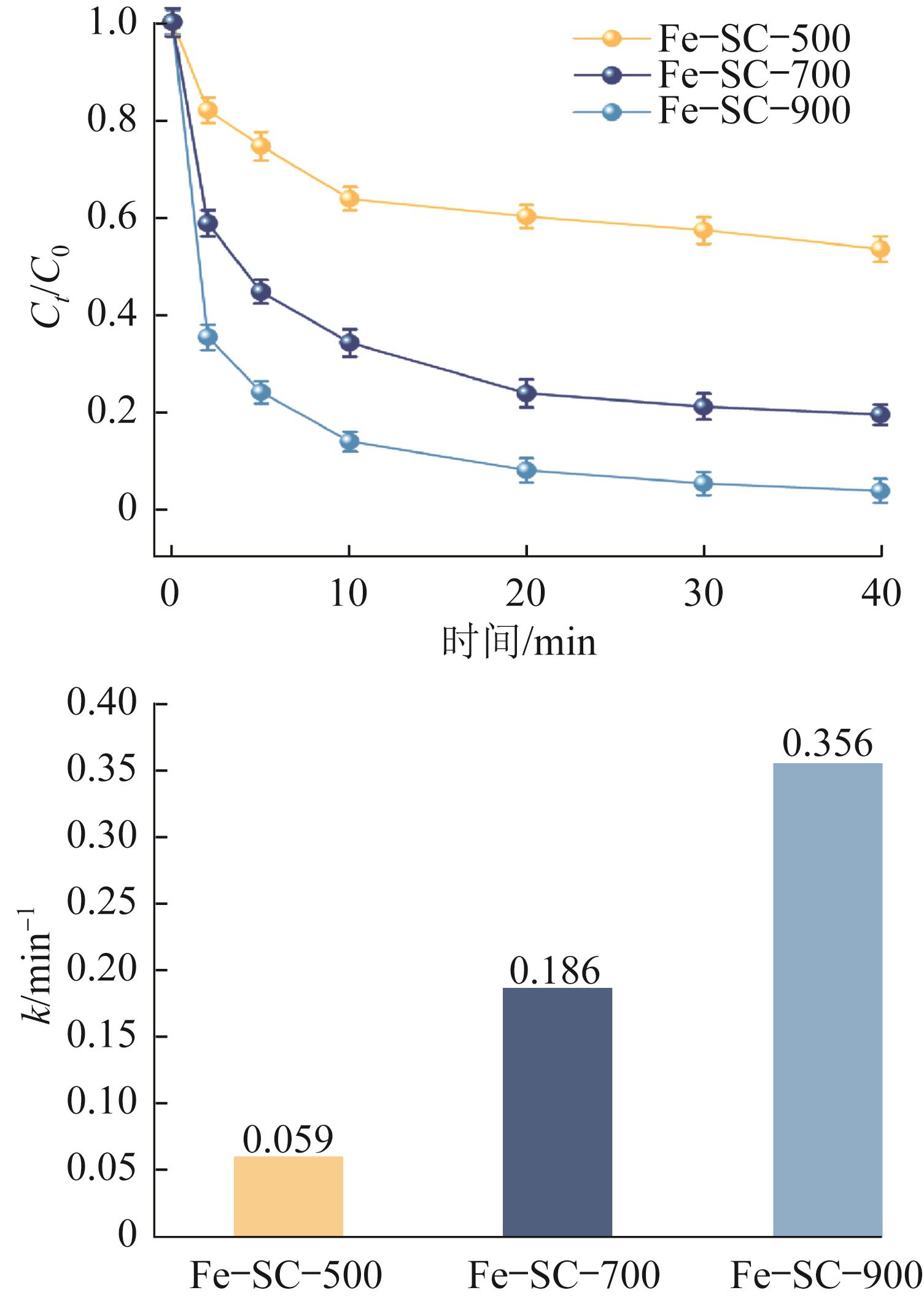

图4 Fe-SC-x的催化性能

Fig.4 Catalytic properties of Fe-SC-x

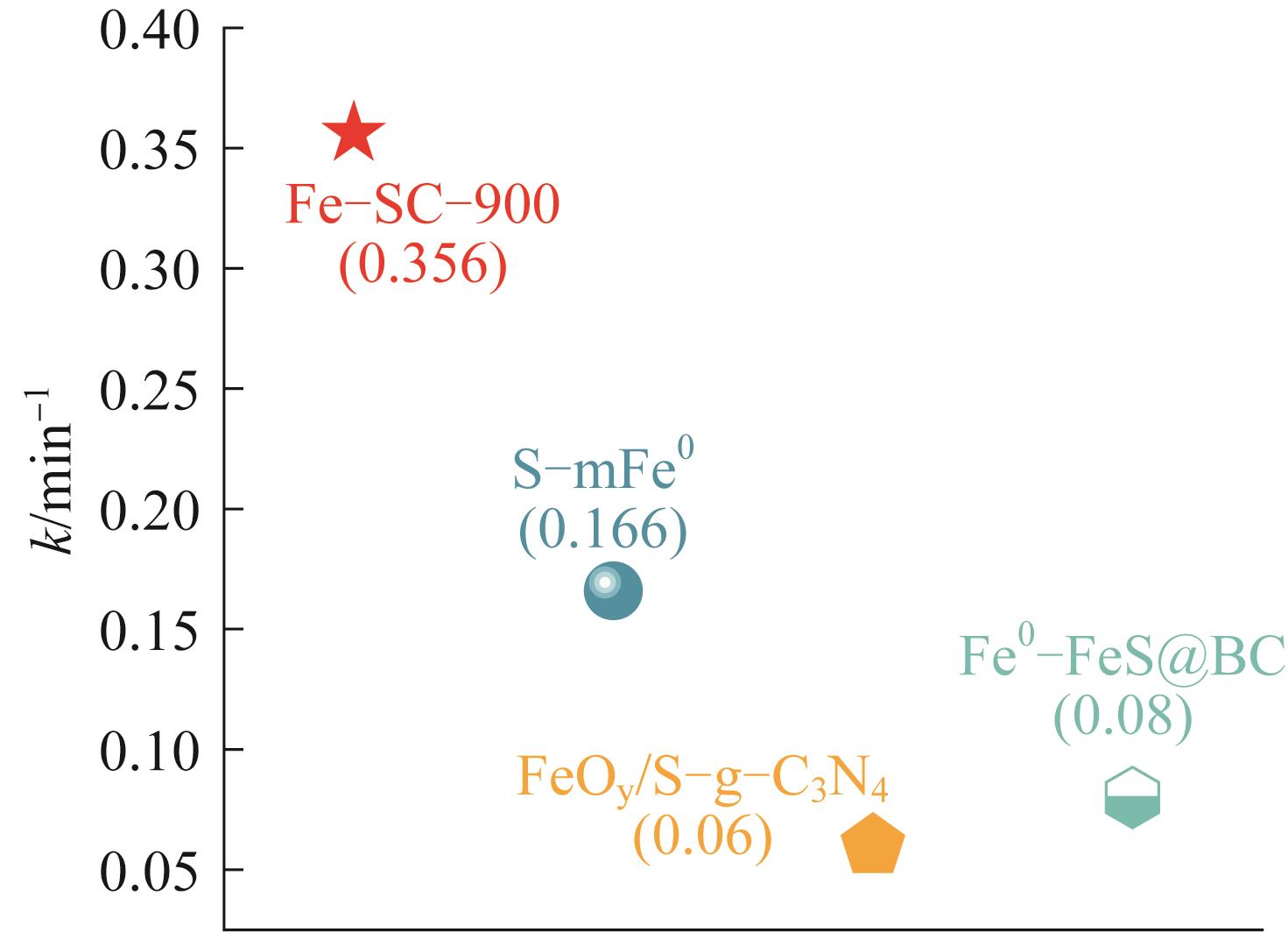

图5 Fe-SC-900与已有报道的Fe/S掺杂碳纳米材料的k值比较

Fig.5 Comparison of reaction rate constants （k values） between Fe-SC-900 and previously reported Fe/S-doped carbon nanomaterials

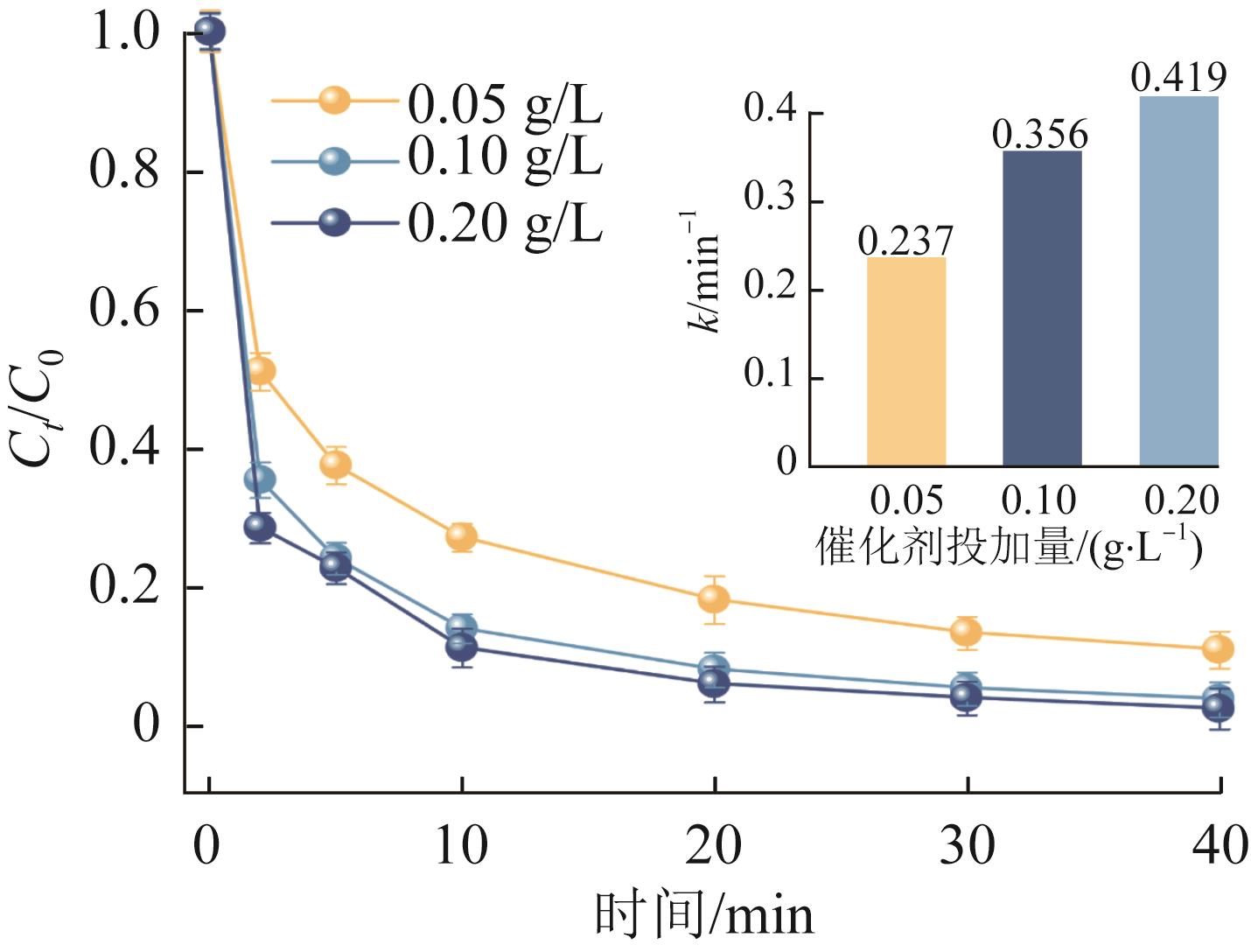

图6 Fe-SC-900投加量对Fe-SC-900/PMS/SMX体系的影响

Fig.6 Influences of the dosage of Fe-SC-900 on the Fe-SC-900/PMS/SMX system

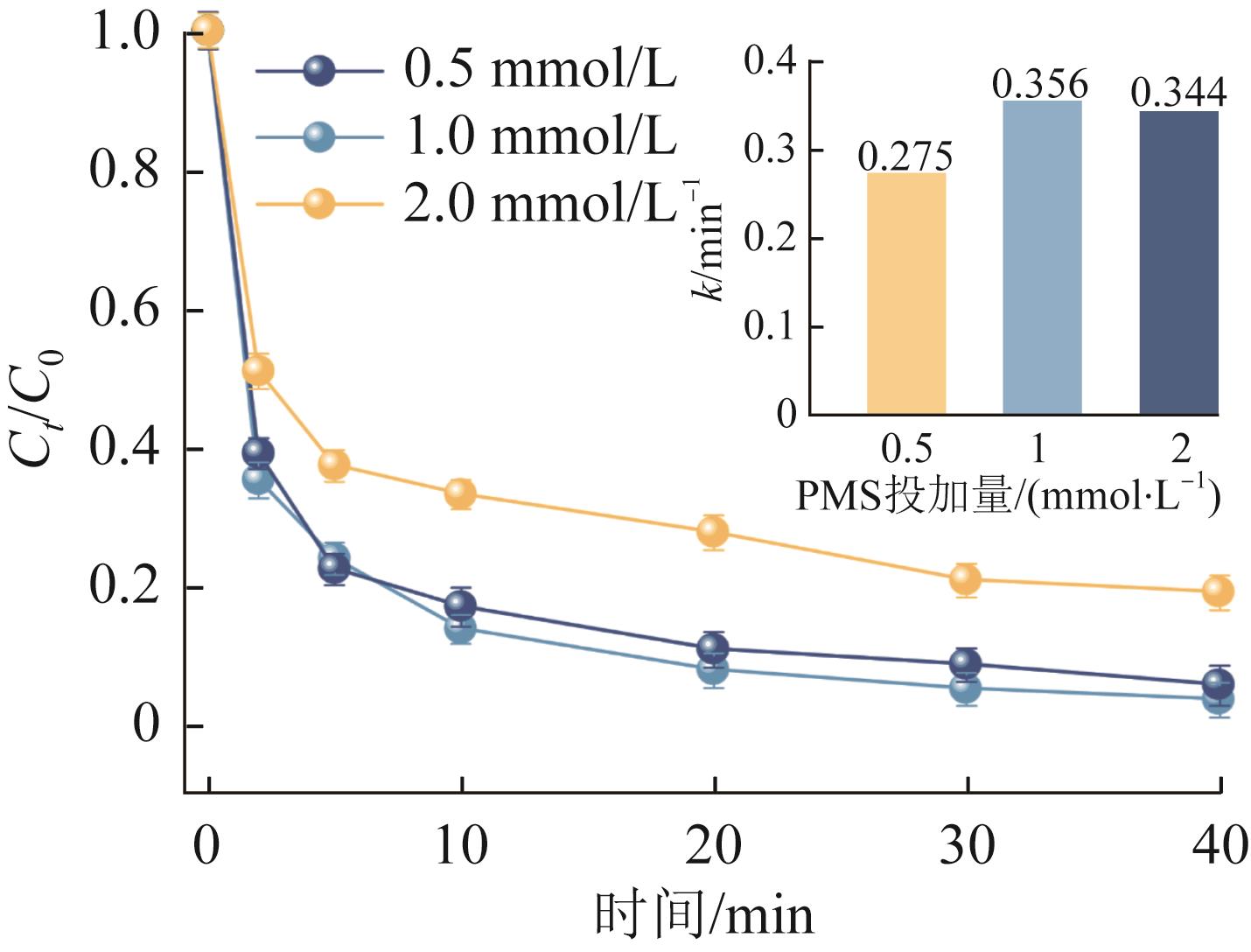

图7 PMS投加量对Fe-SC-900/PMS/SMX体系的影响

Fig.7 Influences of the dosage of PMS on the Fe-SC-900/PMS/SMX system

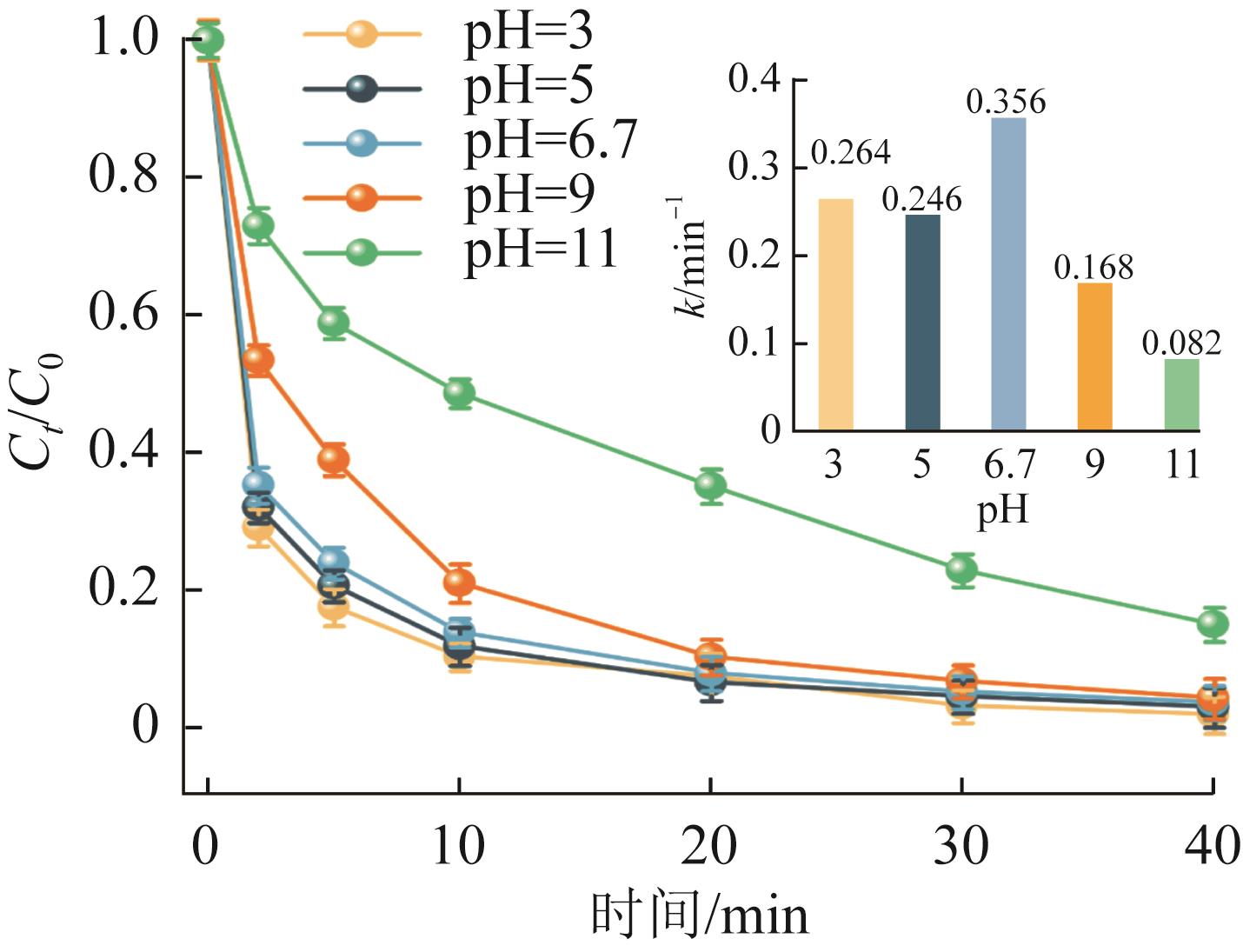

图8 初始pH对Fe-SC-900/PMS/SMX体系的影响

Fig.8 Influences of the initial pH on the Fe-SC-900/PMS/SMX system

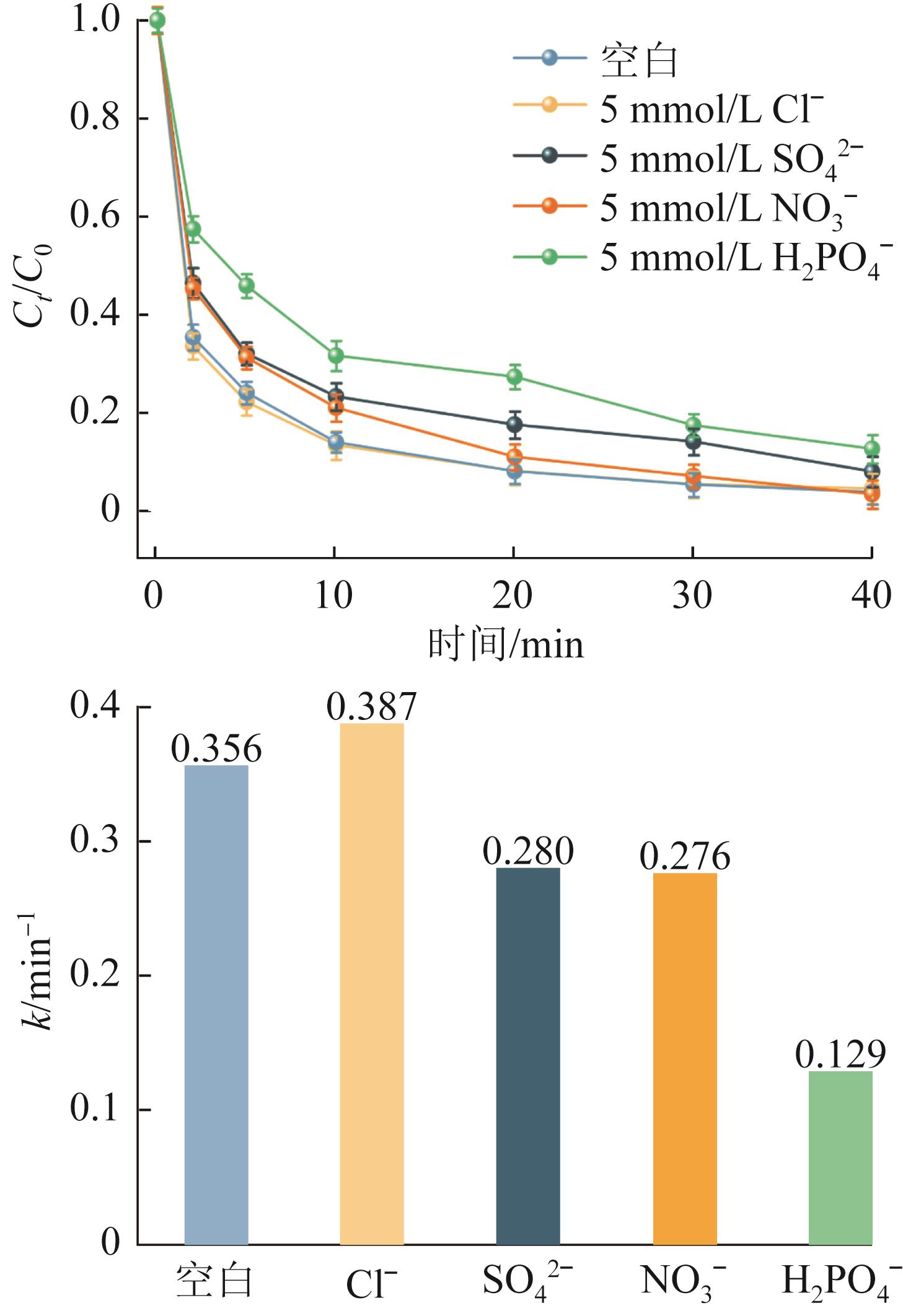

图9 不同阴离子对Fe-SC-900/PMS/SMX体系的影响

Fig.9 Influences of different anions on the Fe-SC-900/PMS/SMX system

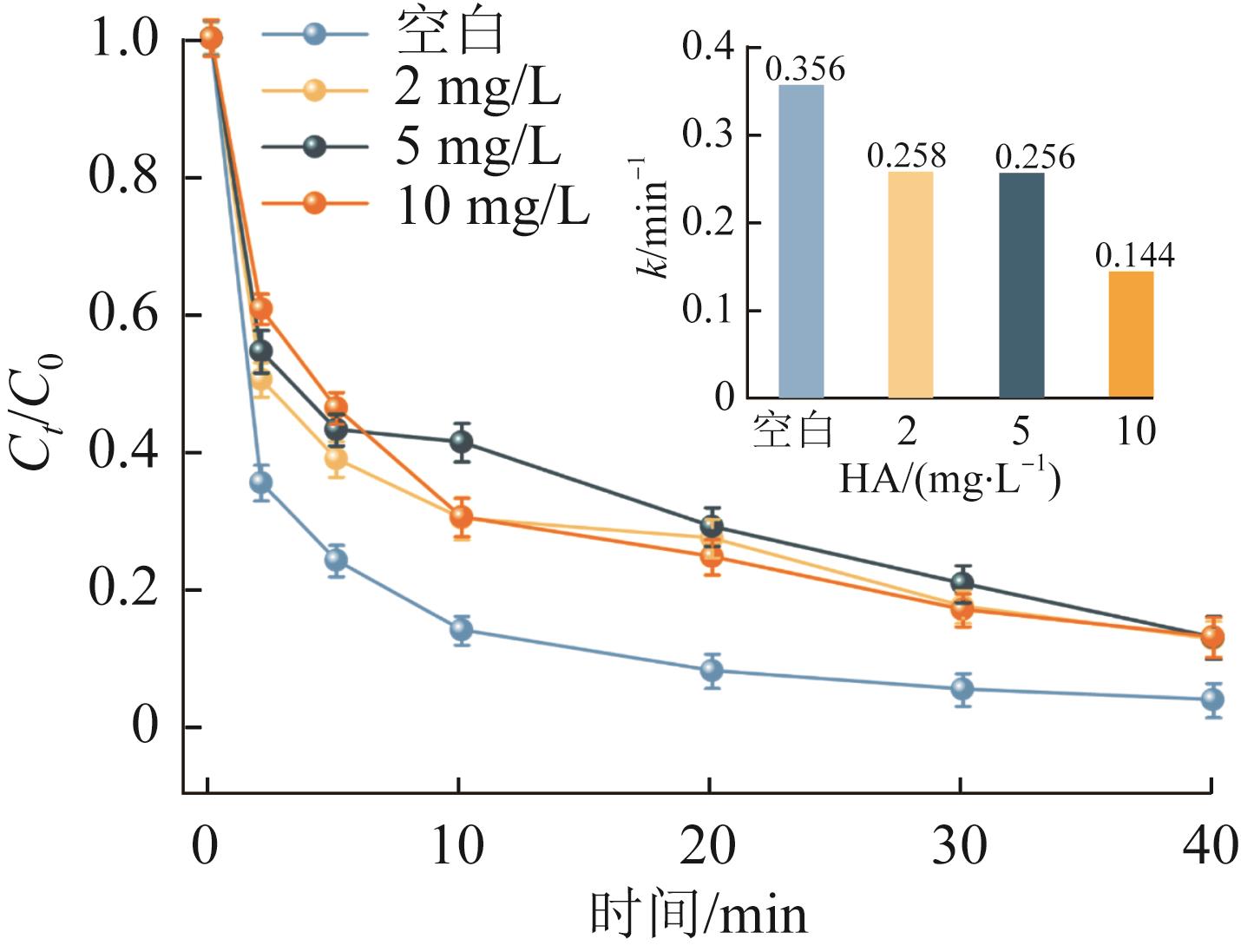

图10 HA对Fe-SC-900/PMS/SMX体系的影响

Fig. 10 Influences of HA on the Fe-SC-900/PMS/SMX system

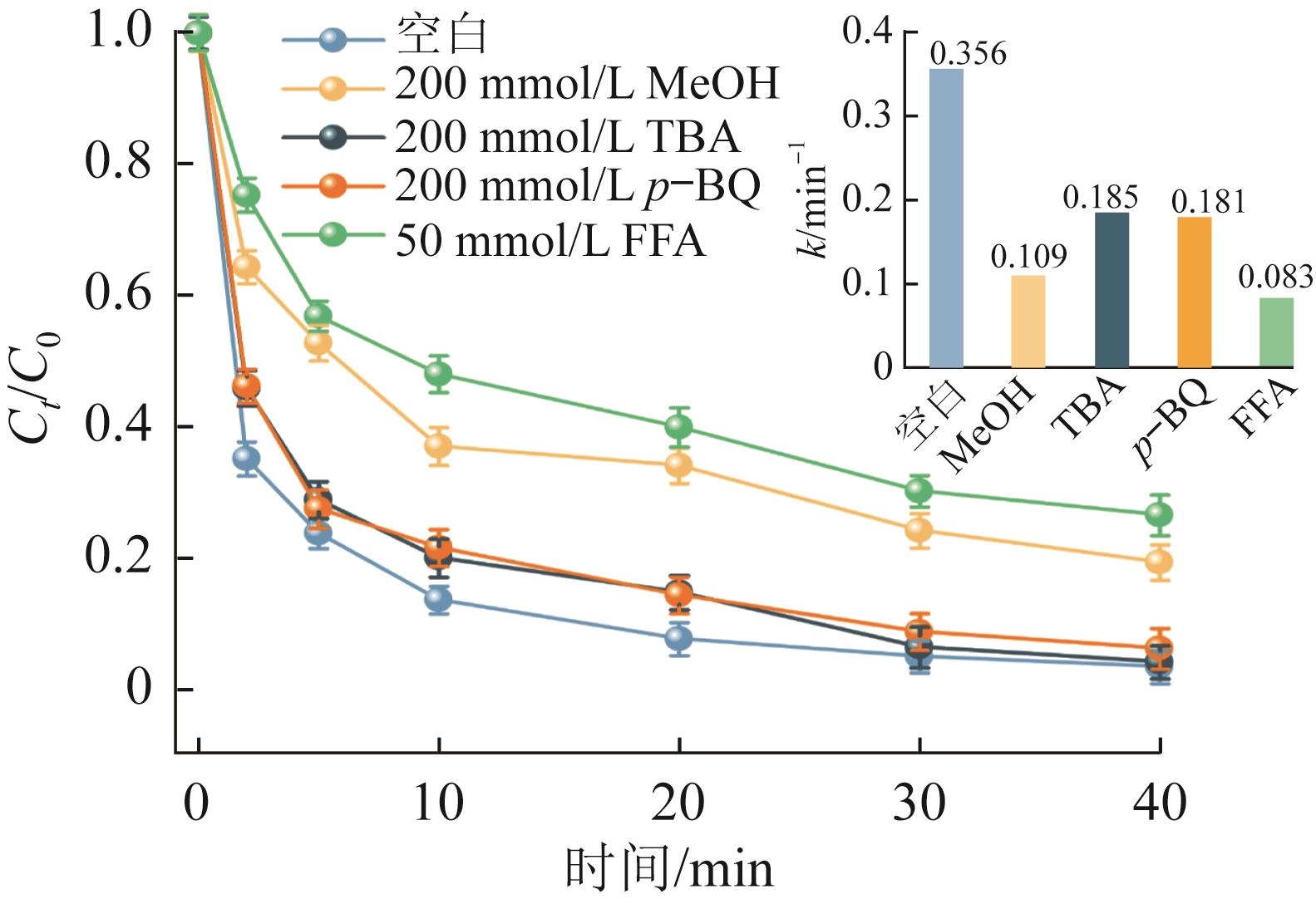

图11 猝灭剂对Fe-SC-900/PMS/SMX体系的影响

Fig.11 Influences of quencher on the Fe-SC-900/PMS/SMX system

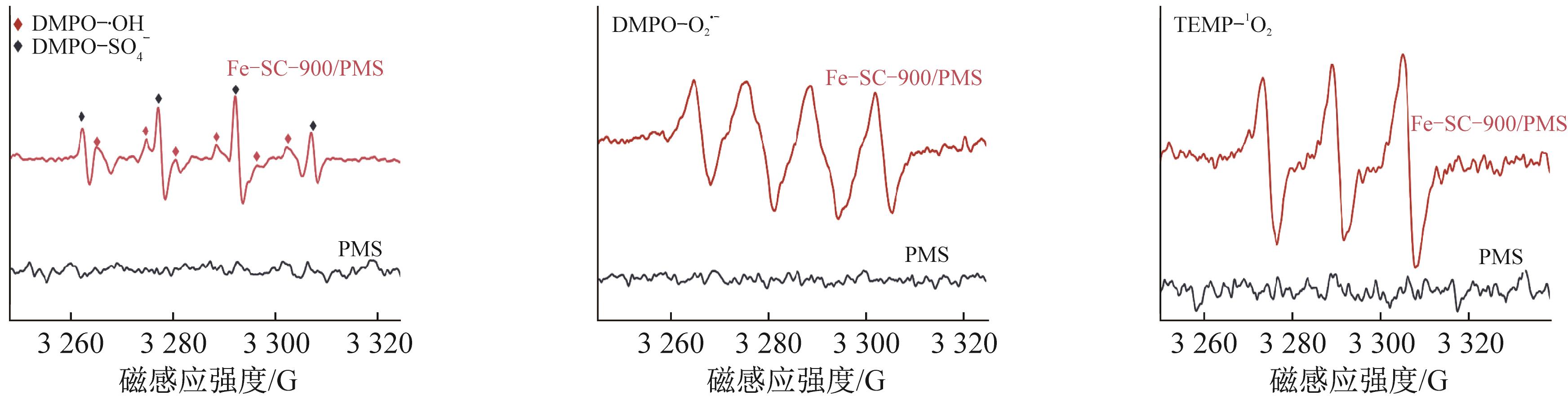

图12 Fe-SC-900/PMS体系中自由基的EPR

Fig.12 EPR spectra of reactive oxygen species in the Fe-SC-900/PMS system

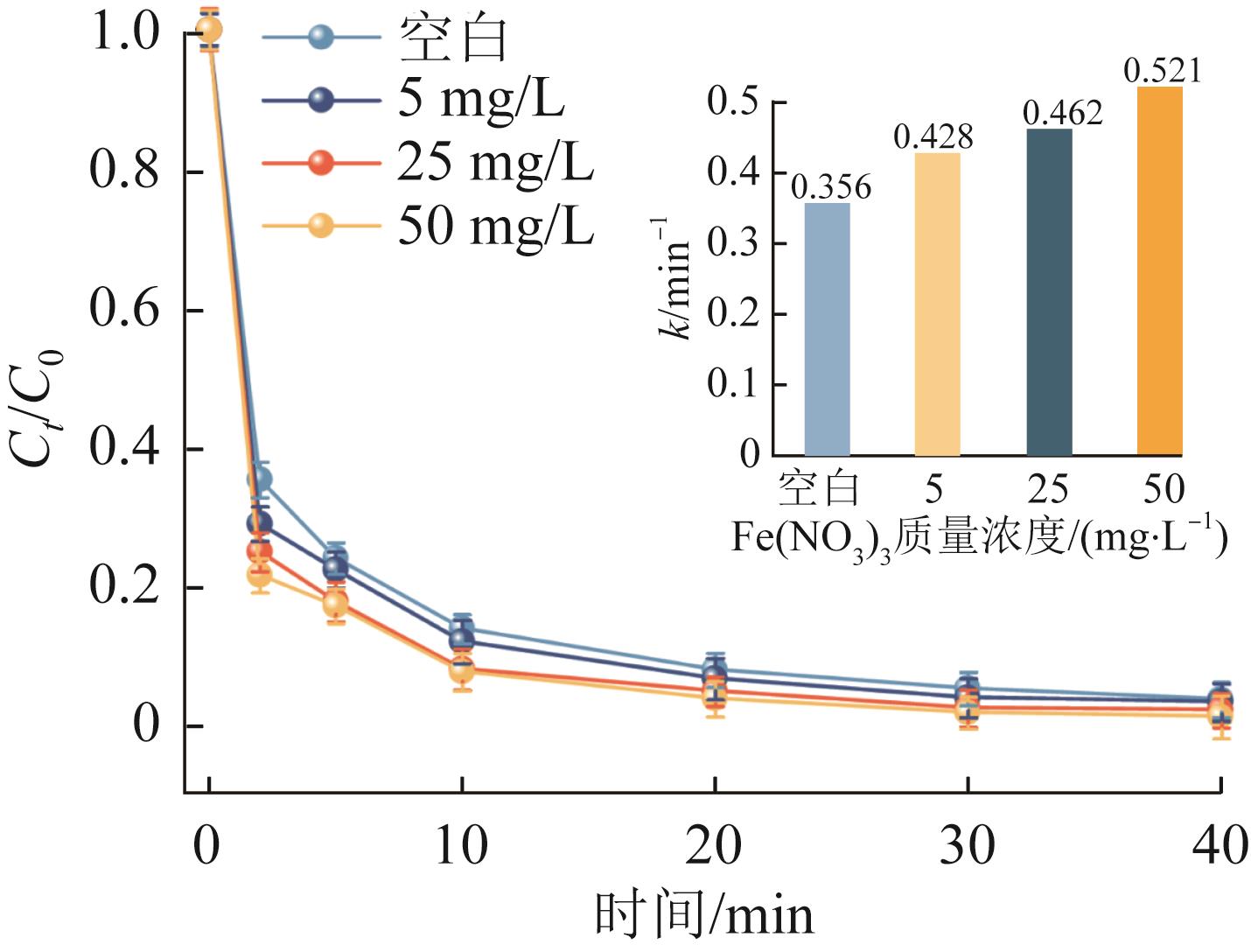

图13 Fe-SC-900/PMS体系中铁循环验证

Fig.13 Effect of adding Fe³⁺ on Fe-SC-900/PMS system of SMX degradation

参考文献 20

[1]	ZHANG Ruochun， YANG Yongkui， HUANG C H，et al. UV/H₂O₂ and UV/PDS treatment of trimethoprim and sulfamethoxazole in synthetic human urine：Transformation products and toxicity［J］. Environmental Science & Technology，2016，50（5）：2573-2583. doi:10.1021/acs.est.5b05604
[2]	FEKADU S， ALEMAYEHU E， DEWIL R，et al. Pharmaceuticals in freshwater aquatic environments：A comparison of the African and European challenge［J］. Science of the Total Environment，2019，654：324-337． doi:10.1016/j.scitotenv.2018.11.072
[3]	PAZDA M， KUMIRSKA J， STEPNOWSKI P，et al. Antibiotic resistance genes identified in wastewater treatment plant systems：A review［J］. Science of the Total Environment，2019，697：134023． doi:10.1016/j.scitotenv.2019.134023
[4]	QIAN Kun， CHEN Hong， LI Wenlang，et al. Single-atom Fe catalyst outperforms its homogeneous counterpart for activating peroxymonosulfate to achieve effective degradation of organic contaminants［J］．Environmental Science & Technology，2021，55（10）：7034-7043． doi:10.1021/acs.est.0c08805
[5]	WANG Yu， PAN Tao， YU Yafei，et al. A novel peroxymonosulfate （PMS）-enhanced iron coagulation process for simultaneous removal of trace organic pollutants in water［J］. Water Research，2020，185：116136． doi:10.1016/j.watres.2020.116136
[6]	SHAN Ali， IDREES A， ZAMAN W Q，et al. Enhancement in reactivity via sulfidation of FeNi@BC for efficient removal of trichloroethylene：Insight mechanism and the role of reactive oxygen species［J］. Science of the Total Environment，2021，794：148674． doi:10.1016/j.scitotenv.2021.148674
[7]	CHEN Huanyu， CHEN Rongzhi， YANG Shengjiong，et al. Sustainable heterolytic cleavage of peroxymonosulfate by promoting Fe（Ⅲ）/Fe（Ⅱ） cycle：The role of in situ sulfur［J］. Chemical Engineering Journal，2022，446：137257． doi:10.1016/j.cej.2022.137257
[8]	WANG Shizong， WANG Jianlong. Synergistic effect of PMS activation by Fe⁰@Fe₃O₄ anchored on N，S，O Co-doped carbon composite for degradation of sulfamethoxazole［J］. Chemical Engineering Journal，2022，427：131960． doi:10.1016/j.cej.2021.131960
[9]	WU Di， SONG Weiyu， CHEN Lulu，et al. High-performance porous graphene from synergetic nitrogen doping and physical activation for advanced nonradical oxidation［J］. Journal of Hazardous Materials，2020，381：121010． doi:10.1016/j.jhazmat.2019.121010
[10]	YE Zhihong， PADILLA J A， XURIGUERA E，et al. Magnetic MIL（Fe）-type MOF-derived N-doped nano-ZVI@C rods as heterogeneous catalyst for the electro-Fenton degradation of gemfibrozil in a complex aqueous matrix［J］. Applied Catalysis B：Environmental，2020，266：118604． doi:10.1016/j.apcatb.2020.118604
[11]	DING Chunlu， LIU Zhen， PAN Shuying，et al. Activation of peroxydisulfate via Fe@sulfur-doped carbon-supported nanocomposite for degradation of norfloxacin：Efficiency and mechanism［J］．Chemical Engineering Journal，2023，460：141729． doi:10.1016/j.cej.2023.141729
[12]	LI Yangju， ZHAO Xiuge， YAN Yan，et al. Enhanced sulfamethoxazole degradation by peroxymonosulfate activation with sulfide-modified microscale zero-valent iron （S-mFe₀）：Performance，mechanisms，and the role of sulfur species［J］. Chemical Engineering Journal，2019，376：121302． doi:10.1016/j.cej.2019.03.178
[13]	LIU Rui， YANG Jinyan. Enhanced removal of sulfamethoxazole in soil by ball-milled Fe⁰-FeS@BC activated persulfate process［J］. Journal of Environmental Chemical Engineering，2023，11（5）：110747． doi:10.1016/j.jece.2023.110747
[14]	WANG Shizong， LIU Yong， WANG Jianlong ．Iron and sulfur Co-doped graphite carbon nitride （FeO _y /S-g-C₃N₄） for activating peroxymonosulfate to enhance sulfamethoxazole degradation［J］．Chemical Engineering Journal，2020，382：122836． doi:10.1016/j.cej.2019.122836
[15]	LIU Xin， YUAN Baoling， ZOU Jing，et al. Cu（Ⅱ）-enhanced degradation of acid orange 7 by Fe（Ⅱ）-activated persulfate with hydroxylamine over a wide pH range［J］. Chemosphere，2020，238：124533． doi:10.1016/j.chemosphere.2019.124533
[16]	MA Wenjie， WANG Na， DU Yunchen，et al. One-step synthesis of novel Fe₃C@nitrogen-doped carbon nanotubes/graphene nanosheets for catalytic degradation of Bisphenol A in the presence of peroxymonosulfate［J］. Chemical Engineering Journal，2019，356：1022-1031． doi:10.1016/j.cej.2018.09.093
[17]	HE Jinkai， HUANG Jiaying， WANG Zhiwei，et al. The enhanced catalytic degradation of sulfamethoxazole over Fe@nitrogen-doped carbon-supported nanocomposite：Insight into the mechanism［J］. Chemical Engineering Journal，2022，439：135784． doi:10.1016/j.cej.2022.135784
[18]	LIU Zhen， SU Rui， LI Qian. Degradation of bisphenol S by activated persulfate by iron-nitrogen doped carbon composites［J］. Industrial Water Treatment，2022，42（11）：127-135.
[19]	YANG Lei， BAI Xue， SHI Juan，et al. Quasi-full-visible-light absorption by D35-TiO₂/g-C₃N₄ for synergistic persulfate activation towards efficient photodegradation of micropollutants［J］. Applied Catalysis B：Environmental，2019，256：117759． doi:10.1016/j.apcatb.2019.117759
[20]	LIU Zhenyu， PAN Shanshan， XU Fei，et al. Revealing the fundamental role of MoO₂ in promoting efficient and stable activation of persulfate by iron carbon based catalysts：Efficient Fe²⁺/Fe³⁺cycling to generate reactive species［J］. Water Research，2022，225：119142. doi:10.1016/j.watres.2022.119142
