多孔Ni/Co水滑石活化过硫酸盐降解磺胺甲<inline-graphic xmlns:xlink="http://www.w3.org/1999/xlink" xlink:href="1005-829X-2024-44-8-162/D2F9A8D5-7A74-4702-8F33-DFF12070E600-F501c.jpg"> </inline-graphic>唑研究

doi:10.19965/j.cnki.iwt.2023-0849

摘要/Abstract

摘要：

以沸石咪唑酯骨架材料（ZIFs）为模板，采用水热法合成了具有多孔结构和大比表面积的Ni/Co水滑石催化剂，表征分析了催化剂的物化性质，并以磺胺甲唑溶液为模拟废水，考察了多孔Ni/Co水滑石催化活化过硫酸盐降解水中磺胺甲唑的性能。表征结果表明，该催化剂具有纳米菱形结构，孔尺寸较大，比表面积可达187.99 m²/g。降解水中磺胺甲唑实验表明：在30 ℃，磺胺甲唑质量浓度为15 mg/L，PMS为2 g/L，Ni/Co水滑石催化剂投加量为100 mg/L的条件下，反应时间为20 min时，磺胺甲唑的去除率约100%，且重复使用4次后，磺胺甲唑的降解率仍大于90%，表现出较好的稳定性和重复使用性能。猝灭及电子顺磁共振实验表明，催化降解过程中SO₄ ^•-、·OH和¹O₂均参与了反应。通过对多孔Ni/Co水滑石反应前后表面元素价态的分析，发现催化剂表面的Co²⁺/Co³⁺以及Ni²⁺/Ni³⁺的循环有效活化了PMS并促进活性氧化物种的生成，从而提升了过硫酸盐降解磺胺甲唑的性能。

关键词: 水滑石, 沸石咪唑酯骨架材料, 过硫酸盐, 降解, 磺胺甲唑

Abstract:

In this paper,nano-Ni/Co hydrotalcite catalysts were synthesized by hydrothermal method using zeolite imidazolate framework materials(ZIFs) as templates, and the physico chemical properties of the catalysts were characterized. With sulfamethoxazole solution as simulated wastewater, the catalytic performance of nano-Ni/Co hydrotalcite to degrade sulfamethoxazole in water via persulfate activation was investigated. Characterization results showed that the catalyst had a nano-rhomboid structure with large pore size and a specific surface area of 187.99 m²/g. The degradation experiment results showed that the removal rate of sulfamethoxazole was about 100% in 20 min, under the conditions of 30 ℃, the concentration of sulfamethoxazole as 15 mg/L, the amount of PMS as 2 g/L, and the amount of Ni/Co hydrotalcite catalyst as 100 mg/L. After reuse of 4 times, the degradation rate of sulfamethoxazole was still greater than 90%, showing its good stability and reusability. Quenching experiments and electron paramagnetic resonance analysis showed that SO₄ ^•-, ·OH and ¹O₂ participated in the degradation reaction. During the reaction process, the redox cycle of Co²⁺/Co³⁺ and Ni²⁺/Ni³⁺ effectively activated PMS and promoted the generation of active oxide species, which improved the performance of the catalyst for the degradation of sulfamethoxazole.

Key words: hydrotalcite, zeolitic imidazolate frameworks, peroxymonosulfate, degradation, sulfamethoxazole

中图分类号:

X703.1

张磊, 张进, 闫新龙. 多孔Ni/Co水滑石活化过硫酸盐降解磺胺甲唑研究[J]. 工业水处理, 2024, 44(8): 162-170.

Lei ZHANG, Jin ZHANG, Xinlong YAN. Synthesis of porous Ni/Co LDHs and its degradation behavior for sulfamethoxazole via peroxymonosulfate activation[J]. Industrial Water Treatment, 2024, 44(8): 162-170.

https://www.iwt.cn/CN/Y2024/V44/I8/162

图/表 13

图1 ZIF-67、Co-NC和Ni/Co-NC LDH的XRD

Fig.1 XRD of ZIF-67，Co-NC and Ni/Co-NC LDH

图2 Co-NC（a~b）和Ni/Co-NC LDH（c~e）的SEM，以及Ni/Co-NC LDH的相应元素分布（f~h）

Fig.2 SEM images of Co-NC（a-b） and Ni/Co-NC LDH（c-e），and the corresponding elemental distribution of Ni/Co-NC LDH（f-h）

图3 ZIF-67、Co-NC和Ni/Co-NC LDH的红外光谱

Fig.3 FT-IR spectrum of ZIF-67，Co-NC and Ni/Co-NC LDH

图4 Co-NC和Ni/Co-NC LDH的氮气吸附-脱附曲线（a）和孔径分布（b）

Fig.4 Nitrogen sorption isotherms（a） and pore size distributions（b） of Co-NC and Ni/Co-NC LDH

表1 Co-NC和Ni/Co-NC LDH的孔结构性质

Table 1 Textural properties of Co-NC and Ni/Co-NC LDH

样品	比表面积/（m²·g^-1）	总孔容/（cm³·g^-1）	微孔孔容/（cm³·g^-1）	介孔孔容/（cm³·g^-1）	平均孔径/nm
Co-NC	354.1	0.21	0.15	0.03	2.3
Ni/Co-NC LDH	187.9	0.24	0.08	0.16	5.1

图5 Co-NC和Ni/Co-NC LDH的XPS光谱

Fig.5 XPS spectra for Co-NC and Ni/Co-NC LDH

图6 SMX在不同催化剂体系中的降解效率

Fig.6 Degradation efficiencies of SMX in different catalyst systems

图7 催化剂投加量（a）和PMS浓度（b）对SMX降解的影响

Fig.7 Effect of catalyst dosage （a） and PMS concentration （b） on degradation of SMX

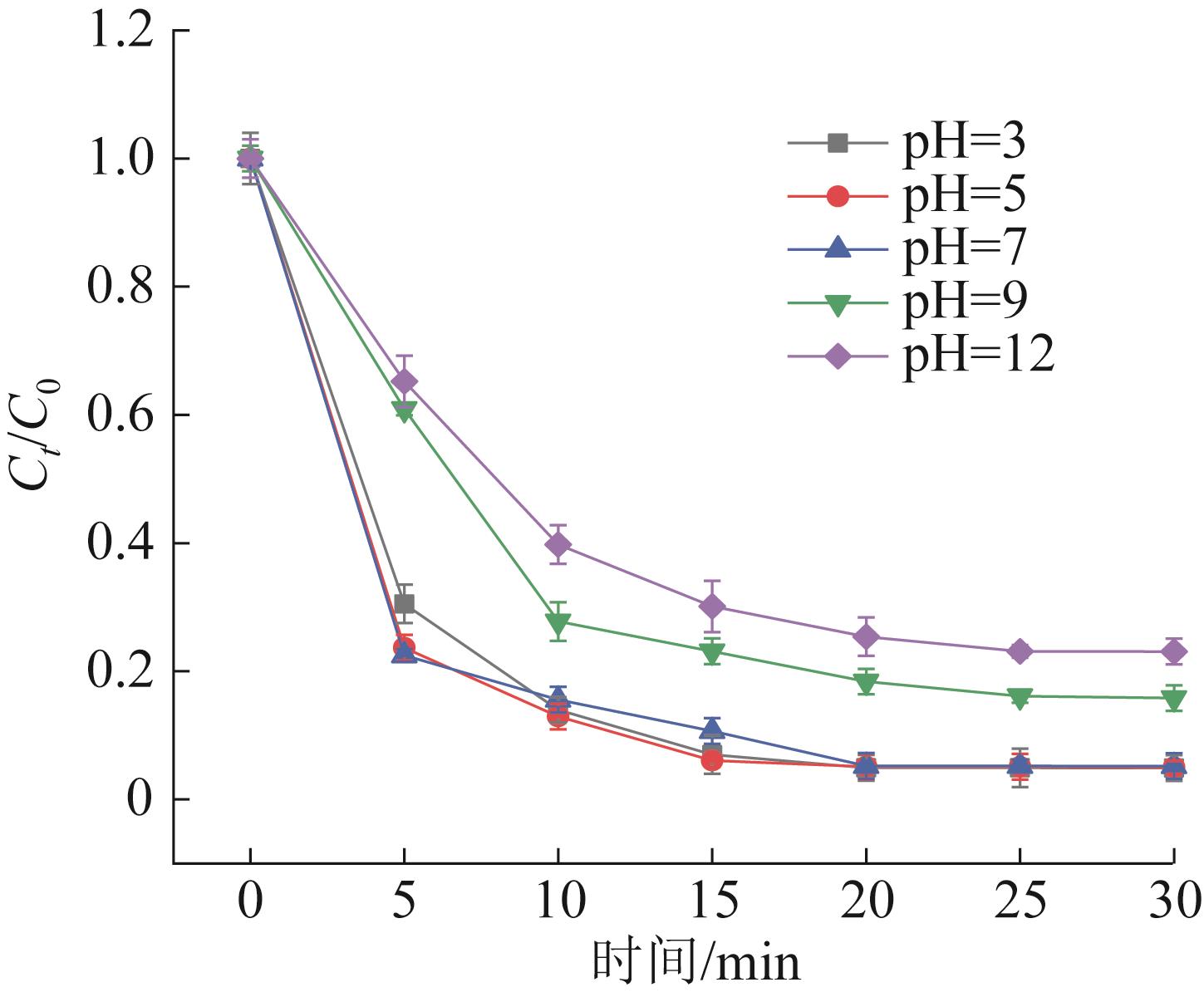

图8 pH对SMX降解的影响

Fig.8 Effect of pH on the degradation of SMX

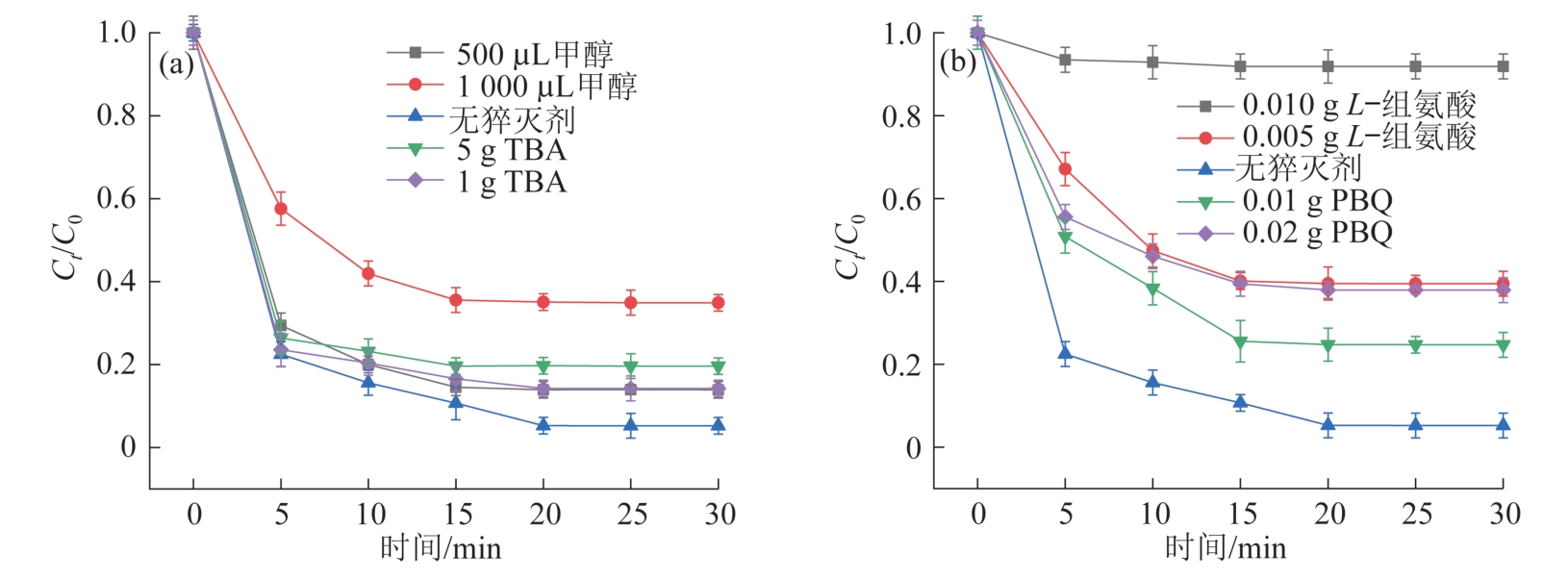

图9 不同猝灭剂对Ni/Co-NC LDH活化PMS降解SMX的影响

Fig.9 Effect of different quenching agents on Ni/Co-NC LDH activated PMS to degrade SMX

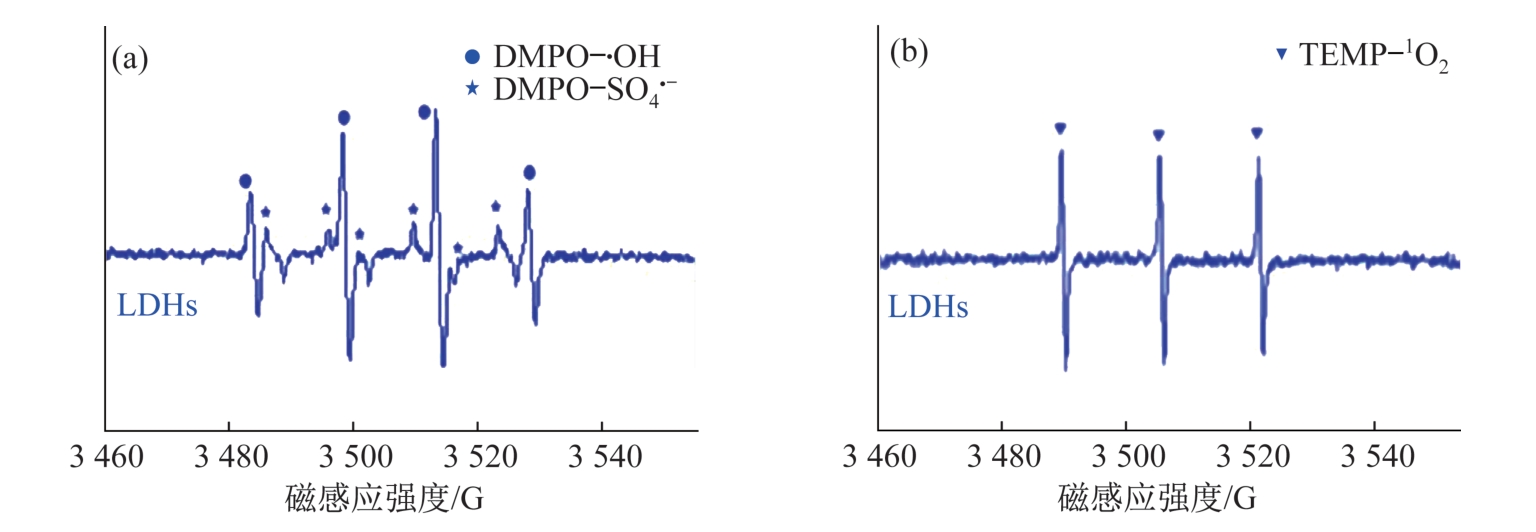

图10 Ni/Co-NC LDH/PMS体系的EPR

Fig.10 EPR of the Ni/Co-NC LDH/PMS systems

图11 SMX降解实验前后Ni/Co-NC LDH的XPS

Fig.11 XPS spectra of Ni/Co-NC LDH before and after SMX degradation

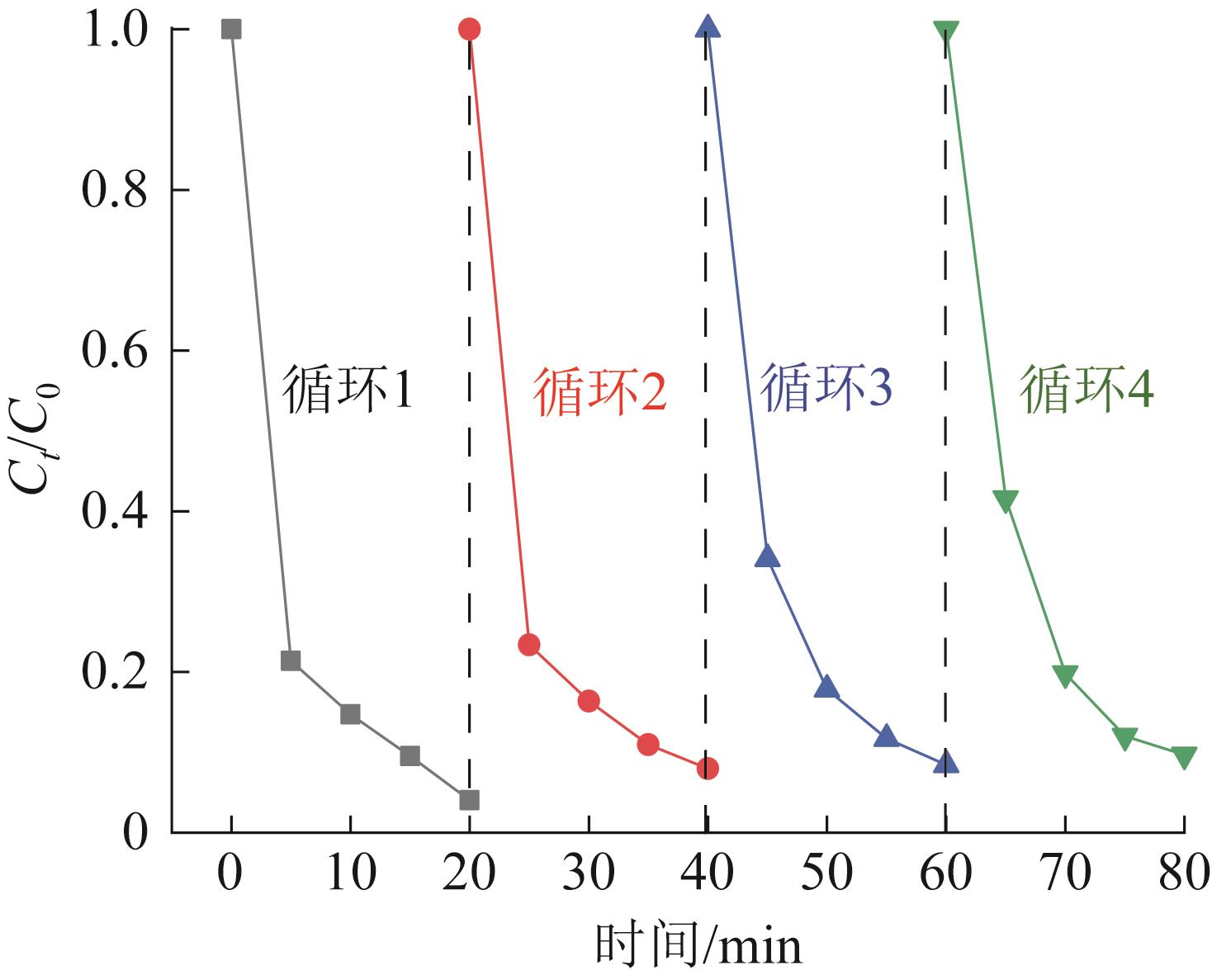

图12 Ni/Co-NC LDH/PMS体系降解SMX的循环实验结果

Fig.12 Cyclic experimental results of degradation of SMX by Ni/Co-NC LDH/PMS system
