Adsorption characteristics of modified lignite for Cr（Ⅵ） in acid mine drainage

doi:10.19965/j.cnki.iwt.2021-0788

Abstract

Abstract:

In order to solve the problem of limited adsorption saturation of Cr（Ⅵ） in acid mine drainage by lignite，it was modified by high temperature roasting and ultrasonic assisted Al₂（SO₄）₃. The characteristics and mechanism of Cr（Ⅵ） adsorption on aluminum salt modified lignite were studied by means of adsorption isotherm and adsorption kinetic principle，and the microstructure changes of lignite before and after modification were characterized by SEM，BET，XRD and FTIR. The results showed that the lignite modified by aluminum salt and calcined at 500 ℃ had good adsorption effect on Cr（Ⅵ）. The adsorption rate of Cr（Ⅵ） on modified lignite was 62.24% higher than that of original lignite，and the saturated adsorption capacity of Cr（Ⅵ） was 1.04 mg/g. Through the results of SEM，BET and XRD，after Al₂（SO₄）₃ ultrasonic vibration and high-temperature roasting，the original microcrystalline structure of lignite had not been damaged. However， the surface of the modified lignite had become very rough，some small pore structures with uneven distribution appeared，and the adsorption active sites increased. The FTIR results showed that the —CH，—CH₃ of cyclane and aliphatic hydrocarbon combined with the oxygen atoms adsorbed on the surface of lignite to form phenolic hydroxyl group and carboxyl groups. The alkane and olefin branches in the lignite structure，the C $̿$ C skeleton in the aromatic ring and the —OH of alcohols and phenols were reduced to form small molecular organics of hydroxyl and carboxyl groups. The evaporation of free water and bound water in lignite structure made fine pores appear on the surface. The increase of hydroxyl，carboxyl and other oxygen-containing functional groups on the surface of modified lignite provided more adsorption sites for the adsorption process，so as to improve the adsorption capacity of lignite.

Key words: lignite, modified lignite, acid mine drainage, Cr（Ⅵ）, adsorption

摘要：

为解决褐煤对酸性矿山废水中Cr（Ⅵ）吸附饱和量有限的问题，采用超声波辅助Al₂（SO₄）₃及高温焙烧改性褐煤。通过吸附等温线、吸附动力学原理等方法研究铝盐改性褐煤吸附Cr（Ⅵ）的特性和机理，并且利用SEM、BET、XRD以及FTIR表征褐煤改性前后的微观结构变化。结果表明：超声波辅助Al₂（SO₄）₃改性并经过500 ℃高温焙烧后的褐煤对Cr（Ⅵ）的吸附效果好。改性褐煤对Cr（Ⅵ）的吸附率比原褐煤提升了62.24%，对Cr（Ⅵ）的饱和吸附容量为1.04 mg/g。通过SEM、BET和XRD测试可知，褐煤在经过Al₂（SO₄）₃超声震荡和高温焙烧后，原有的微晶结构并未被破坏，但改性褐煤表面变得十分粗糙，出现一些分布不均匀的细小孔状结构，平均孔径有所增加。通过FTIR测试可知，褐煤分子结构中的—CH，环烷烃、脂肪烃中的—CH₃与附着在褐煤表面的氧原子结合，生成含羧基化合物和酚羟基。褐煤结构中的烷烃和烯烃支链、C $̿$ O、芳环中C $̿$ C骨架以及醇类—OH均有所减少，生成较小的羟基类、羧基类的小分子有机物。褐煤结构中的自由水和结合水蒸发使表面出现细小孔隙。改性褐煤表面的羟基、羧基等含氧官能团的增加为吸附过程提供了更多的吸附位点，从而提高褐煤的吸附能力。

关键词: 褐煤, 改性褐煤, 酸性矿山废水, Cr（Ⅵ）, 吸附

CLC Number:

X703.1

Junzhen DI, Ruiqi YANG, Yanrong DONG, Sihang BAO, Xianjun WANG. Adsorption characteristics of modified lignite for Cr（Ⅵ） in acid mine drainage[J]. Industrial Water Treatment, 2022, 42(5): 103-109.

狄军贞, 杨瑞琪, 董艳荣, 鲍斯航, 王显军. 改性褐煤对酸性矿山废水中Cr（Ⅵ）的吸附性能研究[J]. 工业水处理, 2022, 42(5): 103-109.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2021-0788

https://www.iwt.cn/EN/Y2022/V42/I5/103

Figures/Tables 12

Table 1 Adsorption rate and capacity of Cr（Ⅵ） on modified lignite calcined at different temperatures

成分	原褐煤	200 ℃-PAC	300 ℃-PAC	400 ℃-PAC	500 ℃-PAC	600 ℃-PAC
Cr（Ⅵ）吸附率/%	36.80	80.00	71.42	74.28	99.04	86.66
Cr（Ⅵ）吸附量/（mg·g^-1）	0.42	0.84	0.75	0.78	1.04	0.91

Fig.1 SEM images of lignite before and after modification

Table 2 Pore volume，pore size and specific surface area of lignite and modified lignite

样品	比表面积/（m²·g^-1）	总孔容积/（cm³·g^-1）	平均孔径/nm
原褐煤	27.536 6	0.049 9	6.856 1
改性褐煤	20.317 1	0.040 9	8.069 0

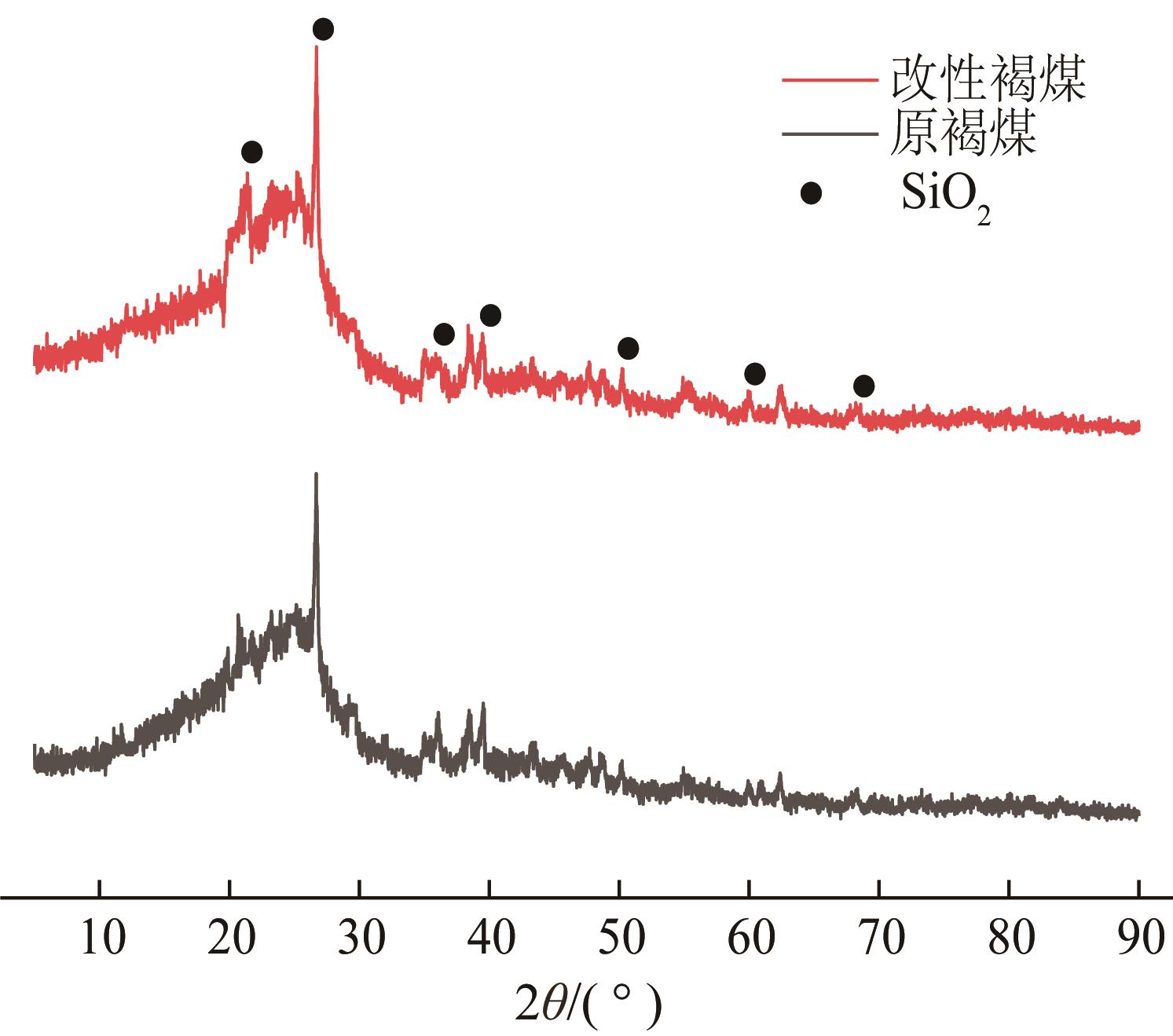

Fig.2 XRD spectrum of lignite before and after modification

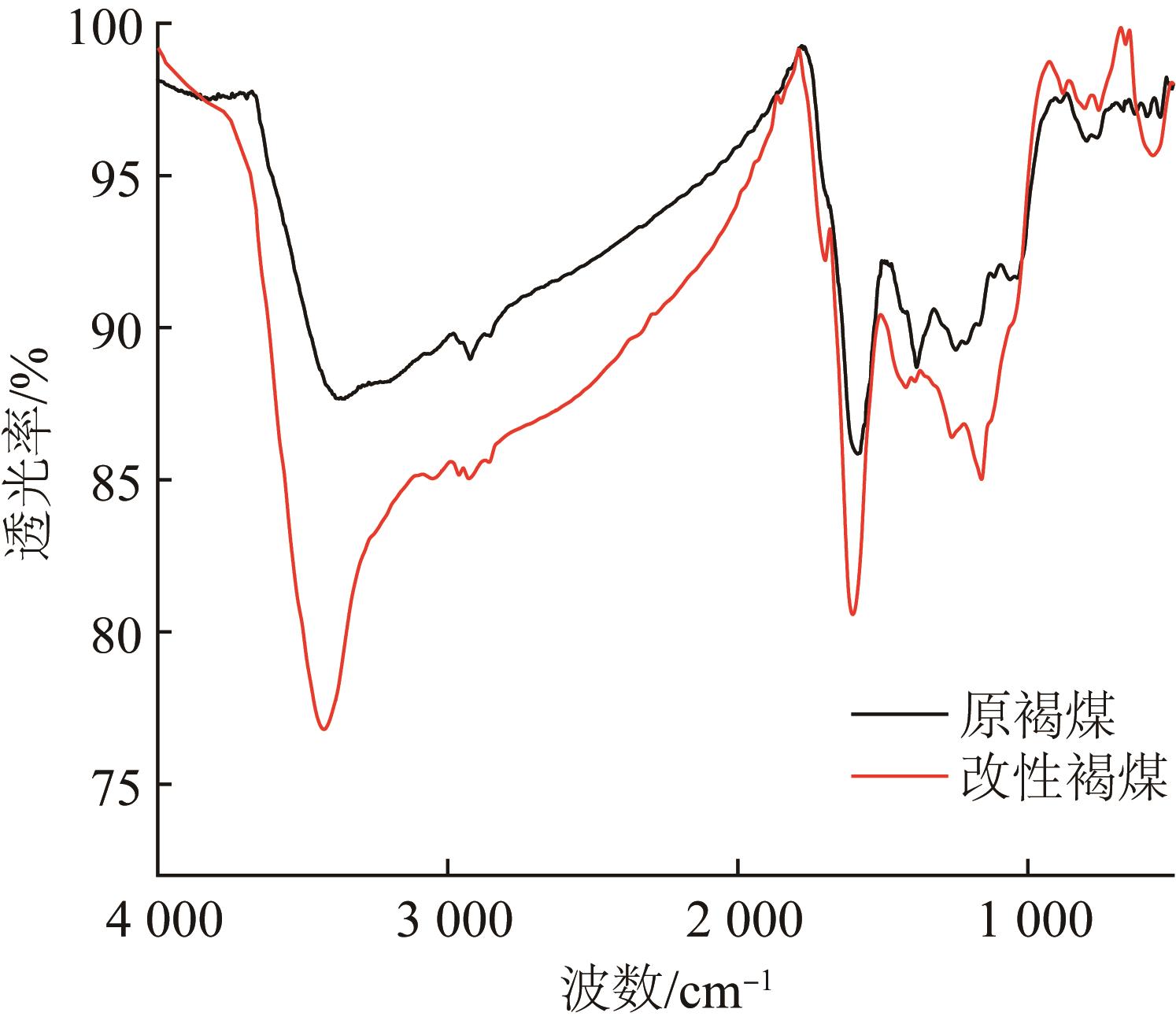

Fig.3 FTIR spectra of lignite before and after modification

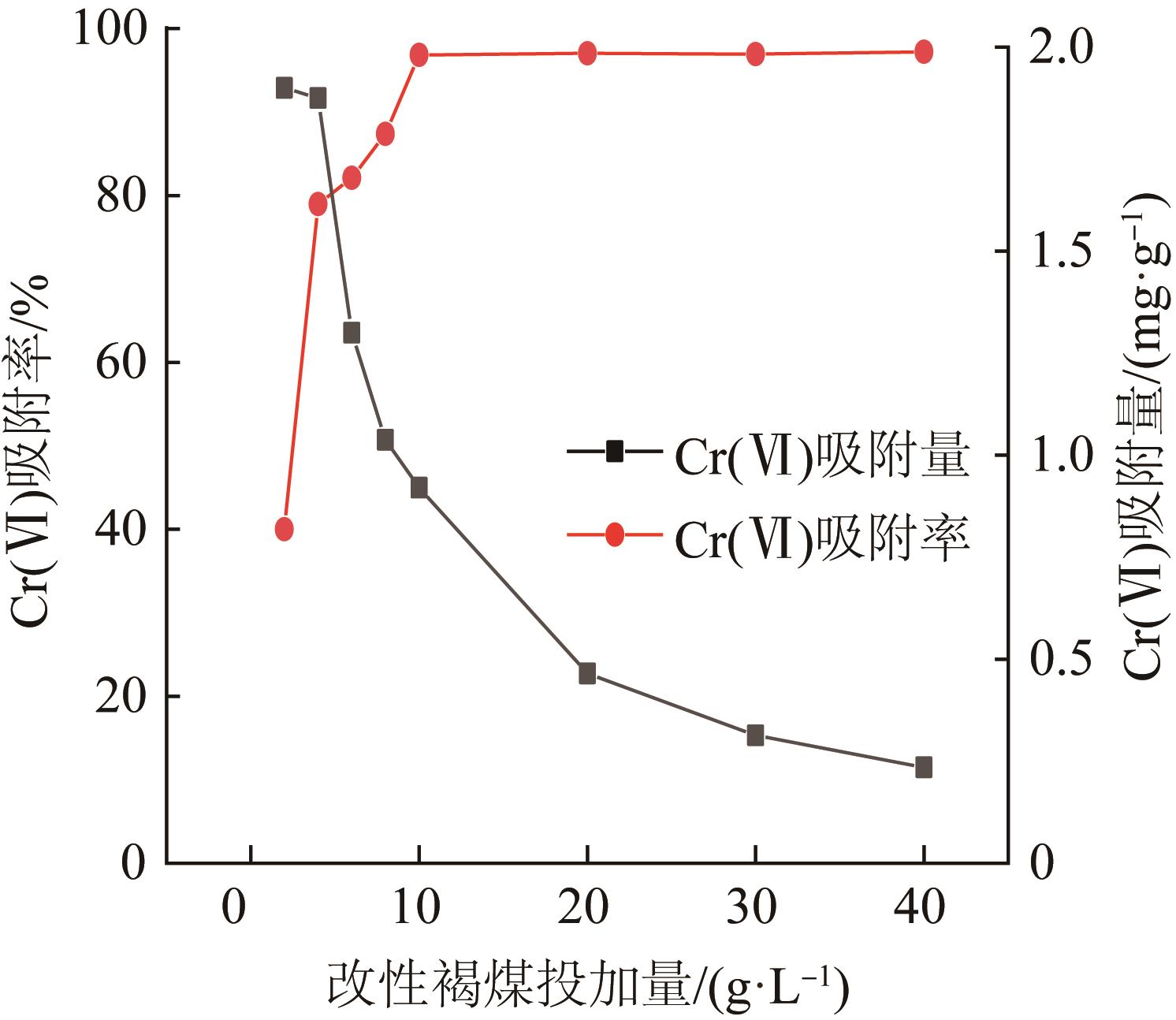

Fig.4 Influence of dosage of modified lignite on Cr（Ⅵ） adsorption

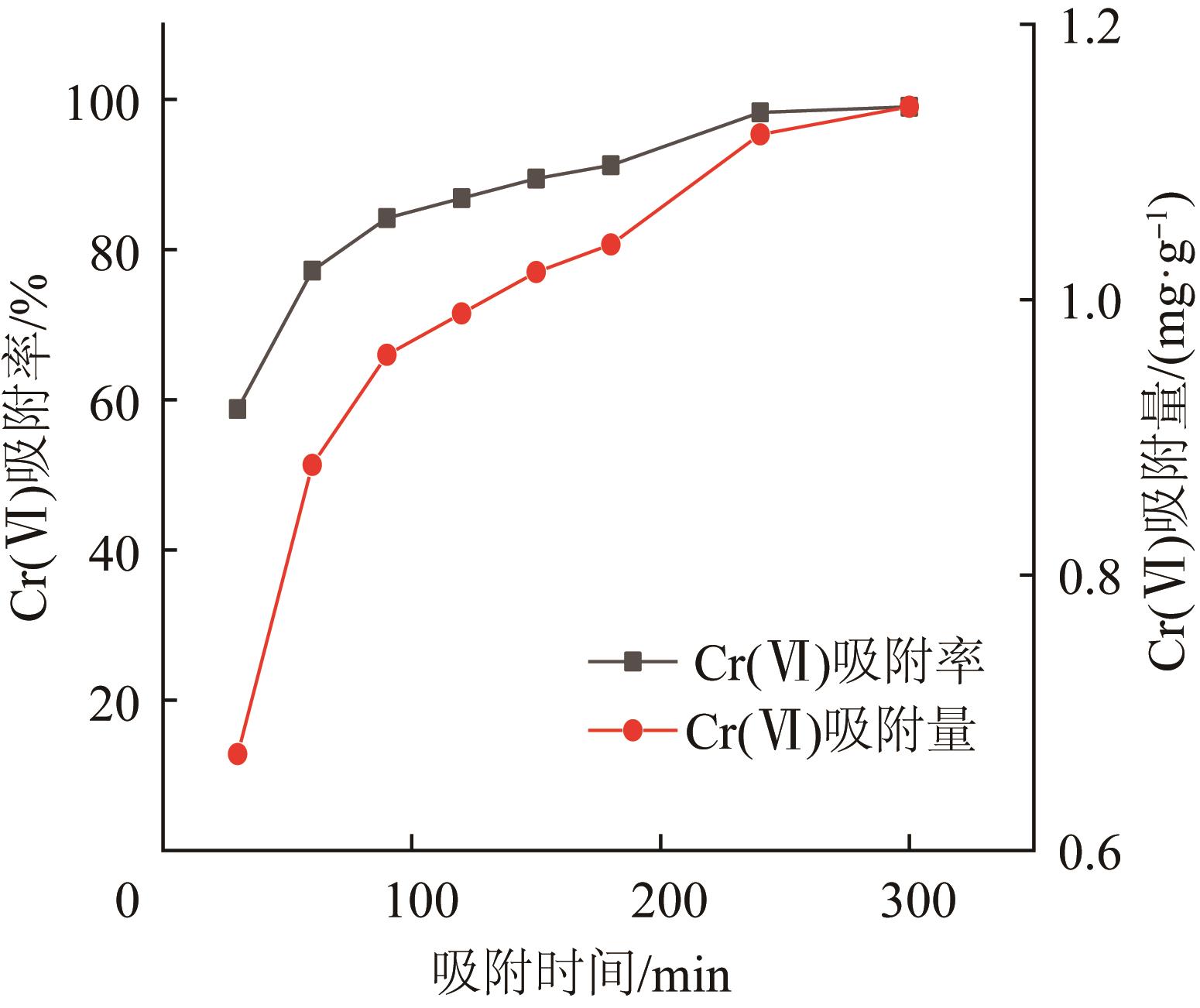

Fig.5 Influence of adsorption time on Cr（Ⅵ） adsorption

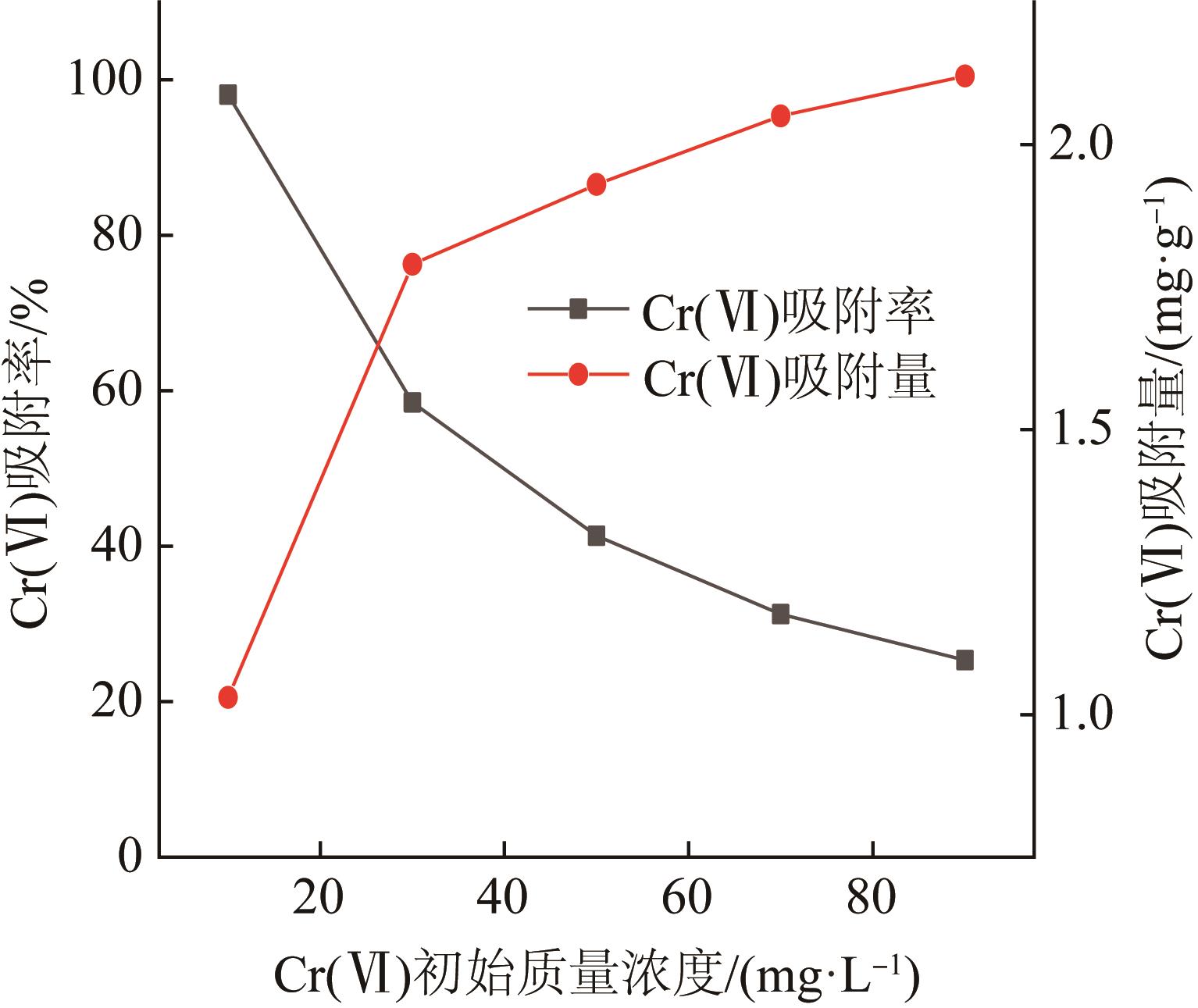

Fig.6 Influence of initial concentration of Cr（Ⅵ） on adsorption

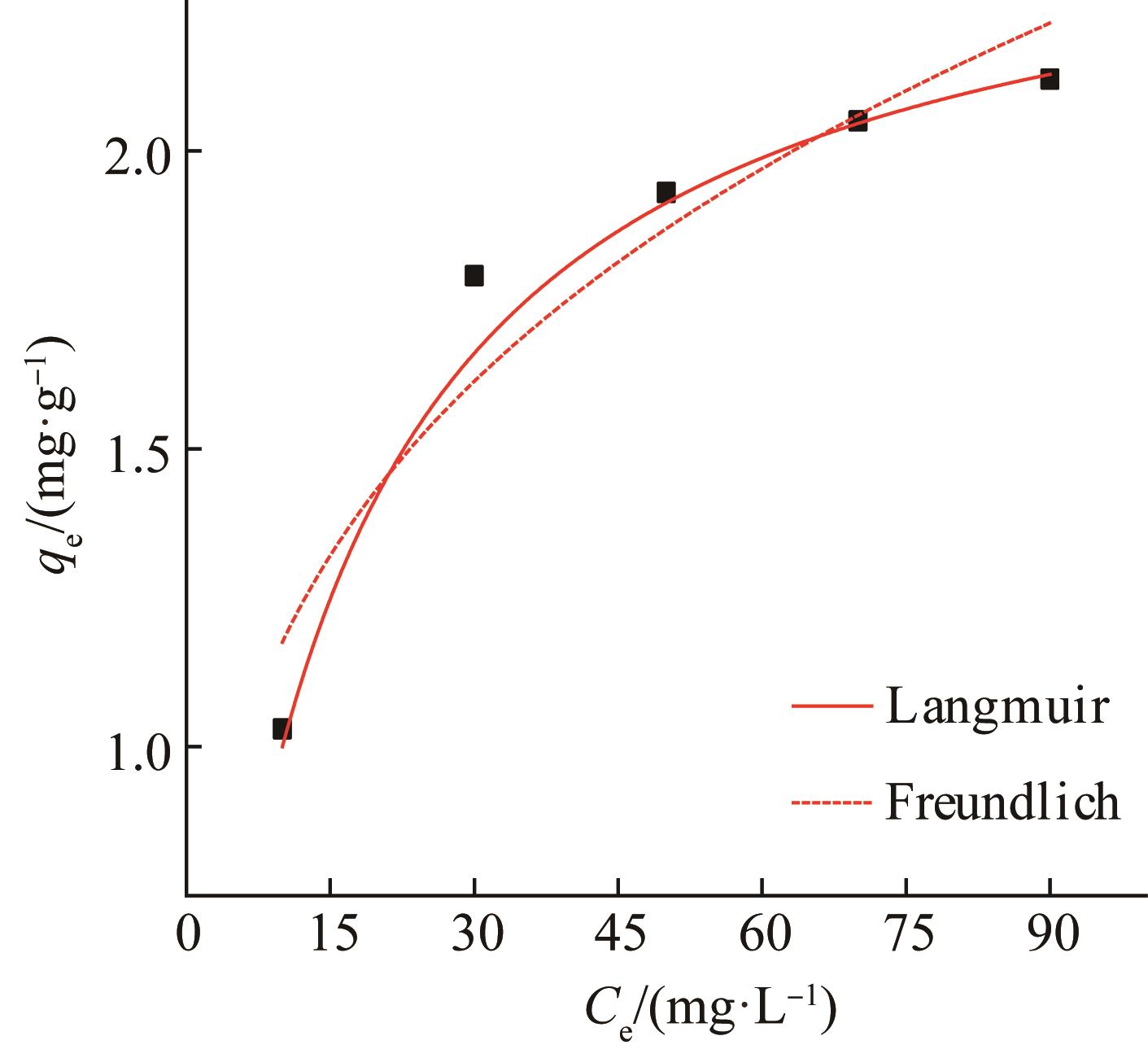

Fig.7 Isotherm adsorption curve

Table 3 Fitting characteristic parameters of Langmuir and Freundlich models

Langmuir模型			Freundlich模型
q_e/（mg·g^-1）	k ₁	R ²	1/n	k ₂	R ²
2.430 3	0.080 1	0.989 9	0.299 6	0.576 4	0.969 4

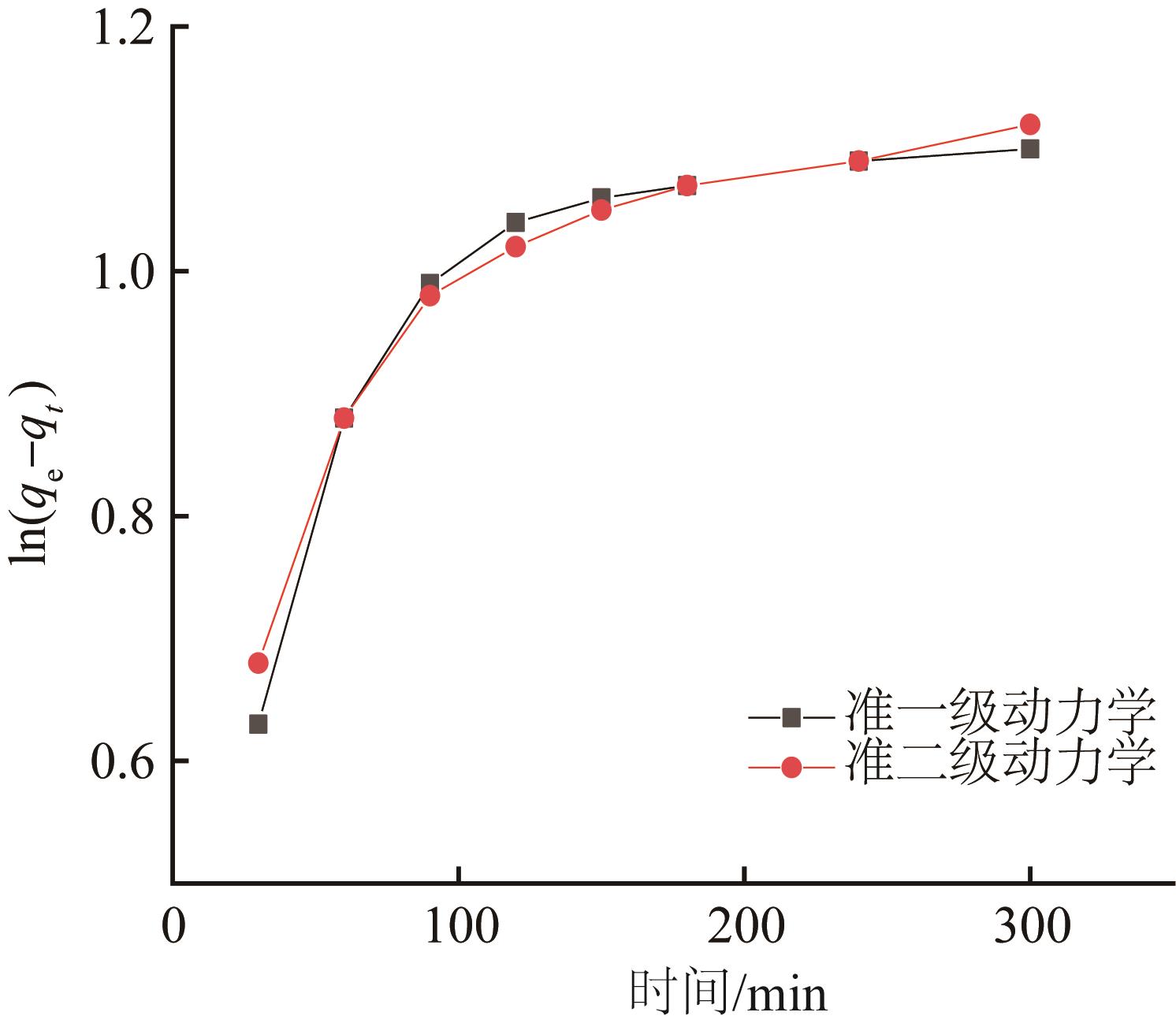

Fig.8 Quasi first and second order kinetics fitting of Cr（Ⅵ） adsorption by modified lignite

Table 4 Kinetic parameters of Cr（Ⅵ） adsorption by modified lignite

参数	q _e/（mg·g^-1）	k	R ²
准一级动力学	1.083 4	0.028 2	0.996 3
准二级动力学	1.204 0	0.036 7	0.998 3

References 22

1	何佳乐.采矿工业废水处理方法研究［J］.绿色科技，2018（16）：74-76． doi:10.1016/j.ijmst.2018.09.002
	HE Jiale.Research on treatment technology for mining industry［J］．Journal of Green Science and Technology，2018（16）：74-76． doi:10.1016/j.ijmst.2018.09.002
2	张涛.金属矿山酸性废水危害与控制技术现状分析［J］.化工管理，2018（19）：136． doi:10.3969/j.issn.1008-4800.2018.19.086
	ZHANG Tao.Analysis on harm and control technology of acid wastewater in metal mines［J］.Chemical Enterprise Management，2018（19）：136． doi:10.3969/j.issn.1008-4800.2018.19.086
3	CHAKRABORTY R， VERMA R， ASTHANA A，et al.Adsorption of hazardous chromium（Ⅵ） ions from aqueous solutions using modified sawdust：Kinetics，isotherm and thermodynamic modelling［J］.International Journal of Environmental Analytical Chemistry，2021，101（7）：911-928． doi:10.1080/03067319.2019.1673743
4	任金秋，凌新，陆春海.二氧化钛光催化剂还原六价铬的影响因素研究［J］.山东化工，2021，50（5）：48-50． doi:10.3969/j.issn.1008-021X.2021.05.019
	REN Jinqiu， LING Xin， LU Chunhai.Affecting factors of the reduction of hexavalent chromium by titanium dioxide photocatalyst［J］.Shandong Chemical Industry，2021，50（5）：48-50． doi:10.3969/j.issn.1008-021X.2021.05.019
5	陈健.活性炭负载纳米零价铁去除矿山废水中Cu²⁺和Cr⁶⁺的研究［D］.赣州：江西理工大学，2016．
	CHEN Jian.Removal of the Cu²⁺ and Cr⁶⁺ in the mine waste water by using the nanoscale zero-valent iron supported on activated carbon［D］.Ganzhou：Jiangxi University of Science and Technology，2016．
6	张北，刘斌，岳敏，等.改性花生壳吸附去除水中Cr（Ⅵ）的性能研究［J］.山东化工，2013，42（4）：20-24． doi:10.5004/dwt.2021.27365
	ZHANG Bei， LIU Bin， YUE Min，et al.Characteristics of modified peanut shell adsorption properties of removal of Cr（Ⅵ） from aquous solution［J］.Shandong Chemical Industry，2013，42（4）：20-24． doi:10.5004/dwt.2021.27365
7	陈曦垚，曹艳晓，彭存昕，等.Cr（Ⅵ）吸附-还原机制建模与蚕沙吸附性能研究［J］.环境科学与技术，2019，42（11）：105-110.
	CHEN Xiyao， CAO Yanxiao， PENG Cunxin，et al.Study on modeling of Cr（Ⅵ） adsorption-reduction mechanism and adsorption performance of silkworm excrement［J］.Environmental Science & Technology，2019，42（11）：105-110.
8	杨戊戌，张洁，姚雅雪，等.褐煤对苯酚的吸附性能及机制研究［J］.安全与环境学报，2017，17（1）：215-219. doi:10.13637/j.issn.1009-6094.2017.01.042
	YANG Wuxu， ZHANG Jie， YAO Yaxue，et al.Adsorptive inclination of lignite and its mechanism for phenol adsorption［J］.Journal of Safety and Environment，2017，17（1）：215-219. doi:10.13637/j.issn.1009-6094.2017.01.042
9	李瑞，董宪姝，李宏亮，等.焙烧改性的浮选尾煤对水中Cr（Ⅵ）吸附研究［J］.矿产综合利用，2021（2）：63-69. doi:10.3969/j.issn.1000-6532.2021.02.013
	LI Rui， DONG Xianshu， LI Hongliang，et al.Effect of roasting modified flotation tail coal on Cr（Ⅵ） adsorption in water［J］.Multipurpose Utilization of Mineral Resources，2021（2）：63-69. doi:10.3969/j.issn.1000-6532.2021.02.013
10	暴秀丽.改性褐煤对重金属的吸附及机理研究［D］.郑州：河南农业大学，2018.
	BAO Xiuli.The investigation of isothermal adsorption and mechanism of heavy metals adsorbed onto modified lignites［D］.Zhengzhou：Henan Agricultural University，2018.
11	李欣.改性活性炭处理含酚废水的研究［J］.电镀与环保，2020，40（1）：65-67. doi:10.3969/j.issn.1000-4742.2020.01.022
	LI Xin.Study on treatment of phenolic wastewater by modified activated carbon［J］.Electroplating & Pollution Control，2020，40（1）：65-67. doi:10.3969/j.issn.1000-4742.2020.01.022
12	范延臻，王宝贞，王琳，等.改性活性炭对有机物的吸附性能［J］.环境化学，2001，20（5）：444-448. doi:10.3321/j.issn:0254-6108.2001.05.005
	FAN Yanzhen， WANG Baozhen， WANG Lin，et al.Adsorption of organic micropollutants on modifiedactivated carbons［J］.Environmental Chemistry，2001，20（5）：444-448. doi:10.3321/j.issn:0254-6108.2001.05.005
13	谢婉婷，杨耀森，唐谋程，等.改性活性炭对饮用水中Cr（Ⅵ）吸附性能的研究［J］.工业水处理，2020，40（7）：87-90.
	XIE Wanting， YANG Yaosen， TANG M C，et al. Study on adsorption performance of modified activated carbon for Cr（Ⅵ） in drinking water［J］.Industrial Water Treatment，2020，40（7）：87-90.
14	阮鹏飞.褐煤负载铜离子及其对直接黄棕的吸附性能研究［D］.徐州：中国矿业大学，2019.
	RUAN Pengfei.Preparation of lignite modified by loaded copper ion and its adsorption performances for direct yellow brown dyes［D］.Xuzhou：China University of Mining and Technology，2019.
15	张崎.煤基吸附剂的制备及其去除废水中重金属的研究［D］.武汉：武汉科技大学，2016.
	ZHANG Qi.Preparation of coal based sorbent and its application for the removal of heavy metal from wastewater［D］.Wuhan：Wuhan University of Science and Technology，2016.
16	张海芳.煤中水分的存在形式及与煤结构的作用机理探究［J］.山西化工，2020，40（4）：5-8.
	ZHANG Haifang.Study on the existing form of moisture in coal and its interaction mechanism with coal structure［J］.Shanxi Chemical Industry，2020，40（4）：5-8.
17	宋明垚.褐煤基吸附剂的制备及对水中Cd²⁺、Zn²⁺的吸附与溶出腐植酸的去除研究［D］.昆明：昆明理工大学，2020.
	SONG Mingyao.Preparation of lignite based adsorbent，adsorption of Cd²⁺ and Zn²⁺ in water and removal of dissolved humic acid［D］.Kunming：Kunming University of Science and Technology，2020.
18	李国亭，康恒嘉，赵宝龙，等.玉米秸秆生物炭对水中对苯醌的吸附性能研究［J］.华北水利水电大学学报（自然科学版），2020，41（4）：74-79.
	LI Guoting， KANG Hengjia， ZHAO Baolong，et al.Study on the adsorption performance of P-benzoquinone from water by cornstalk biochar［J］.Journal of North China University of Water Resources and Electric Power（Natural Science Edition），2020，41（4）：74-79.
19	赵梦醒，王燕燕，程富江，等.废纸再生脱墨污泥活性炭对Fe（Ⅲ）离子吸附的研究［J］.中华纸业，2020，41（24）：23-27. doi:10.3969/j.issn.1007-9211.2020.24.004
	ZHAO Mengxing， WANG Yanyan， CHENG Fujiang，et al.Adsorption of Fe（Ⅲ） by deinked sludge-based activated carbon［J］.China Pulp & Paper Industry，2020，41（24）：23-27. doi:10.3969/j.issn.1007-9211.2020.24.004
20	张翔凌，邓礼楚，方晨佳，等.不同类型LDHs负载改性麦饭石对Cr（Ⅵ）吸附性能［J］.环境科学，2019，40（1）：300-309.
	ZHANG Xiangling， DENG Lichu， FANG Chenjia，et al.Adsorption of Cr（Ⅵ） in water by maifanite modified with different LDHs coatings［J］.Environmental Science，2019，40（1）：300-309.
21	MALIMA N M， OWONUBI S J， LUGWISHA E H，et al.Thermodynamic，isothermal and kinetic studies of heavy metals adsorption by chemically modified Tanzanian Malangali Kaolin clay［J］.International Journal of Environmental Science and Technology，2021，18（10）：3153-3168. doi:10.1007/s13762-020-03078-0
22	马叶.改性活性炭吸附水中六价铬离子的研究［D］.南京：南京林业大学，2015.
	MA Ye.Adsorption of Cr（Ⅵ） by modified activated carbon［D］.Nanjing：Nanjing Forestry University，2015.
