Ammonia anaerobic oxidation driven by electrodes in a modified iron anode microbial electrolysis cells

doi:10.19965/j.cnki.iwt.2022-0086

Abstract

Abstract:

In the absence of NO₂ ^- or partial nitrification，anaerobic ammonia oxidizing bacteria（AnAOB） can oxidize NH₄ ⁺-N by using the anodes of microbial electrolytic cells（MECs） as electron acceptors. The electrodes dependent anaerobic ammonium oxidation（E-Anammox） can effectively solve the problem of unstable supply of NO₂ ^- which is electron acceptor in conventional anaerobic ammonium oxidation（Anammox）. However，the commonly used iron anode in the MECs system is prone to corrosion slabbing，which leads to the decrease of electrode conductivity and electron utilization. To solve the corrosion problem of iron anode，the modified iron anode was prepared by coating the common iron anode. The modified iron anode and the common iron anode were loaded with the MECs in the Anammox reaction system. The changes of ammonia oxidation，system impedance value，and microbial community structure during the energized operation were investigated. The results showed that the effect of modified iron anode-MECs reactor（R2） on ammonia oxidation was stronger than that of the common iron anode-MECs reactor（R1），and the NH₄ ⁺-N removal rates of R1 and R2 at the end of the experiment（70 d） were 35.57 mg/（L·d）and 76.72 mg/（L·d），respectively. The impedance value of R1 increased from less than R2 in the early stage to more than R2 in the late stage. Furthermore，the relative abundance of AnAOB in R2 was higher than that in R1，and the relative abundance of iron-reducing bacteria in R1 was significantly higher than that in R2. Thus，it can be seen that the coating modification of iron anode could slow down its corrosion and play as an electron acceptor to achieve anaerobic oxidation of ammonia in the absence of NO₂ ^- supply.

Key words: iron anode, corrosion protection, microbial electrolysis cells, anaerobic ammonium oxidation

摘要：

在没有NO₂ ^-或短程硝化的情况下，厌氧氨氧化菌（AnAOB）可以微生物电解池（MECs）的阳极为电子受体氧化NH₄ ⁺-N，这种电极驱动型厌氧氨氧化（E-Anammox）可有效解决传统厌氧氨氧化（Anammox）电子受体NO₂ ^-供给不稳定的问题。但MECs系统常用的铁阳极易发生腐蚀板结，导致电极导电能力下降、电子利用率降低。针对铁阳极易腐蚀的问题，对普通铁阳极进行包覆改性制备改性铁阳极，将改性铁阳极和普通铁阳极分别与MECs系统耦合加载于Anammox反应体系中，考察了2个反应体系中氨氧化、系统阻抗值、微生物群落结构的变化特征。结果表明，改性铁阳极-MECs反应器（R2）对氨氧化的促进作用强于普通铁阳极-MECs反应器（R1），至实验末期（第70天），R1和R2的NH₄ ⁺-N去除速率分别为35.57 mg/（L·d）和76.72 mg/（L·d）；R1的阻抗值由运行前期的小于R2增大至后期明显大于R2；AnAOB在R2中的相对丰度高于R1，而铁还原菌在R1中的相对丰度明显高于R2。对铁阳极进行包覆制备的改性铁阳极可减缓铁腐蚀，且在没有NO₂ ^-供给的情况下，可作为电子受体实现氨的厌氧氧化。

关键词: 铁阳极, 防腐, 微生物电解池, 厌氧氨氧化

CLC Number:

X703.1

Yawen SHI, Changxun XIONG, Yongli QIN, Yongrong JIANG, Jinbang XIE, Shanshan MO, Libiao QIU. Ammonia anaerobic oxidation driven by electrodes in a modified iron anode microbial electrolysis cells[J]. Industrial Water Treatment, 2022, 42(6): 85-91.

施亚雯, 熊昌勋, 秦永丽, 蒋永荣, 谢锦邦, 莫姗姗, 邱立标. 改性铁阳极微生物电解池中电极驱动的氨厌氧氧化[J]. 工业水处理, 2022, 42(6): 85-91.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2022-0086

https://www.iwt.cn/EN/Y2022/V42/I6/85

Figures/Tables 8

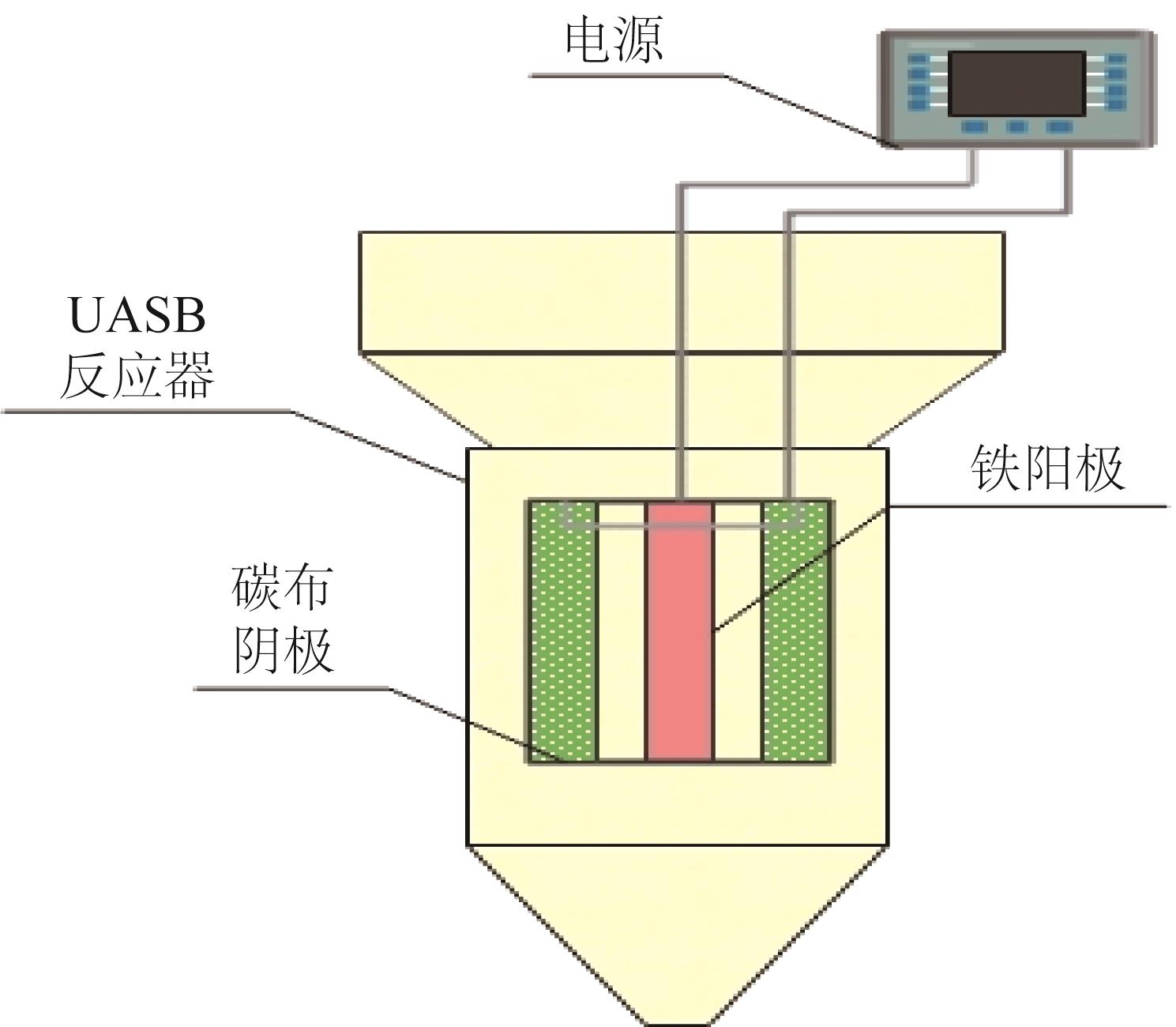

Fig. 1 MECs-UASB reactor

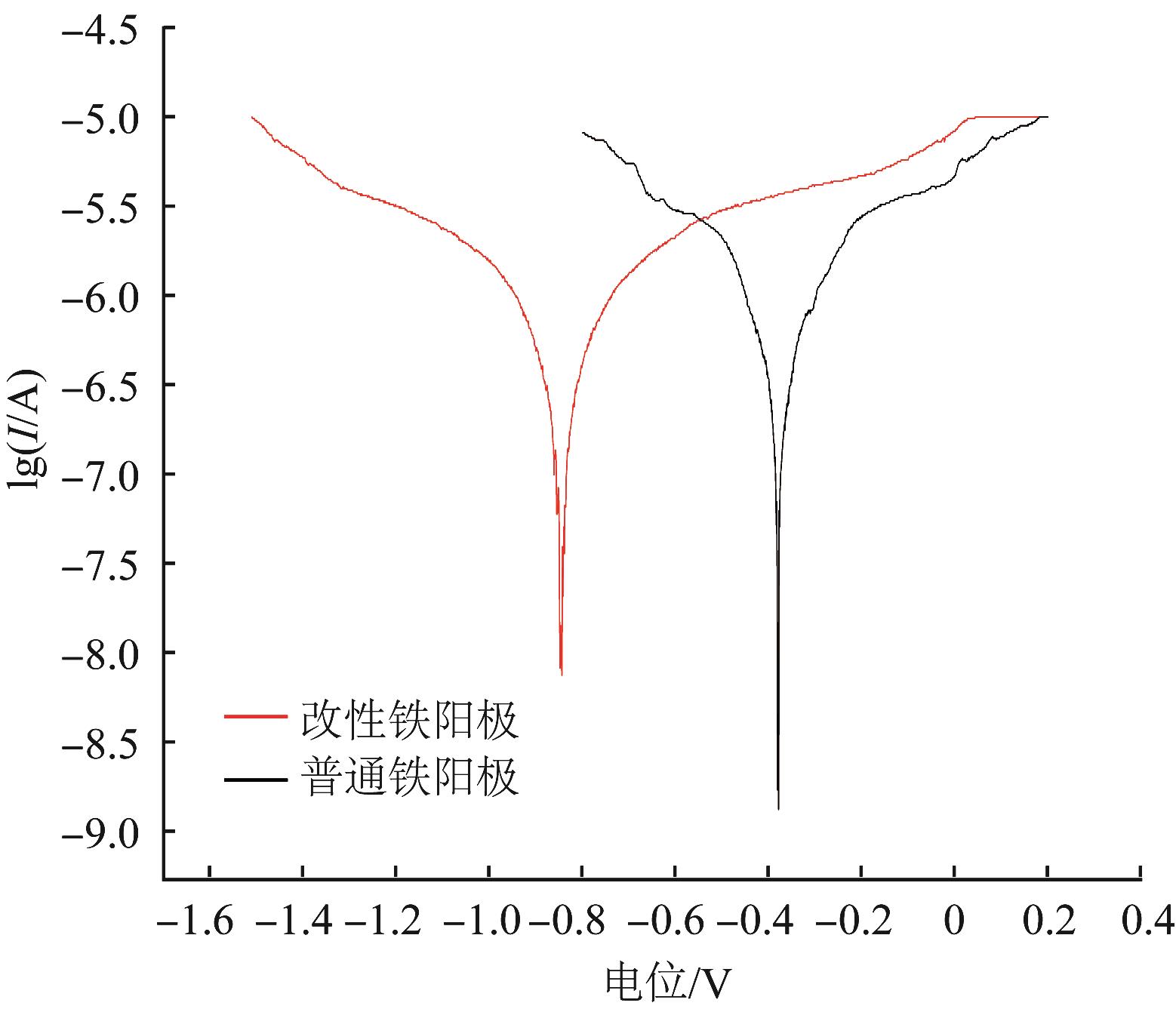

Fig. 2 Tafel curves of modified iron anode and ordinary iron anode

Table 1 Tafel parameters of modified iron anode and ordinary iron anode

阳极类型	E _corr/V	I _corr/A	β
普通铁阳极	-0.379	5.578×10^-7	5.719
改性铁阳极	-0.844	3.635×10^-7	4.969

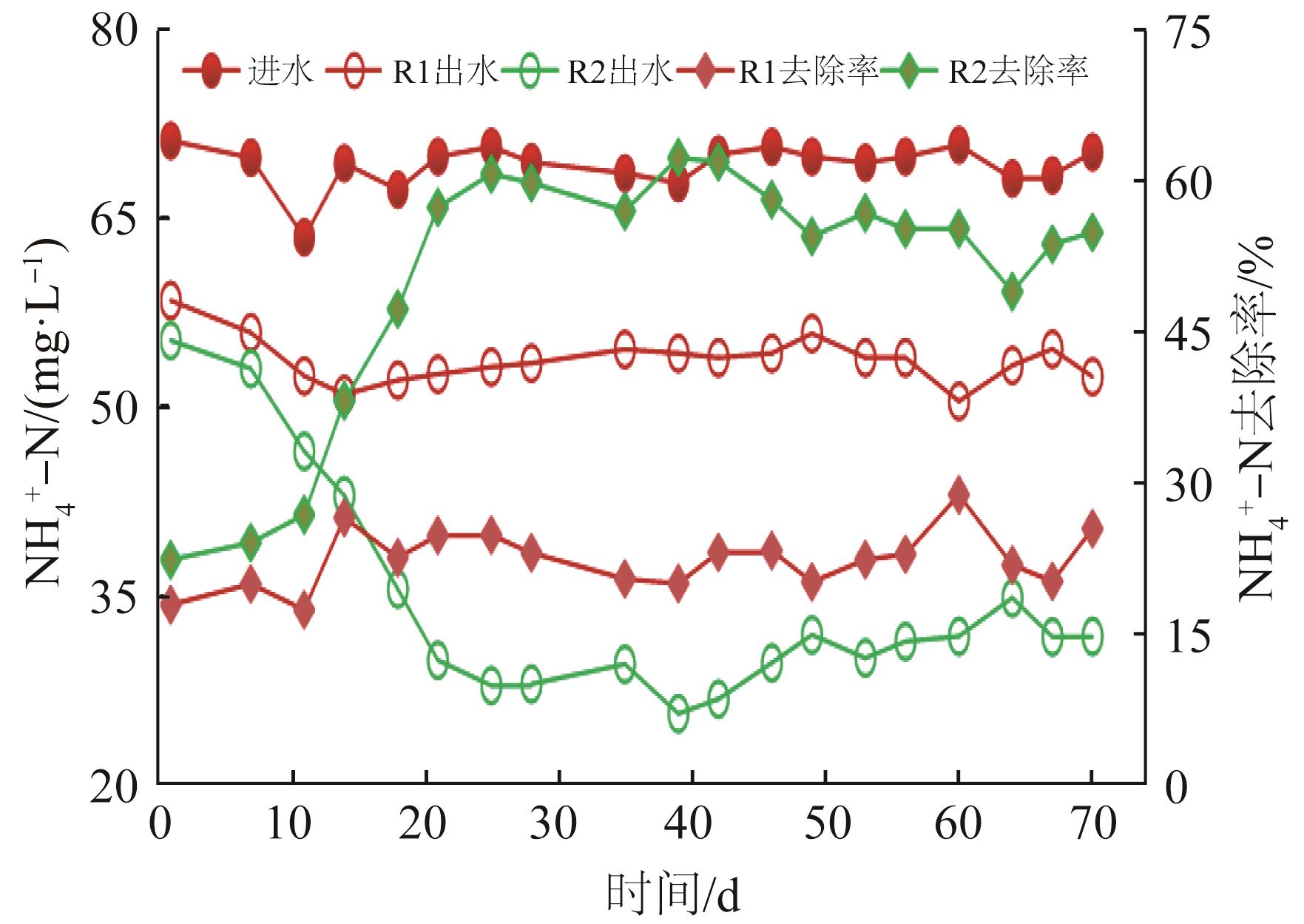

Fig. 3 The Changes of NH₄ ^＋-N

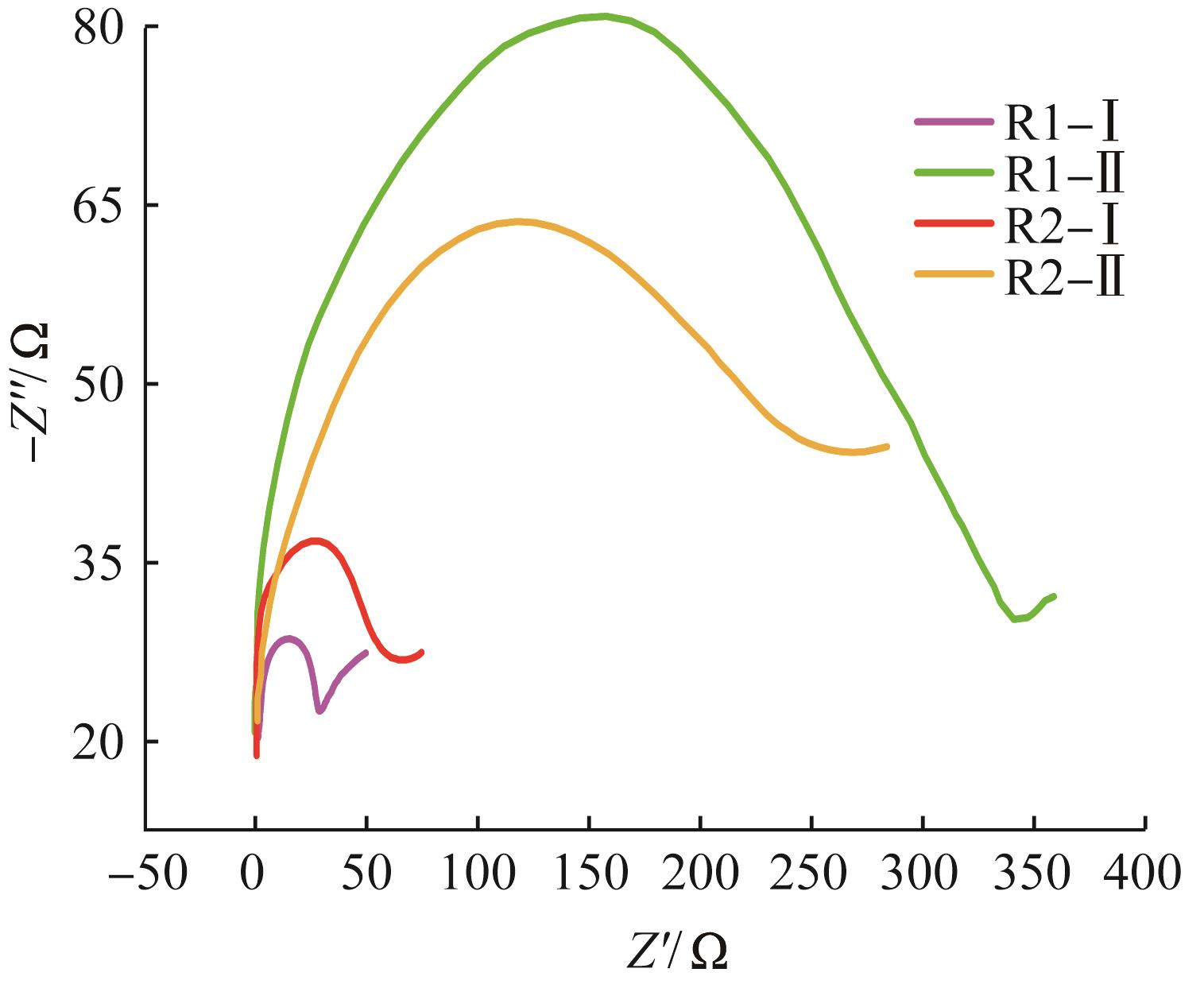

Fig. 4 AC impedance diagram of reaction systems

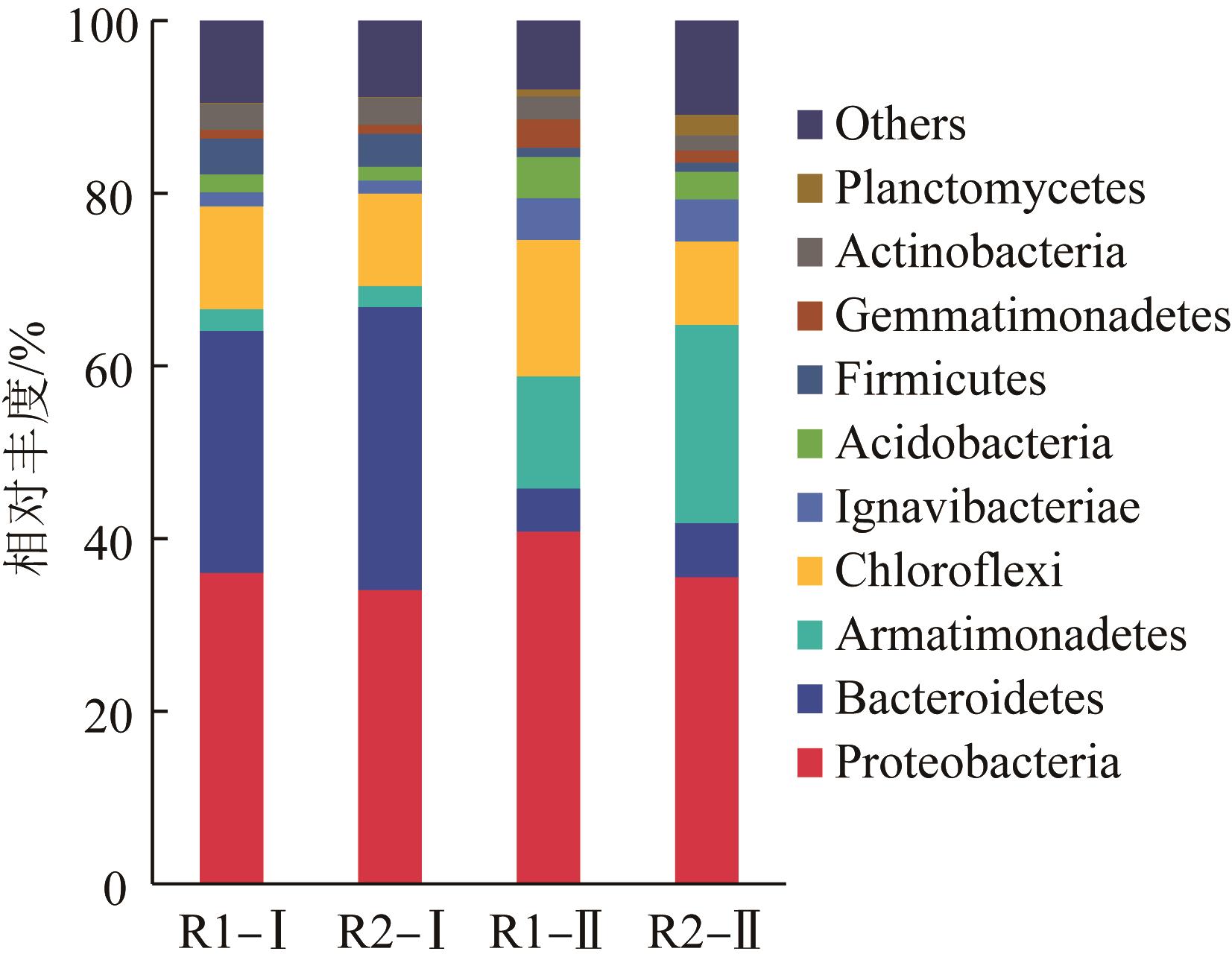

Fig. 5 Abundance of samples at phylum level

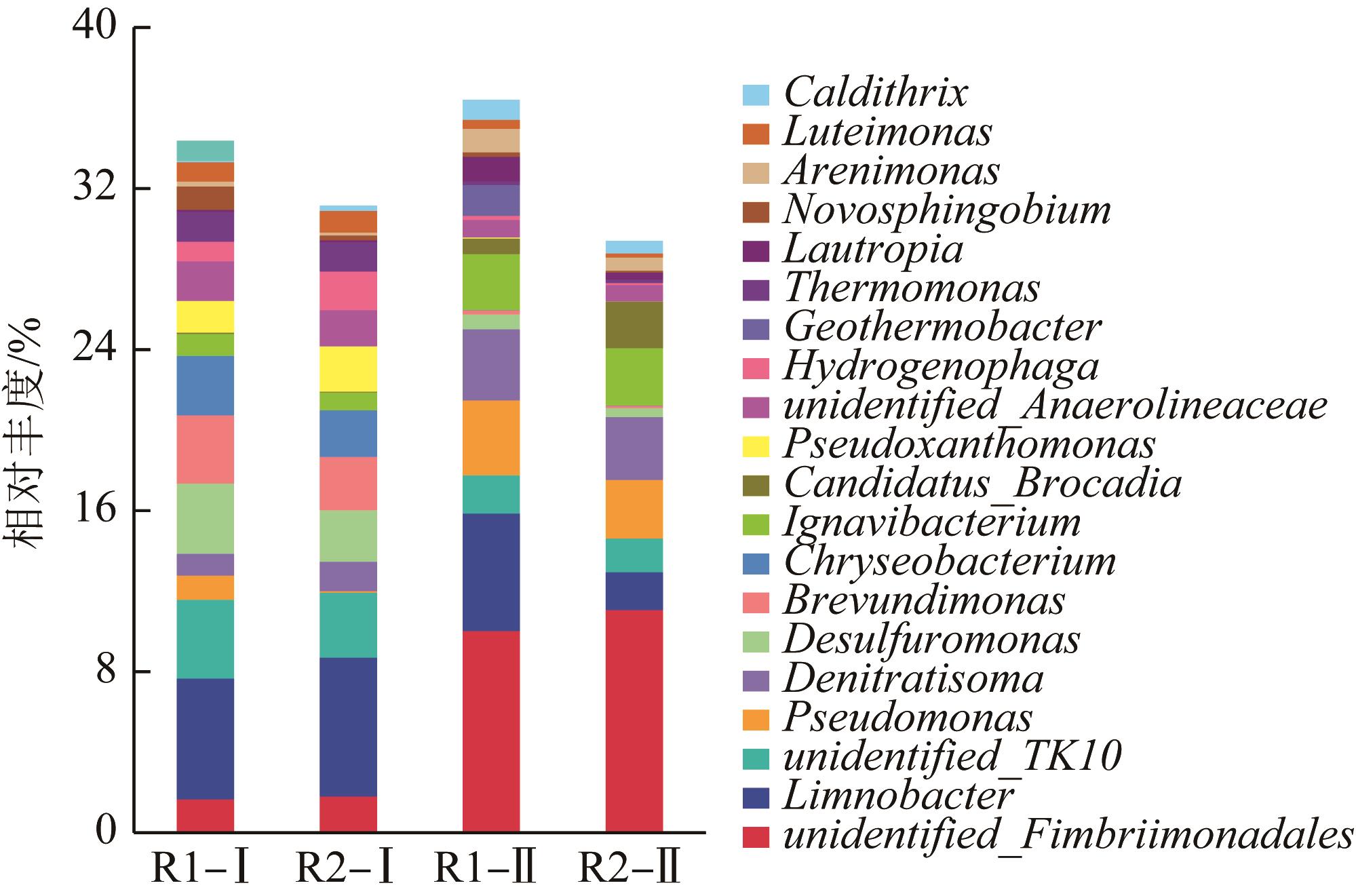

Fig. 6 Abundance of samples at genus level

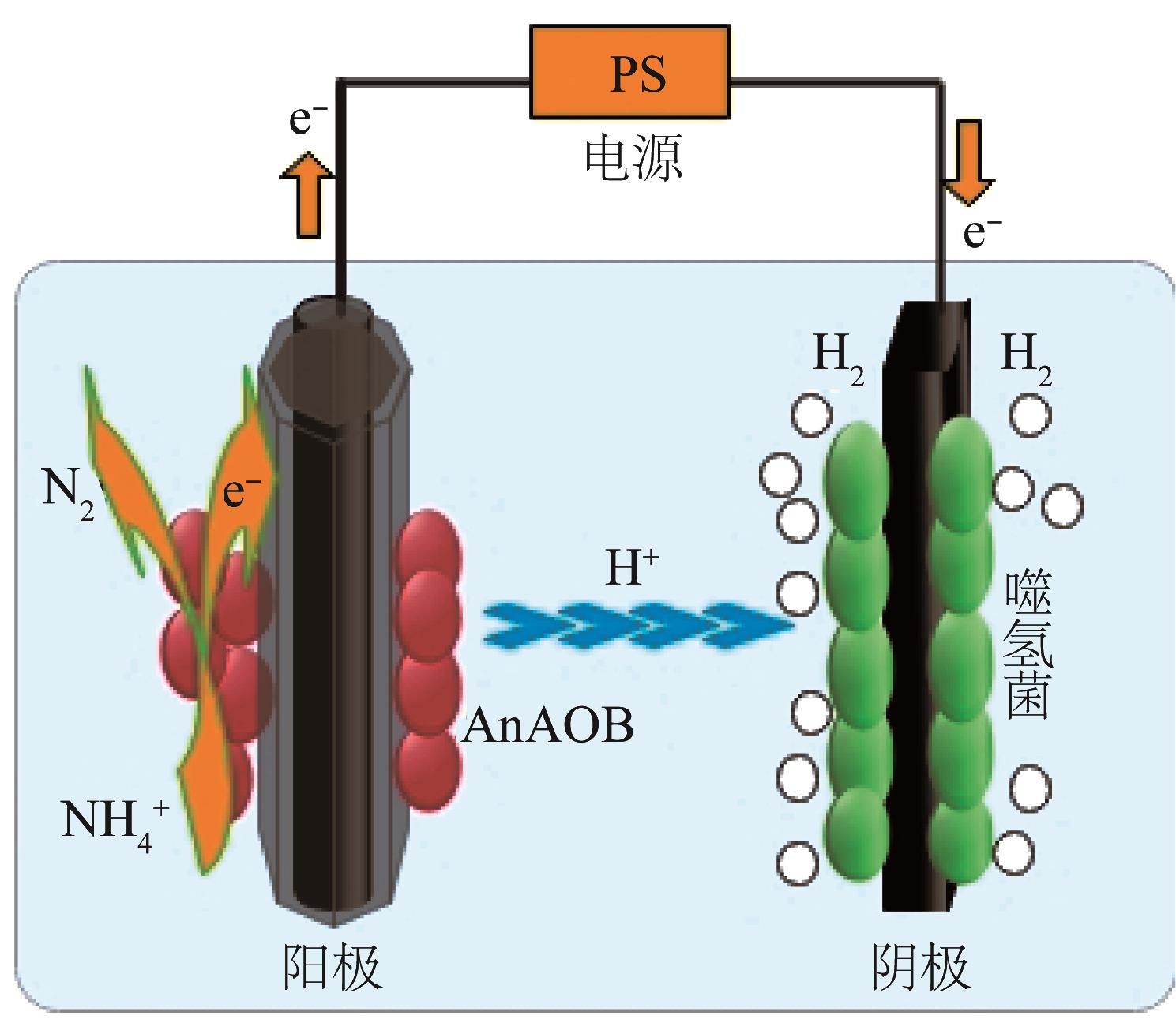

Fig. 7 Mechanism of E-Anammox in modified iron anode-MECs

References 28

1	LU Jiayuan， WANG Xuemeng， LIU Houqi，et al. Optimizing operation of municipal wastewater treatment plants in China：The remaining barriers and future implications［J］. Environment International，2019，129：273-278. doi:10.1016/j.envint.2019.05.057
2	LOTTI T， STAR W R L VAN DER， KLEEREBEZEM R，et al. The effect of nitrite inhibition on the anammox process［J］. Water Research，2012，46（8）：2559-2569. doi:10.1016/j.watres.2012.02.011
3	STAR W R L VAN DER， ABMA W R， BLOMMERS D，et al. Startup of reactors for anoxic ammonium oxidation：Experiences from the first full-scale anammox reactor in Rotterdam［J］. Water Research，2007，41（18）：4149-4163. doi:10.1016/j.watres.2007.03.044
4	CAI Fangrui， LEI Lirong， LI Youming. Rapid start-up of single-stage nitrogen removal using anammox and partial nitritation（SNAP） process in a sequencing batch biofilm reactor（SBBR） inoculated with conventional activated sludge［J］. International Biodeterioration & Biodegradation，2020，147：104877. doi:10.1016/j.ibiod.2019.104877
5	SHAW D R，ALI M， KATURI K P，et al. Extracellular electron transfer-dependent anaerobic oxidation of ammonium by anammox bacteria［J］. Nature Communications，2020，11：2058. doi:10.1038/s41467-020-16016-y
6	ZHAO Juntao， LI Feng， CAO Yingxiu，et al. Microbial extracellular electron transfer and strategies for engineering electroactive microorganisms［J］. Biotechnology Advances，2021，53：107682. doi:10.1016/j.biotechadv.2020.107682
7	KATURI K P， KALATHIL S， RAGAB A，et al. Dual-function electrocatalytic and macroporous hollow-fiber cathode for converting waste streams to valuable resources using microbial electrochemical systems［J］. Advanced Materials，2018，30（26）：1707072. doi:10.1002/adma.201707072
8	WANG Bo， LIU Wenzong， ZHANG Yifeng，et al. Intermittent electro field regulated mutualistic inter species electron transfer away from the electrodes for bioenergy recovery from wastewater［J］. Water Research，2020，185：116238. doi:10.1016/j.watres.2020.116238
9	YIN Xin， QIAO Sen， ZHOU Jiti，et al. Using three-bio-electrode reactor to enhance the activity of anammox biomass［J］. Bioresource Technology，2015，196：376-382. doi:10.1016/j.biortech.2015.07.096
10	张佳瑶，廖承美，王祺，等. 微生物电解池处理厨余垃圾液化液同步资源化产氢［J］. 工业水处理，2022，42（6）：59-66.
	ZHANG Jiayao， LIAO Chengmei， WANG Qi，et al. Microbial electrolysis cell treating liquefied kitchen waste with simultaneously resourceful hydrogen production［J］. Industrial Water Treatment，2022，42（6）：59-66.
11	ZHANG Jingxin， ZHANG Yaobin， LI Yang，et al. Enhancement of nitrogen removal in a novel anammox reactor packed with Fe electrode［J］. Bioresource Technology，2012，114：102-108. doi:10.1016/j.biortech.2012.03.018
12	万莉，邹义龙，弓晓峰，等. 电增强零价铁强化厌氧氨氧化处理高氮养猪废水［J］. 环境科学研究，2015，28（8）：1302-1310. doi:10.13198/j.issn.1001-6929.2015.08.18
	WAN Li， ZOU Yilong， GONG Xiaofeng，et al. Electrical field and zero-valent iron-enhanced anaerobic ammonium oxidation for the treatment of high-nitrogen swine wastewater［J］. Research of Environmental Sciences，2015，28（8）：1302-1310. doi:10.13198/j.issn.1001-6929.2015.08.18
13	蒋永荣，秦永丽，谢锦邦，等. 一种微生物电解池阳极用电极棒及其制备方法：CN109256566B［P］. 2021-03-26.
14	QIN Yongli， WEI Qiaoyan， ZHANG Yuanyuan，et al. Nitrogen removal from ammonium-and sulfate-rich wastewater in an upflow anaerobic sludge bed reactor：Performance and microbial community structure［J］. Ecotoxicology，2021，30（8）：1719-1730. doi:10.1007/s10646-020-02333-x
15	李荻. 电化学原理［M］. 3版. 北京：北京航空航天大学出版社，2008：136-137. doi:10.1007/978-1-4020-5614-7_471
	LI Di. Principles of electrochemistry ［M］. 3rd edition. Beijing：Beijing University of Aeronautics and Astronautics Press，2008，136-137. doi:10.1007/978-1-4020-5614-7_471
16	CAO Jie， LI Ning， JIANG Jin，et al. Activated carbon as an insoluble electron shuttle to enhance the anaerobic ammonium oxidation coupled with Fe（Ⅲ） reduction process［J］. Environmental Research，2022，204：111972. doi:10.1016/j.envres.2021.111972
17	TANG Chongjian， ZHENG Ping， WANG Caihua，et al. Performance of high-loaded ANAMMOX UASB reactors containing granular sludge［J］. Water Research，2011，45（1）：135-144. doi:10.1016/j.watres.2010.08.018
18	孙佳玉. 在无扰动厌氧水环境中纳米零价铁的腐蚀过程研究［D］. 北京：中国地质大学，2018.
	SUN Jiayu. Study on corrosion process of nano zero-valent iron in undisturbed anaerobic water environment［D］. Beijing：China University of Geosciences，2018.
19	李祥，黄勇，巫川，等. Fe²⁺和Fe³⁺对厌氧氨氧化污泥活性的影响［J］. 环境科学，2014，35（11）：4224-4229.
	LI Xiang， HUANG Yong， WU Chuan，et al. Effect of Fe²⁺ and Fe³⁺ on the activity of ANAMMOX［J］. Environmental Science，2014，35（11）：4224-4229.
20	张文静，黄勇，毕贞，等. ANAMMOX菌铁自养反硝化工艺的稳定性［J］. 环境科学，2019，40（7）：3201-3207.
	ZHANG Wenjing， HUANG Yong， BI Zhen，et al. Stability of ZVI-dependent autotrophic denitrification by ANAMMOX bacteria［J］. Environmental Science，2019，40（7）：3201-3207.
21	LIU Jianbo， ZHANG Panyue， LI Haibo，et al. Denitrification of landfill leachate under different hydraulic retention time in a two-stage anoxic/oxic combined membrane bioreactor process：Performances and bacterial community［J］. Bioresource Technology，2018，250：110-116. doi:10.1016/j.biortech.2017.11.026
22	HILL V R， KAHLER A M， JOTHIKUMAR N，et al. Multistate evaluation of an ultrafiltration-based procedure for simultaneous recovery of enteric microbes in 100-liter tap water samples［J］. Applied and Environmental Microbiology，2007，73（13）：4218-4225. doi:10.1128/aem.02713-06
23	WANG Depeng， LI Tong， HUANG Kailong，et al. Roles and correlations of functional bacteria and genes in the start-up of simultaneous anammox and denitrification system for enhanced nitrogen removal［J］. Science of the Total Environment，2019，655：1355-1363. doi:10.1016/j.scitotenv.2018.11.321
24	BOVIO P， CABEZAS A， ETCHEBEHERE C. Preliminary analysis of Chloroflexi populations in full-scale UASB methanogenic reactors［J］. Journal of Applied Microbiology，2019，126（2）：667-683. doi:10.1111/jam.14115
25	毛念佳，嵇鸿民，许柯，等. 铁离子对厌氧氨氧化污泥富集培养的影响［J］. 净水技术，2018，37（1）：22-29. doi:10.15890/j.cnki.jsjs.2018.01.005
	MAO Nianjia， JI Hongmin， XU Ke，et al. Effect of ferric iron on enrichment cultivation process of anammox sludge［J］. Water Purification Technology，2018，37（1）：22-29. doi:10.15890/j.cnki.jsjs.2018.01.005
26	CHEN Zheng， ZHANG Yaxian， LUO Qingliu，et al. Maghemite（γ-Fe₂O₃） nanoparticles enhance dissimilatory ferrihydrite reduction by Geobacter sulfurreducens：Impacts on iron mineralogical change and bacterial interactions［J］. Journal of Environmental Sciences，2019，78：193-203. doi:10.1016/j.jes.2018.09.021
27	TULLY B， SAVALIA P， ABUYEN K，et al. Genome sequence of Geothermobacter sp. strain EPR-M，a deep-sea hydrothermal vent iron reducer［J］. Genome Announcements，2017，5（23）. DOI：10. 1128/genomea. 00424-17 .
28	KÄMPFER P， SCHULZE R， JÄCKEL U，et al. Hydrogenophaga defluvii sp. nov. and Hydrogenophaga atypica sp. nov.，isolated from activated sludge［J］. International Journal of Systematic and Evolutionary Microbiology，2005，55（1）：341-344. doi:10.1099/ijs.0.03041-0
