Study on the adsorption effect and mechanism of modified Aspergillus flavus A5P1 for dye acid blue 25

doi:10.19965/j.cnki.iwt.2023-0089

Abstract

Abstract:

Aspergillus flavus A5P1 was used as raw material to prepare biosorbent A5P1_acid by hydrochloric acid modification，which was used to adsorb acid blue 25（AB25） dyes. Batch experiments were used to explore different influencing factors. The results showed that the optimum amount of adsorbent and pH for dye adsorption was 0.5 g/L and 2，and the adsorption reached equilibrium in 60 min. Compared with unmodified adsorbents，the adsorption capacity of acid modified adsorbents increased from 137 mg/g to 182 mg/g，and the dye removal rate increased to 32%. The thermodynamics，kinetics and adsorption isotherm of AB25 removed by A5P1_acid adsorption were studied. The adsorption process met the quasi-second-order kinetic model，and the adsorption rate was controlled by chemical adsorption. Moreover， it met the Freundlich adsorption isotherm，and the adsorption belonged to multi-layer heterogeneous adsorption. The thermodynamic results showed that it was an endothermic spontaneous adsorption process. The results of Zeta potential and FTIR showed that the adsorption was assigned to the electrostatic adsorption and hydrogen bonding of various functional groups. The adsorbent still retained 50.6% of the initial adsorption capacity after cyclic adsorption-desorption for 7 times. The experimental results showed that A5P1_acid was a green and effective biological adsorbent material which could be used to remove anionic dyes.

Key words: Aspergillus flavus, adsorption, acid modification, dye decolorization

摘要：

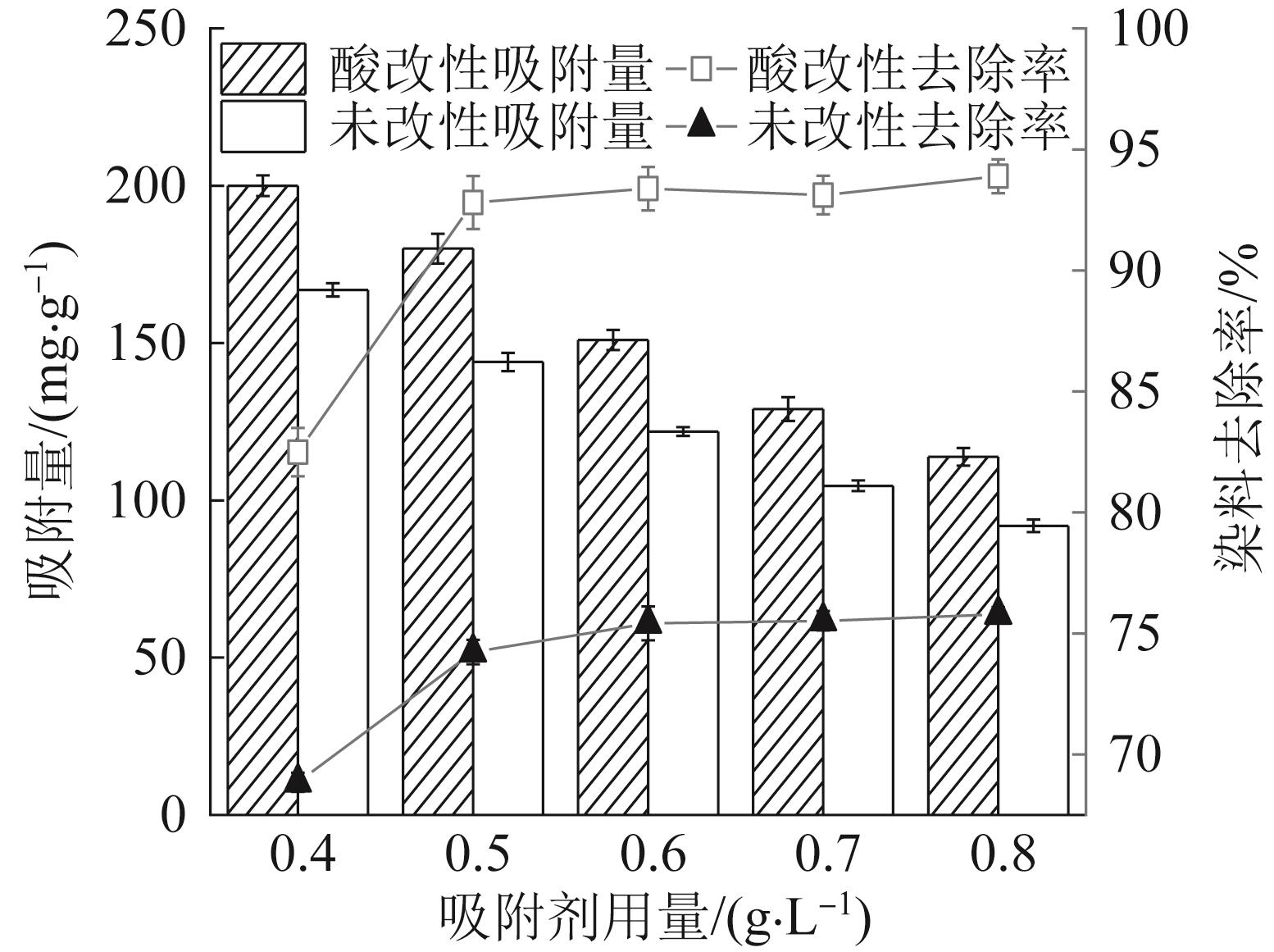

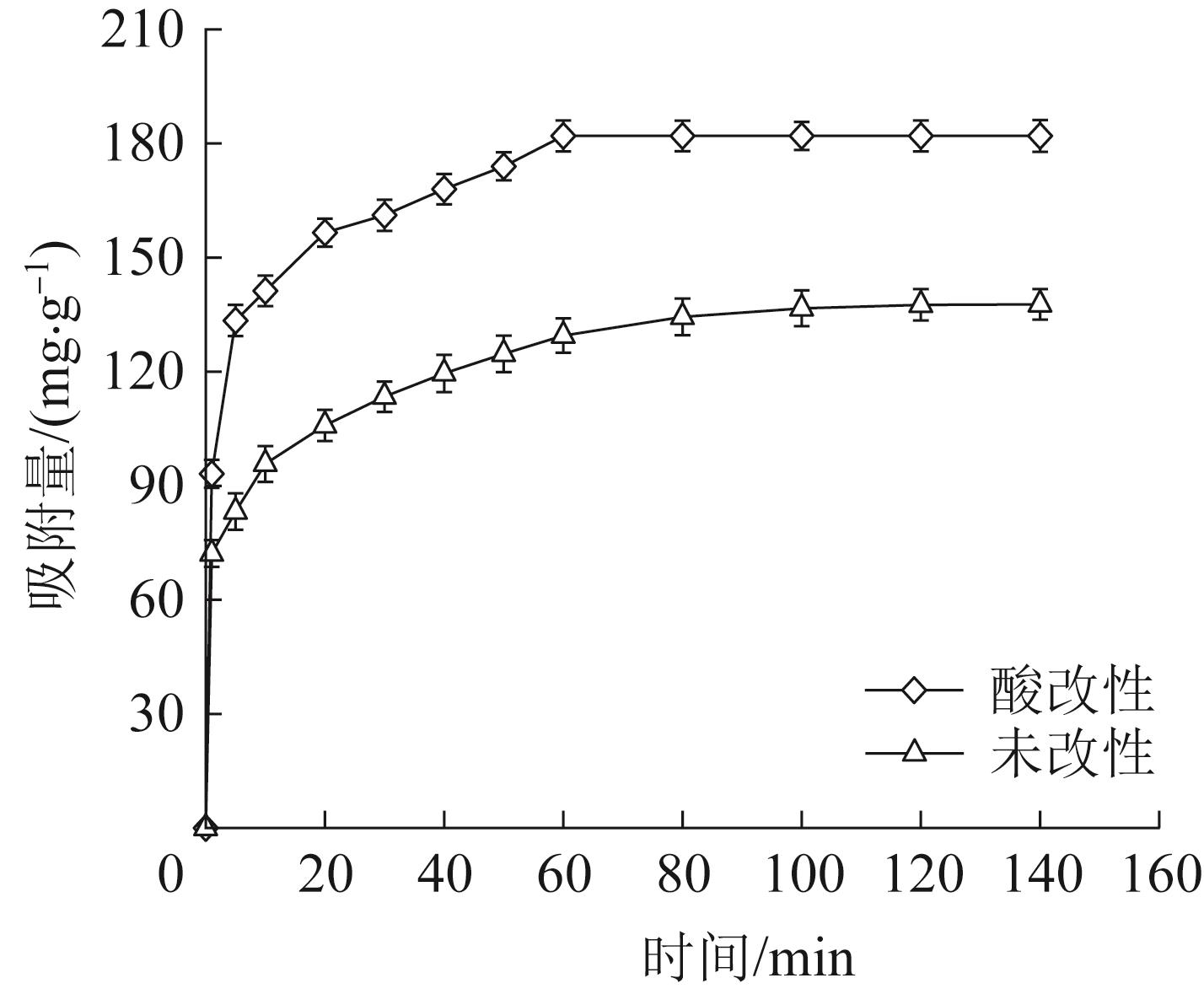

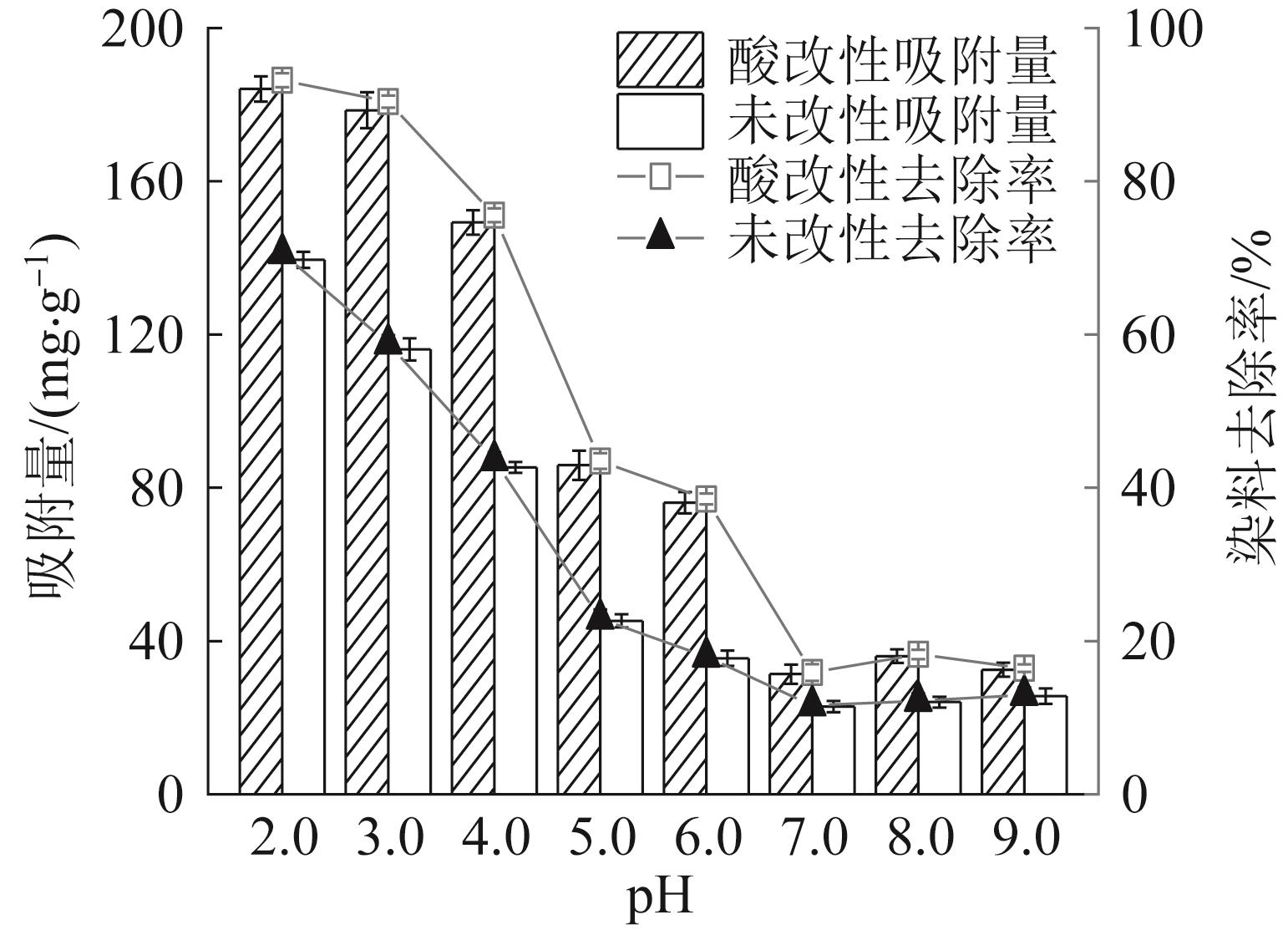

以黄曲霉A5P1为原料，利用盐酸改性法制成生物吸附剂A5P1_acid，用于吸附酸性蓝25（AB25）染料。对A5P1_acid吸附的影响因素进行分析，结果表明：染料吸附的最佳吸附剂用量为0.5 g/L，最适pH为2，60 min达到吸附平衡。吸附剂经盐酸改性后，吸附量从137 mg/g提高到182 mg/g，染料去除率提高了32%。通过分析A5P1_acid吸附去除AB25的机理，发现吸附过程符合准二级动力学模型，是由化学吸附控制吸附速率；符合Freundlich吸附等温线，吸附属于多层非均相吸附。热力学结果表明吸附过程是一个吸热自发的过程。Zeta电位和FTIR结果表明，吸附是由多种官能团的静电吸附和氢键作用的。吸附剂经过循环吸附-解吸7次仍保留初始吸附量的50.6%。实验研究证明，A5P1_acid是一种绿色有效可用于去除阴离子染料的生物吸附质材料。

关键词: 黄曲霉, 吸附, 酸改性, 染料脱色

CLC Number:

X703.1

Shiqi GUO, Wen QIN, Qingyun LI, Aixing TANG, Youyan LIU. Study on the adsorption effect and mechanism of modified Aspergillus flavus A5P1 for dye acid blue 25[J]. Industrial Water Treatment, 2024, 44(2): 95-104.

郭世琦, 覃雯, 李青云, 唐爱星, 刘幽燕. 改性黄曲霉A5P1对染料酸性蓝25的吸附效果与机理研究[J]. 工业水处理, 2024, 44(2): 95-104.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-0089

https://www.iwt.cn/EN/Y2024/V44/I2/95

Figures/Tables 13

References 39

1	LI Shuhui， HUANG Jianying， MAO Jiajun，et al. In vivo and in vitro efficient textile wastewater remediation by Aspergillus niger biosorbent［J］. Nanoscale Advances，2019，1（1）：168-176. doi:10.1039/c8na00132d
2	BERRADI M， HSISSOU R， KHUDHAIR M，et al. Textile finishing dyes and their impact on aquatic environs［J］. Heliyon，2019，5（11）：e02711. doi:10.1016/j.heliyon.2019.e02711
3	GHARIANI B， HADRICH B， LOUATI I，et al. Porous heat-treated fungal biomass：Preparation，characterization and application for removal of textile dyes from aqueous solutions［J］. Journal of Porous Materials，2019，26（5）：1475-1488. doi:10.1007/s10934-019-00746-6
4	JAIN S N， GOGATE P R. Treatment of dye containing real Industrial effluents using NaOH-activated ficus racemosa and prunus dulcis based novel adsorbents［J］. International Journal of Environmental Research，2019，13（2）：337-347. doi:10.1007/s41742-019-00179-8
5	WANG Yunxiao， JIANG Li， SHANG Hongguo，et al. Treatment of azo dye wastewater by the self-flocculating marine bacterium Aliiglaciecola lipolytica ［J］. Environmental Technology & Innovation，2020，19：100810. doi:10.1016/j.eti.2020.100810
6	JAYAPAL M， JAGADEESAN H， KRISHNASAMY V，et al. Demonstration of a plant-microbe integrated system for treatment of real-time textile industry wastewater［J］. Environmental Pollution，2022，302：119009. doi:10.1016/j.envpol.2022.119009
7	WANG Fang， LI Long， IQBAL J，et al. Preparation of magnetic chitosan corn straw biochar and its application in adsorption of amaranth dye in aqueous solution［J］. International Journal of Biological Macromolecules，2022，199：234-242. doi:10.1016/j.ijbiomac.2021.12.195
8	YE Hanchen， CHEN Dongyun， LI Najun，et al. Polymer of intrinsic microporosity coated on a metal-organic framework composite membrane for highly efficient dye separation［J］. Journal of Membrane Science，2021，637：119619. doi:10.1016/j.memsci.2021.119619
9	LIU Yapin， WANG Jing， WANG Yu，et al. High-flux robust PSf-b-PEG nanofiltration membrane for the precise separation of dyes and salts［J］. Chemical Engineering Journal，2021，405：127051. doi:10.1016/j.cej.2020.127051
10	BILIŃSKA L， BLUS K， BILIŃSKA M，et al. Industrial textile wastewater ozone treatment：Catalyst selection［J］. Catalysts，2020，10（6）：611. doi:10.3390/catal10060611
11	BADVI K， JAVANBAKHT V. Enhanced photocatalytic degradation of dye contaminants with TiO₂ immobilized on ZSM-5 zeolite modified with nickel nanoparticles［J］. Journal of Cleaner Production，2021，280：124518. doi:10.1016/j.jclepro.2020.124518
12	XIA Yuhan， JIN Yiping， QI Jialin，et al. Preparation of biomass carbon material based on Fomes fomentarius via alkali activation and its application for the removal of brilliant green in wastewater［J］. Environmental Technology and Innovation，2021，23：101659. doi:10.1016/j.eti.2021.101659
13	KARTHIK V， SIVARAJASEKAR N， PADMANABAN V C，et al. Biosorption of xenobiotic reactive black B onto metabolically inactive T. harzianum biomass：Optimization and equilibrium studies［J］. International Journal of Environmental Science and Technology，2019，16（7）：3625-3636. doi:10.1007/s13762-018-1841-5
14	史月月，单锐，袁浩然. 改性稻壳生物炭对水溶液中甲基橙的吸附效果与机制［J］. 环境科学，2019，40（6）：2783-2792. doi:10.13227/j.hjkx.201811227
	SHI Yueyue， SHAN Rui， YUAN Haoran. Effects and mechanisms of methyl orange removal from aqueous solutions by modified rice shell biochar［J］. Environmental Science，2019，40（6）：2783-2792. doi:10.13227/j.hjkx.201811227
15	YU Fei， PAN Junyao， ZHANG Xiaochen，et al. Adsorption of contaminants from aqueous solutions by modified biochar：A review［J］. Environmental Chemistry，2022，19（2）：53-81. doi:10.1071/en22014
16	AZIN E， MOGHIMI H. Efficient mycosorption of anionic azo dyes by Mucor circinelloides：Surface functional groups and removal mechanism study［J］. Journal of Environmental Chemical Engineering，2018，6（4）：4114-4123. doi:10.1016/j.jece.2018.06.002
17	ARıCA M Y， BAYRAMOĞLU G. Biosorption of reactive red-120 dye from aqueous solution by native and modified fungus biomass preparations of Lentinus sajor-caju ［J］. Journal of Hazardous Materials，2007，149（2）：499-507. doi:10.1016/j.jhazmat.2007.04.021
18	CAI Jiafang， PAN Aodong， LI Yilin，et al. A novel strategy for enhancing anaerobic biodegradation of an anthraquinone dye reactive blue 19 with resuscitation-promoting factors［J］. Chemosphere，2021，263：127922. doi:10.1016/j.chemosphere.2020.127922
19	GUISO M G， BIESUZ R， VILARIÑO T，et al. Adsorption of the prototype anionic anthraquinone，acid blue 25，on a modified banana peel：Comparison with equilibrium and kinetic ligand–receptor biochemical data［J］. Industrial & Engineering Chemistry Research，2014，53（6）：2251-2260. doi:10.1021/ie402900n
20	SAHU S， PAHI S， TRIPATHY S，et al. Adsorption of methylene blue on chemically modified lychee seed biochar：Dynamic，equilibrium，and thermodynamic study［J］. Journal of Molecular Liquids，2020，315：113743. doi:10.1016/j.molliq.2020.113743
21	RÁPÓ E， TONK S. Factors affecting synthetic dye adsorption；desorption studies：A review of results from the last five years（2017—2021）［J］. Molecules，2021，26（17）：5419. doi:10.3390/molecules26175419
22	CELIK S， DUMAN N， SAYIN F，et al. Microbial cells immobilized on natural biomatrix as a new potential ecofriendly biosorbent for the biotreatment of reactive dye contamination［J］. Journal of Water Process Engineering，2021，39：101731. doi:10.1016/j.jwpe.2020.101731
23	OENER S Z， FOSTER M J， BOETTCHER S. Accelerating water dissociation in bipolar membranes and for electrocatalysis［J］. Science，2020，369：1099-1103. doi:10.1126/science.aaz1487
24	SHAO Qizhao， LI Yuying， WANG Qian，et al. Preparation of copper doped walnut shell-based biochar for efficiently removal of organic dyes from aqueous solutions［J］. Journal of Molecular Liquids，2021，336：116314. doi:10.1016/j.molliq.2021.116314
25	JAIN S N， TAMBOLI S R， SUTAR D S，et al. Kinetic，equilibrium，thermodynamic，and desorption studies for sequestration of acid dye using waste biomass as sustainable adsorbents［J］. Biomass Conversion and Biorefinery，2022，12（7）：2597-2609. doi:10.1007/s13399-020-00780-4
26	SARAVANAN P， KUMARAN S， BHARATHI S，et al. Bioremediation of synthetic textile dyes using live yeast Pichia pastoris ［J］. Environmental Technology & Innovation，2021，22：101442. doi:10.1016/j.eti.2021.101442
27	SHAHRIN E W E S， NARUDIN N A H， SHAHRI N N M，et al. Adsorption behavior and dynamic interactions of anionic acid blue 25 on agricultural waste［J］. Molecules，2022，27（5）：1718. doi:10.3390/molecules27051718
28	江汝清，余广炜，王玉，等. 酸改性猪粪生物炭的制备及其对直接红23染料的吸附性能［J］. 化工进展，2022，41（12）：6489-6499.
	JIANG Ruqing， YU Guangwei， WANG Yu，et al. Preparation of acid-modified pig manure biochar and its adsorption performance on Direct Red 23［J］. Chemical Industry and Engineering Progress，2022，41（12）：6489-6499.
29	ALVER E， METIN A Ü. Anionic dye removal from aqueous solutions using modified zeolite：Adsorption kinetics and isotherm studies［J］. Chemical Engineering Journal，2012，200/201/202：59-67.
30	KUBRA K T， SALMAN M S， HASAN M N. Enhanced toxic dye removal from wastewater using biodegradable polymeric natural adsorbent［J］. Journal of Molecular Liquids，2021，328：115468. doi:10.1016/j.molliq.2021.115468
31	HUSSAIN S， KAMRAN M， KHAN S ALI，et al. Adsorption，kinetics and thermodynamics studies of methyl orange dye sequestration through chitosan composites films［J］. International Journal of Biological Macromolecules，2021，168：383-394. doi:10.1016/j.ijbiomac.2020.12.054
32	ZHAO Xiaolin， WANG Xuejun， LOU Tao. Preparation of fibrous chitosan/sodium alginate composite foams for the adsorption of cationic and anionic dyes［J］. Journal of Hazardous Materials， 2021，403：124054. doi:10.1016/j.jhazmat.2020.124054
33	MARIYAM A， MITTAL J， SAKINA F，et al. Efficient batch and Fixed-Bed sequestration of a basic dye using a novel variant of ordered mesoporous carbon as adsorbent［J］. Arabian Journal of Chemistry，2021，14（6）：103186. doi:10.1016/j.arabjc.2021.103186
34	廖雯琪. 生物质基碳材料的制备及其吸附大分子染料性能的研究［D］. 贵阳：贵州大学，2021.
	LIAO Wenqi. Study on preparation of biomass-based carbon materials and their adsorption properties for macromolecular dyes［D］. Guiyang：Guizhou University，2021.
35	祖林鹏，邓斌，杨成，等. 笋壳渣对阴阳离子染料的吸附特征及机制研究［J］. 工业水处理，2022，42（7）：109-117.
	ZU Linpeng， DENG Bin， YANG Cheng，et al. Adsorption characteristics and mechanism of anion and cation dyes by bamboo shoot shell residue［J］. Industrial Water Treatment，2022，42（7）：109-117.
36	TEJADA-TOVAR C， VILLABONA-ORTÍZ A， GONZÁLEZ-DELGADO Á. Cement-based solidification/stabilization as a pathway for encapsulating palm oil residual biomass post heavy metal adsorption［J］. Materials，2022，15（15）：5226. doi:10.3390/ma15155226
37	SAMAT J H， SHAHRI N N M， ABDULLAH M A，et al. Adsorption of acid blue 25 on agricultural wastes：Efficiency，kinetics，mechanism，and regeneration［J］. Air，Soil and Water Research，2021，14：117862212110574. doi:10.1177/11786221211057496
38	HAQUE A N M A， REMADEVI R， WANG Xungai，et al. Adsorption of anionic Acid Blue 25 on chitosan-modified cotton gin trash film［J］. Cellulose，2020，27（16）：9437-9456. doi:10.1007/s10570-020-03409-x
39	MAQBOOL M， SADAF S， BHATTI H N，et al. Sodium alginate and polypyrrole composites with algal dead biomass for the adsorption of Congo red dye：Kinetics，thermodynamics and desorption studies［J］. Surfaces and Interfaces，2021，25：101183. doi:10.1016/j.surfin.2021.101183

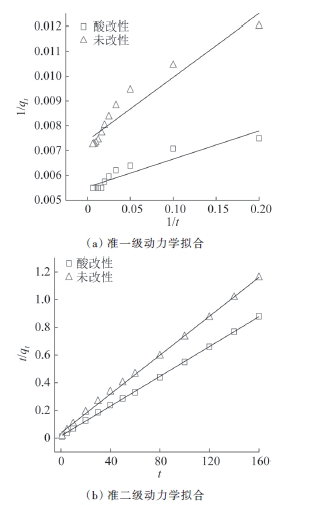

吸附剂	准一级反应动力学模型			准二级反应动力学模型			实验值
吸附剂	q _e/（mg·g^-1）	k ₁/min^-1	R ²	q _e/（mg·g^-1）	k ₂/（g·mg^-1·min^-1）	R ²	q _e/（mg·g^-1）
A5P1_acid	181.1	2.061 6	0.883	185.8	1.95×10^-3	0.999	182
A5P1	134.9	3.445 3	0.918	142.4	1.34×10^-3	0.998	137.7

吸附剂	准一级反应动力学模型			准二级反应动力学模型			实验值
吸附剂	q _e/（mg·g^-1）	k ₁/min^-1	R ²	q _e/（mg·g^-1）	k ₂/（g·mg^-1·min^-1）	R ²	q _e/（mg·g^-1）
A5P1_acid	181.1	2.061 6	0.883	185.8	1.95×10^-3	0.999	182
A5P1	134.9	3.445 3	0.918	142.4	1.34×10^-3	0.998	137.7

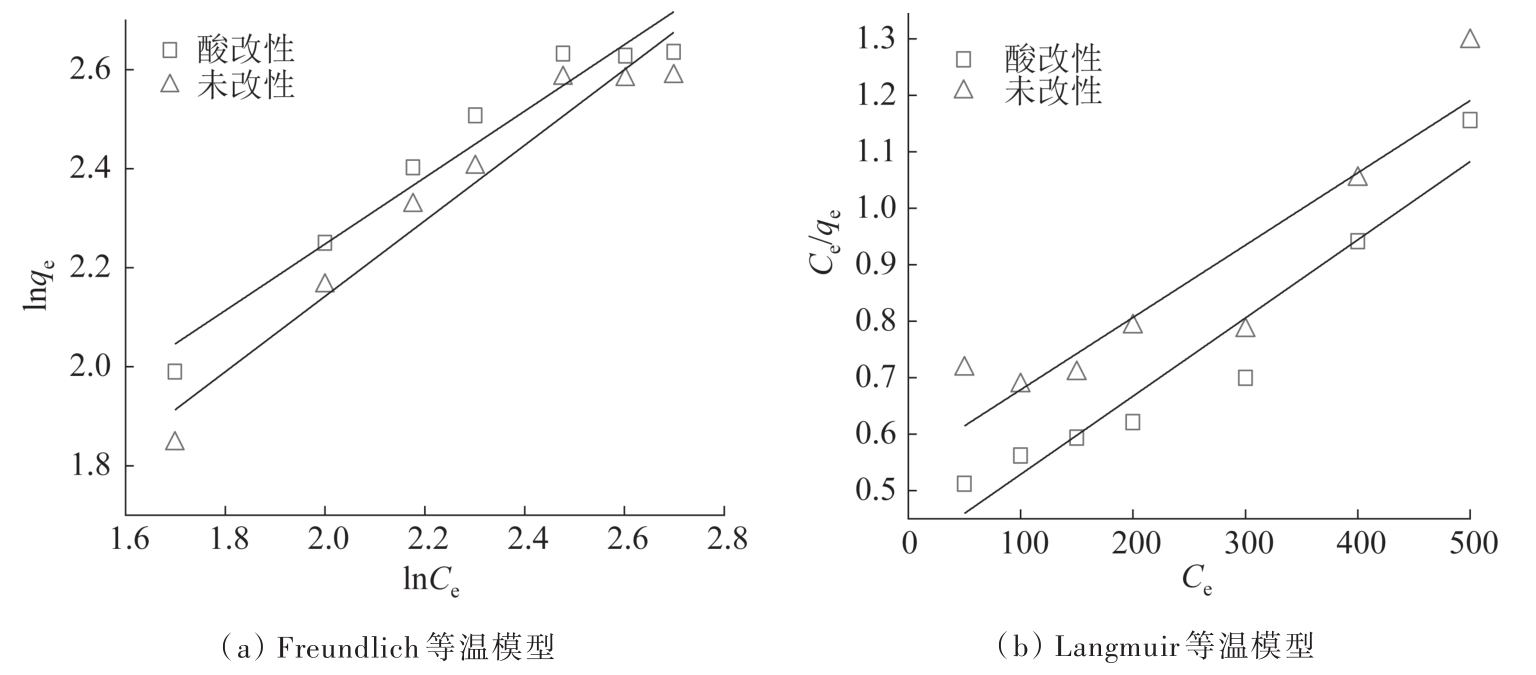

吸附剂	Freundlich			Langmuir
吸附剂	K _f/（L·g^-1）	1/n	R ²	q _m/（mg·g^-1）	b/（L·mg^-1）	R ²
A5P1_acid	1.675 1	0.763 0	0.946	724.63	3.53×10^-3	0.932
A5P1	2.449 6	0.671 4	0.950	781.25	2.32×10^-3	0.853

吸附剂	Freundlich			Langmuir
吸附剂	K _f/（L·g^-1）	1/n	R ²	q _m/（mg·g^-1）	b/（L·mg^-1）	R ²
A5P1_acid	1.675 1	0.763 0	0.946	724.63	3.53×10^-3	0.932
A5P1	2.449 6	0.671 4	0.950	781.25	2.32×10^-3	0.853

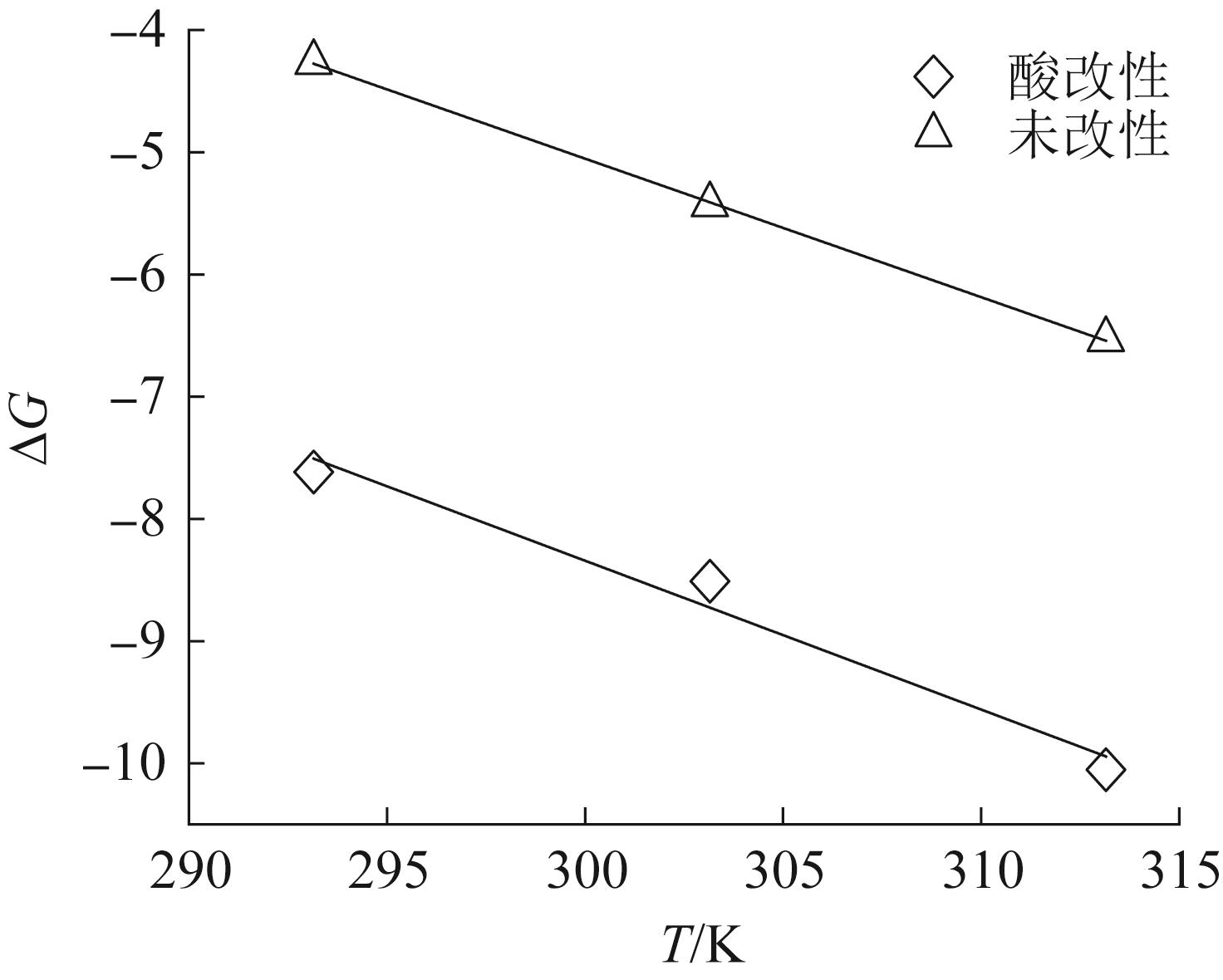

吸附剂	温度/K	∆G/（kJ·mol^-1）	∆H/ （kJ·mol^-1）	∆S/（kJ·mol^-1·K^-1）
A5P1_acid	293.15	-7.615 3	28.201	0.121 8
	303.15	-8.509 6
	313.15	-10.051 5
A5P1	293.15	-4.265 3	28.954	0.113 4
	303.15	-5.429 6
	313.15	-6.532 3
