In-situ biological regeneration of zeolite to enhance the treatment of high ammonia-nitrogen wastewater by partial nitrification

doi:10.19965/j.cnki.iwt.2023-0978

Abstract

Abstract:

In order to solve the problem of high concentration of free ammonia(FA) inhibiting ammonia oxidizing bacteria and causing high concentration of ammonia nitrogen wastewater to be unable biologically treated, natural zeolite was used to alleviate the inhibitory effect of FA. Natural clinoptilolite was added to SBR for partial nitrification treatment of copper-ammonia wastewater with ammonia-nitrogen of 210 mg/L. On the 86th day of operation, the reactor achieved 98.5% of ammonia-nitrogen removal rate at load of 1.105 kg/(m³·d). In-situ biological regeneration during the reaction process ensured the continuous enhancement effect of natural zeolite, with zeolite regeneration rates of 99.0% to 106.3%. Through the analysis of extracellular polymeric substance(EPS) content and composition of sludge, it was found that the increase of influent ammonia-nitrogen led to the increase of EPS content, and protein mass fraction in EPS was increased under the stress of copper ion, which promoted the formation of sludge granulation. High throughput sequencing results showed that Nitrosomonas was the main ammonia-oxidizing functional bacterium genus, with relative abundance varied from 10.3% to 51.7%. Comamonas rapidly increased in the presence of high concentration of ammonia-nitrogen, with relative abundance increasing from 0.6% on the 22nd day to 29.9% on the 86th day. The partial nitrification was strengthened by natural zeolite to realize stable and high-efficient treatment of copper-ammonia wastewater.

Key words: partial nitrification, zeolite regeneration, high concentration ammonia-nitrogen, free ammonia inhibition, copper-ammonia wastewater

摘要：

为解决高浓度游离氨（FA）抑制氨氧化菌而造成高浓度氨氮废水无法进行生物处理的问题，采用添加天然沸石缓解FA的抑制影响。向SBR中添加天然斜发沸石并以短程硝化处理氨氮为2 210 mg/L的铜氨废水，在运行第86天时反应器在1.105 kg/（m³·d）的氨氮负荷下达到98.5%的氨氮去除率。反应过程中原位生物再生保证了天然沸石的持续强化效果，沸石再生率为99.0%~106.3%。通过对污泥胞外聚合物（EPS）含量及成分分析发现进水氨氮的增加导致EPS含量升高，且在铜离子的胁迫下EPS中的蛋白质质量分数升高，促进了污泥颗粒化的形成。高通量测序结果显示亚硝化单胞菌属为主要氨氧化功能菌属，其相对丰度变化范围为10.3%~51.7%。丛毛单胞菌属（Comamonas）在高浓度氨氮环境下快速增长，其相对丰度从第22天的0.6%增长至第86天的29.9%。短程硝化在天然沸石的强化下实现了对铜氨废水的稳定高效处理。

关键词: 短程硝化, 沸石再生, 高浓度氨氮, 游离氨抑制, 铜氨废水

CLC Number:

X703.1

Xu CHEN, Xiaofan YANG, Chenggang WANG, Naiqiang KUANG, Chunfu CHEN, Liqiu ZHANG. In-situ biological regeneration of zeolite to enhance the treatment of high ammonia-nitrogen wastewater by partial nitrification[J]. Industrial Water Treatment, 2024, 44(10): 165-173.

陈圩, 杨萧帆, 王成刚, 邝乃强, 陈纯福, 张立秋. 沸石原位生物再生强化短程硝化处理高氨氮废水[J]. 工业水处理, 2024, 44(10): 165-173.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2023-0978

https://www.iwt.cn/EN/Y2024/V44/I10/165

Figures/Tables 9

Table 1 The main control nodes during the experimental process

运行时间/d	运行周期/h	碱度投加方式	进水氨氮负荷/（kg·m^-3·d^-1）	进水氨氮/（mg·L^-1）
1~27	12	一次性投加	0.302~0.989	302~989
28~86	24	多段式投加	0.570~1.105	1 140~2 210

Table 2 Quality of copper-ammonia wastewater

项目	TN	NH₄ ⁺-N	NO₂ ^--N	NO₃ ^--N	TP	Cu²⁺	pH
数值	2 330±21	2 270±16	6±0.2	0.4±0.1	0.4±0.1	0.3~7.2	7.9±0.1

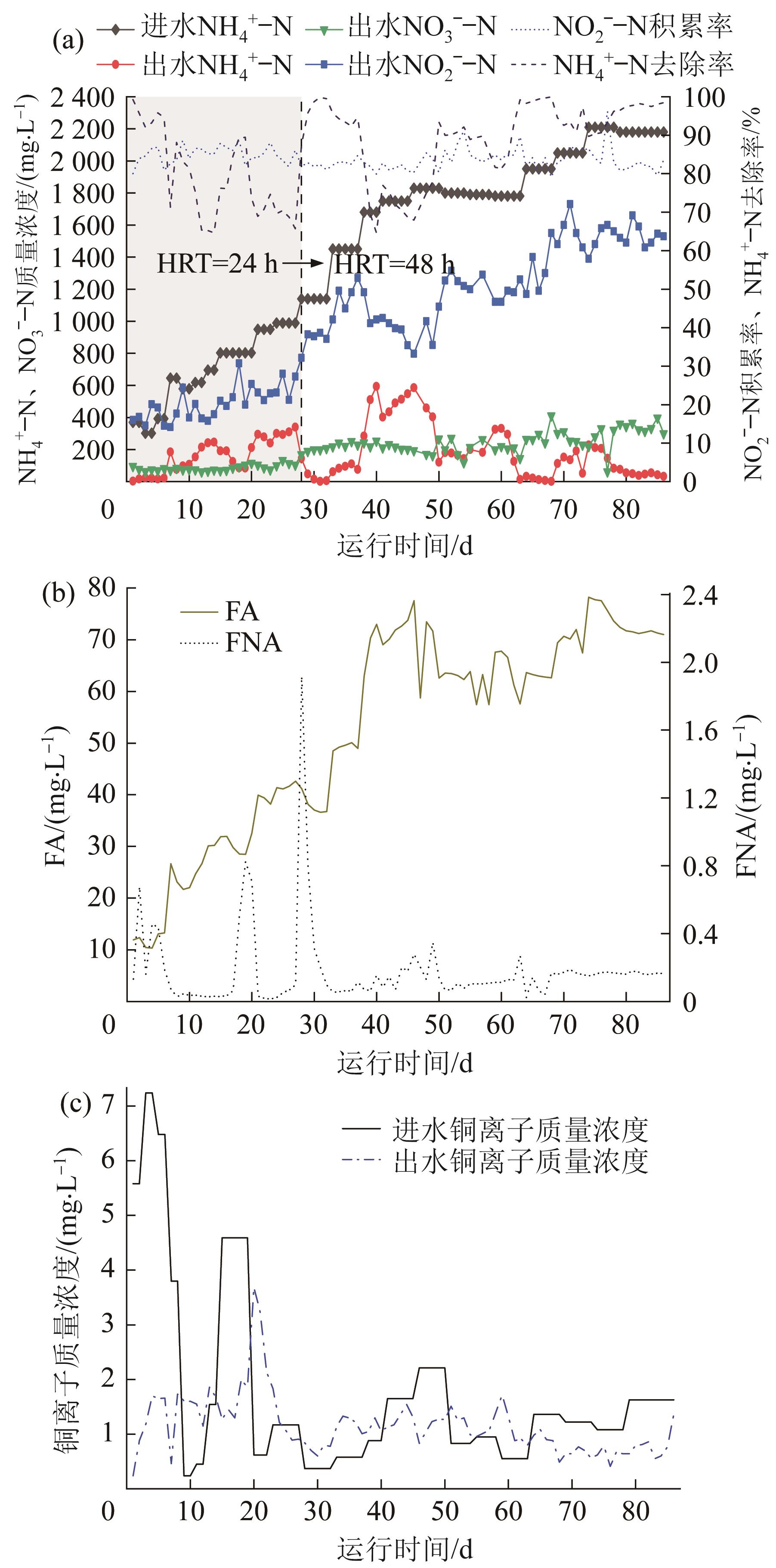

Fig.1 Inlet and outlet water quality of SBR partial nitrification

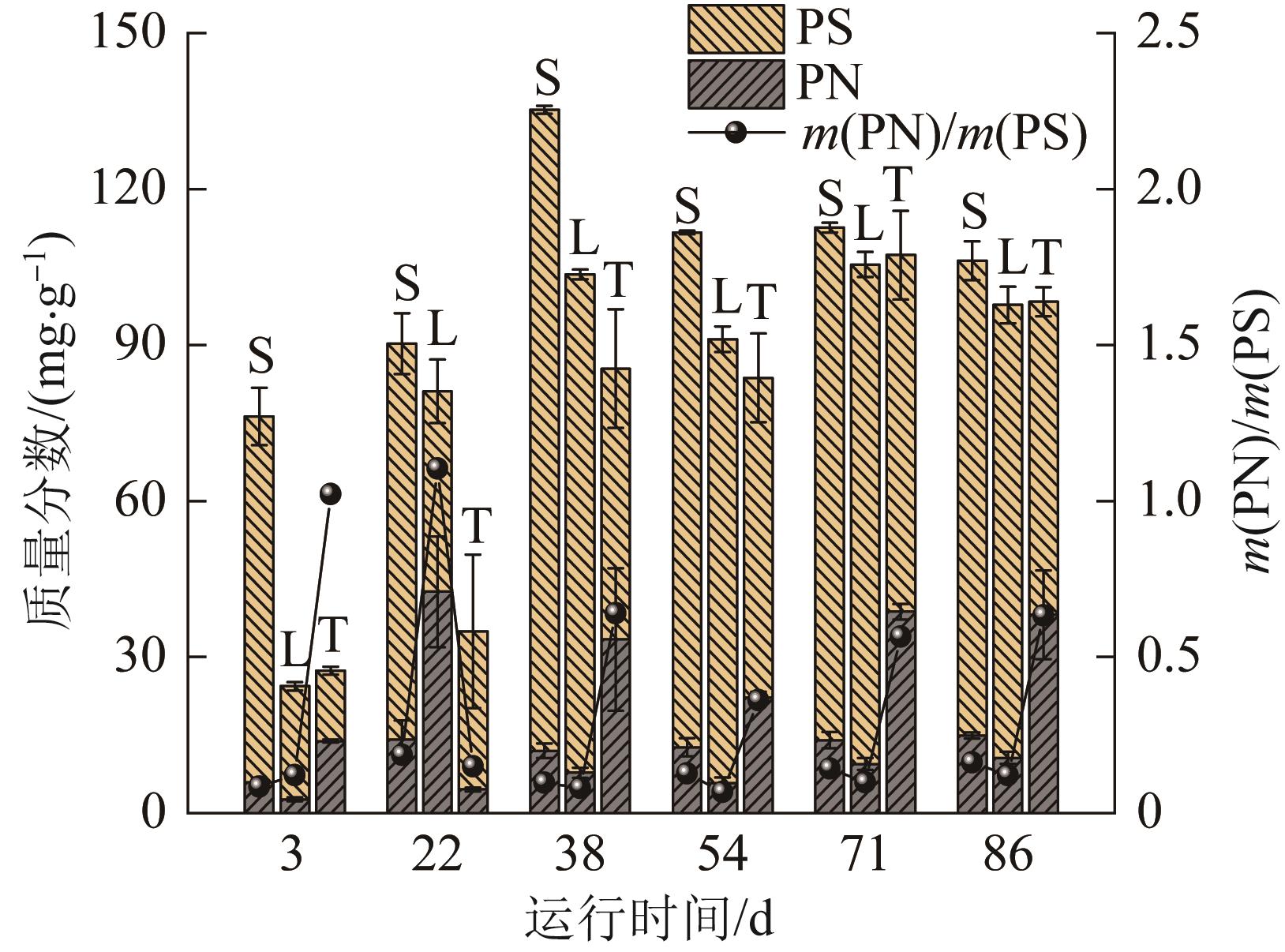

Fig.2 Mass fraction change of SMP，L-EPS， and T-EPS in partial nitrification sludge

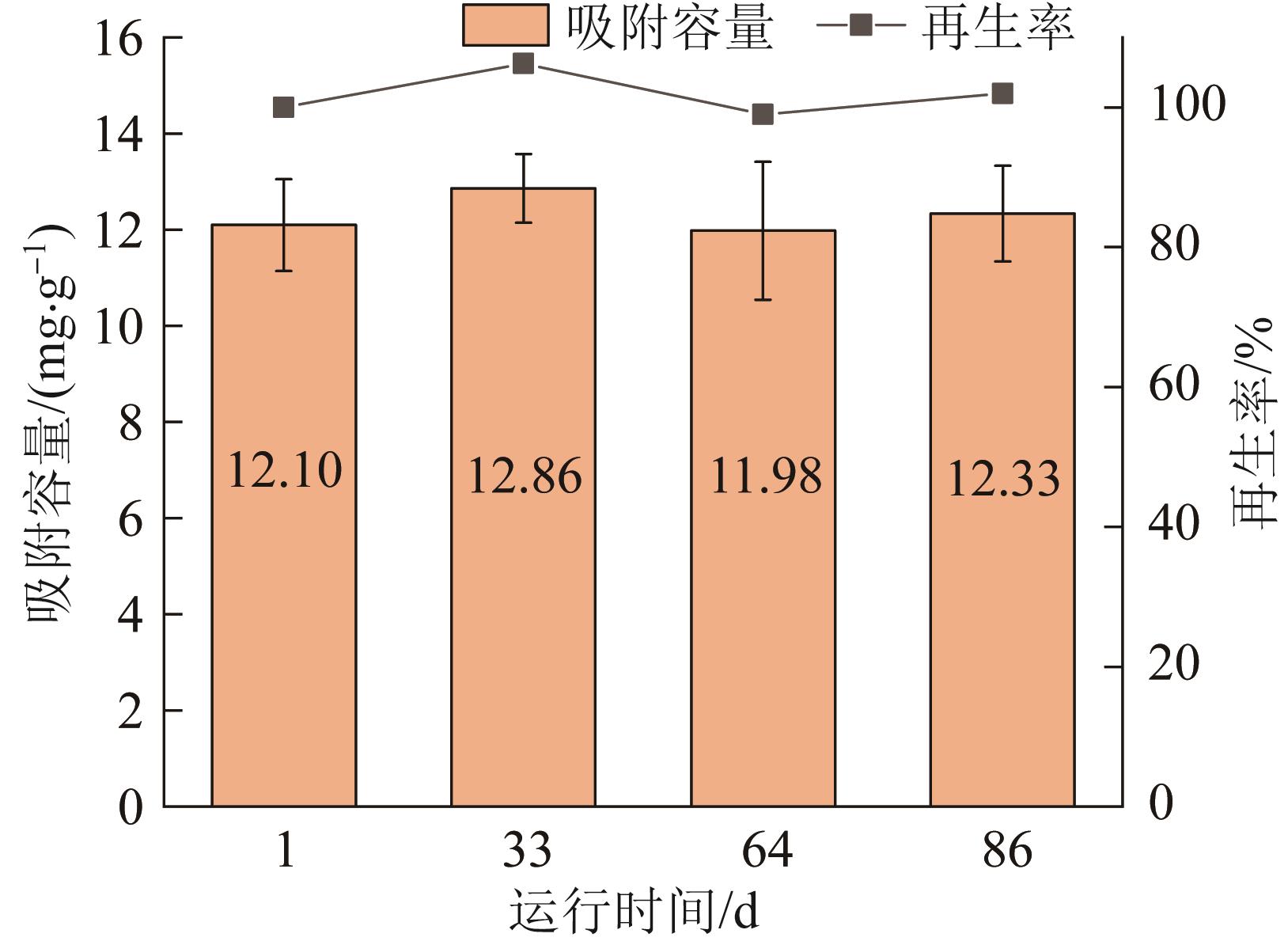

Fig.3 Changes of adsorption capacity and regeneration rate of zeolite

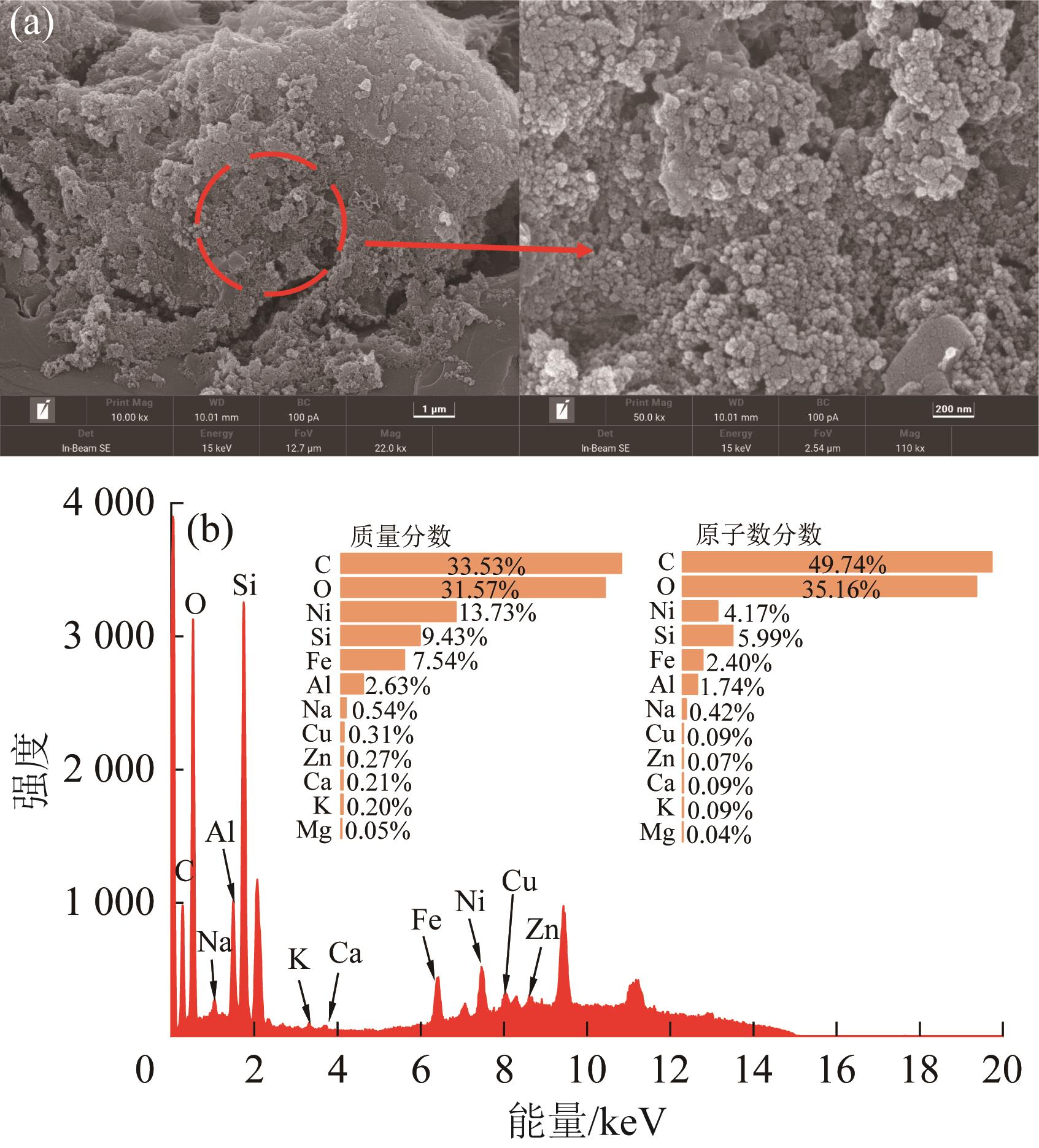

Fig.4 Characterization of zeolite surface on the 86th day of operation

Table 3 Alpha diversity analysis of partial nitrification sludge samples

采样时间	Chao	Simpson	Shannon	ACE	Coverage
第22天	482.8	0.163	3.73	563	0.998 8
第38天	419.8	0.165	3.38	489	0.999 0
第54天	419.1	0.170	3.19	529	0.998 8
第86天	399.3	0.233	2.77	484	0.999 0

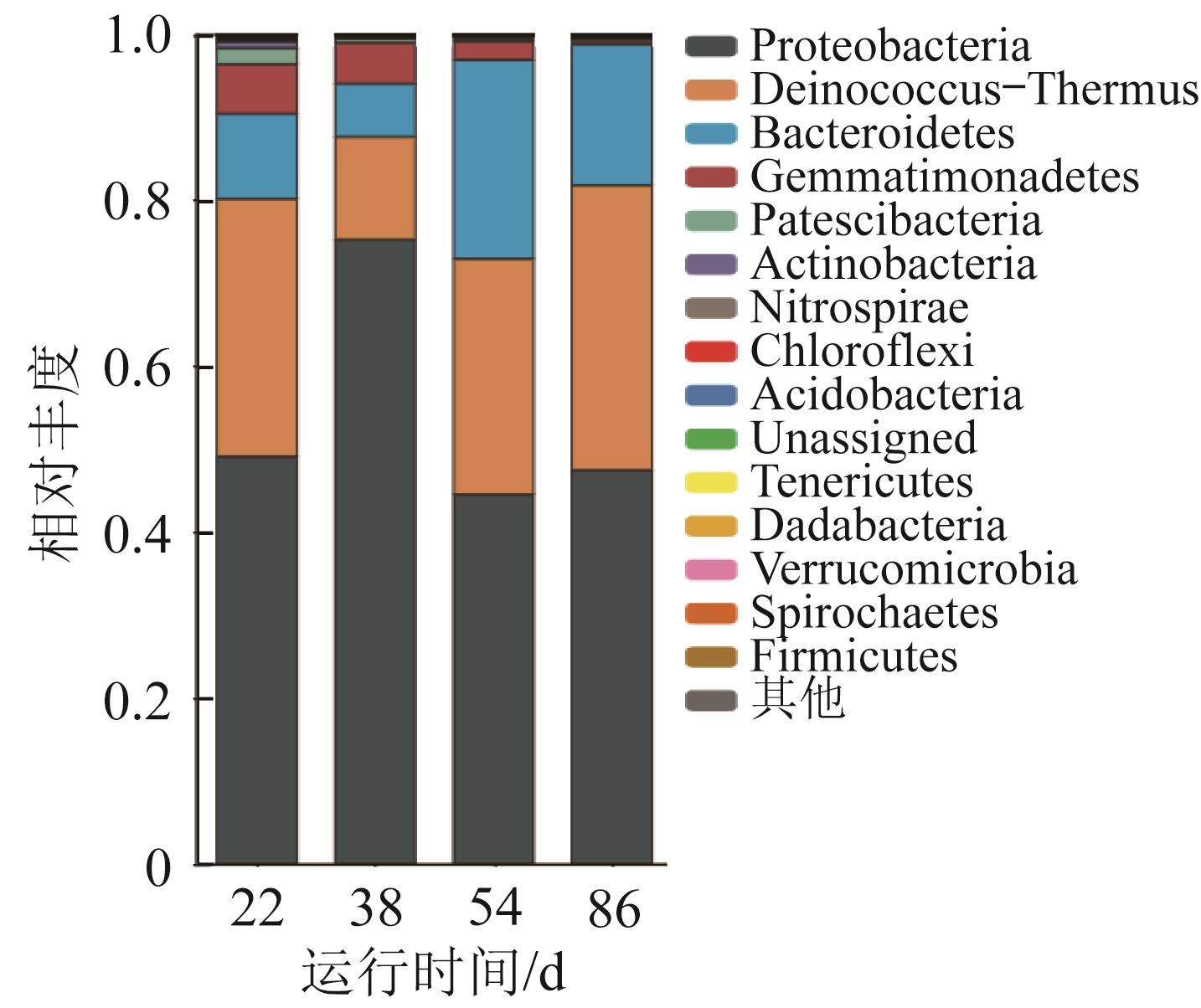

Fig.5 Composition of microbial community structure at phylum level

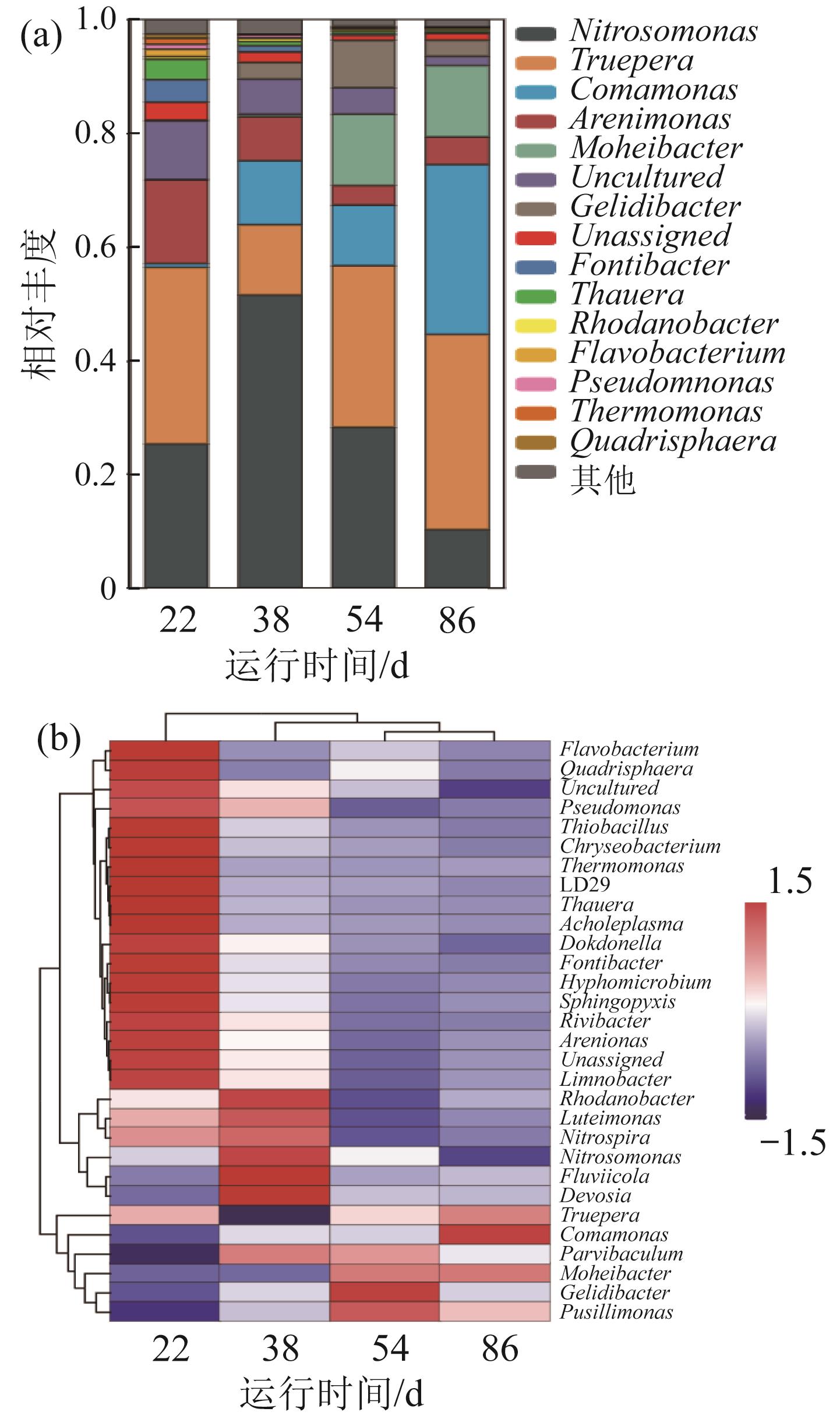

Fig.6 Structural change（a） and cluster analysis（b） of microbial community at genus level

References 30

1	XIANG Shuyu， LIU Yuhuan， ZHANG Guangming，et al. New progress of ammonia recovery during ammonia nitrogen removal from various wastewaters［J］. World Journal of Microbiology and Biotechnology，2020，36（10）：144.
2	WANG Jipeng， LI Liangzhong， LIU Yongdi，et al. A review of partial nitrification in biological nitrogen removal processes：From development to application［J］. Biodegradation，2021，32（3）：229-249.
3	ANTHONISEN A C， LOEHR R C， PRAKASAM T B，et al. Inhibition of nitrification by ammonia and nitrous acid［J］. Journal：Water Pollution Control Federation，1976，48（5）：835-852.
4	孙洪伟，尤永军，赵华南，等. 游离氨对硝化菌活性的抑制及可逆性影响［J］. 中国环境科学，2015，35（1）：95-100.
	SUN Hongwei， YOU Yongjun， ZHAO Hua'nan，et al. Inhibitory effect of free ammonia on the activity of nitrifying bacteria and recoverability［J］. China Environmental Science，2015，35（1）：95-100.
5	YAO Qian， PENG Dangcong， WANG Bo，et al. Effect of free ammonium and free nitrous acid on the activity，aggregate morphology and extracellular polymeric substance distribution of ammonium oxidizing bacteria in partial nitrification［J］. Journal of Bioscience and Bioengineering，2017，124（3）：319-326.
6	DOEKHI-BENNANI Y， LEILABADY N M， FU Mingyan，et al. Simultaneous removal of ammonium ions and sulfamethoxazole by ozone regenerated high silica zeolites［J］. Water Research，2021，188：116472. doi:10.1016/j.watres.2020.116472
7	MARTINS T H， SOUZA T S O， FORESTI E. Ammonium removal from landfill leachate by Clinoptilolite adsorption followed by bioregeneration［J］. Journal of Environmental Chemical Engineering，2017，5（1）：63-68. doi:10.1016/j.jece.2016.11.024
8	LI Shugeng， CHEN Peng， MADDELA N R，et al. Effects of filtration modes on fouling characteristic and microbial community of bio-cake in a membrane bioreactor［J］. Journal of Environmental Chemical Engineering，2022，10（3）：107465.
9	DAVEREY A， SU S H， HUANG Y T，et al. Partial nitrification and anammox process：A method for high strength optoelectronic industrial wastewater treatment［J］. Water Research，2013，47（9）：2929-2937. doi:10.1016/j.watres.2013.01.028
10	HAN M， VLAEMINCK S E， AL-OMARI A，et al. Uncoupling the solids retention times of flocs and granules in mainstream deammonification：A screen as effective out-selection tool for nitrite oxidizing bacteria［J］. Bioresource Technology，2016，221：195-204. doi:10.1016/j.biortech.2016.08.115
11	TORÀ J A， LAFUENTE J， BAEZA J A，et al. Combined effect of inorganic carbon limitation and inhibition by free ammonia and free nitrous acid on ammonia oxidizing bacteria［J］. Bioresource Technology，2010，101（15）：6051-6058.
12	JUBANY I， LAFUENTE J， BAEZA J A，et al. Total and stable washout of nitrite oxidizing bacteria from a nitrifying continuous activated sludge system using automatic control based on Oxygen Uptake Rate measurements［J］. Water Research，2009，43（11）：2761-2772. doi:10.1016/j.watres.2009.03.022
13	温婧玉，成浩楠，李竹君，等. 短程硝化的快速启动调控研究［J］. 水处理技术，2019，45（8）：125-129.
	WEN Jingyu， CHENG Haonan， LI Zhujun，et al. Study on quick start-up regulation of partial nitrification［J］. Technology of Water Treatment，2019，45（8）：125-129.
14	赵晴，周浩，吕慧，等. AO-SBR短程硝化反硝化垃圾渗滤液预处理中试应用［J］. 环境工程学报，2021，15（2）：545-552.
	ZHAO Qing， ZHOU Hao， Hui LÜ，et al. Pilot-scale test of partial nitrification-denitrification-based AO-SBR process for landfill leachate pretreatment［J］. Chinese Journal of Environmental Engineering，2021，15（2）：545-552.
15	SOLIMAN M， ELDYASTI A. Development of partial nitrification as a first step of nitrite shunt process in a Sequential Batch Reactor（SBR） using Ammonium Oxidizing Bacteria（AOB） controlled by mixing regime［J］. Bioresource Technology，2016，221：85-95.
16	YAN Lilong， BAO Xuefei， ZHANG Mingyue，et al. The dual roles of extracellular polymeric substances（EPSs） in the microbial nitrification process in the presence of copper ions［J］. Desalination and Water Treatment，2019，153：9-18. doi:10.5004/dwt.2019.24064
17	张苗苗，沈菊培，贺纪正，等. 硝化抑制剂的微生物抑制机理及其应用［J］. 农业环境科学学报，2014，33（11）：2077-2083. doi:10.11654/jaes.2014.11.001
	ZHANG Miaomiao， SHEN Jupei， HE Jizheng，et al. Microbial mechanisms of nitrification inhibitors and their application［J］. Journal of Agro-Environment Science，2014，33（11）：2077-2083. doi:10.11654/jaes.2014.11.001
18	周灿辉，杨萧帆，张宏宇，等. 电镀废水中硫脲对硝化系统的抑制与恢复研究［J］. 工业水处理，2023，43（8）：143-148.
	ZHOU Canhui， YANG Xiaofan， ZHANG Hongyu，et al. Inhibition and recovery of nitrification system by thiourea in electroplating wastewater［J］. Industrial Water Treatment，2023，43（8）：143-148.
19	HU Huizhi， LIU Yirong， LUO Feng，et al. Stable and rapid partial nitrification achieved by boron stimulating autoinducer-2 mediated quorum sensing at room & low temperature［J］. Chemosphere，2022，304：135327.
20	曾刘婷，杨贤，廖小健，等. Pb（Ⅱ）胁迫培养下Pseudomonas putida EPS组分变化及其对铅的吸附性能［J］. 环境科学学报，2022，42（6）：24-34.
	ZENG Liuting， YANG Xian， LIAO Xiaojian，et al. Changes of EPS components of Pseudomonas putida under Pb（Ⅱ） stress and its adsorption performance for lead［J］. Acta Scientiae Circumstantiae，2022，42（6）：24-34.
21	刘前进，刘立凡. 胞外聚合物中蛋白质对好氧污泥颗粒化的影响［J］. 环境工程学报，2021，15（3）：929-938. doi:10.12030/j.cjee.202008172
	LIU Qianjin， LIU Lifan. Effect of protein in extracellular polymeric substance on aerobic sludge granulation［J］. Chinese Journal of Environmental Engineering，2021，15（3）：929-938. doi:10.12030/j.cjee.202008172
22	FREDERICK M R， KUTTLER C， HENSE B A，et al. A mathematical model of quorum sensing regulated EPS production in biofilm communities［J］. Theoretical Biology & Medical Modelling，2011，8：8.
23	HUANG Haiming， YANG Liping， XUE Qiang，et al. Removal of ammonium from swine wastewater by zeolite combined with chlorination for regeneration［J］. Journal of Environmental Management，2015，160：333-341. doi:10.1016/j.jenvman.2015.06.039
24	LI Shanshan， WU Shuyan， MA Bingrui，et al. Single and combined effects of divalent copper and hexavalent chromium on the performance，microbial community and enzymatic activity of sequencing batch reactor［J］. Science of the Total Environment，2020，719：137289.
25	THOMAS F， HEHEMANN J H， REBUFFET E，et al. Environmental and gut bacteroidetes：The food connection［J］. Frontiers in Microbiology，2011，2：93.
26	CHEN Jing， WANG Xiaojun， ZHOU Songwei，et al. Effect of alkalinity on bio-zeolite regeneration in treating cold low-strength ammonium wastewater via adsorption and enhanced regeneration［J］. Environmental Science and Pollution Research，2019，26（27）：28040-28051. doi:10.1007/s11356-019-06034-9
27	IVANOVA N， ROHDE C， MUNK C，et al. Complete genome sequence of Truepera radiovictrix type strain（RQ-24T）［J］. Standards in Genomic Sciences，2011，4（1）：91-99.
28	YUAN Ke， LI Suqin， ZHONG Fa. Characterization of a newly isolated strain Comamonas sp. ZF-3 involved in typical organics degradation in coking wastewater［J］. Bioresource Technology，2020，304：123035.
29	赵燕，薛林贵，李琳，等. 丛毛单胞菌在环境污染物降解方面的研究进展［J］. 微生物学通报，2012，39（10）：1471-1478.
	ZHAO Yan， XUE Lingui， LI Lin，et al. Advance in environmental pollutants degradation of Comamonas ［J］. Microbiology China，2012，39（10）：1471-1478.
30	肖翎. 一株具有异养硝化-好氧反硝化特性睾酮丛毛单胞菌Y62（Comamonas testosteroni）的分离鉴定及其同步脱氮机理的研究［D］. 上海：上海海洋大学，2020.
	XIAO Ling. Isolation and identification of a heterotrophic nitrification-aerobic denitrification bacterium Comamonas testosteroni Y62 and its simultaneous nitrification and denitrification mechanism［D］. Shanghai：Shanghai Ocean University，2020.
