工业水处理 ›› 2022, Vol. 42 ›› Issue (11): 177-183. doi: 10.19965/j.cnki.iwt.2022-0117

• 试验研究 • 上一篇    下一篇

HRT对硫/菱铁矿自养反硝化系统运行性能的影响

张献旭1(), 胡晓玲2, 张俐3, 王弘宇2()

  1. 1. 武汉环投固废运营有限公司,湖北 武汉 430014
    2. 武汉大学土木建筑工程学院,湖北 武汉 430072
    3. 湖北省工程咨询股份有限公司,湖北 武汉 430060
  • 收稿日期:2022-08-17 出版日期:2022-11-20 发布日期:2022-11-23
  • 作者简介:

    张献旭(1982— ),硕士。E-mail:

    王弘宇,教授,博士。E-mail:

Effect of HRT on operation performance of sulfur/siderite autotrophic denitrification system

Xianxu ZHANG1(), Xiaoling HU2, Li ZHANG3, Hongyu WANG2()

  1. 1. Wuhan Environment Investment Solid Waste Co. ,Ltd. ,Wuhan 430014,China
    2. School of Civil Engineering,Wuhan University,Wuhan 430072,China
    3. Hubei Province Engineering Consulting Co. ,Ltd. ,Wuhan 430060,China
  • Received:2022-08-17 Online:2022-11-20 Published:2022-11-23

摘要:

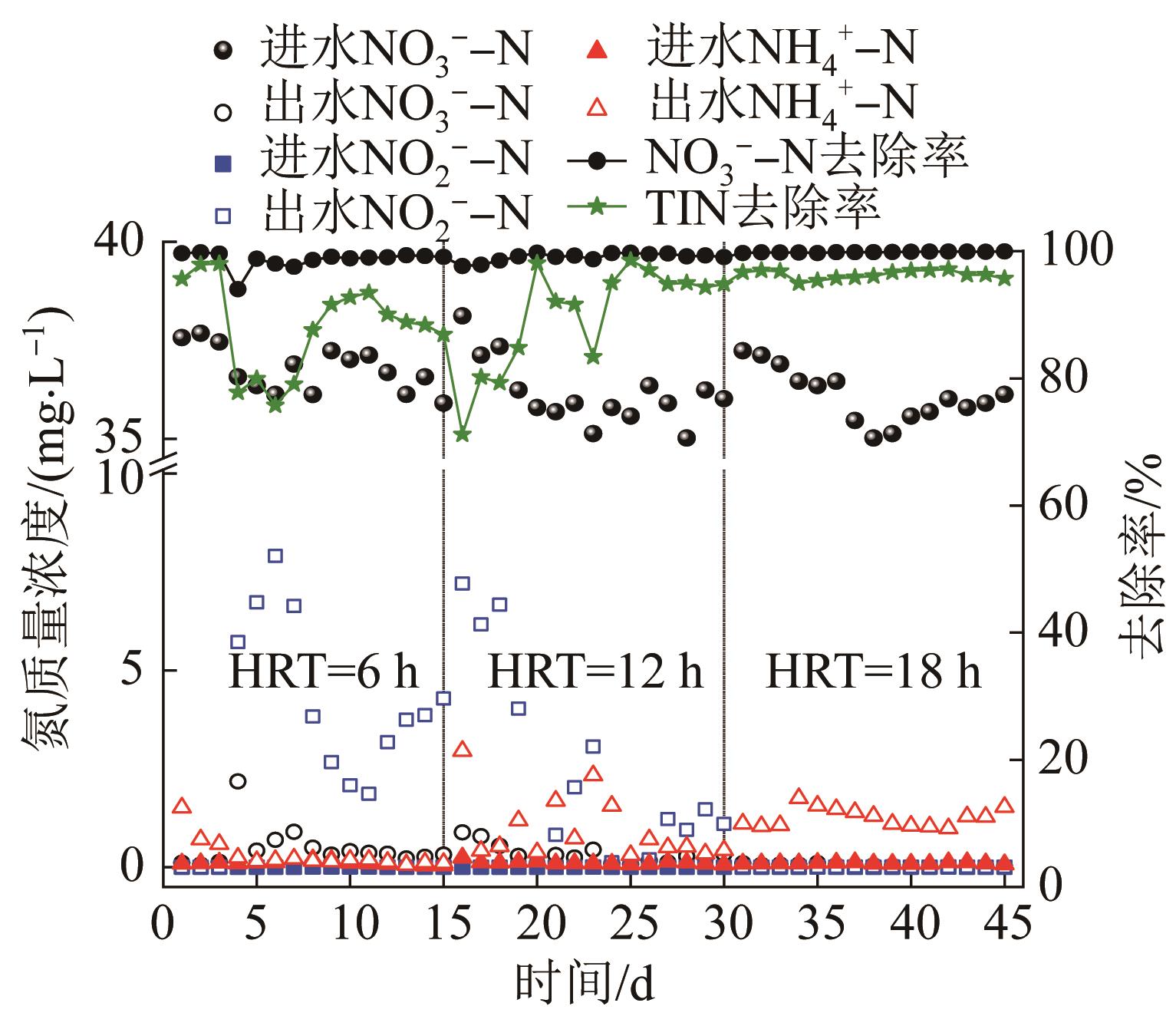

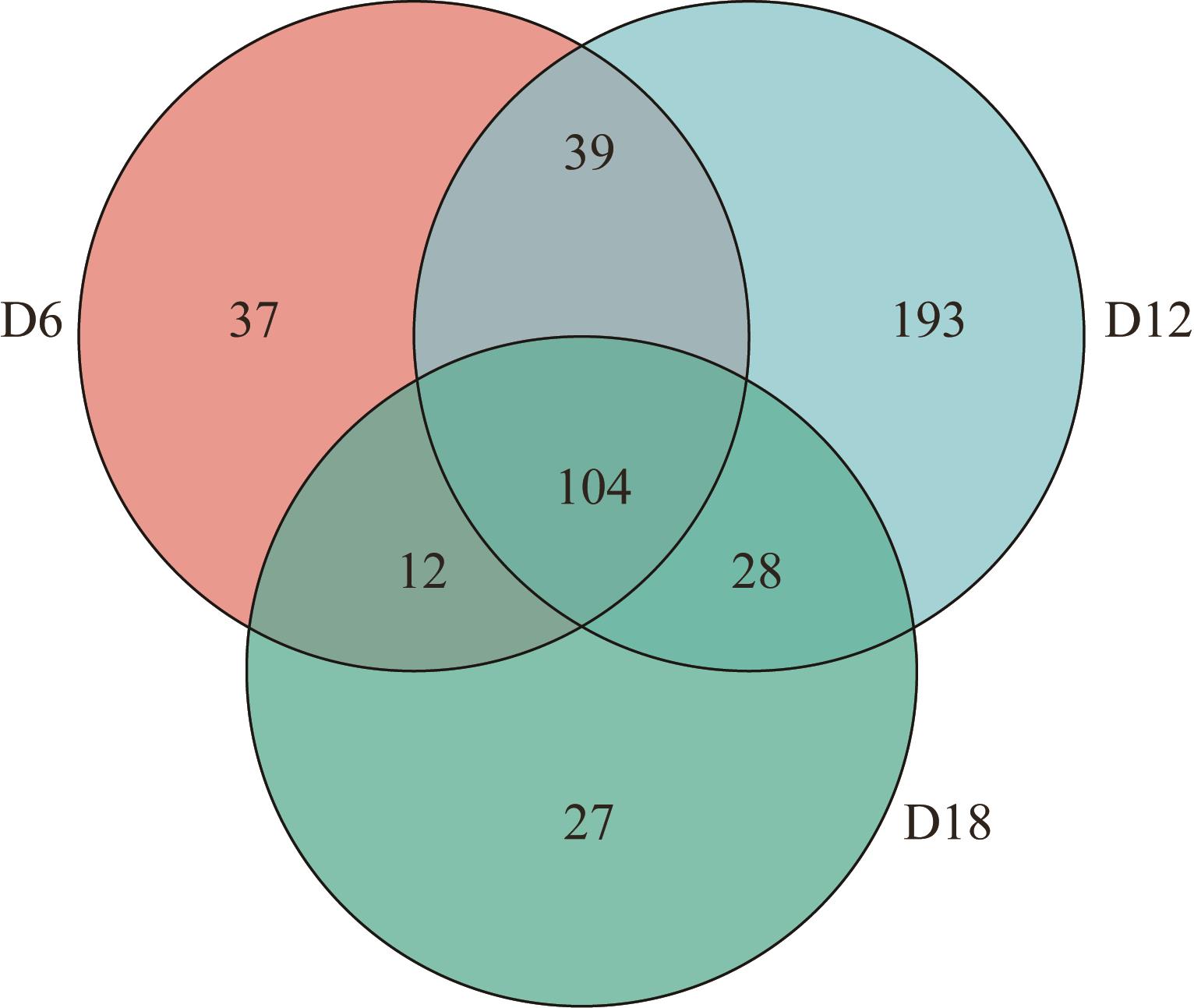

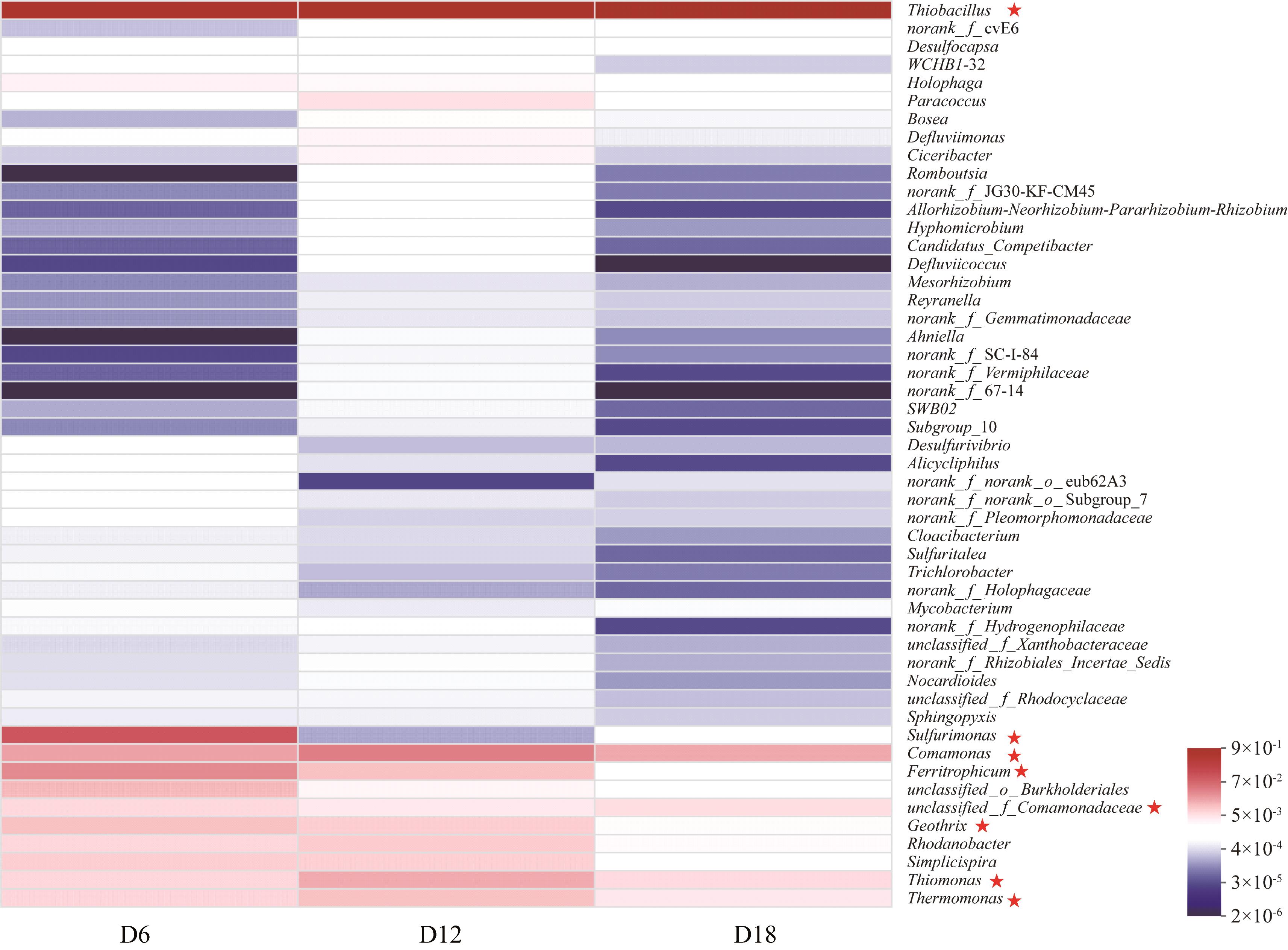

构建了硫/菱铁矿组合系统进行自养反硝化脱氮的实验,探究了水力停留时间(HRT)对系统的协同脱氮效率、氮的中间产物、出水SO4 2-浓度、FeCO3自养反硝化的脱氮贡献率及微生物群落结构变化的影响。研究结果表明,当HRT=12 h时,系统总无机氮(TIN)去除率为95.67%,出水SO4 2-质量浓度为181.26 mg/L,并且FeCO3自养反硝化脱氮对氮脱除的贡献率增加至20.49%,该HRT条件下积累的中间产物和生成的SO4 2-最少,是硫/菱铁矿组合系统适宜的运行条件。硫杆菌属(Thiobacillus)是系统中丰度最高的自养反硝化细菌,其利用硫和Fe(Ⅱ)作为电子供体降解NO3 --N。硫/菱铁矿自养反硝化脱氮技术具有经济高效及协同脱氮的特点,这将使其成为一种极具潜力的污水处理厂尾水深度脱氮的新方法。

关键词: 硫/菱铁矿, 自养反硝化, 脱氮, 水力停留时间, 群落结构

Abstract:

A combined sulfur/siderite system was constructed for autotrophic denitrification experiment. The effects of hydraulic retention time(HRT) on the synergistic denitrification efficiency,nitrogen intermediates,SO4 2- concentration of effluent,autotrophic denitrification contribution proportion of FeCO3 and changes of microbial community structure were explored. The results showed that when HRT was 12 h,the total inorganic nitrogen(TIN) removal rate of the system was 95.67%,the SO4 2- mass concentration of effluent was 181.26 mg/L,and the proportion of FeCO3 autotrophic denitrification increased to 20.49%. The accumulation of intermediate products and the formation of SO4 2- were the least under this condition,which indicated that HRT=12 h was the suitable operating condition for the combined system. Thiobacillus,the most abundant autotrophic denitrifying bacteria in the system,utilized sulfur and Fe(Ⅱ) as electron donors to degrade NO3 --N. Sulfur/siderite autotrophic denitrification technology had the characteristics of economical,efficient and synergistic denitrification,which would make it a promising new method for deep denitrification of tailwater of municipal wastewater treatment plants.

Key words: sulfur/siderite, autotrophic denitrification, denitrification, hydraulic retention time, community structure
