固定化耐酸曲霉对Pb<sup>2+</sup>的去除及机理研究

doi:10.19965/j.cnki.iwt.2023-0200

摘要/Abstract

摘要：

固定化微生物技术凭借处理效率高、投入成本低的优势在重金属废水处理领域应用颇为广泛，然而相关的重金属去除机理尚不明确。以从酸性矿山废水中筛出的耐酸曲霉Aspergillus sp. MF1作为研究对象，对其进行固定化处理，运用亚细胞分离技术以及五步提取法并通过SEM、FTIR表征初步揭示固定化Aspergillus sp. MF1去除Pb²⁺的机理。研究结果表明，在pH为3.5，初始Pb²⁺质量浓度为10 mg/L时，固定化Aspergillus sp. MF1对于Pb²⁺的去除率最高可达78.26%。固定化Aspergillus sp. MF1去除Pb²⁺的机理可归纳为两点，一是源于固定化Aspergillus sp. MF1载体的高比表面积、聚乙烯醇和海藻酸钠等材料表面活性基团对Pb²⁺的吸附，二是归于Aspergillus sp. MF1细胞壁对于Pb²⁺的螯合、吸附和离子交换作用，以及液泡和其他细胞器的隔室化作用。此外，固定化Aspergillus sp. MF1连续循环使用5次对Pb²⁺的去除率均能达到30%以上，且在去除过程中未发生破裂、细胞泄露等情况。

关键词: 固定化, 酸性矿山废水, Pb²⁺, 亚细胞分离, 五步提取法

Abstract:

Immobilized microorganism technology has been widely used in the field of heavy metal wastewater treatment due to its advantages of high treatment efficiency and low input cost. However，the related mechanism of heavy metal removal is still unclear. In this paper，a strain of acid-resistant Aspergillus sp. MF1 screened from acid mine drainage was used as the research object for immobilization treatment. Subcellular separation technology and five-step extraction method were used to preliminarily reveal the mechanism of Pb²⁺ removal from immobilized Aspergillus sp. MF1 through SEM and FTIR characterization. The results showed that under the condition of pH 3.5 and initial Pb²⁺ mass concentration 10 mg/L，the removal rate of Pb²⁺ could reach 78.26%. The removal mechanism of Pb²⁺ from immobilized Aspergillus sp. MF1 could be summarized into two aspects. On the one hand，it was attributed to high specific surface area of carrier and adsorption of Pb²⁺ by surface active groups of polyvinyl alcohol and sodium alginate. On the other hand，it was attributed the chelation，adsorption and ion exchange from cell wall，and the compartmentalization of vacuole and other organelles. In addition，immobilized Aspergillus sp. MF1 could be used continuously for 5 cycles，and the removal rate of Pb²⁺ could reach more than 30%，and no rupture or cell leakage occurred during the removal process.

Key words: immobilization, acid mine drainage, Pb²⁺, subcellular separation, five-step extraction method

中图分类号:

X703

王陈, 王进, 贺笑, 揣新, 王绍平, 岳正波. 固定化耐酸曲霉对Pb²⁺的去除及机理研究[J]. 工业水处理, 2024, 44(3): 127-132.

Chen WANG, Jin WANG, Xiao HE, Xin CHUAI, Shaoping WANG, Zhengbo YUE. Study on the removal of Pb²⁺ by immobilized acid-resistant Aspergillus and its mechanism[J]. Industrial Water Treatment, 2024, 44(3): 127-132.

https://www.iwt.cn/CN/Y2024/V44/I3/127

图/表 7

表1 五步提取法所用试剂及对应Pb²⁺化学形态

Table 1 Reagents used in five-step extraction and corresponding chemical morphology of Pb²⁺

序号	提取剂种类	Pb²⁺形态
1	80%乙醇	无机态
2	去离子水	水溶态、有机酸配合物
3	1 mol/L NaCl	果胶态、蛋白质结合态
4	2%冰乙酸	难溶态、磷酸盐复合物
5	0.6 mol/L HCl	草酸盐态

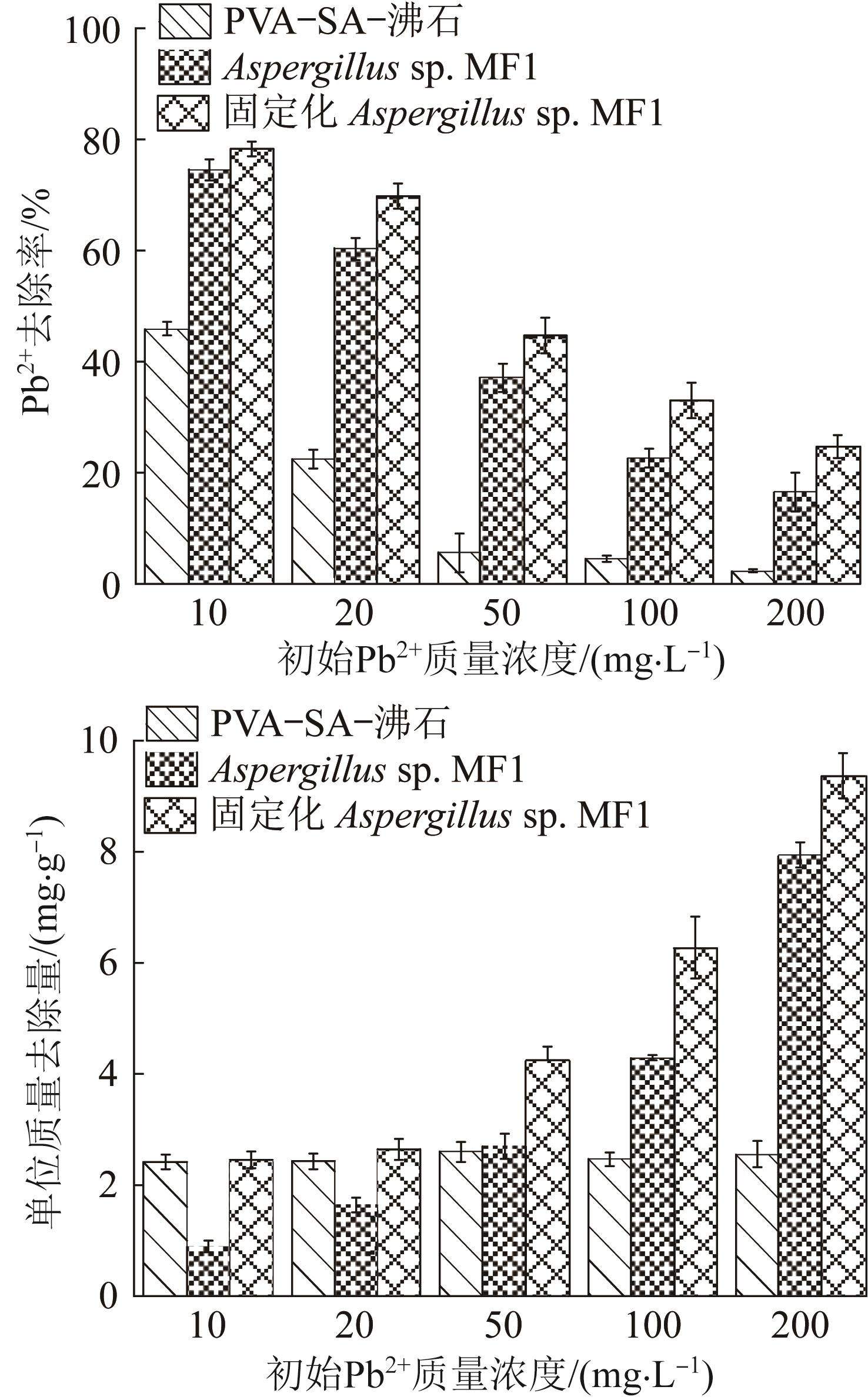

图1 空白载体、Aspergillus sp. MF1及固定化Aspergillus sp. MF1对Pb²⁺的去除效果

Fig.1 Pb²⁺ removal effects of blank carrier，Aspergillus sp. MF1 and immobilized Aspergillus sp. MF1

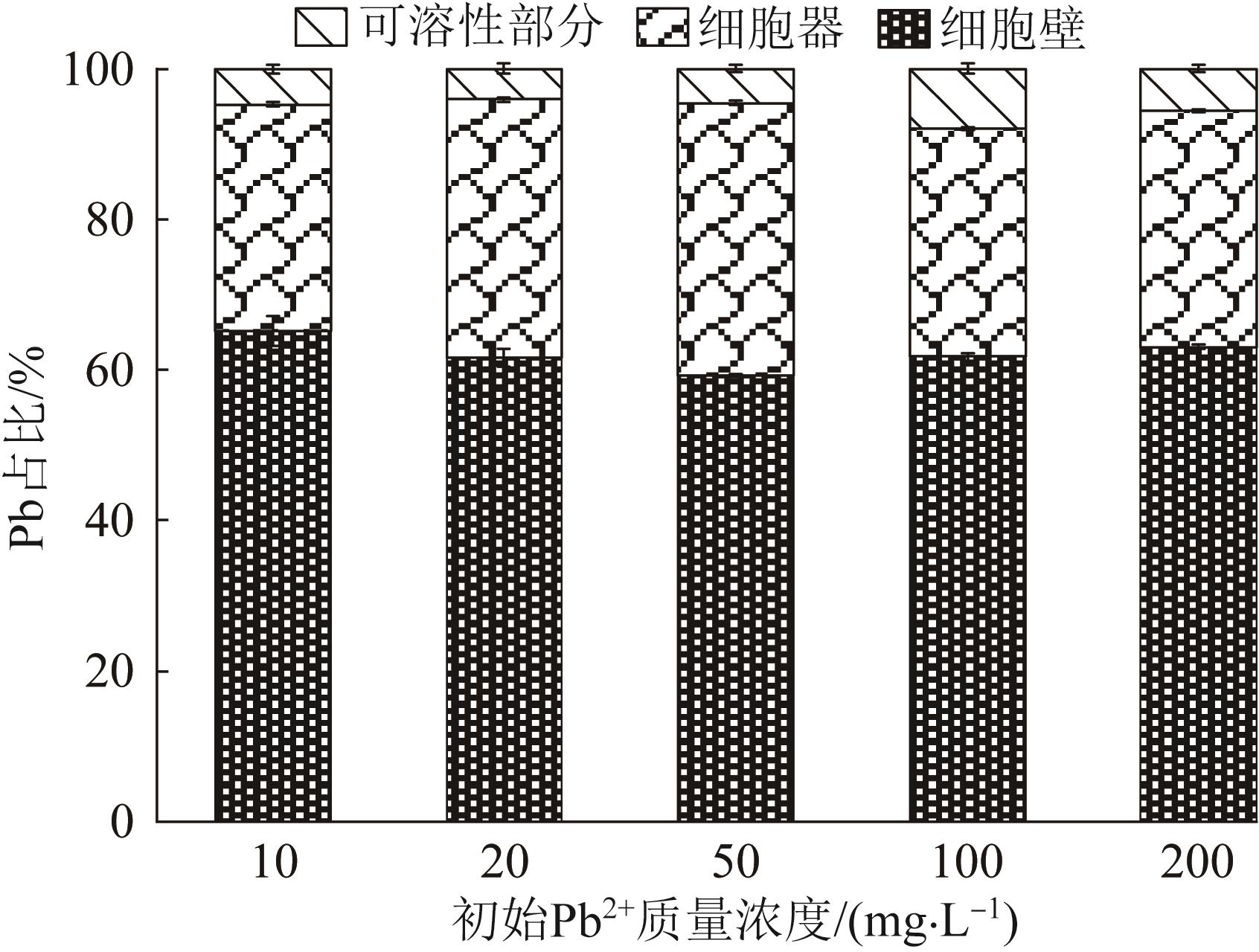

图2 Pb²⁺的亚细胞分布

Fig.2 Subcellular distribution of Pb²⁺

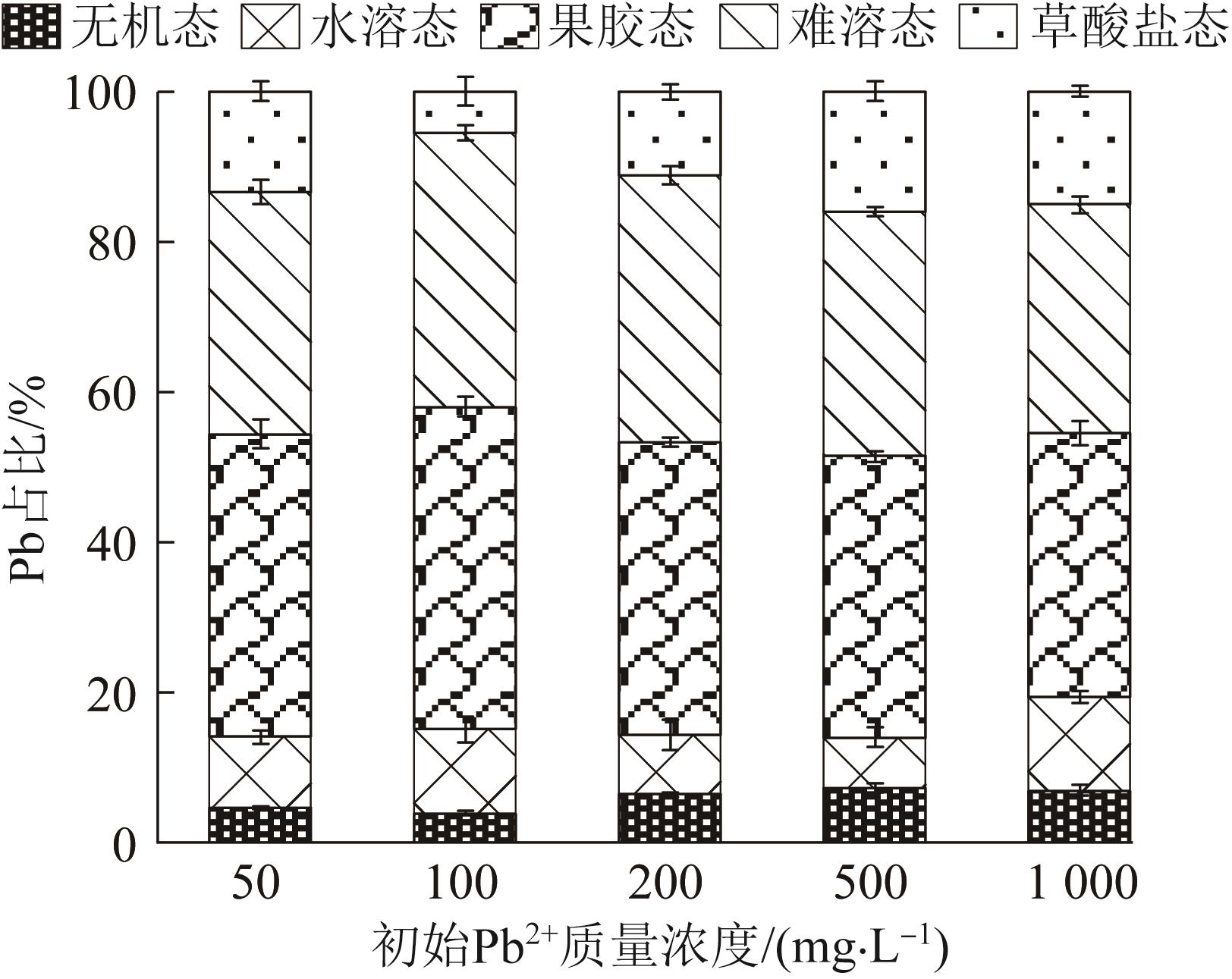

图3 Pb²⁺的化学形态分布

Fig.3 Chemical morphological distribution of Pb²⁺

图4 固定化Aspergillus sp. MF1的SEM和EDS分析

Fig.4 SEM and EDS analysis of immobilized Aspergillus sp.MF1

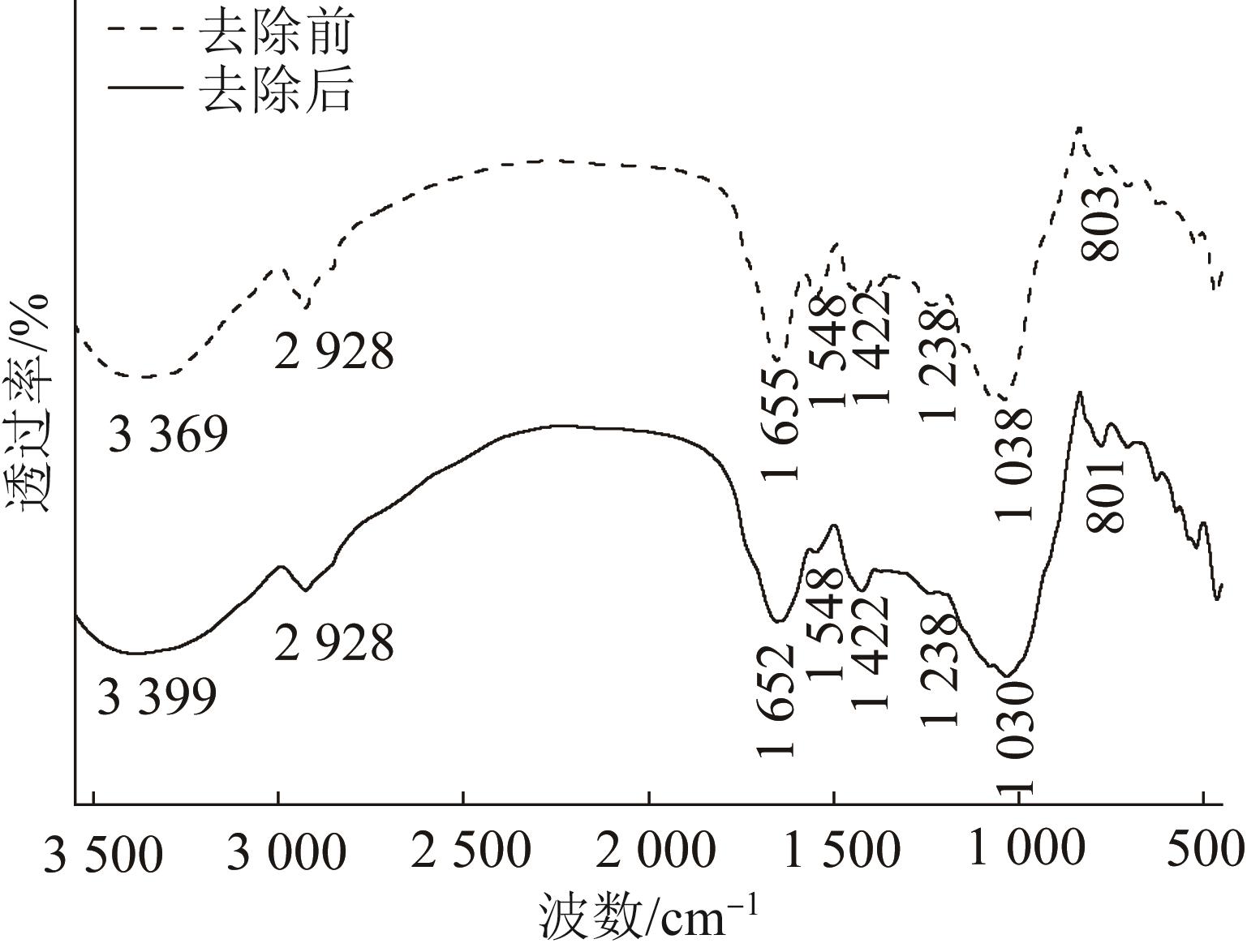

图5 去除Pb²⁺前后固定化Aspergillus sp. MF1的FTIR

Fig.5 FTIR of immobilized Aspergillus sp. MF1 before and after removal of Pb²⁺

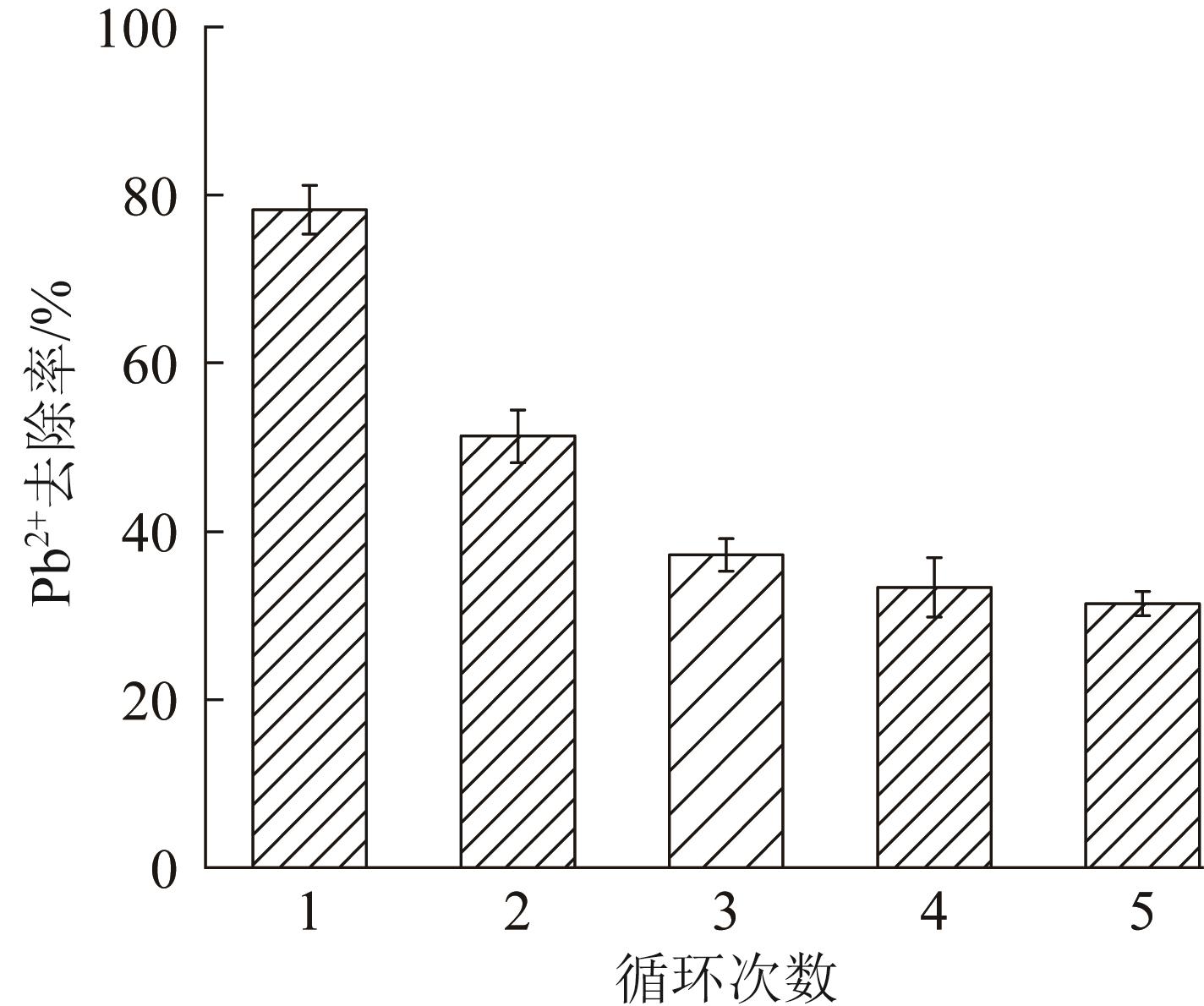

图6 固定化Aspergillus sp. MF1的重复利用性

Fig.6 Reusability of immobilized Aspergillus sp.MF1

参考文献 28

1	GUTIÉRREZ M， MICKUS K， CAMACHO L M. Abandoned PbZn mining wastes and their mobility as proxy to toxicity：A review［J］. Science of the Total Environment，2016，565：392-400. doi:10.1016/j.scitotenv.2016.04.143
2	ZHAN Xinhui， XIAO Liping， LIANG Bing. Removal of Pb（Ⅱ） from acid mine drainage with bentonite-steel slag composite particles［J］. Sustainability，2019，11（16）：4476. doi:10.3390/su11164476
3	ZHANG Yun， LI Yanfeng， LI Xiaoli，et al. Selective removal for Pb²⁺ in aqueous environment by using novel macroreticular PVA beads［J］. Journal of Hazardous Materials，2010，181（1/2/3）：898-907. doi:10.1016/j.jhazmat.2010.05.097
4	SUN Junhua， SUN Guoxin， ZHAO Xiuxian，et al. Ultrafast and efficient removal of Pb（Ⅱ） from acidic aqueous solution using a novel polyvinyl alcohol superabsorbent［J］. Chemosphere，2021，282：131032. doi:10.1016/j.chemosphere.2021.131032
5	古小超，梅鹏蔚，张震，等. 含铅废水处理技术研究进展［J］. 工业水处理，2020，40（12）：14-19. doi:10.11894/iwt.2020-0162
	GU Xiaochao， MEI Pengyu， ZHANG Zhen，et al. Research progress on treatment technology of lead-bearing wastewater［J］. Industrial Water Treatment，2020，40（12）：14-19. doi:10.11894/iwt.2020-0162
6	NGUYEN T A H， NGO H H， GUO W S，et al. Applicability of agricultural waste and by-products for adsorptive removal of heavy metals from wastewater［J］. Bioresource Technology，2013，148：574-585. doi:10.1016/j.biortech.2013.08.124
7	CHEAH C， CHEOW Y L， YIEN TING A S. Immobilization of exopolymeric substances from bacteria for metal removal：A study on characterization，optimization，reusability and toxicity［J］. Journal of Environmental Management，2022，323：116244. doi:10.1016/j.jenvman.2022.116244
8	CAI Chunxiang， XU Jian， DENG Nianfang，et al. A novel approach of utilization of the fungal conidia biomass to remove heavy metals from the aqueous solution through immobilization［J］. Scientific Reports，2016，6：36546. doi:10.1038/srep36546
9	PRIYADARSHINI E， PRIYADARSHINI S S， COUSINS B G，et al. Metal-fungus interaction：Review on cellular processes underlying heavy metal detoxification and synthesis of metal nanoparticles［J］. Chemosphere，2021，274：129976. doi:10.1016/j.chemosphere.2021.129976
10	ZHANG Mingliang， WANG Haixia. Preparation of immobilized sulfate reducing bacteria（SRB） granules for effective bioremediation of acid mine drainage and bacterial community analysis［J］. Minerals Engineering，2016，92：63-71. doi:10.1016/j.mineng.2016.02.008
11	LIU Junwei， PAN Dandan， WU Xiangwei，et al. Enhanced degradation of prometryn and other s-triazine herbicides in pure cultures and wastewater by polyvinyl alcohol-sodium alginate immobilized Leucobacter sp. JW-1［J］. Science of the Total Environment，2018，615：78-86. doi:10.1016/j.scitotenv.2017.09.208
12	YU Jiaping， HE Huijun， YANG W L，et al. Magnetic bionanoparticles of Penicillium sp. yz11-22N2 doped with Fe₃O₄ and encapsulated within PVA-SA gel beads for atrazine removal［J］. Bioresource Technology，2018，260：196-203. doi:10.1016/j.biortech.2018.03.103
13	PUTRA R N， LEE Y H. Entrapment of micro-sized zeolites in porous hydrogels：Strategy to overcome drawbacks of zeolite particles and beads for adsorption of ammonium ions［J］. Separation and Purification Technology，2020，237：116351. doi:10.1016/j.seppur.2019.116351
14	裴佳楠. 除铅乳酸菌的筛选及其在铅污染土壤中的应用［D］. 大连：大连理工大学，2020.
	PEI Jia’nan. Screening of lead-removing lactic acid bacteria and its application in lead-contaminated soil［D］. Dalian：Dalian University of Technology，2020.
15	尹旭冉，姜维，柴敏，等. 固定化蟹壳生物炭制备及吸附Pb²⁺的研究［J］. 工业水处理，2024，44（1）：103-111.
	YIN Xuran， JIANG Wei， CHAI Min，et al. Preparation of immobilized crab shell biochar and its adsorption of Pb²⁺ ［J］.Industrial Water Treatment，2024，44（1）：103-111.
16	SUN Jianling， LUO Liqiang. Subcellular distribution and chemical forms of Pb in corn：Strategies underlying tolerance in Pb stress［J］. Journal of Agricultural and Food Chemistry，2018，66（26）：6675-6682. doi:10.1021/acs.jafc.7b03605
17	寇萌，樊宇，苏梦贤，等. 不同土壤-小麦体系中铅镉交互作用与转运特征［J/OL］. 环境科学：1-16［2023-03-01］.
	KOU Meng， FAN Yu， SU Mengxian，et al. Interaction and transport characteristics of lead and cadmium in different soil-wheat systems［J/OL］. Environmental Science：1-16［2023-03-01］.
18	XIN Jianpan， ZHANG Yao， TIAN Ru’nan. Tolerance mechanism of Triarrhena sacchariflora（Maxim.） Nakai. seedlings to lead and cadmium：Translocation，subcellular distribution，chemical forms and variations in leaf ultrastructure［J］. Ecotoxicology and Environmental Safety，2018，165：611-621. doi:10.1016/j.ecoenv.2018.09.022
19	潘泳兴，陈盟，王櫹橦. 典型铅锌矿流域土壤重金属累积与分布的影响因素分析［J/OL］. 环境科学：1-17［2023-03-01］.
	PAN Yongxing， CHEN Meng， WANG Xiaotong. Analysis of influencing factors on the accumulation and distribution of heavy metals in soil of a typical lead-zinc mine watershed［J/OL］. Environmental Science：1-17［2023-03-01］.
20	SHA Sha， CHENG Menghua， HU Kaijie，et al. Toxic effects of Pb on Spirodela polyrhiza（L.）：Subcellular distribution，chemical forms，morphological and physiological disorders［J］. Ecotoxicology and Environmental Safety，2019，181：146-154. doi:10.1016/j.ecoenv.2019.05.085
21	ZHAO Yanfang， SHANG Derong， NING Jinsong，et al. Subcellular distribution and chemical forms of lead in the red algae，Porphyra yezoensis ［J］. Chemosphere，2019，227：172-178. doi:10.1016/j.chemosphere.2019.04.049
22	FENG Naixian， FENG Yuxi， LIANG Qifeng，et al. Complete biodegradation of di-n-butyl phthalate（DBP） by a novel Pseudomonas sp. YJB6［J］. Science of the Total Environment，2021，761：143208. doi:10.1016/j.scitotenv.2020.143208
23	WANG Yunyan， YAO Wenbin， WANG Qingwei，et al. Synthesis of phosphate-embedded calcium alginate beads for Pb（Ⅱ） and Cd（Ⅱ） sorption and immobilization in aqueous solutions［J］. Transactions of Nonferrous Metals Society of China，2016，26（8）：2230-2237. doi:10.1016/s1003-6326(16)64340-6
24	ZENG Guangming， LI Ningjie， HUANG Danlian，et al. The stability of Pb species during the Pb removal process by growing cells of Phanerochaete chrysosporium ［J］. Applied Microbiology and Biotechnology，2015，99（8）：3685-3693. doi:10.1007/s00253-014-6275-5
25	ZHANG Keyao， TENG Zedong， SHAO Wen，et al. Effective passivation of lead by phosphate solubilizing bacteria capsules containing tricalcium phosphate［J］. Journal of Hazardous Materials，2020，397：122754. doi:10.1016/j.jhazmat.2020.122754
26	赵瑞雪. 芽孢杆菌Z-y3与龙虾壳生物炭去除Pb（Ⅱ）的特性研究［D］. 武汉：武汉大学，2018. doi:10.15376/biores.13.3.5656-5669
	ZHAO Ruixue. Study on the removal characteristics of Pb（Ⅱ） by Bacillus Z-y3 and lobster shell biochar［D］. Wuhan：Wuhan University，2018. doi:10.15376/biores.13.3.5656-5669
27	FAROOQ U， KOZINSKI J A， KHAN M A，et al. Biosorption of heavy metal ions using wheat based biosorbents：A review of the recent literature［J］. Bioresource Technology，2010，101（14）：5043-5053. doi:10.1016/j.biortech.2010.02.030
28	PARK D， YUN Y S， PARK J M. The past，present，and future trends of biosorption［J］. Biotechnology and Bioprocess Engineering，2010，15（1）：86-102. doi:10.1007/s12257-009-0199-4
