鸟粪石结晶法回收电镀废水中氮磷试验研究

doi:10.19965/j.cnki.iwt.2023-0301

摘要/Abstract

摘要：

采用鸟粪石结晶法回收电镀废水中的氮磷，主要考察了pH、重金属离子浓度、氟离子质量浓度对电镀废水中氮磷去除的影响，结果表明pH和重金属离子浓度可显著影响鸟粪石结晶过程，低质量浓度氟离子（0~40 mg/L）对鸟粪石结构的影响可以忽略。对不同条件下形成的鸟粪石进行了XRD、SEM、XPS表征，分析了重金属离子和氟离子对鸟粪石结晶过程的影响机理。重金属离子与鸟粪石可发生共沉淀，干扰鸟粪石结晶的形成。当氟离子与重金属离子共存时，氟离子会影响重金属离子在晶体上的吸附，并生成非晶相共沉淀物，改变鸟粪石的晶体形态。该研究为鸟粪石结晶法回收电镀废水中的氮磷提供理论依据。

关键词: 电镀废水, 重金属离子, 氟离子, 鸟粪石

Abstract:

The nitrogen and phosphorus in electroplating wastewater were recovered using struvite crystallization method. The effects of pH, concentration of heavy metal ions and mass concentration of fluoride ions on the removal of nitrogen and phosphorus in electroplating wastewater were investigated. The results showed that pH and concentration of heavy metal ions had significantly affect on the process of struvite crystallization, while the effect of low mass concentration（0-40 mg/L） of fluoride ions on the structure of struvite could be ignored. XRD, SEM and XPS characterization were conducted on struvite formed under different conditions, and the influence mechanism of heavy metal ions and fluorine ions on the crystallization process of struvite was analyzed. Heavy metal ions could co-precipitate with struvite and interfere with the formation of struvite crystals. When fluoride ions coexisted with heavy metal ions, fluoride ions would interfere the adsorption of heavy metal ions on the crystal, and generate amorphous phase coprecipitates, changing the crystal morphology of struvite. This study provides a theoretical basis for the recovery of nitrogen and phosphorus from electroplating wastewater by the struvite crystallization method.

Key words: electroplating wastewater, heavy metal ions, fluoride ions, struvite

中图分类号:

X703

孙采蕊, 欧阳铸, 曹露, 胡莹, 黄海明, 王炳乾, 龙柯桦, 陶乐瑶. 鸟粪石结晶法回收电镀废水中氮磷试验研究[J]. 工业水处理, 2024, 44(4): 113-119.

Cairui SUN, Zhu OUYANG, Lu CAO, Ying HU, Haiming HUANG, Bingqian WANG, Kehua LONG, Leyao TAO. Experimental study on the recovery of nitrogen and phosphorus from electroplating wastewater by struvite crystallization method[J]. Industrial Water Treatment, 2024, 44(4): 113-119.

https://www.iwt.cn/CN/Y2024/V44/I4/113

图/表 6

图1 pH对氮磷去除率的影响

Fig.1 Effect of pH on nitrogen and phosphorus removal rate

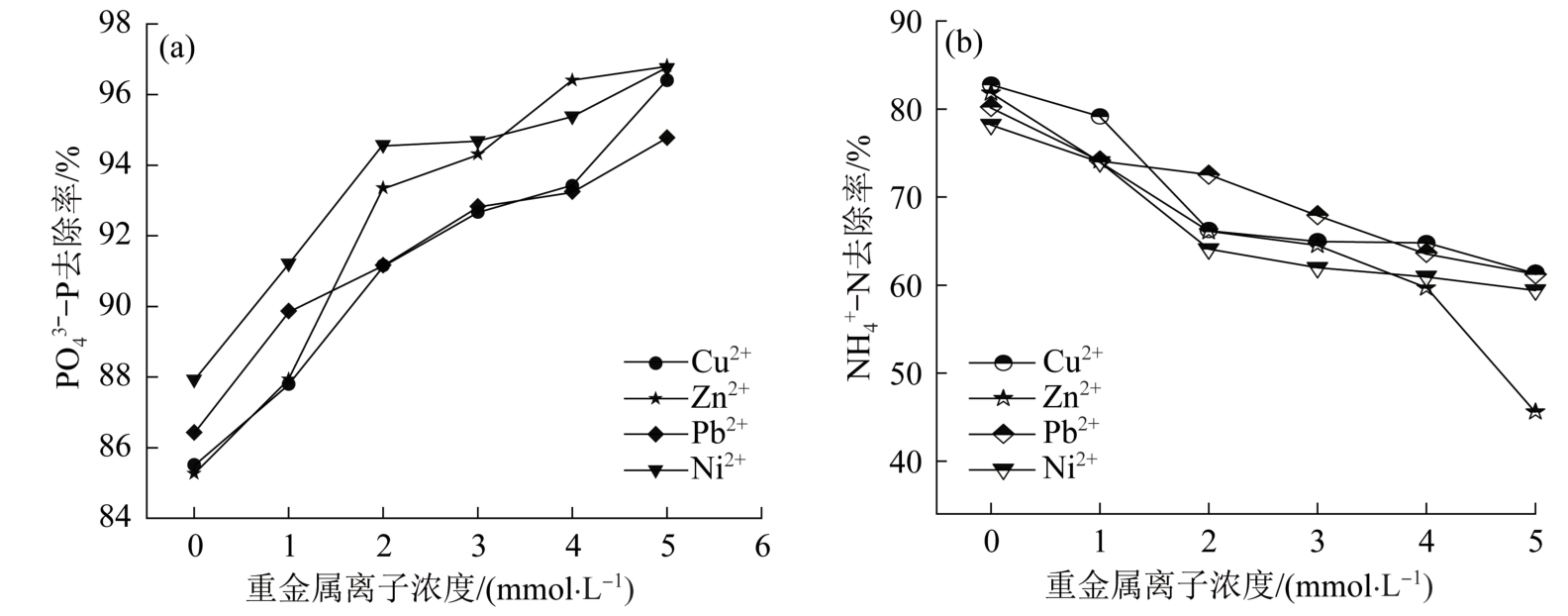

图2 重金属浓度对氮磷去除率的影响

Fig.2 Effect of heavy metal concentration on nitrogen and phosphorus removal rate

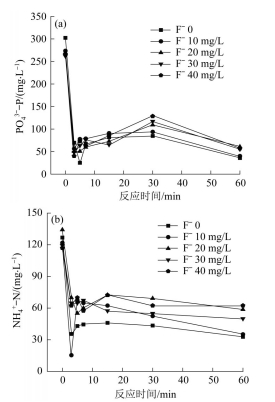

图3 氟离子对氮磷去除效果的影响

Fig.3 Effect of fluoride ions on nitrogen and phosphorus removal

图4 产物XRD

Fig.4 XRD of precipitates

图5 加入金属离子和金属离子与氟离子共存产物的SEM

Fig.5 SEM of precipitates containing metal ions and coexisting metal ions with fluoride ions

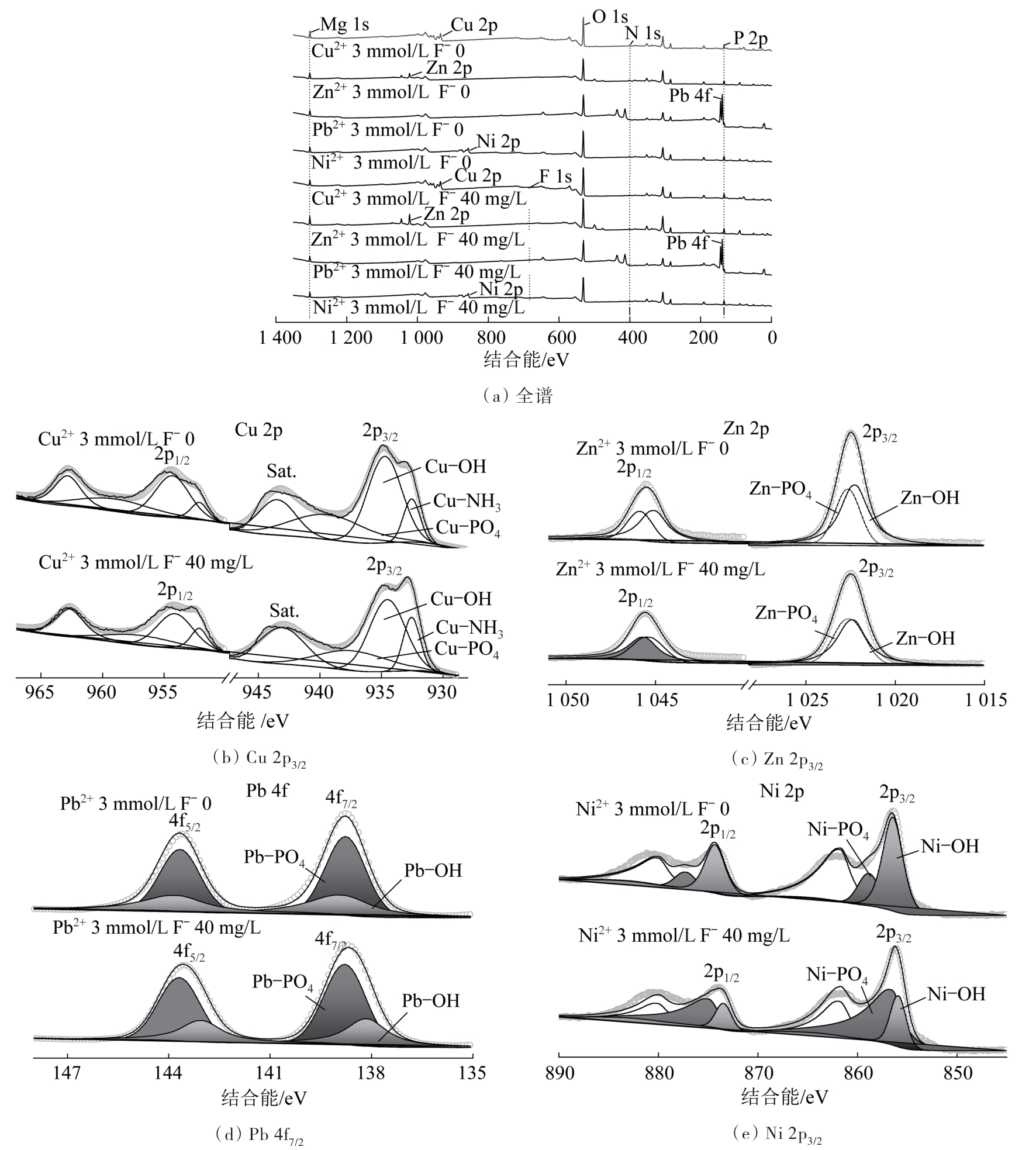

图6 产物的XPS

Fig.6 XPS of Sediments

参考文献 29

1	赵皓月，吴欢欢，姚宏，等. 膜技术在回收电镀废水中金属离子的应用研究进展［J］. 水处理技术，2022，48（2）：6-12.
	ZHAO Haoyue， WU Huanhuan， YAO Hong，et al. Application research progress of membrane technology in recycle of metal ions from electroplating wastewater［J］. Technology of Water Treatment，2022，48（2）：6-12.
2	赵云霞，杨子轩，毕廷涛，等. 电镀废水处理技术研究现状及展望［J］. 电镀与涂饰，2021，40（15）：1215-1224.
	ZHAO Yunxia， YANG Zixuan， BI Tingtao，et al. Research status and prospects of electroplating wastewater treatment technology［J］. Electroplating & Finishing，2021，40（15）：1215-1224.
3	庄桂嘉，刘立凡，黄潇，等. AAO-生物膜工艺处理电镀废水的脱氮除磷性能［J］. 环境工程，2022，40（12）：128-133.
	ZHUANG Guijia， LIU Lifan， HUANG Xiao，et al. Nitrogen and phosphorus removal performance of AAO-biofilm process for electroplating wastewater treatment［J］. Environmental Engineering，2022，40（12）：128-133.
4	PENG Cong， CHAI Liyuan， TANG Chongjian，et al. Feasibility and enhancement of copper and ammonia removal from wastewater using struvite formation：A comparative research［J］. Journal of Chemical Technology & Biotechnology，2017，92（2）：325-333. doi:10.1002/jctb.5009
5	韦林，洪天求，周跃飞，等. pH对鸟粪石吸附海藻酸的影响及机制［J］. 环境科学学报，2017，37（9）：3364-3369.
	WEI Lin， HONG Tianqiu， ZHOU Yuefei，et al. The mechanism of pH effect on the adsorption of alginic acid by struvite crystals［J］. Acta Scientiae Circumstantiae，2017，37（9）：3364-3369.
6	WANG Yuan， WANG Xuejiang， LI Jing，et al. Adsorption and precipitation behaviors of zinc，copper and tetracycline with struvite products obtained by phosphorus recovery from swine wastewater［J］. Journal of Environmental Chemical Engineering，2020，8（6）：104488. doi:10.1016/j.jece.2020.104488
7	LI Bing， HUANG Haiming， SUN Zhitao，et al. Minimizing heavy metals in recovered struvite from swine wastewater after anaerobic biochemical treatment：Reaction mechanisms and pilot test［J］. Journal of Cleaner Production，2020，272：122649. doi:10.1016/j.jclepro.2020.122649
8	ZAMORA P， GEORGIEVA T， SALCEDO I，et al. Long-term operation of a pilot-scale reactor for phosphorus recovery as struvite from source-separated urine［J］. Journal of Chemical Technology & Biotechnology，2017，92（5）：1035-1045. doi:10.1002/jctb.5079
9	GOSWAMI O， ROUFF A A. Interaction of divalent metals with struvite：Sorption，reversibility，and implications for mineral recovery from wastes［J］. Environmental Technology，2023，44（15）：2315-2326. doi:10.1080/09593330.2022.2027026
10	KABDAŞLı I， ATALAY Z， TÜNAY O. Effect of solution composition on struvite crystallization［J］. Journal of Chemical Technology & Biotechnology，2017，92（12）：2921-2928. doi:10.1002/jctb.5310
11	EKAMA G A， WENTZEL M C， LOEWENTHAL R E. Integrated chemical：Physical processes kinetic modelling of multiple mineral precipitation problems［J］. Water Science and Technology：a Journal of the International Association on Water Pollution Research，2006，53（12）：65-73. doi:10.2166/wst.2006.407
12	TANSEL B， LUNN G， MONJE O. Struvite formation and decomposition characteristics for ammonia and phosphorus recovery：A review of magnesium-ammonia-phosphate interactions［J］. Chemosphere，2018，194：504-514. doi:10.1016/j.chemosphere.2017.12.004
13	ROUFF A A. The use of TG/DSC-FT-IR to assess the effect of Cr sorption on struvite stability and composition［J］. Journal of Thermal Analysis and Calorimetry，2012，110（3）：1217-1223. doi:10.1007/s10973-011-2101-9
14	关乾，郑文婕，孙彩霞，等. 超声强化鸟粪石结晶过程及磷的回收研究［J］. 水处理技术，2022，48（3）：84-87.
	GUAN Qian， ZHENG Wenjie， SUN Caixia，et al. Effect of ultrasound enhancement on the recovery of phosphorus via struvite crystallization process［J］. Technology of Water Treatment，2022，48（3）：84-87.
15	ROUFF A A， JUAREZ K M. Zinc interaction with struvite during and after mineral formation［J］. Environmental Science & Technology，2014，48（11）：6342-6349. doi:10.1021/es500188t
16	FERRARIS G， FUESS H， JOSWIG W. Neutron diffraction study of MgNH₄PO₄·6H₂O（struvite） and survey of water molecules donating short hydrogen bonds［J］. Acta Crystallographica Section B，1986，42（3）：253-258. doi:10.1107/s0108768186098269
17	CHEN Long， SHEN Yuhua， XIE Anjian，et al. Seed-mediated synthesis of unusual struvite hierarchical superstructures using bacterium［J］. Crystal Growth & Design，2010，10（5）：2073-2082. doi:10.1021/cg900974n
18	HUANG Haiming， LI Bing， LI Jing，et al. Influence of process parameters on the heavy metal（Zn²⁺，Cu²⁺ and Cr³⁺） content of struvite obtained from synthetic swine wastewater［J］. Environmental Pollution，2019，245：658-665. doi:10.1016/j.envpol.2018.11.046
19	ARIYANTO E， SEN T K， Ha ming ANG. The influence of various physico-chemical process parameters on kinetics and growth mechanism of struvite crystallisation［J］. Advanced Powder Technology，2014，25（2）：682-694. doi:10.1016/j.apt.2013.10.014
20	WANG Yazhou， DENG Yuxuan， LIU Xiaoning，et al. Adsorption behaviors and reduction strategies of heavy metals in struvite recovered from swine wastewater［J］. Chemical Engineering Journal，2022，437：135288. doi:10.1016/j.cej.2022.135288
21	RYU H D， LEE S， KIM S H，et al. Inhibition effects of Ca²⁺ and F^-ion on struvite crystallization［J］. Journal of Korean Society of Environmental Engineers，2010，32（7）：730-737.
22	LU Xingwen， HUANG Zebiao， LIANG Zhihong，et al. Co-precipitation of Cu and Zn in precipitation of struvite［J］. Science of the Total Environment，2021，764：144269. doi:10.1016/j.scitotenv.2020.144269
23	LU Xingwen， ZHONG Ren， LIU Yuxin，et al. The incorporation of Pb²⁺ during struvite precipitation：Quantitative，morphological and structural analysis［J］. Journal of Environmental Management，2020，276：111359. doi:10.1016/j.jenvman.2020.111359
24	PENG Cong， CHAI Liyuan， TANG Chongjian，et al. Study on the mechanism of copper-ammonia complex decomposition in struvite formation process and enhanced ammonia and copper removal［J］. Journal of Environmental Sciences，2017，51：222-233. doi:10.1016/j.jes.2016.06.020
25	ALIBAKHSHI E， GHASEMI E， MAHDAVIAN M，et al. A comparative study on corrosion inhibitive effect of nitrate and phosphate intercalated Zn-Al-layered double hydroxides（LDHs） nanocontainers incorporated into a hybrid silane layer and their effect on cathodic delamination of epoxy topcoat［J］. Corrosion Science，2017，115：159-174. doi:10.1016/j.corsci.2016.12.001
26	LIU Jing， ZHU Runliang， XU Tianyuan，et al. Co-adsorption of phosphate and zinc（II） on the surface of ferrihydrite［J］. Chemosphere，2016，144：1148-1155. doi:10.1016/j.chemosphere.2015.09.083
27	XU Huacheng， LI Lina， Hua LÜ，et al. pH-dependent phosphatization of ZnO nanoparticles and its influence on subsequent lead sorption［J］. Environmental Pollution，2016，208：723-731. doi:10.1016/j.envpol.2015.10.052
28	DOWD T L， ROSEN J F， MINTS L，et al. The effect of Pb²⁺ on the structure and hydroxyapatite binding properties of osteocalcin［J］. Biochimica et Biophysica Acta（BBA）-Molecular Basis of Disease，2001，1535（2）：153-163. doi:10.1016/s0925-4439(00)00094-6
29	LU Xingwen， XU Wang， ZENG Qinghuai，et al. Quantitative，morphological，and structural analysis of Ni incorporated with struvite during precipitation［J］. Science of the Total Environment，2022，817：152976. doi:10.1016/j.scitotenv.2022.152976
