硝酸改性抑制颗粒活性炭活化PDS去除水中AO7的机理研究

doi:10.19965/j.cnki.iwt.2024-0419

摘要/Abstract

摘要：

利用硝酸对颗粒活性炭（GAC）进行改性，之后利用改性后的颗粒活性炭（NAC）活化过硫酸钠（PDS）降解水中酸性橙7（AO7）。结果显示，相较于GAC/PDS体系，NAC/PDS体系对AO7的降解表现出一定的抑制作用。为研究该抑制作用的机理，采用猝灭实验对NAC/PDS体系中的主要活性氧物种进行探究，在此基础上采用电子自旋共振（EPR）实验分析改性前后体系中活性氧物种的产生情况，同时对比分析改性前后GAC的形貌结构及活性位点。结果表明，NAC/PDS体系中的主要活性氧物种为表面结合态自由基（SO₄ ^·- _ads、·OH_ads），其含量低于GAC/PDS体系；相比于GAC，NAC比表面积与孔容减小，吸附能力下降，同时，其结构中—COOH及C $̿$ O含量增多，C—O及可供电子的π共轭结构（π*）有所减少。体系对AO7的降解机理表明，SO₄ ^·- _ads、·OH_ads作为主要活性氧物种对AO7进行降解，而电子转移作用可促进PDS活化生成更多活性物种，因此，改性后NAC活化PDS去除水中AO7的效果下降。

关键词: 硝酸, 活性炭, 过硫酸钠, 酸性橙7, 抑制机理

Abstract:

Granular activated carbon(GAC) was modified by nitric acid. The modified granular activated carbon(NAC) was used for activating sodium persulfate(PDS) to degrade acid orange 7(AO7) in water. The results showed that compared to the GAC/PDS system, the NAC/PDS system exhibited a certain inhibitory effect on the degradation of AO7. To investigate the mechanism of the inhibitory effect, quenching experiments were conducted to explore the main active oxygen species in the NAC/PDS system. Based on this, electron spin resonance(EPR) experiments were used to analyze the generation of active oxygen species in the modified and unmodified systems. Meanwhile, the morphology, structure, and active sites of GAC before and after modification were compared and analyzed. The results showed that the main active oxygen species in the NAC/PDS system were surface bound free radicals(SO₄ ^·- _ads and ·OH_ads), with lower content than those in the GAC/PDS system. Compared to GAC, NAC had reduced specific surface area and pore volume, resulting in a decrease of adsorption capacity. Meanwhile, the content of —COOH and C $̿$ O in the structure increased, while the content of C—O and electron donating π-conjugated structures (π*) decreased. The degradation mechanism of AO7 by the system indicated that SO₄ ^·- _ads, ·OH_ads, as the main active oxygen species participated in the degradation of AO7, and electron transfer could promote the activation of PDS to generate more active species. Therefore, the effectiveness of modified NAC activated PDS to remove AO7 in water was decreased.

Key words: nitric acid, activated carbon, sodium persulfate, acid orange 7, inhibition mechanism

中图分类号:

马梦杰, 谢鹏飞, 章慧娟. 硝酸改性抑制颗粒活性炭活化PDS去除水中AO7的机理研究[J]. 工业水处理, 2025, 45(6): 187-193.

Mengjie MA, Pengfei XIE, Huijuan ZHANG. Inhibition mechanism of AO7 removal by PDS activated by nitric acid-modified granular activated carbon[J]. Industrial Water Treatment, 2025, 45(6): 187-193.

https://www.iwt.cn/CN/Y2025/V45/I6/187

图/表 8

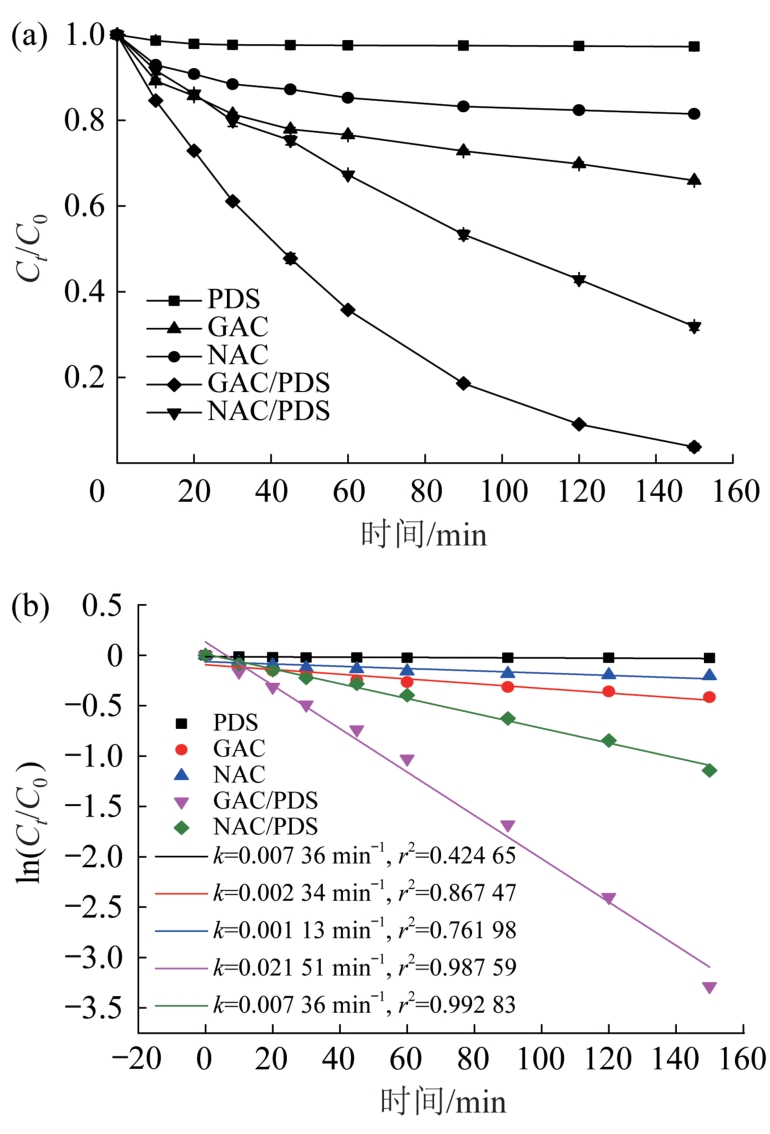

图1 不同体系对AO7的去除效能

Fig.1 Removal efficiency of AO7 by different systems

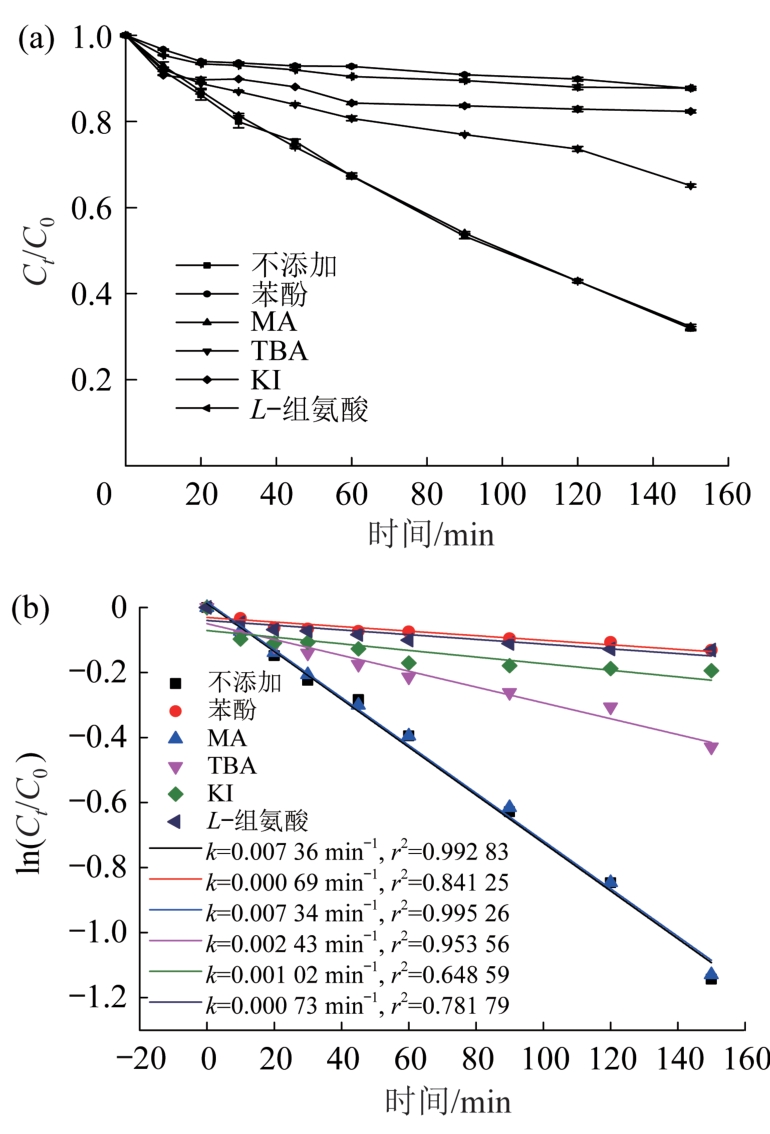

图2 猝灭剂对NAC/PDS体系去除AO7的影响

Fig.2 Effect of scavengers on the removal of AO7 by NAC/PDS system

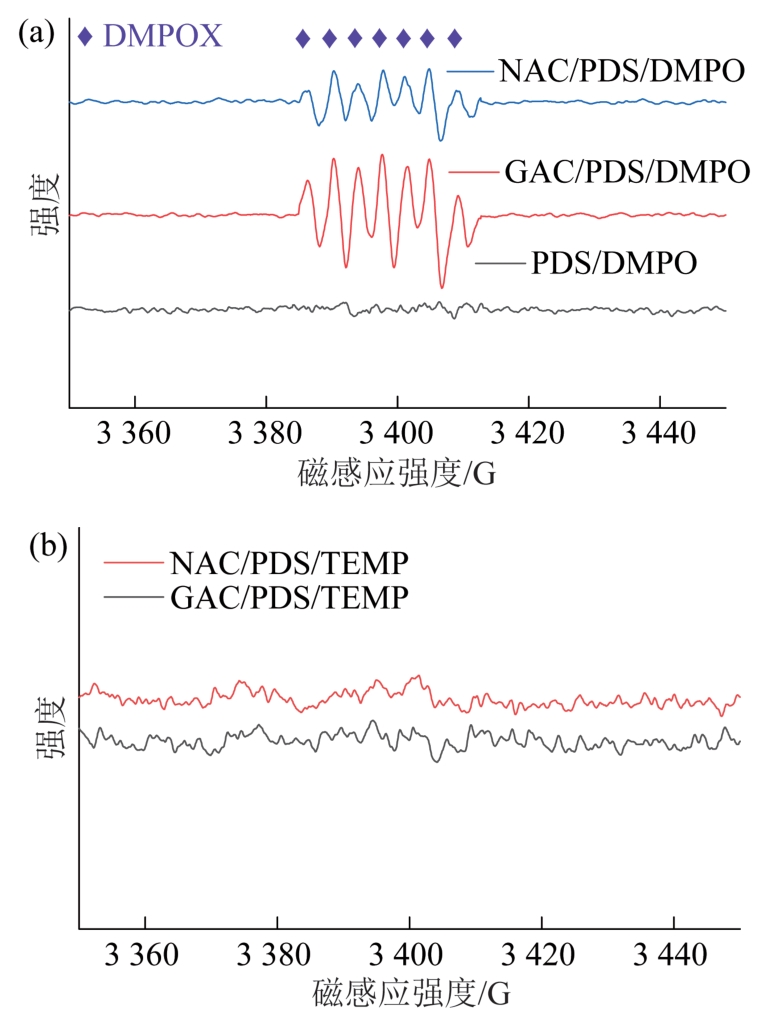

图3 反应体系的EPR分析

Fig.3 EPR analysis of reaction systems

表1 改性前后活性炭表面各元素质量分数 (%)

Table 1 Mass fraction of each element on the surface of activated carbon before and after modification

样品	N	C	H	S	O
GAC	0.29	90.29	1.60	0.19	7.63
NAC	1.18	84.10	1.59	0.07	13.08

图4 改性前后活性炭的SEM

Fig.4 SEM of activated carbon before and after modification

图5 硝酸处理对活性炭表面性质的影响

Fig.5 Effect of nitric acid treatment on surface properties of activated carbon

图6 活性炭样品的XPS

Fig.6 XPS of activated carbon samples

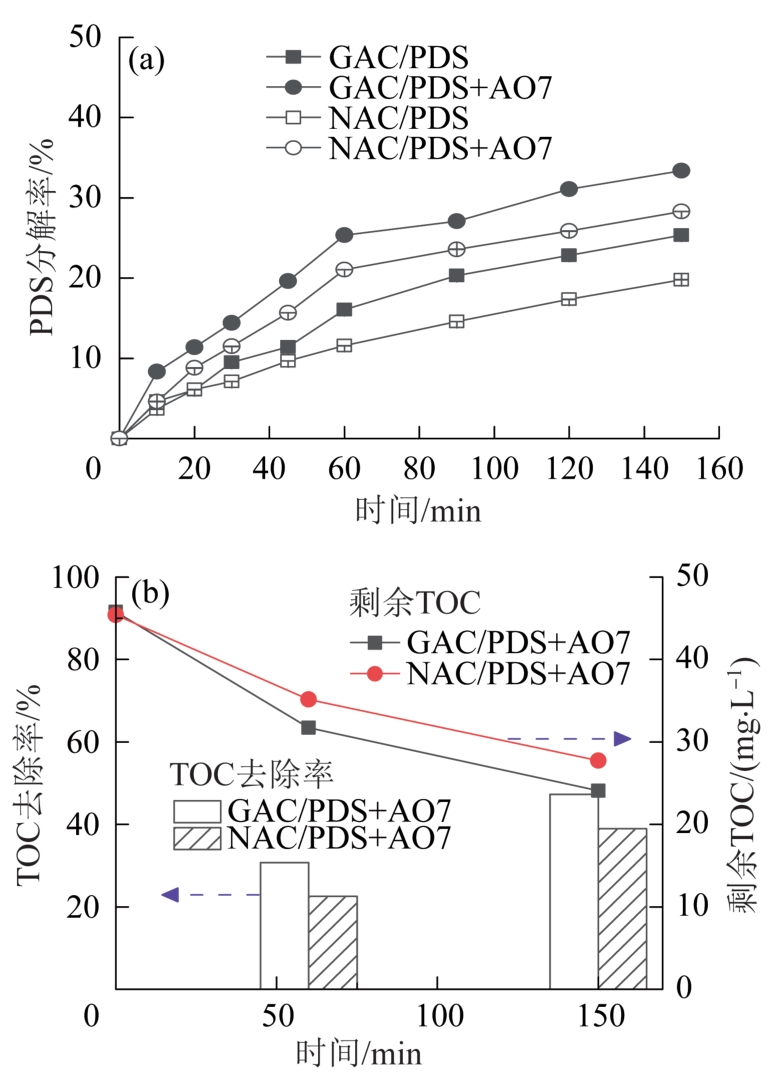

图7 不同体系中PDS和TOC变化

Fig.7 Changes of PDS and TOC in different systems

参考文献 29

1	LIU Xiuyan， ZHANG Ji， MAO Hancheng，et al. Degradation of acid orange 7（AO7） by a bacterium strain Flavobacterium mizutaii L-15［J］. Water Science and Technology，2020，82（2）：266-272.
2	邵子纯，卢建，马铭潞，等. 磁性共价三嗪骨架材料对酸性橙7的吸附研究［J］. 水处理技术，2020，46（9）：63-68.
	SHAO Zichun， LU Jian， MA Minglu，et al. Adsorption of acid orange 7 on magnetic covalent triazine-based frameworks［J］. Technology of Water Treatment，2020，46（9）：63-68.
3	ZHANG Ming， ZHANG Kuo， ZHOU Runjuan，et al. Hydroxylamine enhanced activation of peroxymonosulfate by Fe（Ⅲ）/Cu（Ⅱ） bimetallic for high-efficiency degradation of AO7［J］. Water Science and Technology，2022，85（7）：2038-2050. doi:10.2166/wst.2022.109
4	LONG Yuhan， LI Songrong， YANG Peizhen，et al. Synthesis of ZIF-67 derived honeycomb porous Co/NC catalyst for AO7 degradation via activation of peroxymonosulfate［J］. Separation and Purification Technology，2022，286：120470. doi:10.1016/j.seppur.2022.120470
5	黄智辉，纪志永，陈希，等. 过硫酸盐高级氧化降解水体中有机污染物研究进展［J］. 化工进展，2019，38（5）：2461-2470.
	HUANG Zhihui， JI Zhiyong， CHEN Xi，et al. Degradation of organic pollutants in water by persulfate advanced oxidation［J］. Chemical Industry and Engineering Progress，2019，38（5）：2461-2470.
6	TIAN Ke， HU Limin， LI Letian，et al. Recent advances in persulfate-based advanced oxidation processes for organic wastewater treatment［J］. Chinese Chemical Letters，2022，33（10）：4461-4477. doi:10.1016/j.cclet.2021.12.042
7	WANG Baowei， WANG Yu. A comprehensive review on persulfate activation treatment of wastewater［J］. Science of the Total Environment，2022，831：154906. doi:10.1016/j.scitotenv.2022.154906
8	GUO Dongli， YOU Shijie， LI Fang，et al. Engineering carbon nanocatalysts towards efficient degradation of emerging organic contaminants via persulfate activation：A review［J］. Chinese Chemical Letters，2022，33（1）：1-10. doi:10.1016/j.cclet.2021.06.027
9	肖鹏飞，安璐，韩爽. 炭质材料在活化过硫酸盐高级氧化技术中的应用进展［J］. 化工进展，2020，39（8）：3293-3306. doi:10.16085/j.issn.1000-6613.2019-1833
	XIAO Pengfei， AN Lu， HAN Shuang. Research advances on applying carbon materials to activate persulfate in advanced oxidation technology［J］. Chemical Industry and Engineering Progress，2020，39（8）：3293-3306. doi:10.16085/j.issn.1000-6613.2019-1833
10	HE Hongmei， AI Yushi， HE Yulai，et al. Synthesis of metal-free nitrogen-doped mesoporous carbon nanosheets with reference to molecular self-assembly for efficient peroxymonosulfate activation［J］. Journal of Water Process Engineering，2023，55：104096. doi:10.1016/j.jwpe.2023.104096
11	王磊，成先雄，连军锋，等. 表面改性控制碳活化过硫酸盐研究进展［J］. 石油化工，2020，49（7）：722-728. doi:10.3969/j.issn.1000-8144.2020.07.016
	WANG Lei， CHENG Xianxiong， LIAN Junfeng，et al. Progress in research on surface modification control of carbon activated persulfate［J］. Petrochemical Technology，2020，49（7）：722-728. doi:10.3969/j.issn.1000-8144.2020.07.016
12	李飞跃，桂向阳，刘晨，等. 改性生物炭催化过硫酸盐脱色金橙Ⅱ［J］. 环境污染与防治，2018，40（11）：1207-1213.
	LI Feiyue， GUI Xiangyang， LIU Chen，et al. Decoloration of dye acid orange 7 by modified biochar catalyzed persulfate［J］. Environmental Pollution & Control，2018，40（11）：1207-1213.
13	YANG Lixi， YIN Defeng， ZHENG Yanxia，et al. Modified high-efficiency carbon material for deep degradation of phenol by activating persulfate［J］. Chemosphere，2022，298：134135. doi:10.1016/j.chemosphere.2022.134135
14	李小虎，陈丹，曾立辉，等. 活性炭负载的贵金属催化剂失活原因及活化技术的研究进展［J］. 工业催化，2021，29（3）：41-45.
	LI Xiaohu， CHEN Dan， ZENG Lihui，et al. Research progress on causes for deactivation and activation technologies for noble metal catalyst supported by activated carbon［J］. Industrial Catalysis，2021，29（3）：41-45.
15	杨奕飞. 改性沼渣生物炭制备及活化过硫酸盐降解苯酚性能研究［D］. 南昌：南昌大学，2022.
	YANG Yifei. Study on preparation of modified biogas residue biochar and degradation of phenol by activated persulfate［D］. Nanchang：Nanchang University，2022.
16	李希婷，董浩然. 化学改性生物炭介导水中新污染物去除的研究进展［J］. 能源环境保护，2023，37（5）：15-24.
	LI Xiting， DONG Haoran. Advances in the removal of emerging contaminants from water mediated by chemically modified biochar［J］. Energy Environmental Protection，2023，37（5）：15-24.
17	刘子乐. 表面改性活性炭活化过硫酸盐降解苯酚的研究［D］. 太原：太原理工大学，2017.
	LIU Zile. Study on degradation of phenol by persulfate activated by surface modified activated carbon［D］. Taiyuan：Taiyuan University of Technology，2017.
18	史宸菲，薛瑞杰，李雨濛，等. 不同活性炭活化过硫酸盐的效能及机理的规律研究［J］. 环境科学学报，2018，38（4）：1501-1508.
	SHI Chenfei， XUE Ruijie， LI Yumeng，et al. Efficiency and mechanism of persulfate activation using different activated carbons［J］. Acta Scientiae Circumstantiae，2018，38（4）：1501-1508.
19	ZHAO Yue， GAO Rui， WANG He，et al. ZIF-8-derived hollow carbon polyhedra with highly accessible single Mn-N6 sites as peroxymonosulfate activators for efficient sulfamethoxazole degradation［J］. Chemical Engineering Journal，2023，473：145298. doi:10.1016/j.cej.2023.145298
20	ZHAO Chen， MENG Linghui， CHU Hongyu，et al. Ultrafast degradation of emerging organic pollutants via activation of peroxymonosulfate over Fe₃C/Fe@NC-x：Singlet oxygen evolution and electron-transfer mechanisms［J］. Applied Catalysis B：Environmental，2023，321：122034. doi:10.1016/j.apcatb.2022.122034
21	LEI Yu， YU Yafei， LEI Xin，et al. Assessing the use of probes and quenchers for understanding the reactive species in advanced oxidation processes［J］. Environmental Science & Technology，2023，57（13）：5433-5444. doi:10.1021/acs.est.2c09338
22	TAN Jiaqu， WANG Jinjin， TAN Zijun，et al. Efficient activation of peroxydisulfate by a novel magnetic nanocomposite lignin hydrogel for contaminant degradation：Radical and nonradical pathways［J］. Chemical Engineering Journal，2023，451：138504. doi:10.1016/j.cej.2022.138504
23	WANG Bingyu， LI Qiaoqiao， Ying LÜ，et al. Insights into the mechanism of peroxydisulfate activated by magnetic spinel CuFe₂O₄/SBC as a heterogeneous catalyst for bisphenol S degradation［J］. Chemical Engineering Journal，2021，416：129162. doi:10.1016/j.cej.2021.129162
24	LEE J， VON GUNTEN U， KIM J H. Persulfate-based advanced oxidation：Critical assessment of opportunities and roadblocks［J］. Environmental Science & Technology，2020，54（6）：3064-3081. doi:10.1021/acs.est.9b07082
25	陈潇晶. 焦粉制活性炭过程中的结构调控机制与性能评价［D］. 太原：山西大学，2020.
	CHEN Xiaojing. Structure control mechanism and performance evaluation in the process of making activated carbon from coke powder［D］. Taiyuan：Shanxi University，2020.
26	ZHANG Hao， TANG Lin， WANG Jiajia，et al. Enhanced surface activation process of persulfate by modified bagasse biochar for degradation of phenol in water and soil：Active sites and electron transfer mechanism［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2020，599：124904. doi:10.1016/j.colsurfa.2020.124904
27	刘子乐，曾泽泉，杨洁杨，等. 表面改性活性炭活化过硫酸盐降解苯酚［J］. 高等学校化学学报，2017，38（7）：1241-1248.
	LIU Zile， ZENG Zequan， YANG Jieyang，et al. Degradation of phenol with persulfate activated by surface modified activated carbon［J］. Chemical Journal of Chinese Universities，2017，38（7）：1241-1248.
28	CAO Hongbin， XING Linlin， WU Guangguo，et al. Promoting effect of nitration modification on activated carbon in the catalytic ozonation of oxalic acid［J］. Applied Catalysis B：Environmental，2014，146：169-176. doi:10.1016/j.apcatb.2013.05.006
29	WANG Huazhe， GUO Wanqian， LIU Banghai，et al. Edge-nitrogenated biochar for efficient peroxydisulfate activation：An electron transfer mechanism［J］. Water Research，2019，160：405-414. doi:10.1016/j.watres.2019.05.059
