真空紫外/亚硫酸盐体系降解抗病毒药物的效能与机制

doi:10.19965/j.cnki.iwt.2024-0487

摘要/Abstract

摘要：

利巴韦林（RBV）作为典型抗病毒药物，使用量激增，现有污水处理工艺对其去除效能极为有限，导致其向外界水环境释放，引起水生态安全隐患。考察了真空紫外（VUV）/亚硫酸盐体系对RBV的降解效能与机制。结果表明，VUV/亚硫酸盐体系可以高效降解RBV。当亚硫酸盐投加量为10 mmol/L，溶液pH=9，紫外光辐照度为4 800 μW/cm²时，初始浓度为41.0 μmol/L的RBV经VUV/亚硫酸盐体系反应180 min，降解率超过95%，RBV降解的表观速率常数为0.013 5 min^-1。相较于单独VUV体系，VUV/亚硫酸盐体系中RBV降解率的提升主要由强还原物种水合电子（e_aq ^-）增加引起。RBV降解速率随紫外光辐照度和溶液pH的升高而加快，随RBV初始浓度的增加而减慢。共存离子Br^-、HCO₃ ^-和有机物HA均会抑制VUV/亚硫酸盐体系对RBV的降解。RBV在VUV/亚硫酸盐体系中存在3条降解路径，主要涉及酰胺键的断裂、羧基的形成及脱羧、呋喃核糖上羟甲基的氧化、醚键和碳氮键的断裂。

关键词: 利巴韦林, 抗病毒药物, 真空紫外, 亚硫酸盐, 水合电子

Abstract:

The extensive use of ribavirin (RBV) as a typical antiviral drug has led to its substantial release into aquatic environments due to the limited removal efficiency of the existing wastewater treatment processes, posing potential ecological safety risks. This study investigated the efficiency and mechanism of RBV degradation by the VUV/sulfite system. The results showed that RBV could be efficiently degraded by the VUV/sulfite system. The degradation rate of RBV (initial concentration of 41.0 μmol/L) reached over 95% after 180 min reaction at sulfite dosage of 10 mmol/L, solution pH of 9 and UV irradiance of 4 800 μW/cm²,with an observed rate constant of 0.013 5 min^-1. Compared with VUV, the enhancement of RBV degradation in the investigated system was attributed to the increase of hydrated electron (e_aq ^-), which was a highly reductive species. RBV degradation rate was accelerated with the increase of UV intensity and solution pH, but slowed with the increase of initial RBV concentration. The co-existing ions (i.e. Br^-, HCO₃ ^-) and organic substances (humic acid) all inhibited RBV removal by the VUV/sulfite system. There were three degradation pathways of RBV by the VUV/sulfite system, which mainly involved the break of amide group, the formation of carboxy and decarboxylation, the oxidation of hydroxymethy group connected to the ribofuranose, the break of ether bond and carbon nitrogen bond.

Key words: ribavirin, antiviral drug, vacuum ultraviolet, sulfite, hydrated electron

中图分类号:

X703

顾玉蓉, 阚晓东, 董紫君, 张毅, 韩琦. 真空紫外/亚硫酸盐体系降解抗病毒药物的效能与机制[J]. 工业水处理, 2025, 45(7): 73-80.

Yurong GU, Xiaodong KAN, Zijun DONG, Yi ZHANG, Qi HAN. Efficiency and mechanism of degradation of an antiviral drug by VUV/sulfite system[J]. Industrial Water Treatment, 2025, 45(7): 73-80.

https://www.iwt.cn/CN/Y2025/V45/I7/73

图/表 12

参考文献 37

[1]	WU Dongquan， SUI Qian， YU Xia，et al. Identification of indicator PPCPs in landfill leachates and livestock wastewaters using multi-residue analysis of 70 PPCPs：Analytical method development and application in Yangtze River Delta，China［J］. Science of the Total Environment，2021，753：141653. doi:10.1016/j.scitotenv.2020.141653
[2]	GONG Weijing， ZHOU Tao， WU Sanlan，et al. A retrospective analysis of clinical efficacy of ribavirin in adults hospitalized with severe COVID-19［J］. Journal of Infection and Chemotherapy，2021，27（6）：876-881. doi:10.1016/j.jiac.2021.02.018
[3]	CHEN Xiangping， LEI Lei， LIU Sitian，et al. Occurrence and risk assessment of pharmaceuticals and personal care products（PPCPs） against COVID-19 in lakes and WWTP-river-estuary system in Wuhan，China［J］. Science of the Total Environment，2021，792：148352. doi:10.1016/j.scitotenv.2021.148352
[4]	LIU Qixin， FENG Xuan， CHEN Ning，et al. Occurrence and risk assessment of typical PPCPs and biodegradation pathway of ribavirin in wastewater treatment plants［J］. Environmental Science and Ecotechnology，2022，11：100184. doi:10.1016/j.ese.2022.100184
[5]	KURODA K， LI Cong， DHANGAR K，et al. Predicted occurrence，ecotoxicological risk and environmentally acquired resistance of antiviral drugs associated with COVID-19 in environmental waters［J］. Science of the Total Environment，2021，776：145740. doi:10.1016/j.scitotenv.2021.145740
[6]	SONG Zhou， TANG Heqing， WANG Nan，et al. Reductive defluorination of perfluorooctanoic acid by hydrated electrons in a sulfite-mediated UV photochemical system［J］. Journal of Hazardous Materials，2013，262：332-338. doi:10.1016/j.jhazmat.2013.08.059
[7]	QU Yan， ZHANG Chaojie， LI Fei，et al. Photo-reductive defluorination of perfluorooctanoic acid in water［J］. Water Research，2010，44（9）：2939-2947. doi:10.1016/j.watres.2010.02.019
[8]	GU Jia， YANG Ling， JIANG Jin，et al. Insights into the effects of alcohols on hydrated electron（e_aq ^-） generation from the p-benzoquinone/UV process［J］. Applied Catalysis B：Environmental，2018，220：477-487. doi:10.1016/j.apcatb.2017.07.031
[9]	SUN Zhuyu， ZHANG Chaojie， XING Lu，et al. UV/nitrilotriacetic acid process as a novel strategy for efficient photoreductive degradation of perfluorooctanesulfonate［J］. Environmental Science & Technology，2018，52（5）：2953-2962. doi:10.1021/acs.est.7b05912
[10]	BUXTON G V， GREENSTOCK C L， PHILLIPS HELMAN W，et al. Critical review of rate constants for reactions of hydrated electrons，hydrogen atoms and hydroxyl radicals（·OH/·O^-） in aqueous solution［J］. Journal of Physical and Chemical Reference Data，1988，17（2）：513-886. doi:10.1063/1.555805
[11]	JIN Ling， ZHANG Pengyi. Photochemical decomposition of perfluorooctane sulfonate（PFOS） in an anoxic alkaline solution by 185 nm vacuum ultraviolet［J］. Chemical Engineering Journal，2015，280：241-247. doi:10.1016/j.cej.2015.06.022
[12]	GU Yurong， LIU Tongzhou， WANG Hongjie，et al. Hydrated electron based decomposition of perfluorooctane sulfonate（PFOS） in the VUV/sulfite system［J］. Science of the Total Environment，2017，607：541-548. doi:10.1016/j.scitotenv.2017.06.197
[13]	HE Jianzhou， BOERSMA M， SONG Ziteng，et al. Biochar and surfactant synergistically enhanced PFAS destruction in UV/sulfite system at neutral pH［J］. Chemosphere，2024，353：141562. doi:10.1016/j.chemosphere.2024.141562
[14]	LI Mengkai， WANG Chen，YAU M，et al. Sulfamethazine degradation in water by the VUV/UV process：Kinetics，mechanism and antibacterial activity determination based on a mini-fluidic VUV/UV photoreaction system［J］. Water Research，2017，108：348-355. doi:10.1016/j.watres.2016.11.018
[15]	GONZALEZ M G， OLIVEROS E， WÖRNER M，et al. Vacuum-ultraviolet photolysis of aqueous reaction systems［J］. Journal of Photochemistry and Photobiology C：Photochemistry Reviews，2004，5（3）：225-246. doi:10.1016/j.jphotochemrev.2004.10.002
[16]	PAN Huimei， HUANG Yuanxi， LI Juan，et al. Coexisting oxidation and reduction of chloroacetaldehydes in water by UV/VUV irradiation［J］. Water Research，2022，214：118192. doi:10.1016/j.watres.2022.118192
[17]	ZHANG Jing， ZHANG Honglong， LIU Xin，et al. Efficient reductive and oxidative decomposition of haloacetic acids by the vacuum-ultraviolet/sulfite system［J］. Water Research，2022，210：117974. doi:10.1016/j.watres.2021.117974
[18]	YANG Shewei， SUN Jian， HU Yongyou，et al. Effect of vacuum ultraviolet on ultrasonic defluorination of aqueous perfluorooctanesulfonate［J］. Chemical Engineering Journal，2013，234：106-114. doi:10.1016/j.cej.2013.08.073
[19]	CHEN Jing， ZHANG Pengyi， LIU Jian. Photodegradation of perfluorooctanoic acid by 185 nm vacuum ultraviolet light［J］. Journal of Environmental Sciences，2007，19（4）：387-390. doi:10.1016/s1001-0742(07)60064-3
[20]	HUIE R E， CLIFTON C L. Rate constants for hydrogen abstraction reactions of the sulfate radical，SO₄ ^·- alkanes and ethers［J］. International Journal of Chemical Kinetics，1989，21（8）：611-619. doi:10.1002/kin.550210802
[21]	LI Zheng， WU Chunshan， ZHENG Qiping，et al. Accelerated degradation and toxicity reduction of ribavirin by organic free radicals in the ferrate-acetylacetonate system［J］. Separation and Purification Technology，2024，330：125636. doi:10.1016/j.seppur.2023.125636
[22]	LI Zheng， ZHENG Qiping， CAI Kaicong，et al. Degradation of ribavirin by potassium ferrate（Ⅵ）：Kinetics，degradation pathway and toxicity assessment［J］. Process Safety and Environmental Protection，2023，180：735-743. doi:10.1016/j.psep.2023.10.034
[23]	LIU Xiaoyu， HONG Yuntao， DING Shunke，et al. Transformation of antiviral ribavirin during ozone/PMS intensified disinfection amid COVID-19 pandemic［J］. Science of the Total Environment，2021，790：148030. doi:10.1016/j.scitotenv.2021.148030
[24]	GUO Kehui， LIU Yang， PENG Jianfeng，et al. Chlorination of antiviral drug ribavirin：Kinetics，nontargeted identification，and concomitant toxicity evolution［J］. Journal of Hazardous Materials，2024，467：133478. doi:10.1016/j.jhazmat.2024.133478
[25]	SUN Qiyuan， YANG Jing， FAN Yongjie，et al. The role of trace N-oxyl compounds as redox mediator in enhancing antiviral ribavirin elimination in UV/chlorine process［J］. Applied Catalysis B：Environmental，2022，317：121709. doi:10.1016/j.apcatb.2022.121709
[26]	JIANG Jinchan， AN Zexiu， LI Mingxue，et al. Comparison of ribavirin degradation in the UV/H₂O₂ and UV/PDS systems：Reaction mechanism，operational parameter and toxicity evaluation［J］. Journal of Environmental Chemical Engineering，2023，11（1）：109193. doi:10.1016/j.jece.2022.109193
[27]	WU Xiaoping， ZHANG Jun， HU Shengchao，et al. Evaluation of degradation performance toward antiviral drug ribavirin using advanced oxidation process and its relations to ecotoxicity evolution［J］. Science of the Total Environment，2022，850：157851. doi:10.1016/j.scitotenv.2022.157851
[28]	LIU Xiaowei， ZHANG Tuqiao， WANG Lili，et al. Hydrated electron-based degradation of atenolol in aqueous solution［J］. Chemical Engineering Journal，2015，260：740-748. doi:10.1016/j.cej.2014.08.109
[29]	BOLTON J R， BIRCHER K G， TUMAS W，et al. Figures-of-merit for the technical development and application of advanced oxidation processes［J］. Journal of Advanced Oxidation Technologies，1996，1（1）：13-17. doi:10.1515/jaots-1996-0104
[30]	MAZA W A， BRESLIN V M， PLYMALE N T，et al. Nanosecond transient absorption studies of the pH-dependent hydrated electron quenching by HSO₃ ^- ［J］. Photochemical & Photobiological Sciences，2019，18：1526. doi:10.1039/c9pp00063a
[31]	YU Yanghai， FENG Liying， QIAO Junlian，et al. New insights into bromate removal by UV/sulfite process：Influencing factors，mechanism，and energy efficiency［J］. Journal of Water Process Engineering，2022，48：102917. doi:10.1016/j.jwpe.2022.102917
[32]	SONG Ge， SU Pei， ZHANG Qizhan，et al. Revisiting UV/sulfite exposed to air：A redox process for reductive dechlorination and oxidative mineralization［J］. Science of the Total Environment，2023，859：160246. doi:10.1016/j.scitotenv.2022.160246
[33]	LIU Yuting， GAO Changfei， LIU Lifen，et al. Green degradation for ribavirin on sulfur-doped MnFe₂O₄ photoelectrocatalysis cathode electrode［J］. Separation and Purification Technology，2023，326：124833. doi:10.1016/j.seppur.2023.124833
[34]	沈立栋. 亚硫酸盐/碘化物/紫外体系还原去除Cr（Ⅵ）的效能及机理［D］. 杭州：浙江工商大学，2022.
	SHEN Lidong. Efficiency and mechanism of hexavalent chromium reduction by sulfite/iodide/UV［D］. Hangzhou：Zhejiang Gongshang University，2022.
[35]	LUO Congwei， GAO Jing， MA Qiao，et al. The bromate formation accompanied by the degradation of 2，4-bromophenol in UV/peroxymonosulfate［J］. Separation and Purification Technology，2020，233：116028. doi:10.1016/j.seppur.2019.116028
[36]	GOSLAN E H， GURSES F， BANKS J，et al. An investigation into reservoir NOM reduction by UV photolysis and advanced oxidation processes［J］. Chemosphere，2006，65（7）：1113-1119. doi:10.1016/j.chemosphere.2006.04.041
[37]	LIU Zhi， LIN Yili， XU Bin，et al. Degradation of diiodoacetamide in water by UV/chlorination：Kinetics，efficiency，influence factors and toxicity evaluation［J］. Chemosphere，2020，240：124761. doi:10.1016/j.chemosphere.2019.124761

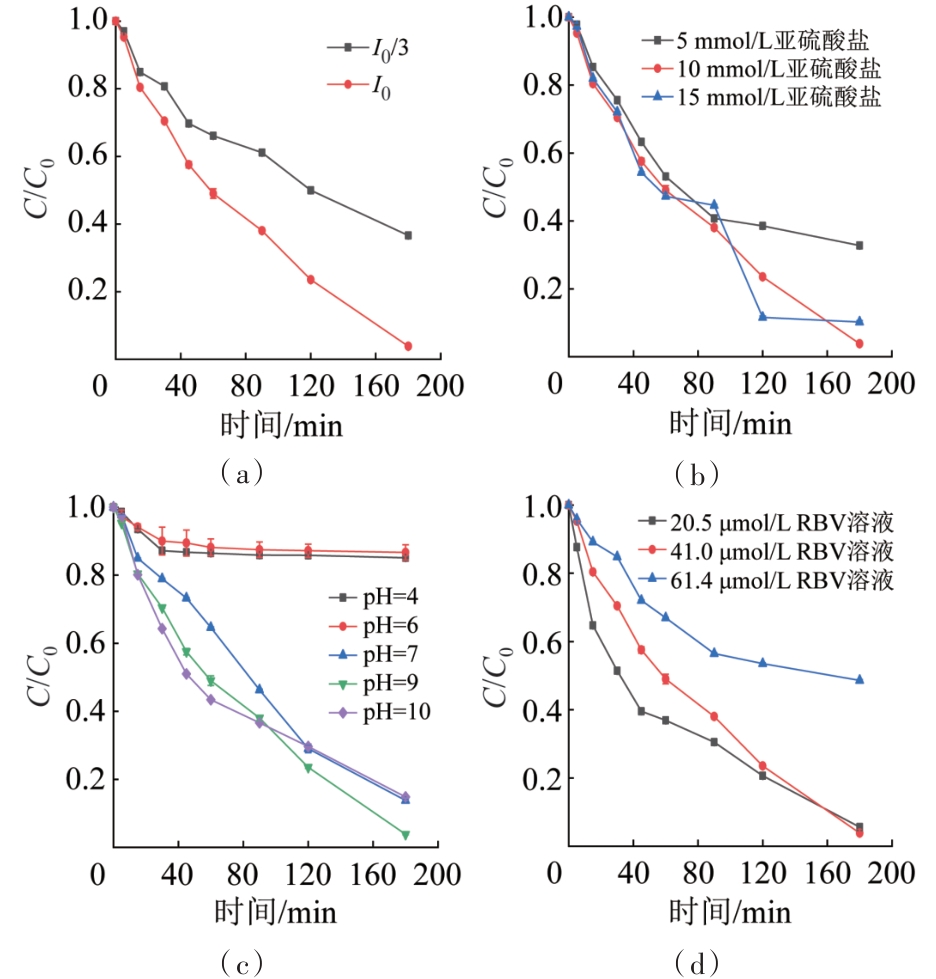

影响因素	参数设置	其他反应条件
溶液pH	4、6、7、9、10	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、辐照度I ₀
RBV初始浓度	20.5、41.0、61.4 μmol/L	［SO₃ ^2-］₀=10 mmol/L、pH=9、辐照度I ₀
亚硫酸盐浓度	5、10、15 mmol/L	［RBV］₀=41.0 μmol/L、pH=9、辐照度I ₀
光强	I ₀/3、I ₀	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、pH=9

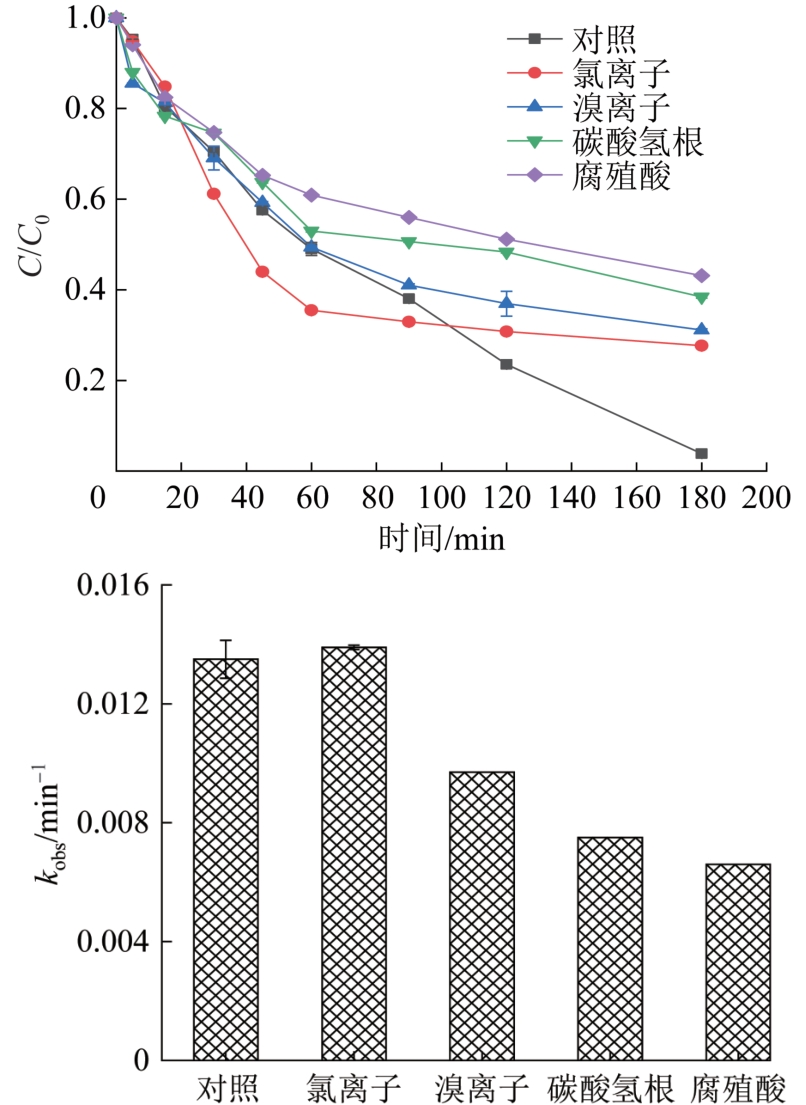

共存物质	［HCO₃ ^-］=2 mmol/L、［Cl^-］=2 mmol/L、［Br^-］=2 mmol/L、［HA］=5 mg/L	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、pH=9、辐照度I ₀

影响因素	参数设置	其他反应条件
溶液pH	4、6、7、9、10	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、辐照度I ₀
RBV初始浓度	20.5、41.0、61.4 μmol/L	［SO₃ ^2-］₀=10 mmol/L、pH=9、辐照度I ₀
亚硫酸盐浓度	5、10、15 mmol/L	［RBV］₀=41.0 μmol/L、pH=9、辐照度I ₀
光强	I ₀/3、I ₀	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、pH=9
共存物质	［HCO₃ ^-］=2 mmol/L、［Cl^-］=2 mmol/L、［Br^-］=2 mmol/L、［HA］=5 mg/L	［RBV］₀=41.0 μmol/L、［SO₃ ^2-］₀=10 mmol/L、pH=9、辐照度I ₀

降解方法	反应条件	RBV降解率/%	反应时间/h	K _obs/min^-1	参考文献
Fe（Ⅵ）+乙酰丙酮（AA）	［Fe（Ⅵ）］₀=1.660 mmol/L、［AA］₀=0.415 mmol/L、［RBV］₀=41.5 μmol/L、pH=9	≈80	2	0.996	〔21〕
Fe（Ⅵ）	［Fe（Ⅵ）］₀=83 μmol/L、［RBV］₀=41.5 μmol/L、pH=8	14.2	2		〔22〕
O₃/PMS	［O₃］₀=0.025 mmol/L、［PMS］₀=0.025 mmol/L、［RBV］₀=10 μmol/L、pH=7	≈50	0.25	25.92	〔23〕
Cl₂	［RBV］₀=5 mg/L、［自由氯］=5 mg/L	>97	24		〔24〕
UV/NaClO/TEMPO	［RBV］₀=10 mg/L、［自由氯］=42 μmol/L、［TEMPO］₀=0.1 μmol/L、pH=7	≈15	1/6	0.015 4	〔25〕
UV/H₂O₂	［H₂O₂］₀=200 μmol/L、［RBV］₀=1 μmol/L、pH=7	≈80	1.5		〔26〕
UV/TiO₂	［RBV］₀=1 μmol/L、［TiO₂］₀=200 μmol/L	≈60	1/3		〔27〕
VUV/亚硫酸盐	［Na₂SO₃］₀=10 mmol/L、［RBV］₀=41.0 μmol/L	96.2	3	0.013 5	本研究

降解方法	反应条件	RBV降解率/%	反应时间/h	K _obs/min^-1	参考文献
Fe（Ⅵ）+乙酰丙酮（AA）	［Fe（Ⅵ）］₀=1.660 mmol/L、［AA］₀=0.415 mmol/L、［RBV］₀=41.5 μmol/L、pH=9	≈80	2	0.996	〔21〕
Fe（Ⅵ）	［Fe（Ⅵ）］₀=83 μmol/L、［RBV］₀=41.5 μmol/L、pH=8	14.2	2		〔22〕
O₃/PMS	［O₃］₀=0.025 mmol/L、［PMS］₀=0.025 mmol/L、［RBV］₀=10 μmol/L、pH=7	≈50	0.25	25.92	〔23〕
Cl₂	［RBV］₀=5 mg/L、［自由氯］=5 mg/L	>97	24		〔24〕
UV/NaClO/TEMPO	［RBV］₀=10 mg/L、［自由氯］=42 μmol/L、［TEMPO］₀=0.1 μmol/L、pH=7	≈15	1/6	0.015 4	〔25〕
UV/H₂O₂	［H₂O₂］₀=200 μmol/L、［RBV］₀=1 μmol/L、pH=7	≈80	1.5		〔26〕
UV/TiO₂	［RBV］₀=1 μmol/L、［TiO₂］₀=200 μmol/L	≈60	1/3		〔27〕
VUV/亚硫酸盐	［Na₂SO₃］₀=10 mmol/L、［RBV］₀=41.0 μmol/L	96.2	3	0.013 5	本研究

体系	C/C ₀	V/L	t/min	P/kW	亚硫酸盐消耗量/（mmol·L^-1）	EE/O_VUV/（kW·h·m^-3）	EE/O_亚硫酸盐/（kW·h·m^-3）	EE/O_总/（kW·h·m^-3）
VUV/亚硫酸盐	0.1	3	180	0.01	10	10	7.455	17.455
VUV	0.1	3	240	0.01	0	13.333	0	13.333
