Research progress on selective removal and resource recovery for heavy metals from wastewater

doi:10.19965/j.cnki.iwt.2022-1137

Abstract

Key words: heavy metals, adsorption, electrodeposition, selectivity, resourceization

CLC Number:

X703

Ziwen CHANG, Penghui SHAO, Jitao CHEN, Liming YANG, Lili FANG, Jiachuang SHAO, Dewei LI, Xubiao LUO. Research progress on selective removal and resource recovery for heavy metals from wastewater[J]. Industrial Water Treatment, 2023, 43(7): 1-13.

畅子雯, 邵鹏辉, 陈冀陶, 杨利明, 方俐俐, 邵家创, 李德伟, 罗旭彪. 废水中重金属的选择性去除与资源化回收研究进展[J]. 工业水处理, 2023, 43(7): 1-13.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2022-1137

https://www.iwt.cn/EN/Y2023/V43/I7/1

Figures/Tables 8

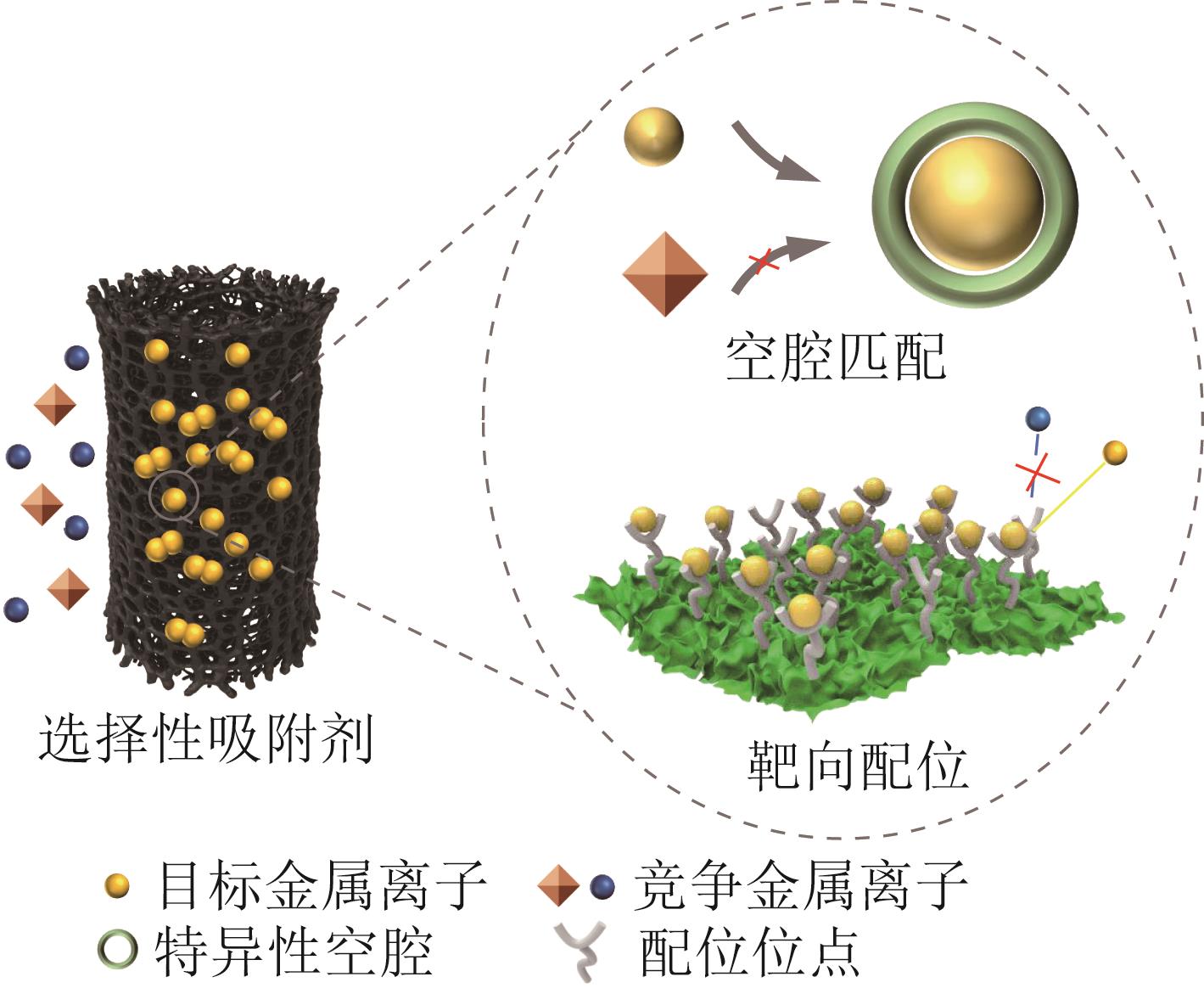

Fig. 1 Selective adsorption mechanism of adsorbent for heavy metal ions

Fig. 2 The construction of ion imprinting adsorbents

Table 1 Ion imprinting adsorbents and their selective adsorption performance

吸附剂	目标离子	平衡吸附量/（mg·g^-1）	共存离子	吸附系数/（L·g^-1）	参考文献
Ag（Ⅰ）-IIM	Ag（Ⅰ）	345.2	Pb（Ⅱ）、Cu（Ⅱ）、K（Ⅰ）	0.41	〔13〕
Cd-IIPs	Cd（Ⅱ）	65.5	Zn（Ⅱ）、Ni（Ⅱ）、Cu（Ⅱ）、Co（Ⅱ）	0.14	〔14〕
QAPs	Cr（Ⅵ）	211.8	SO₄ ^2-、NO₃ ^-、PO₄ ^3-	7.5	〔15〕
POPD-CoFe₂O₄	Cu（Ⅱ）	114.2	Cd（Ⅱ）、Fe（Ⅲ）、Zn（Ⅱ）		〔16〕
Cu（Ⅱ）-IIF	Cu（Ⅱ）	7.6	Cu（Ⅱ）、Zn（Ⅱ）、Ni（Ⅱ）		〔17〕
Hg-PMTF	Hg（Ⅱ）	360.5	Pb（Ⅱ）、Cd（Ⅱ）、Cu（Ⅱ）、Ni（Ⅱ）	964.78	〔18〕
Straw@IIP	La（Ⅲ）	125	Th（Ⅳ）、Ce（Ⅲ）、Nd（Ⅲ）、Zr（Ⅳ）	2.820	〔19〕
CoFe₂O₄@MPS	Ni（Ⅱ）	41.95	Zn（Ⅱ）、Cd（Ⅱ）、Cu（Ⅱ）	0.602	〔20〕
IIPs	Ni（Ⅱ）	51.62	Pb（Ⅱ）、Cu（Ⅱ）	7.33	〔21〕
IIP-MMT	Pb（Ⅱ）	201.84	Zn（Ⅱ）、Cd（Ⅱ）、Cu（Ⅱ）、Sn（Ⅳ）、Mn（Ⅱ）	0.254	〔22〕
Fe₃O₄@SiO₂@CNFs	Sb（Ⅲ）	47.4	Al（Ⅲ）、Cd（Ⅱ）、Cu（Ⅱ）、Sn（Ⅳ）、Zn（Ⅱ）	0.02	〔23〕

Fig. 3 Adsorption mechanism of specific coordination adsorbents

Table 2 Specific coordination adsorbents and their selective adsorption performance

吸附剂	目标离子	平衡吸附量/（mg·g^-1）	配位官能团	吸附系数/（L·g^-1）	参考文献
COF-SH	Ag（Ⅰ）	609.89	—SH	318.31	〔29〕
Fe₃O₄@SiO₂@TiO₂-IIP	Ag（Ⅰ）	35.48	—SH	29.96	〔30〕
PEI-LS	Au（Ⅲ）	313	单宁酸	1 104	〔31〕
OMS-TE-SH	Au（Ⅲ）	215.88	—SH	352.4	〔32〕
AHPP-MOF	Pd（Ⅱ）	98.96	C $̿$ N—OH	95.15	〔33〕
UiO-66-NH₂	Pb（Ⅱ）	200.17	—NH₂/—SH	850.43	〔34〕
Mag@silica-CIP-2	Co（Ⅱ）	78.9	—NH₂	1.92	〔35〕
壳聚糖	Ni（Ⅱ）	87.45	—NH₂		〔36〕
AAMA	Cd（Ⅱ）	175	—COOH O $̿$ C—NH₂		〔37〕
UB5	Cr（Ⅵ）	28.3	含O、N官能团		〔38〕
Cu-MG	Sb（V）	264.1	—OH	0.96	〔39〕

Table 2 Specific coordination adsorbents and their selective adsorption performance

吸附剂	目标离子	平衡吸附量/（mg·g^-1）	配位官能团	吸附系数/（L·g^-1）	参考文献
COF-SH	Ag（Ⅰ）	609.89	—SH	318.31	〔29〕
Fe₃O₄@SiO₂@TiO₂-IIP	Ag（Ⅰ）	35.48	—SH	29.96	〔30〕
PEI-LS	Au（Ⅲ）	313	单宁酸	1 104	〔31〕
OMS-TE-SH	Au（Ⅲ）	215.88	—SH	352.4	〔32〕
AHPP-MOF	Pd（Ⅱ）	98.96	C $̿$ N—OH	95.15	〔33〕
UiO-66-NH₂	Pb（Ⅱ）	200.17	—NH₂/—SH	850.43	〔34〕
Mag@silica-CIP-2	Co（Ⅱ）	78.9	—NH₂	1.92	〔35〕
壳聚糖	Ni（Ⅱ）	87.45	—NH₂		〔36〕
AAMA	Cd（Ⅱ）	175	—COOH O $̿$ C—NH₂		〔37〕
UB5	Cr（Ⅵ）	28.3	含O、N官能团		〔38〕
Cu-MG	Sb（V）	264.1	—OH	0.96	〔39〕

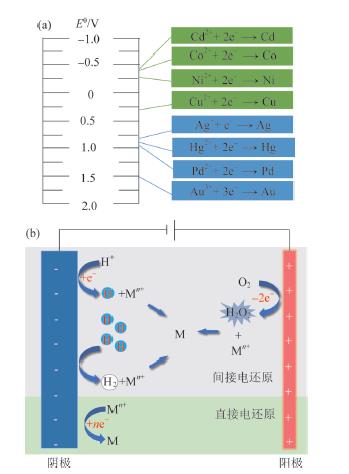

Fig. 4 Standard reduction potentials of different heavy metal ions（a） and mechanism of selective electroreduction deposition（b）

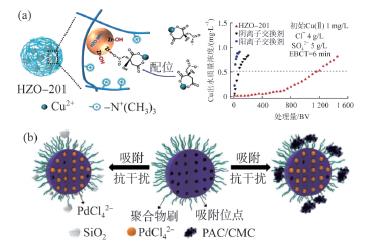

Fig. 5 Adsorption mechanism of HZO-201 to cupric citrate and the treatment effect in fixed bed （a）， and anti-fouling mechanism of PHEMA brush （b）

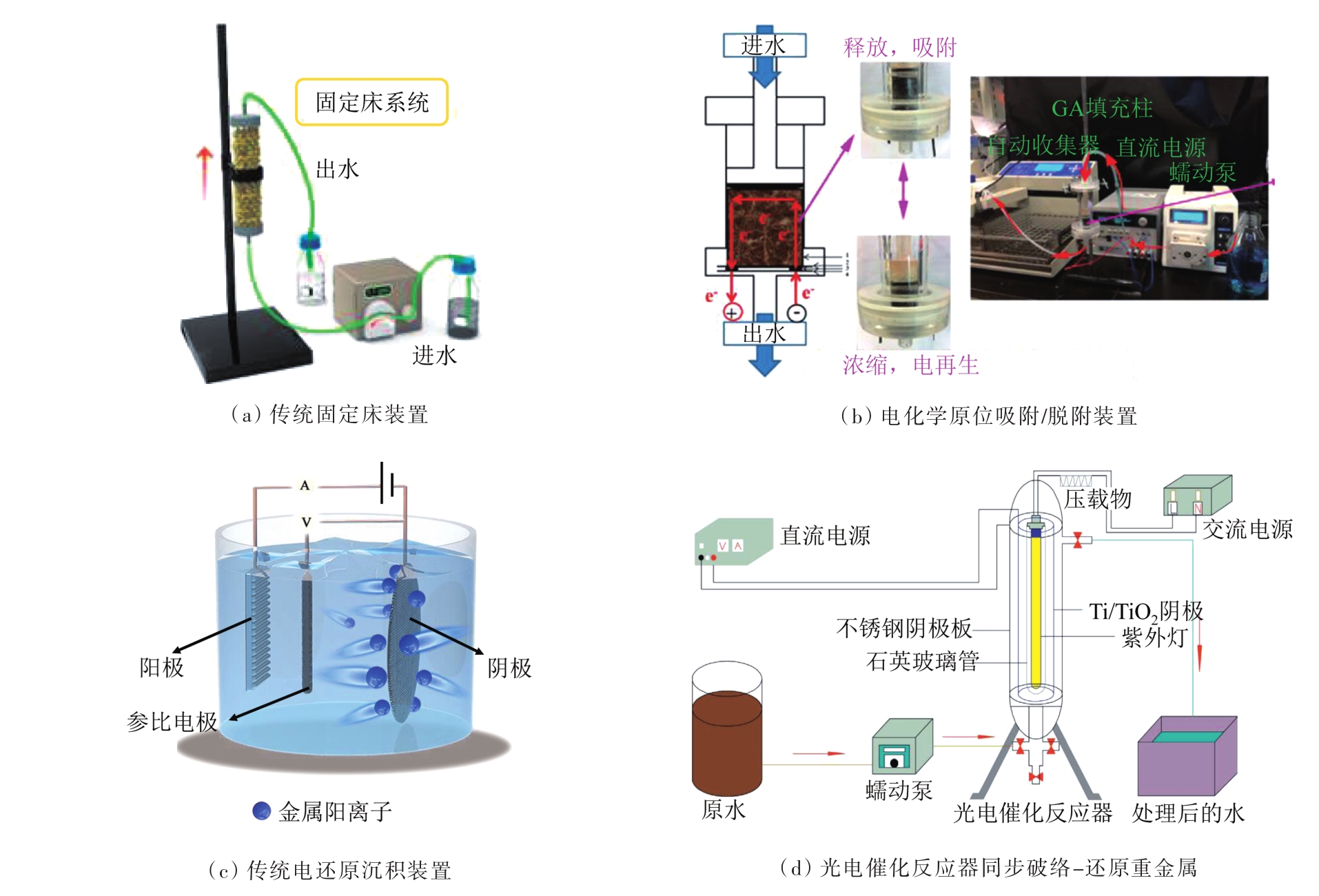

Fig. 6 Reactor design for selective adsorption technology

References 61

1	孙宁，王兆苏，卢然，等. “十三五”重金属污染综合防治思路和对策研究［J］. 环境保护科学，2016，42（2）：1-7.
	SUN Ning， WANG Zhaosu， LU Ran，et al. Study of ideas and countermeasures of comprehensive prevention and control of heavy metal pollution during the 13th five-year plan period［J］. Environmental Protection Science，2016，42（2）：1-7.
2	生态环境部. 关于进一步加强重金属污染防控的意见［J］. 资源再生，2022（3）：54-57. doi:10.3969/j.issn.1673-7776.2022.03.024
	Ministry of Ecology and Environment of the People’s Republic of China. Opinions on further strengthening the prevention and control of heavy metal pollution［J］. Resource Recycling，2022（3）：54-57. doi:10.3969/j.issn.1673-7776.2022.03.024
3	孟郅烨，杜颖. 十四五规划下环保产业发展趋势研究［J］. 资源节约与环保，2021（11）：140-142. doi:10.3969/j.issn.1673-2251.2021.11.045
	MENG Zhiye， DU Ying. Research on the development trend of environmental protection industry under the 14th Five-Year Plan［J］. Resources Economization & Environmental Protection，2021（11）：140-142. doi:10.3969/j.issn.1673-2251.2021.11.045
4	CHEN Quan， ZHENG Jiewei， ZHENG Liuchun，et al. Classical theory and electron-scale view of exceptional Cd（Ⅱ） adsorption onto mesoporous cellulose biochar via experimental analysis coupled with DFT calculations［J］. Chemical Engineering Journal，2018，350：1000-1009. doi:10.1016/j.cej.2018.06.054
5	XU Yaolei， CHEN Jinyi， CHEN Ran，et al. Adsorption and reduction of chromium（Ⅵ） from aqueous solution using polypyrrole/calcium rectorite composite adsorbent［J］. Water Research，2019，160：148-157. doi:10.1016/j.watres.2019.05.055
6	罗相萍，游少鸿，刘崇敏，等. LDHs及其复合材料处理重金属废水的研究进展［J］. 工业水处理，2022，42（2）：51-59.
	LUO Xiangping， YOU Shaohong， LIU Chongmin，et al. Research progress on treatment of heavy metal wastewater by layered double hydroxides and their composites［J］. Industrial Water Treatment，2022，42（2）：51-59.
7	秦笑梅，杨世豪，王恒栋. 聚合物基复合材料去除水中重金属污染的研究进展［J］. 工业水处理，2021，41（11）：16-22.
	QIN Xiaomei， YANG Shihao， WANG Hengdong. Research progress of polymer composites for the removal of heavy metal pollution in water［J］. Industrial Water Treatment，2021，41（11）：16-22.
8	胡俊毅，李仕友，贺俊钦，等. 新型二维材料MXene吸附重金属的研究进展［J］. 工业水处理，2022，42（6）：116-124. doi:10.19965/j.cnki.iwt.2021-0388
	HU Junyi， LI Shiyou， HE Junqin，et al. Research progress of new two-dimensional MXene materials for heavy metals adsorption［J］. Industrial Water Treatment，2022，42（6）：116-124. doi:10.19965/j.cnki.iwt.2021-0388
9	SINGH N B， NAGPAL G， AGRAWAL S，et al. Water purification by using Adsorbents：A Review［J］. Environmental Technology & Innovation，2018，11：187-240. doi:10.1016/j.eti.2018.05.006
10	HU Huiqin， REN Zhong， XI Yu，et al. Insights into the role of cross-linking agents on polymer template effect：A case study of anionic imprinted polymers［J］. Chemical Engineering Journal，2021，420：129611. doi:10.1016/j.cej.2021.129611
11	XI Yu， SHI Hui， LIU Ru，et al. Insights into ion imprinted membrane with a delayed permeation mechanism for enhancing Cd²⁺ selective separation［J］. Journal of Hazardous Materials，2021，416：125772. doi:10.1016/j.jhazmat.2021.125772
12	DU Xiao， ZHANG Hao， HAO Xiaogang，et al. Facile preparation of ion-imprinted composite film for selective electrochemical removal of nickel（Ⅱ） ions［J］. ACS Applied Materials & Interfaces，2014，6（12）：9543-9549. doi:10.1021/am501926u
13	WANG Xiaowei， ZHANG Liang， MA Cailian，et al. Enrichment and separation of silver from waste solutions by metal ion imprinted membrane［J］. Hydrometallurgy，2009，100（1/2）：82-86. doi:10.1016/j.hydromet.2009.10.006
14	LUO Xubiao， XI Yu， YU Haiyan，et al. Capturing cadmium（Ⅱ） ion from wastewater containing solid particles and floccules using ion-imprinted polymers with broom effect［J］. Industrial & Engineering Chemistry Research，2017，56（9）：2350-2358. doi:10.1021/acs.iecr.6b04030
15	FANG Lili， DING Lin， REN Wei，et al. High exposure effect of the adsorption site significantly enhanced the adsorption capacity and removal rate：A case of adsorption of hexavalent chromium by quaternary ammonium polymers（QAPs）［J］. Journal of Hazardous Materials，2021，416：125829. doi:10.1016/j.jhazmat.2021.125829
16	HE Fan， LU Ziyang， SONG Minshan，et al. Selective reduction of Cu²⁺ with simultaneous degradation of tetracycline by the dual channels ion imprinted POPD-CoFe₂O₄ heterojunction photocatalyst［J］. Chemical Engineering Journal，2019，360：750-761. doi:10.1016/j.cej.2018.12.034
17	LIU Weifeng， AN Zhuolin， QIN Lei，et al. Construction of a novel ion imprinted film to remove low concentration Cu²⁺ from aqueous solution［J］. Chemical Engineering Journal，2021，411：128477. doi:10.1016/j.cej.2021.128477
18	MONIER M， ELSAYED N H， ABDEL-LATIF D A. Synthesis and application of ion-imprinted resin based on modified melamine-thiourea for selective removal of Hg（Ⅱ）［J］. Polymer International，2015，64（10）：1465-1474. doi:10.1002/pi.4942
19	WANG Jingjing， WEI Jun， LI Juan. Straw-supported ion imprinted polymer sorbent prepared by surface imprinting technique combined with AGET ATRP for selective adsorption of La³⁺ ions［J］. Chemical Engineering Journal，2016，293：24-33. doi:10.1016/j.cej.2016.02.051
20	ZHOU Guangzhu， WU Sai， ZHOU Runsheng，et al. Synthesis of ion imprinted magnetic nanocomposites and application for novel selective recycling of Ni（Ⅱ）［J］. Journal of Cleaner Production，2021，314：127999. doi:10.1016/j.jclepro.2021.127999
21	HE Junnan， SHANG Hongzhou， ZHANG Xing，et al. Synthesis and application of ion imprinting polymer coated magnetic multi-walled carbon nanotubes for selective adsorption of nickel ion［J］. Applied Surface Science，2018，428：110-117. doi:10.1016/j.apsusc.2017.09.123
22	ZHU Chao， HU Tianjue， TANG Lin，et al. Highly efficient extraction of lead ions from smelting wastewater，slag and contaminated soil by two-dimensional montmorillonite-based surface ion imprinted polymer absorbent［J］. Chemosphere，2018，209：246-257. doi:10.1016/j.chemosphere.2018.06.105
23	JAKAVULA S， BIATA N R， DIMPE K M，et al. Magnetic ion imprinted polymers（MIIPs） for selective extraction and preconcentration of Sb（Ⅲ） from environmental matrices［J］. Polymers，2021，14（1）：21. doi:10.3390/polym14010021
24	AYERS P W， PARR R G， PEARSON R G. Elucidating the hard/soft acid/base principle：A perspective based on half-reactions［J］. The Journal of Chemical Physics，2006，124（19）：194107. doi:10.1063/1.2196882
25	JANSONE-POPOVA S， MOINEL A， SCHOTT J A，et al. Guanidinium-based ionic covalent organic framework for rapid and selective removal of toxic Cr（Ⅵ） oxoanions from water［J］. Environmental Science & Technology，2019，53（2）：878-883. doi:10.1021/acs.est.8b04215
26	KIM Y， LIN Zhou， JEON I，et al. Polyaniline nanofiber electrodes for reversible capture and release of mercury（Ⅱ） from water［J］. Journal of the American Chemical Society，2018，140（43）：14413-14420. doi:10.1021/jacs.8b09119
27	LIU Xiang， YANG Liming， LUO Xubiao，et al. A novel non-imprinted adsorbent with superior selectivity towards high-performance capture of Ag（Ⅰ）［J］. Chemical Engineering Journal，2018，348：224-231. doi:10.1016/j.cej.2018.04.179
28	SUN D T， PENG Li， REEDER W S，et al. Rapid，selective heavy metal removal from water by a metal-organic framework/polydopamine composite［J］. ACS Central Science，2018，4（3）：349-356. doi:10.1021/acscentsci.7b00605
29	PAN Xiaohan， ZU Jianhua， DIAO Jingjie，et al. Rapid and selective recovery of Ag（Ⅰ） from simulative electroplating effluents by sulfydryl-rich covalent organic framework（COF-SH） with high adsorption capacity［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2022，648：129156. doi:10.1016/j.colsurfa.2022.129156
30	YIN Xiaocui， LONG Jian， XI Yu，et al. Recovery of silver from wastewater using a new magnetic photocatalytic ion-imprinted polymer［J］. ACS Sustainable Chemistry & Engineering，2017，5（3）：2090-2097. doi:10.1021/acssuschemeng.6b01871
31	CHOUDHARY B C， PAUL D， BORSE A U，et al. Surface functionalized biomass for adsorption and recovery of gold from electronic scrap and refinery wastewater［J］. Separation and Purification Technology，2018，195：260-270. doi:10.1016/j.seppur.2017.12.024
32	KIM S， PARK S， HAN S，et al. Silanol-rich ordered mesoporous silica modified thiol group for enhanced recovery performance of Au（Ⅲ） in acidic leachate solution［J］. Chemical Engineering Journal，2018，351：1027-1037. doi:10.1016/j.cej.2018.06.136
33	TANG Jiali， ZHAO Jiling， WANG Shixing，et al. Pre-modification strategy to prepare a novel Zr-based MOF for selective adsorption of Palladium（Ⅱ） from solution［J］. Chemical Engineering Journal，2021，407：127223. doi:10.1016/j.cej.2020.127223
34	TANG Jiali， CHEN Yingbi， ZHAO Minghu，et al. Phenylthiosemicarbazide-functionalized UiO-66-NH₂ as highly efficient adsorbent for the selective removal of lead from aqueous solutions［J］. Journal of Hazardous Materials，2021，413：125278. doi:10.1016/j.jhazmat.2021.125278
35	LEE H K， CHOI J W， CHOI S J. Magnetic ion-imprinted polymer based on mesoporous silica for selective removal of Co（Ⅱ） from radioactive wastewater［J］. Separation Science and Technology，2021，56（11）：1842-1852. doi:10.1080/01496395.2020.1797798
36	NICOMEL N R， OTERO-GONZALEZ L， FOLENS K，et al. Selective and enhanced nickel adsorption from sulfate- and calcium-rich solutions using chitosan［J］. Separation and Purification Technology，2021，276：119283. doi:10.1016/j.seppur.2021.119283
37	LI Zuyu， GUO Shuangzhen， LI Da，et al. Selective adsorption behavior of Cd²⁺ imprinted acrylamide-crosslinked-poly（alginic acid） magnetic polymers：Fabrication，characterization，adsorption performance and mechanism［J］. Water Science and Technology，2021，83（2）：449-462. doi:10.2166/wst.2020.593
38	ZHAO Nan， ZHAO Chuanfang， TSANG D C W，et al. Microscopic mechanism about the selective adsorption of Cr（Ⅵ） from salt solution on O-rich and N-rich biochars［J］. Journal of Hazardous Materials，2021，404：124162. doi:10.1016/j.jhazmat.2020.124162
39	YOU Deng， MIN Xiaoye， LIU Lingling，et al. New insight on the adsorption capacity of metallogels for antimonite and antimonate removal：From experimental to theoretical study［J］. Journal of Hazardous Materials，2018，346：218-225. doi:10.1016/j.jhazmat.2017.12.035
40	KANANI N. Electrodeposition considered at the atomistic level［J］. Electroplating，2004：141-177. doi:10.1016/b978-185617451-0/50005-1
41	LIU Chong， WU Tong， HSU P C，et al. Direct/alternating current electrochemical method for removing and recovering heavy metal from water using graphene oxide electrode［J］. ACS Nano，2019，13（6）：6431-6437. doi:10.1021/acsnano.8b09301
42	KIM K， RAYMOND D， CANDEAGO R，et al. Selective cobalt and nickel electrodeposition for lithium-ion battery recycling through integrated electrolyte and interface control［J］. Nature Communications，2021，12：6554. doi:10.1038/s41467-021-26814-7
43	SU Xiao， KUSHIMA A， HALLIDAY C，et al. Electrochemically-mediated selective capture of heavy metal chromium and arsenic oxyanions from water［J］. Nature Communications，2018，9：4701. doi:10.1038/s41467-018-07159-0
44	YANG Liming， YI Genping， WANG Bo，et al. Atomic H* enhanced electrochemical recovery towards high-value-added metallic Sb from complex mine flotation wastewater［J］. Resources，Conservation and Recycling，2022，178：106020. doi:10.1016/j.resconrec.2021.106020
45	JIN Wei， DU Hao， YAN Kai，et al. Improved electrochemical Cr（Ⅵ） detoxification by integrating the direct and indirect pathways［J］. Journal of Electroanalytical Chemistry，2016，775：325-328. doi:10.1016/j.jelechem.2016.06.030
46	YIN Xiaocui， SHAO Penghui， DING Lin，et al. Protonation of rhodanine polymers for enhancing the capture and recovery of Ag⁺ from highly acidic wastewater［J］. Environmental Science：Nano，2019，6（11）：3307-3315. doi:10.1039/c9en00833k
47	ZHANG Xiaolin， HUANG Ping， ZHU Siyao，et al. Nanoconfined hydrated zirconium oxide for selective removal of Cu（Ⅱ）-carboxyl complexes from high-salinity water via ternary complex formation［J］. Environmental Science & Technology，2019，53（9）：5319-5327. doi:10.1021/acs.est.9b00745
48	ZHAO Xu， GUO Libao， HU Chengzhi，et al. Simultaneous destruction of Nickel（Ⅱ）-EDTA with TiO₂/Ti film anode and electrodeposition of nickel ions on the cathode［J］. Applied Catalysis B：Environmental，2014，144：478-485. doi:10.1016/j.apcatb.2013.07.038
49	YU Haiyan， SHAO Penghui， FANG Lili，et al. Palladium ion-imprinted polymers with PHEMA polymer brushes：Role of grafting polymerization degree in anti-interference［J］. Chemical Engineering Journal，2019，359：176-185. doi:10.1016/j.cej.2018.11.149
50	CHANG Ziwen， YANG Liming， ZHANG Kai，et al. Weak electric field enabling enhanced selectivity of tannic acid-graphene aerogels for Pb²⁺ harvesting from wastewater［J］. Chemical Engineering Journal，2021，416：129144. doi:10.1016/j.cej.2021.129144
51	WANG Dong， SONG Jianan， WEN Jun，et al. Uranium extraction：Significantly enhanced uranium extraction from seawater with mass produced fully amidoximated nanofiber adsorbent［J］. Advanced Energy Materials，2018，8（33）：1870143. doi:10.1002/aenm.201870143
52	WU Tong， LIU Chong， KONG Biao，et al. Amidoxime-functionalized macroporous carbon self-refreshed electrode materials for rapid and high-capacity removal of heavy metal from water［J］. ACS Central Science，2019，5（4）：719-726. doi:10.1021/acscentsci.9b00130
53	FU Kaixing， LIU Xia， LV Chunyu，et al. Superselective Hg（Ⅱ） removal from water using a thiol-laced MOF-based sponge monolith：Performance and mechanism［J］. Environmental Science & Technology，2022，56（4）：2677-2688. doi:10.1021/acs.est.1c07480
54	WANG Zhongying， TU Qingsong，SIM A，et al. Superselective removal of lead from water by two-dimensional MoS₂ nanosheets and layer-stacked membranes［J］. Environmental Science & Technology，2020，54（19）：12602-12611. doi:10.1021/acs.est.0c02651
55	PAN Meilan， SHAN Chao， ZHANG Xiaolin，et al. Environmentally friendly in situ regeneration of graphene aerogel as a model conductive adsorbent［J］. Environmental Science & Technology，2018，52（2）：739-746. doi:10.1021/acs.est.7b02795
56	LIU Tian， YUAN Jili， ZHANG Bo，et al. Removal and recovery of uranium from groundwater using direct electrochemical reduction method：Performance and implications［J］. Environmental Science & Technology，2019，53（24）：14612-14619. doi:10.1021/acs.est.9b06790
57	DOULAKAS L， NOVY K， STUCKI S，et al. Recovery of Cu，Pb，Cd and Zn from synthetic mixture by selective electrodeposition in chloride solution［J］. Electrochimica Acta，2000，46（2/3）：349-356. doi:10.1016/s0013-4686(00)00591-0
58	ZHAO Xu， GUO Libao， QU Jiuhui. Photoelectrocatalytic oxidation of Cu-EDTA complex and electrodeposition recovery of Cu in a continuous tubular photoelectrochemical reactor［J］. Chemical Engineering Journal，2014，239：53-59. doi:10.1016/j.cej.2013.10.088
59	WU Caicai， GAO Jing， LIU Youzhi，et al. High-gravity intensified electrodeposition for efficient removal of Cd²⁺ from heavy metal wastewater［J］. Separation and Purification Technology，2022，289：120809. doi:10.1016/j.seppur.2022.120809
60	ZHANG Lingen， XU Zhenming， HE Zhen. Selective recovery of lead and zinc through controlling cathodic potential in a bioelectrochemically-assisted electrodeposition system［J］. Journal of Hazardous Materials，2020，386：121941. doi:10.1016/j.jhazmat.2019.121941
61	SHAO Penghui， ZHOU Xiaoyu， CAO Ying，et al. Understanding role of reactor configuration in electrochemical de complexation of Ni-EDTA via experiments and simulations［J］. Environmental Functional Materials，2022，1（2）：149-159. doi:10.1016/j.efmat.2022.07.001
