Application of MnO  x -CeO  x /BC in electrocatalyzation-ozonation coupled treatment of landfill leachate

doi:10.19965/j.cnki.iwt.2025-0033

Abstract

Abstract:

The biochar catalyst loaded with MnO _x -CeO _x (MnO _x -CeO _x /BC) was prepared by crosslinking-carbonization method. The structure of the catalyst was characterized, and the mechanism and degradation effects of COD, UV₂₅₄ and TOC in the biochemical effluent of landfill leachate under the electrocatalytic-ozone coupling system were investigated. The synthesized MnO _x -CeO _x /BC catalyst exhibited abundant oxygen vacancy formation during the Ce⁴⁺ to Ce³⁺ transition. The Mn-Ce bimetallic synergy further facilitated efficient electron transfer, thereby significantly improved catalytic performance. Moreover, in contrast to the pristine BC support, the catalyst displayed a well-defined rod-like morphology with an enhanced specific surface area and a highly porous structure, which collectively provided ample active sites for efficient pollutant degradation. When the ozone concentration was 8.1 mg/L, the dosage of MnO _x -CeO _x /BC was 60 g/L, the current density was 20 mA/cm², and the initial pH was 7, MnO _x -CeO _x /BC exhibited the best catalytic degradation performance, with the removal rates of COD, UV₂₅₄, and TOC in the biochemical effluent of landfill leachate reaching 86.5%, 92.9%, and 80% within 60 min, respectively. After six consecutive experiments, the removal rates of COD and UV₂₅₄ by MnO _x -CeO _x /BC remained above 70% and 80%, respectively. Additionally, the free radical quenching experiments demonstrated that ·OH was the main active substance during the degradation process of landfill leachate.

Key words: catalytic ozonation, electrocatalysis, MnO _x -CeO _x, biocarbon, biological effluent from landfill leachate

摘要：

通过交联-碳化法制备了负载MnO _x -CeO _x 的生物炭催化剂（MnO _x -CeO _x /BC），对催化剂结构进行表征，并探究了在电催化-臭氧化耦合的体系下，该催化剂对垃圾渗滤液生化出水中COD、UV₂₅₄及TOC的降解效果以及作用机理。合成的MnO _x -CeO _x /BC催化剂在Ce⁴⁺转化为Ce³⁺过程中产生丰富的氧空位，同时Mn-Ce双金属协同效应促进了电子转移，显著提升催化活性。此外，与BC载体相比，该催化剂呈现独特的棒状形貌，具有更高的比表面积和丰富的孔隙结构，为污染物降解提供了充足的活性位点。在臭氧质量浓度为8.1 mg/L，MnO _x -CeO _x /BC投加量为60 g/L，电流密度为20 mA/cm²和初始pH为7时，MnO _x -CeO _x /BC具有最佳的催化降解性能，60 min内对垃圾渗滤液生化出水中的COD、UV₂₅₄、TOC去除率分别达到了86.5%、92.9%、80%。在经过6次连续实验后，MnO _x -CeO _x /BC对COD、UV₂₅₄的去除率分别保持在70%、80%以上。此外，自由基猝灭实验表明·OH是该工艺处理垃圾渗滤液过程中主要的活性物质。

关键词: 催化臭氧氧化, 电催化, MnO _x -CeO _x, 生物炭, 垃圾渗滤液生化出水

CLC Number:

X703.1

Shanshan YU, Fanrong ZHOU, Jun JIA, Fan PAN, Yunqing ZHU. Application of MnO _x -CeO _x /BC in electrocatalyzation-ozonation coupled treatment of landfill leachate[J]. Industrial Water Treatment, 2025, 45(12): 184-197.

余姗姗, 周凡嵘, 贾军, 潘凡, 朱云庆. MnO _x -CeO _x /BC在电催化-臭氧化耦合处理垃圾渗滤液中的应用[J]. 工业水处理, 2025, 45(12): 184-197.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2025-0033

https://www.iwt.cn/EN/Y2025/V45/I12/184

Figures/Tables 19

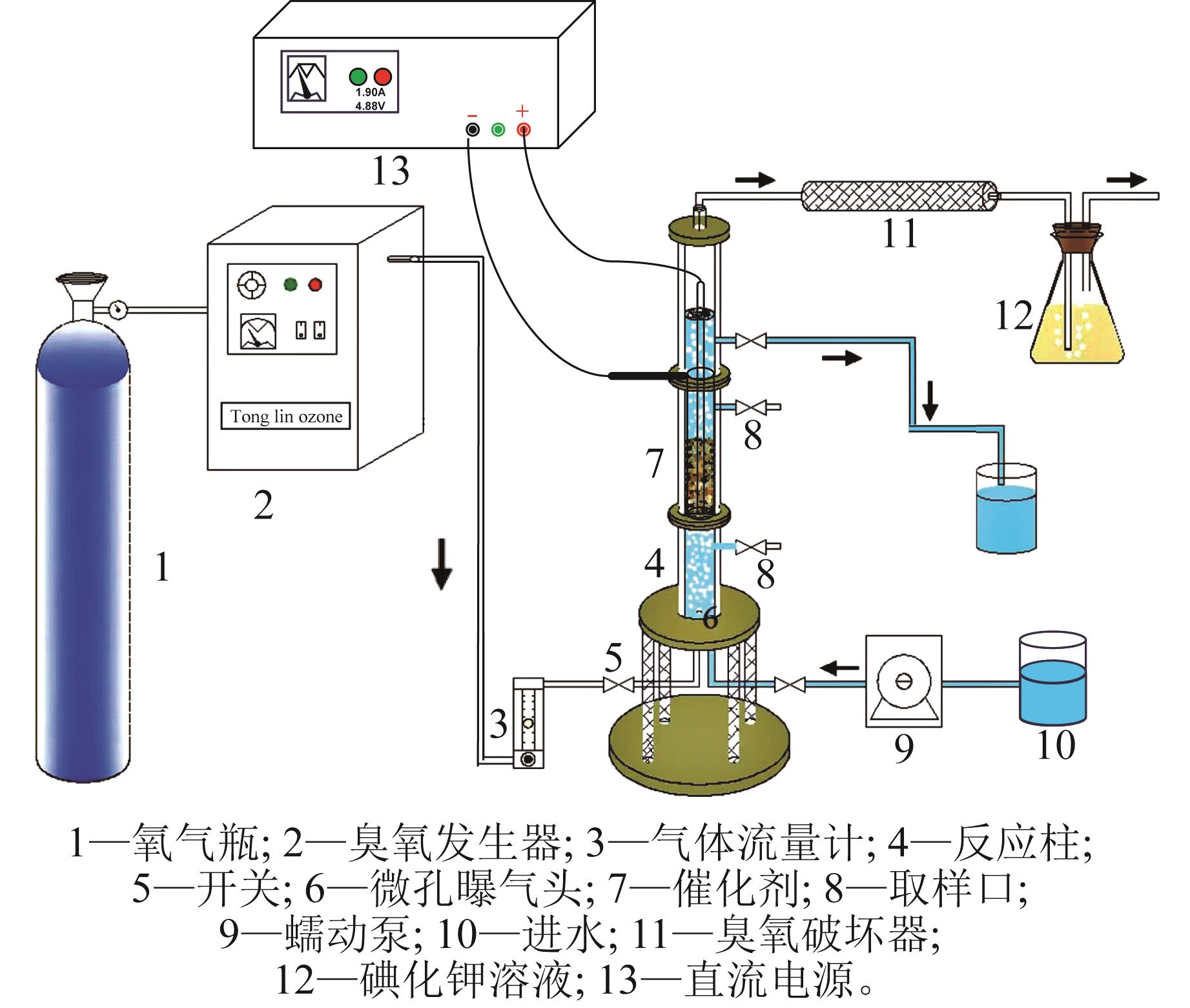

Fig.1 Electrocatalytic-ozonation integrated reactor system

Table 1 Water quality index of ultrafiltration water of landfill leachate

项目

COD/

（mg⋅L^-1）

UV₂₅₄

TOC/

（mg⋅L^-1）

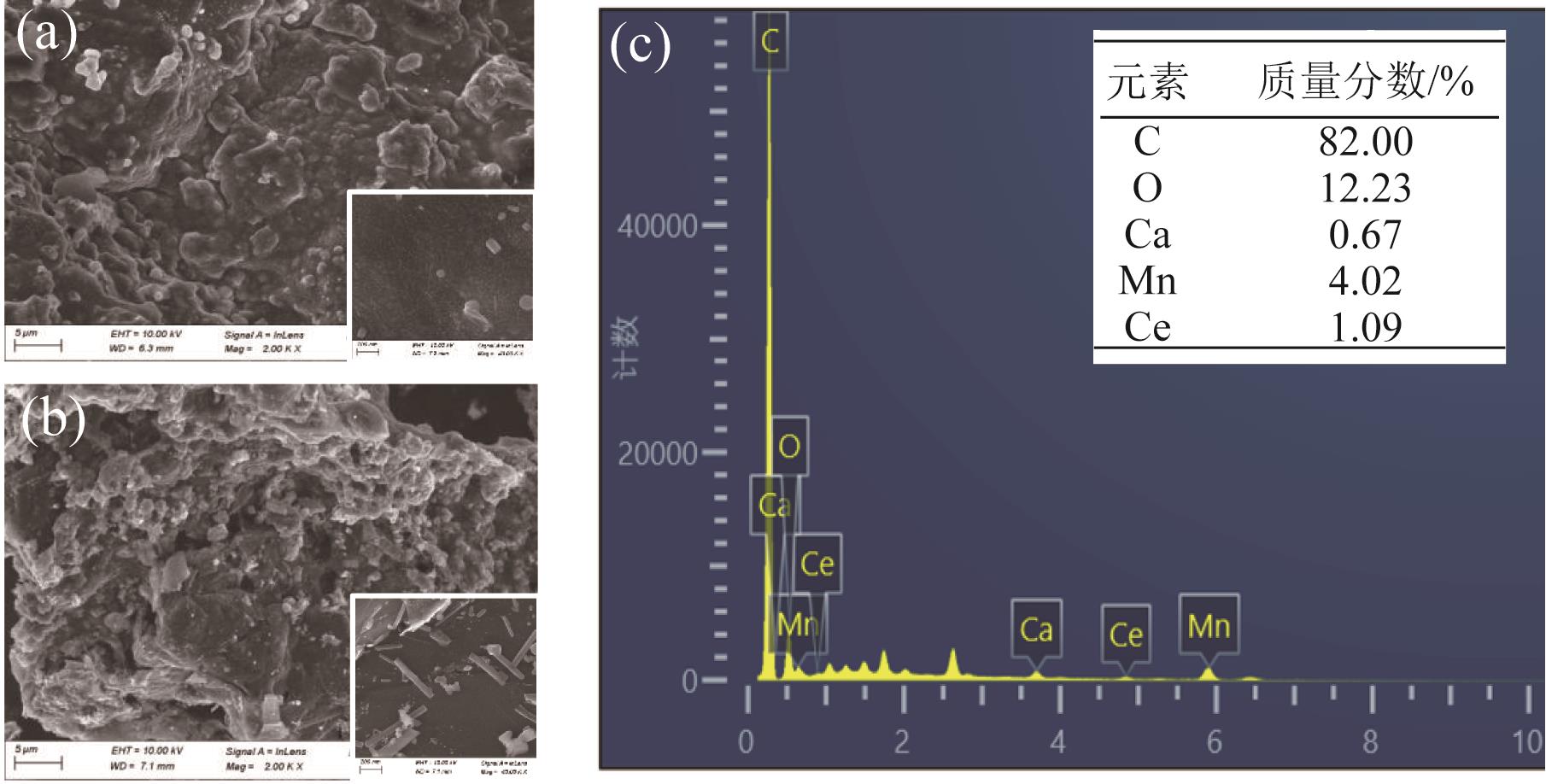

Fig.2 SEM（a-b）of BC and MnO _x -CeO _x /BC and EDS（c） of MnO _x -CeO _x /BC

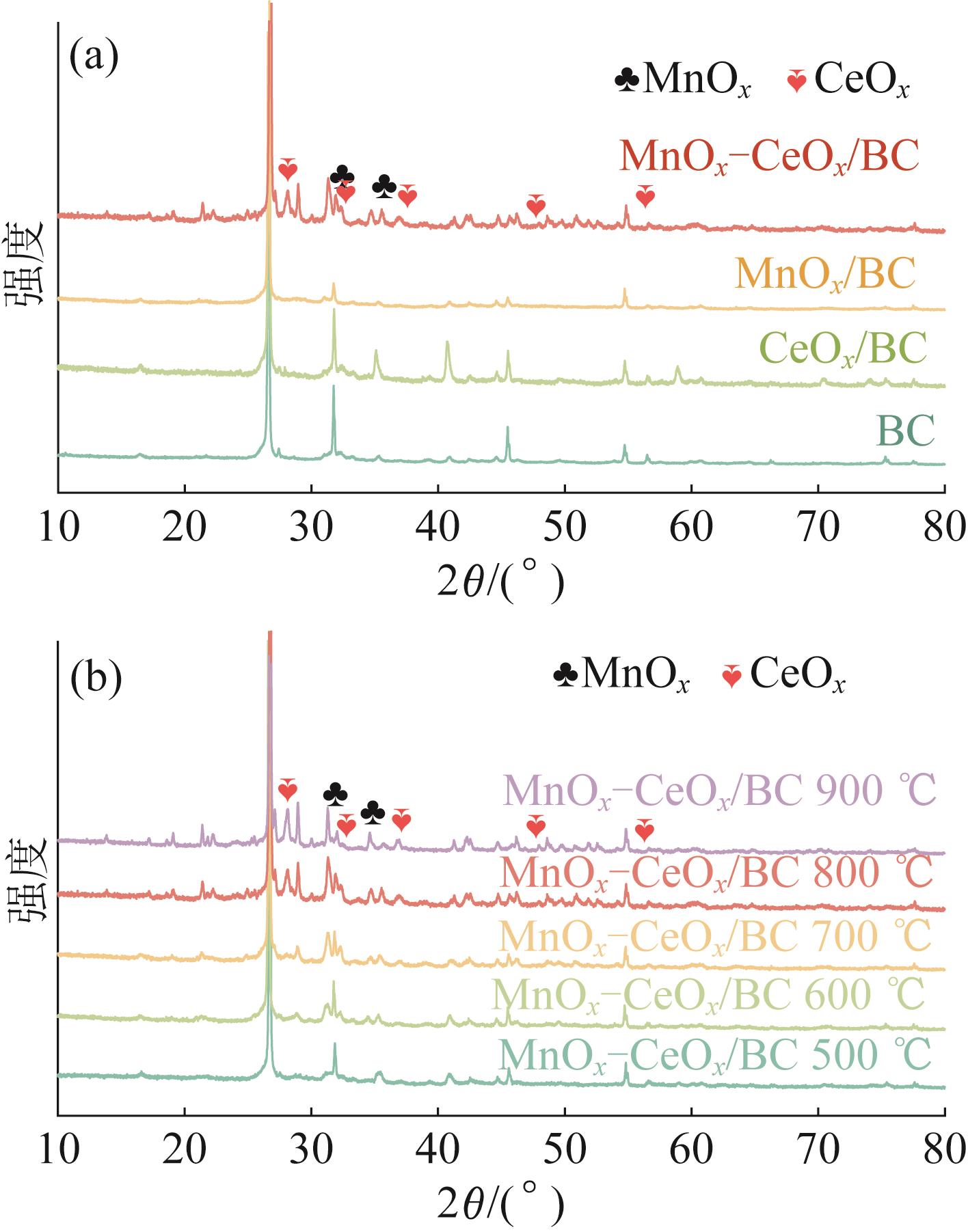

Fig.3 XRD spectra of BC，MnO _x /BC，CeO _x /BC，MnO _x -CeO _x /BC（a）and MnO _x -CeO _x /BC at 500-900 ℃（b）

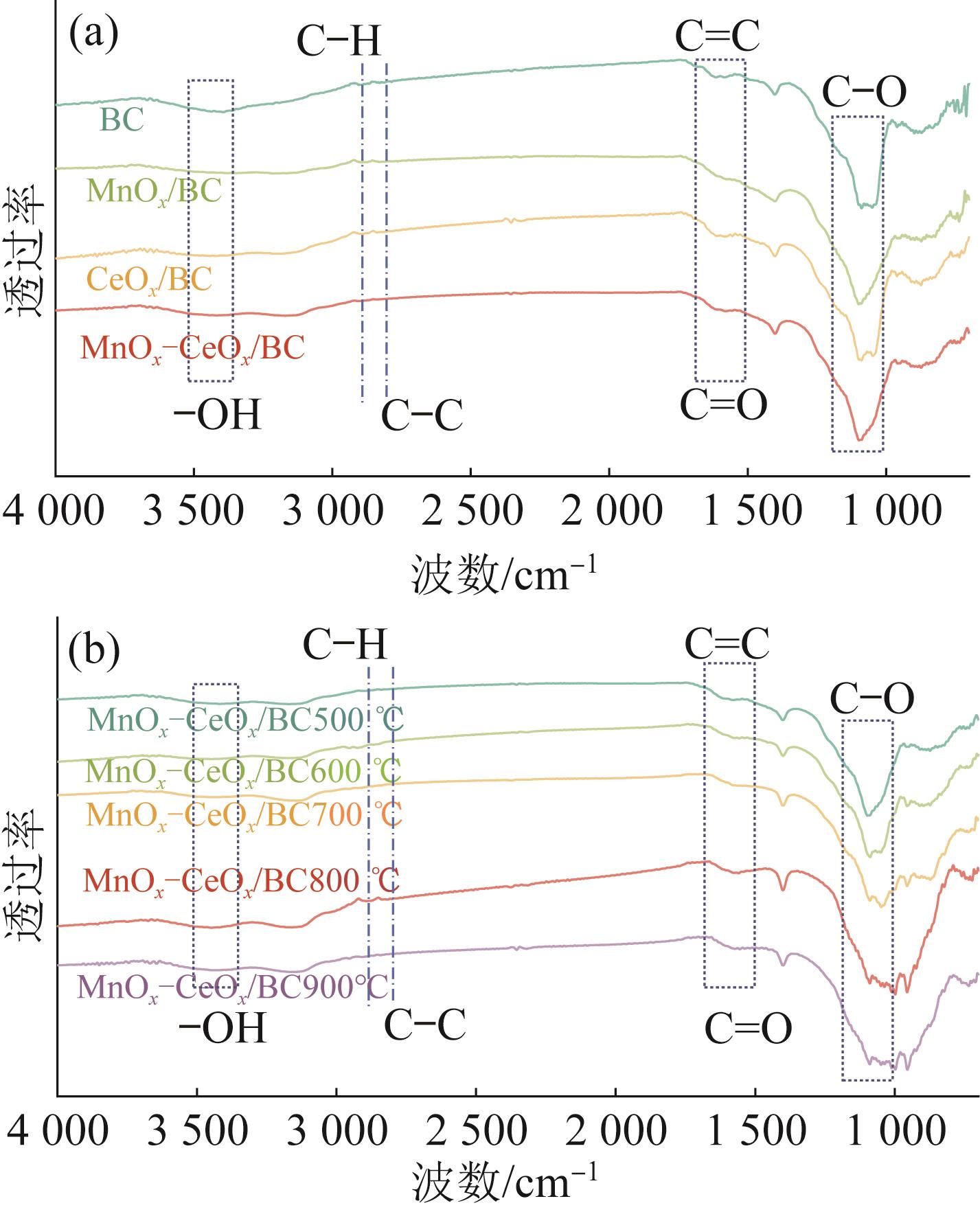

Fig.4 FTIR spectra of BC，MnO _x /BC，CeO _x /BC，MnO _x -CeO _x /BC（a）and MnO _x -CeO _x /BC at 500-900 ℃（b）

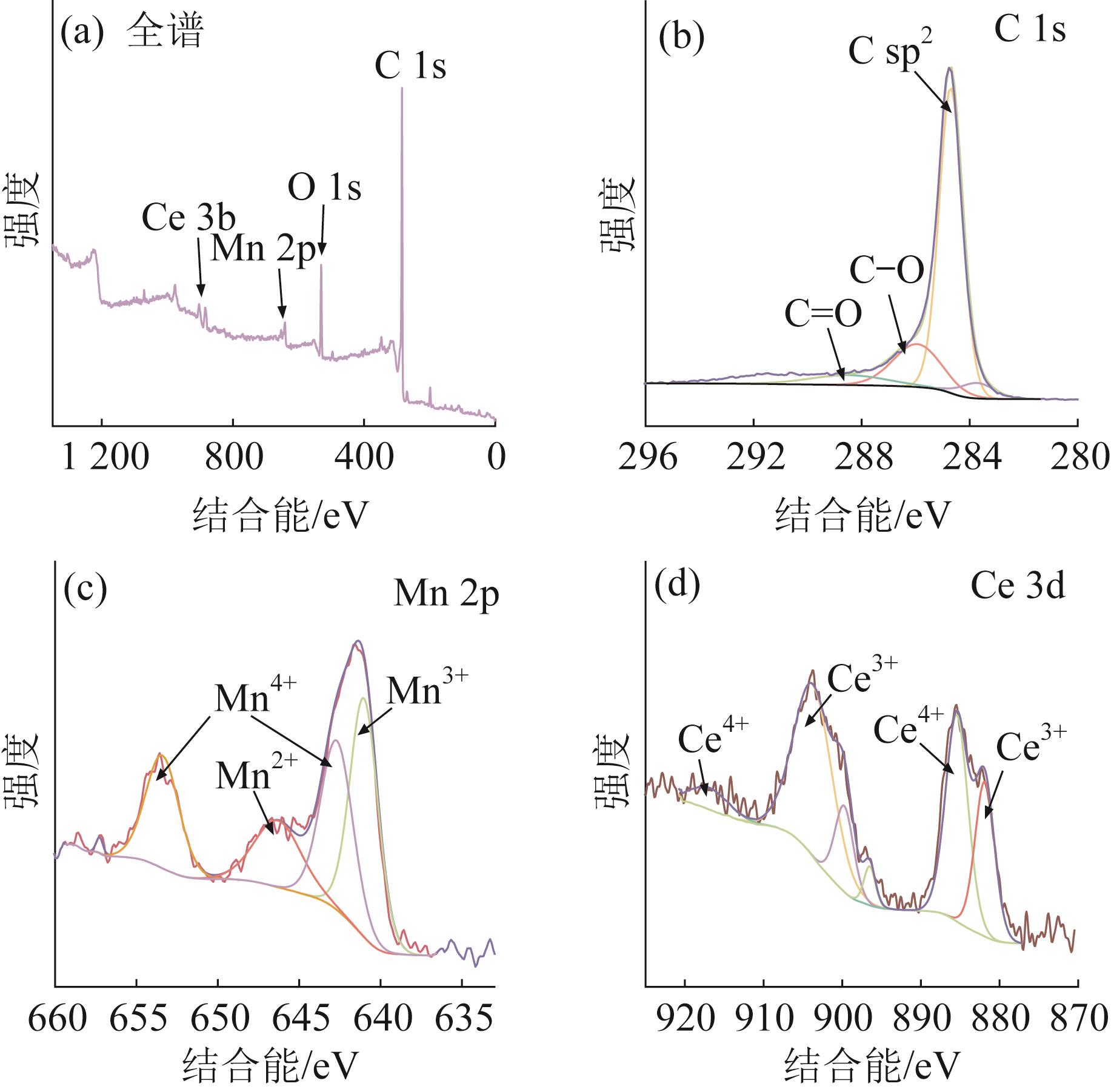

Fig.5 XPS full spectrum of MnO _x -CeO _x /BC（a） and XPS fine spectrum of C 1s（b），Mn 2p（c），Ce 3d（d）

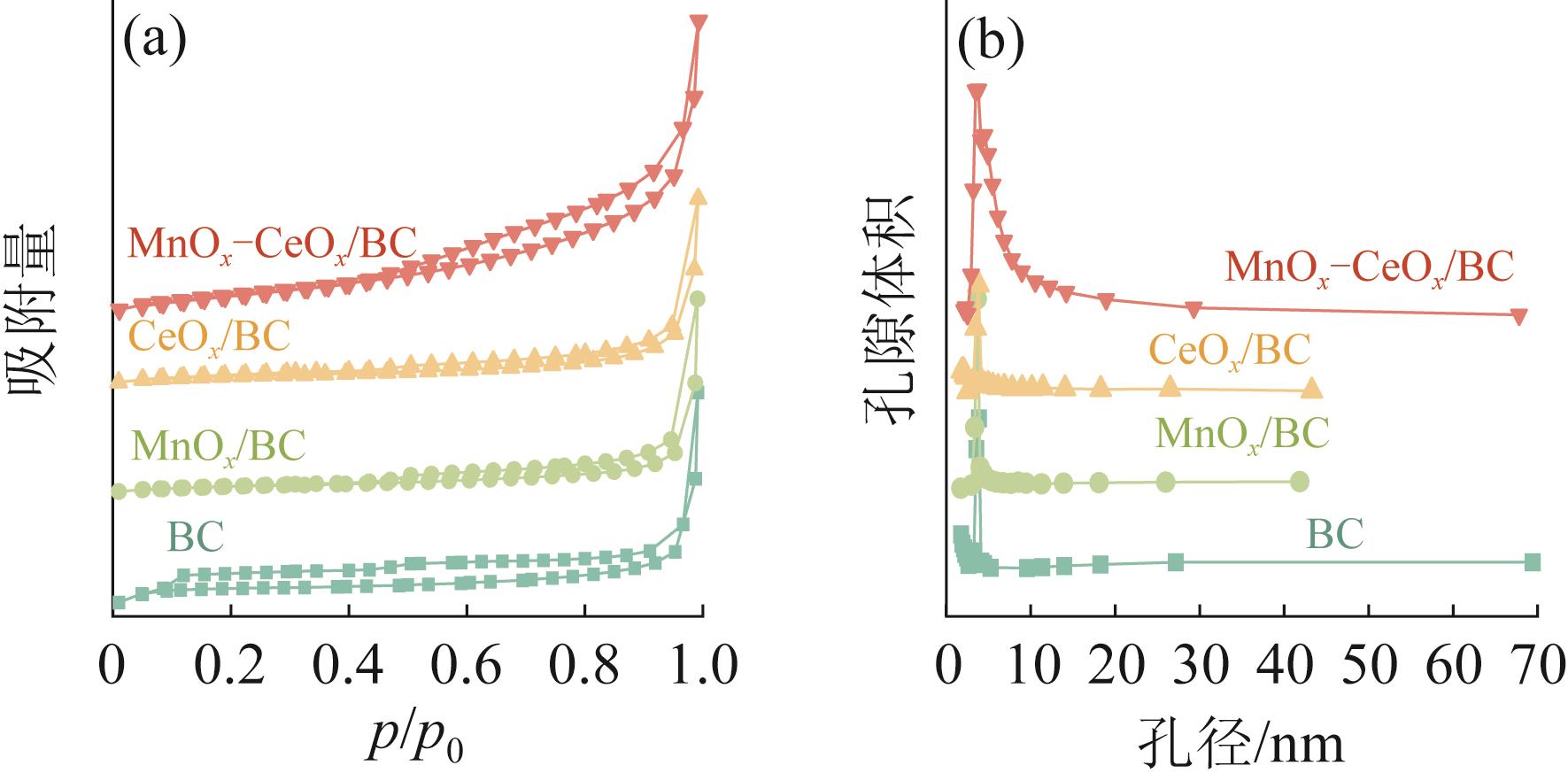

Fig.6 N₂ adsorption-desorption isotherm（a） and pore size distribution curve（b） for different materials

Table 2 Specific surface area，average pore size，and total pore volume of the materials

样品	比表面积/（m²·g^-1）	平均孔径/nm	总孔容/（cm³·g^-1）
BC	22.05	7.20	0.052 7
MnO _x /BC	6.73	21.01	0.050 9
CeO _x /BC	7.86	17.37	0.050 0
MnO _x -CeO _x /BC	22.57	11.10	0.082 2

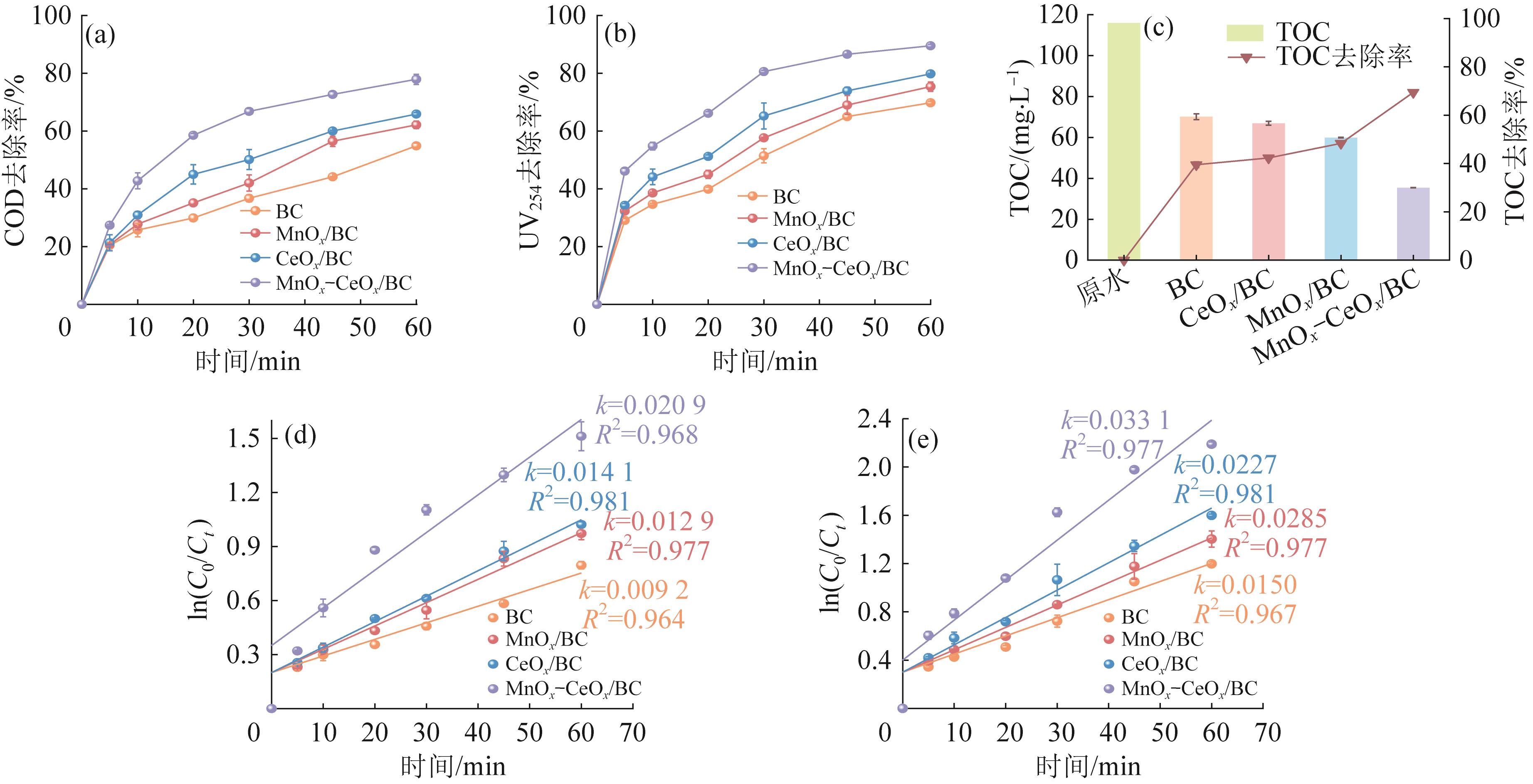

Fig.7 Effects of different materials on COD（a），UV₂₅₄（b）and TOC（c）removal rates，the pseudo-first-order reaction kinetics analysis of COD（d）and UV₂₅₄（e）

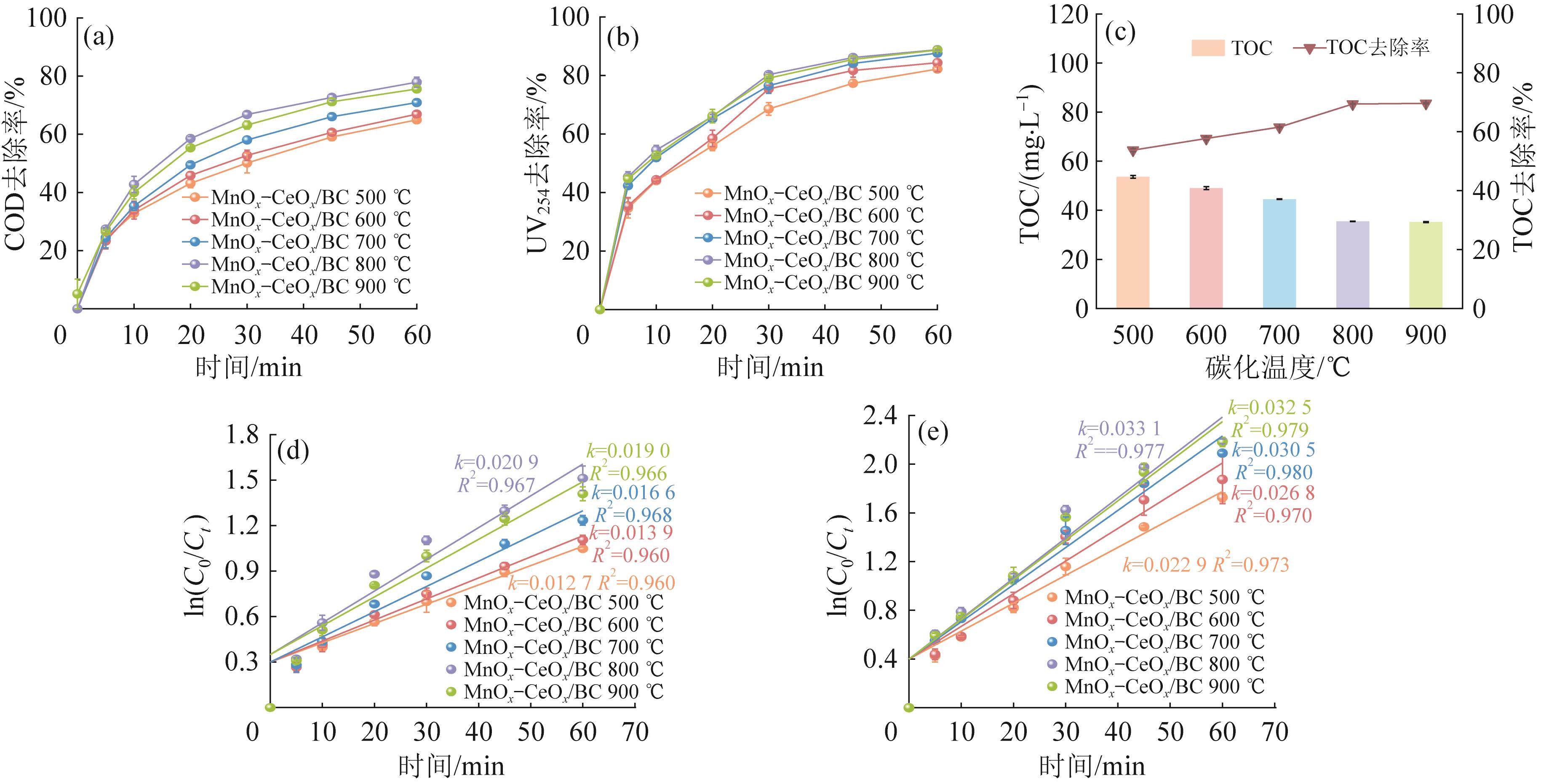

Fig.8 Effect of carbonization temperature on COD（a）and UV₂₅₄（b）and TOC（c）removal rates，the pseudo-first-order reaction kinetics analysis of COD（d）and UV₂₅₄（e）

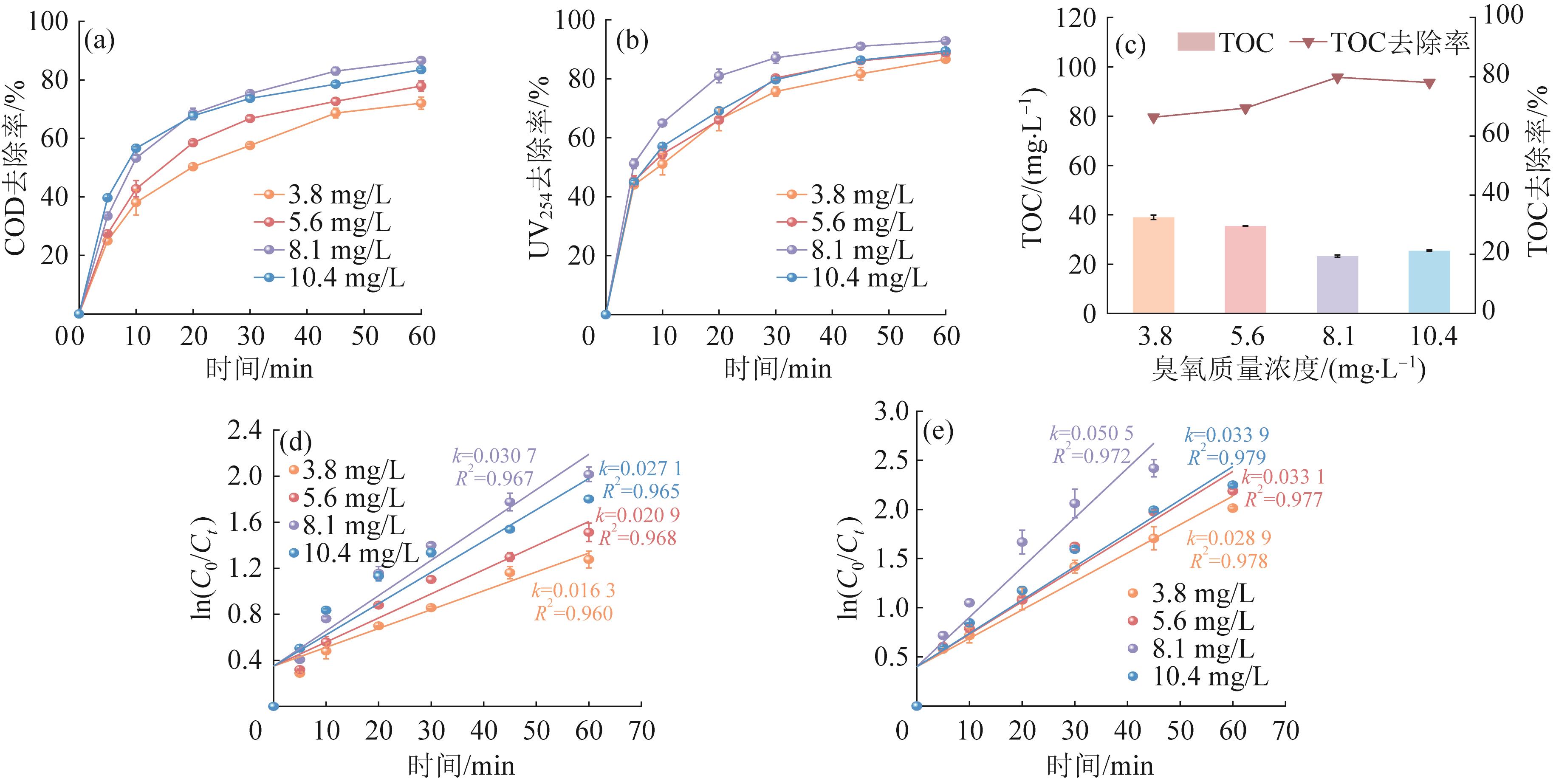

Fig.9 Effect of ozone concentration on COD（a），UV₂₅₄（b） and TOC（c） removal，the pseudo-first-order reaction kinetics analysis of COD（d） and UV₂₅₄（e）

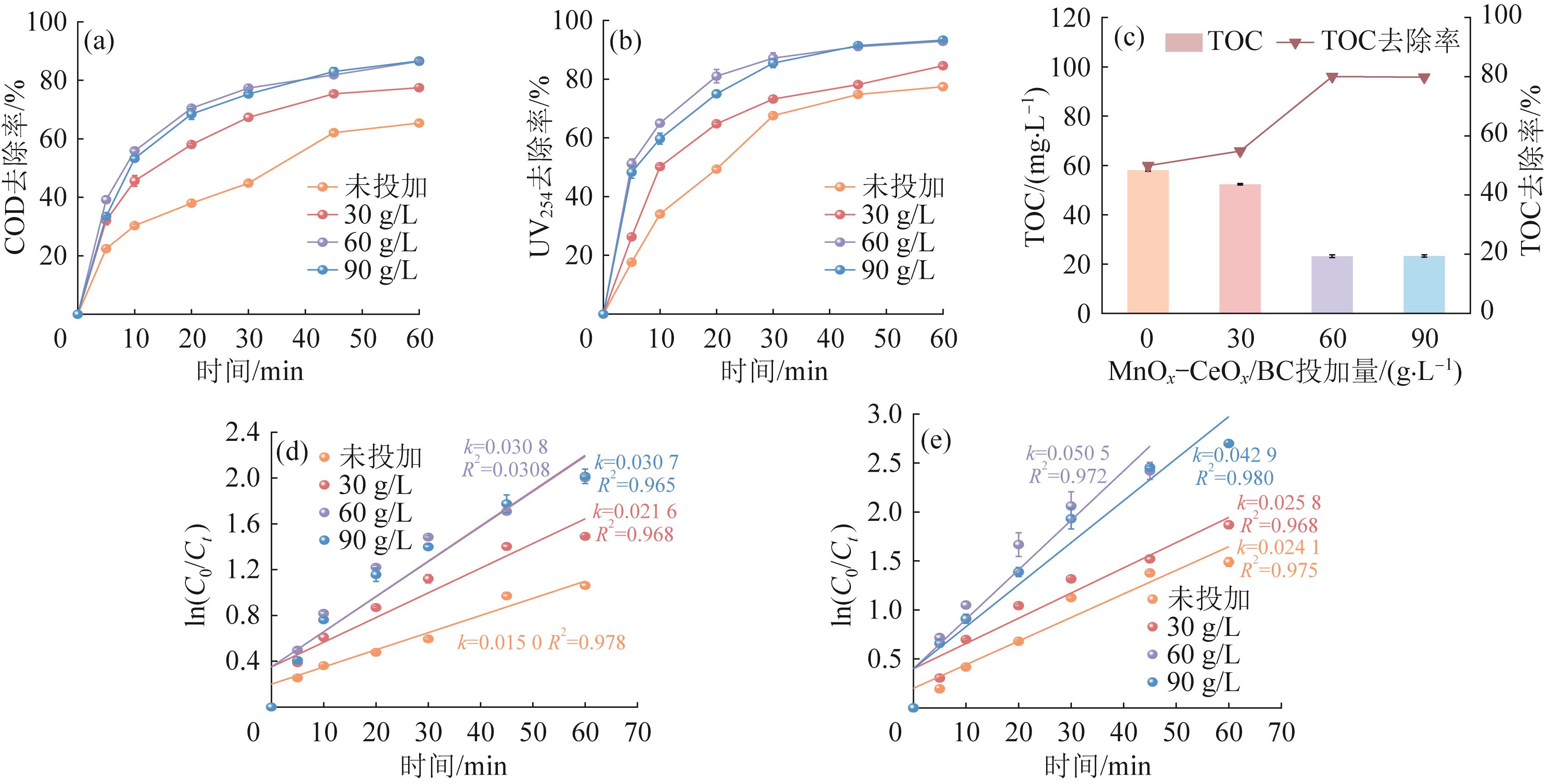

Fig.10 Effect of MnO _x -CeO _x /BC dosage on COD（a），UV₂₅₄（b）and TOC（c）removal，the pseudo-first-order reaction kinetics analysis of COD（d）and UV₂₅₄（e）

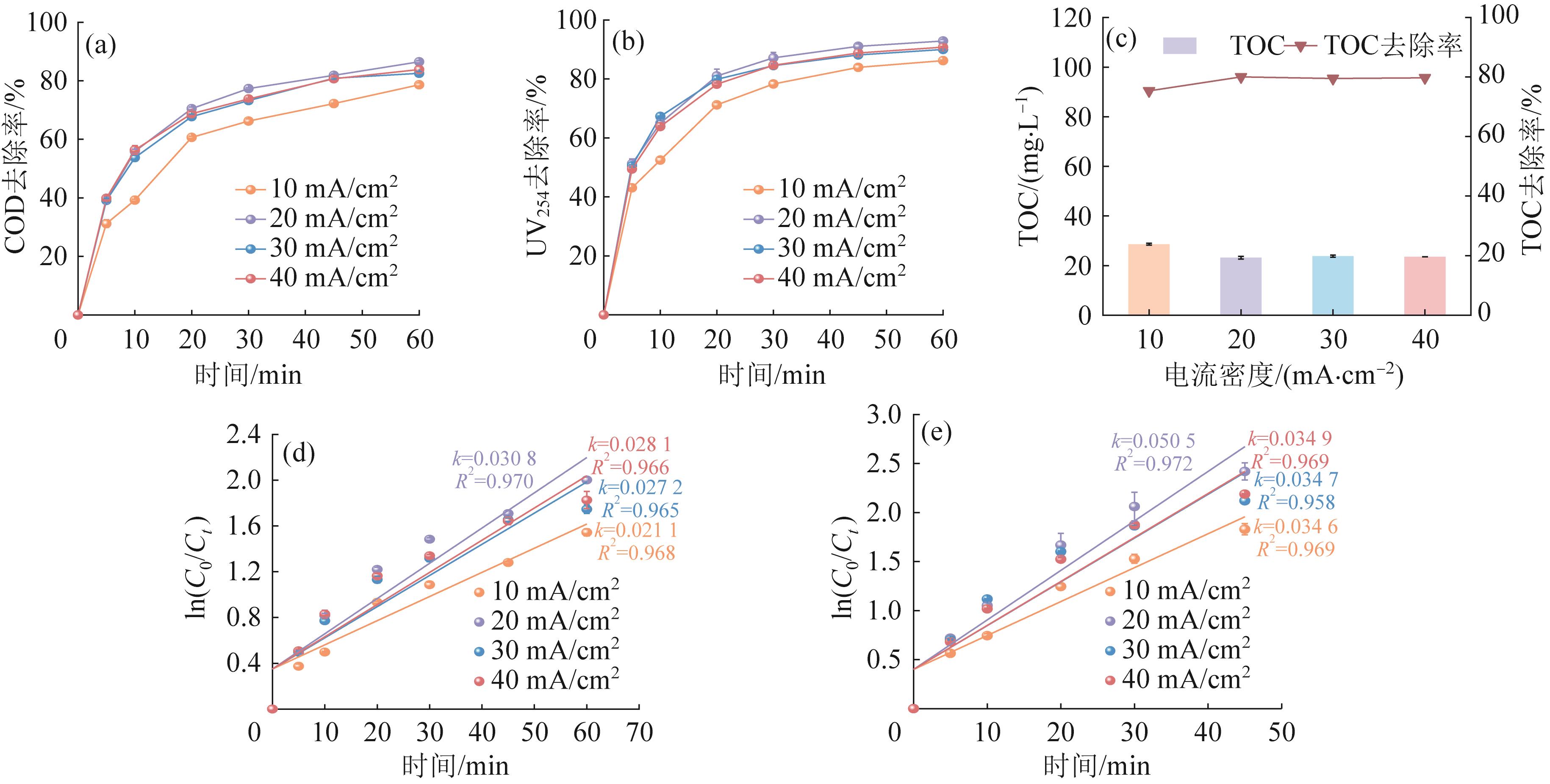

Fig.11 Effect of current density on COD（a），UV₂₅₄（b）and TOC（c）removal rates，the pseudo-first-order reaction kinetics analysis of COD（d）and UV₂₅₄（e）

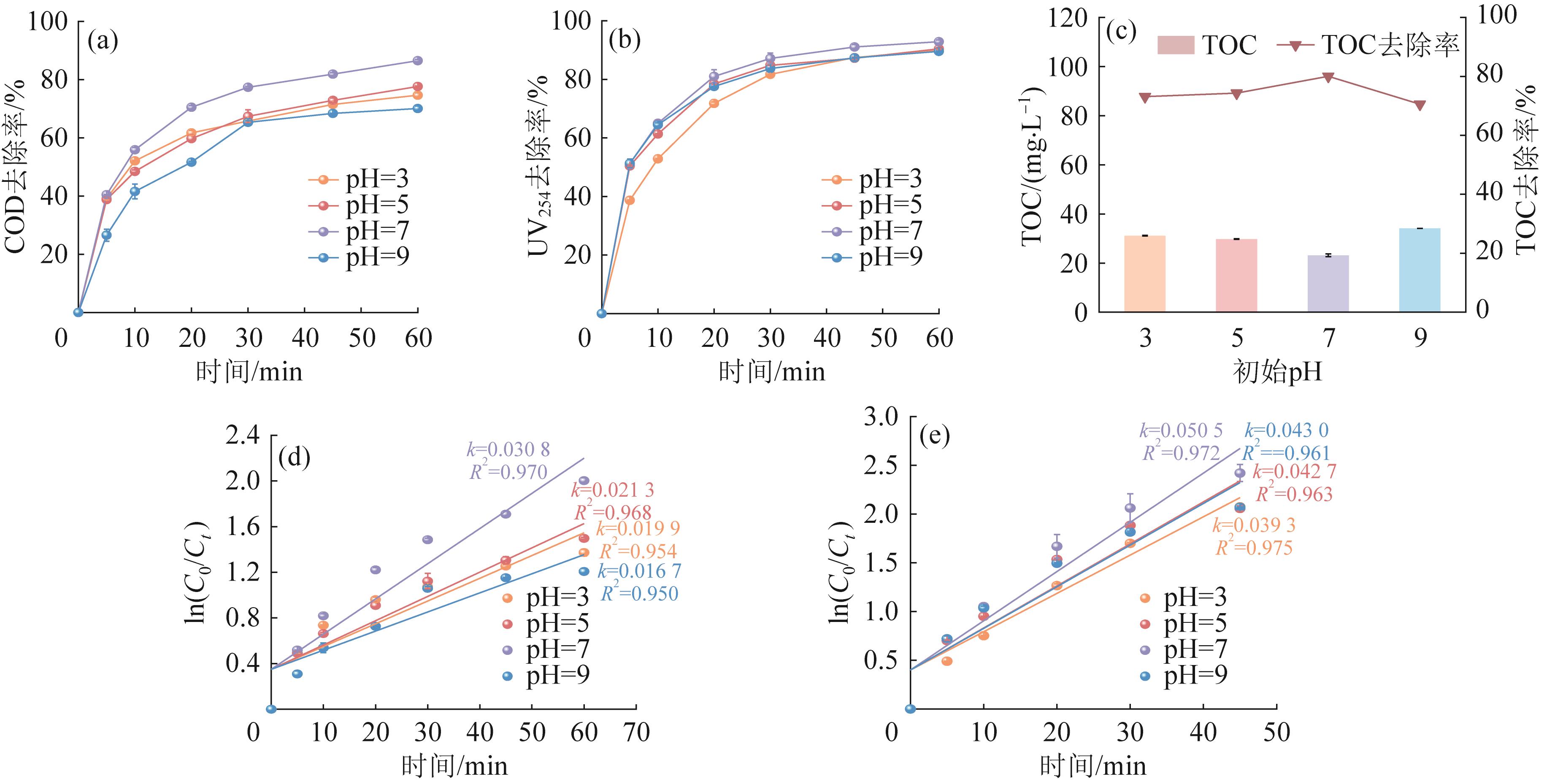

Fig.12 Effect of initial pH on COD（a），UV₂₅₄（b） and TOC（c） removal，the pseudo-first-order reaction kinetics analysis of COD（d）and UV₂₅₄（e）

Fig.13 Effect of treatment process on COD（a），UV₂₅₄（b）and TOC（c）removal，and the pseudo-first-order reaction kinetics analysis of COD（d） and UV₂₅₄（e）

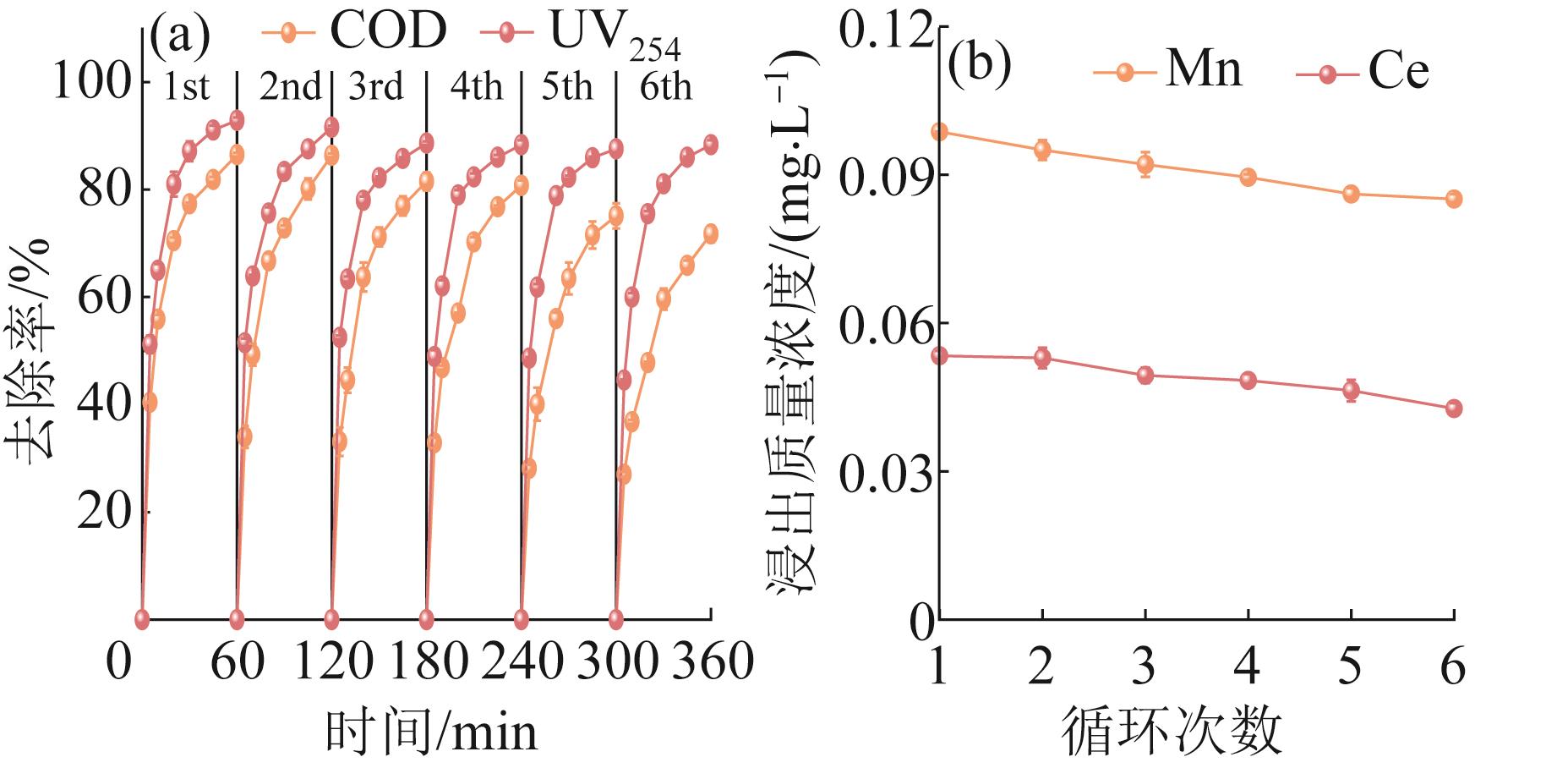

Fig.14 MnO _x -CeO _x /BC recycle for 6 times COD and UV₂₅₄ removal rate（a）and metal leaching concentration（b）

Table 3 Leaching concentrations of Mn and Ce metal ions in cycling experiments

循环次数	1	2	3	4	5	6
Mn/（mg·L^-1）	0.098 7	0.095 0	0.092 0	0.089 4	0.086 1	0.085 0
Ce/（mg·L^-1）	0.052 0	0.051 6	0.048 2	0.047 2	0.045 2	0.041 6

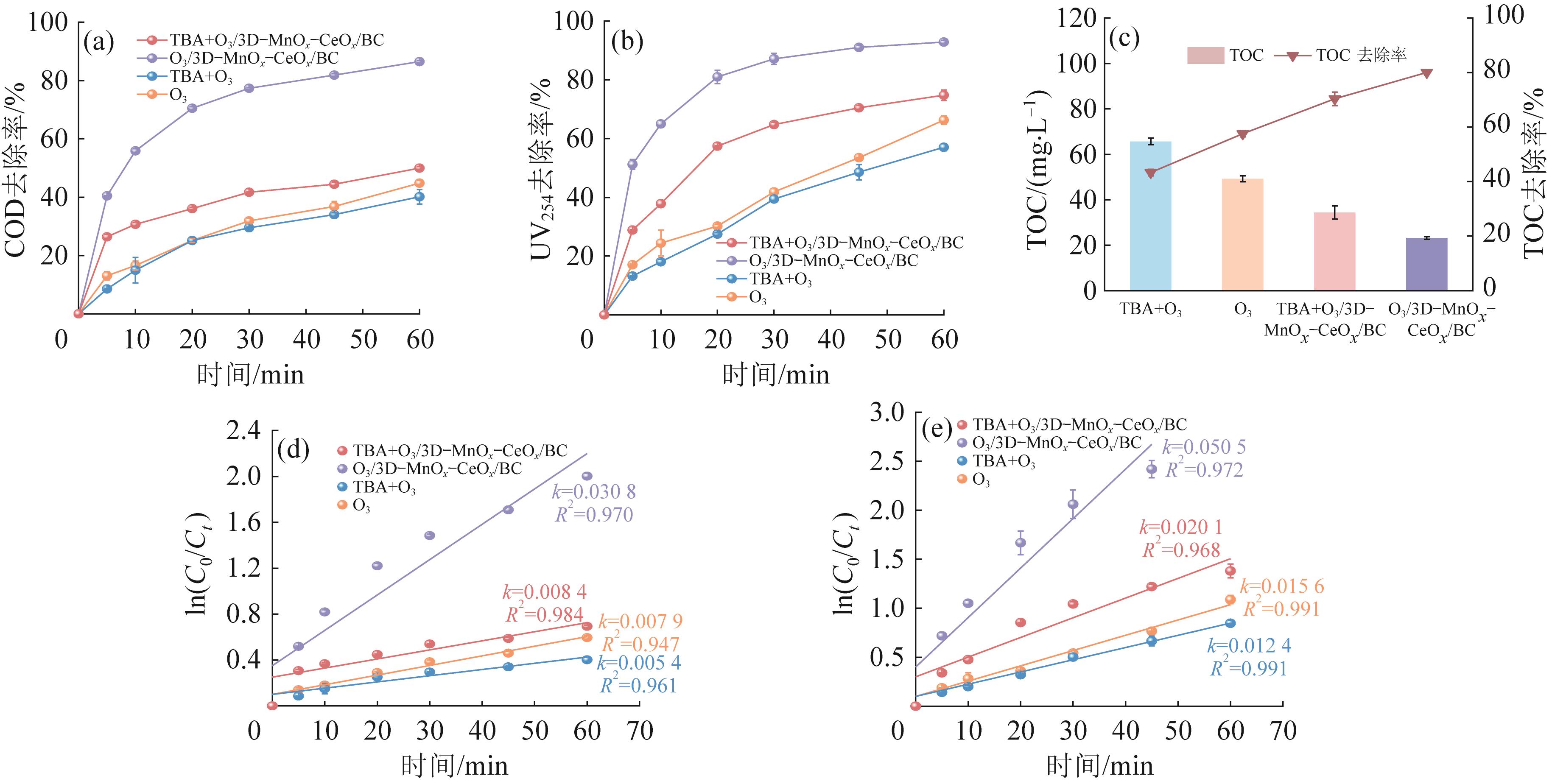

Fig.15 Effect of TBA on the removal rates of COD（a），UV₂₅₄（b） and TOC（c），the pseudo-first-order reaction kinetics analysis of COD（d） and UV₂₅₄（e）

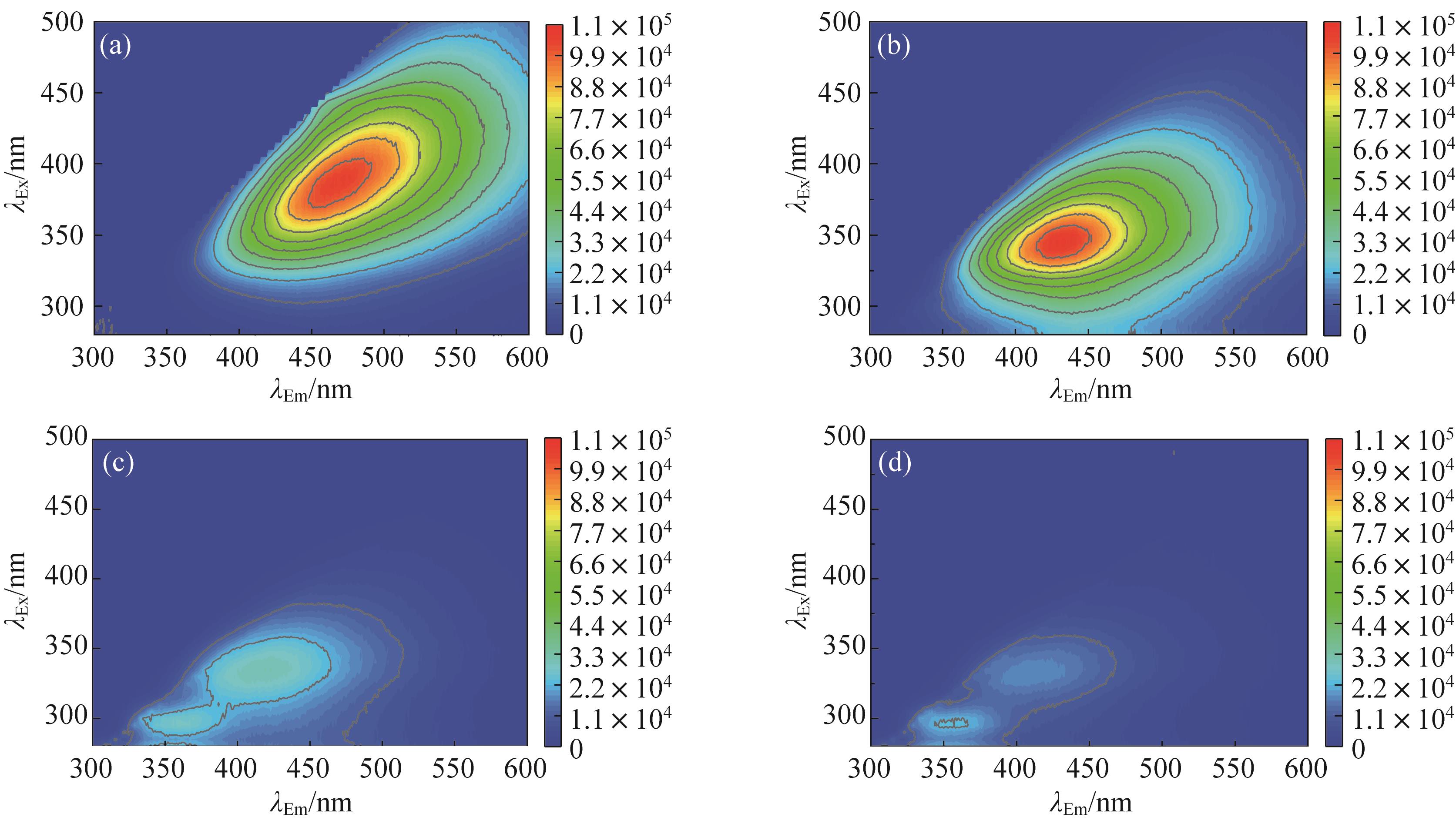

Fig.16 3D-EEM of landfill leachate

References 33

[1]	SRUTHI T， GANDHIMATHI R， RAMESH S T，et al. Stabilized landfill leachate treatment using heterogeneous Fenton and electro-Fenton processes［J］. Chemosphere，2018，210：38-43. doi:10.1016/j.chemosphere.2018.06.172
[2]	YANG Wenyi， Manting CI， HU Lifang，et al. Sulfate-reduction behavior in waste-leachate transition zones of landfill sites［J］. Journal of Hazardous Materials，2022，428：128199. doi:10.1016/j.jhazmat.2021.128199
[3]	TANG Tianhao， ZHANG Liangchun， TANG Shengyin，et al. Molecular insights into pilot-scale selective removal of emerging contaminants in hospital wastewater［J］. Chemical Engineering Journal，2024，500：157097. doi:10.1016/j.cej.2024.157097
[4]	傅翔宇，李亚峰. 三维电极电Fenton处理阿奇霉素制药废水研究［J］. 工业水处理，2024，44（6）：158-164.
	FU Xiangyu， LI Yafeng. Research on the treatment of azithromycin pharmaceutical wastewater by electro-Fenton with three dimensional electrode［J］. Industrial Water Treatment，2024，44（6）：158-164.
[5]	GAO Junling， OLOIBIRI V， CHYS M，et al. The present status of landfill leachate treatment and its development trend from a technological point of view［J］. Reviews in Environmental Science and Bio/Technology，2015，14（1）：93-122. doi:10.1007/s11157-014-9349-z
[6]	ZHAN Juhong， LI Zhaoxin， YU Gang，et al. Enhanced treatment of pharmaceutical wastewater by combining three-dimensional electrochemical process with ozonation to in situ regenerate granular activated carbon particle electrodes［J］. Separation and Purification Technology，2019，208：12-18. doi:10.1016/j.seppur.2018.06.030
[7]	GUO Pucan， YANG Chuanwang， CHU Ziqi，et al. Synchronous reduction-oxidation of 2，4，6-tribromophenol using bifunctional AgPd@CDs in a three dimensional electrochemical reactor［J］. Applied Catalysis B：Environmental，2021，297：120467. doi:10.1016/j.apcatb.2021.120467
[8]	SHI Qi， REN Jianan， WANG Hui，et al. MgMn _x O _y -GAC particle electrode for effective peroxone oxidation：High salinity organic wastewater treatment with synergistic electrocatalytic ozonation［J］. Chemical Engineering Journal，2024，490：151476. doi:10.1016/j.cej.2024.151476
[9]	CHEN Hai， ZHANG Zhonglei， HU Dongming，et al. Catalytic ozonation of norfloxacin using Co₃O₄/C composite derived from ZIF-67 as catalyst［J］. Chemosphere，2021，265：129047. doi:10.1016/j.chemosphere.2020.129047
[10]	ZHOU Xuerong， ZENG Zhuotong， ZENG Guangming，et al. Insight into the mechanism of persulfate activated by bone char：Unraveling the role of functional structure of biochar［J］. Chemical Engineering Journal，2020，401：126127. doi:10.1016/j.cej.2020.126127
[11]	LI Guiju， HE Jingjing， WANG Dandan，et al. Optimization and interpretation of O₃ and O₃/H₂O₂ oxidation processes to pretreat hydrocortisone pharmaceutical wastewater［J］. Environmental Technology，2015，36（8）：1026-1034. doi:10.1080/09593330.2014.971885
[12]	BISWAS P P， LIANG Biqing， TURNER-WALKER G，et al. Systematic changes of bone hydroxyapatite along a charring temperature gradient：An integrative study with dissolution behavior［J］. Science of the Total Environment，2021，766：142601. doi:10.1016/j.scitotenv.2020.142601
[13]	ZHU Hao， MA Wencheng， HAN Hongjun，et al. Catalytic ozonation of quinoline using nano-MgO：Efficacy，pathways，mechanisms and its application to real biologically pretreated coal gasification wastewater［J］. Chemical Engineering Journal，2017，327：91-99. doi:10.1016/j.cej.2017.06.025
[14]	ORGE C A， ÓRFÃO J J M， PEREIRA M F R. Catalytic ozonation of organic pollutants in the presence of cerium oxide-carbon composites［J］. Applied Catalysis B：Environmental，2011，102（3/4）：539-546. doi:10.1016/j.apcatb.2010.12.036
[15]	YANG Wei， LIU Yangxian， WANG Qian，et al. Removal of elemental mercury from flue gas using wheat straw chars modified by Mn-Ce mixed oxides with ultrasonic-assisted impregnation［J］. Chemical Engineering Journal，2017，326：169-181. doi:10.1016/j.cej.2017.05.106
[16]	LIU Haoyu， LIU Yani， TANG Lin，et al. Egg shell biochar-based green catalysts for the removal of organic pollutants by activating persulfate［J］. Science of The Total Environment，2020，745：141095. doi:10.1016/j.scitotenv.2020.141095
[17]	刘臻，刘浪，郑鹏，等. 电化学高级氧化技术再生活性炭研究进展［J］. 工业水处理，2024，44（5）：42-51.
	LIU Hen， LIU Lang， ZHENG Peng，et al. Research progress of regenerated activated carbon in electrochemical advanced oxidation process［J］. Industrial Water Treatment，2024，44（5）：42-51.
[18]	SUMARDIONO S，JOS B， PUDJIHASTUTI I，et al. Physicochemical properties of sago ozone oxidation：The effect of reaction time，acidity，and concentration of starch［J］. Foods，2021，10（6）：1309. doi:10.3390/foods10061309
[19]	WANG Huijiao， YUAN Shi， ZHAN Juhong，et al.Mechanisms of enhanced total organic carbon elimination from oxalic acid solutions by electro-peroxone process［J］.Water Research，2015，80：20-29. doi:10.1016/j.watres.2015.05.024
[20]	LESZCZYŃSKI J， MARIA J W. The removal of organic compounds from landfill leachate using ozone-based advanced oxidation processes［J］. E3S Web of Conferences，2018，45：00046. doi:10.1051/e3sconf/20184500046
[21]	HE Xuexiang， PELAEZ M， WESTRICK J A，et al. Efficient removal of microcystin-LR by UV-C/H₂O₂ in synthetic and natural water samples［J］. Water Research，2012，46（5）：1501-1510. doi:10.1016/j.watres.2011.11.009
[22]	YANG Qing， LI Mengya， WANG Jingwei，et al. Synergistic electro-catalytic oxidation of ibuprofen in electro-peroxone system with flow-through carbon nanotube membrane cathode［J］. Chemical Engineering Journal，2022，435：135180. doi:10.1016/j.cej.2022.135180
[23]	AFZAL S， QUAN Xie， ZHANG Jianlin. High surface area mesoporous nanocast LaMO₃（M=Mn，Fe）perovskites for efficient catalytic ozonation and an insight into probable catalytic mechanism［J］. Applied Catalysis B：Environmental，2017，206：692-703. doi:10.1016/j.apcatb.2017.01.072
[24]	LONG Jingfei， GUO Yang， YU Gang，et al. Evaluation of the effect of catalysts on ozone mass transfer and pollutant abatement during laboratory catalytic ozonation experiments：Implications for practical water and wastewater treatment［J］. ACS ES&T Engineering，2023，3（3）：387-397. doi:10.1021/acsestengg.2c00311
[25]	LI Xiang， WANG Yujue， YUAN Shi，et al. Degradation of the anti-inflammatory drug ibuprofen by electro-peroxone process［J］. Water Research，2014，63：81-93. doi:10.1016/j.watres.2014.06.009
[26]	GUO Zhuang， XIE Yongbing， WANG Yuxian，et al. Towards a better understanding of the synergistic effect in the electro-peroxone process using a three electrode system［J］. Chemical Engineering Journal，2018，337：733-740. doi:10.1016/j.cej.2017.11.178
[27]	廖晓婷，钟全发，张众，等. 溶解性有机物组成对混凝及类芬顿工艺处理垃圾渗滤液膜浓缩液的影响［J］. 土木与环境工程学报（中英文），2023，45（5）：238-248.
	LIAO Xiaoting， ZHONG Quanfa， ZHANG Zhong，et al. Impact of dissolved organic matter composition on coagulation and Fenton-like processes for treating landfill leachate concentrate［J］. Journal of Civil and Environmental Engineering，2023，45（5）：238-248.
[28]	WANG Hui， SHEN Yanwen， LOU Ziyang，et al. Hydroxyl radicals and reactive chlorine species generation via E⁺-ozonation process and their contribution for concentrated leachate disposal［J］.Chemical Engineering Journal，2019，360：721-727. doi:10.1016/j.cej.2018.11.213
[29]	PANG Zijun， LUO Pei， WEI Cong，et al. In-situ growth of Co/Ni bimetallic organic frameworks on carbon spheres with catalytic ozonation performance for removal of bio-treated coking wastewater［J］. Chemosphere，2022，291：132874. doi:10.1016/j.chemosphere.2021.132874
[30]	JIN Pengkang， JIN Xin， BJERKELUND V A，et al. A study on the reactivity characteristics of dissolved effluent organic matter（EfOM）from municipal wastewater treatment plant during ozonation［J］. Water Research，2016，88：643-652. doi:10.1016/j.watres.2015.10.060
[31]	GU Zhepei， CHEN Weiming， WANG Fan，et al. Transformation and degradation of recalcitrant organic matter in membrane bioreactor leachate effluent by the O₃/H₂O₂ process［J］. Environmental Science：Water Research & Technology，2019，5（10）：1748-1757. doi:10.1039/c9ew00552h
[32]	YANG Jing， ZHANG Xiaoqin， TANG Jia，et al. Removal efficiency and mechanism of refractory organic matter from landfill leachate MBR effluent by the MoS₂-enhanced Fe⁰/H₂O₂ system［J］. Journal of Environmental Chemical Engineering，2022，10（5）：108391. doi:10.1016/j.jece.2022.108391
[33]	LIU Zhanmeng， PAN Liang， HU Fengping，et al. Advanced landfill leachate biochemical effluent treatment using Fe-Mn/AC activates O₃/Na₂S₂O₈ process：Process optimization，wastewater quality analysis，and activator characterization［J］. Environmental Science and Pollution Research，2020，27（13）：15337-15349. doi:10.1007/s11356-020-08046-2
