Promotion of partial nitrification by hydroxylamine and differential responses of nitrifying microorganisms

doi:10.19965/j.cnki.iwt.2025-0060

Abstract

Abstract:

Hydroxylamine can promote the establishment of partial nitrification. This study investigated its promoting effect from the dual perspectives of microbial activity and gene expression. Under optimized conditions(hydroxylamine concentration of 20 mg/L, inhibition time of 4 hours), the NO₂^--N accumulation ratio in nitrifying sludge reached 68.0%, which was mainly attributed to the relatively weak inhibition of NH₄⁺ oxidation activity(40.6%) and the significant inhibition of NO₂^- oxidation activity(78.9%). Activity analysis indicated that nitrifying microorganisms exhibited differential responses to hydroxylamine. The NH₄⁺ oxidation activity of complete ammonia oxidizers(Comammox) decreased by 65.5%, which was the main cause of the overall decrease of NH₄⁺-N oxidation activity, while the activity of ammonia-oxidizing bacteria(AOB) and ammonia-oxidizing archaea(AOA) showed smaller changes(decreased by 26.7% and remaining unchanged, respectively). Regarding NO₂^--N oxidation, the activities of Comammox and nitrite-oxidizing bacteria(NOB) decreased by 77.8% and 65.5%, respectively, significantly weakening NO₂^--N oxidation. Metagenomic analysis further revealed differential gene expression responses in microorganisms. The expression of ammonia oxidation genes in the Comammox species Nitrospira sp.was downregulated by 7.7%,lower than the 14.8% downregulation in the AOB species Nitrosomonas oligotropha, while its abundance was 129.9 times higher than that of the latter, making it the main factor to the decrease in NH₄⁺-N oxidation. The NO₂^--N oxidation genes of Nitrospira sp. and NOB species Nitrospirota bacterium were downregulated by 11.3% and 7.7%, respectively, jointly weakening NO₂^--N oxidation. These findings indicated that the distribution of microbial populations had significant impacts on the effectiveness of hydroxylamine in promoting partial nitrification.

Key words: wastewater treatment, partial nitrification, hydroxylamine, nitrifying microbial activity, gene expression

摘要：

羟胺可促进短程硝化的建立。从微生物活性和基因表达的双重视角探究其促进作用。在优化条件下（羟胺质量浓度为20 mg/L，抑制时间为4 h），硝化污泥NO₂^--N积累率达68.0%，这主要归因于NH₄⁺-N氧化活性抑制较弱（40.6%），而NO₂^--N氧化活性显著抑制（78.9%）。活性分析结果表明，硝化微生物对羟胺响应存在差异。全程氨氧化菌（Comammox）的NH₄⁺氧化活性下降65.5%，是整体NH₄⁺-N氧化活性下降的主要原因，而氨氧化菌（AOB）和氨氧化古菌（AOA）活性变化较小（AOB下降26.7%，AOA保持不变）。NO₂^--N氧化方面，Comammox和亚硝酸盐氧化菌（NOB）的活性分别下降77.8%和65.5%，显著削弱了NO₂^--N氧化。宏组学进一步揭示了微生物基因表达的响应差异。Comammox物种Nitrospira sp.的氨氧化基因表达下调7.7%，低于AOB物种Nitrosomonas oligotropha的14.8%，但其丰度为后者的129.9倍，是NH₄⁺-N氧化活性下降的主要因素。Nitrospira sp.和NOB菌种Nitrospirota bacterium的NO₂^--N氧化基因分别下调11.3%和7.7%，共同削弱了NO₂^--N氧化。这些发现表明，微生物种群分布对羟胺促进短程硝化的效果影响显著。

关键词: 污水处理, 短程硝化, 羟胺, 硝化微生物活性, 基因表达

CLC Number:

X703.1

Wenhui MIN, Liangliang SHI, Yan WEI, Zhonglin PAN, Wen LI, Bin MA. Promotion of partial nitrification by hydroxylamine and differential responses of nitrifying microorganisms[J]. Industrial Water Treatment, 2025, 45(12): 74-80.

闵文慧, 石亮亮, 委燕, 潘中林, 李文, 马斌. 羟胺对短程硝化的促进及硝化微生物的差异化响应[J]. 工业水处理, 2025, 45(12): 74-80.

/ / Recommend / Download Citations

URL: https://www.iwt.cn/EN/10.19965/j.cnki.iwt.2025-0060

https://www.iwt.cn/EN/Y2025/V45/I12/74

Figures/Tables 4

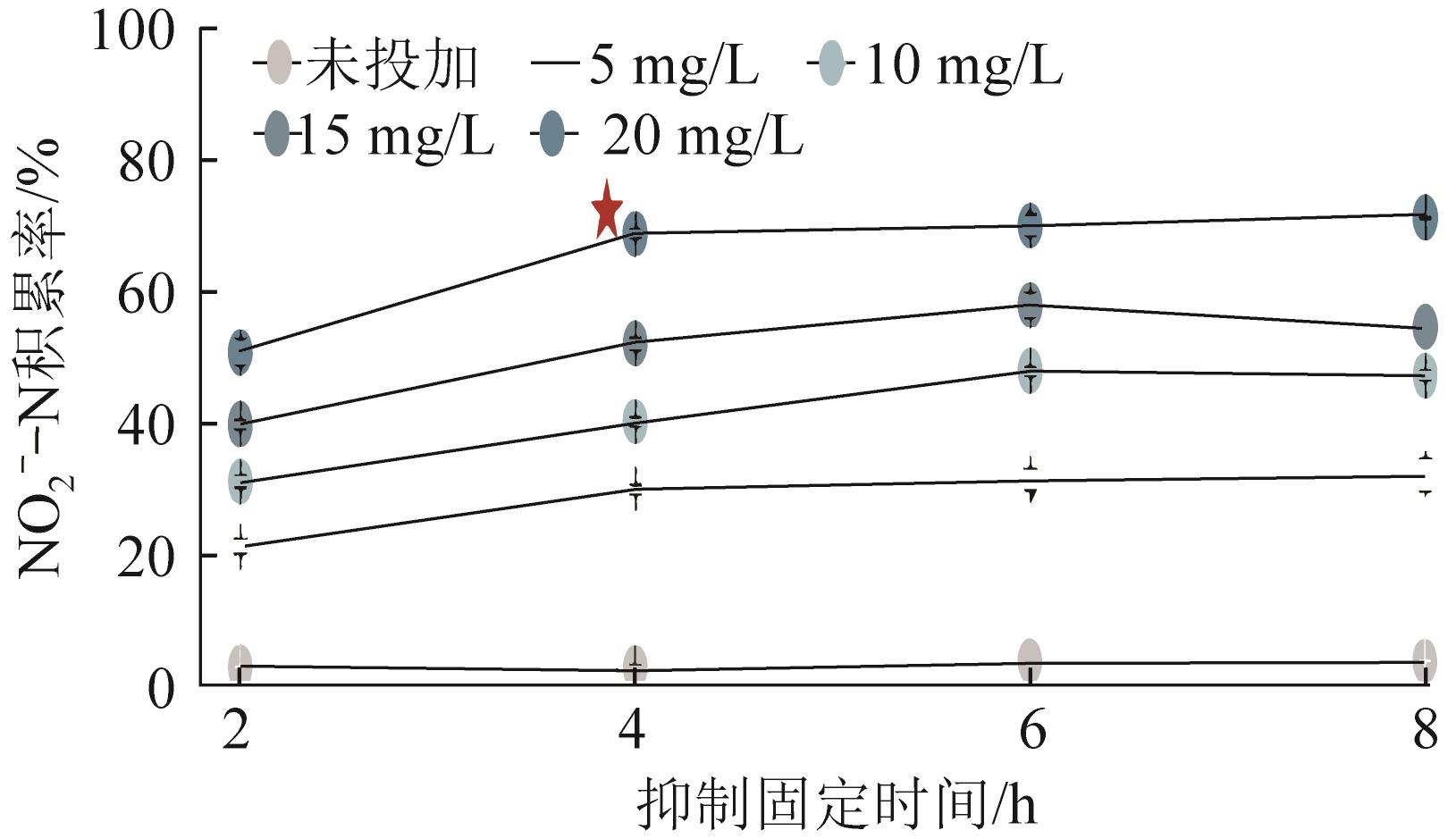

Fig.1 Response of nitrifying sludge NO₂^- accumulation performance to hydroxylamine

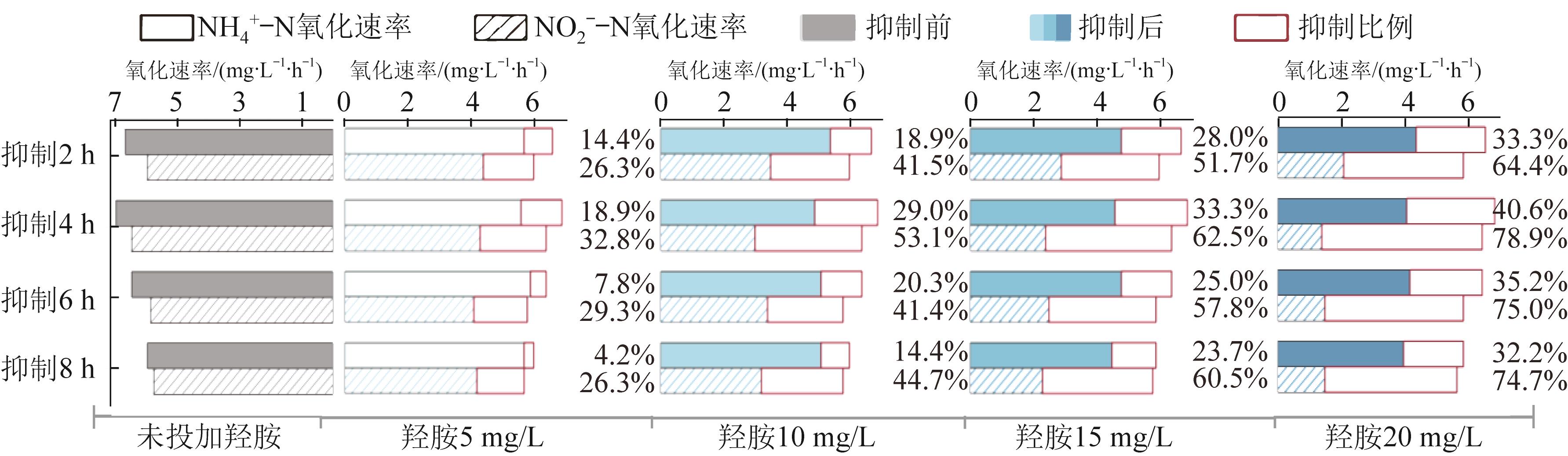

Fig.2 Response of NH₄⁺-N oxidation rate，and NO₂^--N oxidation rate to hydroxylamine

Fig.3 Species distribution characteristics of nitrifying microorganisms and presence analysis of nitrification functional genes in Nitrospira sp.

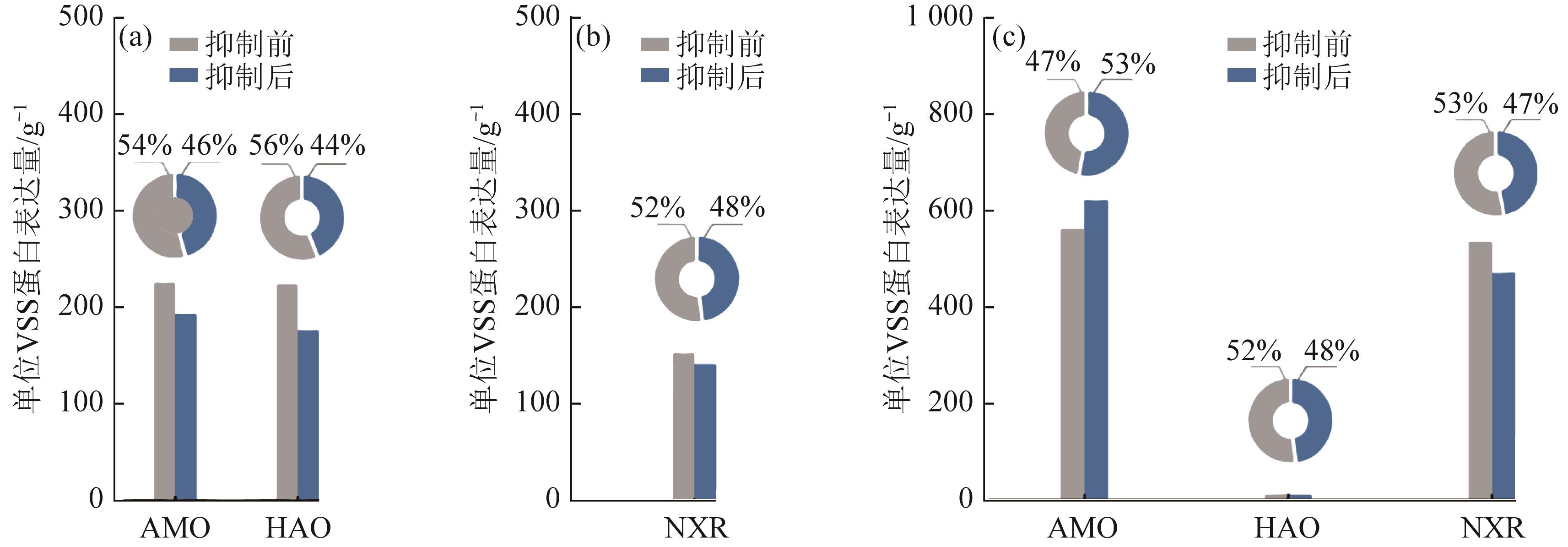

Fig.4 The functional gene expression characteristics of typical nitrifying microorganisms

References 24

[1]	蒋富海，李俊奇，张显忠，等. 城镇污水处理厂治污降碳的精细化管控研究［J］. 中国给水排水，2024，40（12）：13-20．
	JIANG Fuhai， LI Junqi， ZHANG Xianzhong，et al. Fine management & control of pollution control and carbon reduction in the urban WWTPs［J］. China Water & Wastewater，2024，40（12）：13-20．
[2]	KARTAL B， MAALCKE W J， DE ALMEIDA N M，et al. Molecular mechanism of anaerobic ammonium oxidation［J］. Nature，2011，479（7371）：127-130． doi:10.1038/nature10453
[3]	任核葶，刘浩杰. 城市污水PN/A工艺中NOB抑制的挑战与对策研究进展［J］. 工业水处理，2025，45（5）：38-46.
	REN Heting， LIU Haojie. Research progress on challenges and countermeasures of NOB inhibition in PN/A process of municipal wastewater［J］. Industrial Water Treatment，2025，45（5）：38-46.
[4]	张星星，王昕竹，印雯，等. 基于厌氧氨氧化技术处理市政污水的研究进展［J］. 工业水处理，2020，40（1）：1-7． doi:10.11894/iwt.2019-0149
	ZHANG Xingxing， WANG Xinzhu， YIN Wen，et al. Research progress on the treatment of municipal sewage by Anammox technology［J］. Industrial Water Treatment，2020，40（1）：1-7． doi:10.11894/iwt.2019-0149
[5]	LOTTI T， KLEEREBEZEM R， VAN ERP TAALMAN KIP C，et al ．Anammox growth on pretreated municipal wastewater［J］．Environmental Science & Technology，2014，48（14）：7874-7880． doi:10.1021/es500632k
[6]	李璐，马娟，宋相蕊. FNA在污水生物脱氮除磷中的抑制效应［J］. 工业水处理，2014，34（6）：5-9． doi:10.11894/1005-829x.2014.34(6).005
	LI Lu， MA Juan， SONG Xiangrui. Inhibitory effect of free nitrous acid（FNA） on wastewater biological denitrification and dephosphorization［J］. Industrial Water Treatment，2014，34（6）：5-9． doi:10.11894/1005-829x.2014.34(6).005
[7]	丁凡，梁东博，李东岳，等. 游离亚硝酸预处理实现MBBR短程硝化的快速启动［J］. 工业水处理，2023，43（4）：113-120．
	DING Fan， LIANG Dongbo， LI Dongyue，et al. Rapid start-up of MBBR partial nitrification by free nitrite pretreatment［J］. Industrial Water Treatment，2023，43（4）：113-120．
[8]	LI Jia， ZHANG Qiong， LI Xiyao，et al. Rapid start-up and stable maintenance of domestic wastewater nitritation through short-term hydroxylamine addition［J］. Bioresource Technology，2019，278：468-472． doi:10.1016/j.biortech.2019.01.056
[9]	SAKOULA D， KOCH H， FRANK J，et al. Enrichment and physiological characterization of a novel comammox Nitrospira indicates ammonium inhibition of complete nitrification［J］. The ISME Journal，2021，15（4）：1010-1024． doi:10.1038/s41396-020-00827-4
[10]	LI Yanchen， DONG Wenyi， HOU Zilong，et al. Intermittent hydroxylamine dosing to strengthen stability of partial nitrification and nitrogen removal efficiency through continuous-flow anaerobic-aerobic-anoxic reactor treating municipal wastewater［J］. Bioresource Technology，2024，406：130947． doi:10.1016/j.biortech.2024.130947
[11]	杨韦玲，胡佳杰，胡宝兰. 抑制剂在氨氧化微生物研究中的应用［J］. 微生物学报，2018，58（10）：1722-1731．
	YANG Weiling， HU Jiajie， HU Baolan. Application of inhibitors in research of ammonia oxidizing microorganisms［J］. Acta Microbiologica Sinica，2018，58（10）：1722-1731．
[12]	HINK L， NICOL G W， PROSSER J I. Archaea produce lower yields of N₂O than bacteria during aerobic ammonia oxidation in soil［J］. Environmental Microbiology，2017，19（12）：4829-4837． doi:10.1111/1462-2920.13282
[13]	李瑞祥，王鑫，李田. 低碳污水微生物氮转化工艺研究进展［J］. 工业水处理，2022，42（6）：22-32．
	LI Ruixiang， WANG Xin， LI Tian. Research progress on the microbial technology of nitrogen transformation from low carbon wastewater［J］. Industrial Water Treatment，2022，42（6）：22-32．
[14]	WANG Sike， ISHII K， YU Heng，et al. Stable nitrogen removal by anammox process after rapid temperature drops：Insights from metagenomics and metaproteomics［J］. Bioresource Technology，2021，320：124231． doi:10.1016/j.biortech.2020.124231
[15]	SHI Liangliang， LI Rongping， BU Yinan，et al. Hybrid granule-floc sludge distribution and its potential for upgrading a tropical continuous-flow wastewater treatment plant［J］. Journal of Water Process Engineering，2023，55：104178． doi:10.1016/j.jwpe.2023.104178
[16]	SHI Liangliang， DU Rui， PENG Yongzhen，et al. Successful establishment of partial denitrification by introducing hydrolytic acidification of slowly biodegradable organic matter［J］. Bioresource Technology，2020，315：123887． doi:10.1016/j.biortech.2020.123887
[17]	刘宁，何阳，王德朋，等. PD-Anammox快速启动过程中氮代谢功能基因的表达特征［J］. 工业水处理，2022，42（4）：57-64． doi:10.19965/j.cnki.iwt.2021-0885
	LIU Ning， HE Yang， WANG Depeng，et al. Expression characteristics of nitrogen metabolism functional genes in rapid start-up process of partial denitrification and anammox process［J］. Industrial Water Treatment，2022，42（4）：57-64． doi:10.19965/j.cnki.iwt.2021-0885
[18]	LU Zedong， LI Chen， JING Zibo，et al. Implication on selection and replacement of granular activated carbon used in biologically activated carbon filters through meta-omics analysis［J］. Water Research，2021，198：117152． doi:10.1016/j.watres.2021.117152
[19]	GILCREAS F W. Standard methods for the examination of water and waste water［J］. American Journal of Public Health and the Nations Health，1966，56（3）：387-388． doi:10.2105/ajph.56.3.387
[20]	SHI Liangliang， DU Rui， PENG Yongzhen，et al. Simultaneous carbon reutilization for primary sludge and stable nitrite production in a hydrolytic acidification coupled with partial denitrification system to treat nitrate contaminant［J］. Bioresource Technology，2020，318：124062． doi:10.1016/j.biortech.2020.124062
[21]	WAN Xinyu， XIAO Pengying， ZHANG Daijun，et al. The kinetics for ammonium and nitrite oxidation under the effect of hydroxylamine［J］. Water Science and Technology，2016，73（5）：1067-1073． doi:10.2166/wst.2015.583
[22]	ZHANG Zhengzhe， ZHANG Yu， SHI Zhijian，et al. Linking genome-centric metagenomics to kinetic analysis reveals the regulation mechanism of hydroxylamine in nitrite accumulation of biological denitrification［J］. Environmental Science & Technology，2022，56（14）：10317-10328． doi:10.1021/acs.est.2c01914
[23]	沈琛，张树军，彭永臻. 游离羟胺对两种典型亚硝态氮氧化菌活性的影响［J］. 环境科学，2020，41（6）：2805-2811．
	SHEN Chen， ZHANG Shujun， PENG Yongzhen. Effect of free hydroxylamine on the activity of two typical nitrite-oxidizing bacteria［J］. Environmental Science，2020，41（6）：2805-2811．
[24]	SHAO Y H， WU J H. Comammox Nitrospira species dominate in an efficient partial nitrification-anammox bioreactor for treating ammonium at low loadings［J］. Environmental Science & Technology，2021，55（3）：2087-2098． doi:10.1021/acs.est.0c05777
