光催化膜的构筑及其在废水处理中的研究进展

doi:10.19965/j.cnki.iwt.2023-0564

摘要/Abstract

摘要：

膜分离具有常温下可操作、分离效率高、对环境友好等特点，已在水处理领域得到了广泛的应用。然而悬浮物或可溶性物质形成的膜污染，限制了膜技术的进一步发展。光催化膜能利用光催化剂将膜上的污染物高效降解，提高膜分离效率和抗污染性能。基于此，首先介绍了用于制备光催化膜的光催化剂种类，包括金属氧化物、石墨相氮化碳、铋系材料和新型二维材料；综述了具有自清洁能力的光催化膜的两种构筑方法，成品膜的表面修饰和聚合物基质共混，并揭示膜的分离机制；列举了光催化膜在处理含染料、抗生素、新兴污染物等不同行业废水中的应用，并对其未来发展做出了展望，为高抗污染膜材料的开发提供了一定的参考。

关键词: 光催化剂, 膜分离, 光催化膜, 废水处理

Abstract:

Membrane separation has been widely used in the field of water treatment due to its characteristics such as operation at room temperature, high separation efficiency and environmental friendliness. However, membrane pollution caused by suspended substances or soluble substances in the feed solution limits the further development of membrane technology. Photocatalytic membrane can use photocatalyst to degrade the pollutants on the membrane efficiently and improve the separation efficiency and anti-pollution performance of the membrane. This paper firstly introduced the types of photocatalysts used for the preparation of photocatalytic membrane, including metal oxides, graphite phase carbon nitride, bismuth-based materials and new two-dimensional materials. Then the construction methods of photocatalytic membranes with self-cleaning ability (surface modification and matrix blending of membrane) were reviewed, and the pollutant removal mechanism of photocatalytic membrane was summarized. The application scenarios of photocatalytic membrane for dyes, antibiotics, emerging pollutants in wastewater treatment of different industries were listed. Finally, the article gave an outlook on its future development and provided a certain reference for the development of highly anti-pollution membrane materials.

Key words: photocatalyst, membrane separation, photocatalytic membrane, wastewater treatment

中图分类号:

P747
TQ050.4

郎明娇, 杨朝美, 曾广勇. 光催化膜的构筑及其在废水处理中的研究进展[J]. 工业水处理, 2024, 44(7): 47-56.

Mingjiao LANG, Zhaomei YANG, Guangyong ZENG. Construction of photocatalytic membrane separation materials and its research progress in wastewater treatment[J]. Industrial Water Treatment, 2024, 44(7): 47-56.

https://www.iwt.cn/CN/Y2024/V44/I7/47

图/表 5

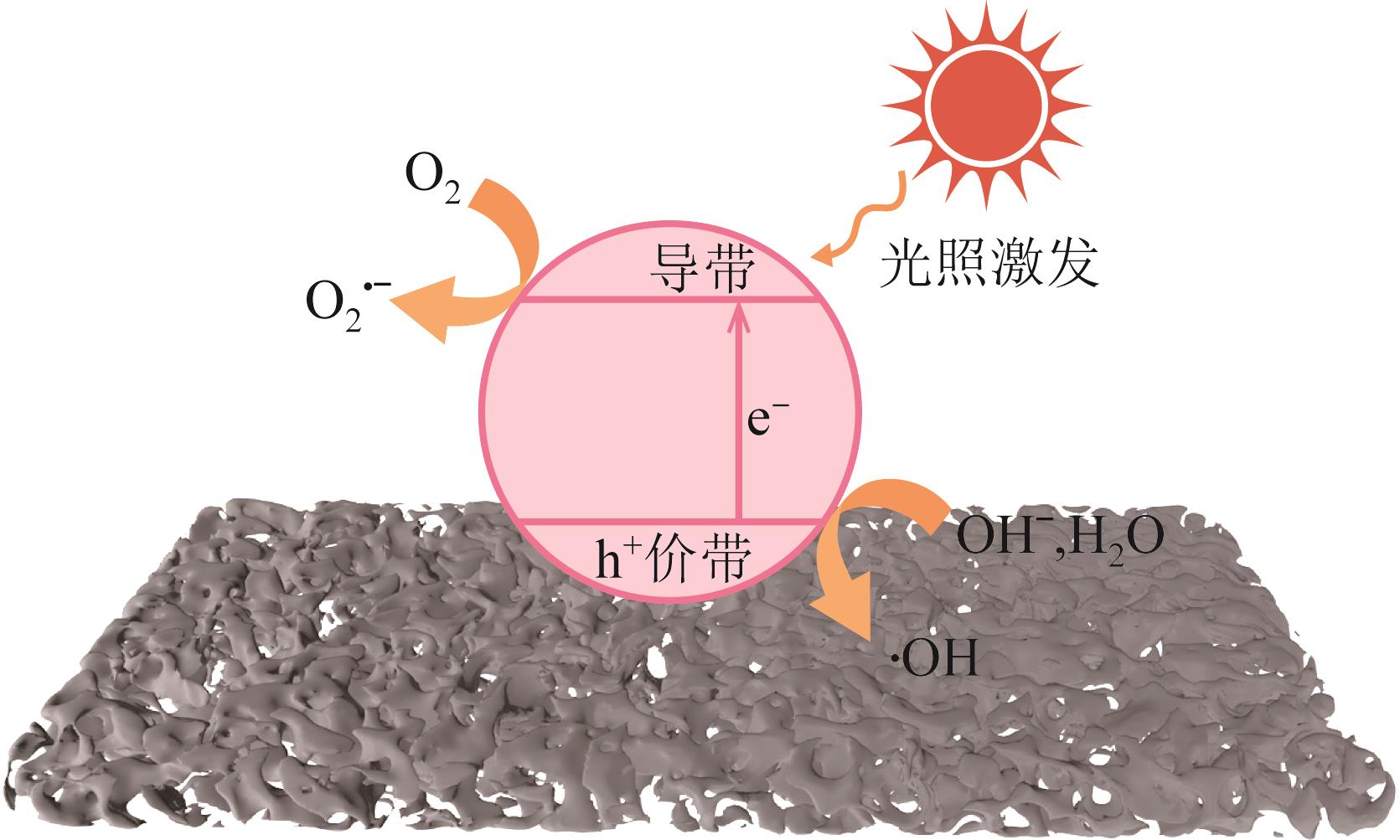

图1 光催化膜的催化机理

Fig.1 Catalytic mechanism of photocatalytic membrane

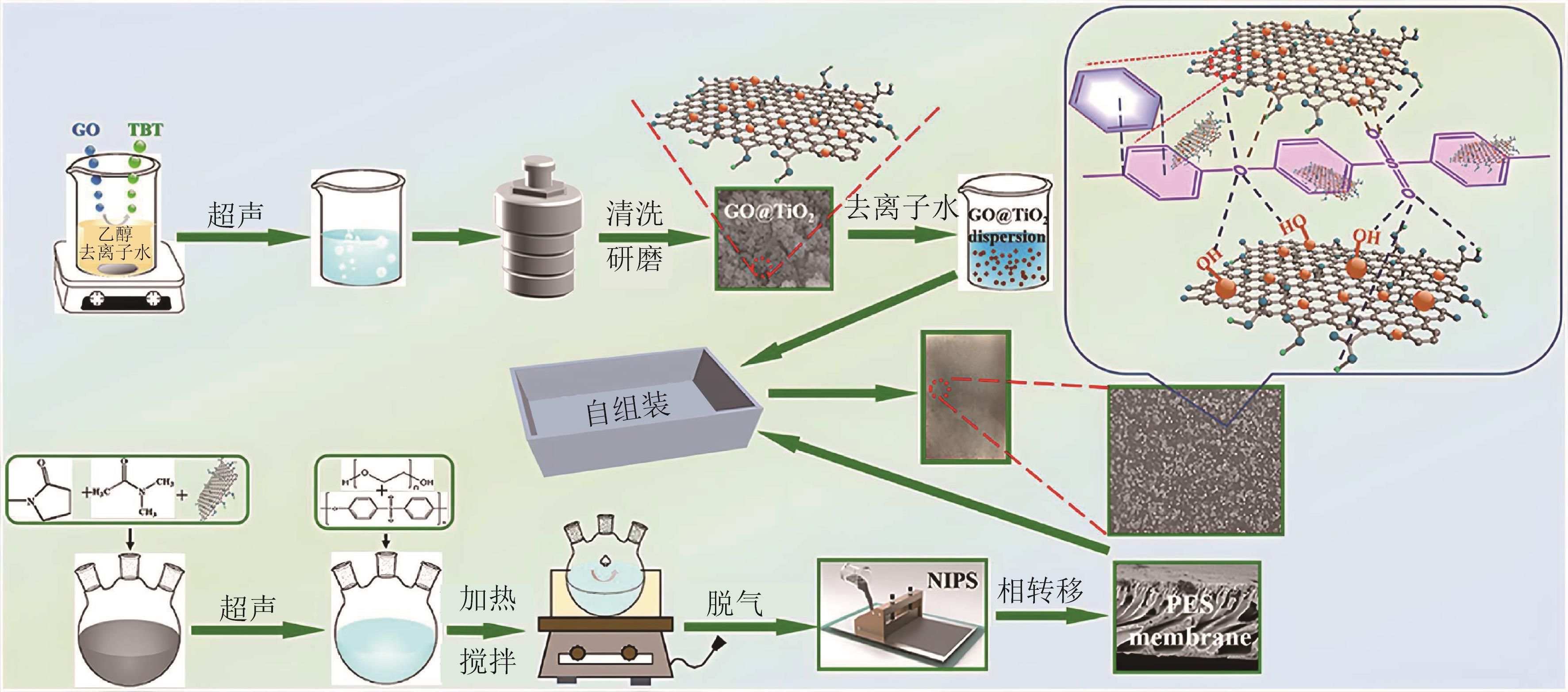

图2 PES/GO@TiO₂光催化膜的具体实验过程及自组装机理

Fig.2 The specific experimental process and self-assembly mechanism of PES/GO@TiO₂ photocatalytic membranes

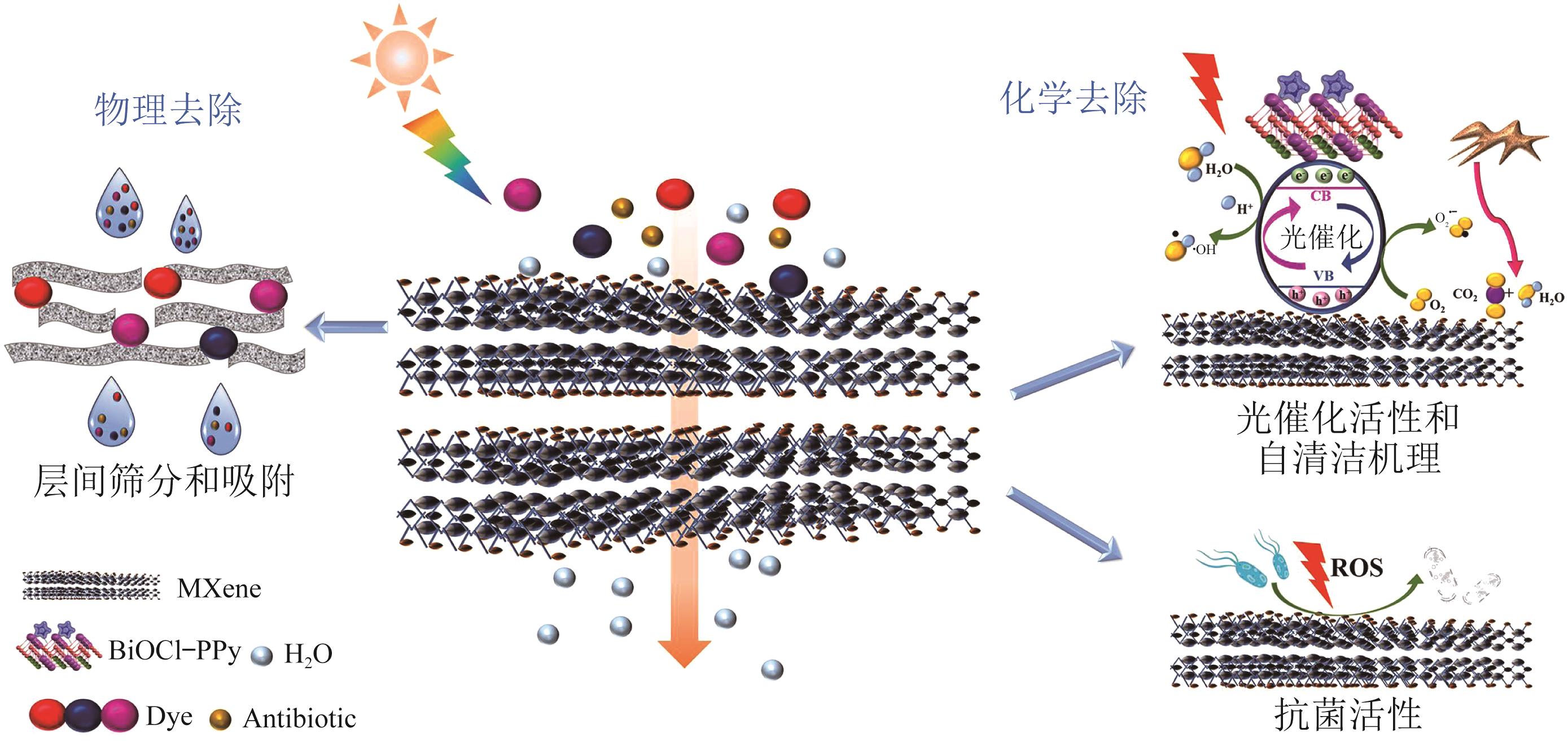

图3 BiOCl-PPy@MXene/PES复合膜的去除机理

Fig.3 The removal mechanism of BiOCl-PPy@MXene/PES composite membrane

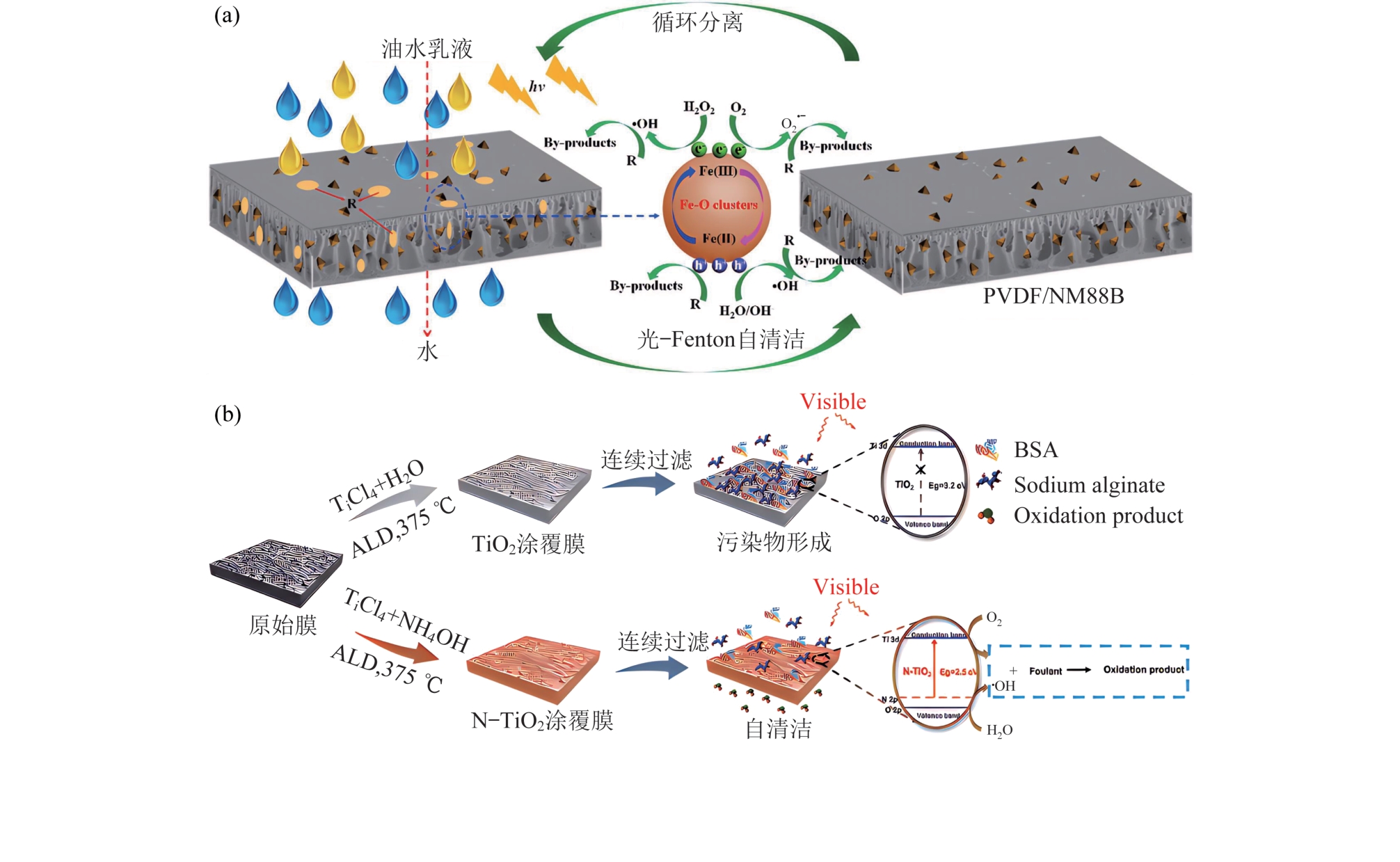

图4 PVDF/NM88B膜的自清洁机理（a）和N-TiO₂和TiO₂涂覆膜的制备及可见光活化光催化减轻污垢的机理（b）

Fig.4 Mechanisms of self-cleaning for PVDF/NM88B membrane（a） and N-TiO₂ and TiO₂-coated membrane preparation and mechanism of visible-light-activated photocatalysis for fouling mitigation（b）

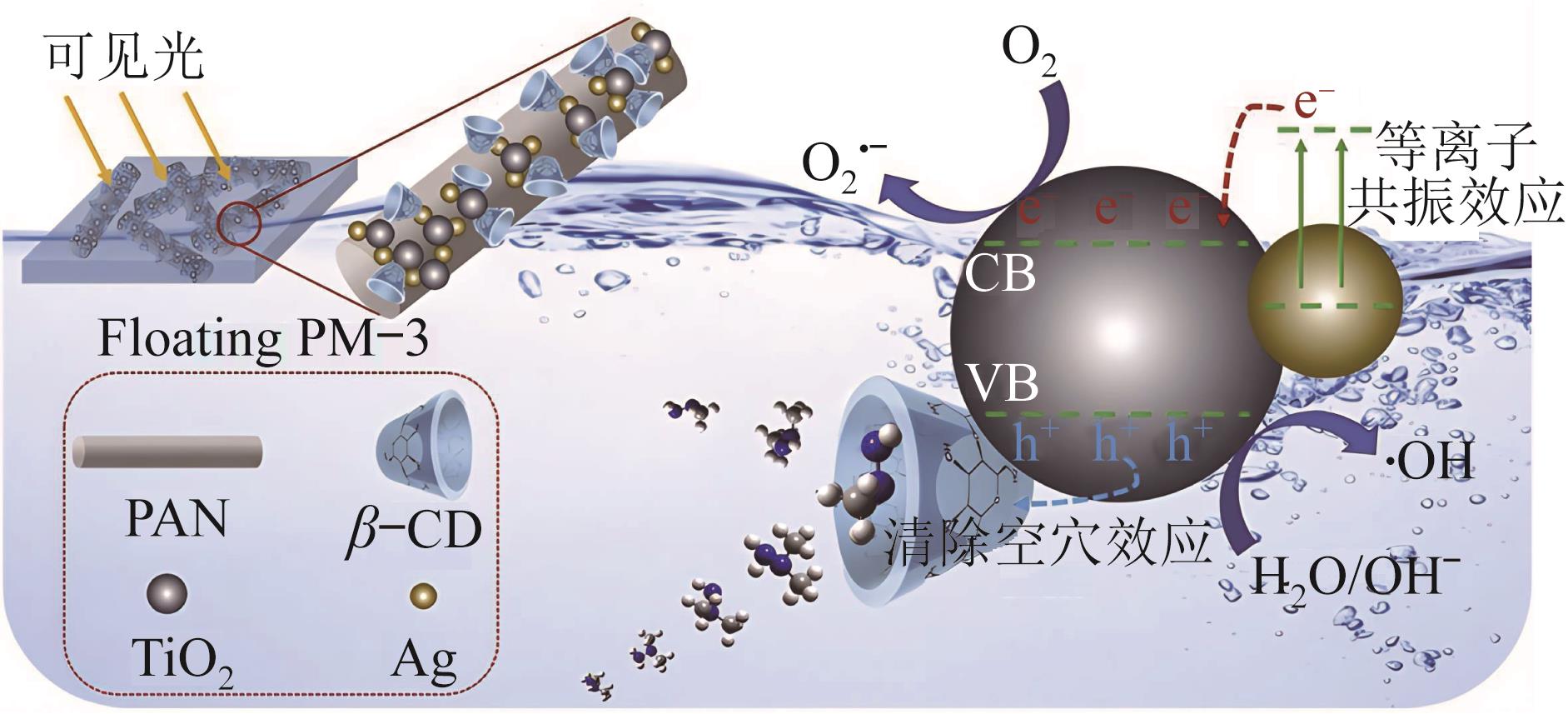

图5 悬浮PM-3降解UDMH的光催化机理

Fig.5 Photocatalytic mechanism for the degradation of UDMH by suspended PM-3

参考文献 60

1	任芝军，白莹，王秋稳，等. 膜污染的光学监测技术研究进展［J］. 工业水处理，2024，44（4）：10-18.
	REN Zhijun， BAI Ying， WANG Qiuwen，et al. Research progress of optical monitoring technologies for membrane fouling［J］. Industrial Water Treatment，2024，44（4）：10-18.
2	赵冰，王军，田蒙奎. 我国膜分离技术及产业发展现状［J］. 现代化工，2021，41（2）：6-10.
	ZHAO Bing， WANG Jun， TIAN Mengkui. China’s development status of membrane separation technology and industry［J］. Modern Chemical Industry，2021，41（2）：6-10.
3	LIU Yongcong， LIN Qingquan， ZENG Guangyong，et al. Nature-inspired green method decorated MXene-based composite membrane for high-efficiency oil/water separation［J］. Separation and Purification Technology，2022，283：120218. doi:10.1016/j.seppur.2021.120218
4	ZHANG Liyi， LIU Yongcong， ZENG Guangyong，et al. Two-dimensional Na-Bentonite@MXene composite membrane with switchable wettability for selective oil/water separation［J］. Separation and Purification Technology，2023，306：122677. doi:10.1016/j.seppur.2022.122677
5	ZHANG Runnan， LIU Yanan， HE Mingrui，et al. Antifouling membranes for sustainable water purification：Strategies and mechanisms［J］. Chemical Society Reviews，2016，45（21）：5888-5924. doi:10.1039/c5cs00579e
6	水博阳，宋小三，范文江. 光催化技术在水处理中的研究进展及挑战［J］. 化工进展，2021，40（S2）：356-363. doi:10.16085/j.issn.1000-6613.2021-0756
	SHUI Boyang， SONG Xiaosan， FAN Wenjiang. Research progress and challenges of photocatalytic technology in water treatment［J］. Chemical Industry and Engineering Progress，2021，40（S2）：356-363. doi:10.16085/j.issn.1000-6613.2021-0756
7	HOU Huilin， ZENG Xiangkang， ZHANG Xiwang. Production of hydrogen peroxide by photocatalytic processes［J］. Angewandte Chemie International Edition，2020，59（40）：17356-17376. doi:10.1002/anie.201911609
8	宋思青，罗建泉，万印华. 基于贻贝仿生化学的催化膜制备和功能探索研究进展［J］. 膜科学与技术，2021，41（2）：127-133. doi:10.16159/j.cnki.issn1007-8924.2021.02.017
	SONG Siqing， LUO Jianquan， WAN Yinhua. Research progress on preparation and functions of catalytic membranes based on mussel-inspired chemistry［J］. Membrane Science and Technology，2021，41（2）：127-133. doi:10.16159/j.cnki.issn1007-8924.2021.02.017
9	ZHANG Yangfan， LI Yao， YU Han，et al. Interfacial defective Ti³⁺ on Ti/TiO₂ as visible-light responsive sites with promoted charge transfer and photocatalytic performance［J］. Journal of Materials Science & Technology，2022，106：139-146. doi:10.1016/j.jmst.2021.06.081
10	廖润钱，钱海霞，曾燮榕，等. 用于光催化的金属氧化物多孔材料的研究进展［J］. 材料导报，2018，32（S1）：54-62.
	LIAO Runqian， QIAN Haixia， ZENG Xierong，et al. Research progress on metal oxide porous materials used as photocatalyst［J］. Materials Review，2018，32（S1）：54-62.
11	MENG Aiyun， ZHANG Liuyang， CHENG Bei，et al. Dual cocatalysts in TiO₂ photocatalysis［J］. Advanced Materials，2019，31（30）：1807660. doi:10.1002/adma.201807660
12	姚海伟，王荟琪，蒲卓林，等. 二维材料/二氧化钛复合材料的光催化研究进展［J］. 材料热处理学报，2023，44（2）：13-29. doi:10.13289/j.issn.1009-6264.2022-0362
	YAO Haiwei， WANG Huiqi， PU Zhuolin，et al. Research progress on photocatalytic of two-dimensional materials/titanium dioxide composites［J］. Transactions of Materials and Heat Treatment，2023，44（2）：13-29. doi:10.13289/j.issn.1009-6264.2022-0362
13	LI Mingjie， YU Zebin， LIU Qing，et al. Photocatalytic decomposition of perfluorooctanoic acid by noble metallic nanoparticles modified TiO₂ ［J］. Chemical Engineering Journal，2016，286：232-238. doi:10.1016/j.cej.2015.10.037
14	高鑫椿，李佳昕，宋沐遥，等. ZnO的改性及其在能源催化领域中的应用新进展［J］. 化工新型材料，2022，50（9）：65-69.
	GAO Xinchun， LI Jiaxin， SONG Muyao，et al. New progress on modification of ZnO and its application in energy catalysis［J］. New Chemical Materials，2022，50（9）：65-69.
15	何争光，邢雨，张俊明，等. Mg-ZnO光催化剂的合成及其降解卡马西平的研究［J］. 水处理技术，2022，48（12）：24-28.
	HE Zhengguang， XING Yu， ZHANG Junming，et al. Synthesis and degradation of carbamazepine by Mg-ZnO photocatalyst［J］. Technology of Water Treatment，2022，48（12）：24-28.
16	ZENG Guangyong， LIU Yongcong， LIN Qingquan，et al. Constructing composite membranes from functionalized metal organic frameworks integrated MXene intended for ultrafast oil/water emulsion separation［J］. Separation and Purification Technology，2022，293：121052. doi:10.1016/j.seppur.2022.121052
17	LIU Xiaolu， MA Ran， ZHUANG Li，et al. Recent developments of doped g-C₃N₄ photocatalysts for the degradation of organic pollutants［J］. Critical Reviews in Environmental Science and Technology，2021，51（8）：751-790. doi:10.1080/10643389.2020.1734433
18	HUMAYUN M， WANG Chundong， LUO Wei. Recent progress in the synthesis and applications of composite photocatalysts：A critical review［J］. Small Methods，2022，6（2）：2101395. doi:10.1002/smtd.202101395
19	LIN Qingquan， ZENG Guangyong， PU Shengyan，et al. A dual regulation strategy for MXene-based composite membrane to achieve photocatalytic self-cleaning properties and multi-functional applications［J］. Chemical Engineering Journal，2022，443：136335. doi:10.1016/j.cej.2022.136335
20	LIN Bo， XIA Mengyang， XU Baorong，et al. Bio-inspired nanostructured g-C₃N₄-based photocatalysts：A comprehensive review［J］. Chinese Journal of Catalysis，2022，43（8）：2141-2172. doi:10.1016/s1872-2067(22)64110-x
21	GAO Kexuan， HOU Lian， AN Xiaoqiang，et al. BiOBr/MXene/gC₃N₄ Z-scheme heterostructure photocatalysts mediated by oxygen vacancies and MXene quantum dots for tetracycline degradation：Process，mechanism and toxicity analysis［J］. Applied Catalysis B：Environmental，2023，323：122150. doi:10.1016/j.apcatb.2022.122150
22	SUBHIKSHA V， KOKILAVANI S， KHAN S S. Recent advances in degradation of organic pollutant in aqueous solutions using bismuth based photocatalysts：A review［J］. Chemosphere，2022，290：133228. doi:10.1016/j.chemosphere.2021.133228
23	ZHANG Li， LI Yuhan， LI Qin，et al. Recent advances on Bismuth-based Photocatalysts：Strategies and mechanisms［J］. Chemical Engineering Journal，2021，419：129484. doi:10.1016/j.cej.2021.129484
24	田浩然，刘福跃，邰月辉，等. 铋系异质结光催化剂的研究进展［J］. 现代化工，2022，42（7）：42-45.
	TIAN Haoran， LIU Fuyue， TAI Yuehui，et al. Research progress on bismuth-series heterojunction photocatalysts［J］. Modern Chemical Industry，2022，42（7）：42-45.
25	LI Jiajia， ZHAO Ziwei， LI Zhuoning，et al. Construction of immobilized films photocatalysts with CdS clusters decorated by metal Cd and BiOCl for photocatalytic degradation of tetracycline antibiotics［J］. Chinese Chemical Letters，2022，33（8）：3705-3708. doi:10.1016/j.cclet.2021.10.080
26	CHEN Peng， LIU Hongjing， SUN Yanjuan，et al. Bi metal prevents the deactivation of oxygen vacancies in Bi₂O₂CO₃ for stable and efficient photocatalytic NO abatement［J］. Applied Catalysis B：Environmental，2020，264：118545. doi:10.1016/j.apcatb.2019.118545
27	李孟辉，袁鸣蔚，黄佳，等. 石墨烯及其衍生物在催化领域的应用［J］. 分子催化，2019，33（2）：190-200.
	LI Menghui， YUAN Mingwei， HUANG Jia，et al. Application of graphene and its derivatives in catalysis［J］. Journal of Molecular Catalysis（China），2019，33（2）：190-200.
28	ZHANG Huiru， WAN Yinhua， LUO Jianquan，et al. Drawing on membrane photocatalysis for fouling mitigation［J］. ACS Applied Materials & Interfaces，2021，13（13）：14844-14865. doi:10.1021/acsami.1c01131
29	MUKHERJEE D， VAN DER BRUGGEN B， MANDAL B. Advancements in visible light responsive MOF composites for photocatalytic decontamination of textile wastewater：A review［J］. Chemosphere，2022，295：133835. doi:10.1016/j.chemosphere.2022.133835
30	程荣，姜培文，夏锦程，等. 共价有机骨架材料在膜分离领域的应用进展［J］. 膜科学与技术，2022，42（5）：154-163.
	CHENG Rong， JIANG Peiwen， XIA Jincheng，et al. Application progress of covalent organic frameworks in membrane separation field［J］. Membrane Science and Technology，2022，42（5）：154-163.
31	胡俊俊，丁同悦，陈奕桦，等. BiOBr/COF复合材料的制备及其光催化应用研究［J］. 现代化工，2020，40（10）：109-114.
	HU Junjun， DING Tongyue， CHEN Yihua，et al. Preparation and photocatalytic application of BiOBr/COF composites［J］. Modern Chemical Industry，2020，40（10）：109-114.
32	ZENG Guangyong， WEI Ke， ZHANG Haiyan，et al. Ultra-high oil-water separation membrane based on two-dimensional MXene（Ti₃C₂T _x ） by co-incorporation of halloysite nanotubes and polydopamine［J］. Applied Clay Science，2021，211：106177. doi:10.1016/j.clay.2021.106177
33	SOLANGI N H， KARRI R R， MAZARI S ALI，et al. MXene as emerging material for photocatalytic degradation of environmental pollutants［J］. Coordination Chemistry Reviews，2023，477：214965. doi:10.1016/j.ccr.2022.214965
34	LIN Qingquan， LIU Yongcong， YANG Zhaomei，et al. Construction and application of two-dimensional MXene-based membranes for water treatment：A mini-review［J］. Results in Engineering，2022，15：100494. doi:10.1016/j.rineng.2022.100494
35	ZHOU Weibing， YU Bo， ZHU Jiaoqun，et al. Hierarchical ZnO/MXene（Nb₂C and V₂C） heterostructure with efficient electron transfer for enhanced photocatalytic activity［J］. Applied Surface Science，2022，590：153095. doi:10.1016/j.apsusc.2022.153095
36	郑红艾，刘月，周艺恒，等. 负载型光催化膜研究进展［J］. 上海电力大学学报，2021，37（2）：158-164. doi:10.3969/j.issn.2096-8299.2021.02.011
	ZHENG Hongai， LIU Yue， ZHOU Yiheng，et al. Research progress of supported photocatalytic membrane［J］. Journal of Shanghai University of Electric Power，2021，37（2）：158-164. doi:10.3969/j.issn.2096-8299.2021.02.011
37	朱腾义，严和婷，李毛. 聚偏氟乙烯膜改性方法研究进展［J］. 化学通报，2018，81（12）：1089-1095.
	ZHU Tengyi， YAN Heting， LI Mao. Progress in polyvinylidene fluoride membrane modification method［J］. Chemistry，2018，81（12）：1089-1095.
38	ZENG Guangyong， HE Zhenzhen， WAN Tao，et al. A self-cleaning photocatalytic composite membrane based on g-C₃N₄@MXene nanosheets for the removal of dyes and antibiotics from wastewater［J］. Separation and Purification Technology，2022，292：121037. doi:10.1016/j.seppur.2022.121037
39	YANG Zhaomei， LIN Qingquan， ZENG Guangyong，et al. Ternary hetero-structured BiOBr/Bi₂MoO₆@MXene composite membrane：Construction and enhanced removal of antibiotics and dyes from water［J］. Journal of Membrane Science，2023，669：121329. doi:10.1016/j.memsci.2022.121329
40	HENG Zengwei， CHONG W C， PANG Y L，et al. Novel visible-light responsive NCQDs-TiO₂/PAA/PES photocatalytic membrane with enhanced antifouling properties and self-cleaning performance［J］. Journal of Environmental Chemical Engineering，2021，9（4）：105388. doi:10.1016/j.jece.2021.105388
41	JEONG E， BYUN J， BAYARKHUU B，et al. Hydrophilic photocatalytic membrane via grafting conjugated polyelectrolyte for visible-light-driven biofouling control［J］. Applied Catalysis B：Environmental，2021，282：119587. doi:10.1016/j.apcatb.2020.119587
42	XU Guorong， WANG Shenghui， ZHAO Heli，et al. Layer-by-layer（LBL） assembly technology as promising strategy for tailoring pressure-driven desalination membranes［J］. Journal of Membrane Science，2015，493：428-443. doi:10.1016/j.memsci.2015.06.038
43	DING Changkun， QIN Xiwen， TIAN Yingying，et al. PES membrane surface modification via layer-by-layer self-assembly of GO@TiO₂ for improved photocatalytic performance［J］. Journal of Membrane Science，2022，659：120789. doi:10.1016/j.memsci.2022.120789
44	ERUSAPPAN E， THIRIPURANTHAGAN S， RADHAKRISHNAN R，et al. Fabrication of mesoporous TiO₂/PVDF photocatalytic membranes for efficient photocatalytic degradation of synthetic dyes［J］. Journal of Environmental Chemical Engineering，2021，9（4）：105776. doi:10.1016/j.jece.2021.105776
45	MANSAS C， ATFANE-KARFANE L， PETIT E，et al. Functionalized ceramic nanofilter for wastewater treatment by coupling membrane separation and catalytic ozonation［J］. Journal of Environmental Chemical Engineering，2020，8（4）：104043. doi:10.1016/j.jece.2020.104043
46	SUN Tianyu， LIU Ying， SHEN Liguo，et al. Magnetic field assisted arrangement of photocatalytic TiO₂ particles on membrane surface to enhance membrane antifouling performance for water treatment［J］. Journal of Colloid and Interface Science，2020，570：273-285. doi:10.1016/j.jcis.2020.03.008
47	CHENG Xiaojie， LIAO Jiahui， XUE Yue，et al. Ultrahigh-flux and self-cleaning composite membrane based on BiOCl-PPy modified MXene nanosheets for contaminants removal from wastewater［J］. Journal of Membrane Science，2022，644：120188. doi:10.1016/j.memsci.2021.120188
48	ZHOU Siyu， FENG Xiaoquan， ZHU Junyong，et al. Self-cleaning loose nanofiltration membranes enabled by photocatalytic Cu-triazolate MOFs for dye/salt separation［J］. Journal of Membrane Science，2021，623：119058. doi:10.1016/j.memsci.2021.119058
49	林立刚，叶卉，赵莉芝，等. 膜吸附和膜吸收研究进展［J］. 中国工程科学，2014，16（12）：59-66. doi:10.3969/j.issn.1009-1742.2014.12.008
	LIN Ligang， YE Hui， ZHAO Lizhi，et al. The progress of membrane adsorption and absorption［J］. Engineering Sciences，2014，16（12）：59-66. doi:10.3969/j.issn.1009-1742.2014.12.008
50	XU Bao， WANG Xianbiao， HUANG Yuanyuan，et al. Electrospinning preparation of PAN/TiO₂/PANI hybrid fiber membrane with highly selective adsorption and photocatalytic regeneration properties［J］. Chemical Engineering Journal，2020，399：125749. doi:10.1016/j.cej.2020.125749
51	XIE Atian， CUI Jiuyun， YANG Jin，et al. Photo-Fenton self-cleaning PVDF/NH₂-MIL-88B（Fe） membranes towards highly-efficient oil/water emulsion separation［J］. Journal of Membrane Science，2020，595：117499. doi:10.1016/j.memsci.2019.117499
52	ZHANG Huiru， MANE A U， YANG Xiaobin，et al. Visible-light-activated photocatalytic films toward self-cleaning membranes［J］. Advanced Functional Materials，2020，30（34）：2002847. doi:10.1002/adfm.202070230
53	ZHANG Yuheng， LI Qi， GAO Qing，et al. Preparation of Ag/β-cyclodextrin co-doped TiO₂ floating photocatalytic membrane for dynamic adsorption and photoactivity under visible light［J］. Applied Catalysis B：Environmental，2020，267：118715. doi:10.1016/j.apcatb.2020.118715
54	LIN Qingquan， ZENG Guangyong， YAN Guilong，et al. Self-cleaning photocatalytic MXene composite membrane for synergistically enhanced water treatment：Oil/water separation and dyes removal［J］. Chemical Engineering Journal，2022，427：131668. doi:10.1016/j.cej.2021.131668
55	JI Lingtong， YAN Luke， CHAO Min，et al. Water purification：Sphagnum inspired g-C₃N₄ nano/microspheres with smaller bandgap in heterojunction membranes for sunlight-driven water purification（small 12/2021）［J］. Small，2021，17（12）：2170054. doi:10.1002/smll.202170054
56	SONG Yuefei， LI Yajuan， CHEN Xiaomei，et al. Simultaneous degradation and separation of antibiotics in sewage effluent by photocatalytic nanofiltration membrane in a continuous dynamic process［J］. Water Research，2023，229：119460. doi:10.1016/j.watres.2022.119460
57	WU C J， VALERIE MAGGAY I， CHIANG C H，et al. Removal of tetracycline by a photocatalytic membrane reactor with MIL-53（Fe）/PVDF mixed-matrix membrane［J］. Chemical Engineering Journal，2023，451：138990. doi:10.1016/j.cej.2022.138990
58	文湘华，申博. 新兴污染物水环境保护标准及其实用型去除技术［J］. 环境科学学报，2018，38（3）：847-857.
	WEN Xianghua， SHEN Bo. Standards of water environmental protection and practical removal technologies of emerging contaminants［J］. Acta Scientiae Circumstantiae，2018，38（3）：847-857.
59	MARCELINO R B， AMORIM C C， RATOVA M，et al. Novel and versatile TiO₂ thin films on PET for photocatalytic removal of contaminants of emerging concern from water［J］. Chemical Engineering Journal，2019，370：1251-1261. doi:10.1016/j.cej.2019.03.284
60	GAO Jinhao， CHEN Wenqiang， SHI Huaqiang，et al. Co₃O₄@Fe₃O₄/cellulose blend membranes for efficient degradation of perfluorooctanoic acid in the visible light-driven photo-Fenton system［J］. Surfaces and Interfaces，2022，34：102302. doi:10.1016/j.surfin.2022.102302
