改性金属有机框架对甲基苯丙胺吸附及机理分析

doi:10.19965/j.cnki.iwt.2023-0658

摘要/Abstract

摘要：

将低共熔溶剂（DES）接枝到金属有机框架ZIF/磁性还原氧化石墨烯（MG）制备了一种复合吸附剂（DES@ZIF@MG），用于吸附水中甲基苯丙胺。采用SEM、FT-IR、BET、VSM、TGA等表征研究复合材料的微观形貌及理化性质。通过吸附动力学、吸附等温线以及吸附影响实验（pH、离子浓度和腐殖酸）探究吸附剂对甲基苯丙胺的吸附性能及机理。结果表明：吸附剂DES@ZIF@MG对甲基苯丙胺的吸附符合准二级动力学模型和Langmuir等温模型，说明吸附过程是以化学吸附为主导的能量均匀吸附。结合XPS表征进一步分析，DES@ZIF@MG对甲基苯丙胺的吸附过程中主要存在氢键作用、π-π作用、静电作用以及螯合作用。

关键词: 吸附, 低共熔溶剂, 金属有机框架, 甲基苯丙胺

Abstract:

A new adsorbent(DES@ZIF@MG) was prepared by grafting deep eutectic solvents(DES) onto metal organic framework ZIF/magnetic reduced graphene oxide(MG) for the adsorption of methamphetamine. A series of structural characterization analyses (SEM, FT-IR, BET, VSM, TGA) were facilitated to explore the microscopic morphology and physicochemical properties of DES@ZIF@MG. The adsorption performances of methamphetamine onto the adsorbent were investigated by adsorption kinetics, isotherms, and adsorption effect experiments(pH, ionic strengths, and humic acid). The results showed that the adsorption of methamphetamine onto DES@ZIF@MG was consistent with the pseudo-second-order model and the Langmuir model, indicating that the adsorption process was an energetically homogeneous adsorption dominated by chemisorption. The XPS characterization illustrated that the adsorption process of methamphetamine by DES@ZIF@MG mainly involved hydrogen bonding, π-π interaction, electrostatic interaction, and chelation.

Key words: adsorption, deep eutectic solvents, metal-organic framework, methamphetamine

中图分类号:

TB333
X703

宋凤娇, 刘正宏, 曹淑瑞, 田洁, 游嘉德, 张磊. 改性金属有机框架对甲基苯丙胺吸附及机理分析[J]. 工业水处理, 2024, 44(7): 96-104.

Fengjiao SONG, Zhenghong LIU, Shurui CAO, Jie TIAN, Jiade YOU, Lei ZHANG. Adsorption performance and mechanism analysis of modified metal-organic frame composites towards methamphetamine[J]. Industrial Water Treatment, 2024, 44(7): 96-104.

https://www.iwt.cn/CN/Y2024/V44/I7/96

图/表 13

图1 DES@ZIF@MG的SEM（a）~（c）和EDS（d）

Fig.1 SEM（a）-（c） and EDS（d） of DES@ZIF@MG

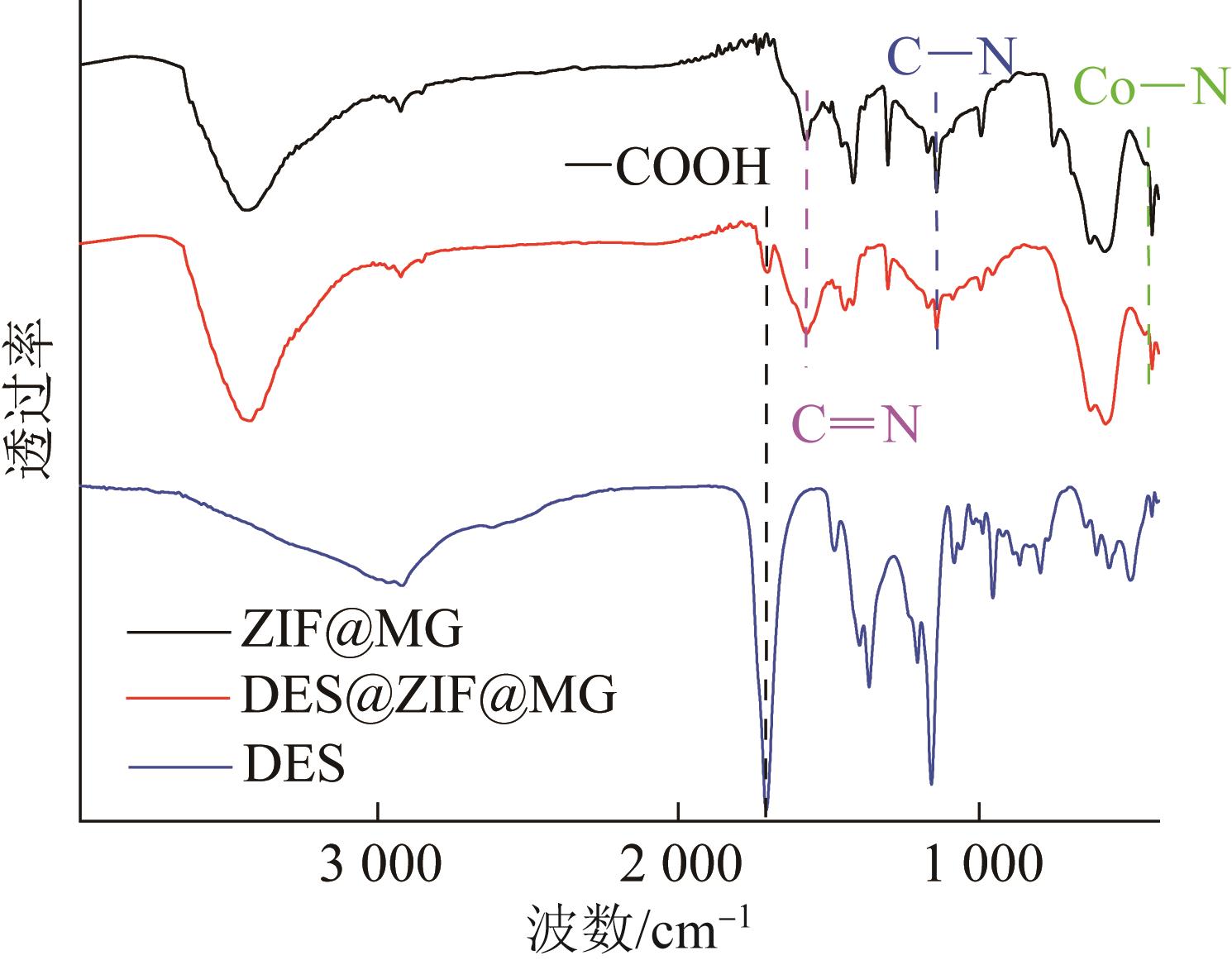

图2 不同材料的FT-IR图谱

Fig.2 FT-IR spectra of different materials

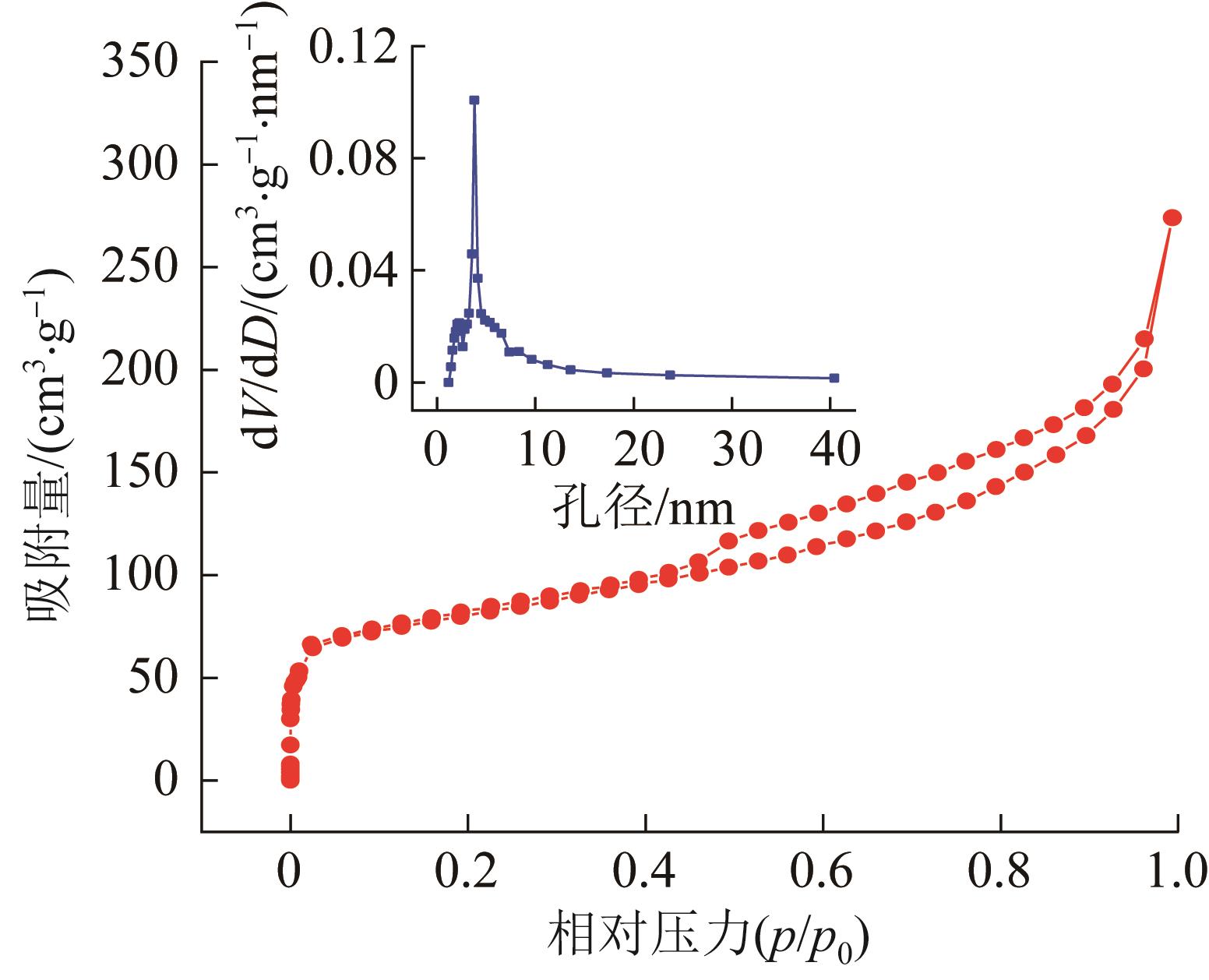

图3 DES@ZIF@MG的氮气吸附-脱附曲线及孔径分布曲线

Fig.3 N₂ adsorption-desorption curves and pore size distribution of DES@ZIF@MG

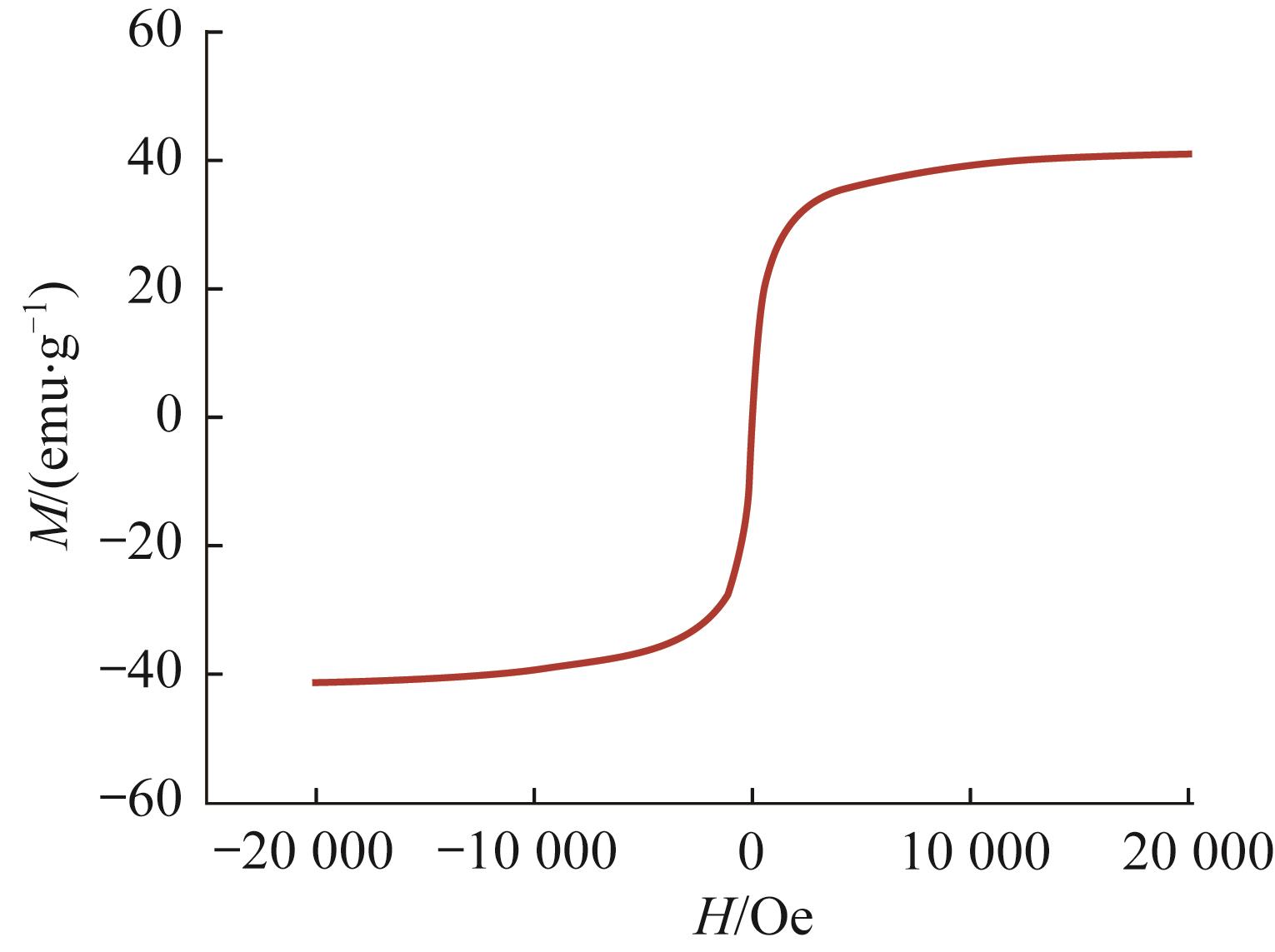

图4 DES@ZIF@MG的VSM磁性曲线

Fig.4 The magnetization curve of DES@ZIF@MG

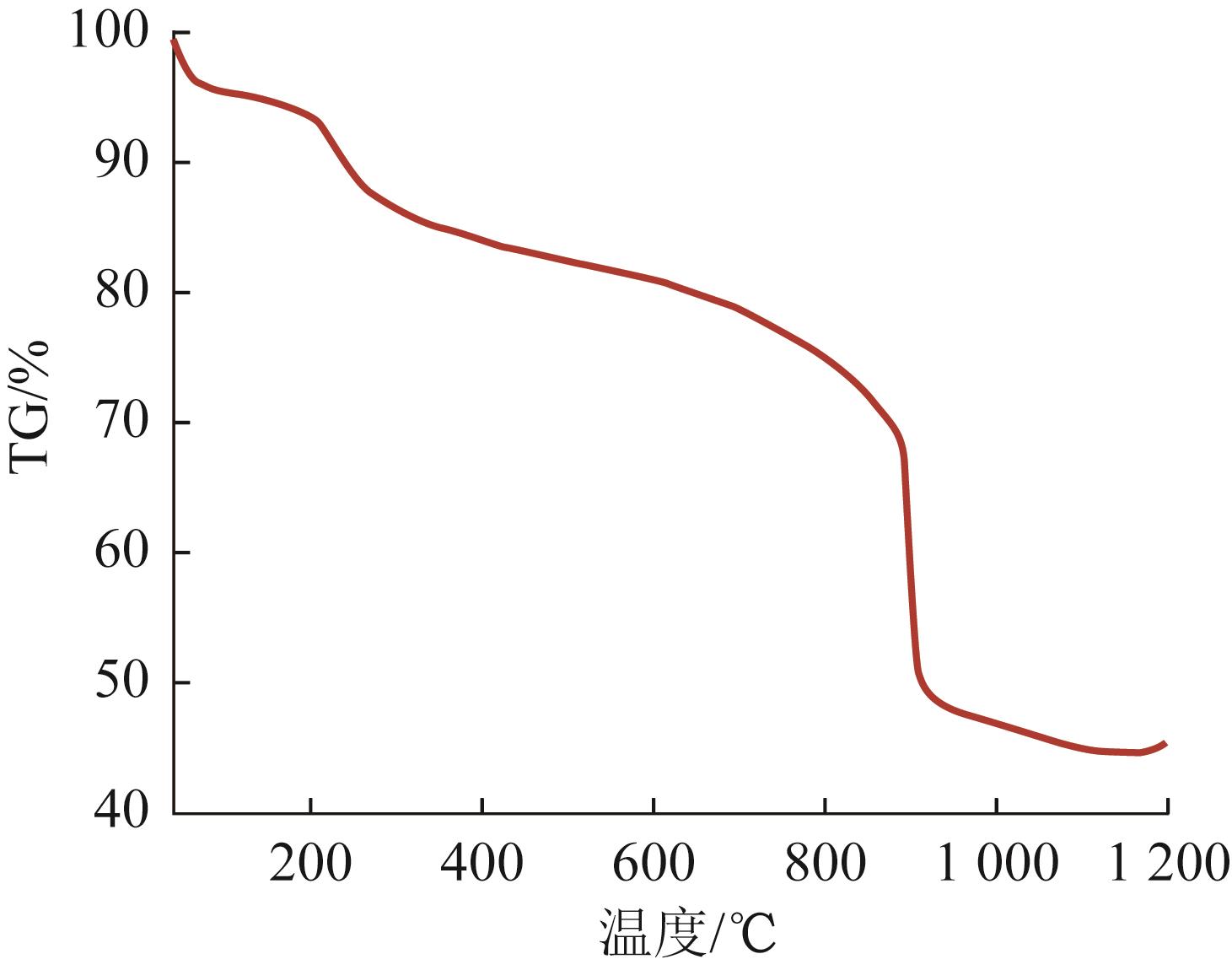

图5 DES@ZIF@MG的TGA热重曲线

Fig.5 TGA curve of DES@ZIF@MG

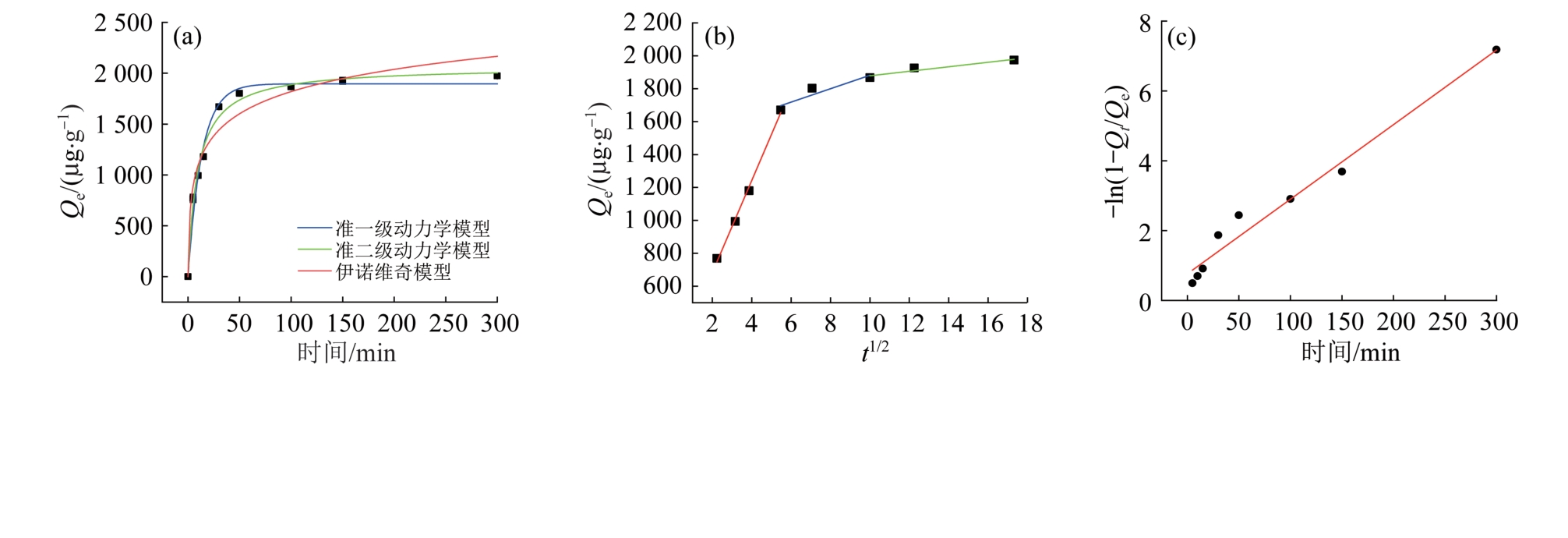

图6 DES@ZIF@MG对甲基苯丙胺的吸附动力学的准一级动力学、准二级动力学、Elovich模型拟合曲线（a），粒子内扩散（b）和液膜扩散（c）模型拟合曲线

Fig.6 Adsorption kinetics of methamphetamine onto DES@ ZIF@MG fitted by pseudo-first-order，pseudo-second-order kinetic，Elovich models（a），intraparticle diffusion（b） and boyd film diffusion（c）

表1 DES@ZIF@MG吸附甲基苯丙胺的动力学参数

Table 1 Kinetic parameters of DES@ZIF@MG for the methamphetamine adsorption

Q _e/

（μg·g^-1）

K ₁

R ²

Q _e/

（μg·g^-1）

K ₂

表2 DES@ZIF@MG吸附MAMP的等温吸附参数

Table 2 Isotherms parameters of DES@ZIF@MG for the methamphetamine

Langmuir			Freundlich			Dubinin-Radushkevich
Q _m/（μg·g^-1）	K _L	R ²	K _F	n _F	R ²	Q _D-R/（μg·g^-1）	β _D-R	R ²
2 122.304	0.046 77	0.998	208.382	0.467	0.974	1 825.931	0.003	0.973

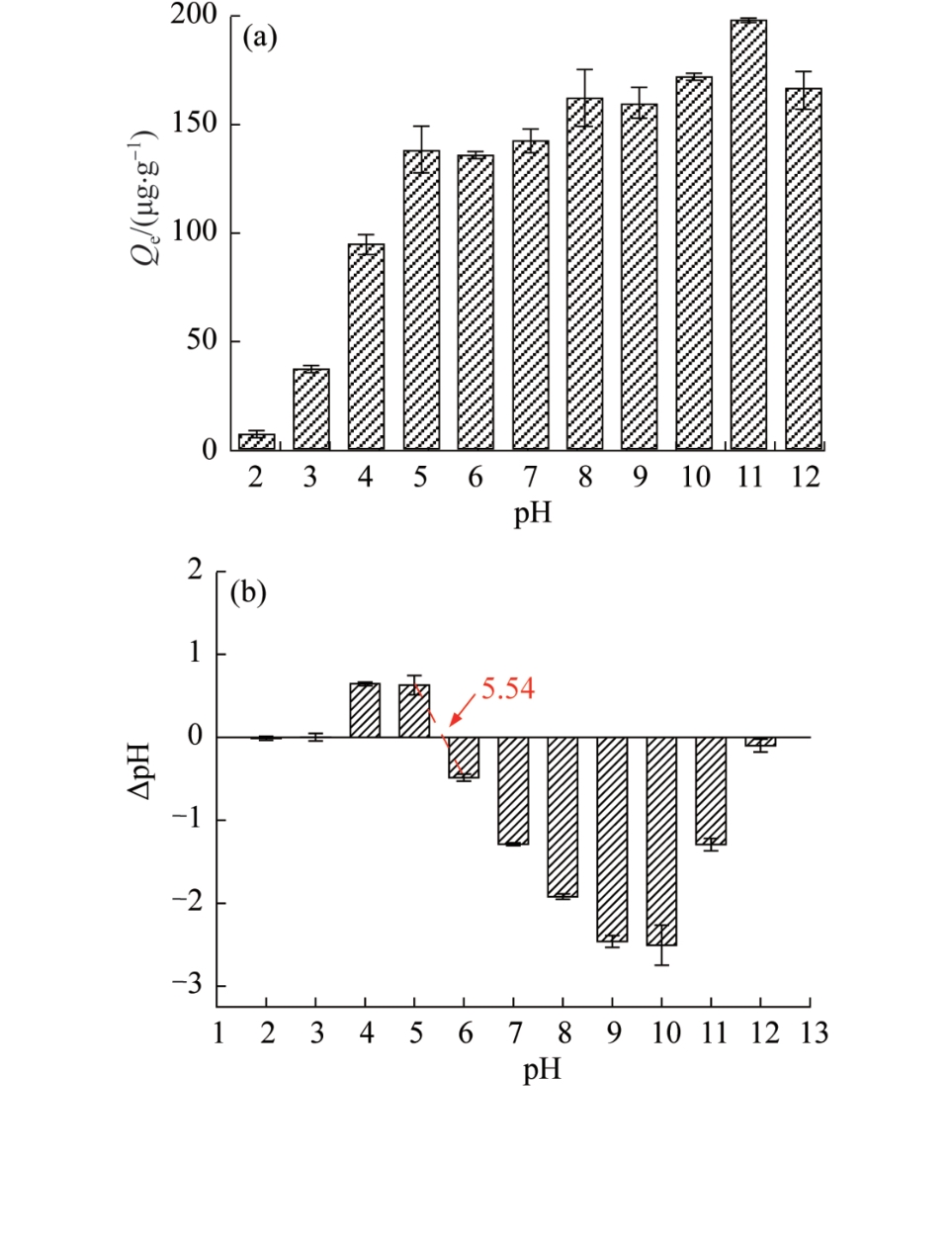

图7 溶液pH的影响（a），DES@ZIF@MG零电荷点（b）

Fig.7 Effects of solution pH（a），the point of zero charge detection of DES@ZIF@MG（b）

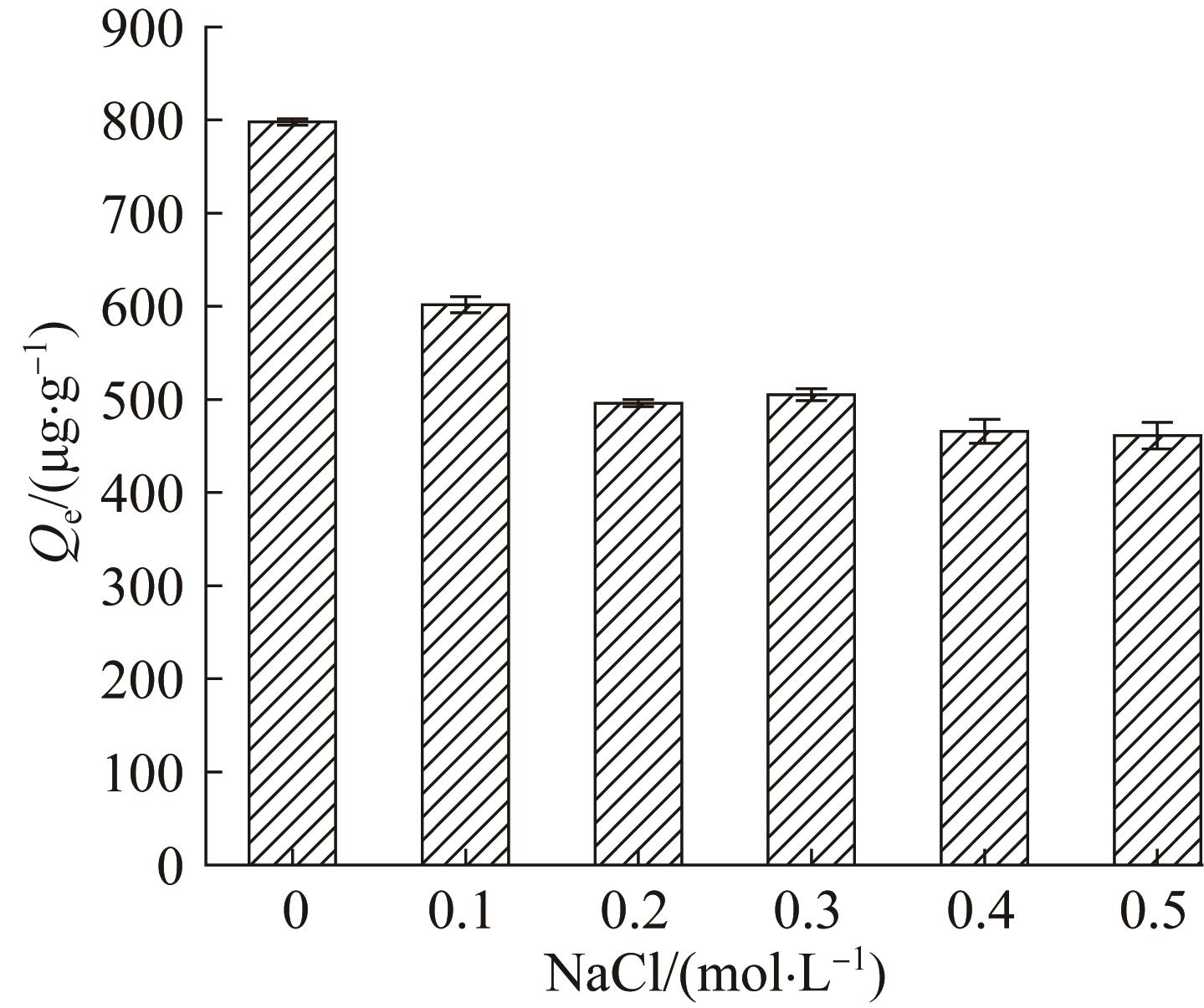

图8 离子强度的影响

Fig.8 Effects of ionic strength

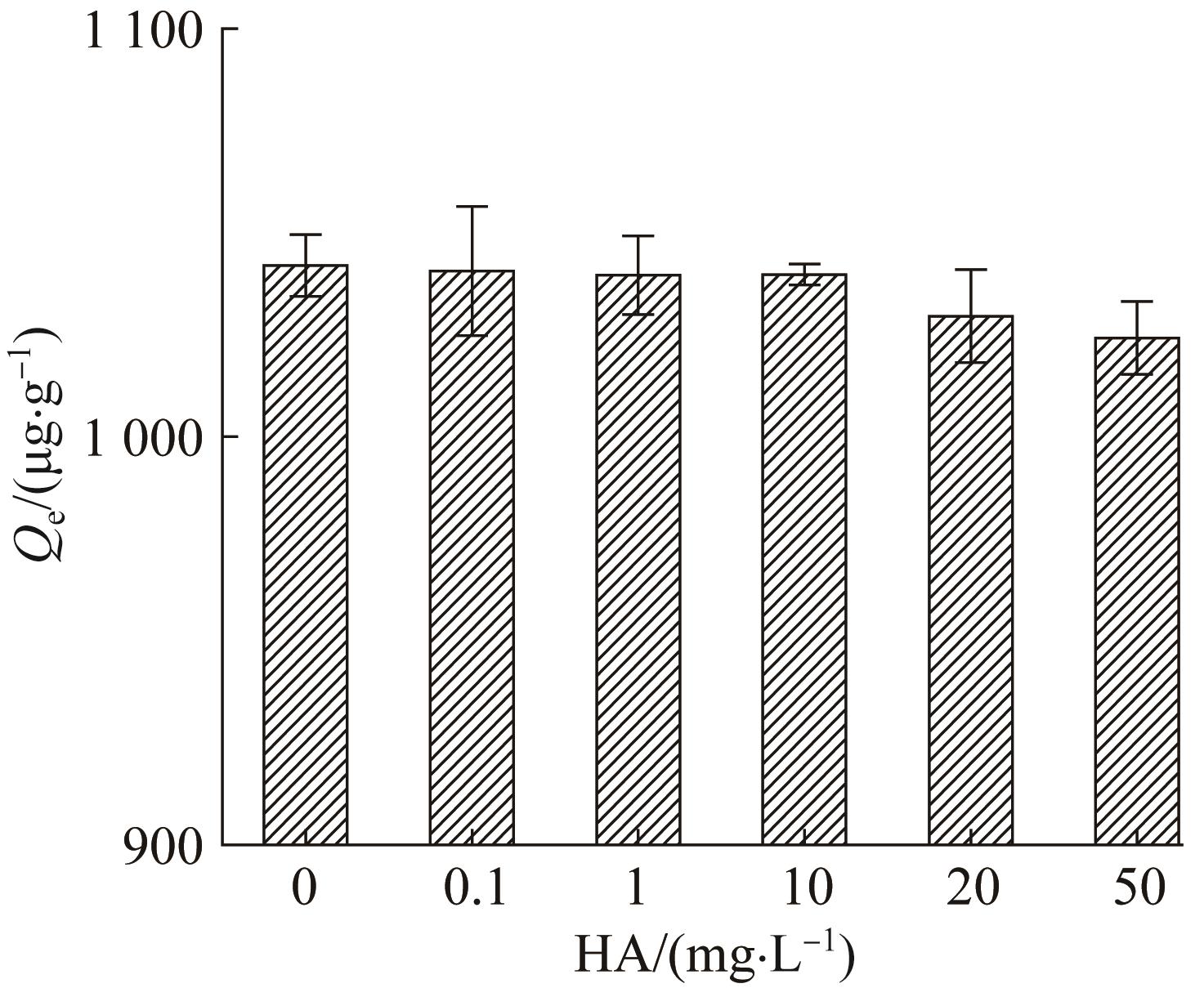

图9 腐殖酸质量浓度的影响

Fig.9 Effects of humic acid mass concentration

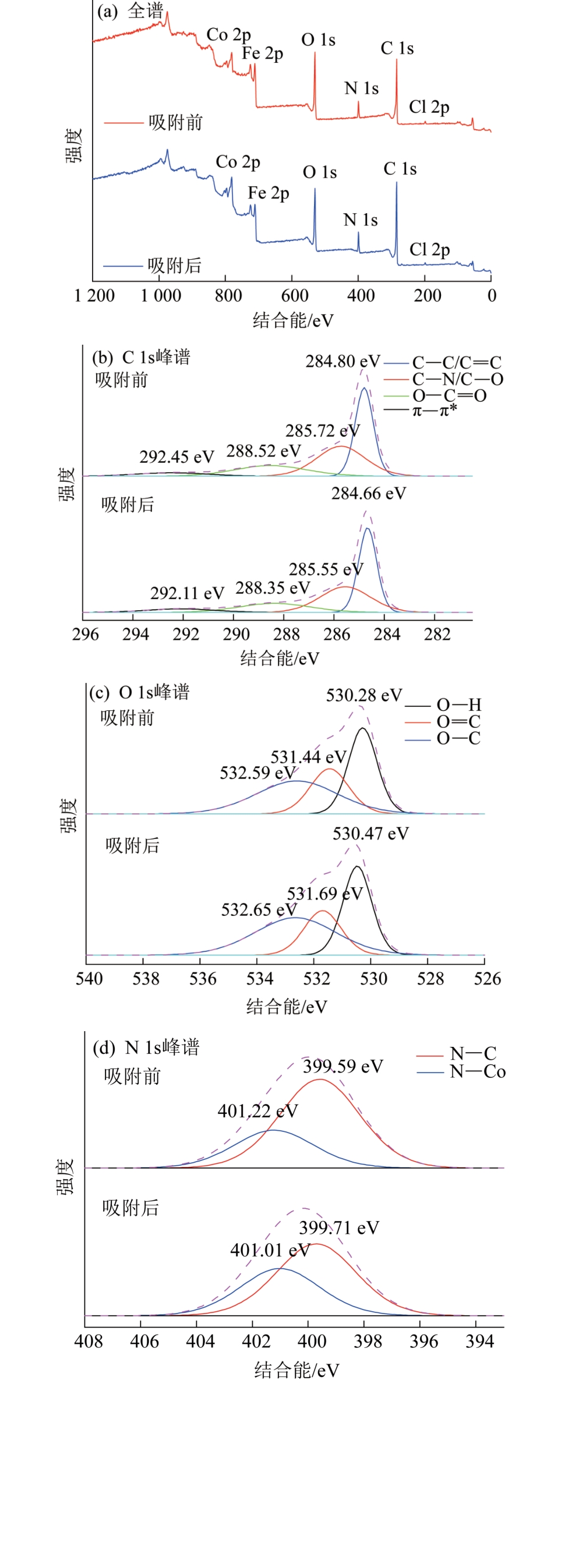

图10 DES@ZIF@MG吸附甲基苯丙胺前后的XPS全谱（a），C 1s峰光谱（b），O 1s峰光谱（c），N 1s峰光谱（d）

Fig.10 The XPS spectra of DES@ZIF@MG before and after adsorption of methamphetamine：full scans（a），peaks for C 1s（b），peaks for O 1s（c） and peaks for N 1s（d）

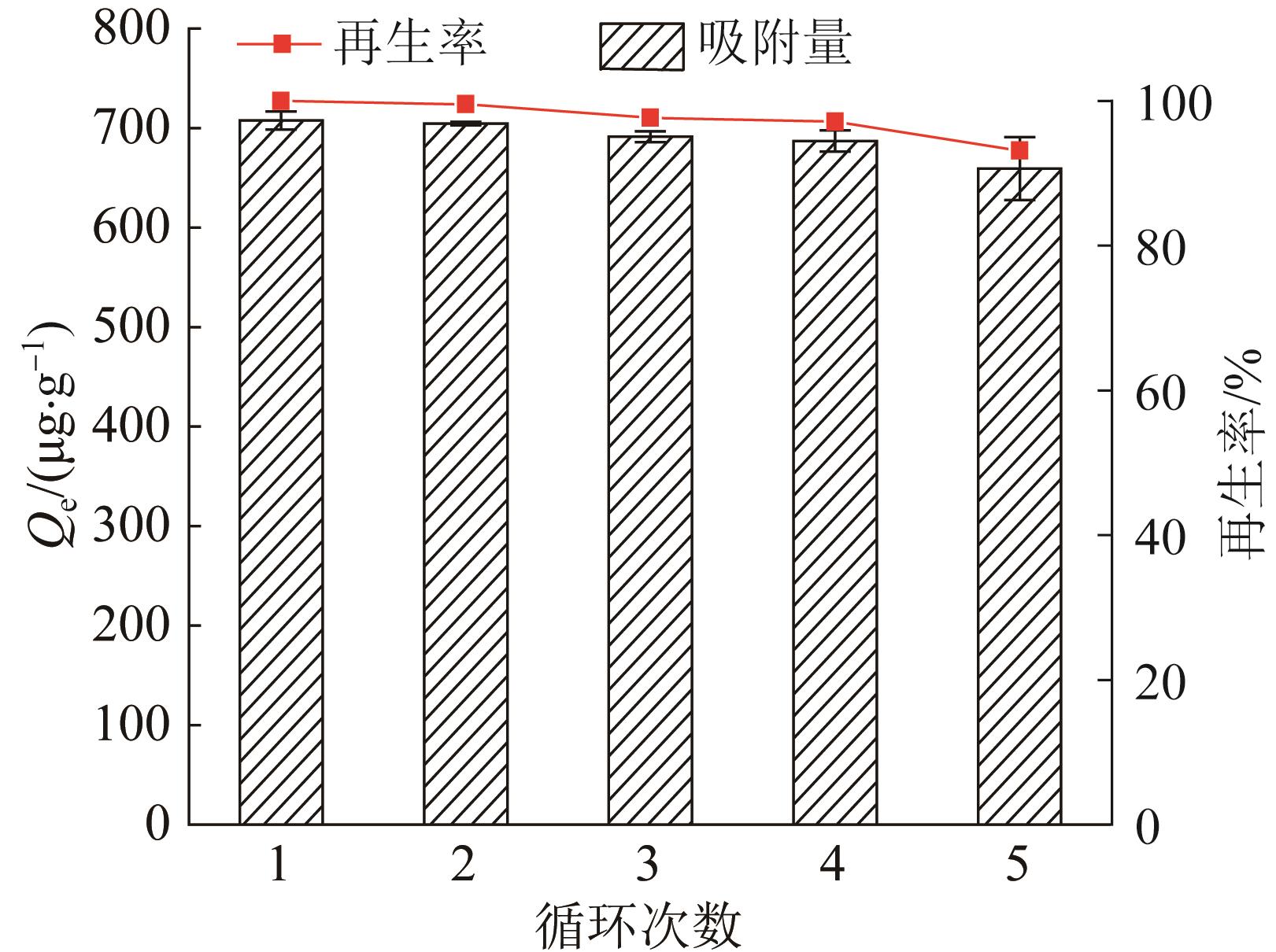

图11 DES@ZIF@MG的循环使用性能

Fig.11 Reusability of DES@ZIF@MG

参考文献 21

1	HAYEK S EL， ALLOUCH F， RAZAFSHA M，et al. Traumatic brain injury and methamphetamine：A double-hit neurological insult［J］. Journal of the Neurological Sciences，2020，411：116711. doi:10.1016/j.jns.2020.116711
2	SHUKLA M， VINCENT B. Methamphetamine abuse disturbs the dopaminergic system to impair hippocampal-based learning and memory：An overview of animal and human investigations［J］. Neuroscience and Biobehavioral Reviews，2021，131：541-559. doi:10.1016/j.neubiorev.2021.09.016
3	ZHANG Yan， ZHANG Tingting， GUO Changsheng，et al. Drugs of abuse and their metabolites in the urban rivers of Beijing，China：Occurrence，distribution，and potential environmental risk［J］. The Science of the Total Environment，2017，579：305-313. doi:10.1016/j.scitotenv.2016.11.101
4	PENG Yan， GAUTAM L， HALL S W. The detection of drugs of abuse and pharmaceuticals in drinking water using solid-phase extraction and liquid chromatography-mass spectrometry［J］. Chemosphere，2019，223：438-447. doi:10.1016/j.chemosphere.2019.02.040
5	XU Zeqiong， DU Peng， LI Kaiyang，et al. Tracing methamphetamine and amphetamine sources in wastewater and receiving waters via concentration and enantiomeric profiling［J］. The Science of the Total Environment，2017，601/602：159-166. doi:10.1016/j.scitotenv.2017.05.045
6	AN Li， CAI Zhejing， WANG Weiwei，et al. A thermo-sensitive imaging coating derived from polymer nanoparticles containing infrared absorbing dye［J］. European Polymer Journal，2014，52：166-171. doi:10.1016/j.eurpolymj.2014.01.002
7	QIAO Disi， LI Zehao， DUAN Jinyou，et al. Adsorption and photocatalytic degradation mechanism of magnetic graphene oxide/ZnO nanocomposites for tetracycline contaminants［J］. Chemical Engineering Journal，2020，400：125952. doi:10.1016/j.cej.2020.125952
8	ZHAO Qiangyu， ZHAO Zhenyuan， RAO Renzhi，et al. Universitetet i Oslo-67（UiO-67）/graphite oxide composites with high capacities of toluene：Synthesis strategy and adsorption mechanism insight［J］. Journal of Colloid and Interface Science，2022，627：385-397. doi:10.1016/j.jcis.2022.07.059
9	WEI Xiaoxiao， WANG Yuzhi， CHEN Jing，et al. Adsorption of pharmaceuticals and personal care products by deep eutectic solvents-regulated magnetic metal-organic framework adsorbents：Performance and mechanism［J］. Chemical Engineering Journal，2020，392：124808. doi:10.1016/j.cej.2020.124808
10	ZHAO Menghui， TESFAY REDA A， ZHANG Dongxiang. Reduced graphene oxide/ZIF-67 aerogel composite material for uranium adsorption in aqueous solutions［J］. ACS Omega，2020，5（14）：8012-8022. doi:10.1021/acsomega.0c00089
11	HU Guangzhuang， ZHANG Wei， CHEN Yuantao，et al. Removal of boron from water by GO/ZIF-67 hybrid material adsorption［J］. Environmental Science and Pollution Research，2020，27（22）：28396-28407. doi:10.1007/s11356-020-08018-6
12	WANG Junyi， LI Yucheng， Zhimin LÜ，et al. Exploration of the adsorption performance and mechanism of zeolitic imidazolate framework-8@graphene oxide for Pb（Ⅱ） and 1-naphthylamine from aqueous solution［J］. Journal of Colloid and Interface Science，2019，542：410-420. doi:10.1016/j.jcis.2019.02.039
13	YANG Yiqiong， ZHENG Zenghui， JI Wenqing，et al. Insights to perfluorooctanoic acid adsorption micro-mechanism over Fe-ased metal organic frameworks：Combining computational calculation with response surface methodology［J］. Journal of Hazardous Materials，2020，395：122686. doi:10.1016/j.jhazmat.2020.122686
14	XIONG Chao， XUE Can， HUANG Liyun，et al. Enhanced selective removal of Pb（Ⅱ） by modification low-cost bio-sorbent：Experiment and theoretical calculations［J］. Journal of Cleaner Production，2021，316：128372. doi:10.1016/j.jclepro.2021.128372
15	YAO Ning， CHEN Jinfeng， FENG Ren，et al. Mechanistic insight into the adsorption of low concentrations of N-nitrosodiethylamine in water by functional MIL-96：Experiments and theoretical calculations［J］. Chemical Engineering Journal，2023，451：138761. doi:10.1016/j.cej.2022.138761
16	GARCÍA-GALÁN M J， SILVIA DÍAZ-CRUZ M， BARCELÓ D，et al. Combining chemical analysis and ecotoxicity to determine environmental exposure and to assess risk from sulfonamides［J］. TrAC Trends in Analytical Chemistry，2009，28（6）：804-819. doi:10.1016/j.trac.2009.04.006
17	TIAN Yu， CAO Shurui， XI Cunxian，et al. Designing polydopamine nanohybrid based on template-mediated for effectively remove amphetamine-type stimulants in sewage：Performance and mechanism［J］. Journal of Environmental Chemical Engineering，2021，9（5）：105870. doi:10.1016/j.jece.2021.105870
18	SONG Fengjiao， CAO Shurui， LIU Zhenghong，et al. Different decorated ZIF-67 adsorption performance towards methamphetamine revealed by theoretical and experimental investigations［J］. Journal of Molecular Liquids，2022，364：119950. doi:10.1016/j.molliq.2022.119950
19	ZHAO Yanping， GENG Jinju， WANG Xiaorong，et al. Adsorption of tetracycline onto goethite in the presence of metal cations and humic substances［J］. Journal of Colloid and Interface Science，2011，361（1）：247-251. doi:10.1016/j.jcis.2011.05.051
20	CAO Shurui， TANG Tiantian， XI Cunxian，et al. Fabricating magnetic GO/ZIF-8 nanocomposite for amphetamine adsorption from water：Capability and mechanism［J］. Chemical Engineering Journal，2021，422：130096. doi:10.1016/j.cej.2021.130096
21	CHEN Guanyu， HE Song， SHI Guibin，et al. In-situ immobilization of ZIF-67 on wood aerogel for effective removal of tetracycline from water［J］. Chemical Engineering Journal，2021，423：130184. doi:10.1016/j.cej.2021.130184
