农膜-秸秆生物质炭对亚甲基蓝的吸附性能

doi:10.19965/j.cnki.iwt.2024-0168

摘要/Abstract

摘要：

为了研究农膜掺杂对秸秆生物质炭材料结构和吸附性能的影响，以聚乙烯农膜和玉米秸秆为原料，无水碳酸钾为改性剂，制备了石墨化生物质炭SPS600-B，通过SEM、TEM、BET、XRD、元素分析等对材料进行了表征，考察了其吸附亚甲基蓝（MB）的性能和机理。研究结果表明SPS600-B高度石墨化，表面具有很多不穿透介孔以及碳微球结构，比表面积达到了821.96 m²/g。在25 ℃、pH=7时，0.2 g/L SPS600-B对100 mg/L MB的去除率为93.2%，吸附容量为466.2 mg/g，经过5次解吸附循环利用，去除率仍可达79.4%。吸附机理研究表明：吸附过程符合准二级动力学模型和Langmuir模型，以化学吸附为主。吸附过程受到包括孔吸附作用、π-π电子作用、静电引力作用和氢键作用等的共同影响，吸附行为属于自发的吸热反应。

关键词: 农膜, 秸秆, 生物质炭, 亚甲基蓝, 吸附

Abstract:

In order to explore the effect of agricultural film doping on the structure and adsorption properties of straw biochar materials, the graphitized biochar of SPS600-B was prepared using waste corn straw mixed with polyethylene agricultural film as raw materials and anhydrous potassium carbonate as modifier. The material was characterized by SEM, TEM, BET, XRD and elemental analysis. The adsorption performance and mechanism for methylene blue(MB) by SPS600-B were investigated. The results showed that SPS600-B was highly graphitized with many non-penetrating pore and carbon microsphere structures on its surface, and the specific surface area was 821.96 m²/g. At 25 ℃ and pH=7, the removal rate of 100 mg/L MB by 0.2 g/L SPS600-B reached 93.2%, and the adsorption capacity was 466.2 mg/g. After 5 cycles of adsorption-desorption recycling, the removal rate of MB could still reach 79.4%. The adsorption mechanism revealed that the adsorption process conformed to the quasi-second-order kinetic model and Langmuir model, which was dominated by chemisorption. The adsorption process was affected by pore adsorption, electrostatic attraction, π-π electron interaction and hydrogen bonding. The adsorption behaviour was a spontaneous adsorption reaction.

Key words: straw, agricultural film, biochar, methylene blue, adsorption

中图分类号:

X703

王庆元, 张彦平, 李一兵, 李芬. 农膜-秸秆生物质炭对亚甲基蓝的吸附性能[J]. 工业水处理, 2025, 45(3): 110-120.

Qingyuan WANG, Yanping ZHANG, Yibing LI, Fen LI. Adsorption of methylene blue by biochar prepared using straw mixed with agricultural film[J]. Industrial Water Treatment, 2025, 45(3): 110-120.

https://www.iwt.cn/CN/Y2025/V45/I3/110

图/表 17

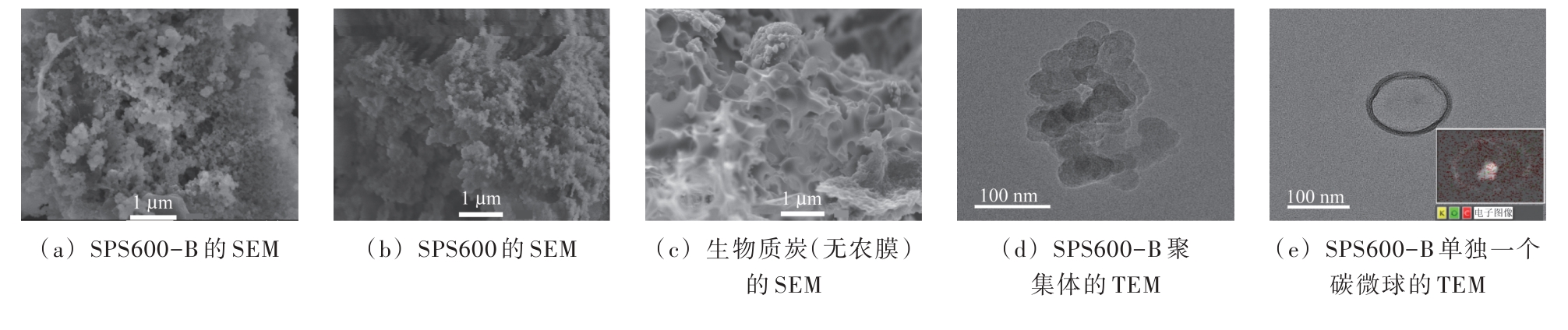

图1 生物质炭的SEM（×20 000倍）以及TEM

Fig.1 SEM（×20 000） and TEM of biochar

表1 SPS600和SPS600-B样品的结构参数

Table 1 Structure parameters of SPS600 and SPS600-B

样品	比表面积/（m²·g^-1）	总孔容/（cm³·g^-1）	平均孔径/nm
SPS600	9.72	0.048 8	17.441 5
SPS600-B	821.96	0.202 4	6.306 7

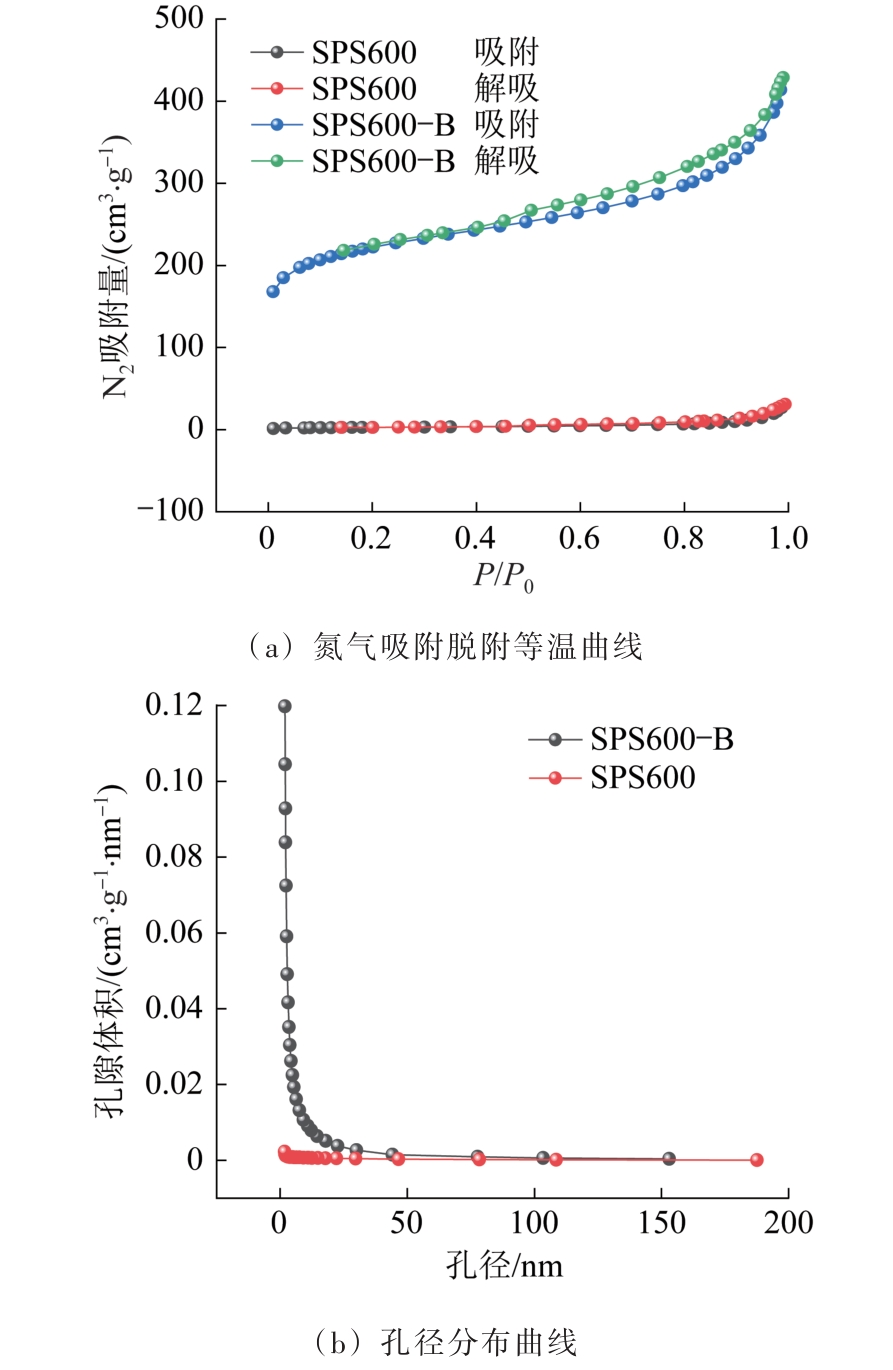

图2 SPS600和SPS600-B的氮气吸附脱附等温曲线及孔径分布曲线

Fig.2 Adsorption and desorption isotherms and pore size distribution curves of SPS600 and SPS600-B

表2 SPS600和SPS600-B的元素分析以及元素质量比

Table 2 Elemental analysis and elemental mass ratio of SPS600 and SPS600-B

样品	C/%	H/%	N/%	O/%	H/C	O/C	（O+N）/C
SPS600	37.84	1.82	0.28	55.51	0.049	1.46	1.47
SPS600-B	48.78	2.21	0.11	44.9	0.045	0.92	0.92

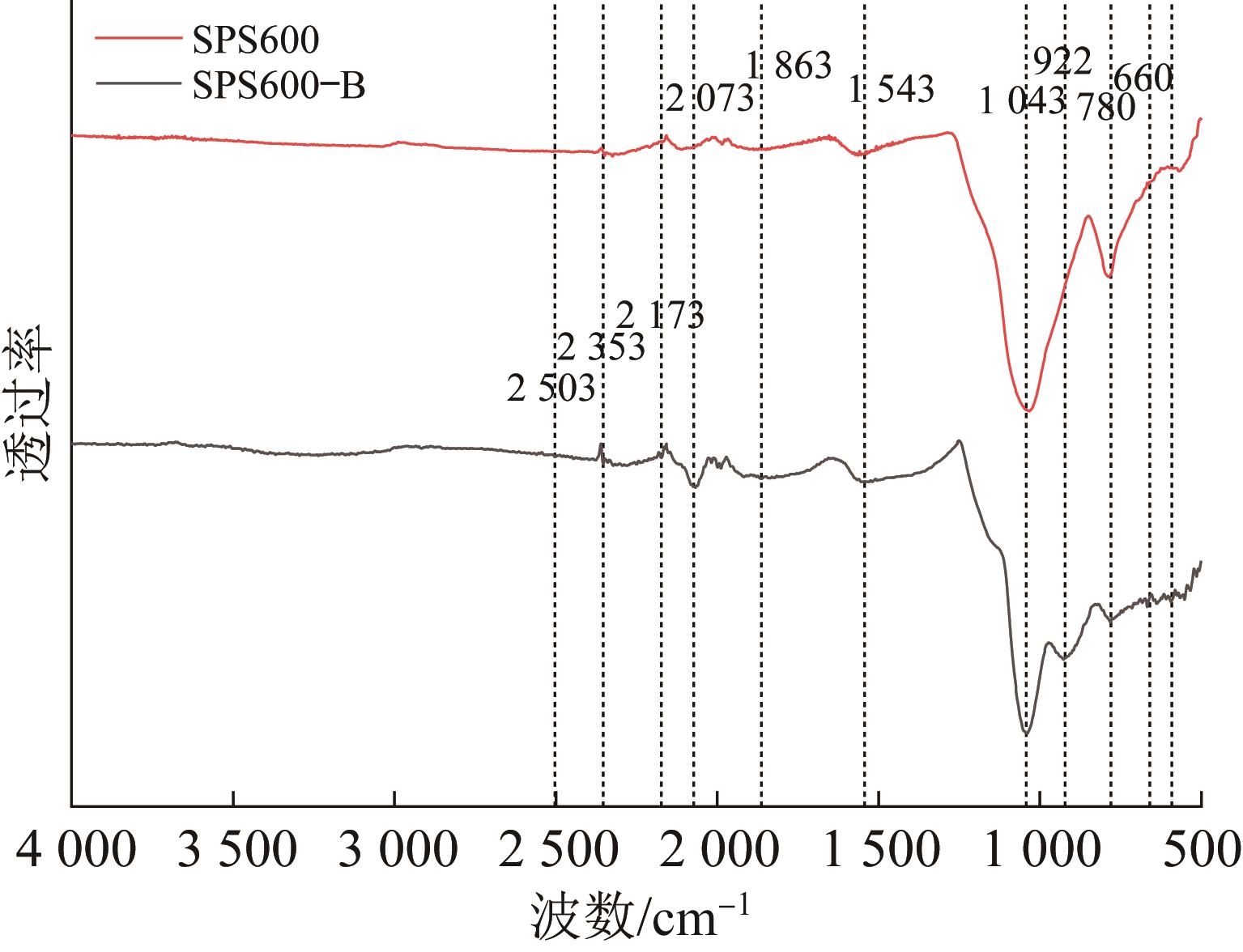

图3 SPS600和SPS600-B的红外光谱

Fig.3 Infrared spectra of SPS600 and SPS600-B

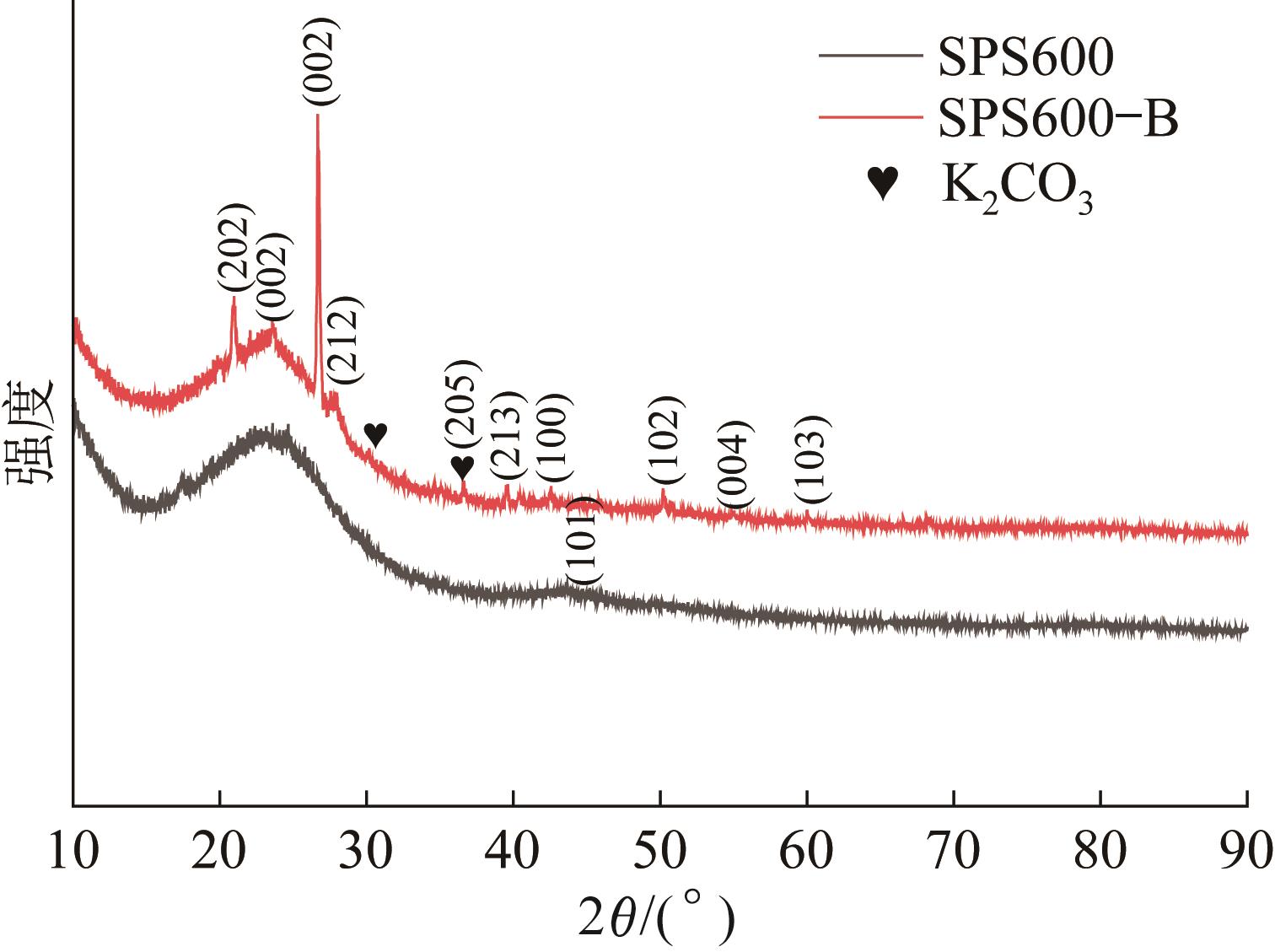

图4 SPS600和SPS600-B的XRD

Fig.4 XRD of SPS600 and SPS600-B

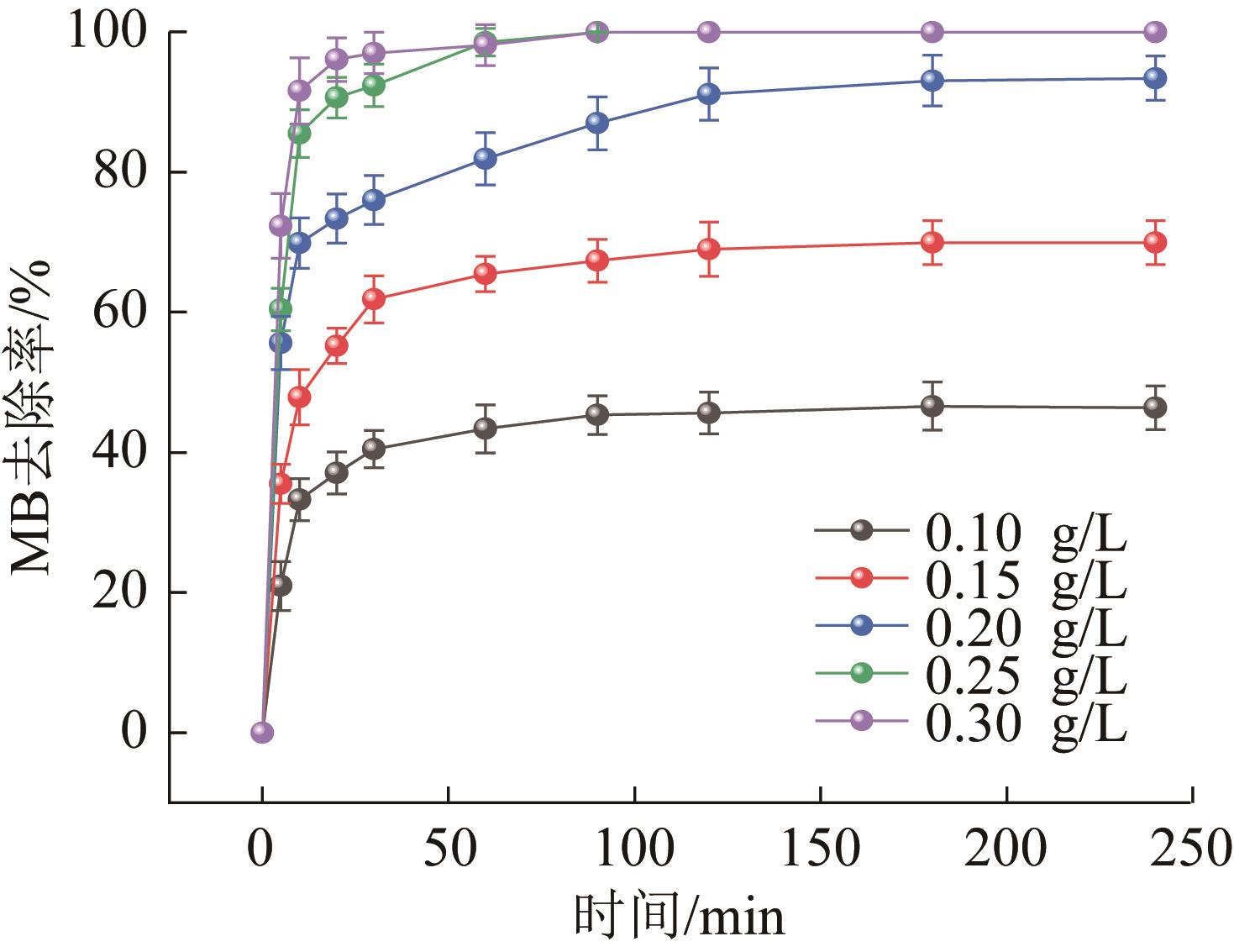

图5 SPS600-B投加量对吸附MB效果的影响

Fig.5 Effect of SPS600-B dosage on adsorption of MB

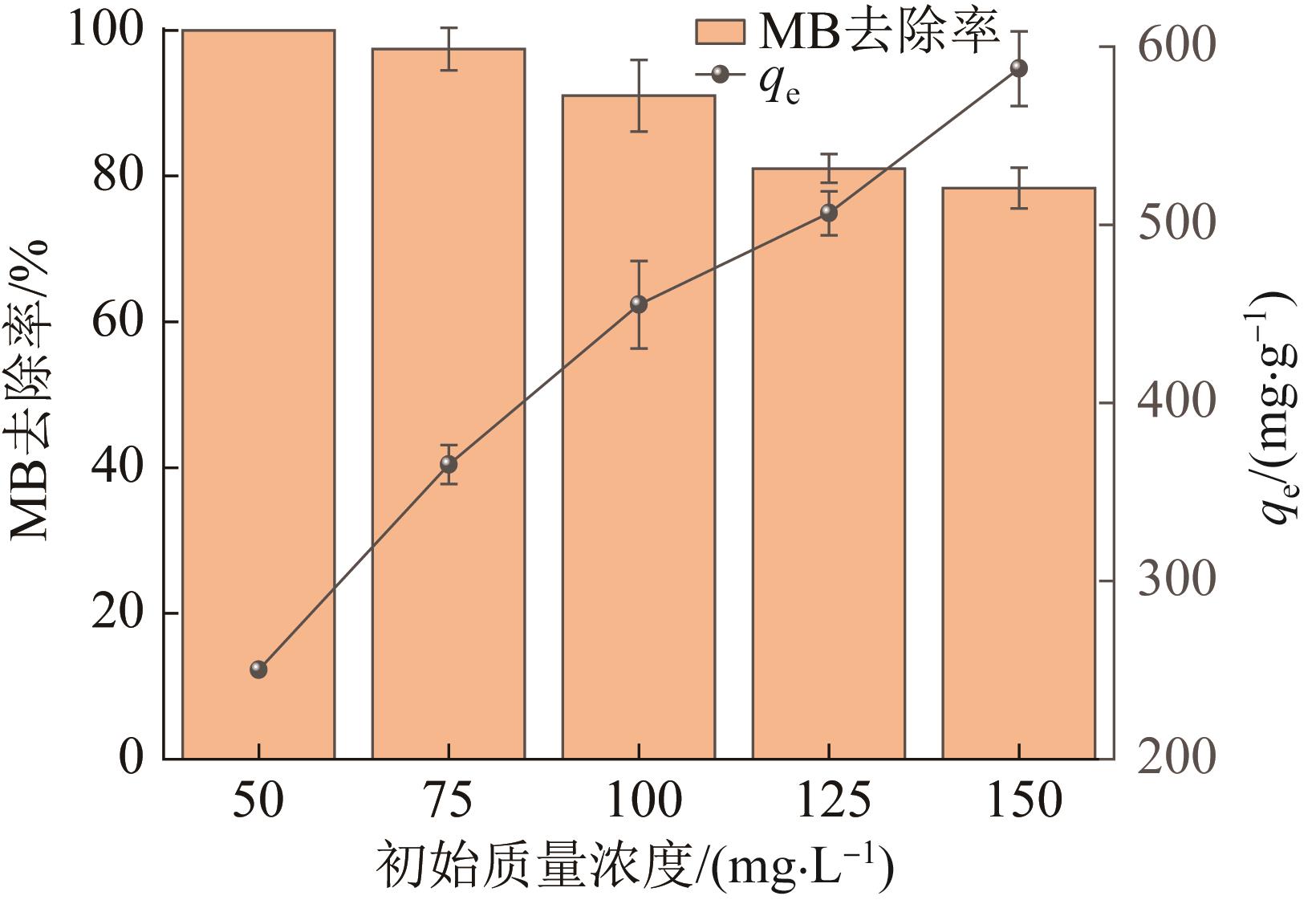

图6 MB初始质量浓度对吸附MB的影响

Fig.6 Effect of MB initial mass concentration on adsorption of MB

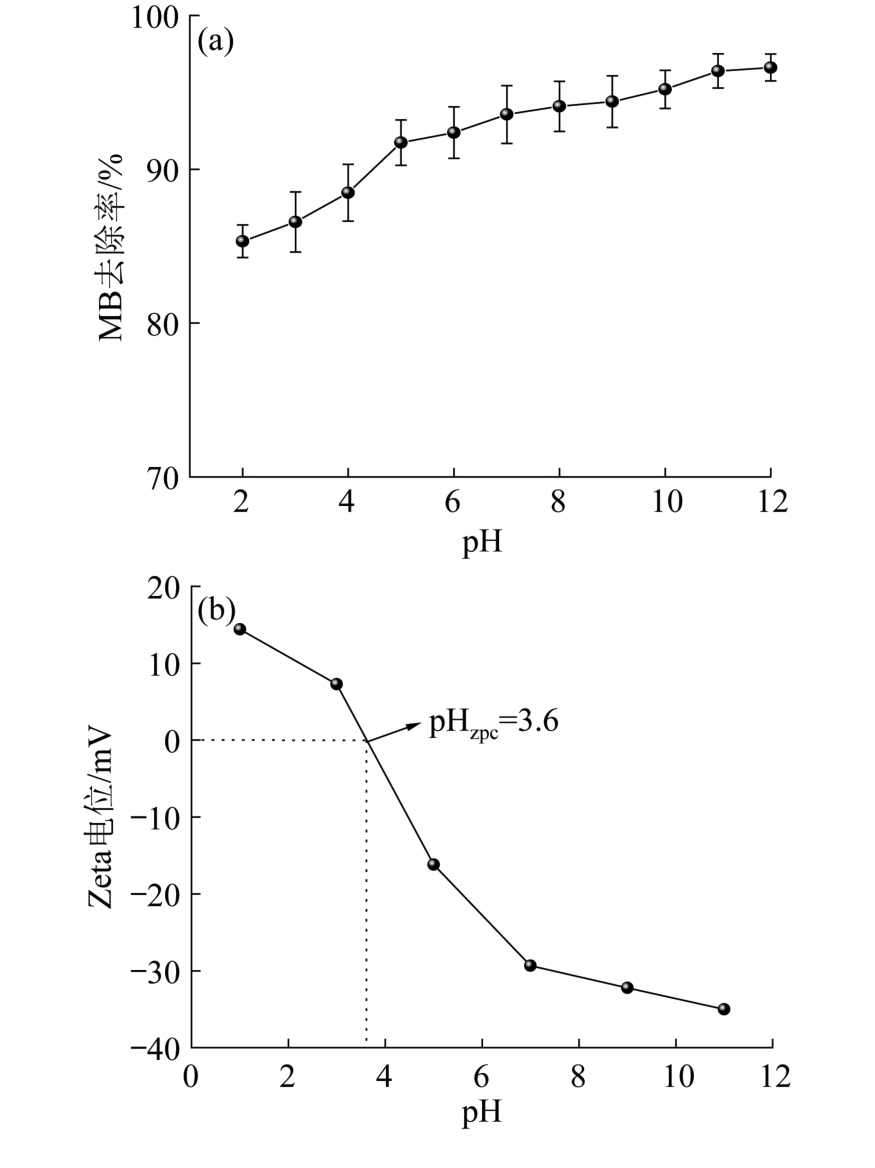

图7 SPS600-B吸附MB的效果及Zeta电位随pH的变化情况

Fig.7 MB adsorption effect and Zeta potential change of SPS600-B with pH

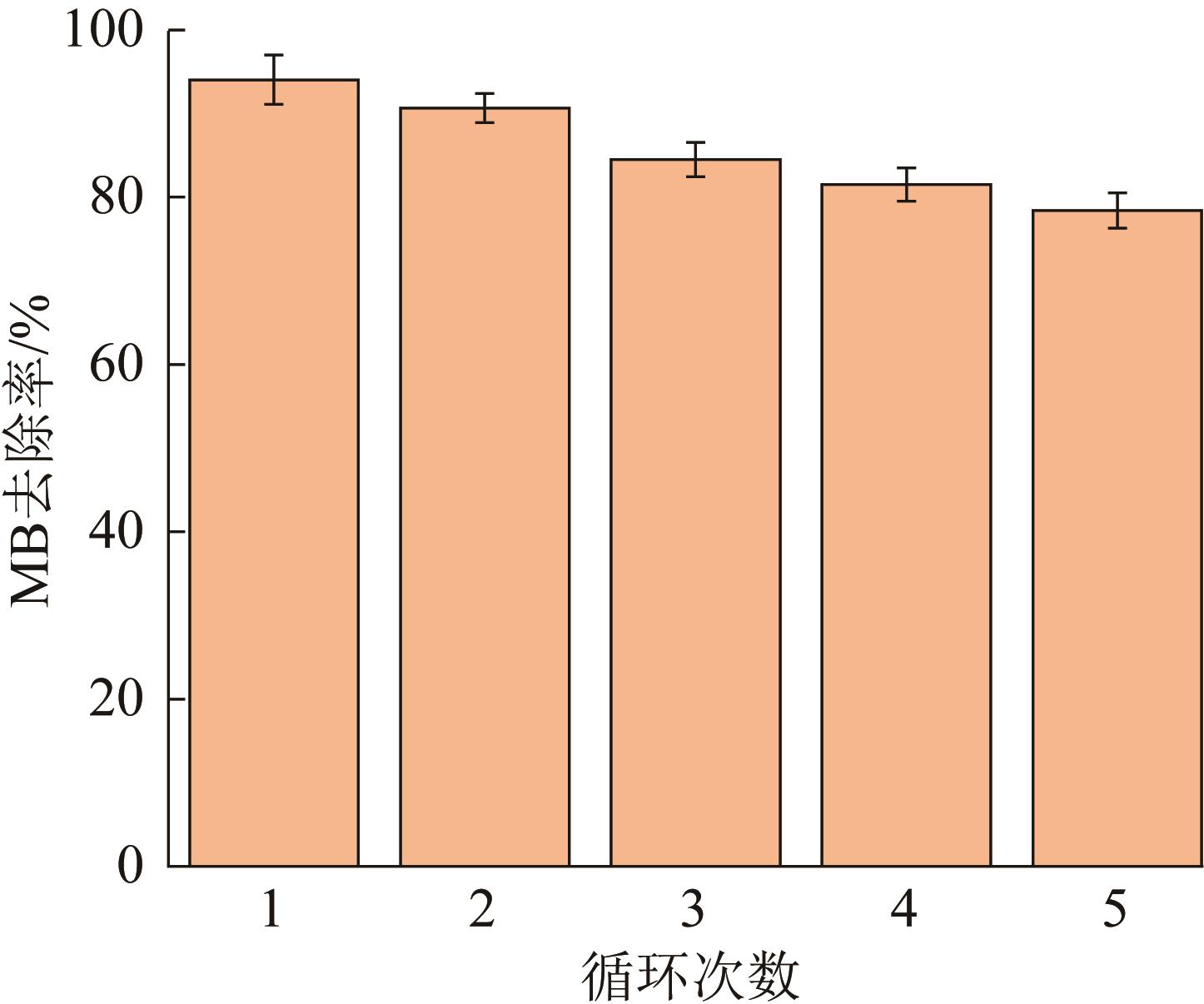

图8 SPS600-B去除MB的可重复利用性

Fig.8 Reusability of SPS600-B for MB removal

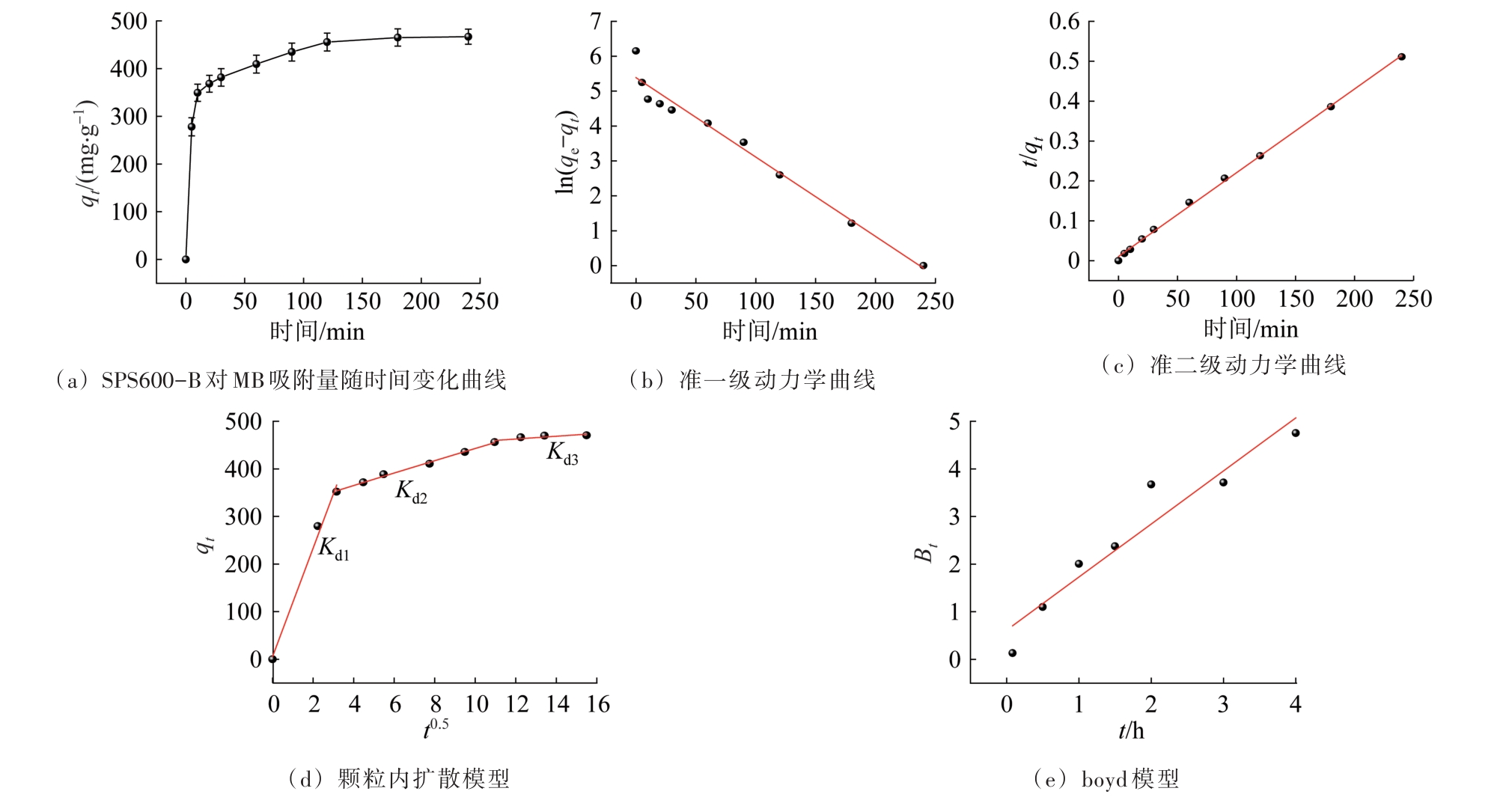

图9 SPS600-B吸附MB的动力学特性

Fig.9 Adsorption kinetics of SPS600-B for MB

表3 SPS600-B吸附MB的动力学特性参数

Table 3 Adsorption kinetics parameters of SPS600-B for MB

准一级反应动力学模型			准二级反应动力学模型			颗粒内扩散模型
q _e/（mg·g^-1）	k ₁	R ²	q _e/（mg·g^-1）	k ₂	R ²	K _d1	C ₁	R ²	K _d2	C ₂	R ²	K _d3	C ₃	R ²
429.82	0.025 3	0.937	454.32	0.002 1	0.997	67.45	13.92	0.982	15.47	298.59	0.936	1.75	443.57	0.909

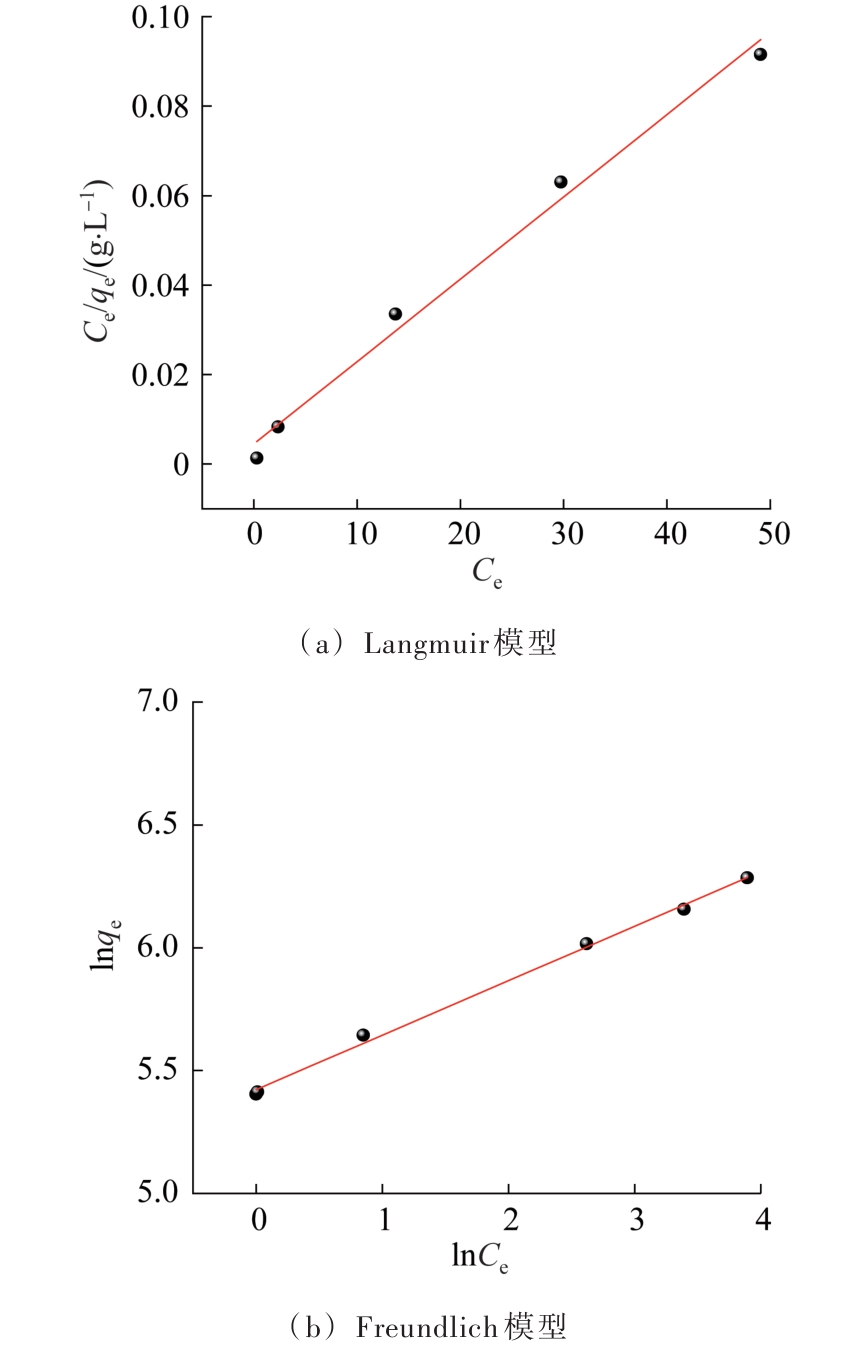

图10 SPS600-B吸附MB的等温拟合曲线

Fig.10 Adsorption isothermal fitting curre of MB by SPS600-B

表4 SPS600-B吸附MB的等温模型参数

Table 4 Isothermal adsorption characteristics of MB by SPS600-B

Langmuir			Freundlich
K _L	q _m/（mg·g^-1）	R ²	K _F	1/n	R ²
0.001 99	465.51	0.998 9	0.174	0.161	0.969

表5 吸附热力学参数

Table 5 Thermodynamic parameters of adsorption

温度/K	ΔG ⁰/（kJ·mol^-1）	ΔH ⁰/（kJ·mol^-1）	ΔS ⁰/（kJ·mol^-1·K^-1）
298	-11.38	45.93	0.192
308	-13.3
318	-15.23

表6 SPS600-B与其他基于玉米秸秆的吸附剂对MB的吸附能力对比

Table 6 Comparison of the adsorption capacity of SPS600-B and other corn stover-based adsorbents for MB

原材料	改性方法	比表面积/（m²·g^-1）	吸附容量/（mg·g^-1）	参考文献
玉米秸秆	KOH	82.11	222.93	〔28〕
玉米秸秆	H₃PO₄	820.00	330.50	〔29〕
玉米秸秆/污泥	ZnCl₂	769.00	152.80	〔30〕
玉米秸秆	ZnCl₂/微波活化	131.46	236.57	〔31〕
玉米秸秆/农膜	无水K₂CO₃	821.96	466.2	本研究

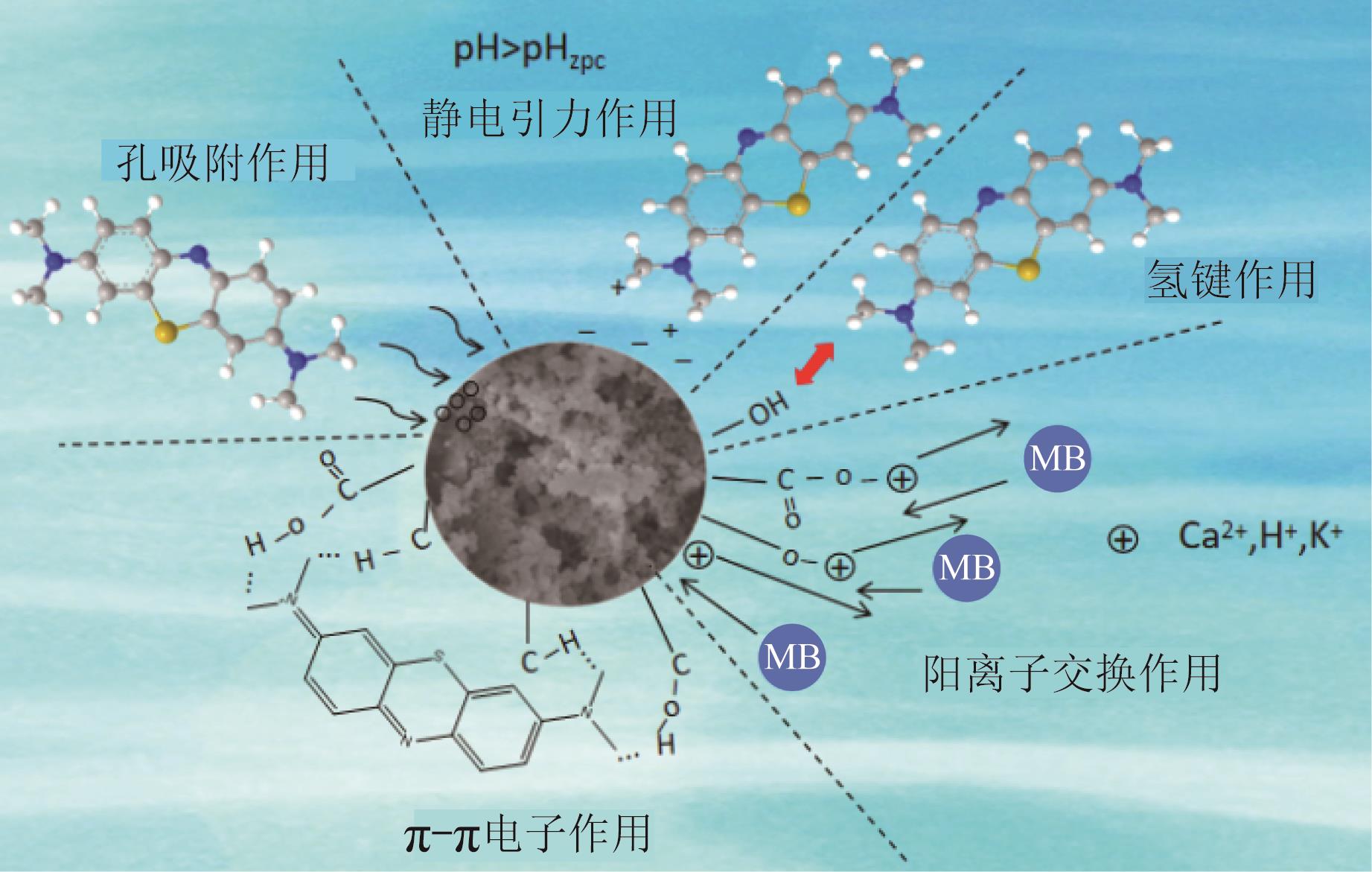

图11 吸附机理

Fig.11 Adsorption mechanism diagram

参考文献 32

1	张芳，曹志敏，吴昊. 农林废弃物吸附材料去除废水中重金属的研究进展［J］. 工业水处理，2023，43（6）：45-55.
	ZHANG Fang， CAO Zhimin， WU Hao. Research progress on the removal of heavy metals from wastewater by adsorption materials of agricultural and forestry waste［J］. Industrial Water Treatment，2023，43（6）：45-55.
2	丁凡，李诗彤，王展，等. 塑料和可降解地膜的残留与降解及对土壤健康的影响：进展与思考［J］. 湖南生态科学学报，2021，8（3）：83-89. doi:10.3969/j.issn.2095-7300.2021.03.013
	DING Fan， LI Shitong， WANG Zhan，et al. Residue and degradation of plastic and degradable mulch in cropland and their effects on soil health：Progress and perspective［J］. Journal of Hunan Ecological Science，2021，8（3）：83-89. doi:10.3969/j.issn.2095-7300.2021.03.013
3	张鑫，全淑苗. 基于中国政策的废旧农膜回收再利用现状研究［J］. 中国塑料，2022，36（7）：136-142. doi:10.19491/j.issn.1001-9278.2022.07.019
	ZHANG Xin， QUAN Shumiao. Study on current status of recycling and reutilization of waste agricultural films based on China’s policy［J］. China Plastics，2022，36（7）：136-142. doi:10.19491/j.issn.1001-9278.2022.07.019
4	XIE Teng， YAO Zonglu， HUO Lili，et al. Characteristics of biochar derived from the co-pyrolysis of corn stalk and mulch film waste［J］. Energy，2023，262：125554. doi:10.1016/j.energy.2022.125554
5	李自奋，杨龙祥，鞠超，等. 环氧氯丙烷改性玉米淀粉生物炭的制备及其对水中吡虫啉的吸附性能［J］. 农药学学报，2023，25（4）：937-945. doi:10.16801/j.issn.1008-7303.2023.0049
	LI Zifen， YANG Longxiang， JU Chao，et al. Preparation of epichlorohydrin modified corn starch biochar and its adsorption performance on imidacloprid from water［J］. Chinese Journal of Pesticide Science，2023，25（4）：937-945. doi:10.16801/j.issn.1008-7303.2023.0049
6	来雪慧，闫晋宏，郭睿铭，等. 微波活化玉米秸秆生物质炭对水中亚甲基蓝的吸附研究［J］. 山东农业大学学报（自然科学版），2020，51（5）：845-851. doi:10.3969/j.issn.1000-2324.2020.05.012
	LAI Xuehui， YAN Jinhong， GUO Ruiming，et al. Study on the adsorption of maize straw biochar activated by a microwave to methylene blue in water［J］. Journal of Shandong Agricultural University（Natural Science Edition），2020，51（5）：845-851. doi:10.3969/j.issn.1000-2324.2020.05.012
7	LI Dan， LEI Shijun， WANG Ping，et al. Study on the pyrolysis behaviors of mixed waste plastics［J］. Renewable Energy，2021，173：662-674. doi:10.1016/j.renene.2021.04.035
8	JANARTHANAN K， SIVANANDI P. Extraction and characterization of waste plastic pyrolysis oil for diesel engines［J］. Journal of Cleaner Production，2022，366：132924. doi:10.1016/j.jclepro.2022.132924
9	RATHNAYAKE D， EHIDIAMHEN P O， EGENE C E，et al. Investigation of biomass and agricultural plastic co-pyrolysis：Effect on biochar yield and properties［J］. Journal of Analytical and Applied Pyrolysis，2021，155：105029. doi:10.1016/j.jaap.2021.105029
10	ÖZSIN G， PÜTÜN A E. Insights into pyrolysis and co-pyrolysis of biomass and polystyrene：Thermochemical behaviors，kinetics and evolved gas analysis［J］. Energy Conversion and Management，2017，149：675-685. doi:10.1016/j.enconman.2017.07.059
11	FIERRO V， MUÑIZ G， BASTA A H，et al. Rice straw as precursor of activated carbons：Activation with ortho-phosphoric acid［J］. Journal of Hazardous Materials，2010，181（1）：27-34. doi:10.1016/j.jhazmat.2010.04.062
12	SINGH D， SARVAIYA J. Development of surface composites AA5052/SiC using micro and nano-SiC reinforcement particles via friction stir processing［J］. Journal of Adhesion Science and Technology，2023，37（23）：3335-3357. doi:10.1080/01694243.2023.2202952
13	WANG Ming， YAN Jinlong， XU Yumeng，et al. Mechanochemical modified nitrogen-rich biochar derived from shrimp shell：Dominant mechanism in pyridinic-N for aquatic methylene blue removal［J］. Journal of Environmental Management，2023，329：117049. doi:10.1016/j.jenvman.2022.117049
14	薛日昕. 含农膜的哈密瓜秸秆热解制炭及对镉的吸附性能研究［D］. 海口：海南大学，2020.
	XUE Rixin. Research on pyrolysis of cantaloupe straw containing agriculture mulching film to produce carbon and its adsorption properties for cadmium［D］. Haikou：Hainan University，2020.
15	DEWI W N， ZHOU Qiaoqiao， MOLLAH M，et al. Synergistic interaction between scrap tyre and plastics for the production of sulphur-free，light oil from fast co-pyrolysis［J］. Waste Management，2024，179：99-109. doi:10.1016/j.wasman.2024.03.007
16	NASRULLAH A， KHAN A S， BHAT A H，et al. Effect of short time ball milling on physicochemical and adsorption performance of activated carbon prepared from mangosteen peel waste［J］. Renewable Energy，2021，168：723-733. doi:10.1016/j.renene.2020.12.077
17	YANG Zhao， ZHAO Zhongwei， YANG Xuan，et al. Xanthate modified magnetic activated carbon for efficient removal of cationic dyes and tetracycline hydrochloride from aqueous solutions［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects，2021，615：126273. doi:10.1016/j.colsurfa.2021.126273
18	NEHA S， REMYA N. Co-production of biooil and biochar from microwave co-pyrolysis of food-waste and plastic using recycled biochar as microwave susceptor［J］. Sustainable Energy Technologies and Assessments，2022，54：102892. doi:10.1016/j.seta.2022.102892
19	XIA Sunwen， CAI Ning， WU Jing，et al. Synthesis and formation mechanism of biomass-based mesoporous graphitic carbon［J］. Fuel Processing Technology，2020，209：106543. doi:10.1016/j.fuproc.2020.106543
20	WANG Kexin， MA Hui， PU Shengyan，et al. Hybrid porous magnetic bentonite-chitosan beads for selective removal of radioactive cesium in water［J］. Journal of Hazardous Materials，2019，362：160-169. doi:10.1016/j.jhazmat.2018.08.067
21	ZHANG Han， LIAO Wei， ZHOU Xiaoming，et al. Coeffect of pyrolysis temperature and potassium phosphate impregnation on characteristics，stability，and adsorption mechanism of phosphorus-enriched biochar［J］. Bioresource Technology，2022，344（Pt B）：126273. doi:10.1016/j.biortech.2021.126273
22	SIVAKUMAR A， DAI Lidong， DHAS S S J，et al. Reduction of amorphous carbon clusters from the highly disordered and reduced graphene oxide NPs by acoustical shock waves：Towards the formation of highly ordered graphene［J］. Diamond and Related Materials，2023，137：110139. doi:10.1016/j.diamond.2023.110139
23	陈佼，李晓媛，刘钰洁，等. 槟榔渣生物炭对水中亚甲基蓝的吸附特性及机制［J］. 工业水处理，2023，43（3）：55-63. doi:10.19965/j.cnki.iwt.2022-0425
	CHEN Jiao， LI Xiaoyuan， LIU Yujie，et al. Adsorption characteristics and mechanism of areca residue biochar on methylene blue in water［J］. Industrial Water Treatment，2023，43（3）：55-63. doi:10.19965/j.cnki.iwt.2022-0425
24	LIU Sen， LI Jihui， XU Shuang，et al. A modified method for enhancing adsorption capability of banana pseudostem biochar towards methylene blue at low temperature［J］. Bioresource Technology，2019，282：48-55. doi:10.1016/j.biortech.2019.02.092
25	EL-KHAIARY M I， MALASH G F. Common data analysis errors in batch adsorption studies［J］. Hydrometallurgy，2011，105（3/4）：314-320. doi:10.1016/j.hydromet.2010.11.005
26	MEAD J A. A comparison of the Langmuir，Freundlich and Temkin equations to describe phosphate adsorption properties of soils［J］. Soil Research，1981，19（3）：333. doi:10.1071/sr9810333
27	Junke OU， ZHANG Yongzhi， CHEN Li，et al. Nitrogen-rich porous carbon derived from biomass as a high performance anode material for lithium ion batteries［J］. Journal of Materials Chemistry A，2015，3（12）：6534-6541. doi:10.1039/c4ta06614f
28	JAWAD A H， BARDHAN M， ISLAM M A，et al. Insights into the modeling，characterization and adsorption performance of mesoporous activated carbon from corn cob residue via microwave-assisted H₃PO₄ activation［J］. Surfaces and Interfaces，2020，21：100688. doi:10.1016/j.surfin.2020.100688
29	MBARKI F， SELMI T， KESRAOUI A，et al. Low-cost activated carbon preparation from Corn stigmata fibers chemically activated using H₃PO₄，ZnCl₂ and KOH：Study of methylene blue adsorption，stochastic isotherm and fractal kinetic［J］. Industrial Crops and Products，2022，178：114546. doi:10.1016/j.indcrop.2022.114546
30	LI Yili， LI Yanling， LI Liping，et al. Preparation and analysis of activated carbon from sewage sludge and corn stalk［J］. Advanced Powder Technology，2016，27（2）：684-691. doi:10.1016/j.apt.2016.02.029
31	柴红梅，任宜霞，杨晓霞，等. 基于微波法制备玉米秸秆活性炭及对亚甲基蓝的吸附［J］. 离子交换与吸附，2018，34（4）：337-346.
	CHAI Hongmei， REN Yixia， YANG Xiaoxia，et al. Preparetion activated carbon from corn straw by microwave method and its effects on the adsorption of methylene blue［J］. Ion Exchange and Adsorption，2018，34（4）：337-346.
32	TAN Yujiao， WANG Xin， XIONG Fuquan，et al. Preparation of lignin-based porous carbon as an efficient absorbent for the removal of methylene blue［J］. Industrial Crops and Products，2021，171：113980. doi:10.1016/j.indcrop.2021.113980
