DcMFC-AnMBR耦合系统处理含磺胺嘧啶养猪废水的性能研究

doi:10.19965/j.cnki.iwt.2023-1200

摘要/Abstract

摘要：

构建了双室微生物燃料电池-厌氧膜生物反应器（DcMFC-AnMBR）耦合工艺系统，探究了耦合系统处理含磺胺嘧啶（SDZ）养猪废水的产电、污染物去除及产气性能，同时分析了SDZ影响下膜污染特征变化。结果表明：1.0 mg/L SDZ存在下DcMFC-AnMBR耦合系统平均输出电压和库仑效率分别下降了6.11%和7%，耦合系统最大功率密度为35.34 mW/m²，COD去除率始终保持在98%，平均生物气产量为542.59 mL/d。同时，SDZ的存在使污泥混合液Zeta电位绝对值升高了25.83%，污泥平均粒径减小了14~16 µm，可溶性微生物产物（SMP）和胞外聚合物（EPS）平均浓度分别上升了7.76%和35.43%。耦合工艺系统运行期间跨膜压差（TMP）始终在0附近，其污染缓解原因可能是电活性微生物对SMP和EPS进行了有效的氧化降解。

关键词: 双室微生物燃料电池, 厌氧膜生物反应器, 养猪废水, 磺胺嘧啶, 膜污染

Abstract:

A dual-chamber microbial fuel cell-anaerobic membrane bioreactor(DcMFC-AnMBR) coupled process system was constructed. The power production, pollutant removal, and gas generation performance of the coupled system for treating swine wastewater containing sulfadiazine(SDZ) was investigated, and the change of membrane pollution characteristics under the influence of SDZ was also analyzed. The results showed that in the presence of 1.0 mg/L SDZ, the average output voltage and coulombic efficiency of the DcMFC-AnMBR coupled system decreased by 6.11% and 7%, respectively. The maximum power density of the coupled system was 35.34 mW/m², the COD removal rate remained at 98%, and the average biogas production was 542.59 mL/d. Meanwhile, the presence of SDZ increased the absolute value of Zeta potential of sludge mixture by 25.83%, the average particle size of sludge decreased by 14-16 µm, and the average concentrations of soluble microbial products(SMP) and extracellular polymers(EPS) increased by 7.76% and 35.43%, respectively. The transmembrane pressure(TMP) was consistently near zero during the operation of the coupled process system. The cause of membrane fouling mitigation in coupled systems could be attributed to the oxidative degradation of SMP and EPS by electroactive microorganisms.

Key words: dual-chamber microbial fuel cell, anaerobic membrane bioreactor, swine wastewater, sulfadiazine, membrane fouling

中图分类号:

司马聪, 张新波, 程衍斌, 王慧中, 杜青, 钟玲玲, NGO Huu Hao. DcMFC-AnMBR耦合系统处理含磺胺嘧啶养猪废水的性能研究[J]. 工业水处理, 2024, 44(10): 68-75.

Cong SIMA, Xinbo ZHANG, Yanbin CHENG, Huizhong WANG, Qing DU, Lingling ZHONG, Huu Hao NGO. Performance of DcMFC-AnMBR coupled system for the treatment of sulfadiazine-containing swine wastewater[J]. Industrial Water Treatment, 2024, 44(10): 68-75.

https://www.iwt.cn/CN/Y2024/V44/I10/68

图/表 7

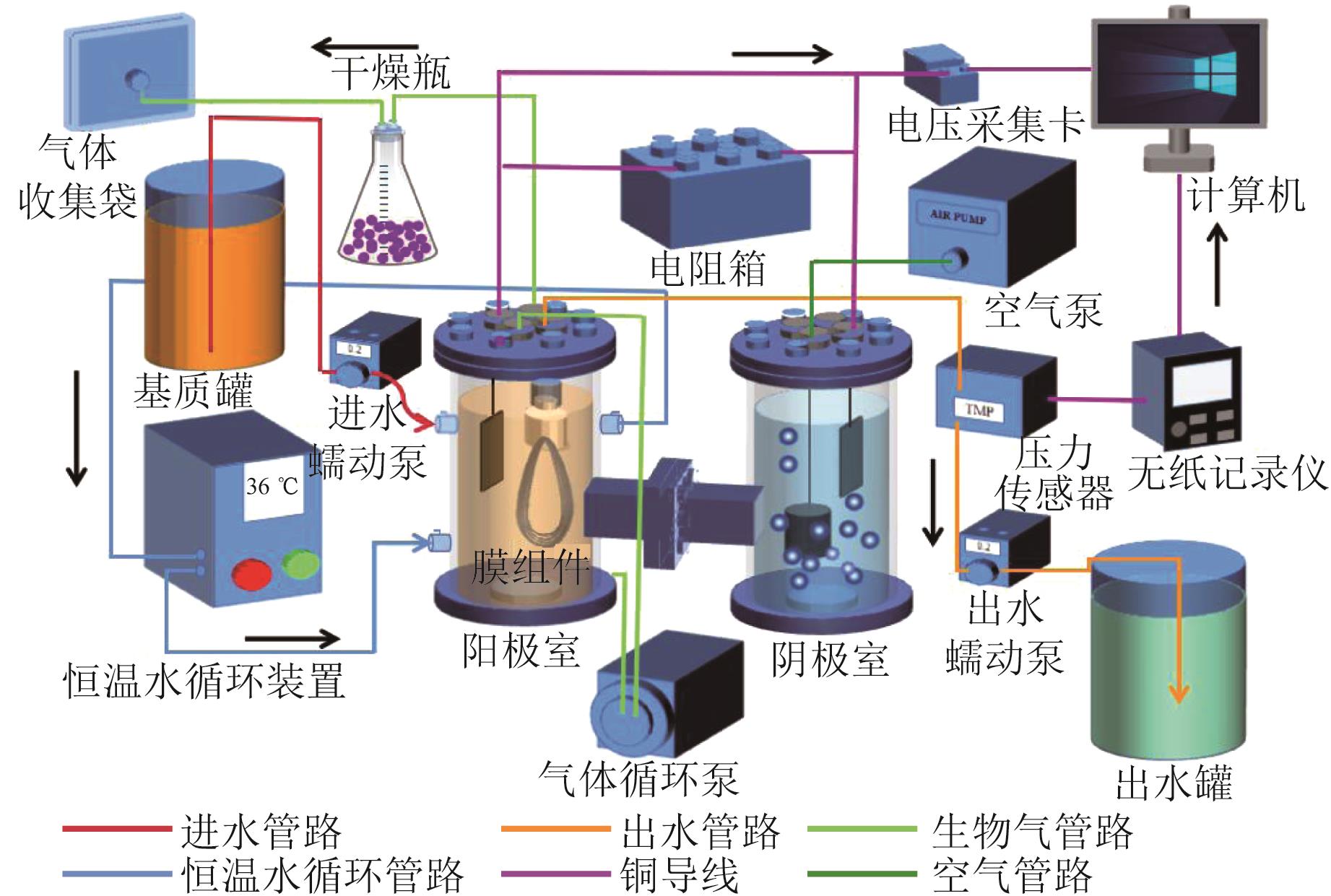

图1 DcMFC-AnMBR系统示意

Fig.1 Schematic diagram of DcMFC-AnMBR system

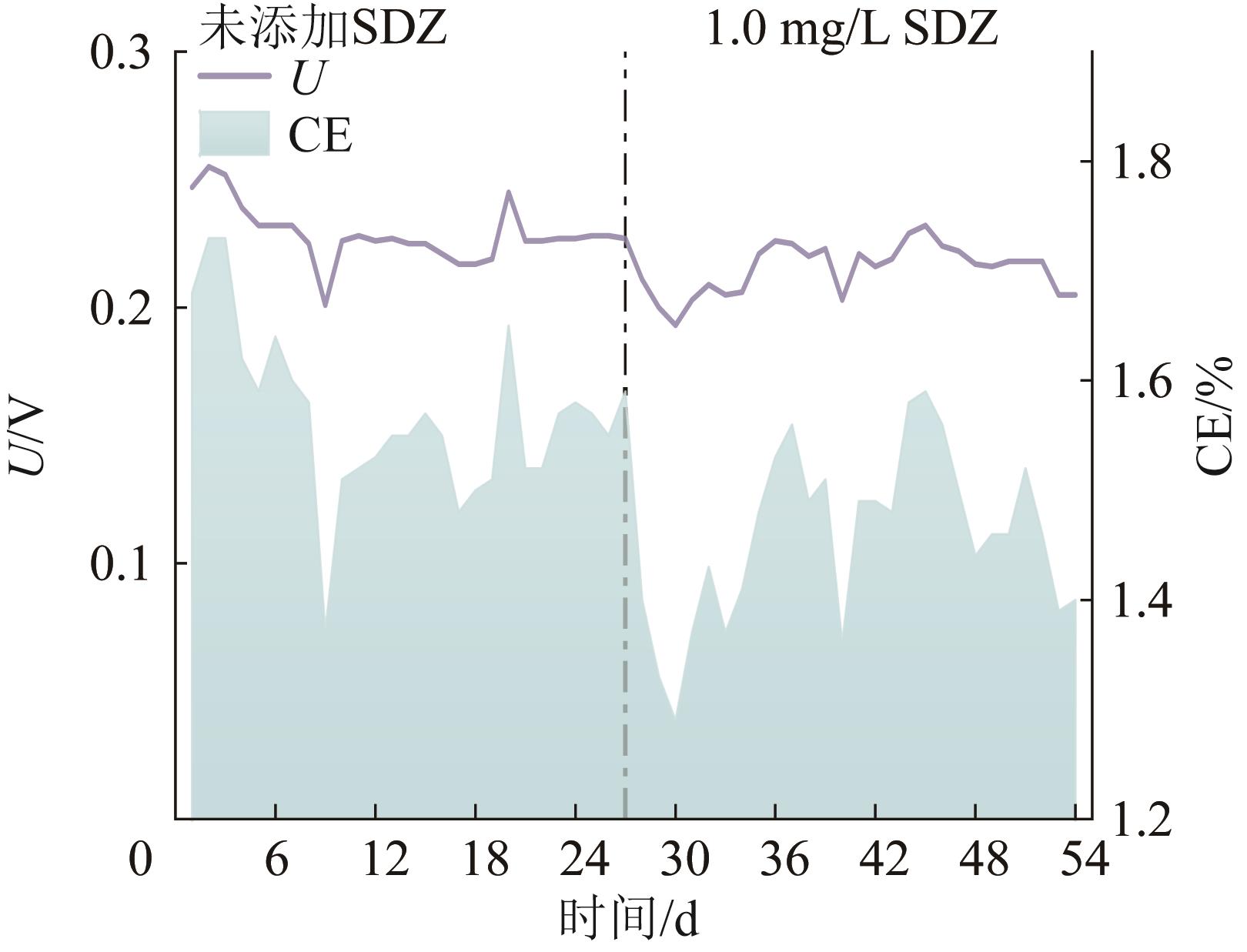

图2 DcMFC-AnMBR运行期间输出电压和库仑效率随时间的变化

Fig.2 Changes of output voltage and coulombic efficiency with time during DcMFC-AnMBR operation

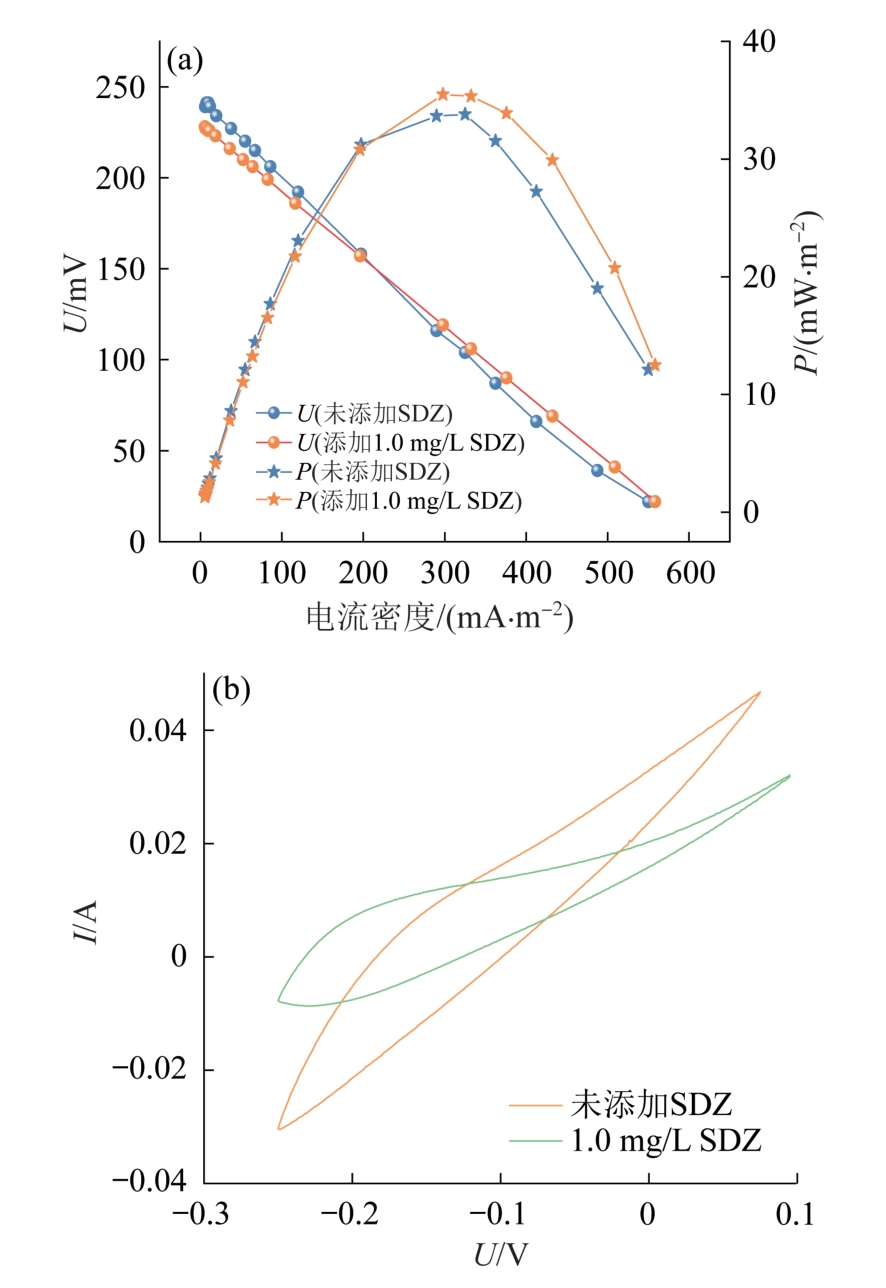

图3 DcMFC-AnMBR的极化曲线、功率密度曲线（a）和CV曲线（b）

Fig.3 Polarization and power density curves（a），and CV curves（b） of DcMFC-AnMBR

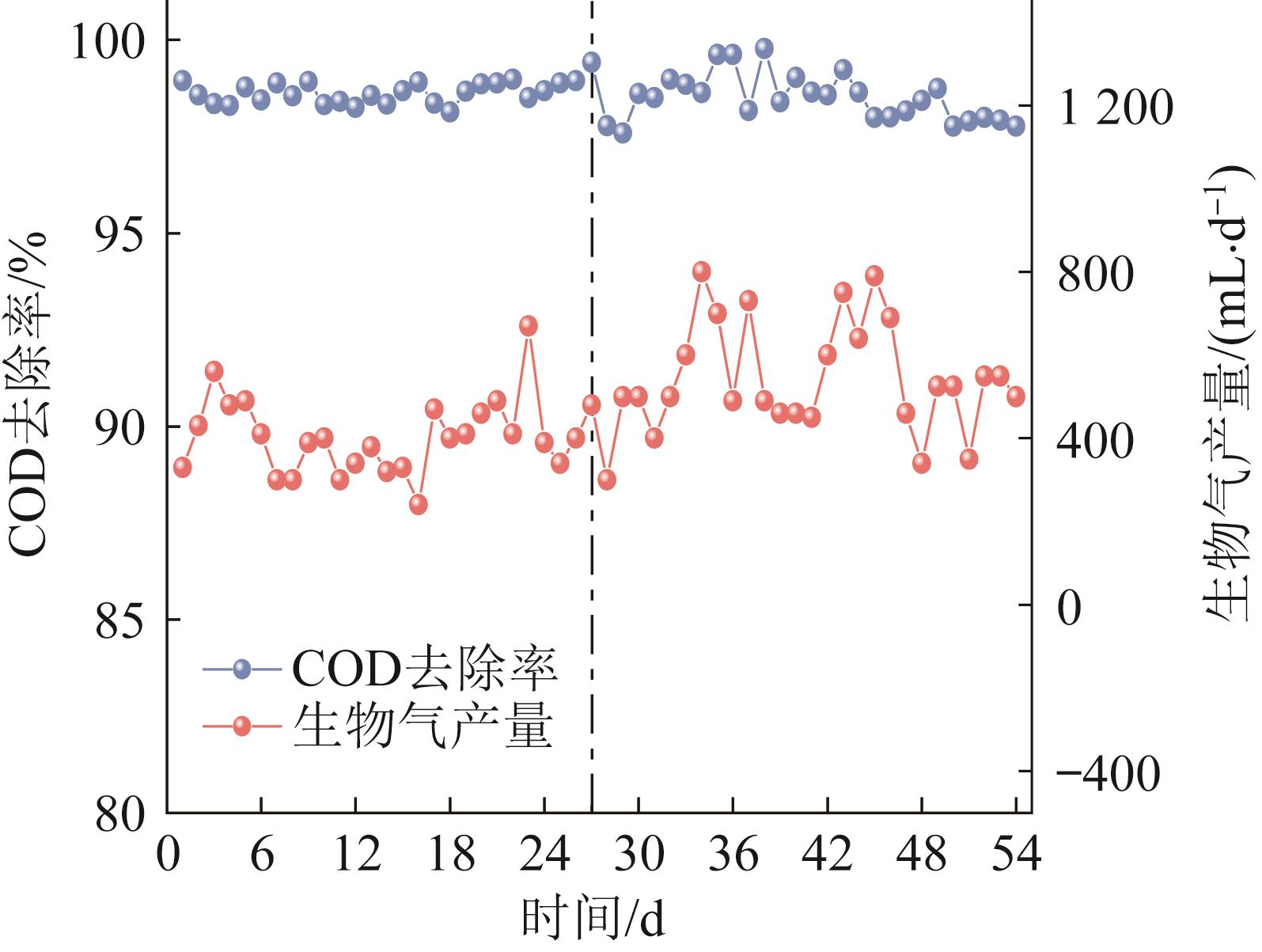

图4 COD去除率和生物气产量随时间的变化

Fig.4 Changes of COD removal rate and biogas production with time

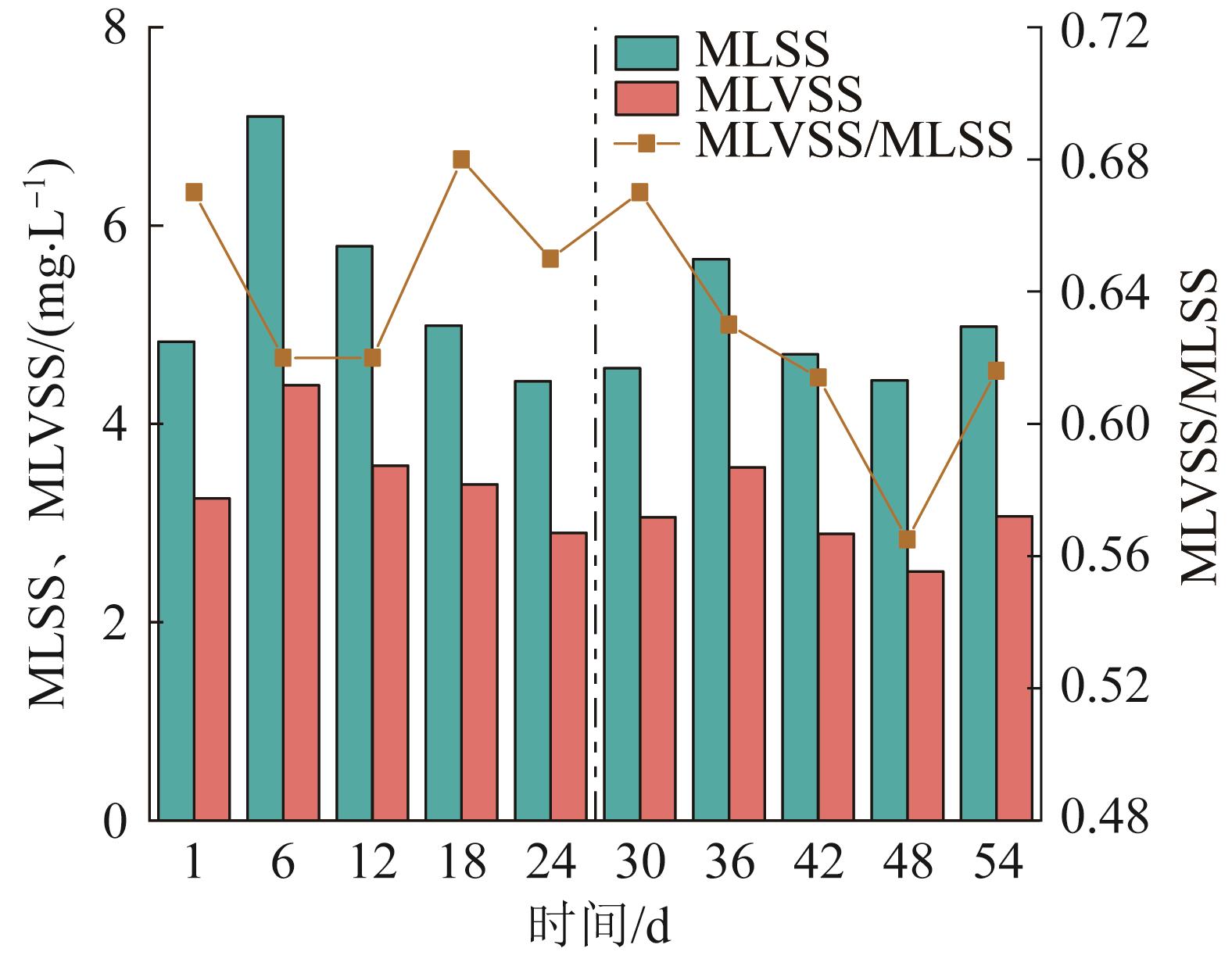

图5 混合液污泥浓度及MLVSS/MLSS

Fig.5 Sludge concentration and MLVSS/MLSS of mixed liquid

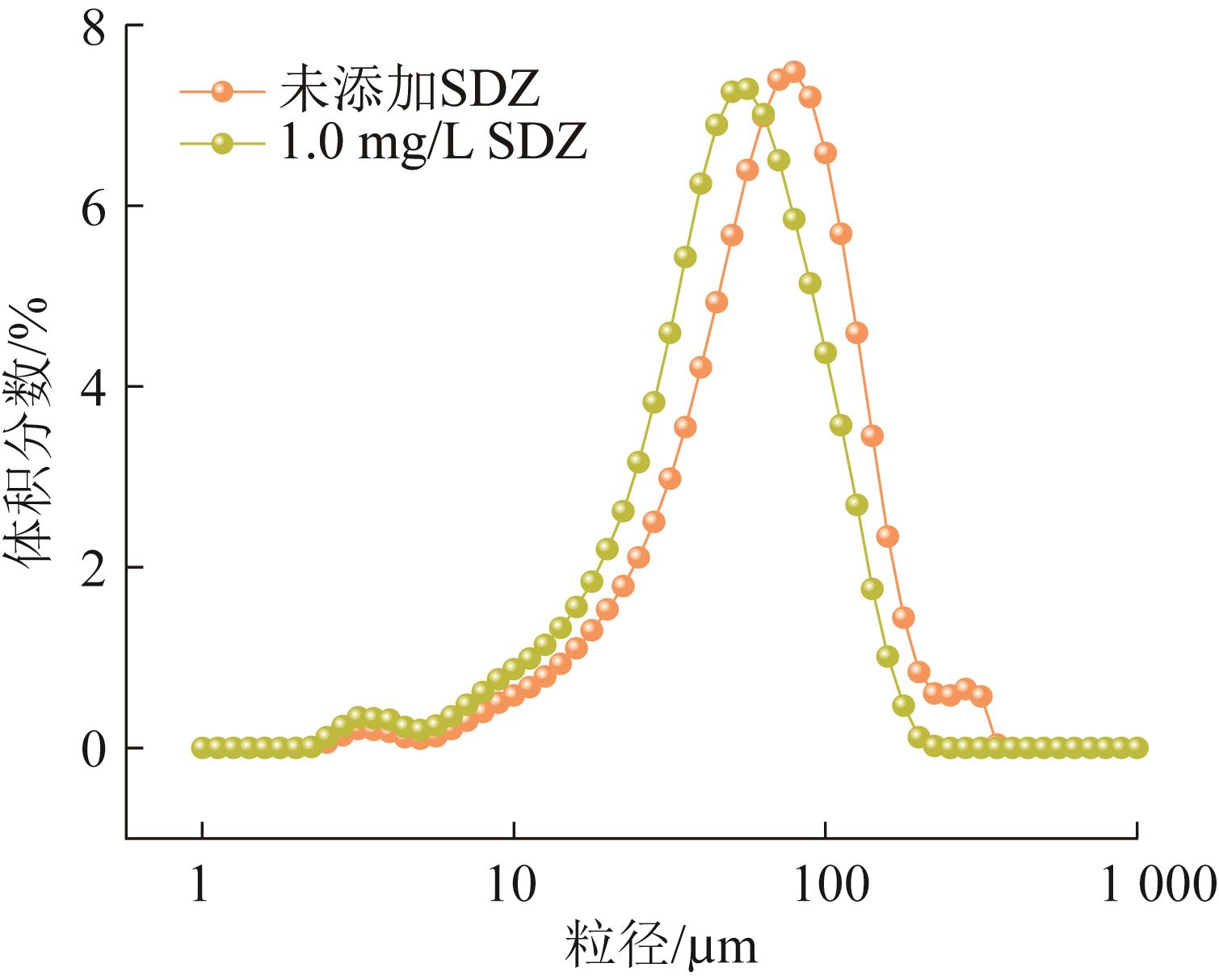

图6 DcMFC-AnMBR耦合系统内活性污泥的粒径分布

Fig.6 Particle size distribution of activated sludge in DcMFC-AnMBR coupled system

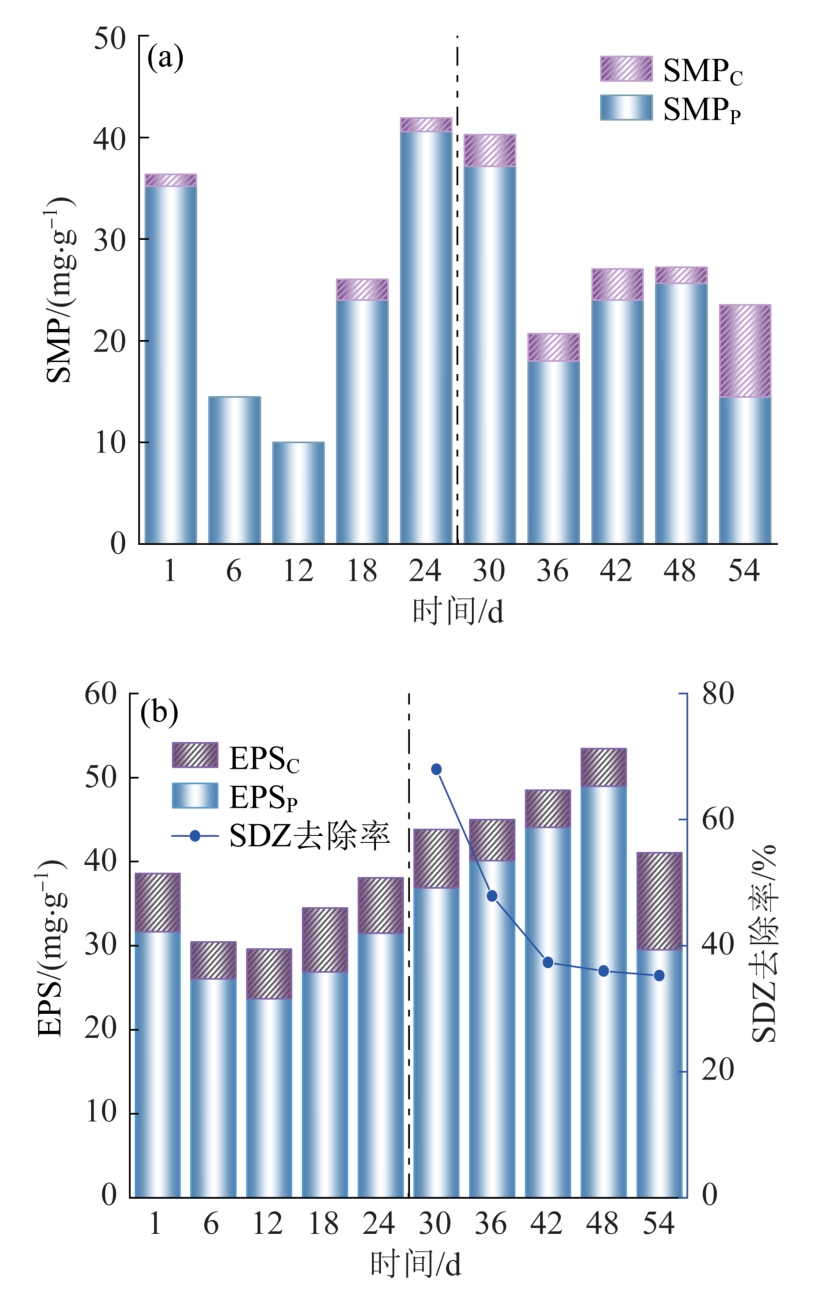

图7 DcMFC-AnMBR耦合系统SMP含量（a）、EPS含量及SDZ去除率（b）变化情况注：SMP_P表示SMP中的蛋白质；SMP_C表示SMP中的多糖；EPS_P表示EPS中的蛋白质；EPS_C表示EPS中的多糖。

Fig.7 SMP（a），EPS content and SDZ removal rate（b）changes in the DcMFC-AnMBR coupled system
