镁改性生物炭对工业废水中Pb（Ⅱ）和Cd（Ⅱ）的去除

doi:10.19965/j.cnki.iwt.2024-0908

摘要/Abstract

摘要：

以核桃青皮制备生物炭WGBC，然后以MgCl₂为改性剂制备了一种镁改性生物炭（Mg-WGBC），用于去除工业废水中Pb（Ⅱ）和Cd（Ⅱ）。通过一系列表征分析了材料的表面形貌、孔径分布、官能团等理化特征，研究了温度、投加量、pH、共存离子等因素对Mg-WGBC吸附水中Pb（Ⅱ）和Cd（Ⅱ）效果的影响。结果显示，相比原始生物炭，Mg-WGBC有着更高的比表面积和更丰富的官能团结构；Mg-WGBC在较大pH范围内对Pb（Ⅱ）和Cd（Ⅱ）具有优异的去除效果；水中低价阳离子和SO₄ ^2-对Mg-WGBC吸附Pb（Ⅱ）和Ca（Ⅱ）效果的影响较小，Al³⁺和Fe³⁺对吸附抑制作用较强；25 ℃下，Mg-WGBC投加0.15 g/L处理Pb（Ⅱ）废水和投加0.4 g/L处理Cd（Ⅱ）废水时，对Pb（Ⅱ）、Cd（Ⅱ）的平衡吸附量分别为331.164、118.259 mg/g。准二级反应动力学模型和Langmuir等温模型能较好地描述Mg-WGBC对Pb（Ⅱ）和Cd（Ⅱ）的去除过程，Mg-WGBC对Cd（Ⅱ）和Pb（Ⅱ）的吸附是通过化学作用的单层吸附，且是一个自发进行的放热过程。经过5次吸脱附循环后，Mg-WGBC对Pb（Ⅱ）和Cd（Ⅱ）的去除率仍可分别达到83.93%和81.95%。Mg-WGBC对Pb（Ⅱ）和Cd（Ⅱ）的去除受多种机制的影响，主要包括沉淀作用、离子交换、表面络合、静电吸引和阳离子-π相互作用。

关键词: 重金属废水, Pb, Cd, 改性生物炭, 吸附

Abstract:

To remove Pd(Ⅱ) and Cd(Ⅱ), a magnesium-modified biochar (Mg-WGBC) was prepared by magnesium chloride (MgCl₂) modification with discarded walnut green husk biochar(WGBC). A series of characterization methods were employed to analyze the physicochemical properties, including surface morphology, pore size distribution, and functional groups. The effects of temperature, dosage, pH, and coexisting ions on the adsorption of Pb(Ⅱ) and Cd(Ⅱ) by Mg-WGBC were investigated. The results showed that, compared with pristine biochar, Mg-WGBC exhibited a higher specific surface area and a more abundant functional group structure. Mg-WGBC demonstrated exceptional removal efficiency for Pb(Ⅱ) and Cd(Ⅱ) over a wide pH range. The presence of low-valent cations and SO₄ ^2- in water had minimal impact on the adsorption of Pb(Ⅱ) and Cd(Ⅱ) by Mg-WGBC, wheres Al³⁺ and Fe³⁺ exhibited significant inhibitory effects on the adsorption process. The maximum adsorption capacities of Mg-WGBC for Pb(Ⅱ) and Cd(Ⅱ) reached 331.164 mg/g and 118.259 mg/g, respectively, with dosages of 0.15 g/L for Pb(Ⅱ)-containing wastewater and 0.4 g/L for Cd(Ⅱ)-containing wastewater. The pseudo-second-order kinetic model and the Langmuir isotherm model could better describe the removal of Pb(Ⅱ) and Cd(Ⅱ) by Mg-WGBC. The adsorption of Pb(Ⅱ) and Cd(Ⅱ) on Mg-WGBC was a monolayer chemisorption process, which was a spontaneous and exothermic process. After five adsorption-desorption cycles, the removal rates of Pb(Ⅱ) and Cd(Ⅱ) by Mg-WGBC remained at 83.93% and 81.95%, respectively. The removal mechanisms of Pb(Ⅱ) and Cd(Ⅱ) by Mg-WGBC involved multiple processes, including precipitation, ion exchange, surface complexation, electrostatic attraction, and cation-π interactions.

Key words: heavy metal wastewater, Pb, Cd, modified biochar, adsorption

中图分类号:

X703.1

王嘉宁, 叶静怡, 包家华, 田凌志, 杨柳. 镁改性生物炭对工业废水中Pb（Ⅱ）和Cd（Ⅱ）的去除[J]. 工业水处理, 2025, 45(11): 91-101.

Jianing WANG, Jingyi YE, Jiahua BAO, Lingzhi TIAN, Liu YANG. Removal of Pb(Ⅱ) and Cd(Ⅱ) from industrial wastewater by magnesium modified biochar[J]. Industrial Water Treatment, 2025, 45(11): 91-101.

https://www.iwt.cn/CN/Y2025/V45/I11/91

图/表 19

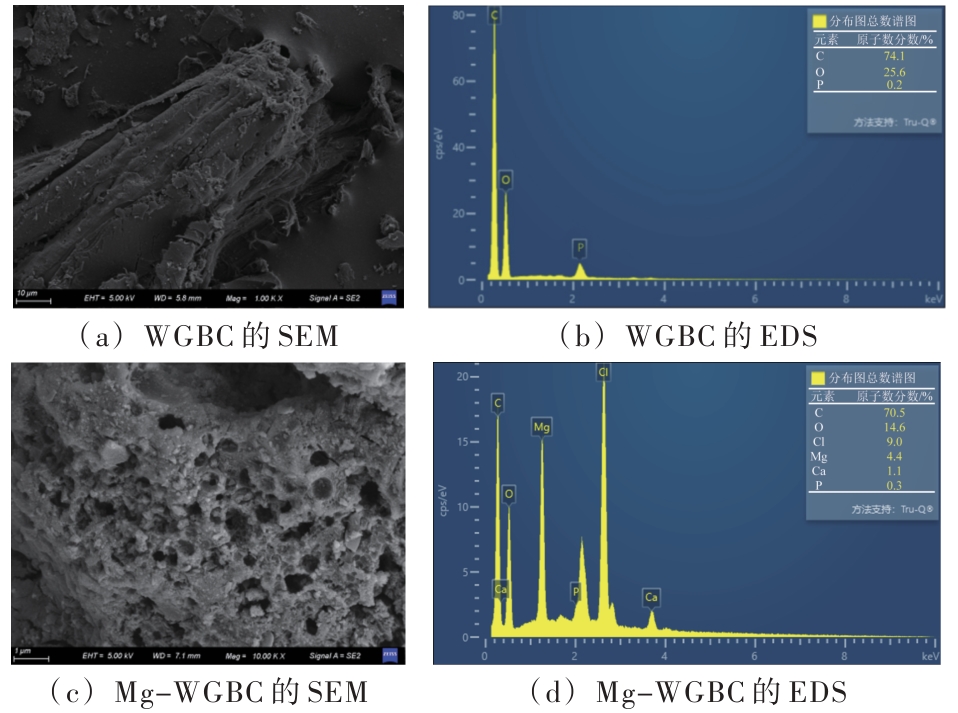

图1 WGBC、Mg-WGBC的SEM和EDS

Fig.1 SEM and EDS of WGBC，Mg-WGBC

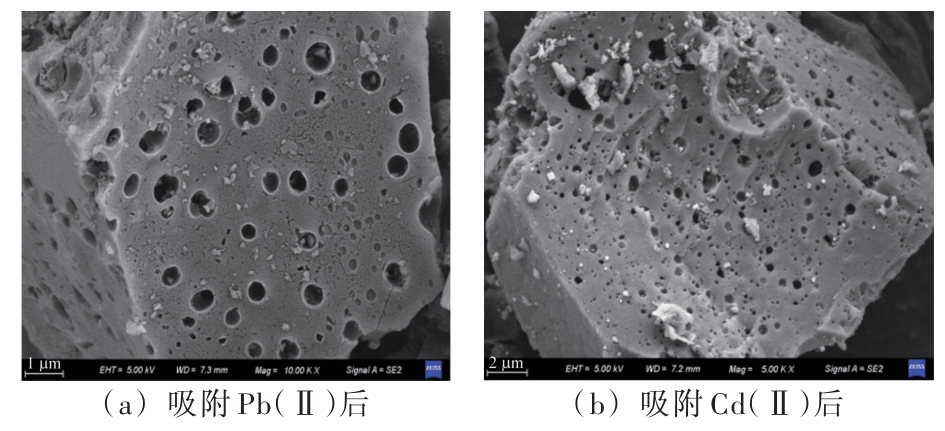

图2 Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）后的SEM

Fig.2 SEM of Mg-WGBC after adsorption of Pb（Ⅱ） and Cd（Ⅱ）

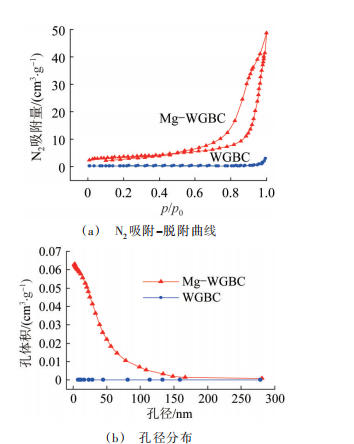

图3 WGBC和Mg-WGBC的N₂吸附-脱附等温曲线和孔径分布

Fig.3 N₂ adsorption-desorption isotherms and pore size distributions of WGBC and Mg-WGBC

表1 WGBC和Mg-WGBC的比表面积和孔结构参数

Table 1 Specific surface area and pore structure parameters of WGBC and Mg-WGBC

材料	比表面积/（m²·g^-1）	总孔体积/（cm³·g^-1）	平均孔径/nm
WGBC	1.243	0.003	23.810
Mg-WGBC	12.143	0.063	23.661

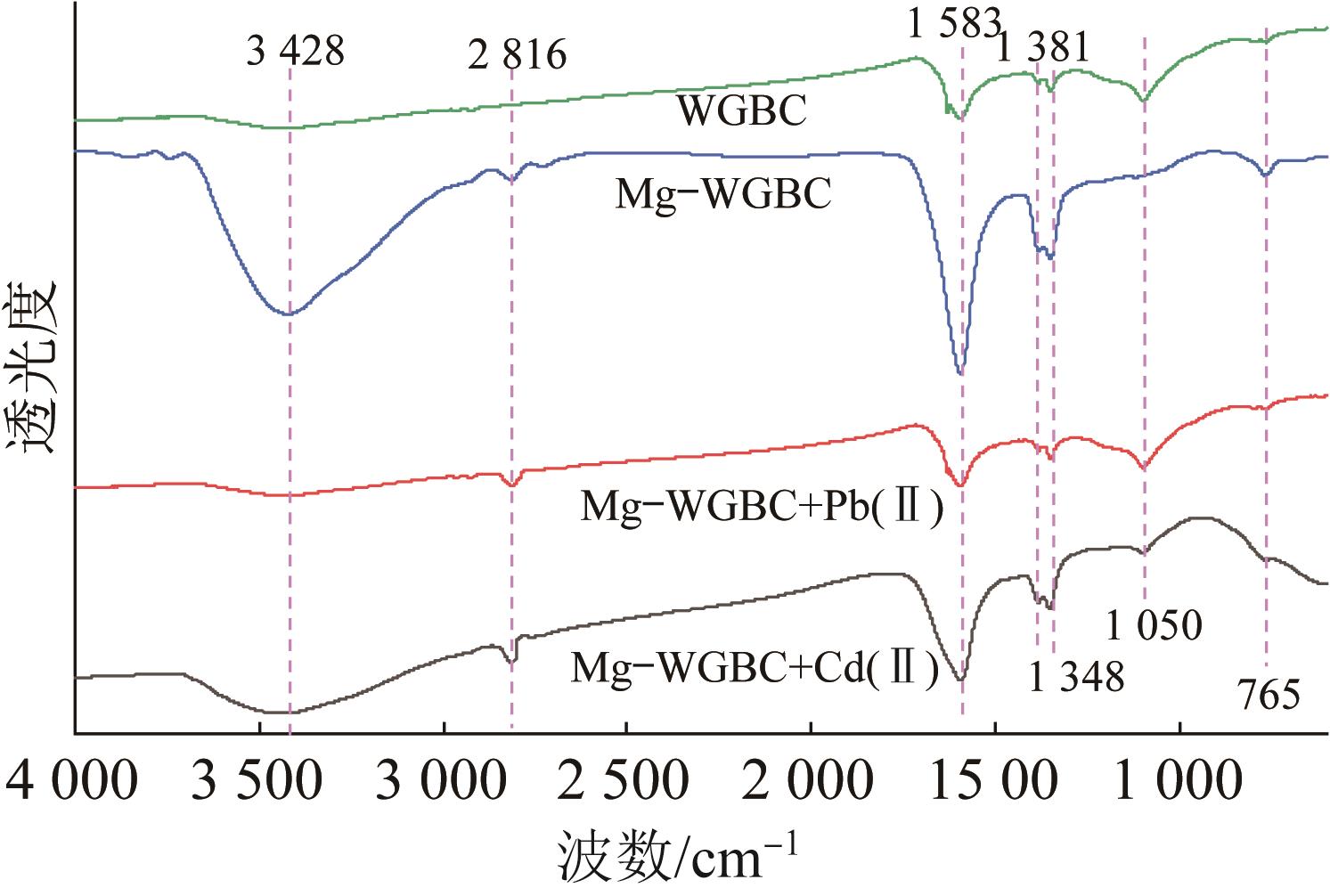

图4 WGBC的FTIR及Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）前后的FTIR

Fig.4 FTIR of WGBC and FTIR of Mg-WGBC before and after adsorption of Pb（Ⅱ） and Cd（Ⅱ）

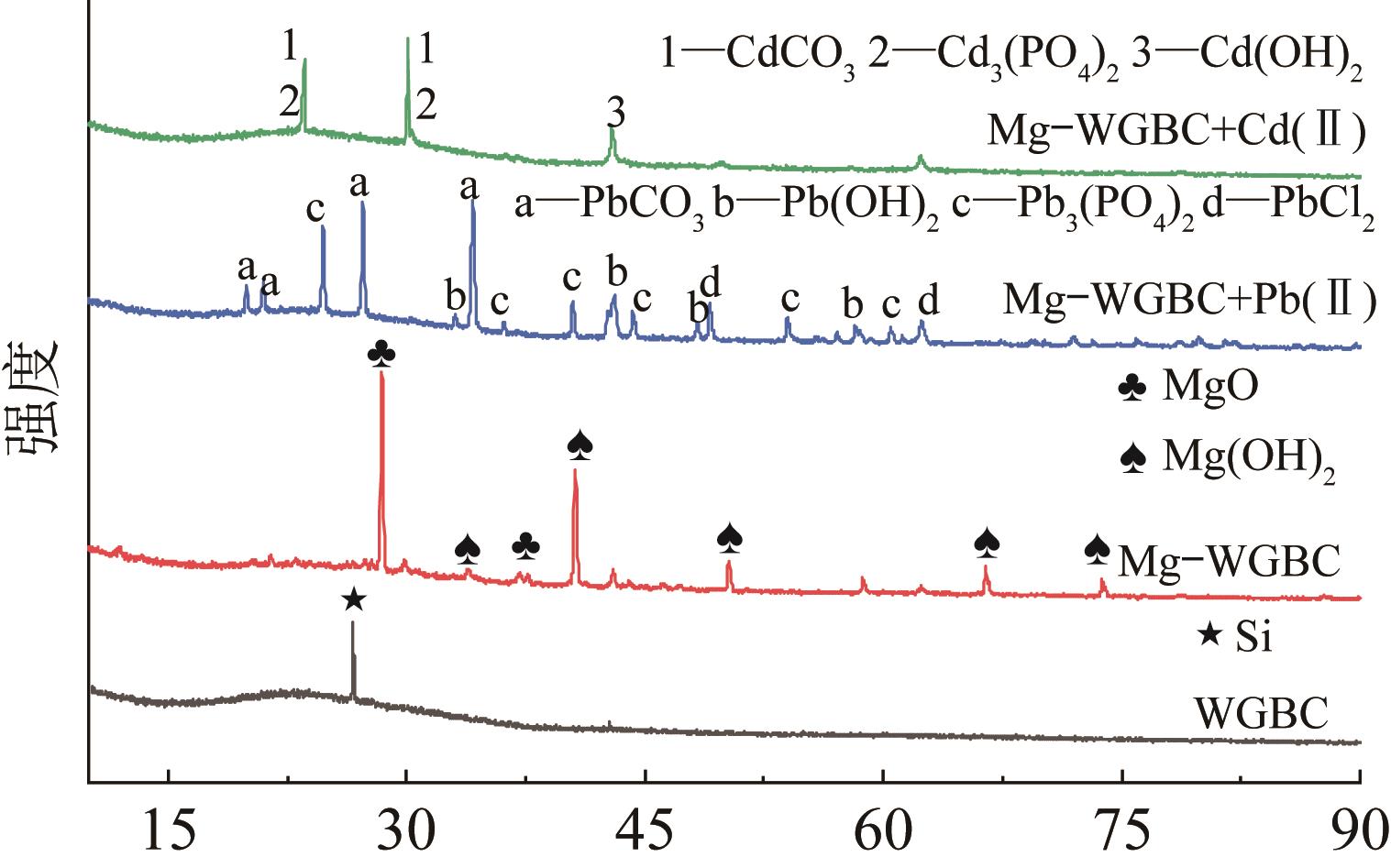

图5 WGBC的XRD及Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）前后的XRD

Fig.5 XRD of MGBC and XRD of Mg-WGBC before and after adsorption of Pb（Ⅱ） and Cd（Ⅱ）

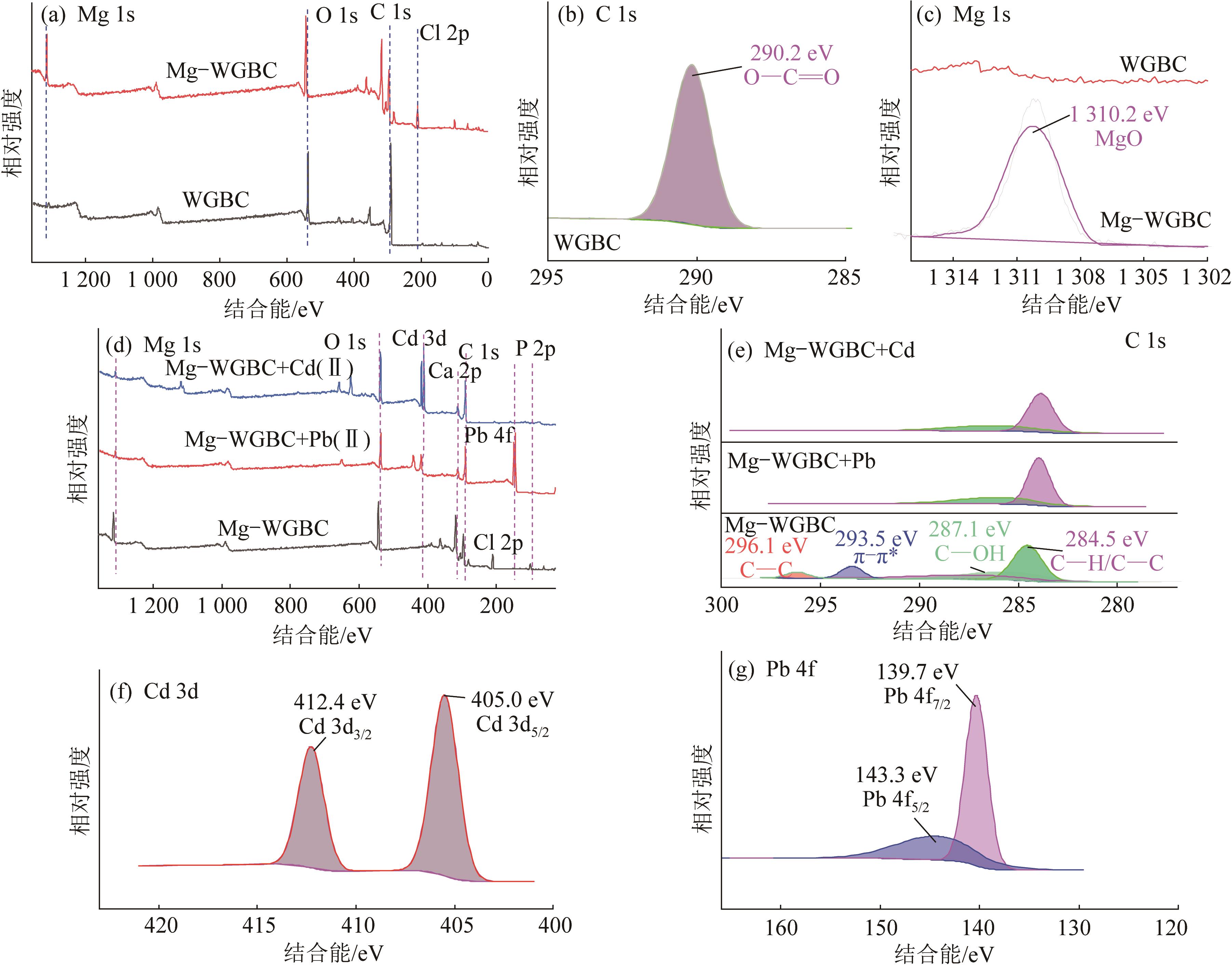

图6 WGBC的XPS以及Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）前后的XPS

Fig.6 XPS of WGBC and XPS of Mg-WGBC before and after adsorption of Pb（Ⅱ） and Cd（Ⅱ）

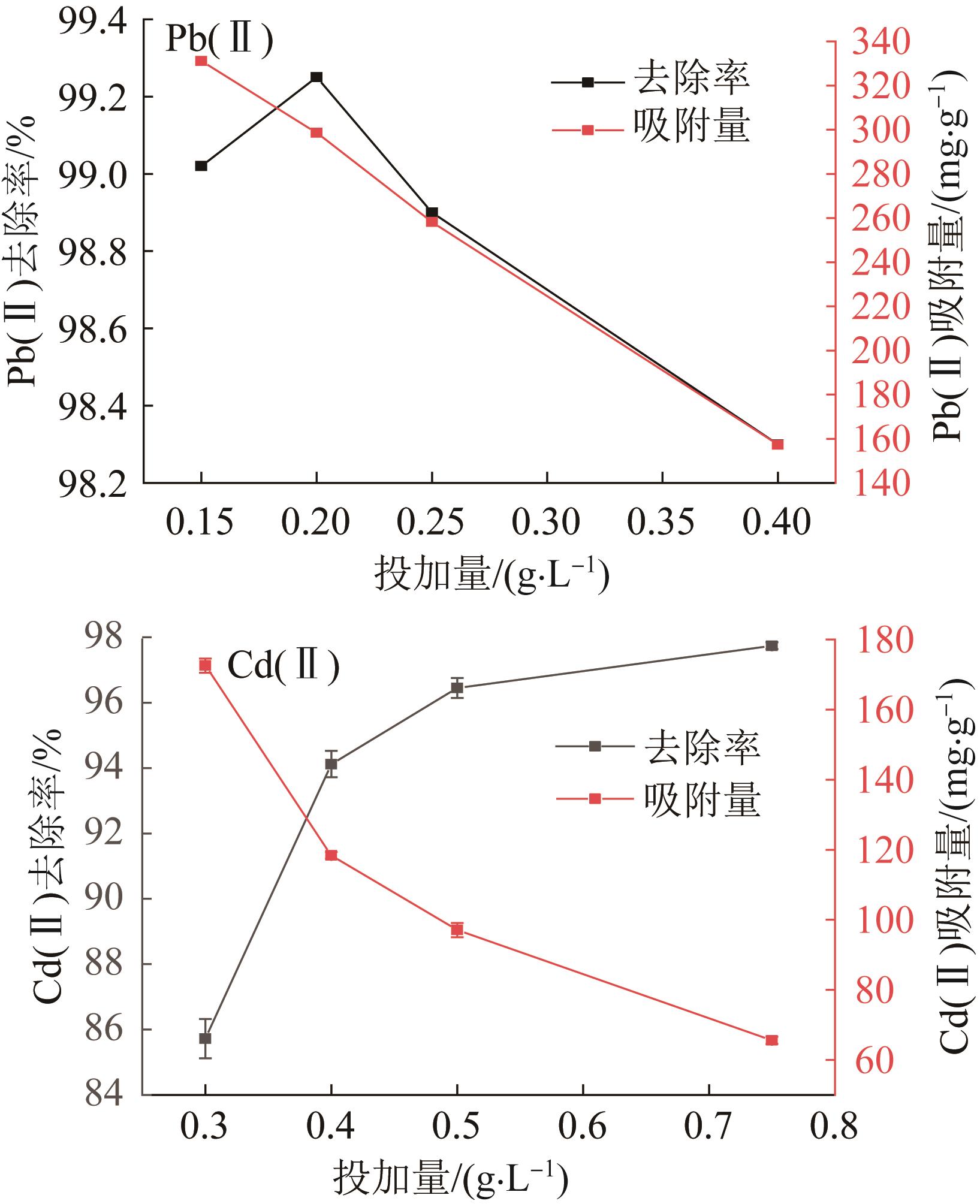

图7 Mg-WGBC投加量对Pb（Ⅱ）、Cd（Ⅱ）吸附效果的影响

Fig.7 Effect of Mg-WGBC dosage on adsorption of Pb（Ⅱ） and Cd（Ⅱ）

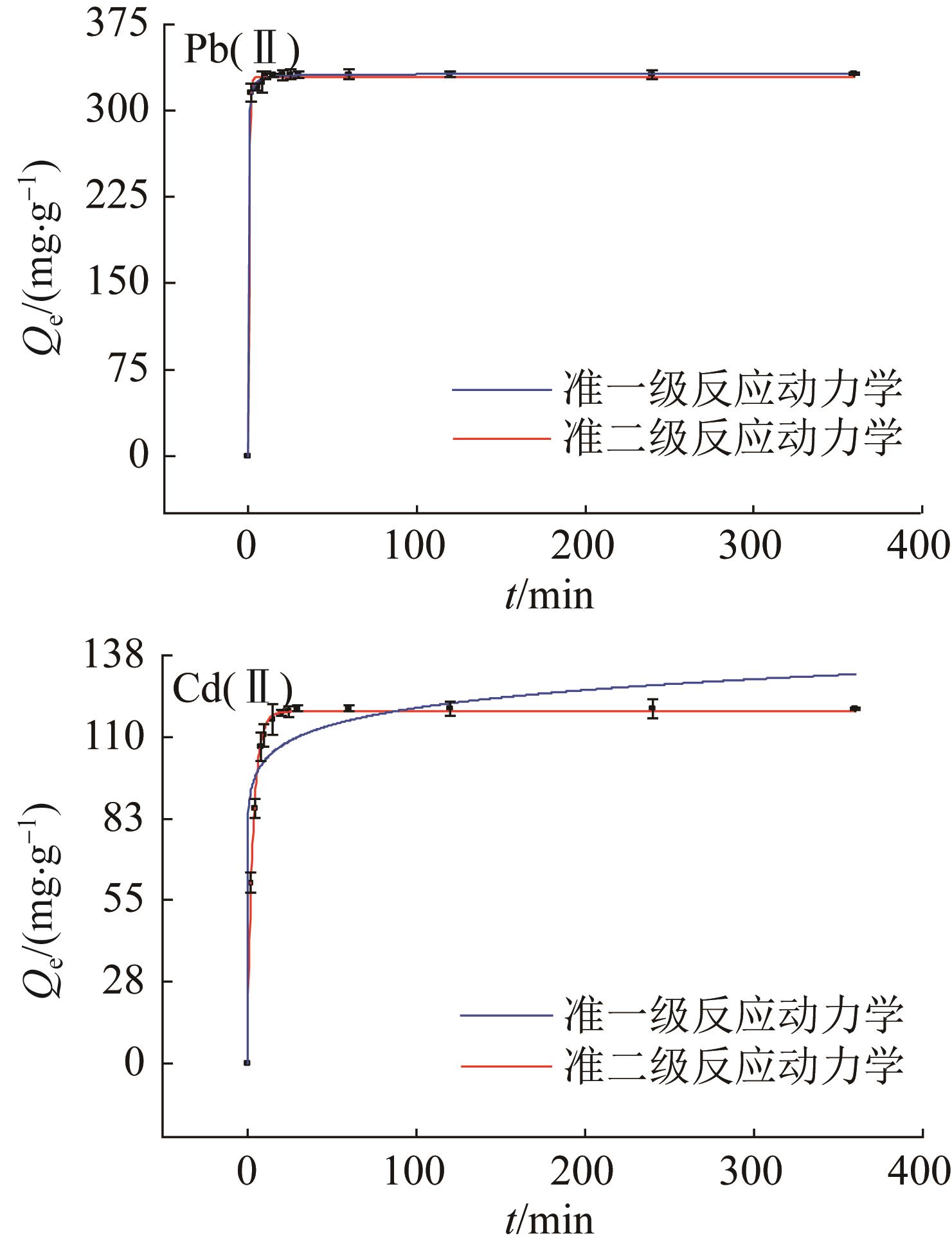

图8 Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的动力学拟合曲线

Fig.8 Kinetic fitting curves for adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-WGBC

表2 Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的动力学拟合参数

Table 2 Kinetic fitting parameters for adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-WGBC

污染物	准一级反应动力学			准二级反应动力学
污染物	k ₁	Q _e	R ²	k ₂	Q _e	R ²
Pb（Ⅱ）	0.026 0	332.23	0.996 2	1.574 2	330.90	0.999 1
Cd（Ⅱ）	0.022 0	84.48	0.866 1	0.298 1	118.62	0.993 0

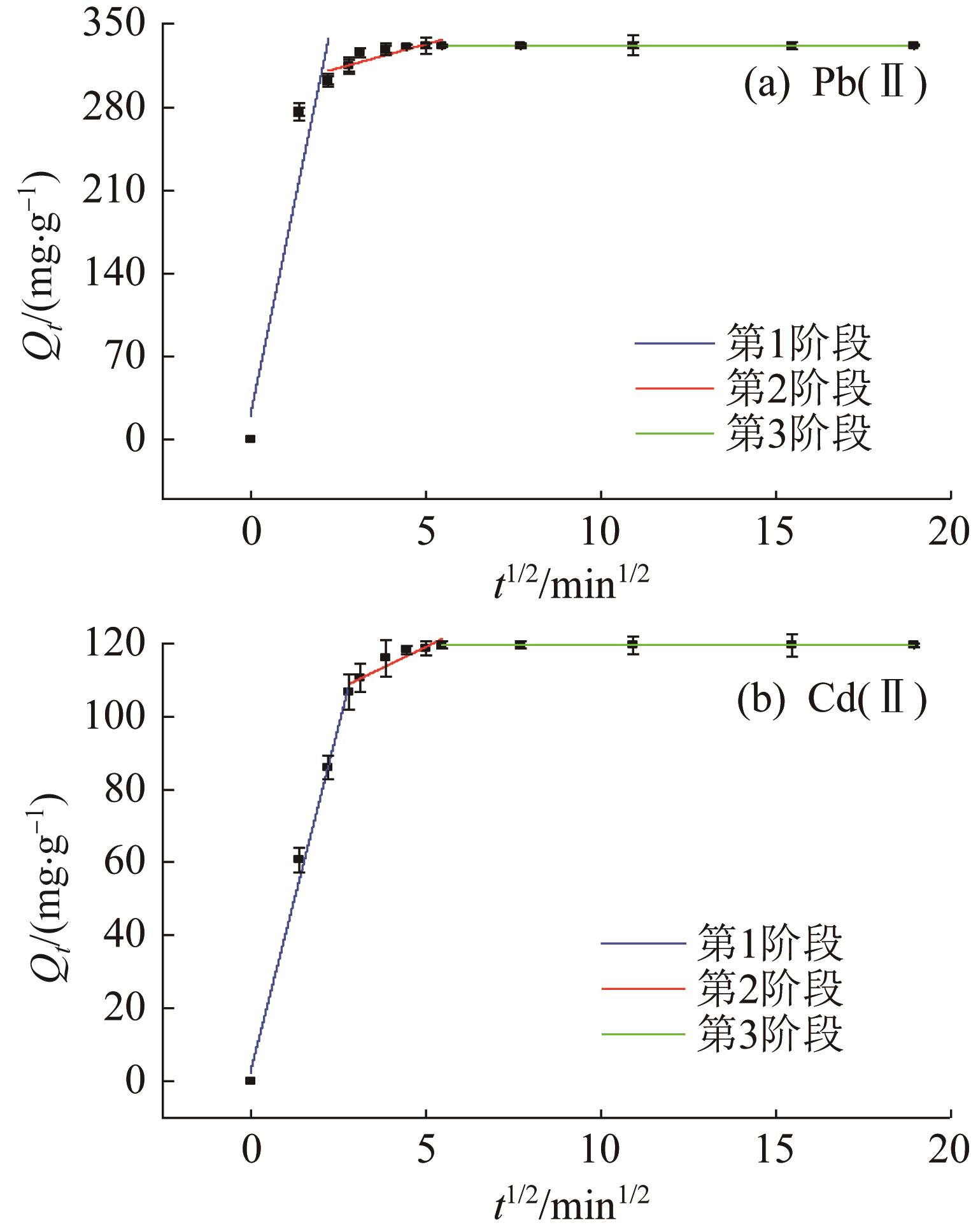

图9 Mg-MGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的颗粒内扩散模型拟合曲线

Fig.9 Intraparticle diffusion model fitting curves for adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-MGBC

表3 Mg-MGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的颗粒内扩散模型拟合参数

Table 3 Fitting parameters of the intraparticle diffusion model for adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-MGBC

污染物	k _d _，i			C			R ²
污染物	k _d _， ₁	k _d _， ₂	k _d _， ₃	C ₁	C ₂	C ₃	R ₁ ²	R ₂ ²	R ₃ ²
Pb	33.499 4	4.971 9	0.011 3	7.613 6	82.071 1	108.875 8	0.933 5	0.967 0	0.330 3
Cd	44.750 6	6.357 8	0.008 8	6.099 0	83.999 1	116.775 8	0.923 8	0.925 4	0.464 7

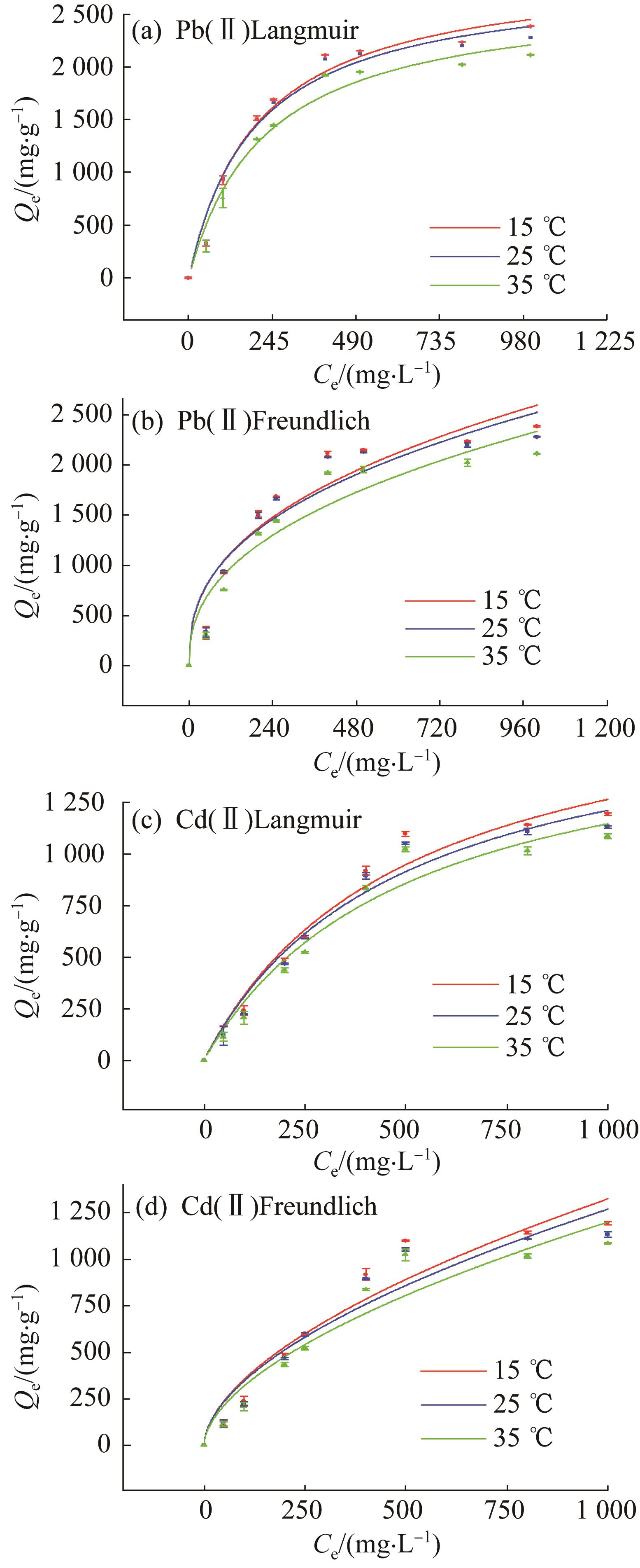

图10 不同温度下Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的Langmuir和Freundlich拟合曲线

Fig.10 Langmuir and Freundlich fitting curves for adsorption of Pb and Cd by Mg-WGBC at different temperatures

表4 不同温度下Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的Langmuir和Freundlich模型拟合参数

Table 4 Fitting parameters of Langmuir and Freundlich models of Mg-WGBC adsorbing Pb（Ⅱ） and Cd（Ⅱ） at different temperatures

污染物	温度/ ℃	Langmuir吸附等温线			Freundlich吸附等温线
污染物	温度/ ℃	K _L	Q _m	R ²	K _F	1/n	R ²
Pb（Ⅱ）	15	0.005 1	2 945.85	0.962 2	177.422 3	0.38	0.912 1
	25	0.005 2	2 841.02	0.958 1	169.482 2	0.40	0.904 2
	35	0.005 1	2 702.46	0.960 2	136.242 1	0.41	0.910 2
Cd（Ⅱ）	15	0.004 2	1 898.28	0.956 1	26.072 2	0.56	0.930 2
	25	0.002 0	1 795.02	0.954 3	25.776 3	0.57	0.923 1
	35	0.001 1	1 729.24	0.943 1	22.870 1	0.57	0.917 3

表5 Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的热力学参数

Table 5 Thermodynamic parameters of Pb（Ⅱ） and Cd（Ⅱ） adsorption by Mg-WGBC

污染物	温度/K	ΔG/（kJ·mol^-1）	ΔH/（kJ·mol^-1）	ΔS/（J·mol·K^-1）
Pb（Ⅱ）	288.150	-12.400	-9.664	9.744
	298.150	-12.584
	308.150	-12.717
Cd（Ⅱ）	288.150	-7.808	-4.786	10.042
	298.150	-8.015
	308.150	-8.051

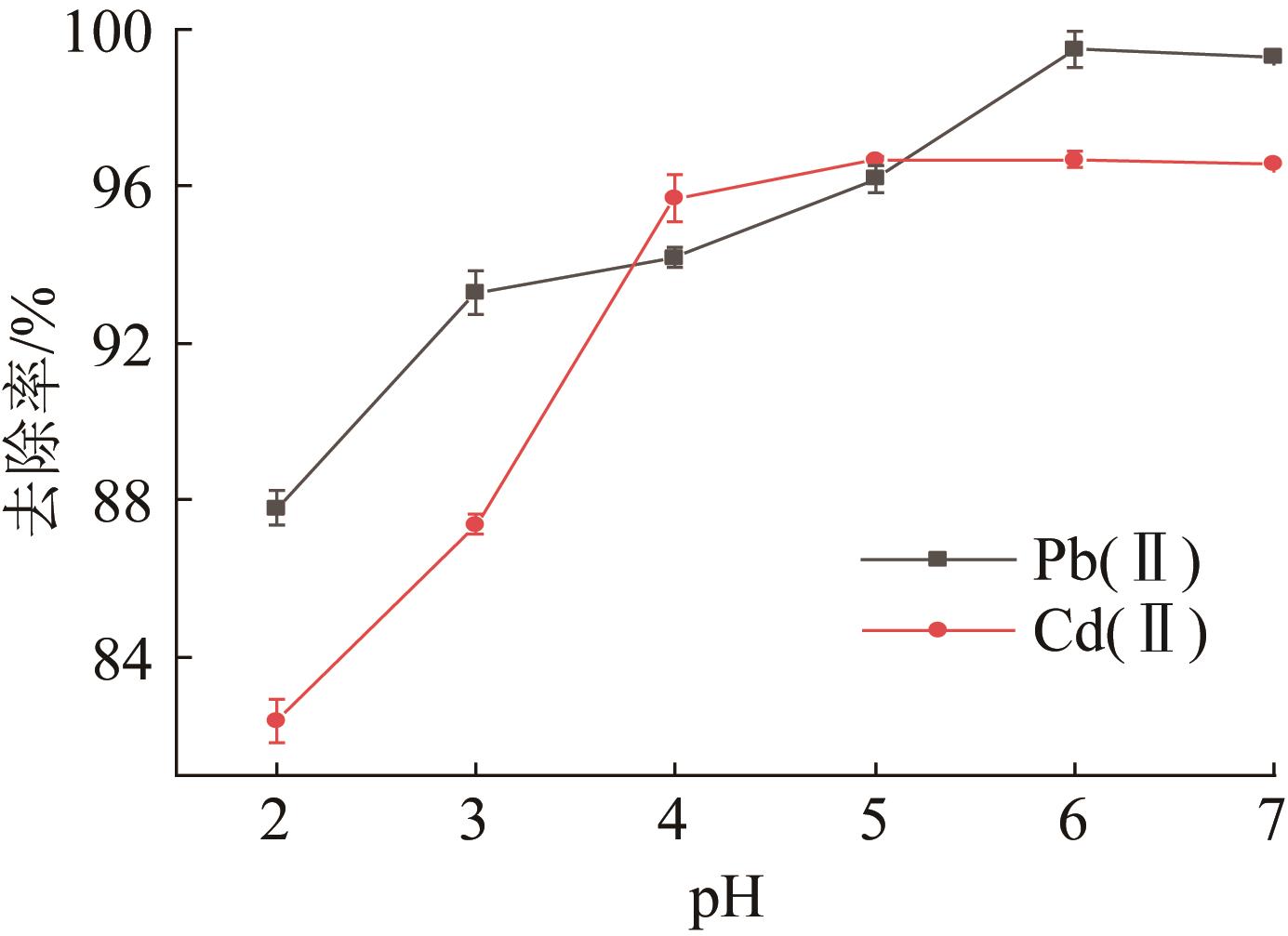

图11 溶液pH对Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）效果的影响

Fig.11 Effect of solution pH on the adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-WGBC

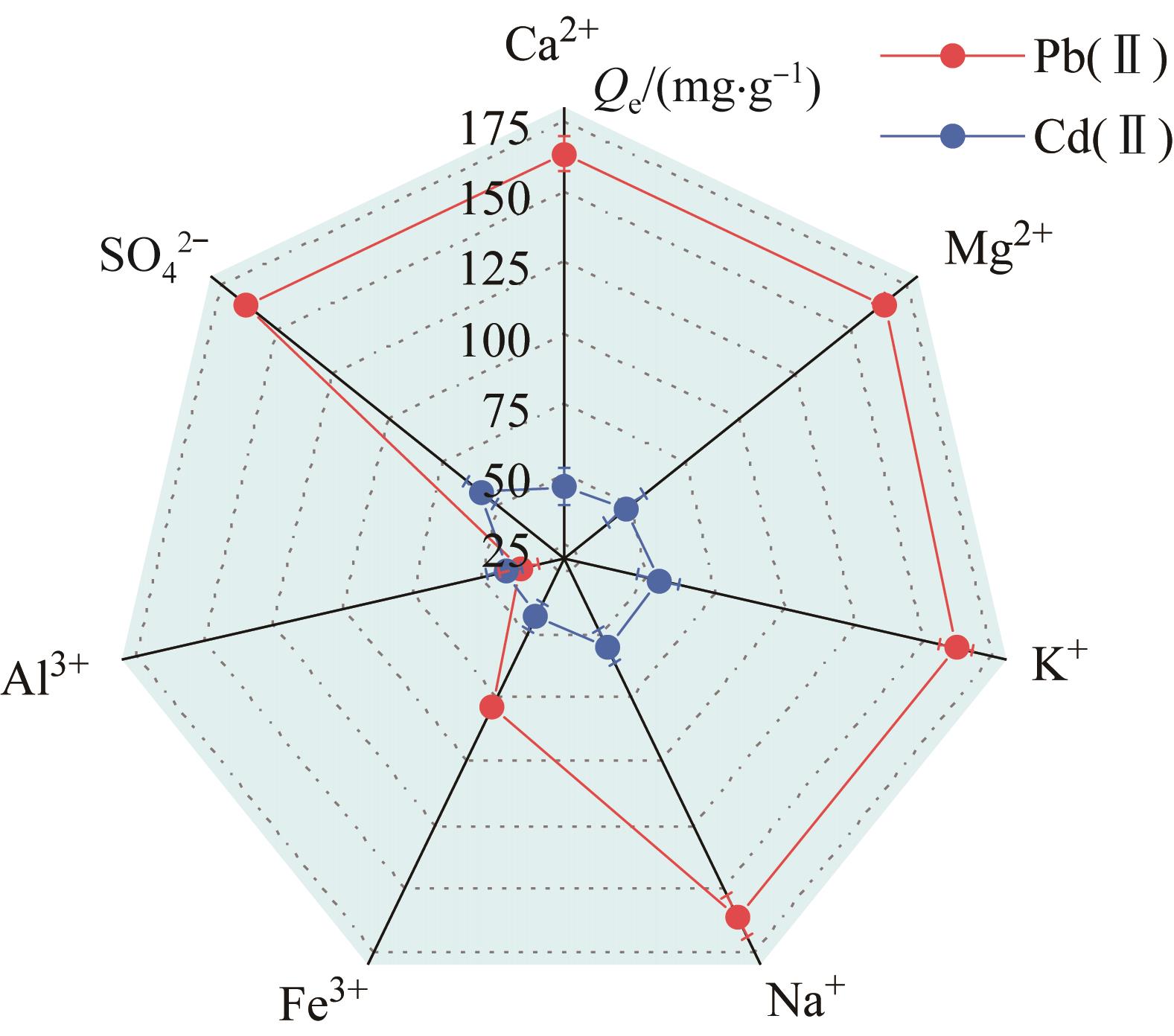

图12 无机共存离子对Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）效果的影响

Fig.12 Effects of coexisting inorganic ions on adsorption of Pb（Ⅱ） and Cd（Ⅱ） by Mg-WGBC

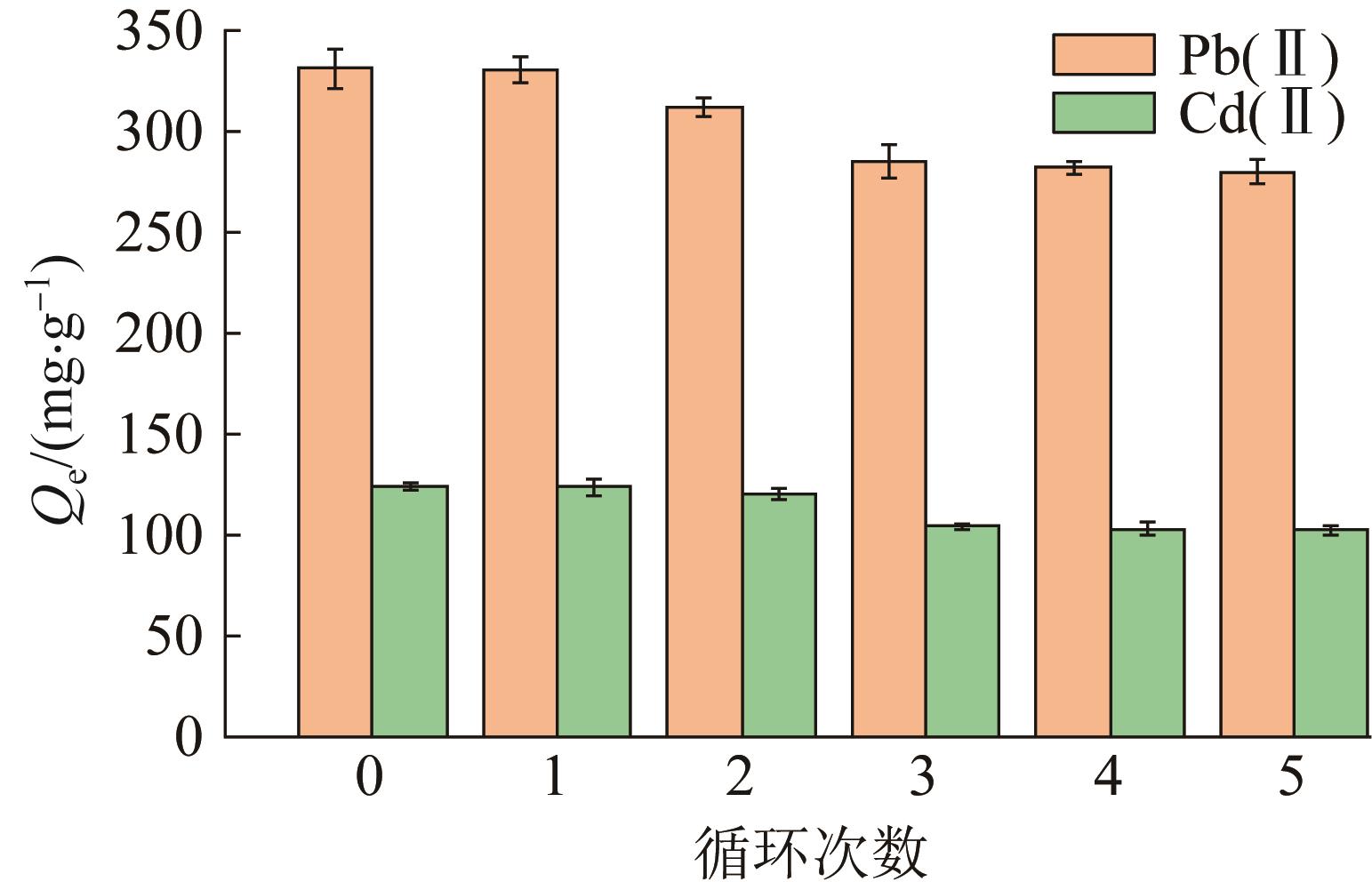

图13 Mg-WGBC吸附Pb（Ⅱ）和Cd（Ⅱ）的循环利用性能

Fig.13 Recycling performance of Mg-WGBC in adsorbing Pb（Ⅱ） and Cd（Ⅱ）

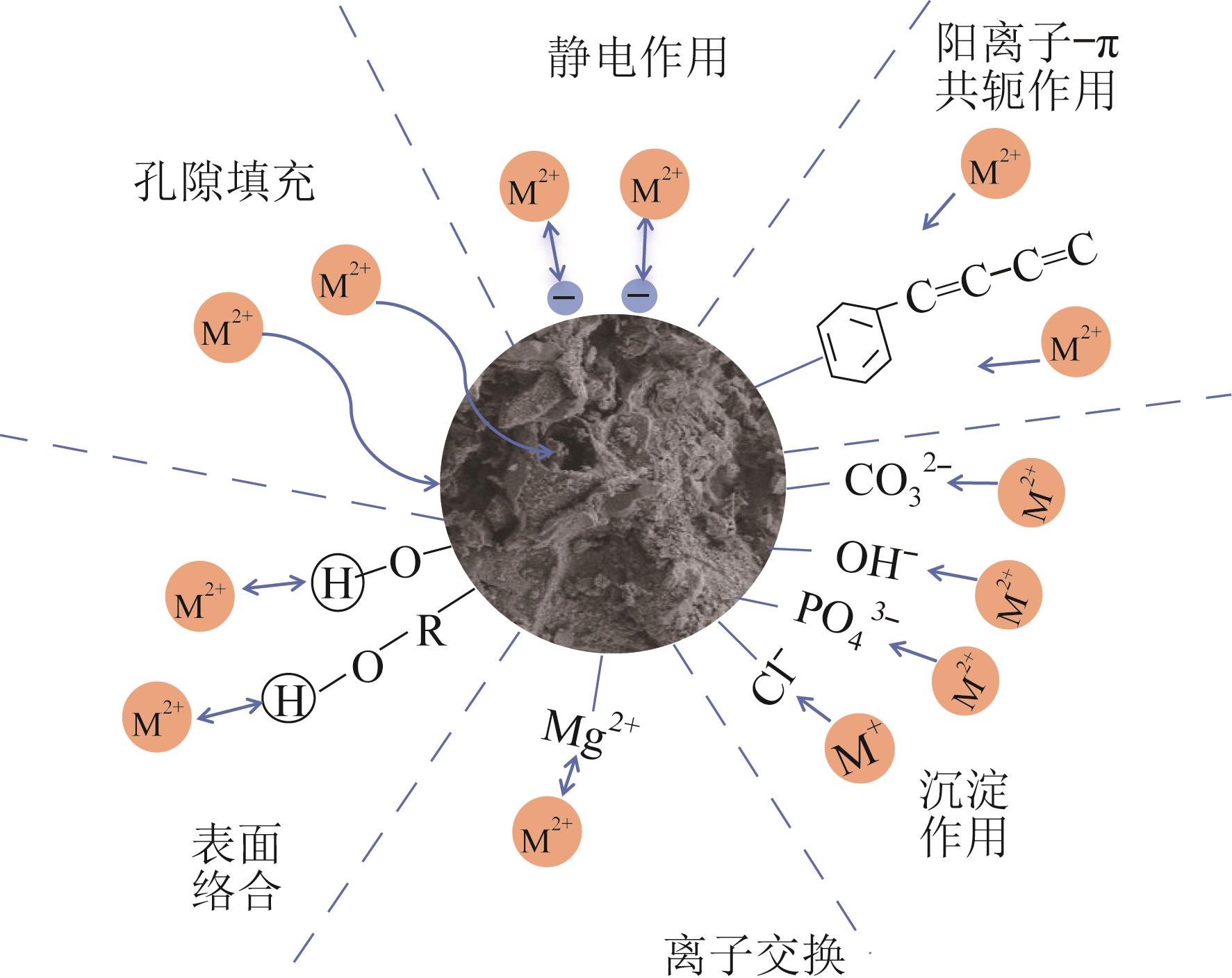

图14 Mg-WGBC去除废水中Pb（Ⅱ）和Cd（Ⅱ）的机理

Fig.14 Mechanism of Pb（Ⅱ） and Cd（Ⅱ） removal from wastewater by Mg-WGBC
