不同方式活化过硫酸盐对污泥过滤性能及胞外聚合物的影响

doi:10.19965/j.cnki.iwt.2024-0828

摘要/Abstract

摘要：

分别采用热和铁（Ⅱ）活化过硫酸盐（PDS）对污泥进行预处理，对比考察两种活化方式下PDS氧化调理对污泥过滤性能的改善情况，并采用扫描电子显微镜（SEM）、透射电子显微镜（TEM）、X光电子能谱（XPS）、傅里叶红外光谱（FT-IR）、有机碳-有机氮检测器分析污泥胞外聚合物（EPS）特性的变化。结果表明，相较于热（80 ℃）活化，Fe（Ⅱ）（16.8 mg/g）/PDS改善污泥过滤性能的效果更佳，在PDS投加量为238 mg/g时，过滤时间和泥饼含水率分别下降75.4%和8.7%。热/PDS和Fe（Ⅱ）/PDS均可破坏EPS的链状结构，使污泥产生孔隙便于水分输送，且使EPS中小分子中性物质占比减少，其中热活化组小分子中性物质占比从78%降至58%，Fe（Ⅱ）活化组该占比降至38%。

关键词: 污泥脱水, 过硫酸盐, 二价铁离子, 胞外聚合物, 有机碳

Abstract:

Thermal and iron(Ⅱ) activated persulfate(PDS) were used to pretreat sludge, and the improvement of sludge filtration performance by PDS oxidation conditioning under two activation methods was compared and investigated. Scanning electron microscope(SEM), transmission electron microscope(TEM), X-ray photoelectron spectroscopy(XPS), Fourier transform infrared spectroscopy(FT-IR), and organic carbon-organic nitrogen detector were used to analyze the changes in the characteristics of extracellular polymeric substances(EPS) of sludge. The results showed that compared to thermal(80 ℃) activation, Fe(Ⅱ) (16.8 mg/g)/PDS had better effect on improving sludge filtration performance, with the decrease of 75.4% in filtration time and 8.7% in sludge cake moisture content under PDS dosage of 238 mg/g. Both thermal/PDS and Fe(Ⅱ)/PDS could destroy the chain structure of EPS, create pores in sludge for water transport, and reduce the proportion of small molecule neutral substances in EPS. The proportion of small molecule neutral substances in the thermal activation group was decreased from 78% to 58%, and the proportion in the Fe(Ⅱ) activation group was decreased to 38%.

Key words: sludge dewatering, persulfate, ferrous iron, extracellular polymer substances, organic carbon

中图分类号:

X703.1

郭绍东, 王张羽, 刘赛, 周龙, 尹希. 不同方式活化过硫酸盐对污泥过滤性能及胞外聚合物的影响[J]. 工业水处理, 2025, 45(10): 94-101.

Shaodong GUO, Zhangyu WANG, Sai LIU, Long ZHOU, Xi YIN. Effects of different activated persulfate on the filtration performance and extracellular polymers of sludge[J]. Industrial Water Treatment, 2025, 45(10): 94-101.

https://www.iwt.cn/CN/Y2025/V45/I10/94

图/表 8

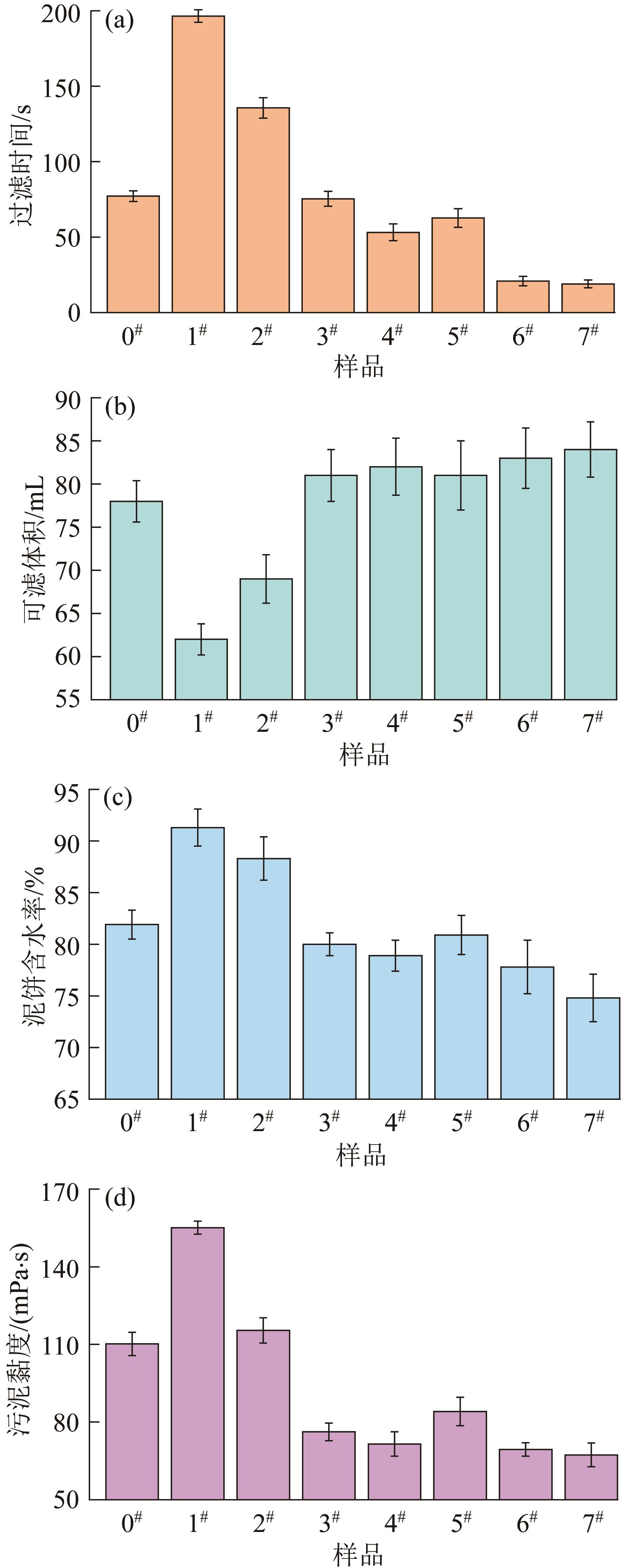

图1 污泥过滤时间（a）、可滤体积（b）、泥饼含水率（c）及黏度（d）的变化

Fig.1 Changes of sludge filtration time（a），filtration volume（b），mud cake moisture content（c） and viscosity（d）

图2 原泥（a）、热/PDS处理污泥（b）和Fe（Ⅱ）/PDS处理污泥（c）的SEM

Fig.2 SEM of raw sludge（a）， thermal /PDS treated sludge（b） and Fe（Ⅱ）/PDS treated sludge（c）

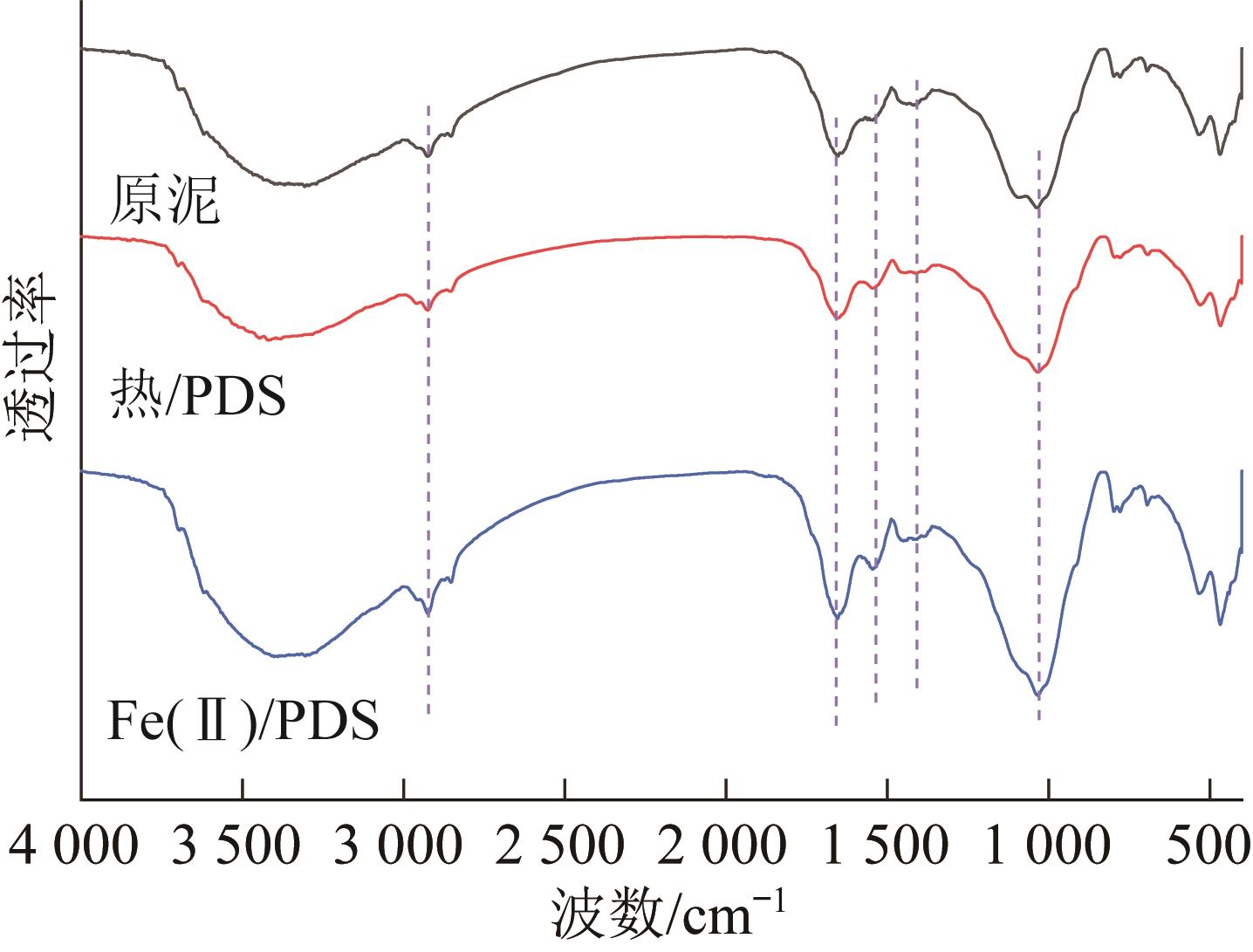

图3 原泥、热/PDS处理污泥、Fe（Ⅱ）/PDS处理污泥的FT-IR

Fig.3 FT-IR of raw sludge，thermal /PDS treated sludge，and Fe（Ⅱ） /PDS treated sludge

图4 原泥（a）、热/PDS处理污泥（b）、Fe（Ⅱ）/PDS处理污泥（c）中EPS的SEM，及原泥（d）、热/PDS处理污泥（e）、Fe（Ⅱ）/PDS处理污泥（f）中EPS的TEM

Fig.4 SEM of EPS in raw sludge（a），thermal/PDS treated sludge（b），Fe（Ⅱ）/PDS treated sludge（c），and TEM of EPS in raw sludge（d），thermal/PDS treated sludge（e），Fe（Ⅱ）/PDS treated sludge（f）

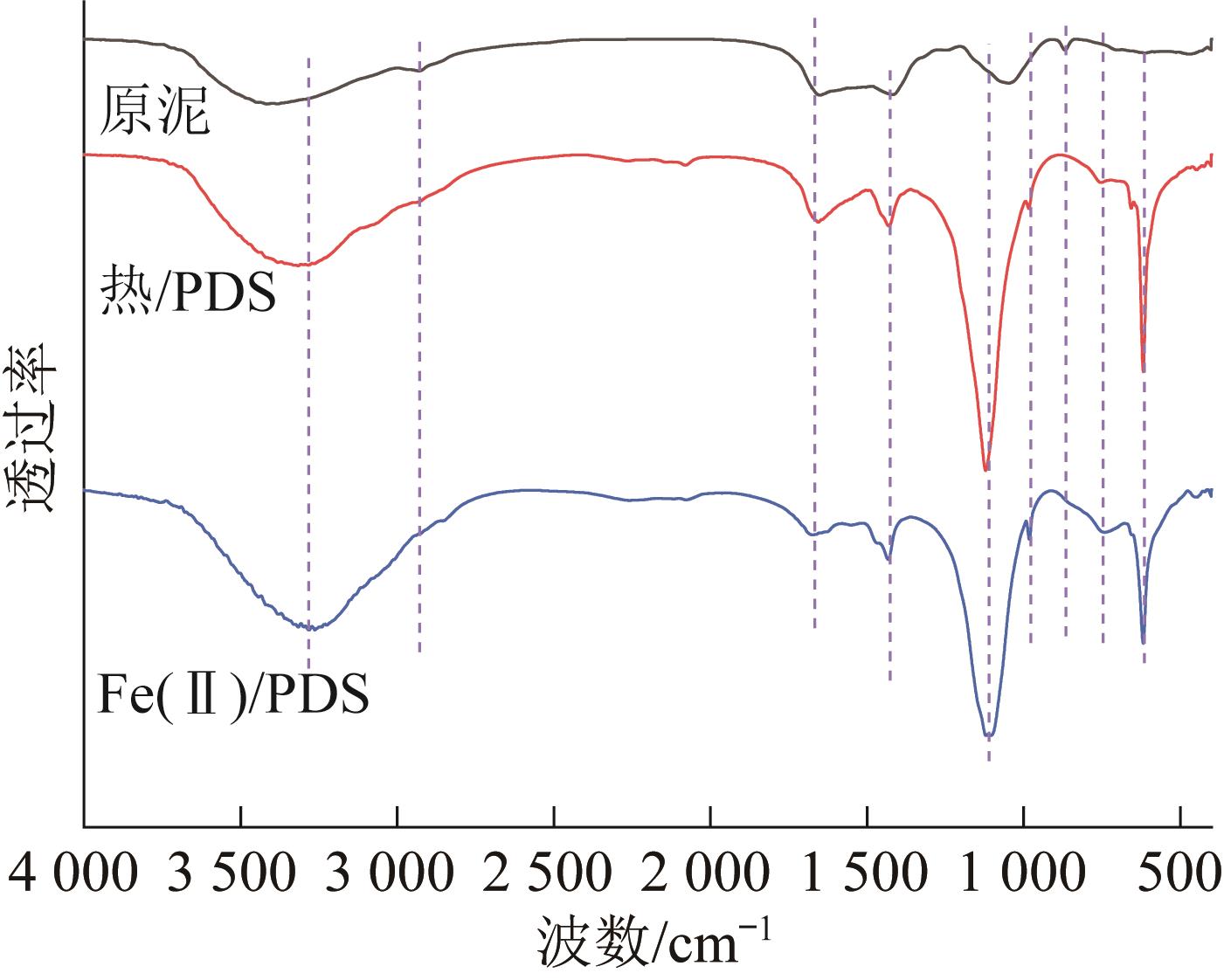

图5 原泥、热/PDS处理污泥、Fe（Ⅱ）/PDS处理污泥EPS的 FT-IR

Fig.5 FT-IR of EPS in raw sludge， thermal /PDS treated sludge， and Fe（Ⅱ）/PDS treated sludge

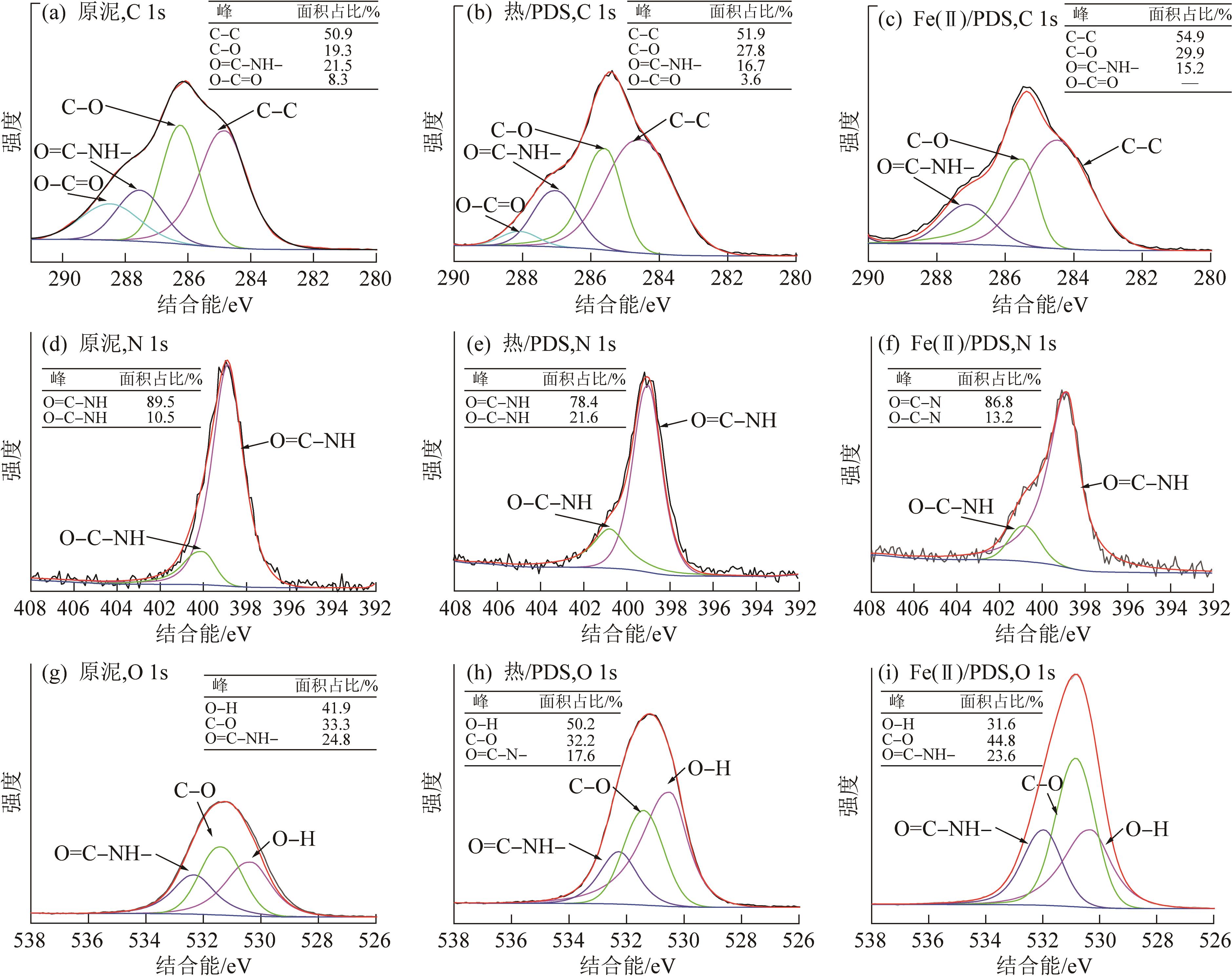

图6 原泥、热/PDS处理污泥和Fe（Ⅱ）/PDS处理污泥C 1s、N 1s和O 1s的XPS

Fig.6 XPS spectra of C 1s，N 1s and O 1s in raw sludge，thermal/PDS treated sludge and Fe（Ⅱ）/PDS treated sludge

表1 DOM分析 (%)

Table 1 DOM analysis

样品	HOC占比	CDOC占比
样品	HOC占比	生物聚合物	腐殖质	构造块	小分子酸	小分子中性物质	总计
原泥DOM（丰度873）	0	12.9	0.1	5.4	3.4	78.2	100.0
热/PDS组DOM（丰度1 503）	0	21.0	13.0	8.0	0.1	57.9	100.0
Fe（Ⅱ）/PDS组DOM（丰度294）	56.0	1.0	0.1	3.1	2.3	37.5	44.0

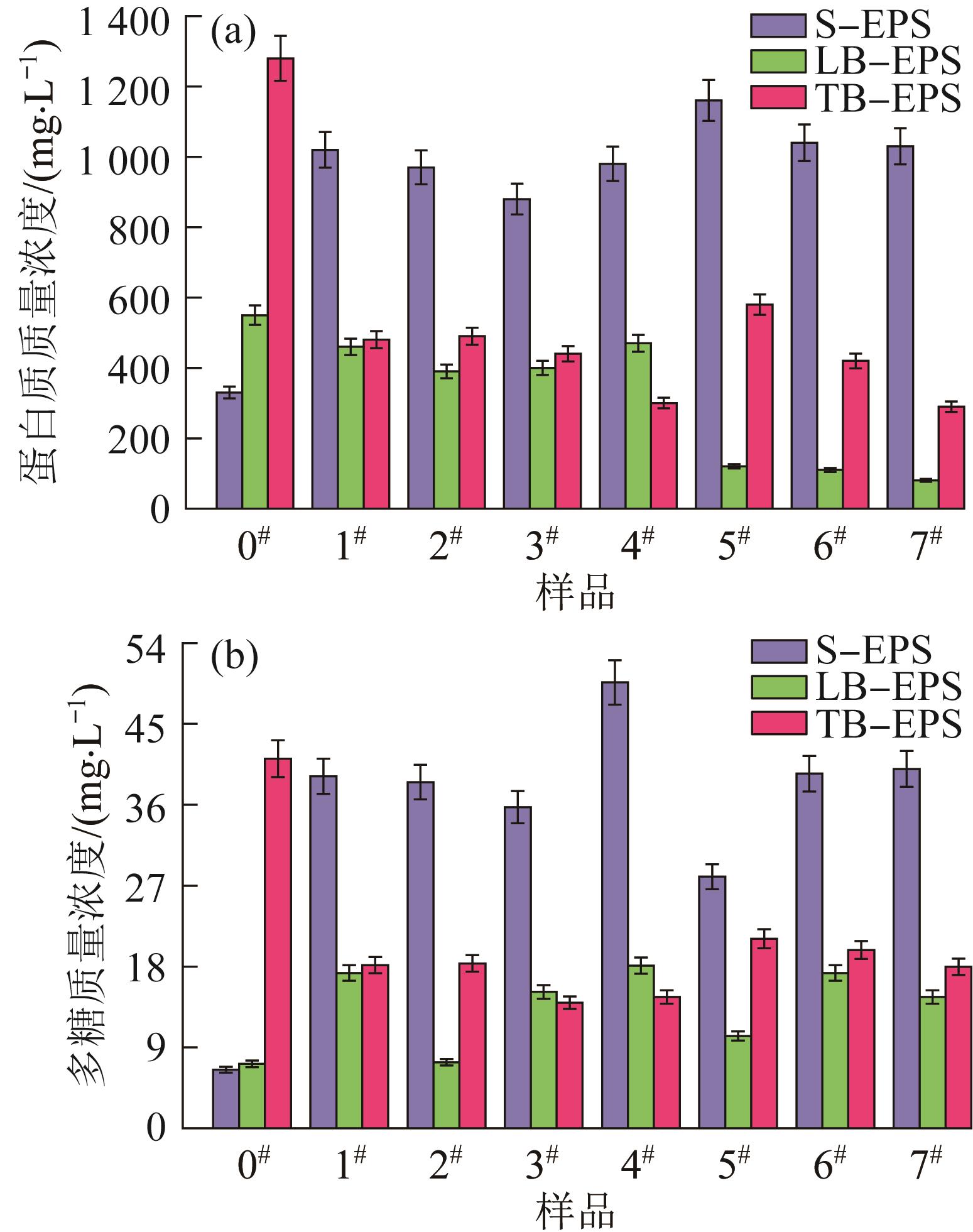

图7 Fe（Ⅱ）/PDS和热/PDS处理后污泥EPS蛋白质（a）和多糖（b）的变化

Fig.7 Changes in EPS proteins（a） and polysaccharides（b） of sludge after Fe（Ⅱ）/PDS and thermal/PDS treatments

参考文献 38

[1]	中华人民共和国生态环境部. 2022年中国生态环境状况公报（摘录）［J］. 环境保护，2023，51（）：64-81.
[2]	XU Qiuxiang， HUANG Qisu， WEI Wei，et al. Improving the treatment of waste activated sludge using calcium peroxide［J］. Water Research，2020，187：116440. doi:10.1016/j.watres.2020.116440
[3]	赖月，王超，张洁，等. 硫酸根自由基：强化污泥脱水新利器［J］. 化学进展，2024，36（5）：798-814.
	LAI Yue， WANG Chao， ZHANG Jie，et al. Sulfate radicals：A new tool for enhancing sludge dewatering［J］. Progress in Chemistry，2024，36（5）：798-814.
[4]	ZHANG Jian， ZHANG Jun， TIAN Yu，et al. Changes of physicochemical properties of sewage sludge during ozonation treatment：Correlation to sludge dewaterability［J］. Chemical Engineering Journal，2016，301：238-248. doi:10.1016/j.cej.2016.04.151
[5]	KIM T H， LEE S R， NAM Y K，et al. Disintegration of excess activated sludge by hydrogen peroxide oxidation［J］. Desalination，2009，246（1/2/3）：275-284. doi:10.1016/j.desal.2008.06.023
[6]	WANG Shengbao. Effect of different sludge reduction methods on sludge reduction rates，performance of activated sludge process and urban planning［J］. Desalination and Water Treatment，2014，52（34/35/36）：6363-6368. doi:10.1080/19443994.2013.827822
[7]	LI Yifu， PAN Liuyi， ZHU Yeqing，et al. How does zero valent iron activating peroxydisulfate improve the dewatering of anaerobically digested sludge？［J］. Water Research，2019，163：114912. doi:10.1016/j.watres.2019.114912
[8]	CAI Meiqiang， WANG Qian， WELLS G，et al. Improving dewaterability and filterability of waste activated sludge by electrochemical Fenton pretreatment［J］. Chemical Engineering Journal，2019，362：525-536. doi:10.1016/j.cej.2019.01.047
[9]	ZHEN Guangyin， LU Xueqin， LI Yuyou，et al. Novel insights into enhanced dewaterability of waste activated sludge by Fe（Ⅱ）-activated persulfate oxidation［J］. Bioresource Technology，2012，119：7-14. doi:10.1016/j.biortech.2012.05.115
[10]	RAN Bin， LIU Liyan， HUA Chao. Comprehensive investigation and mechanisms of drilling waste sludge dewaterability by Fe（Ⅱ）/persulfate pretreatment［J］. Journal of Environmental Chemical Engineering，2021，9（6）：106751. doi:10.1016/j.jece.2021.106751
[11]	崔延瑞，薛德华，张留萍，等. 过硫酸盐降解有机物活化技术研究进展［J］. 河南师范大学学报（自然科学版），2023，51（6）：77-87.
	CUI Yanrui， XUE Dehua， ZHANG Liuping，et al. Progress and prospect of activation technology for persulfate degradation of organic matter［J］. Journal of Henan Normal University（Natural Science Edition），2023，51（6）：77-87.
[12]	HONARMANDRAD Z， SUN Xun， WANG Zhaohui，et al. Activated persulfate and peroxymonosulfate based advanced oxidation processes（AOPs） for antibiotics degradation：A review［J］. Water Resources and Industry，2023，29：100194. doi:10.1016/j.wri.2022.100194
[13]	GE Dongdong， ZHU Yidan， LI Guobiao，et al. Identifying the key sludge properties characteristics in Fe²⁺-activated persulfate conditioning for dewaterability amelioration and engineering implementation［J］. Journal of Environmental Management，2021，296：113204. doi:10.1016/j.jenvman.2021.113204
[14]	YUAN Donghai， LI Xinyu， XIONG Siyu，et al. Improving sludge dewaterability via Fe²⁺ chelated citrate activated peroxydisulfate oxidation［J］. Journal of Environmental Sciences，2023，125：223-233. doi:10.1016/j.jes.2021.11.022
[15]	WANG Teng， ZHOU Yi， XUE Yongjie，et al. Pyrolysis of hydrothermally dewatering sewage sludge：Highly efficient peroxydisulfate activation of derived biochar to degrade diclofenac［J］. Environmental Pollution，2022，313：120176. doi:10.1016/j.envpol.2022.120176
[16]	LI X Y， YANG S F. Influence of loosely bound extracellular polymeric substances（EPS） on the flocculation，sedimentation and dewaterability of activated sludge［J］. Water Research，2007，41（5）：1022-1030. doi:10.1016/j.watres.2006.06.037
[17]	GE Dongdong， YUAN Haiping， SHEN Yanwen，et al. Improved sludge dewaterability by tannic acid conditioning：Temperature，thermodynamics and mechanism studies［J］. Chemosphere，2019，230：14-23. doi:10.1016/j.chemosphere.2019.05.046
[18]	WANG Qian， SONG Lei， HUI Kai，et al. Iron powder activated peroxymonosulfate combined with waste straw to improve sludge dewaterability［J］. Environmental Technology，2021，42（8）：1302-1311. doi:10.1080/09593330.2019.1665111
[19]	GUO Hongxiao， FELZ S， LIN Yuemei，et al. Structural extracellular polymeric substances determine the difference in digestibility between waste activated sludge and aerobic granules［J］. Water Research，2020，181：115924. doi:10.1016/j.watres.2020.115924
[20]	YUAN Shijie， SUN Min， SHENG Guoping，et al. Identification of key constituents and structure of the extracellular polymeric substances excreted by Bacillus megaterium TF10 for their flocculation capacity［J］. Environmental Science & Technology，2011，45（3）：1152-1157. doi:10.1021/es1030905
[21]	LI Yifu， YANG Fan， MIAO Shuzhou，et al. Achieved deep-dewatering of dredged sediments by Fe（Ⅱ） activating persulfate pretreatment：Filtrating performance and mechanistic insights［J］. Chemical Engineering Journal，2021，405：126847. doi:10.1016/j.cej.2020.126847
[22]	ZHU Liang， QI Hanying， Meile LÜ，et al. Component analysis of extracellular polymeric substances（EPS） during aerobic sludge granulation using FTIR and 3D-EEM technologies［J］. Bioresource Technology，2012，124：455-459. doi:10.1016/j.biortech.2012.08.059
[23]	WEI Liangliang， XIA Xinhui， ZHU Fengyi，et al. Dewatering efficiency of sewage sludge during Fe²⁺-activated persulfate oxidation：Effect of hydrophobic/hydrophilic properties of sludge EPS［J］. Water Research，2020，181：115903. doi:10.1016/j.watres.2020.115903
[24]	XU Qiongying， WANG Qiandi， ZHANG Weijun，et al. Highly effective enhancement of waste activated sludge dewaterability by altering proteins properties using methanol solution coupled with inorganic coagulants［J］. Water Research，2018，138：181-191. doi:10.1016/j.watres.2018.03.038
[25]	ALVARADO QUIROZ N G， HUNG C C， SANTSCHI P H. Binding of thorium（Ⅳ） to carboxylate，phosphate and sulfate functional groups from marine exopolymeric substances（EPS）［J］. Marine Chemistry，2006，100（3/4）：337-353. doi:10.1016/j.marchem.2005.10.023
[26]	DING Xuesong， ZHAO Bin， AN Qiang，et al. Role of extracellular polymeric substances in biofilm formation by Pseudomonas stutzeri strain XL-2［J］. Applied Microbiology and Biotechnology，2019，103（21/22）：9169-9180. doi:10.1007/s00253-019-10188-4
[27]	DAI Xiaohu， XU Ying， DONG Bin. Effect of the micron-sized silica particles（MSSP） on biogas conversion of sewage sludge［J］. Water Research，2017，115：220-228. doi:10.1016/j.watres.2017.02.064
[28]	CASTILLO G A， WILSON L， EFIMENKO K，et al. Amidation of polyesters is slow in nonaqueous solvents：Efficient amidation of poly（ethylene terephthalate） with 3-aminopropyltriethoxysilane in water for generating multifunctional surfaces［J］. ACS Applied Materials & Interfaces，2016，8（51）：35641-35649. doi:10.1021/acsami.6b12155
[29]	SHA Li， WU Zhangxiang， LING Zichen，et al. Investigation on the improvement of activated sludge dewaterability using different iron forms〔ZVI vs. Fe（Ⅱ）〕/peroxydisulfate combined vertical electro-dewatering processes［J］. Chemosphere，2022，292：133416. doi:10.1016/j.chemosphere.2021.133416
[30]	VAN VEENHUYZEN B， TICHAPONDWA S， HÖRSTMANN C，et al. High capacity Pb（Ⅱ） adsorption characteristics onto raw- and chemically activated waste activated sludge［J］. Journal of Hazardous Materials，2021，416：125943. doi:10.1016/j.jhazmat.2021.125943
[31]	LI Yifu， WANG Dongbo， YANG Guojing，et al. Enhanced dewaterability of anaerobically digested sludge by in situ free nitrous acid treatment［J］. Water Research，2020，169：115264. doi:10.1016/j.watres.2019.115264
[32]	LIU Jibao， WEI Yuansong， LI Kun，et al. Microwave-acid pretreatment：A potential process for enhancing sludge dewaterability［J］. Water Research，2016，90：225-234. doi:10.1016/j.watres.2015.12.012
[33]	JIN Bo， WILÉN B M， LANT P. A comprehensive insight into floc characteristics and their impact on compressibility and settleability of activated sludge［J］. Chemical Engineering Journal，2003，95（1/2/3）：221-234. doi:10.1016/s1385-8947(03)00108-6
[34]	XIAO Keke， CHEN Yun， JIANG Xie，et al. Variations in physical，chemical and biological properties in relation to sludge dewaterability under Fe（Ⅱ）-oxone conditioning［J］. Water Research，2017，109：13-23. doi:10.1016/j.watres.2016.11.034
[35]	LI Aimin， HUANG Chou， FENG Xuan，et al. Upgradation of sludge deep dewatering conditioners through persulfate activated by ferrous：Compatibility with sludge incineration，dewatering mechanism，ecological risks elimination and carbon emission performance［J］. Environmental Research，2022，211：113024. doi:10.1016/j.envres.2022.113024
[36]	Jingyu LÜ， SONG Lei， GUO Yang. Improvement of sludge dewatering performance by persulfate advanced oxidation combined with LDH：Synergistic effect of free radical and non-free radical and reuse of deep-dewatered sludge cake［J］. Biochemical Engineering Journal，2025，213：109560. doi:10.1016/j.bej.2024.109560
[37]	Zhiying LÜ， YOU Hong， XU Mingze，et al. Synergetic sludge conditioning by US enhanced Fe²⁺ activated sodium persulfate：Physicochemical properties and mechanisms［J］. Chemosphere，2024，362：142727. doi:10.1016/j.chemosphere.2024.142727
[38]	MAQBOOL T， CHO J，HUR J. Improved dewaterability of anaerobically digested sludge and compositional changes in extracellular polymeric substances by indigenous persulfate activation［J］. Science of the Total Environment，2019，674：96-104. doi:10.1016/j.scitotenv.2019.04.115
